Stator for Sea-Doo GTS, GTX, SP, XP & SPX 580 650 720 1992-1994
Stator for Sea-Doo GTS, GTX, SP, XP & SPX 580 650 720 1992-1994
SKU:RM01383
Free shipping over £150. Terms apply
Couldn't load pickup availability

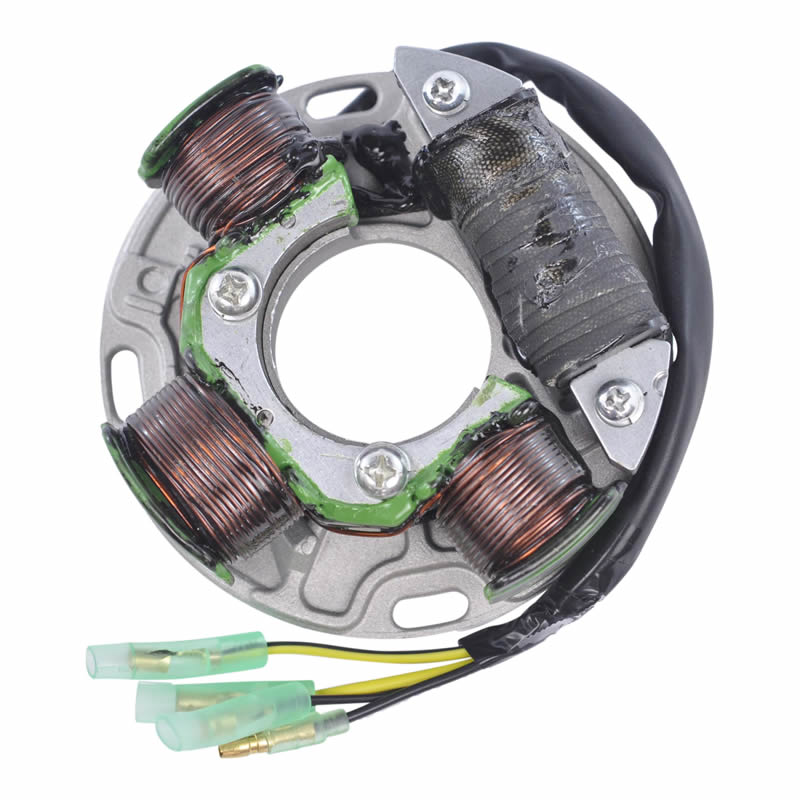

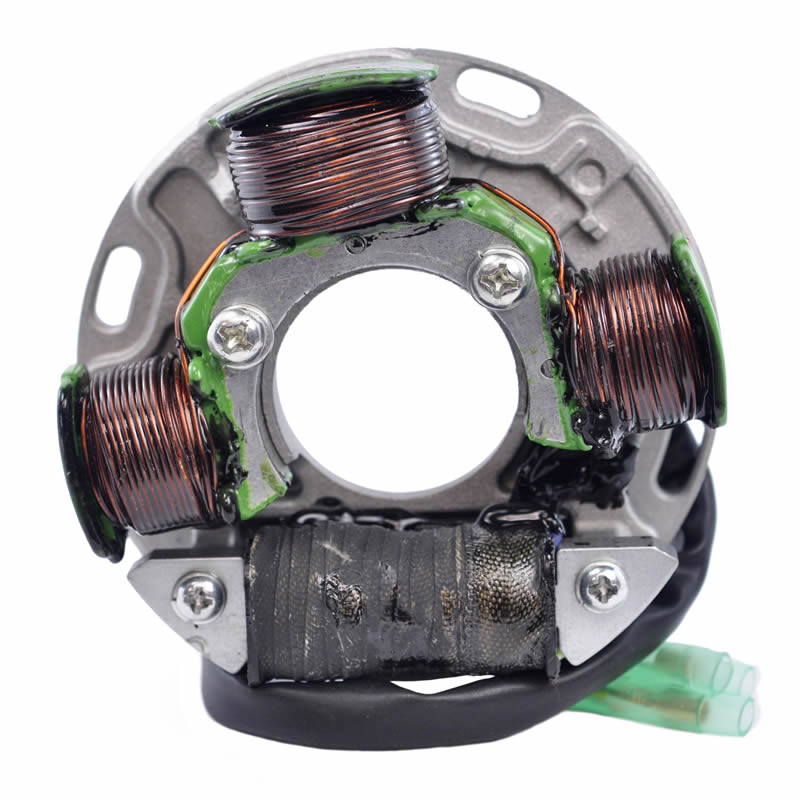

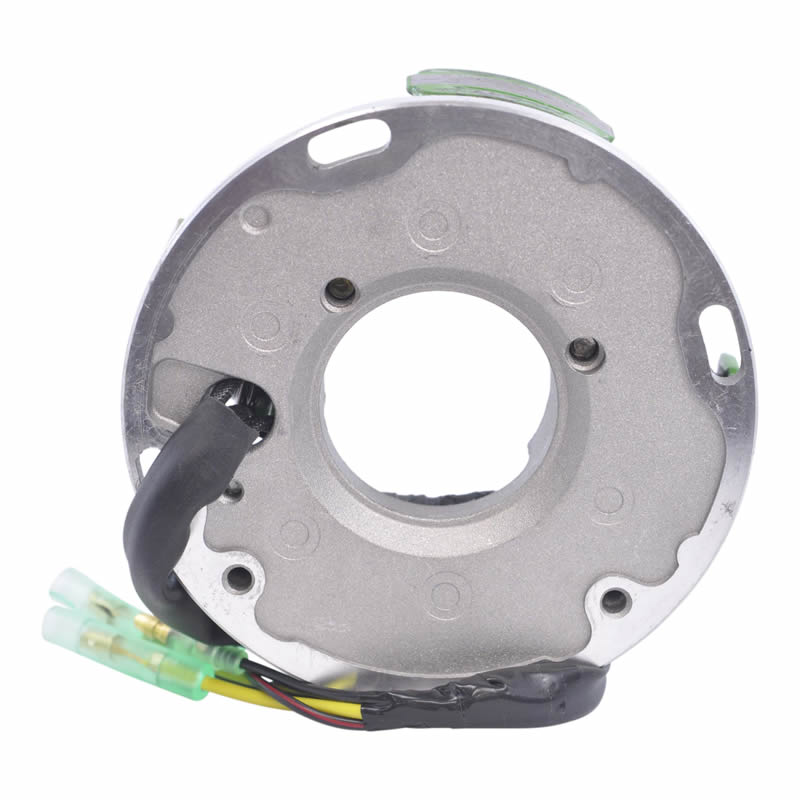

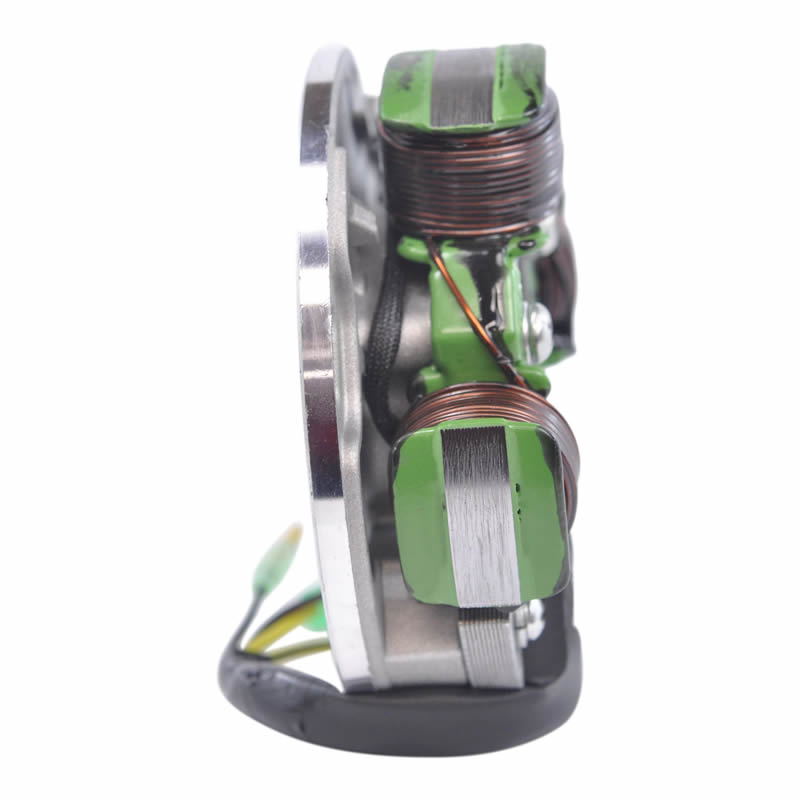

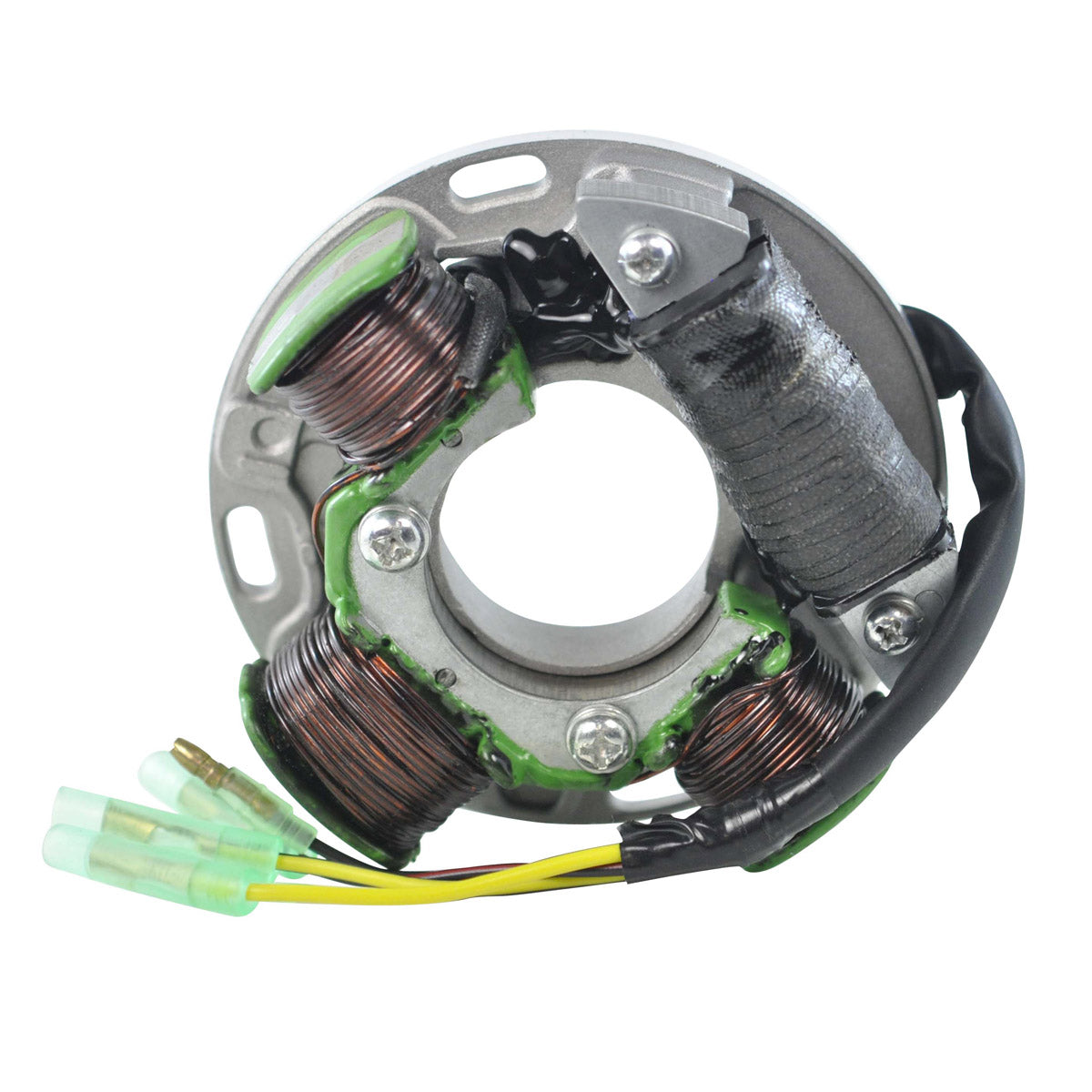

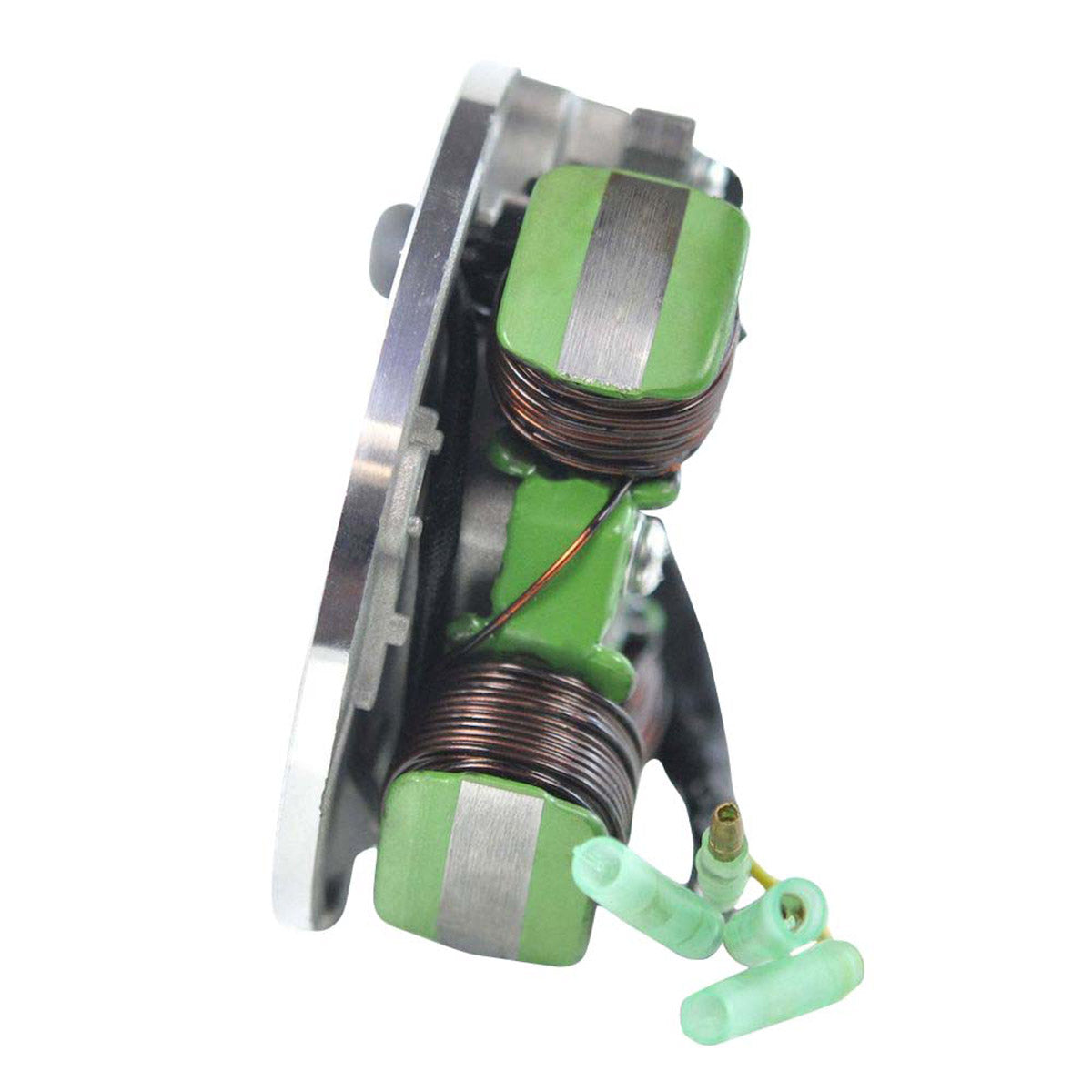

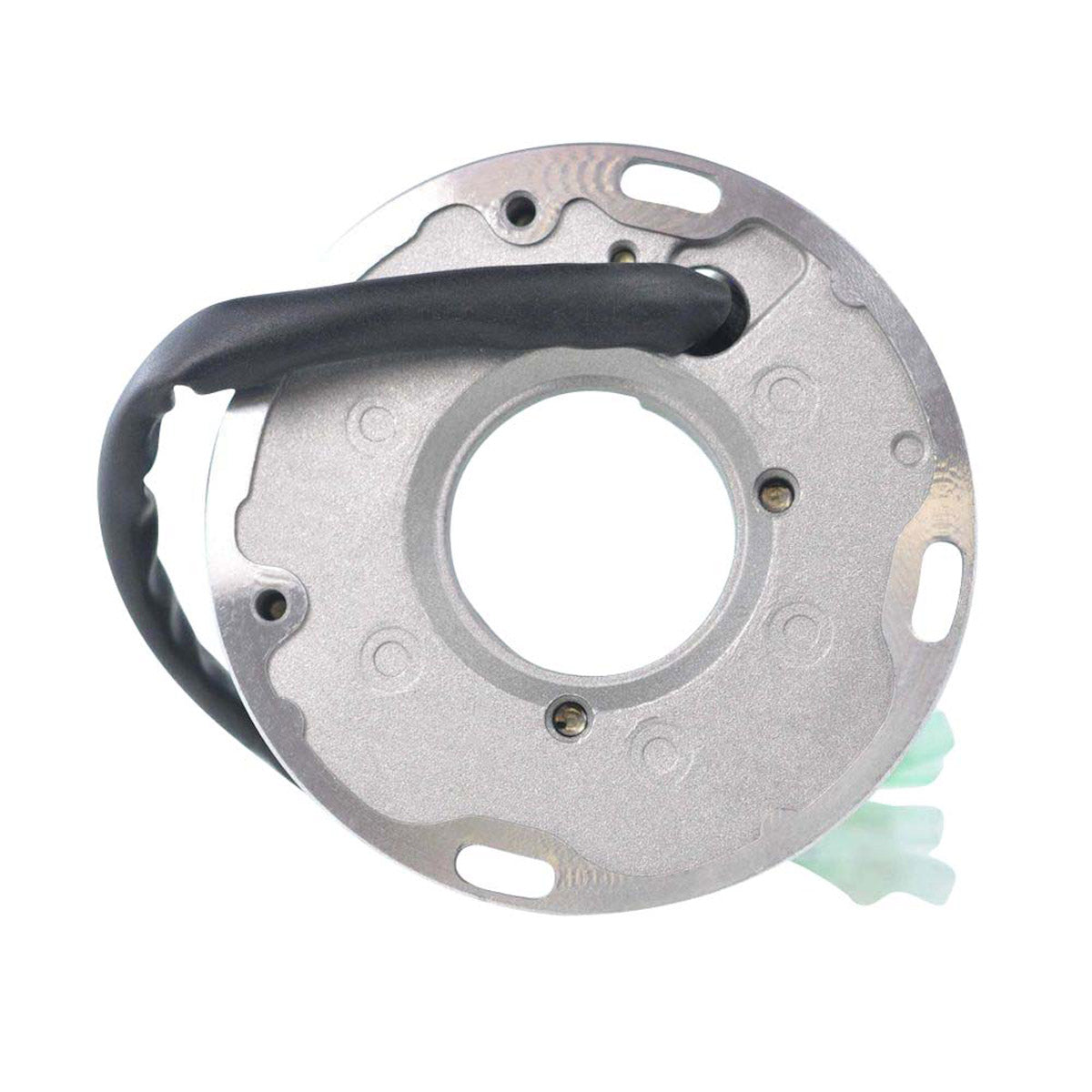

Stator for Sea-Doo GTS, GTX, SP, XP & SPX 580 650 720 1992-1994
Sea-Doo GTS, GTX, SP, SPI, XP, XPI and SPX - 580, 650 and 720 - 1992 to 1994 - RMSTATOR part RM01383
This is a brand new aftermarket stator supplied as a direct replacement for the original unit fitted to the 1992 to 1994 Sea-Doo GTS, GTX, SP, SPI, XP, XPI and SPX personal watercraft with the 580, 650 and 720 engines. It is a plug-and-play part: it mounts in the original position and its four-pin plug mates with the existing loom, so the harness does not have to be cut, spliced or re-pinned.
The stator is built on the highest grade of lamination material and wound with the highest grade of copper winding, rated to resist 200 degrees Celsius. That rating is what keeps a stator alive in a hot, enclosed watercraft engine bay, where the original units commonly fail after years of heat cycling. The connector and the back plate are supplied with the unit, and every stator is tested before it is shipped.
Key Features
- Brand new aftermarket stator, not a rewound core
- Direct replacement for the original Sea-Doo unit

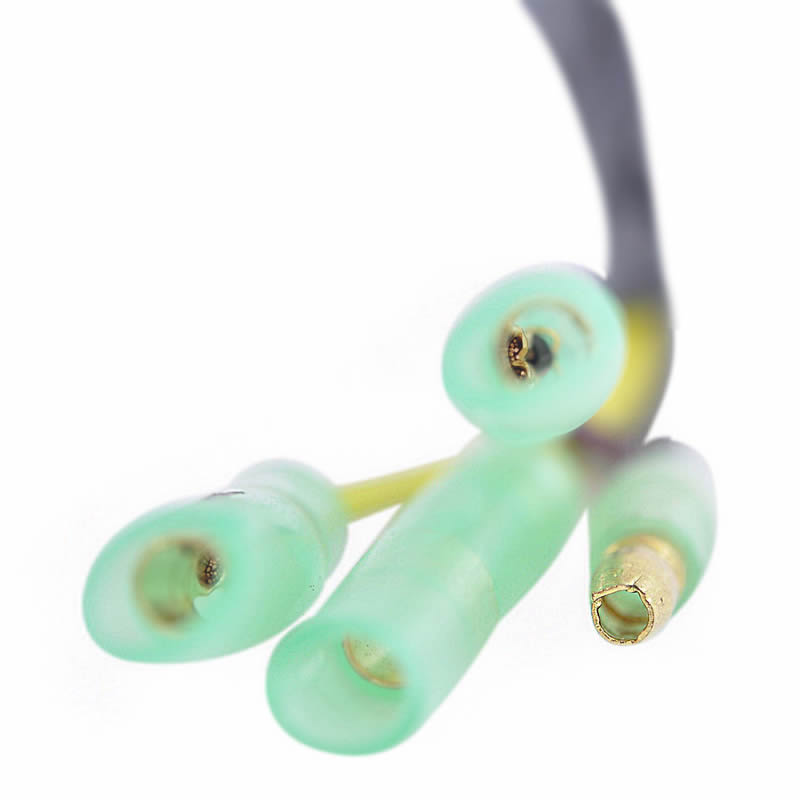

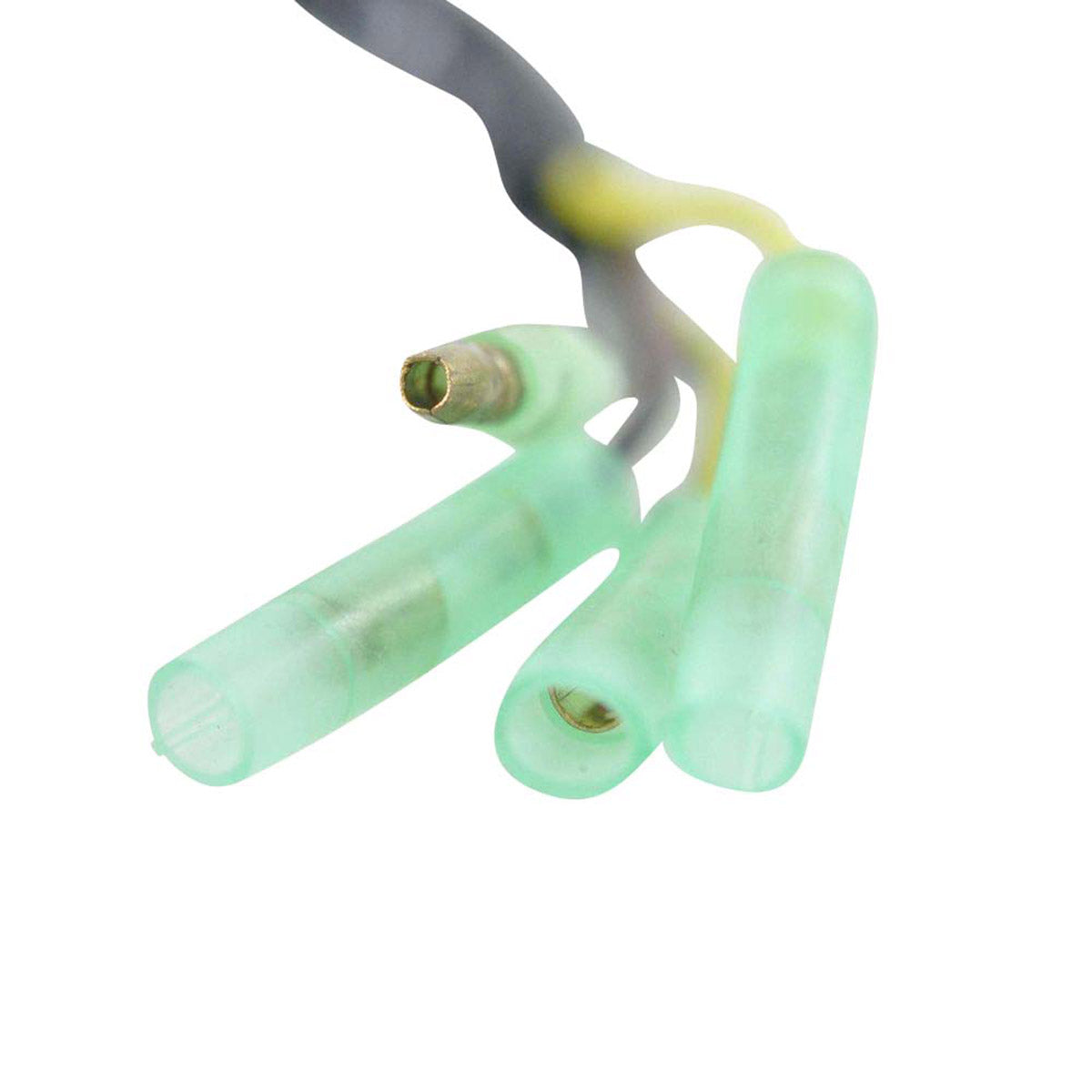

- Plug-and-play fitment with a four-pin plug
- Highest grade copper winding, resistant to 200 degrees Celsius
- Highest grade lamination material
- Carries both the alternator and the source windings
- Connector and back plate included
- Every unit tested before shipment
Technical Specs
| Specification | Detail |
|---|---|
| Interior diameter | 40 mm |
| Exterior diameter | 107 mm |
| Thickness | 25 mm |
| Wire length, stator to plug | 240 mm |
| Number of wires | 4 |
| Number of plugs | 4 |
| Number of pins | 4 |
| Alternator resistance (Yellow to Yellow/Black) | 0.4 ohms +/- 20% |
| Source resistance (Black to Black/Red) | 60 ohms +/- 20% |
| Copper winding temperature rating | 200 degrees Celsius |
| RMSTATOR part number | RM01383 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Sea-Doo GTS 580 | 1992-1994 |
| Sea-Doo GTX 580 / 650 | 1992-1994 |
| Sea-Doo SP 580 / 650 | 1992-1994 |
| Sea-Doo SPI 580 / 650 | 1992-1994 |
| Sea-Doo XP 650 | 1992-1994 |
| Sea-Doo XPI 650 | 1992-1994 |
| Sea-Doo SPX 720 | 1992-1994 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 290995109 | Sea-Doo |
| 420995109 | Sea-Doo |
| 290995103 | Sea-Doo |
Frequently Asked Questions
Does fitting this stator need any modification?
No. It is a direct replacement for the original unit and uses the same four-pin plug, so it drops into the original mounting position and connects to the standard loom without cutting or splicing.
What is included in the box?
The stator assembly, the connector and the back plate.
How do I check whether my old stator has failed?
Use a multimeter and compare the readings against the specification table above. The alternator winding should read about 0.4 ohms between the yellow and yellow/black wires and the source winding about 60 ohms between black and black/red, both within 20 per cent. A reading of zero, an open circuit, or continuity between a winding and the stator plate all indicate a failed unit.
One stator covers 580, 650 and 720 engines - is that right?
Yes. Sea-Doo used the same stator specification across the 580, 650 and 720 craft listed above for these model years, which is why the single OEM group 290995109, 420995109 and 290995103 covers them all. Check the number on the unit you are removing to confirm before ordering.
