Stator for Sea-Doo 650 XP & 650 XPI 1993-1994 - Replaces 290995104
Stator for Sea-Doo 650 XP & 650 XPI 1993-1994 - Replaces 290995104
SKU:RM01382
Free shipping over £150. Terms apply
Couldn't load pickup availability

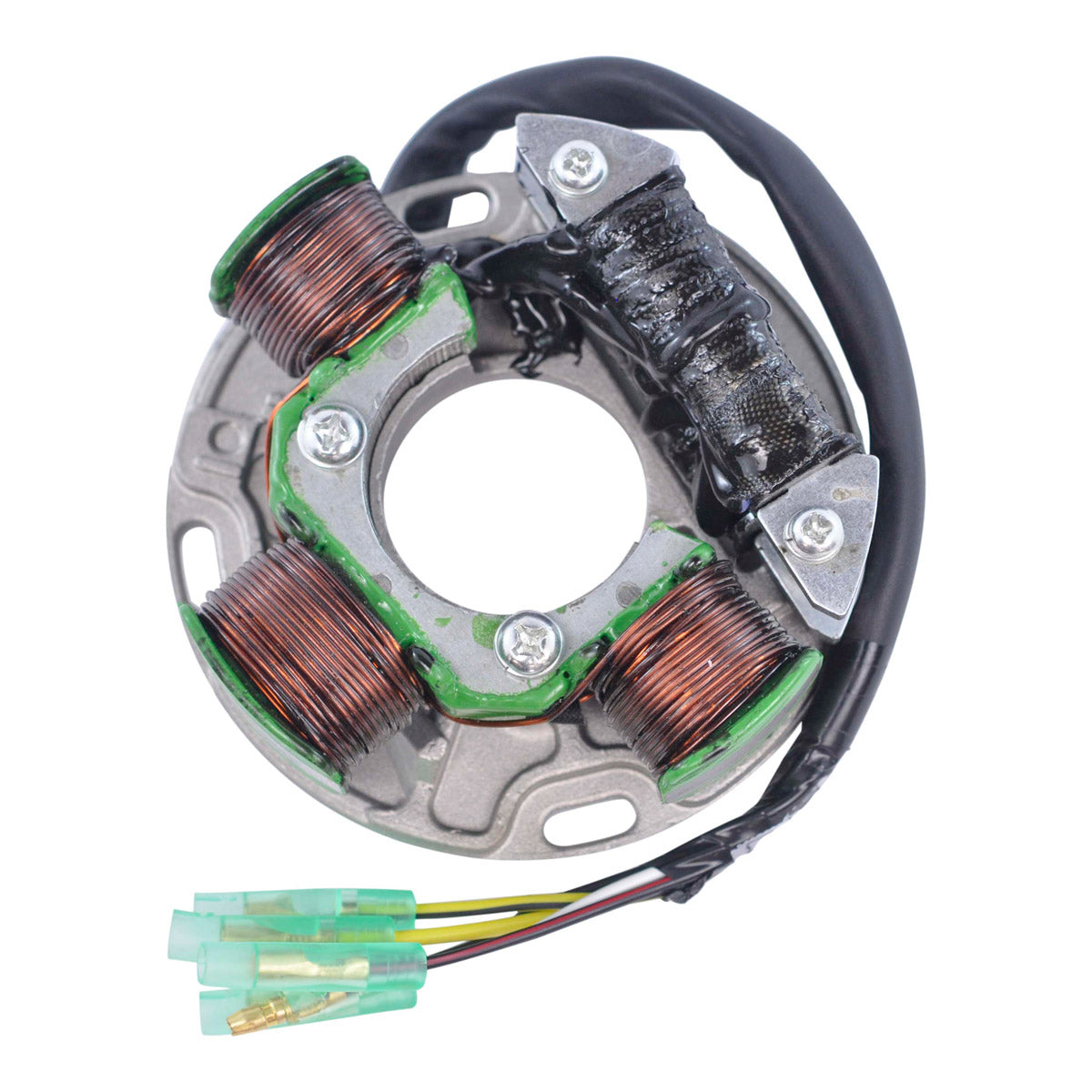

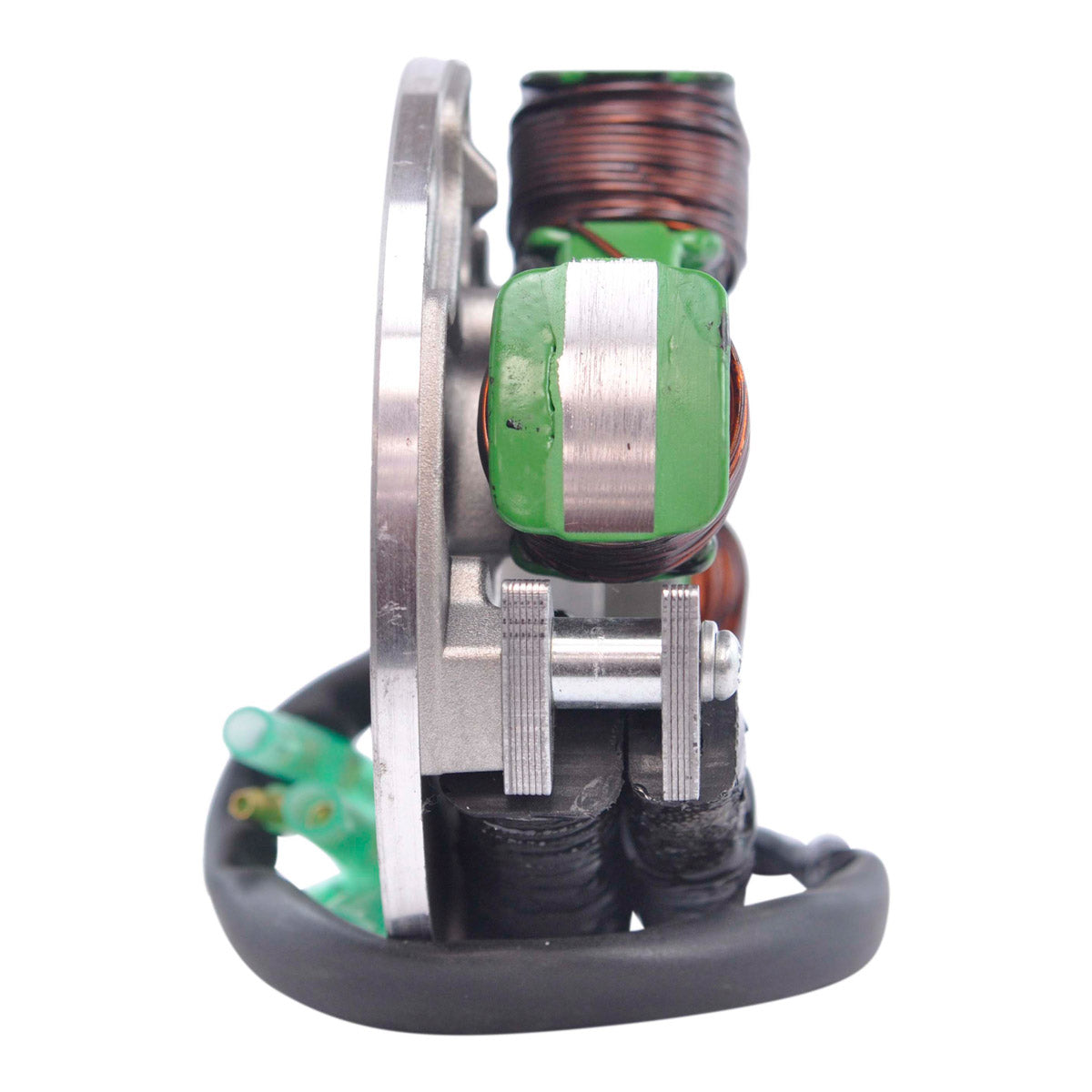

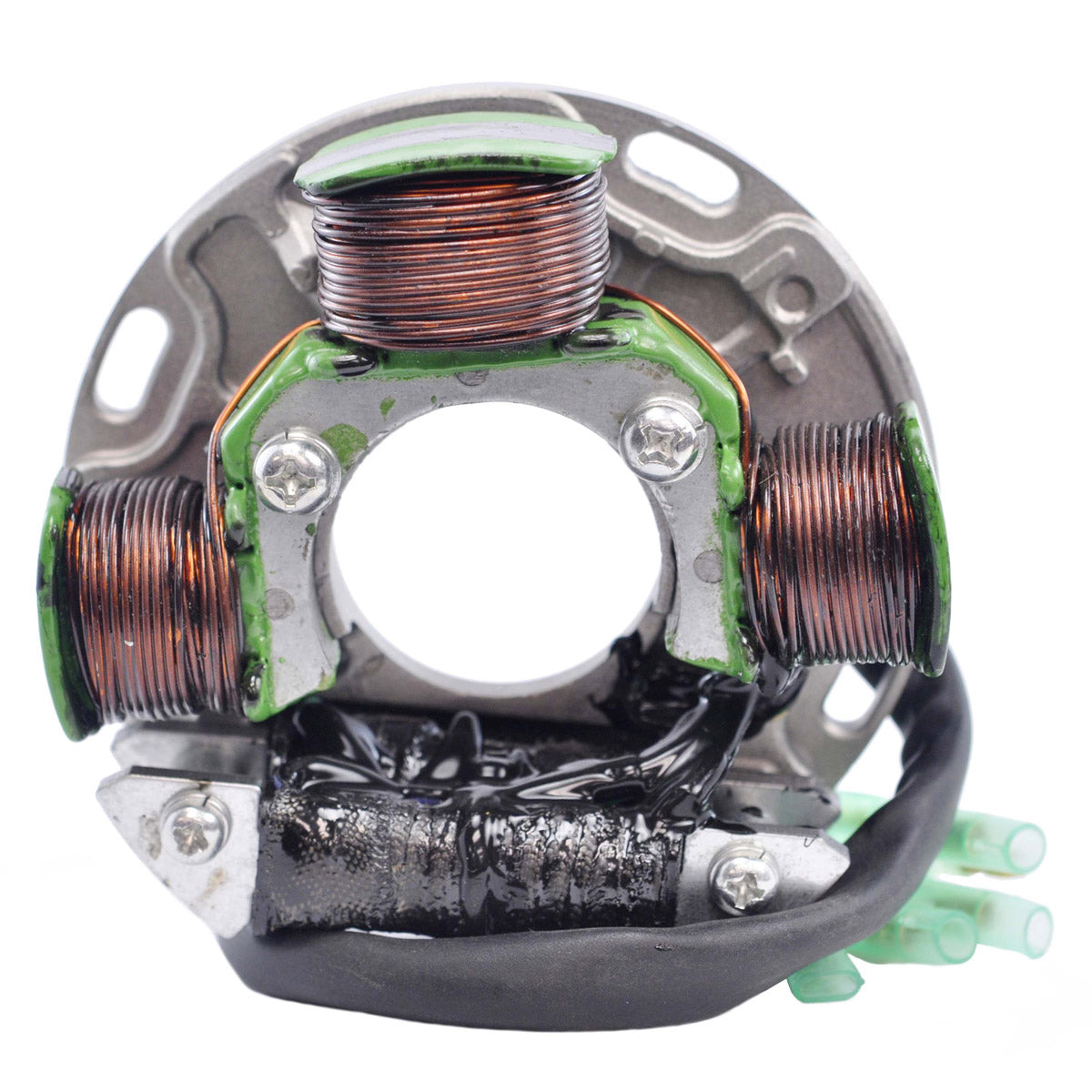

Stator for Sea-Doo 650 XP & 650 XPI 1993-1994
Sea-Doo 650 XP and 650 XPI - 1993 to 1994 - RMSTATOR part RM01382
This is a brand new aftermarket stator supplied as a direct replacement for the original charging and ignition stator fitted to the Sea-Doo 650 XP and 650 XPI personal watercraft built in 1993 and 1994. The unit is plug-and-play: it mounts in the original position and connects to the existing wiring loom, so no cutting, splicing or modification of the harness is needed to fit it.
The assembly is wound with the highest grade of copper winding, rated to resist 200 degrees Celsius, and is built on the highest grade of lamination material. A watercraft engine bay puts a stator through repeated heat cycles and constant vibration, so the winding temperature rating matters as much as the electrical output. The connector and the back plate are supplied with the stator, and every unit is tested before it is shipped.
Key Features
- Brand new aftermarket stator, not a rewound core
- Direct replacement for the original Sea-Doo unit
- Plug-and-play fitment, no harness modification
- Highest grade copper winding, resistant to 200 degrees Celsius
- Highest grade lamination material
- Carries the alternator, position sensor and source coil windings on one plate

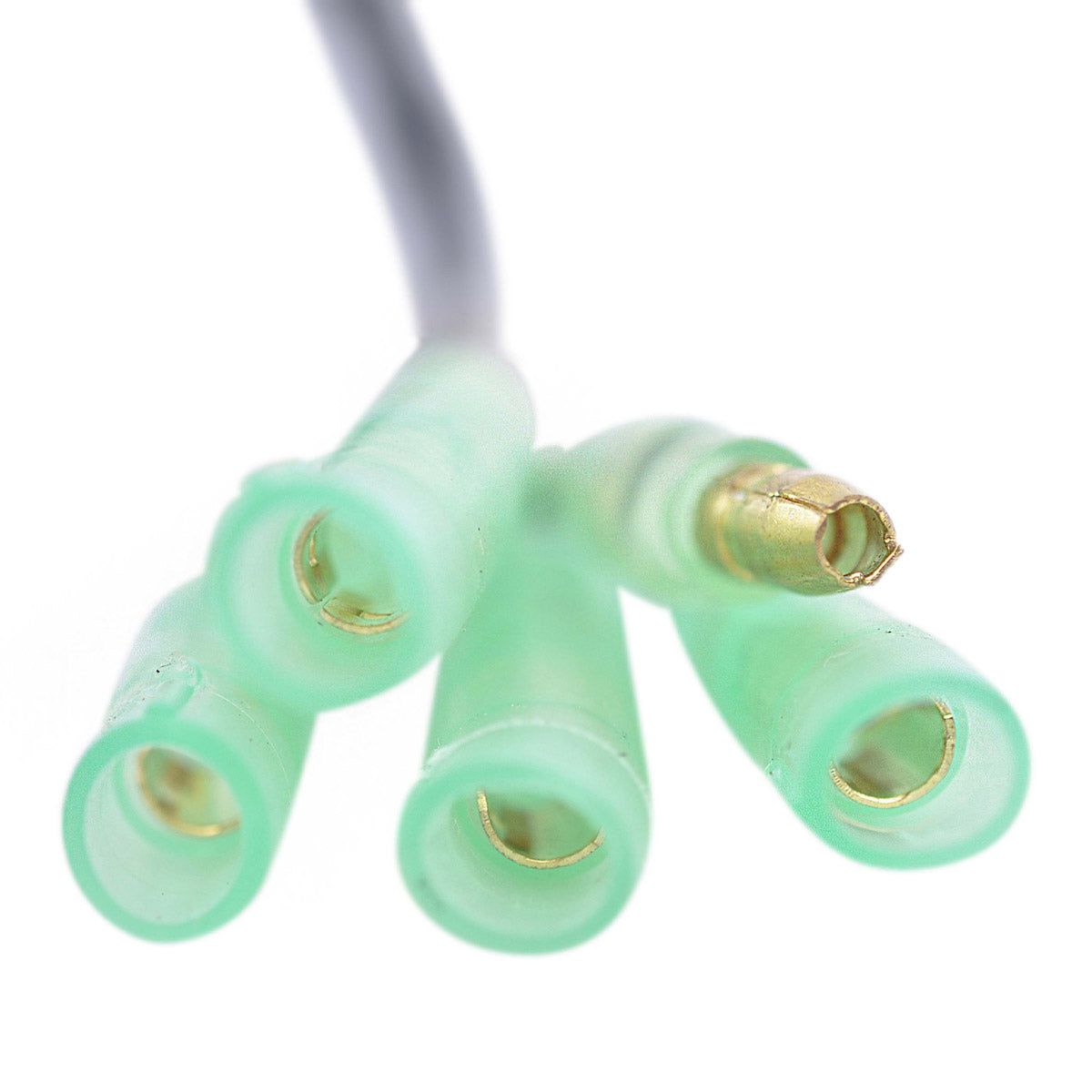

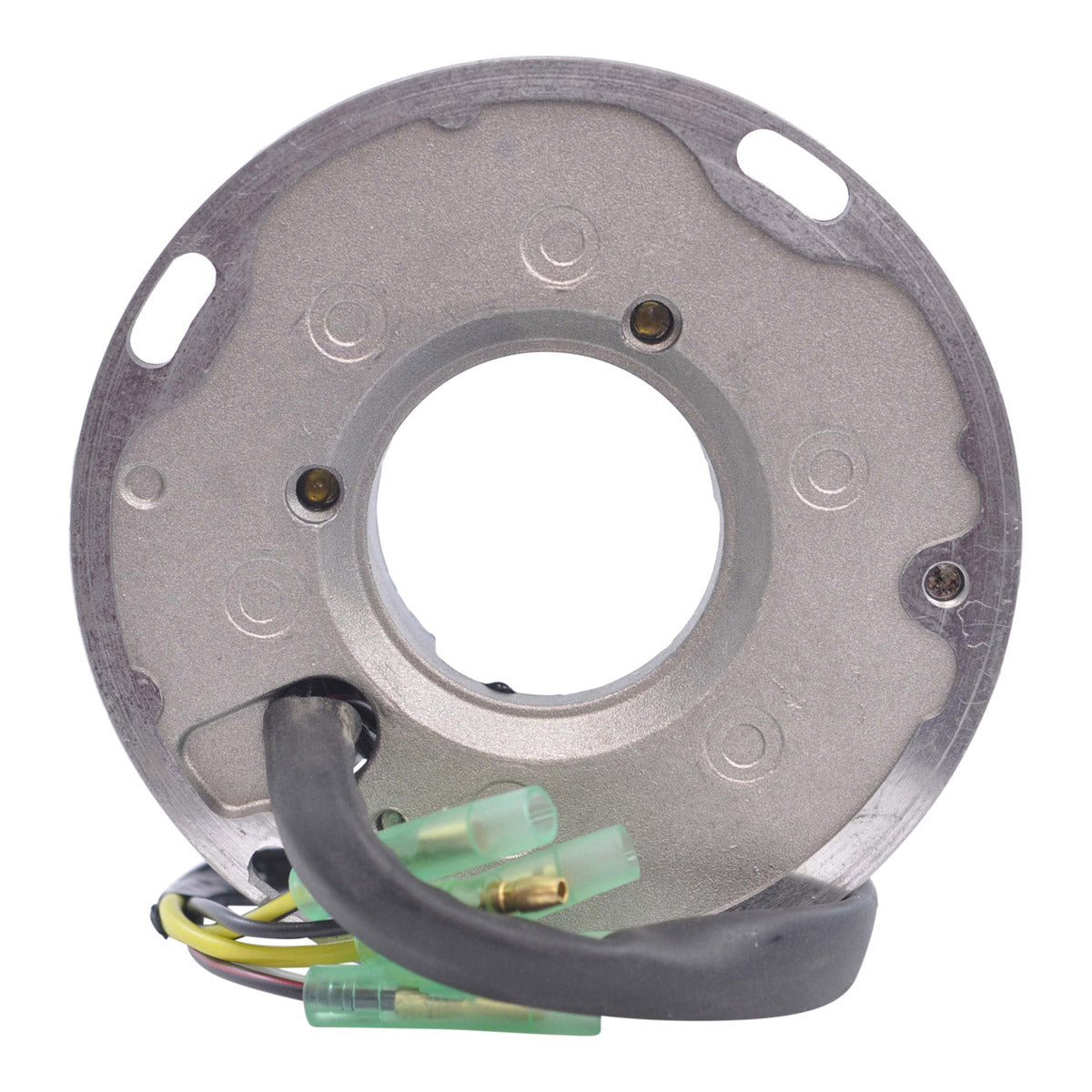

- Connector and back plate included
- Every unit tested before shipment
Technical Specs
| Specification | Detail |
|---|---|
| Alternator resistance (Yellow to Yellow/Black) | 0.8 ohms +/- 20% |
| Position sensor resistance (White to Black/Red) | 0.4 ohms |
| Source 1 resistance (Black to Black/Red) | 150 ohms |
| Copper winding temperature rating | 200 degrees Celsius |
| Supplied with | Connector and back plate |
| RMSTATOR part number | RM01382 |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Sea-Doo 650 XP | 1993-1994 |
| Sea-Doo 650 XPI | 1993-1994 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 290995104 | Sea-Doo |
Frequently Asked Questions
Will this stator fit without modifying my watercraft?
Yes. It is built as a direct replacement for the original unit on the 1993 and 1994 Sea-Doo 650 XP and 650 XPI. It mounts in the original position and the supplied connector matches the standard loom, so no cutting or splicing of the harness is required.
What is included in the box?
The stator assembly, the connector and the back plate. Installation documentation is supplied with the part.
How can I tell whether my old stator has failed?
Measure the windings with a multimeter and compare the readings against the specification table above. On this unit the alternator winding should read about 0.8 ohms between the yellow and yellow/black wires, the position sensor about 0.4 ohms between white and black/red, and the source coil about 150 ohms between black and black/red. Readings well outside those figures, or continuity between any winding and the stator plate, point to a failed stator.
Does this unit replace part number 290995104?
Yes. This stator is the aftermarket equivalent of 290995104 for the models and years listed above. Always check the number printed on the unit you are removing before ordering, as some craft were built with more than one specification over a production run.
