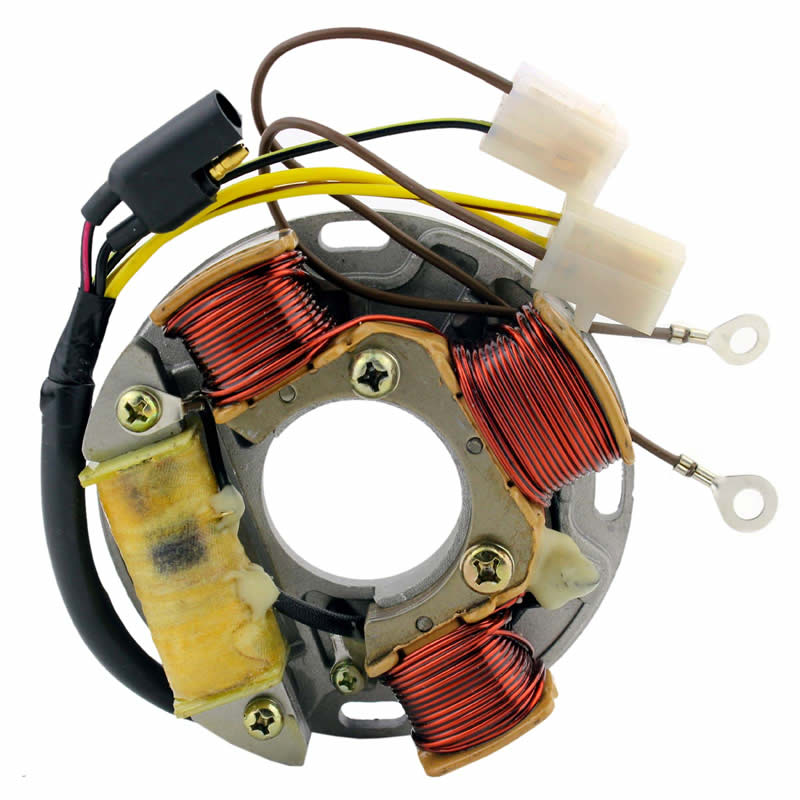

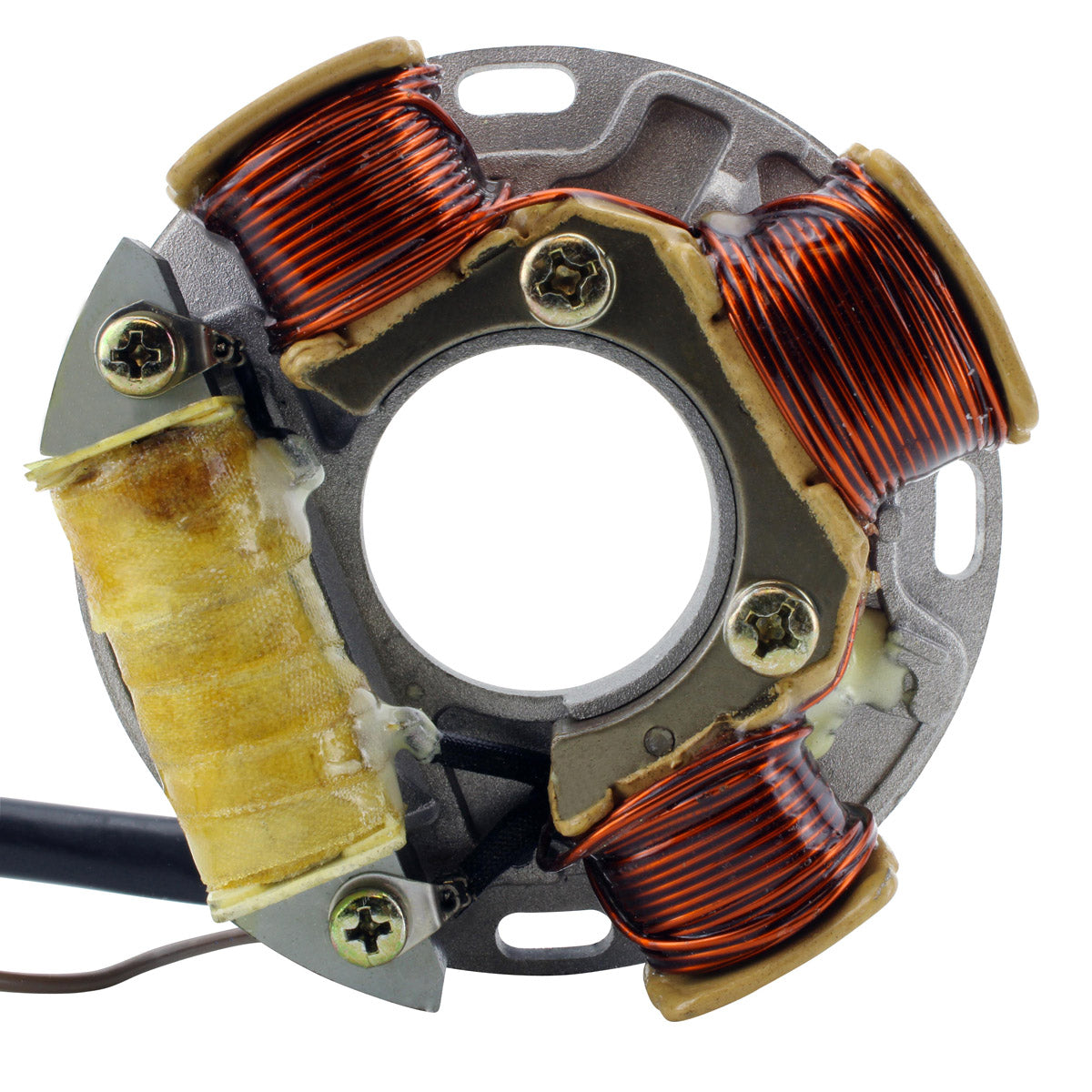

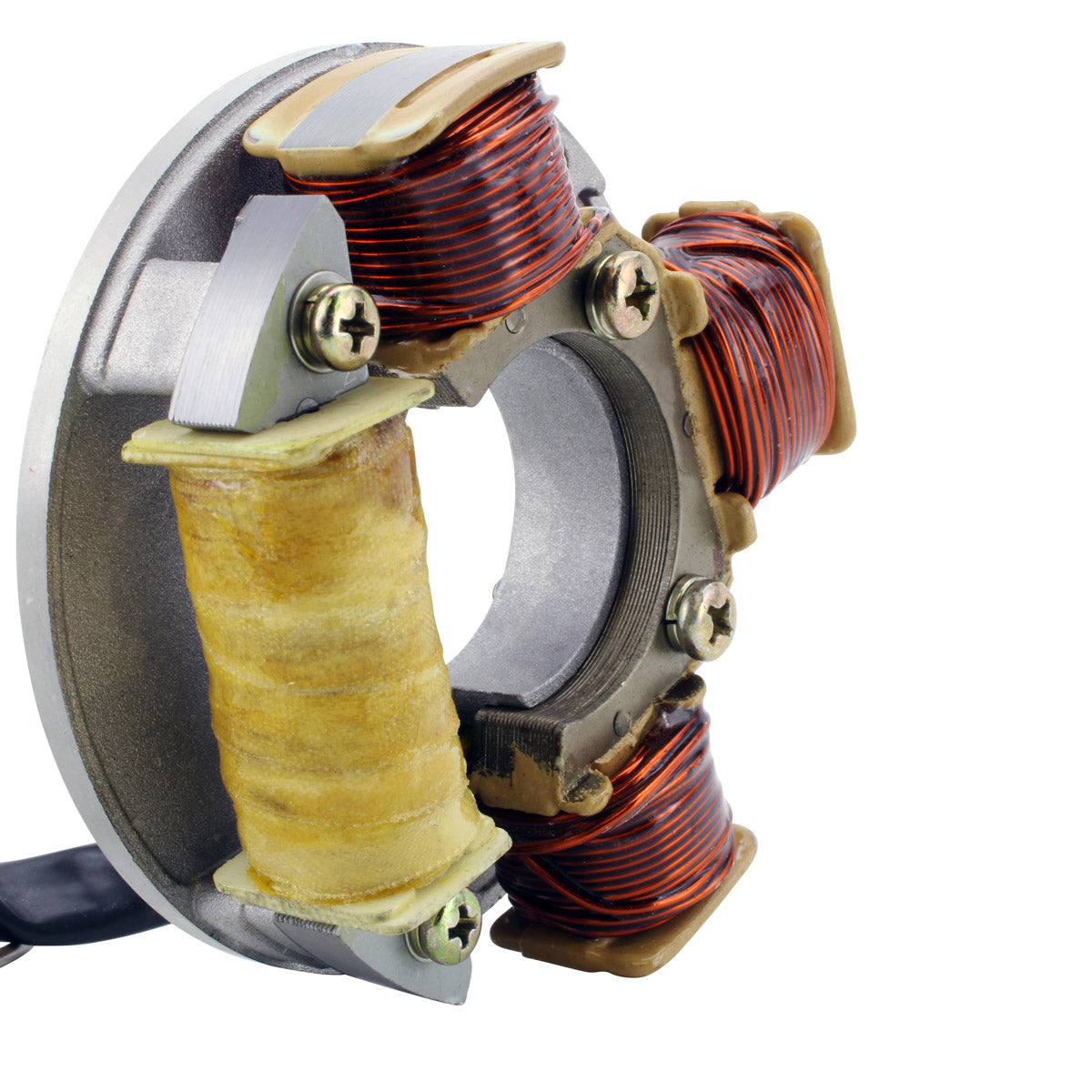

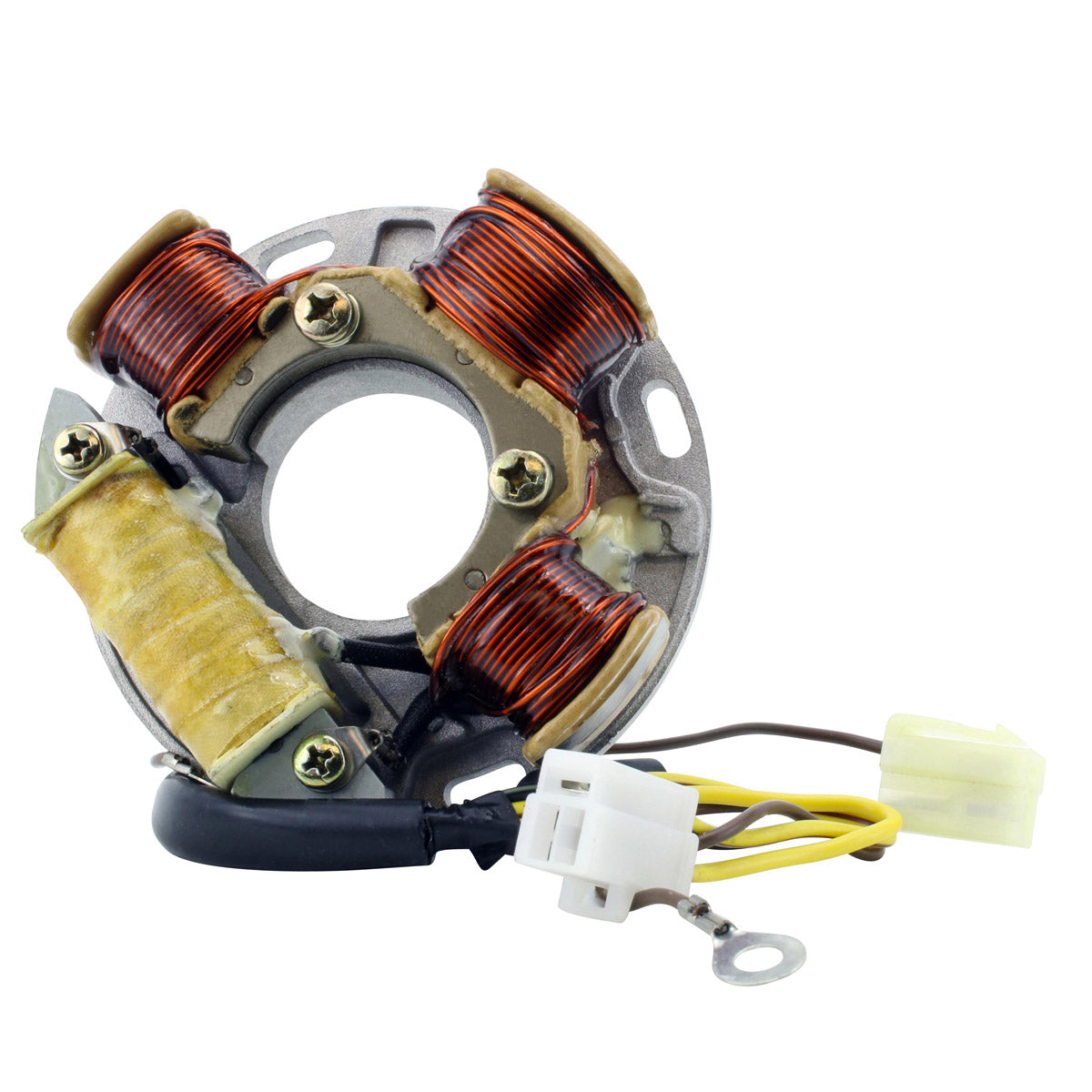

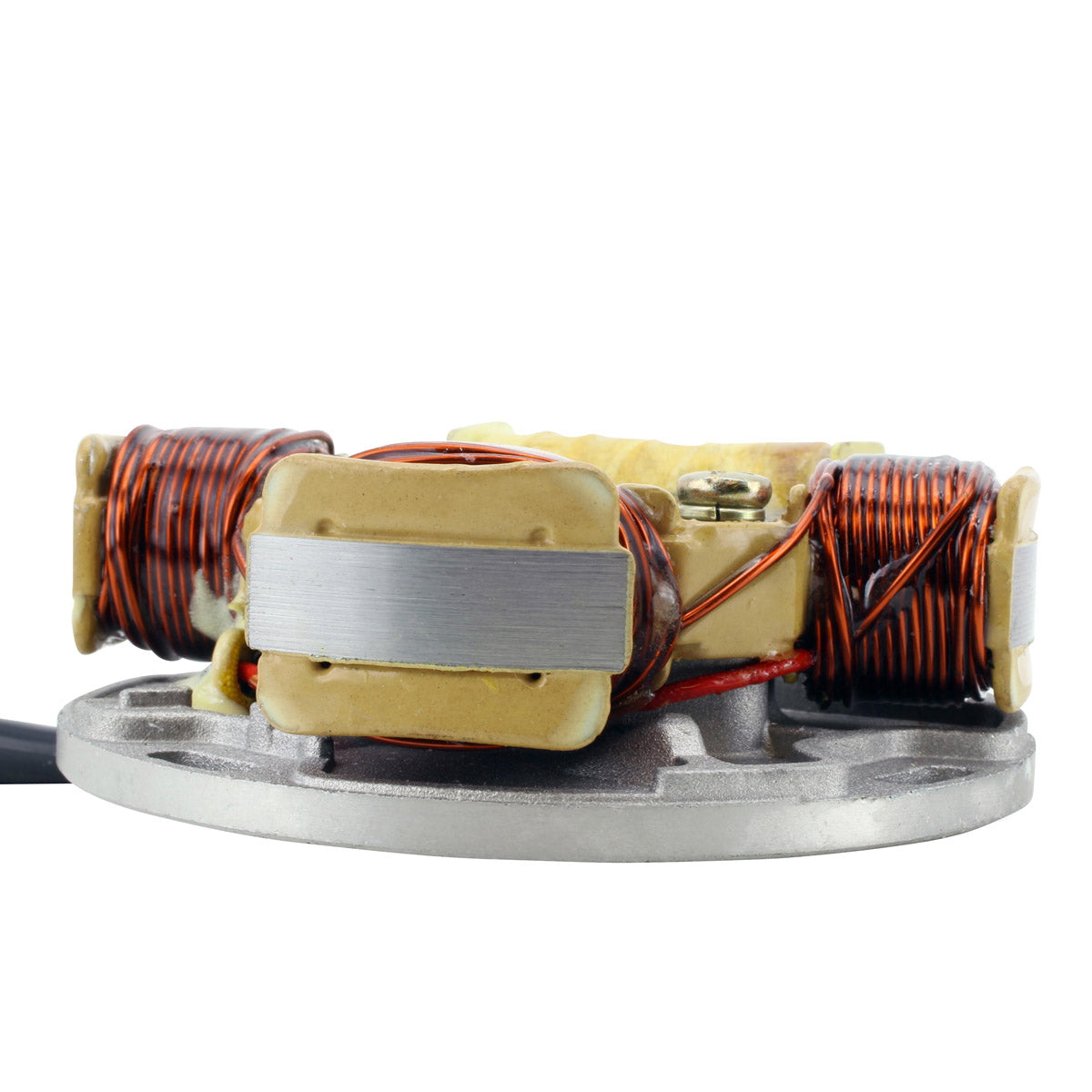

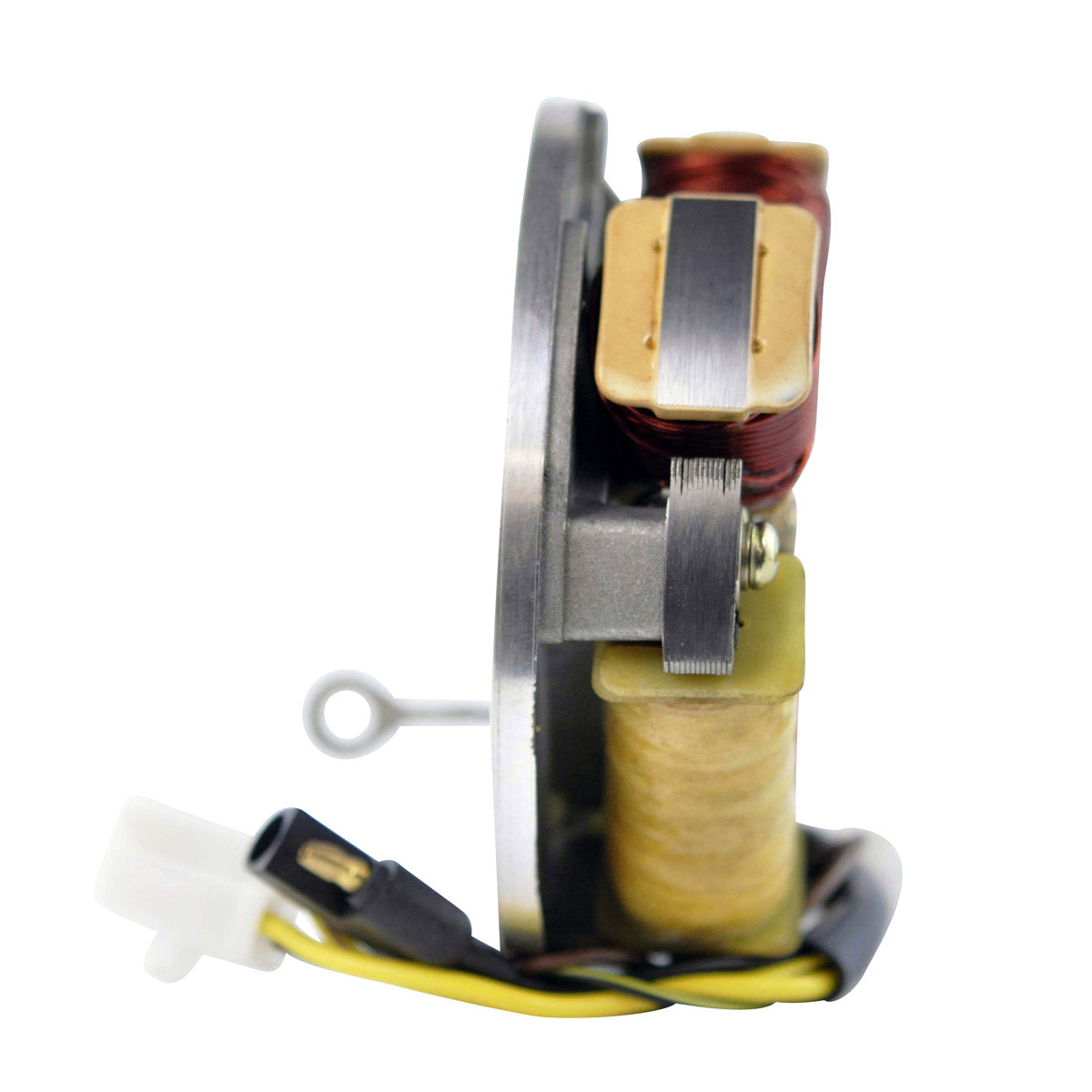

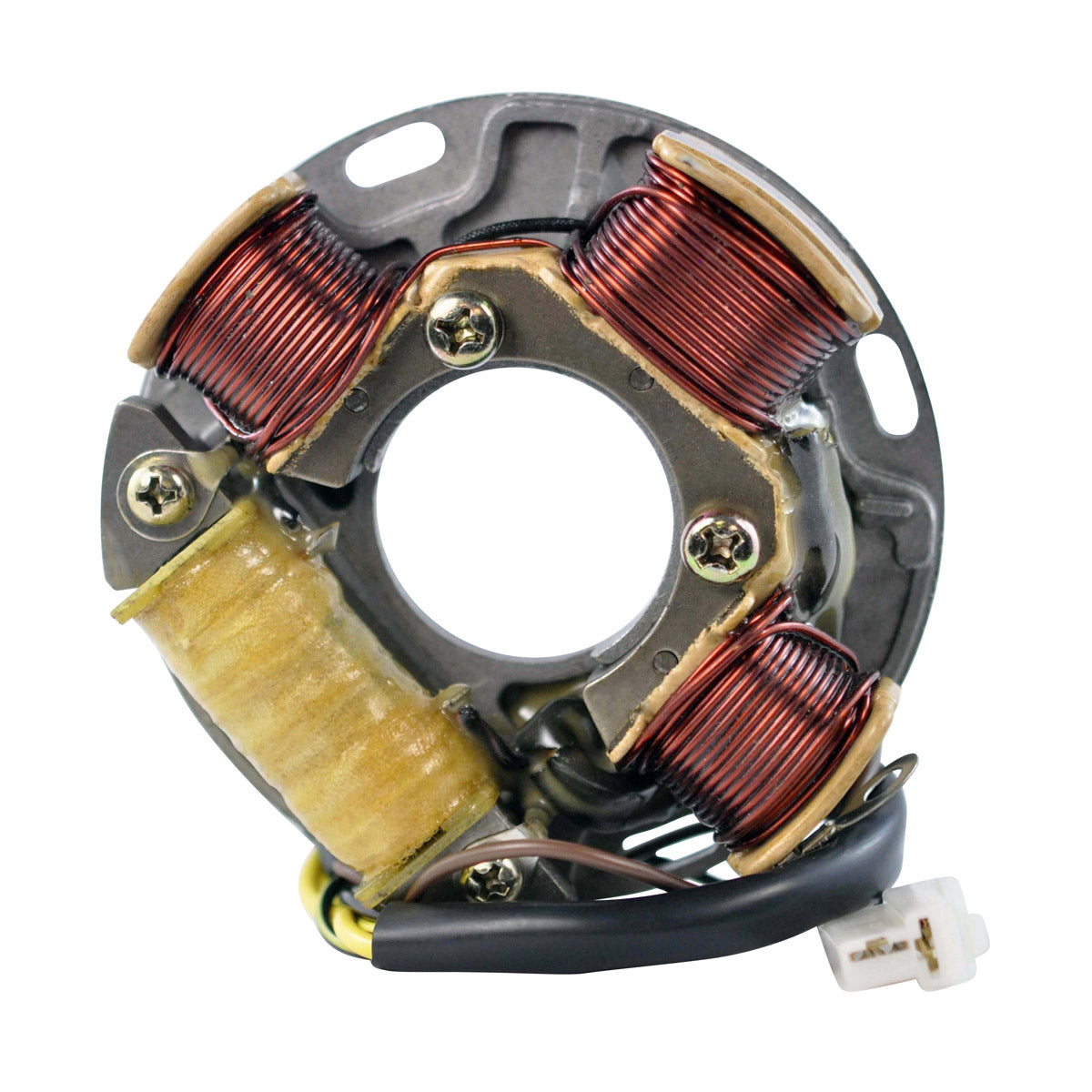

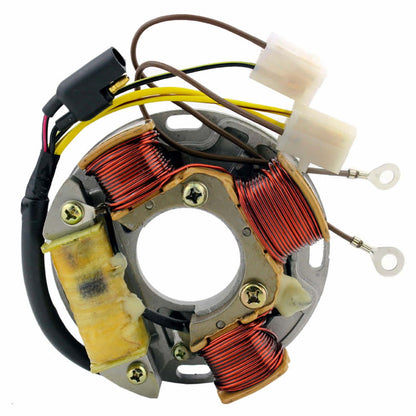

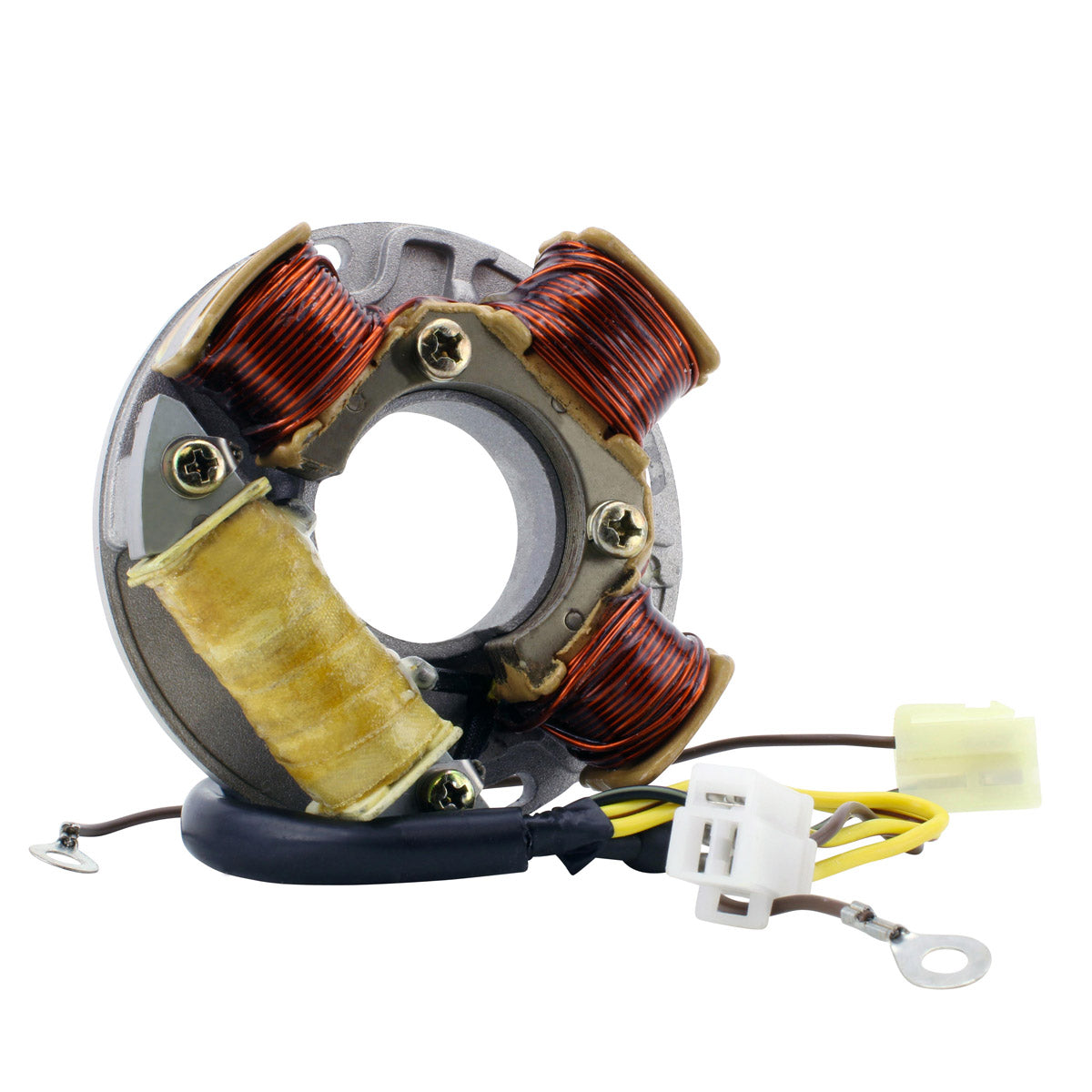

This is a brand new stator, built as a direct replacement for the original unit fitted to the Ski-Doo Formula MX 467 and 537, Nordik 50 and 60, Safari 377 and 467, and Tundra 250 between 1987 and 1992. It is plug-and-play and a direct fit, so it goes back in the original position and plugs into the existing loom with no cutting or rewiring.
The stator is built on the highest grade lamination materials and wound with the highest grade copper windings, resistant to 200 degrees Celsius - heat resistance is what an original unit usually loses first after years of service under the flywheel. Both the connector and the back plate are included, so the part arrives ready to fit, and all product shipped is tested before dispatch. The unit measures 108 mm on the exterior diameter with a 43 mm interior diameter and an 18 mm thickness, on 200 mm wire lengths.
Key Features
- Brand new stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius

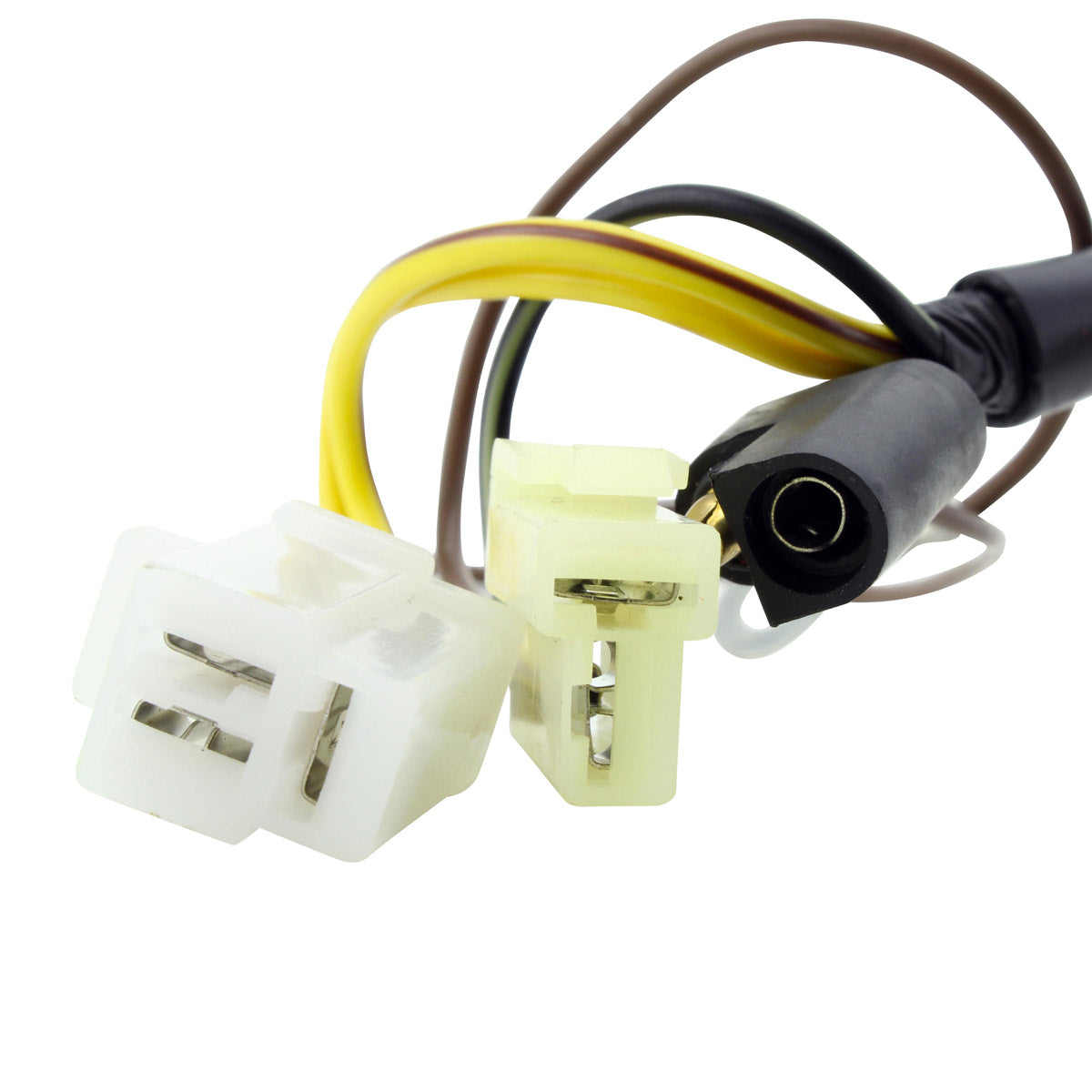

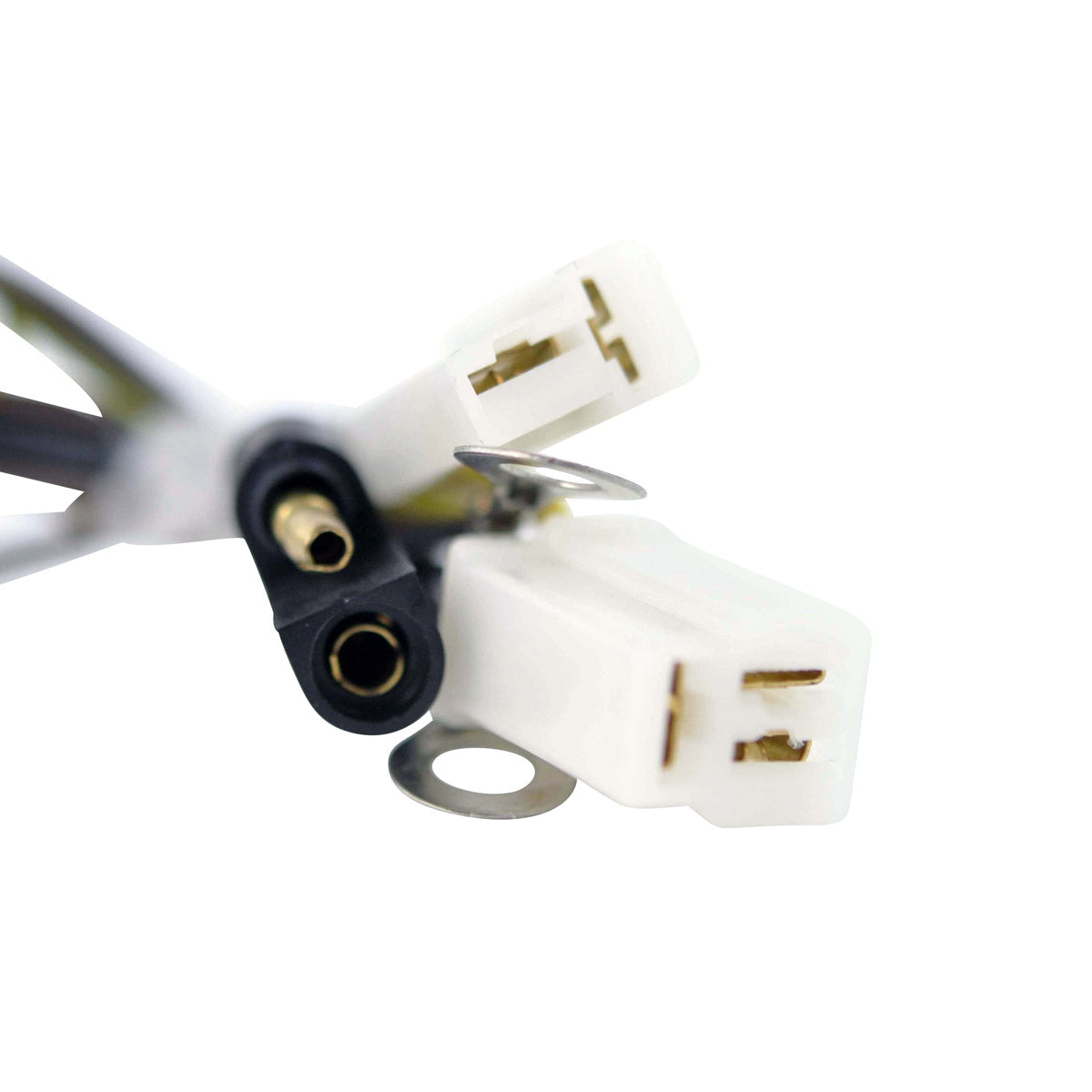

- Connector included

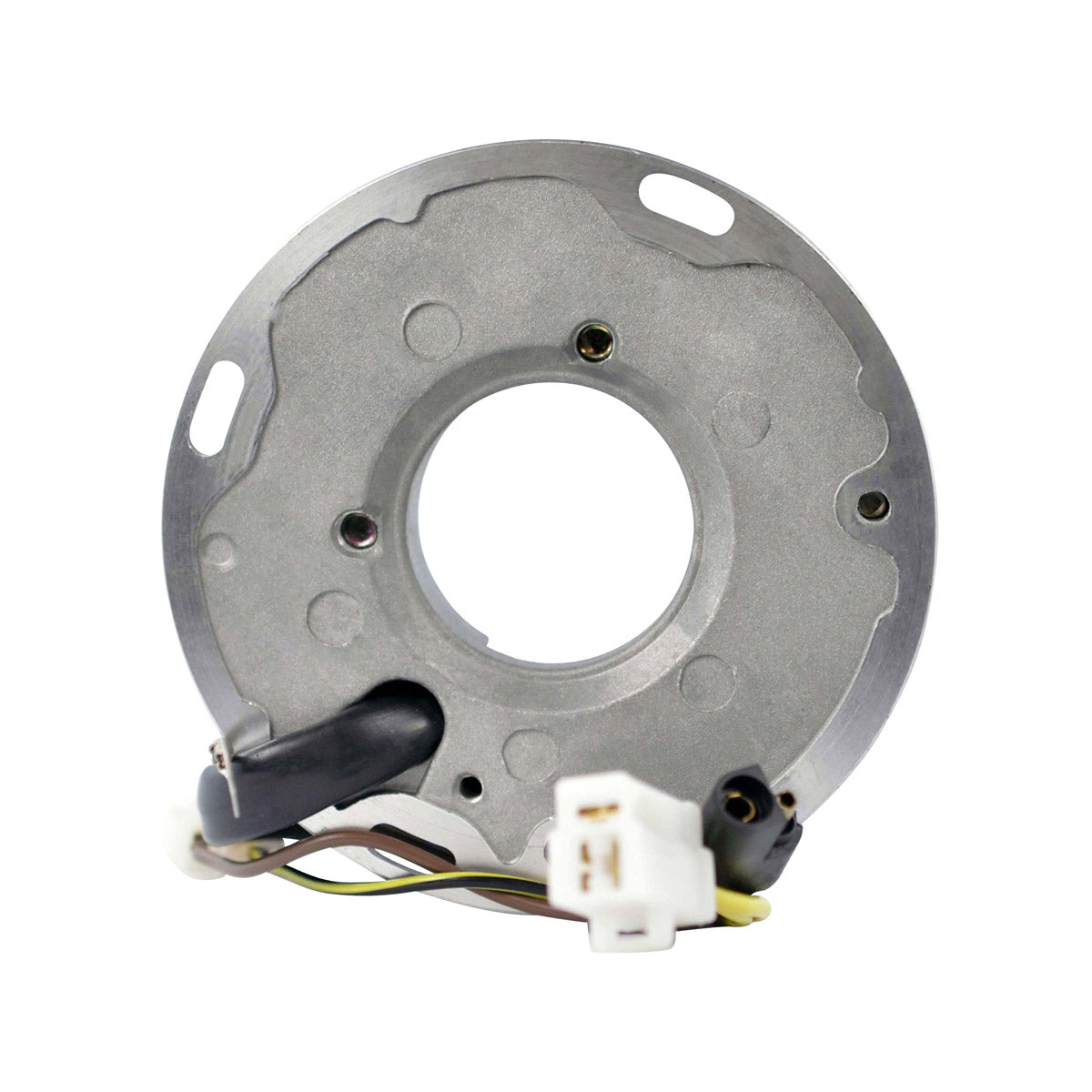

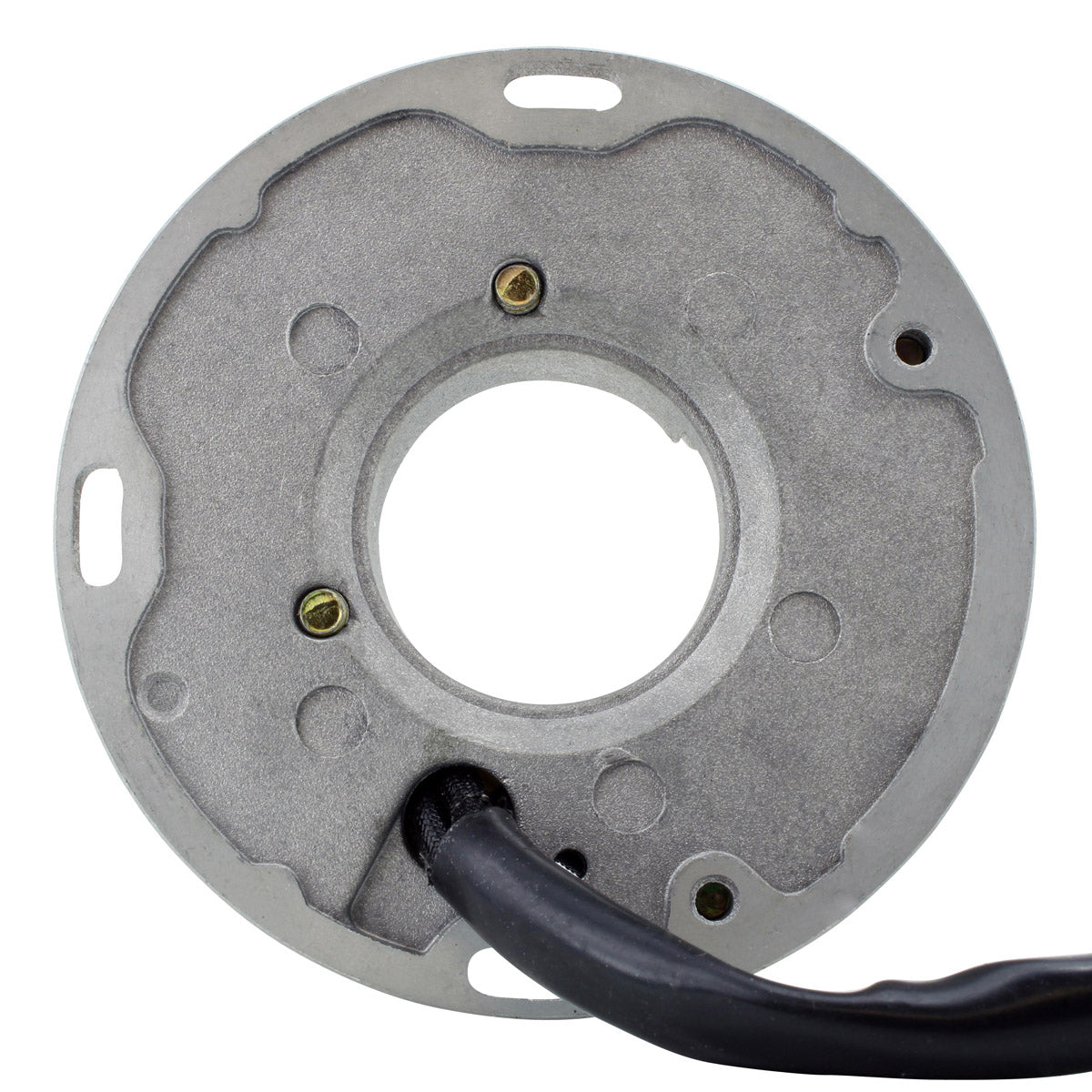

- Back plate included
- All product shipped are tested
Technical Specs
| Specification |
Detail |
| Part number |
RM01099 |
| Interior diameter |
43 mm |
| Exterior diameter |
108 mm |
| Thickness |
18 mm |
| Wire length |
200 mm |
| Alternator resistance (Yellow to Yellow/Brown) |
0.4 ohms +/-20% |
| Source resistance (Black to Black/Red) |
78 ohms +/-20% |
| Copper winding temperature rating |
200 degrees Celsius |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Ski-Doo Formula MX 467 537 |
1987-1992 |
| Ski-Doo Nordik 50 60 |
1987-1992 |
| Ski-Doo Safari 377 467 |
1987-1992 |
| Ski-Doo Tundra 250 |
1987-1992 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 410912500 |
Ski-Doo |
| 410914700 |
Ski-Doo |
Frequently Asked Questions
Will this stator fit without modification?
Yes. It is a direct replacement for the original unit on the models and years listed above, it is plug-and-play and it mounts in the original position, so no cutting or rewiring is required. Confirm the OEM number on your existing unit against the cross reference table before ordering.
What is included?
The stator, the connector and the back plate. All product shipped is tested before dispatch.
How do I tell whether my old stator has failed?
Look for a battery that will not stay charged, dim or flickering lights, a weak spark or an engine that cuts out under load. The definitive check is a wire-to-wire resistance test against the specification table above - a reading well outside the stated tolerance, or an open circuit, indicates a failed winding.
What resistance readings should this unit give?
The alternator winding reads approximately 0.4 ohms +/-20% from Yellow to Yellow/Brown, and the source coil reads approximately 78 ohms +/-20% from Black to Black/Red.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
