Stator for Ski-Doo Citation, Formula Mach 1 and Tundra
Fits Ski-Doo Citation 250, Formula Mach 1 583, Mach 1 600 / 617 and Tundra 250 1989-1993 - RMSTATOR part RM01094

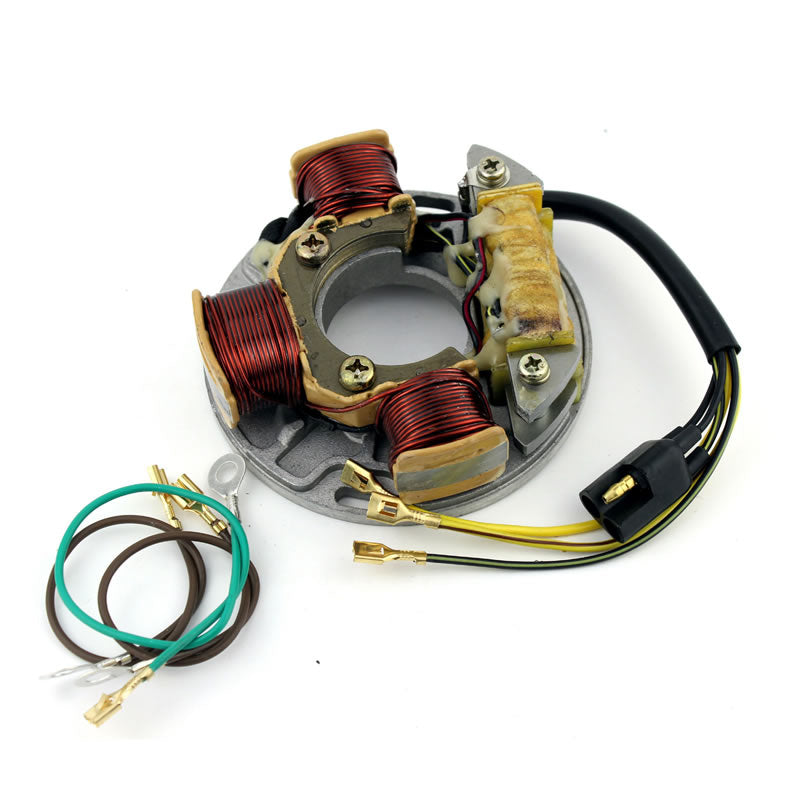

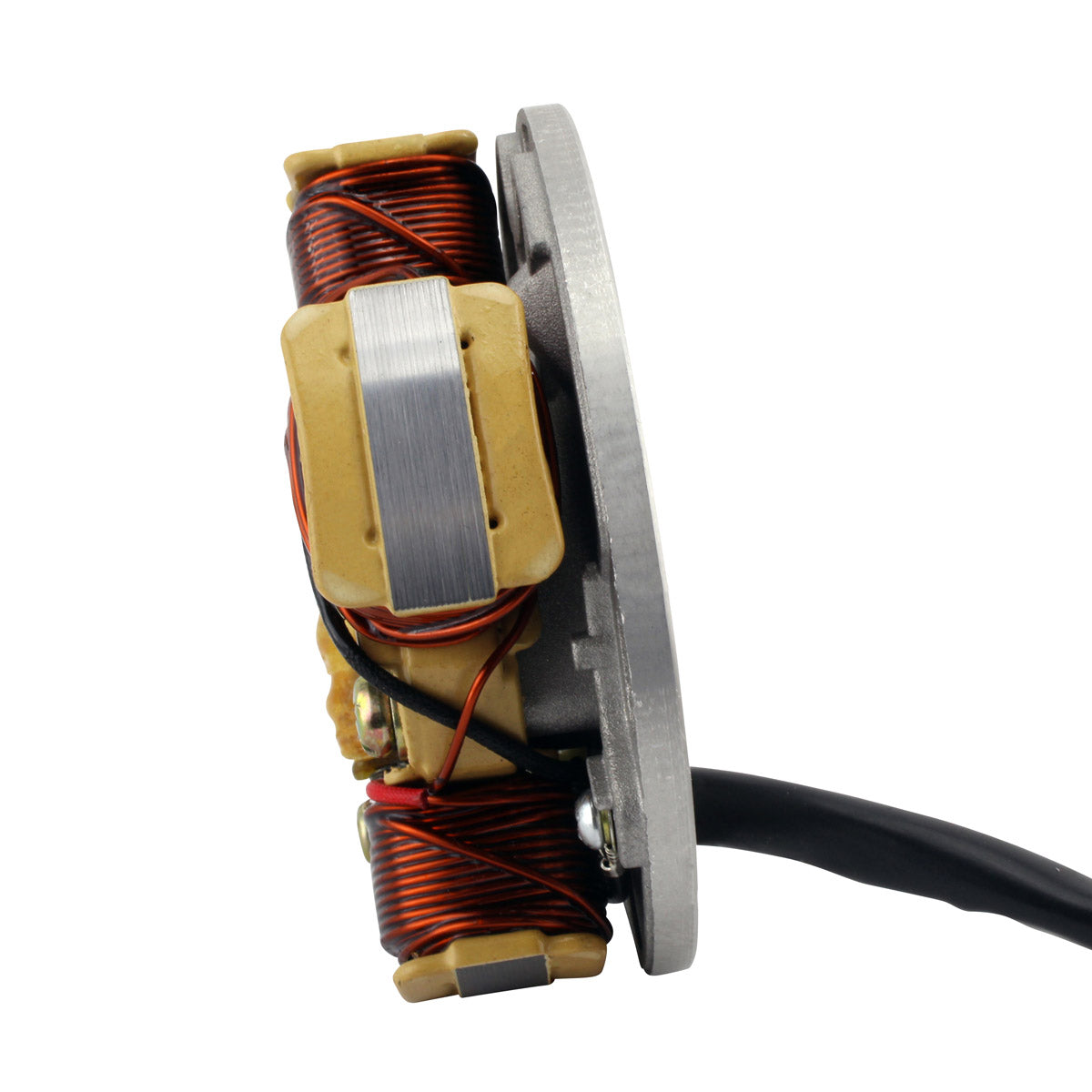

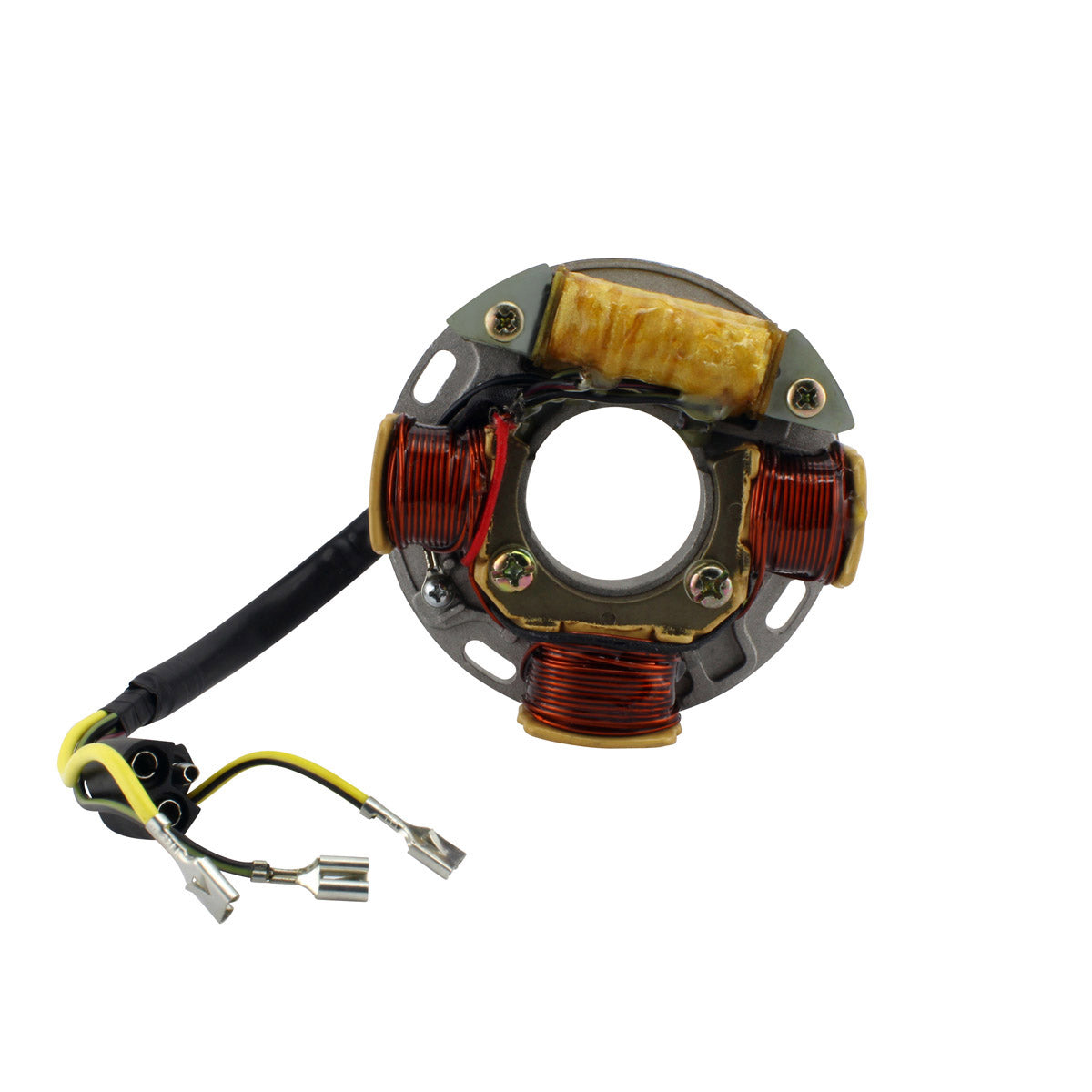

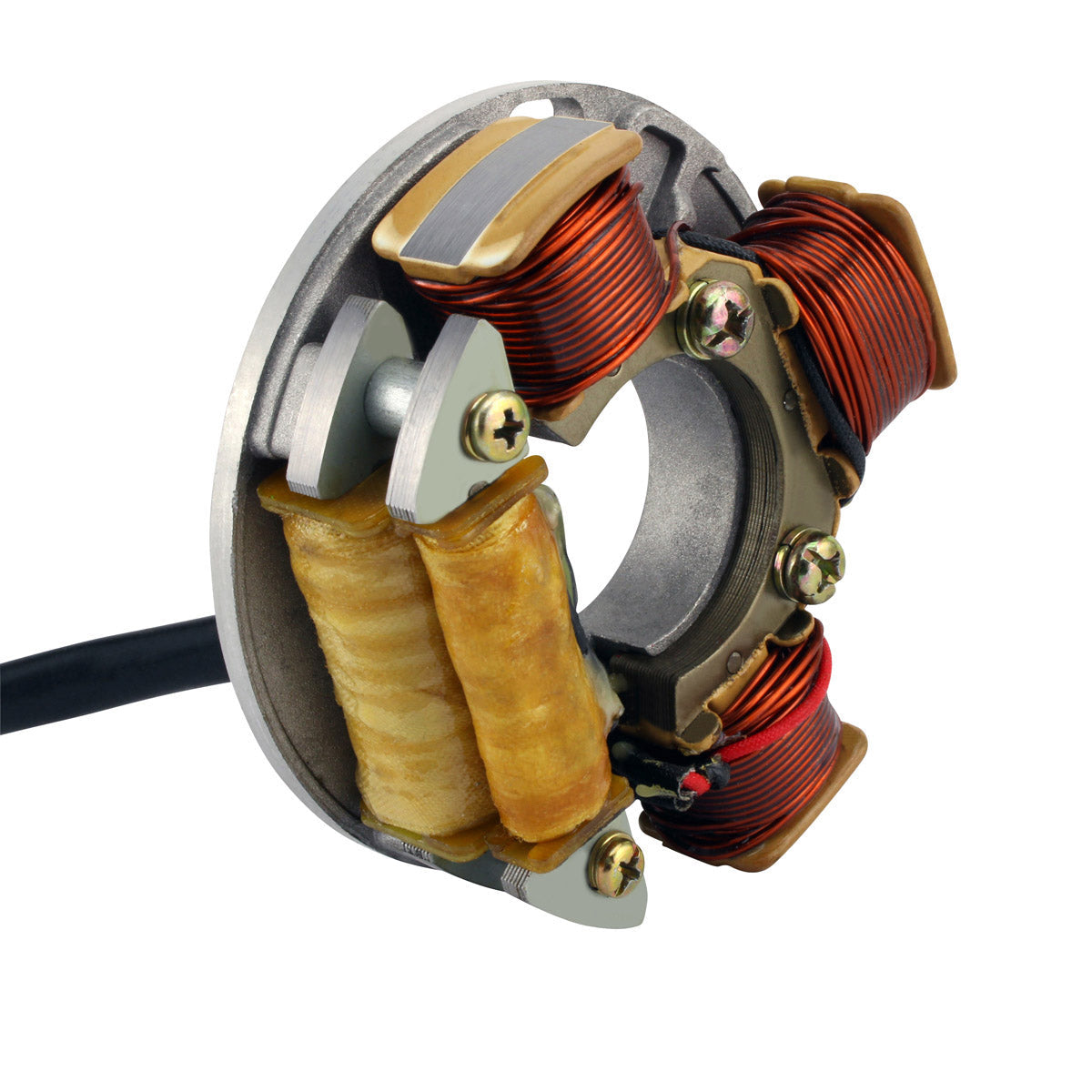

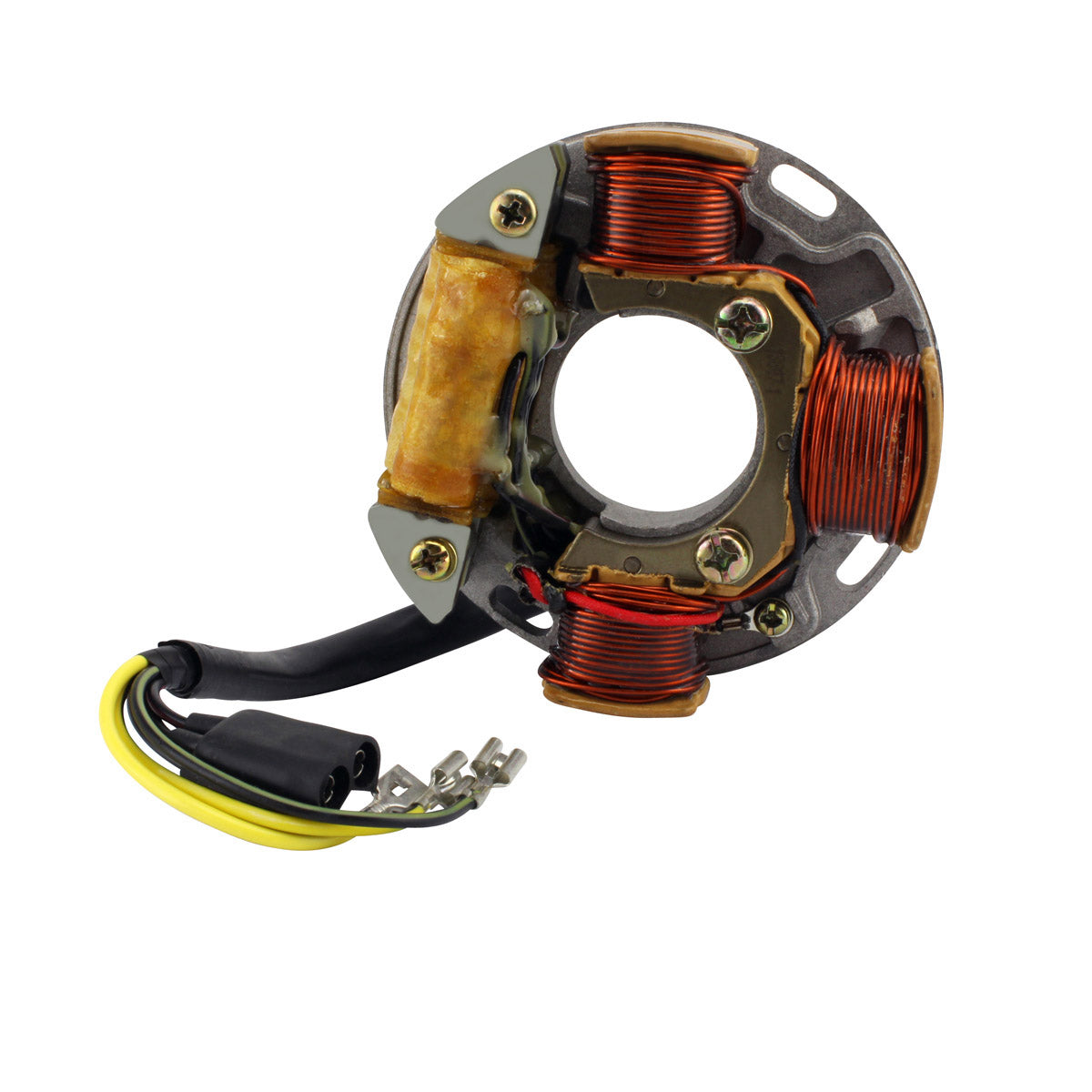

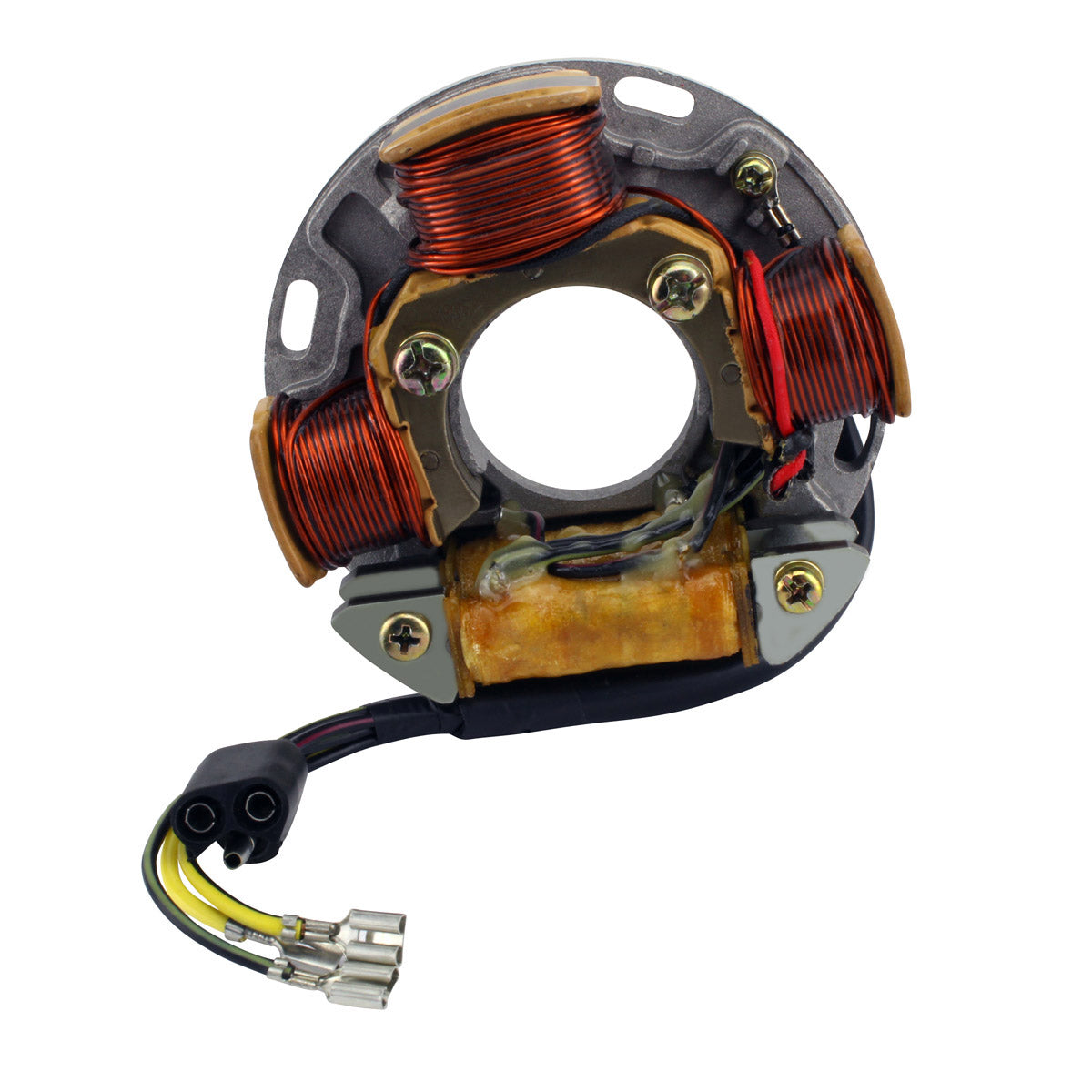

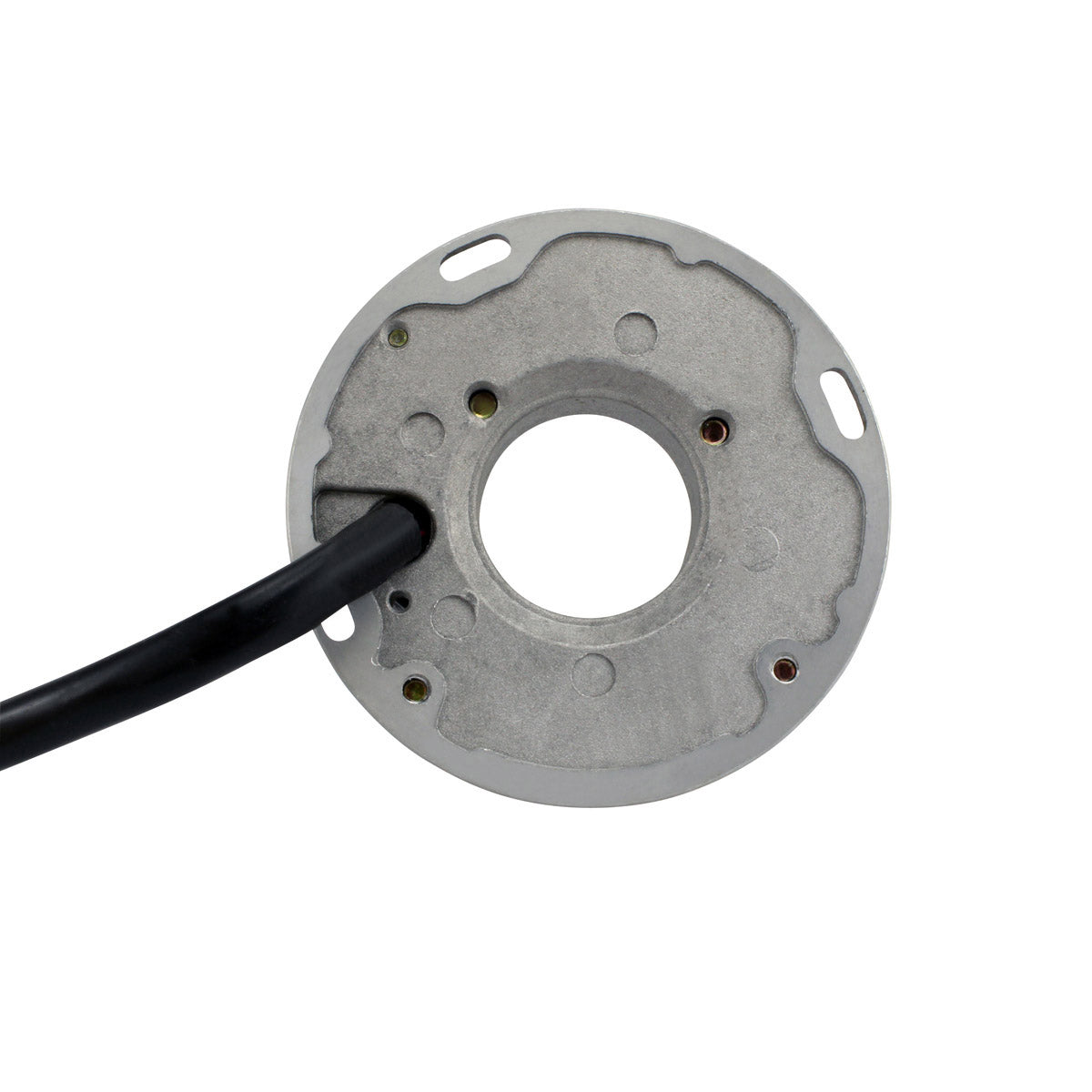

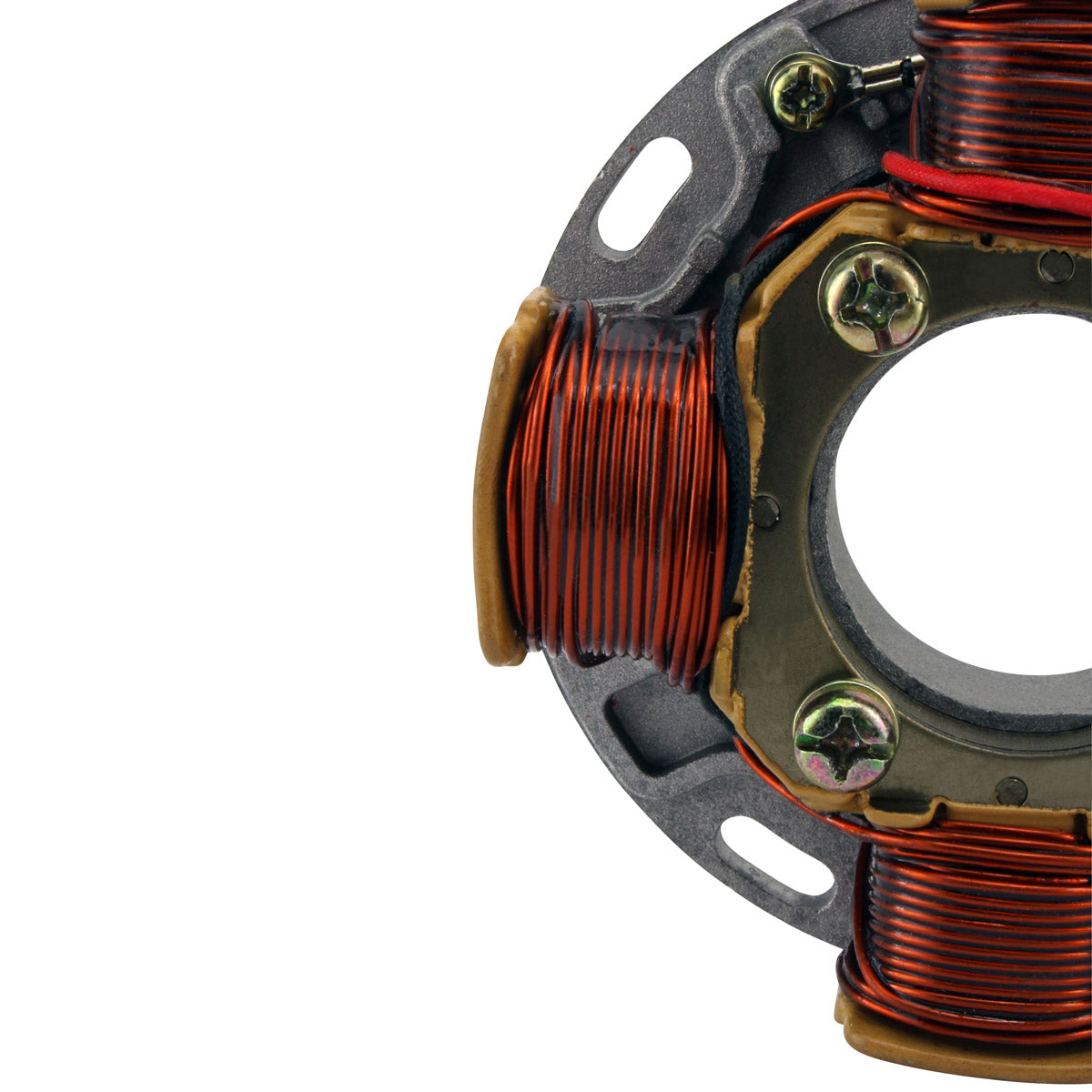

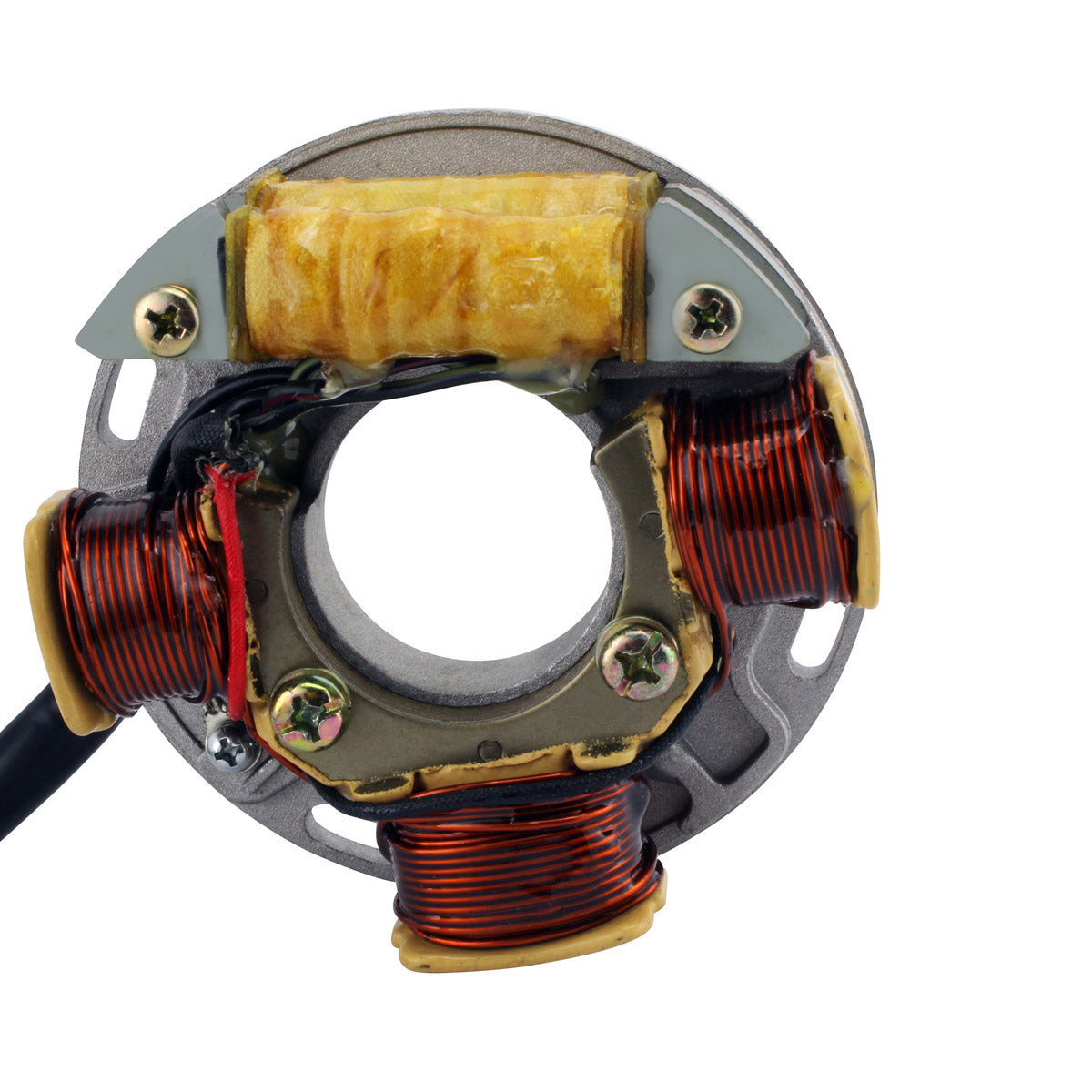

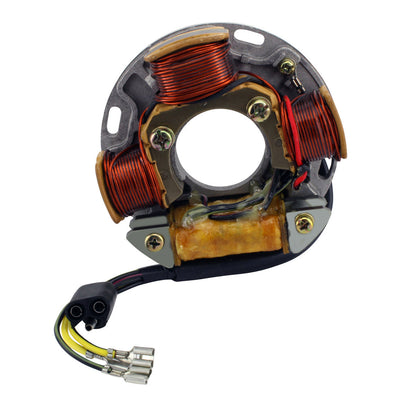

A brand new RMSTATOR stator for the Ski-Doo Citation, Formula Mach 1 and Tundra sleds of the late 1980s and early 1990s, supplied complete with its back plate. Re-install your original connector and grommet and the unit becomes a plug-and-play, direct fit that is very easy to install.
The windings are the highest grade copper on the highest grade lamination materials, resistant to 200 degrees Celsius, and every unit is tested before it ships. RMSTATOR advises comparing the product photographs against your original part before ordering: sleds of this age have often had components swapped between machines over the years, so the part actually fitted may not match what the model year suggests.
Key Features

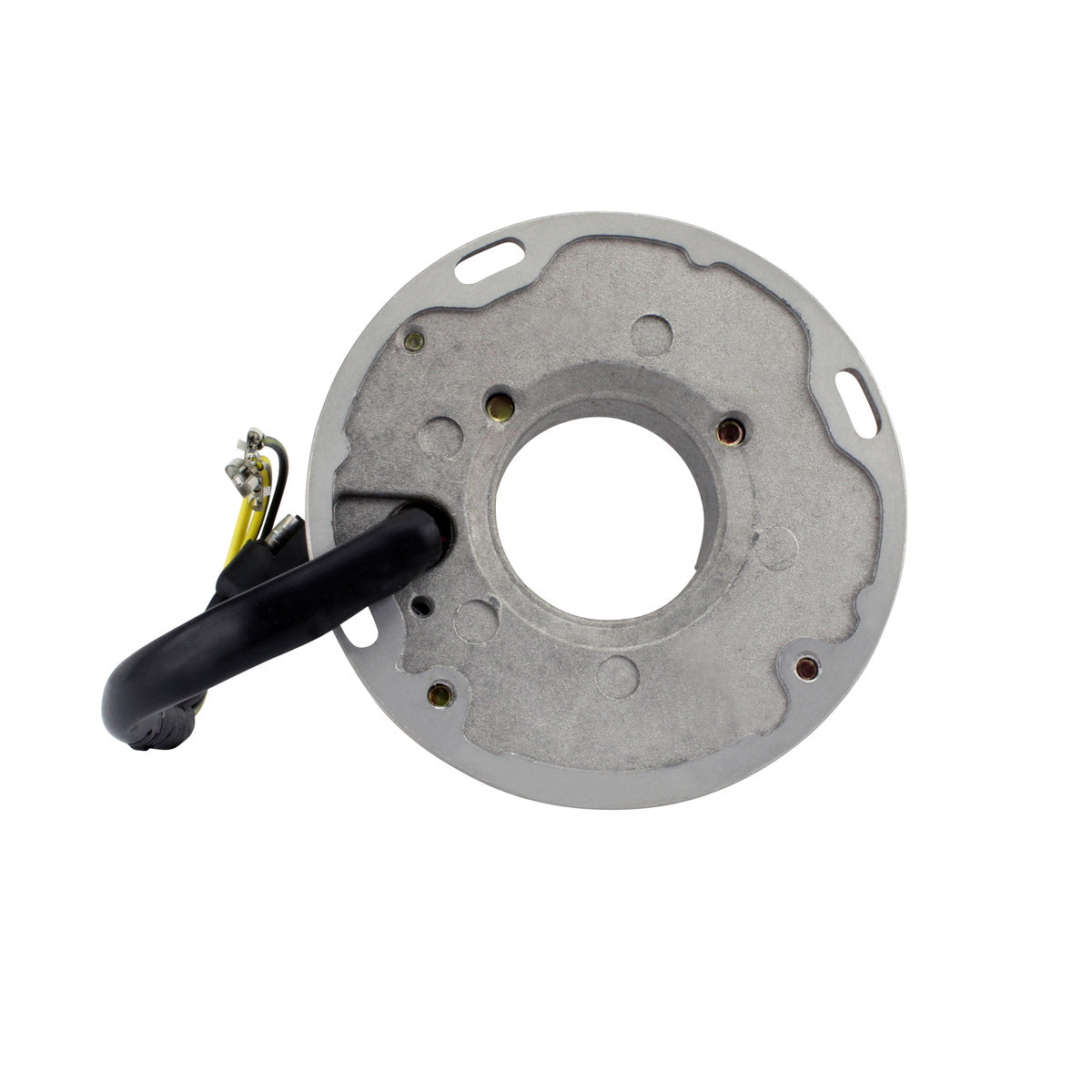

- Brand new stator supplied with the back plate
- Direct fit and very easy to install once the original connector and grommet are refitted
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius

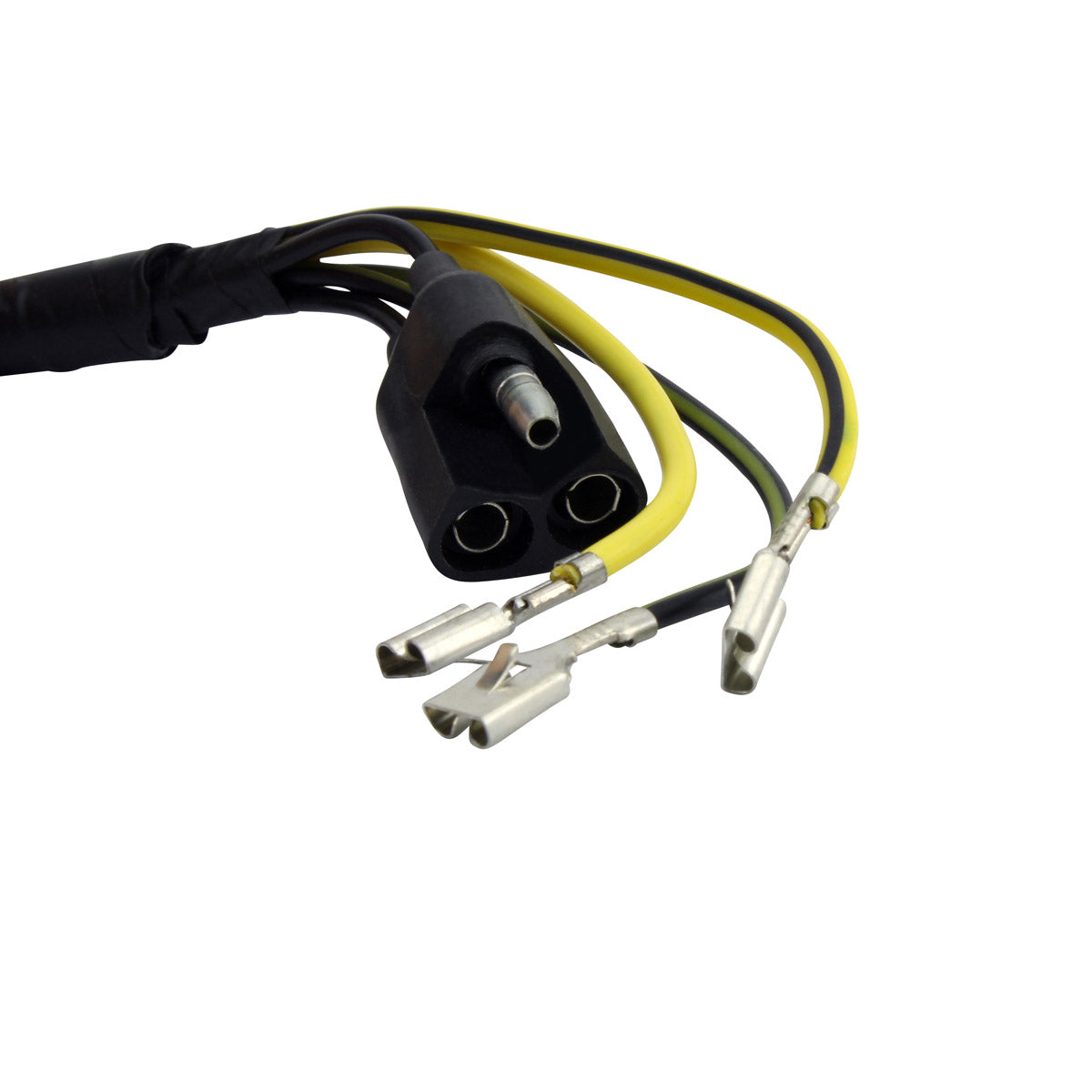

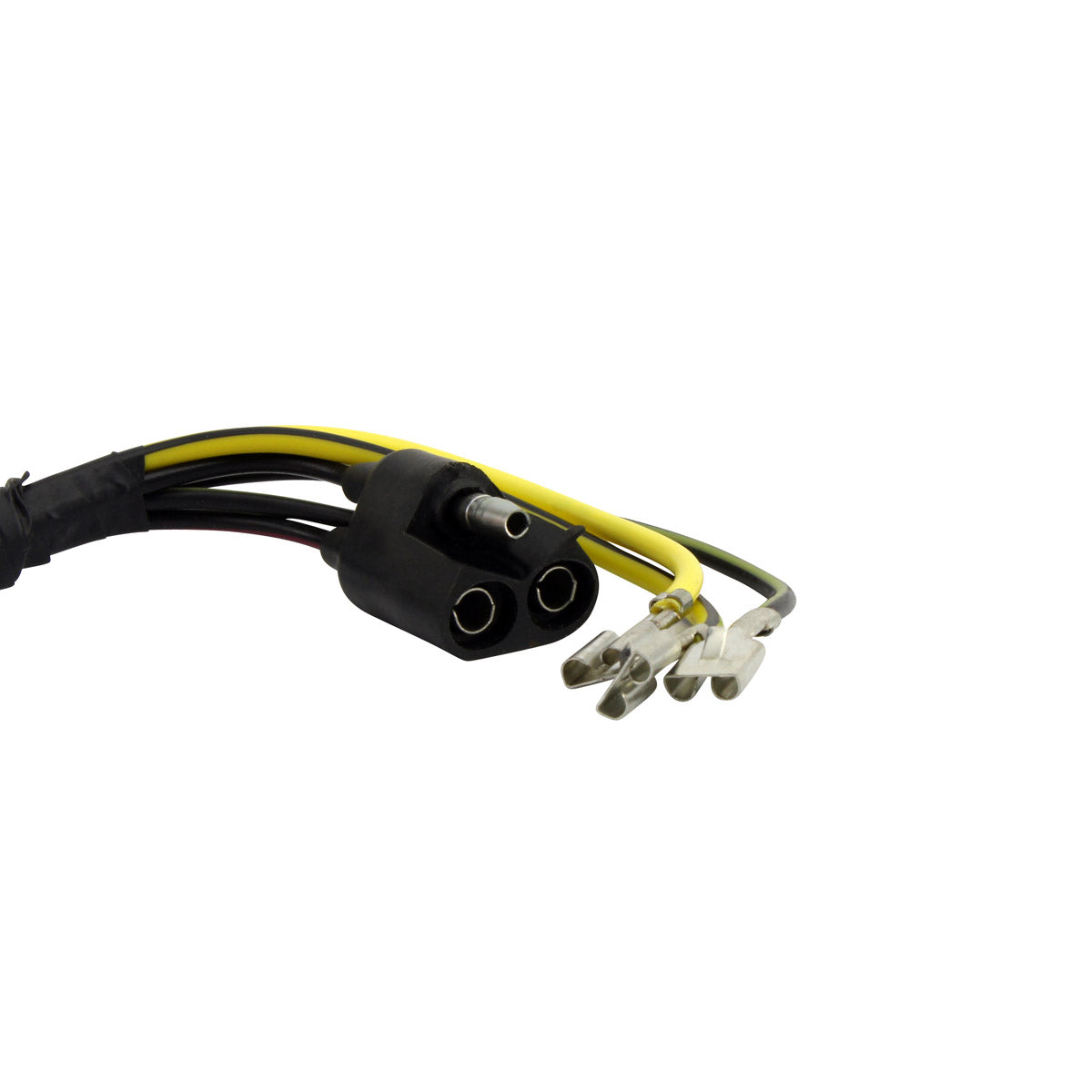

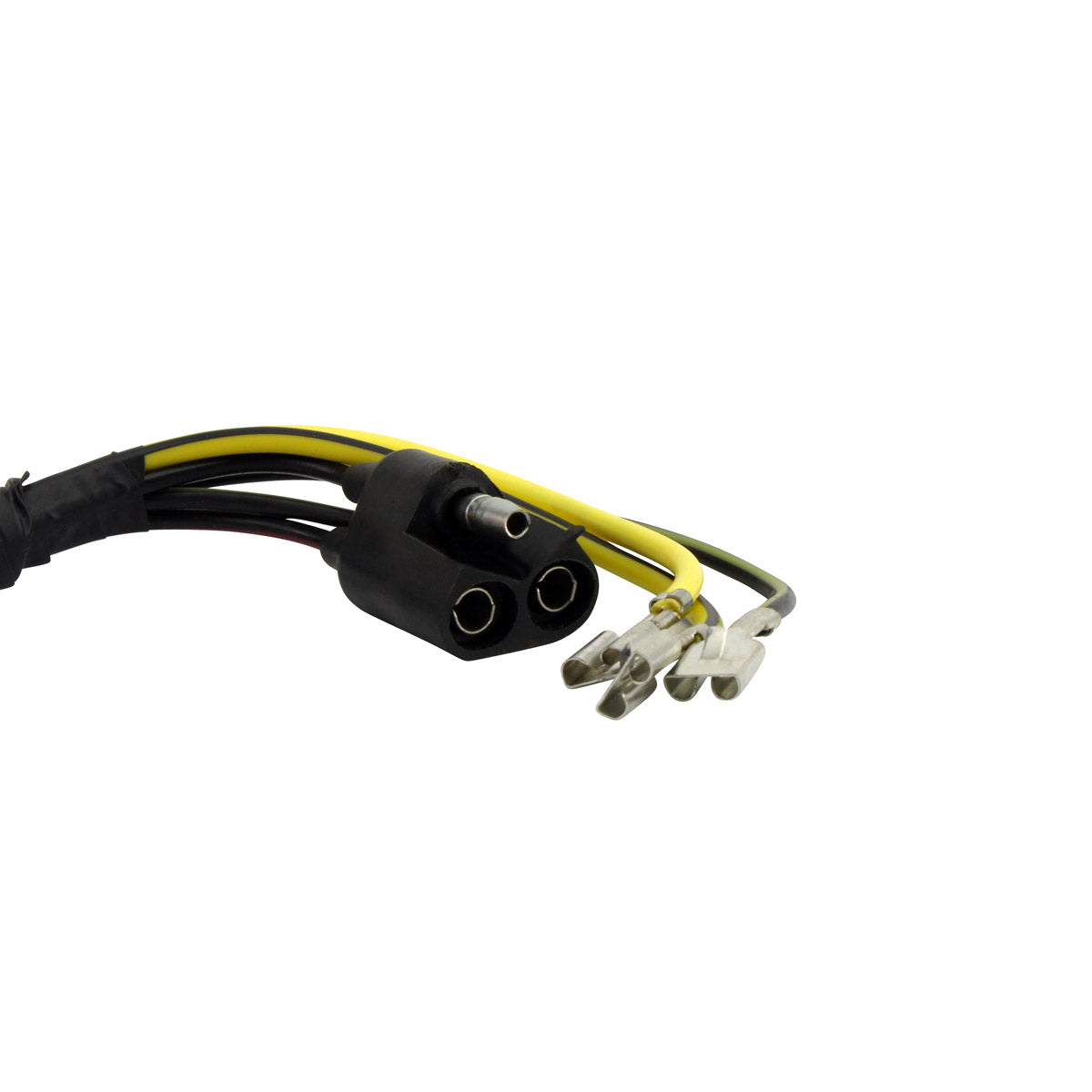

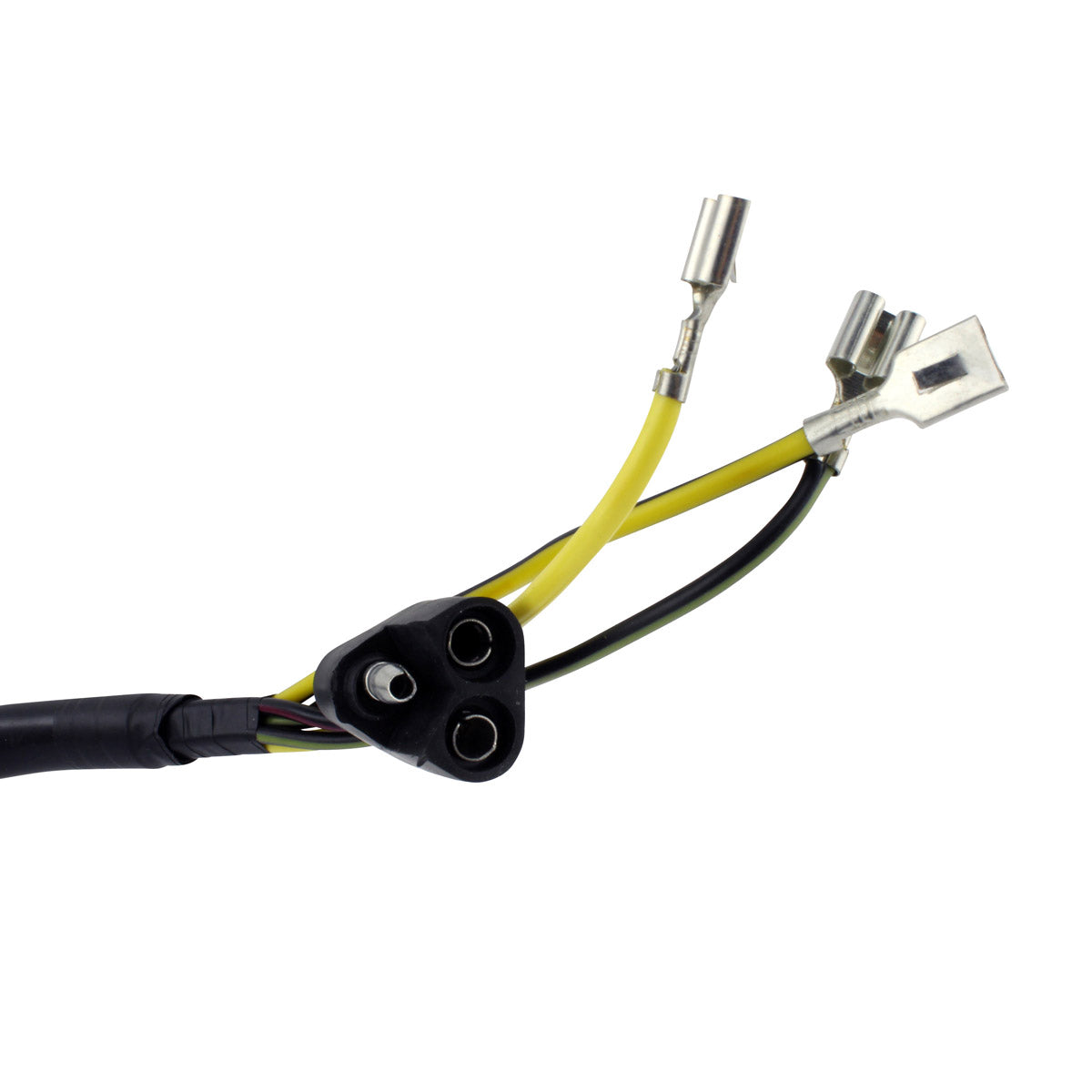

- Six wires, four plugs, six pins
- 225 mm harness from stator to connectors
- All products tested before shipping
Technical Specs
| Specification |
Detail |
| Interior diameter |
40 mm |
| Exterior diameter |
108 mm |
| Thickness |
10 mm |
| Harness length, stator to connectors |
225 mm |
| Number of wires |
6 |
| Number of plugs |
4 |
| Number of pins |
6 |
| Alternator resistance, Yellow to Yellow/Brown |
0.4 ohms +/-20% |
| Source resistance, Black to Black/Yellow |
126 ohms +/-20% |
| Source 2 resistance, Black to Black/Red |
122 ohms +/-20% |
| Winding temperature rating |
200 degrees Celsius |
| RMSTATOR part number |
RM01094 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Ski-Doo Citation 250 |
1989-1993 |
| Ski-Doo Formula Mach 1 583 |
1989-1993 |
| Ski-Doo Mach 1 600 / 617 |
1989-1993 |
| Ski-Doo Tundra 250 |
1989-1993 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 410914200 |
Ski-Doo |
Frequently Asked Questions
Do I need to modify anything to fit it?
No. The stator comes with its back plate and is a direct fit. You re-install your original connector and grommet, after which it is a plug-and-play unit that is very easy to install.
What is included in the box?
The stator complete with its back plate. Your original connector and grommet are re-used from the existing unit.
How do I confirm the old stator has failed?
Check the three circuits with a multimeter. The alternator should read 0.4 ohms +/-20% from Yellow to Yellow/Brown, the source coil 126 ohms +/-20% from Black to Black/Yellow, and the second source coil 122 ohms +/-20% from Black to Black/Red. A circuit reading open, shorted, or well away from these values has failed.
My sled is the right model and year - is that enough to be sure?
Not on its own. RMSTATOR specifically recommends comparing the photographs with your original part first, because engines and ignition components on sleds of this era were frequently swapped between machines. Checking OEM number 410914200 against your original unit is the safest confirmation.
