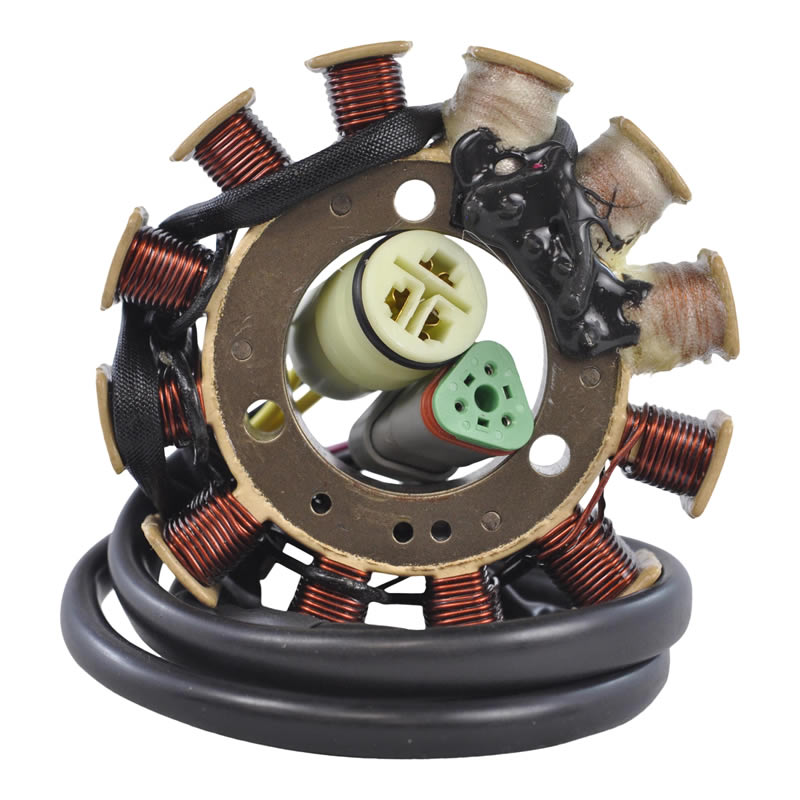

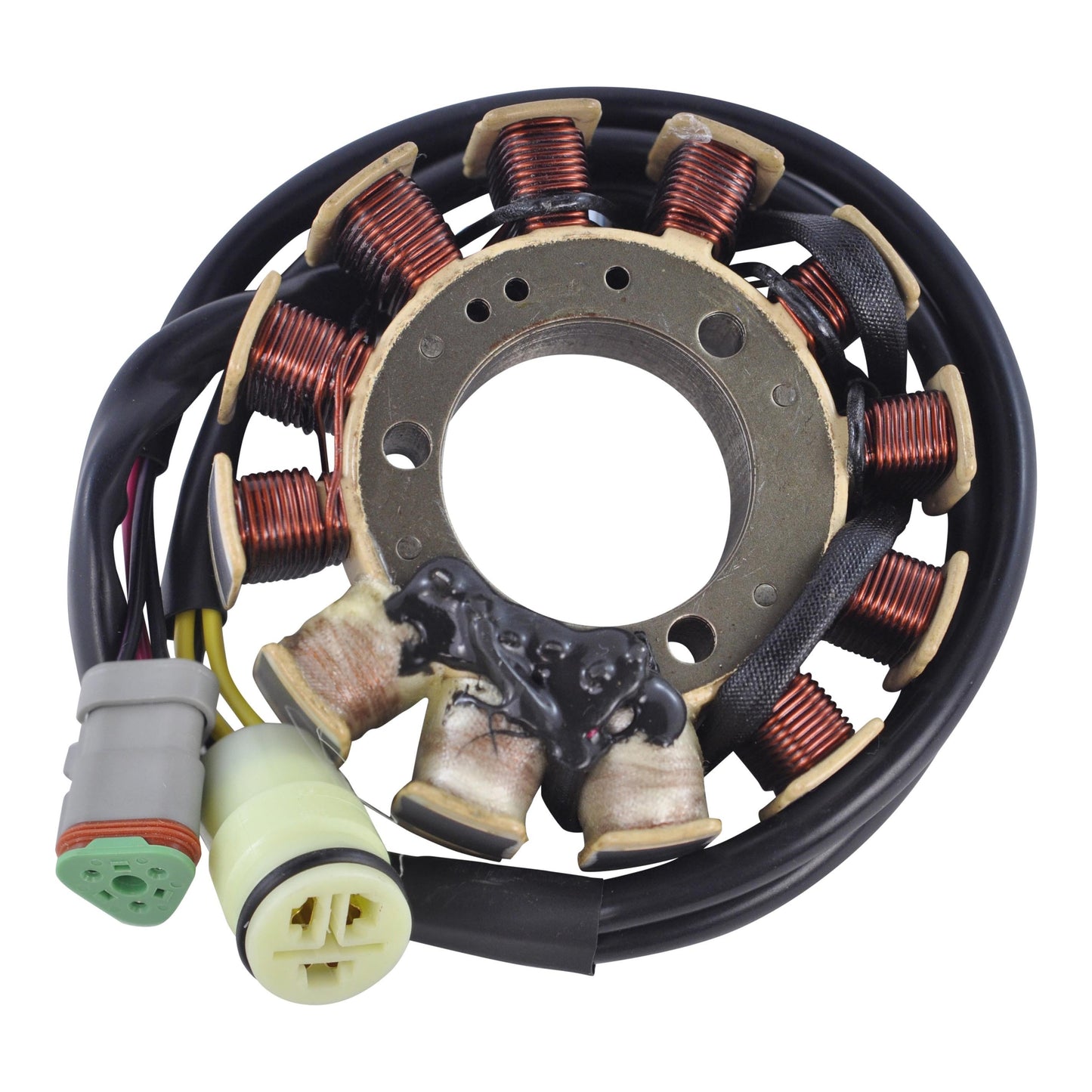

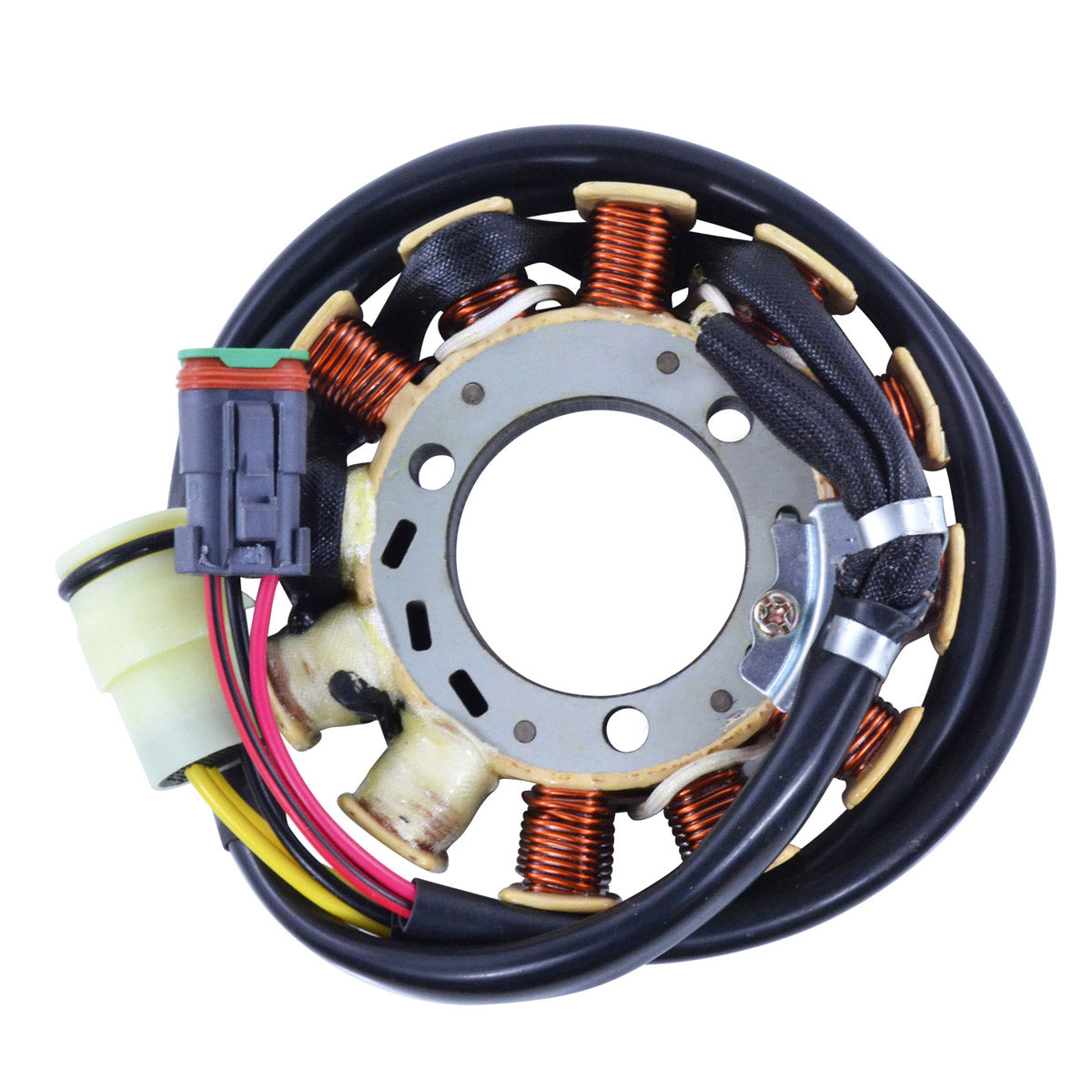

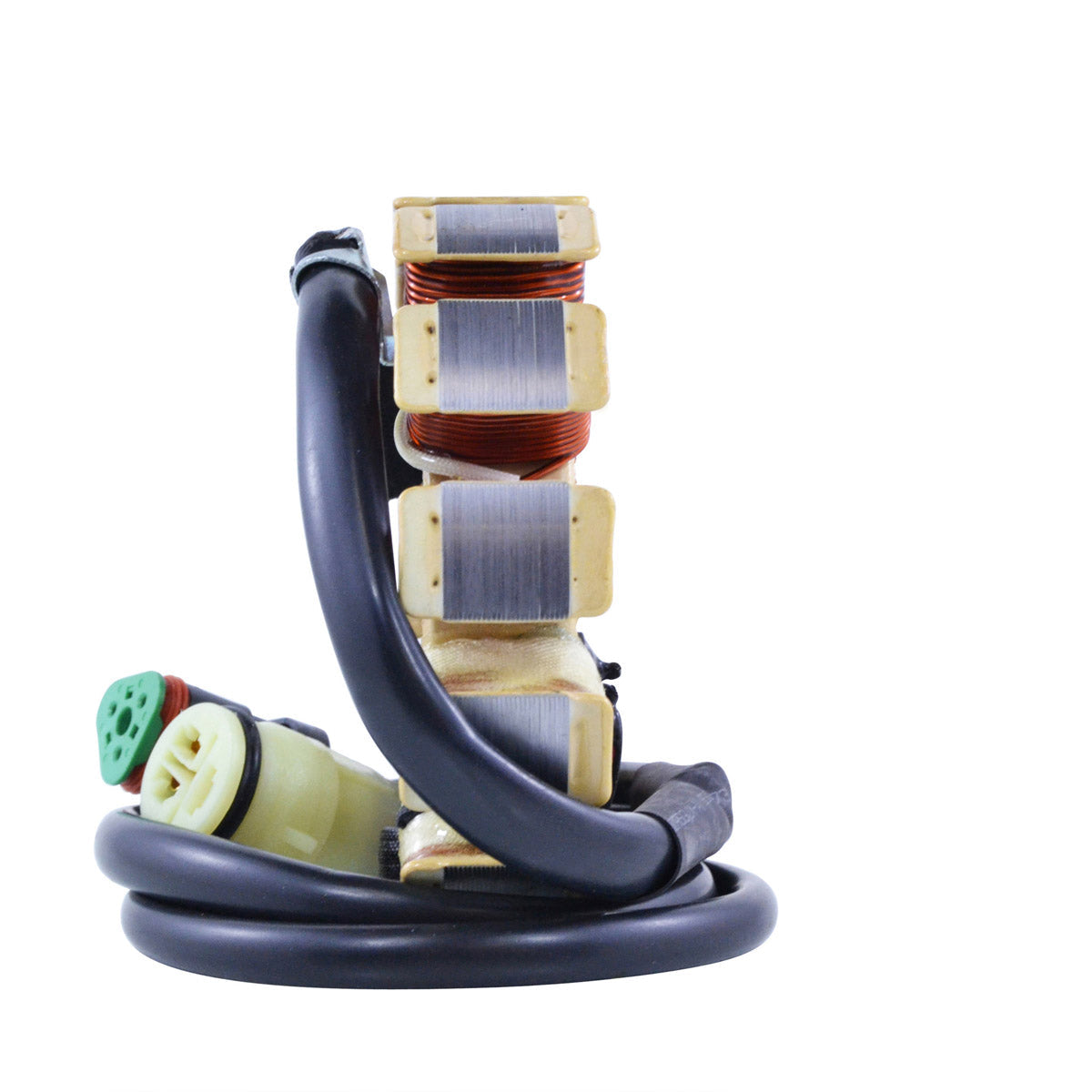

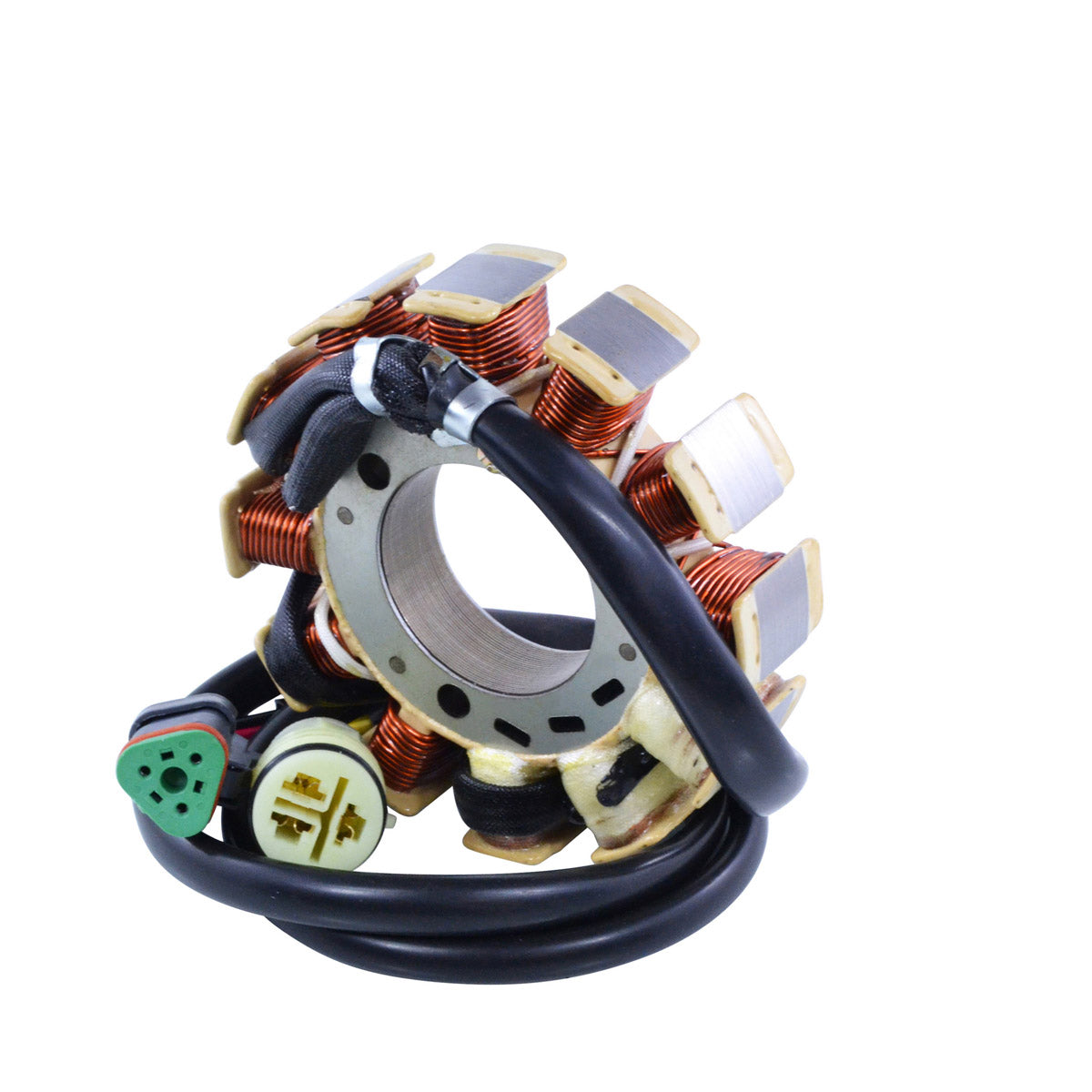

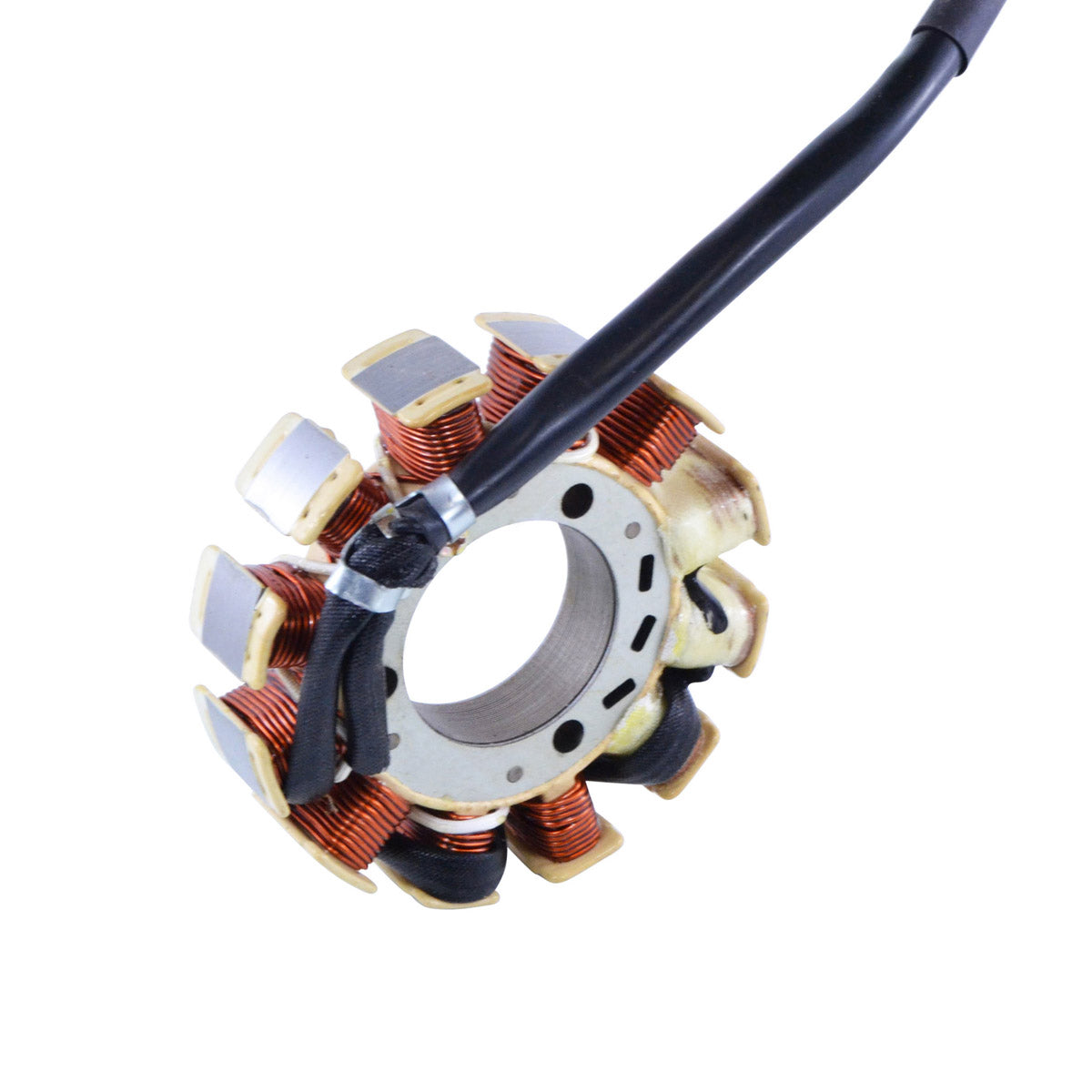

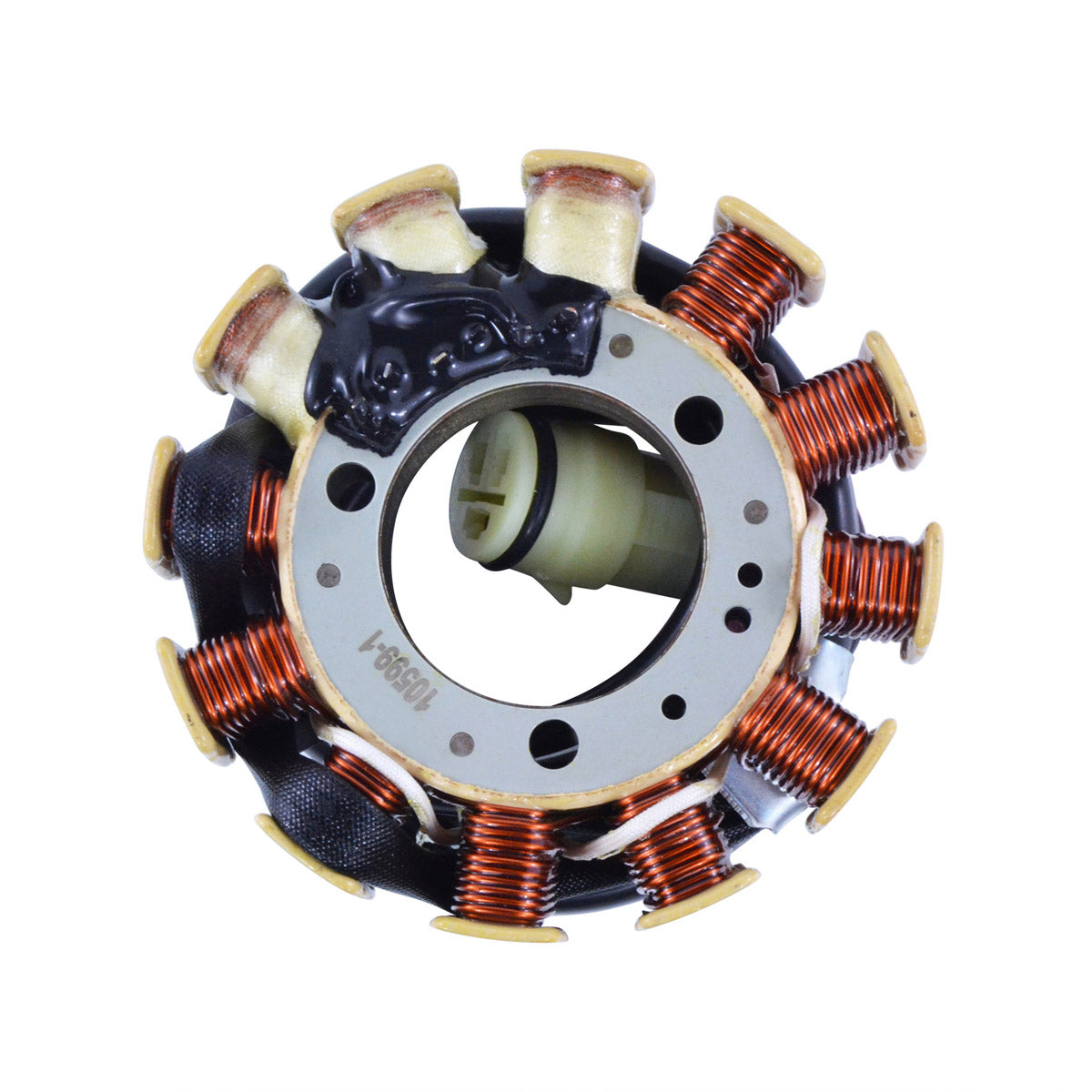

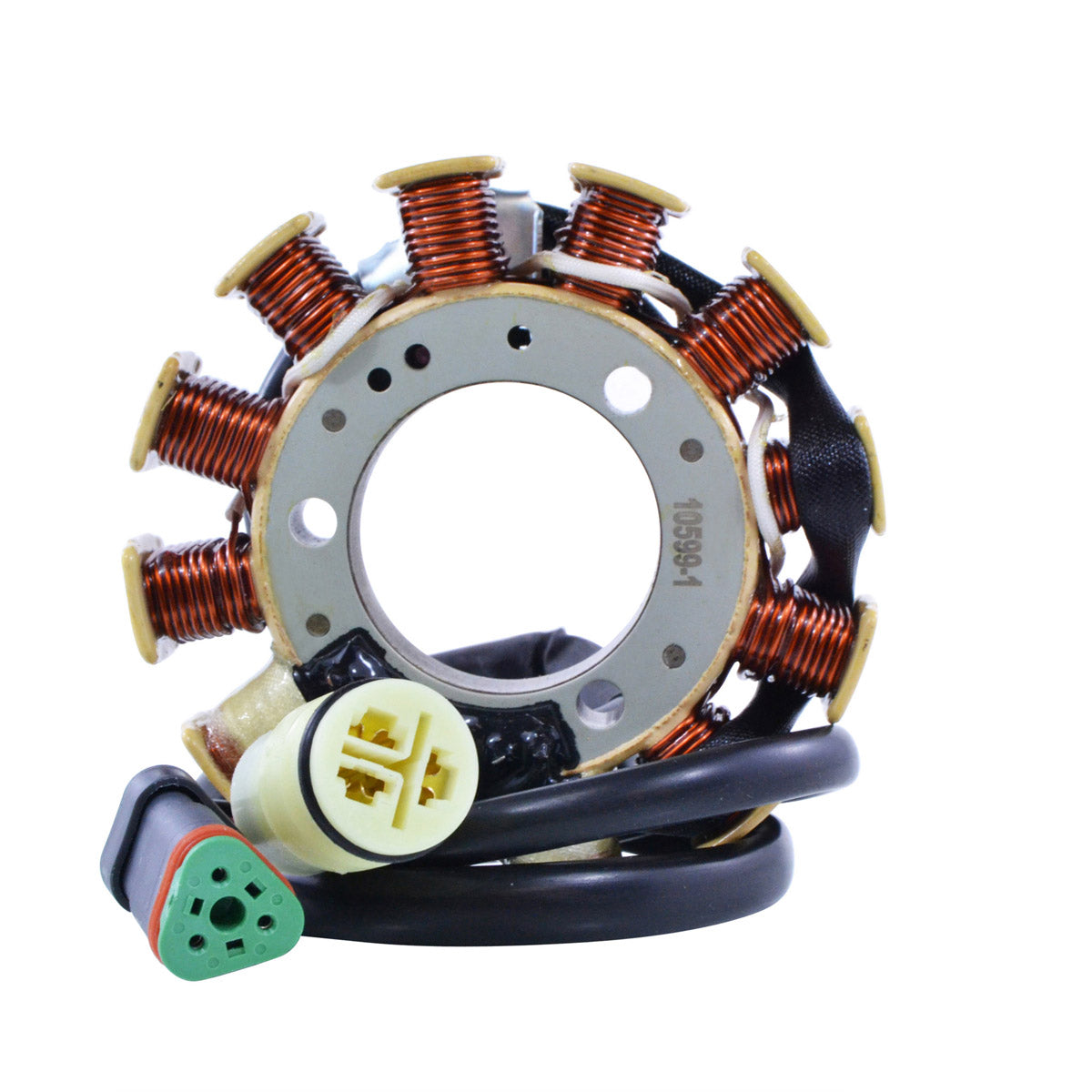

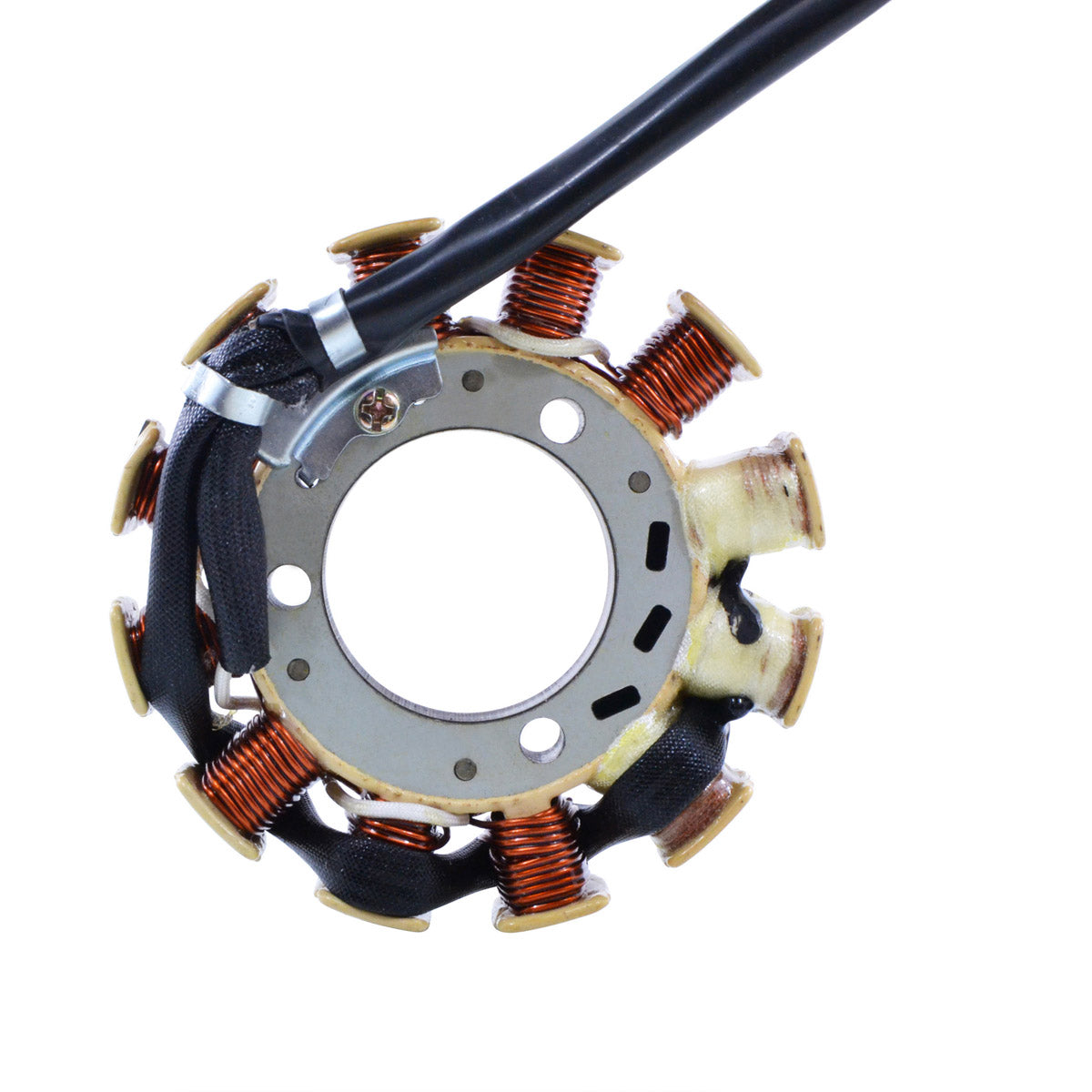

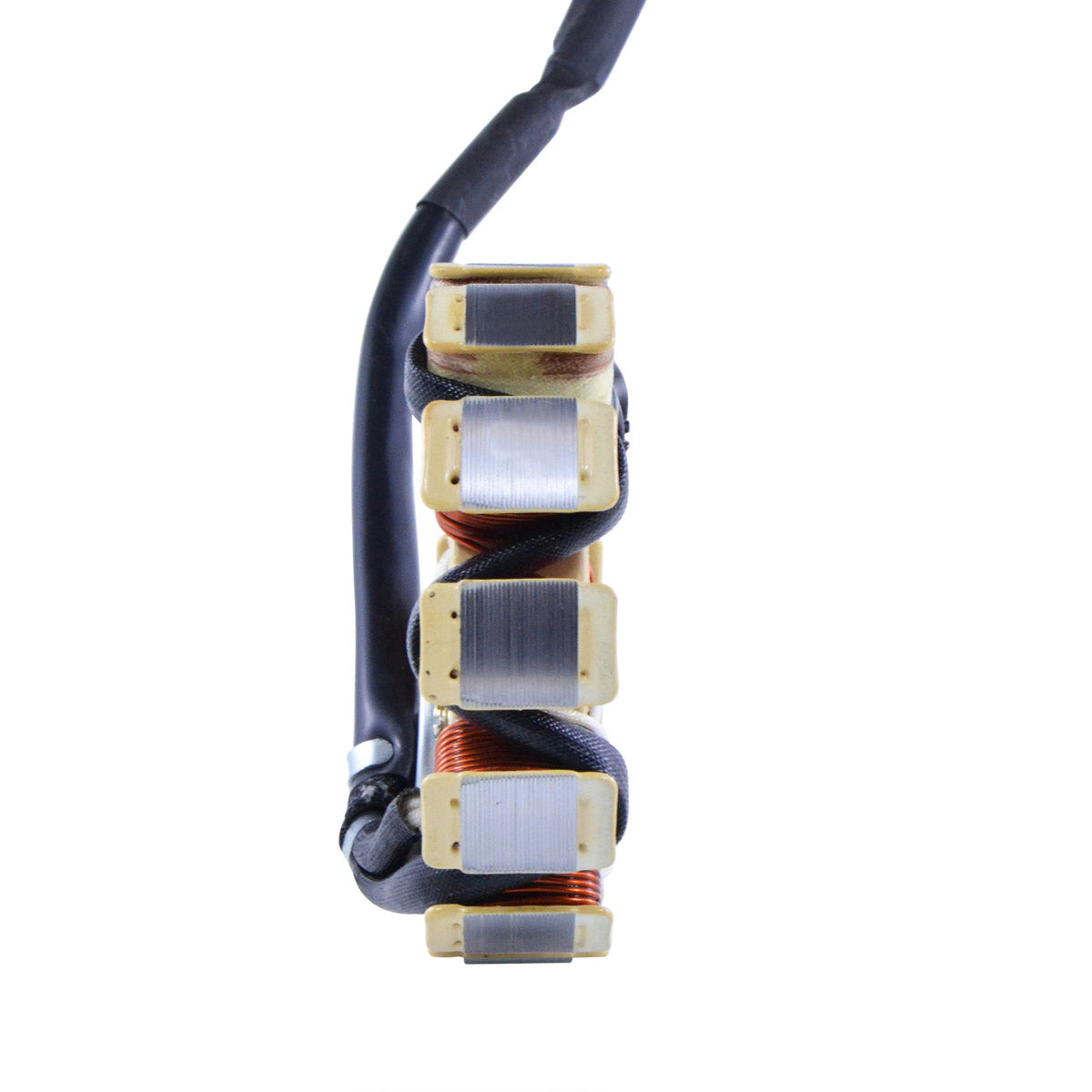

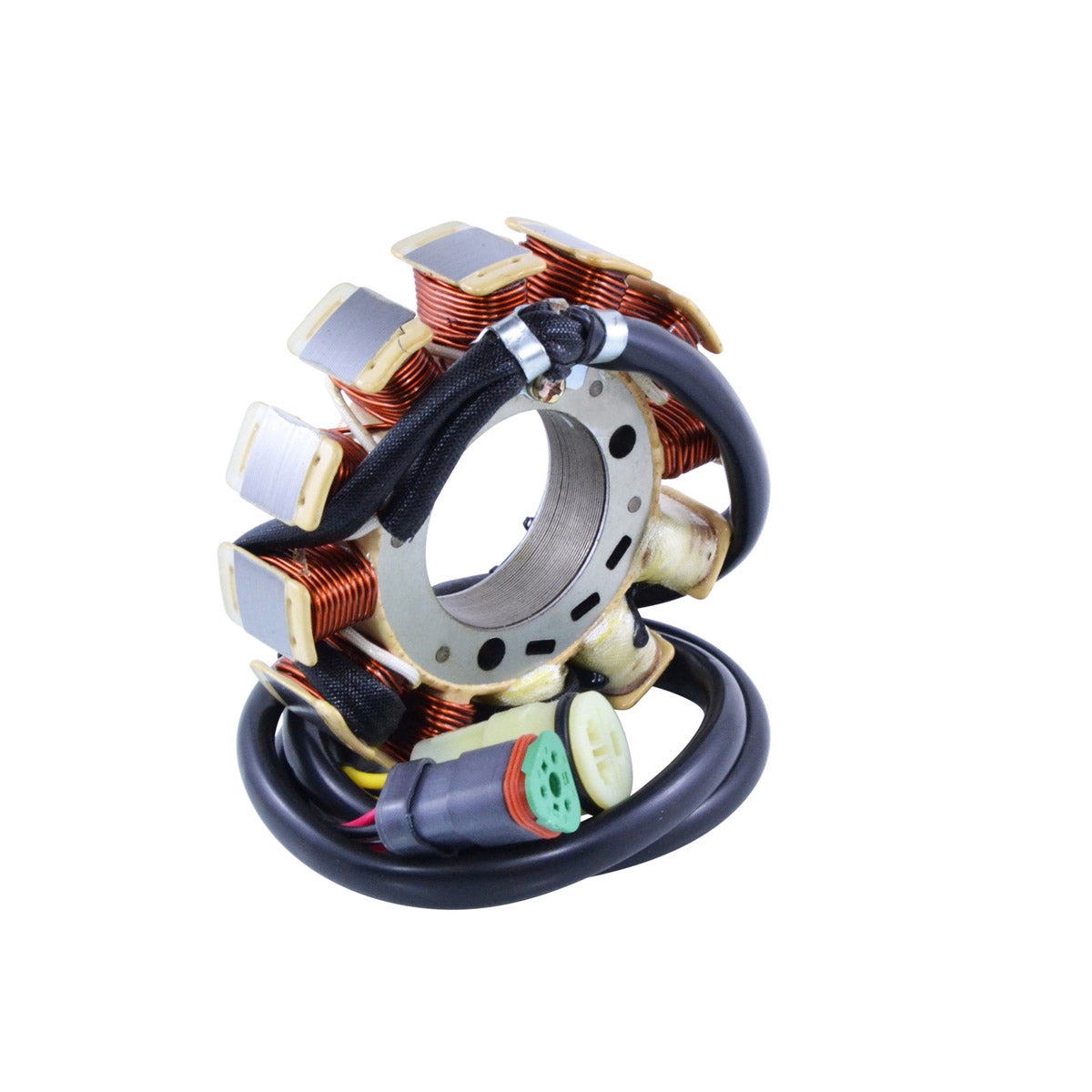

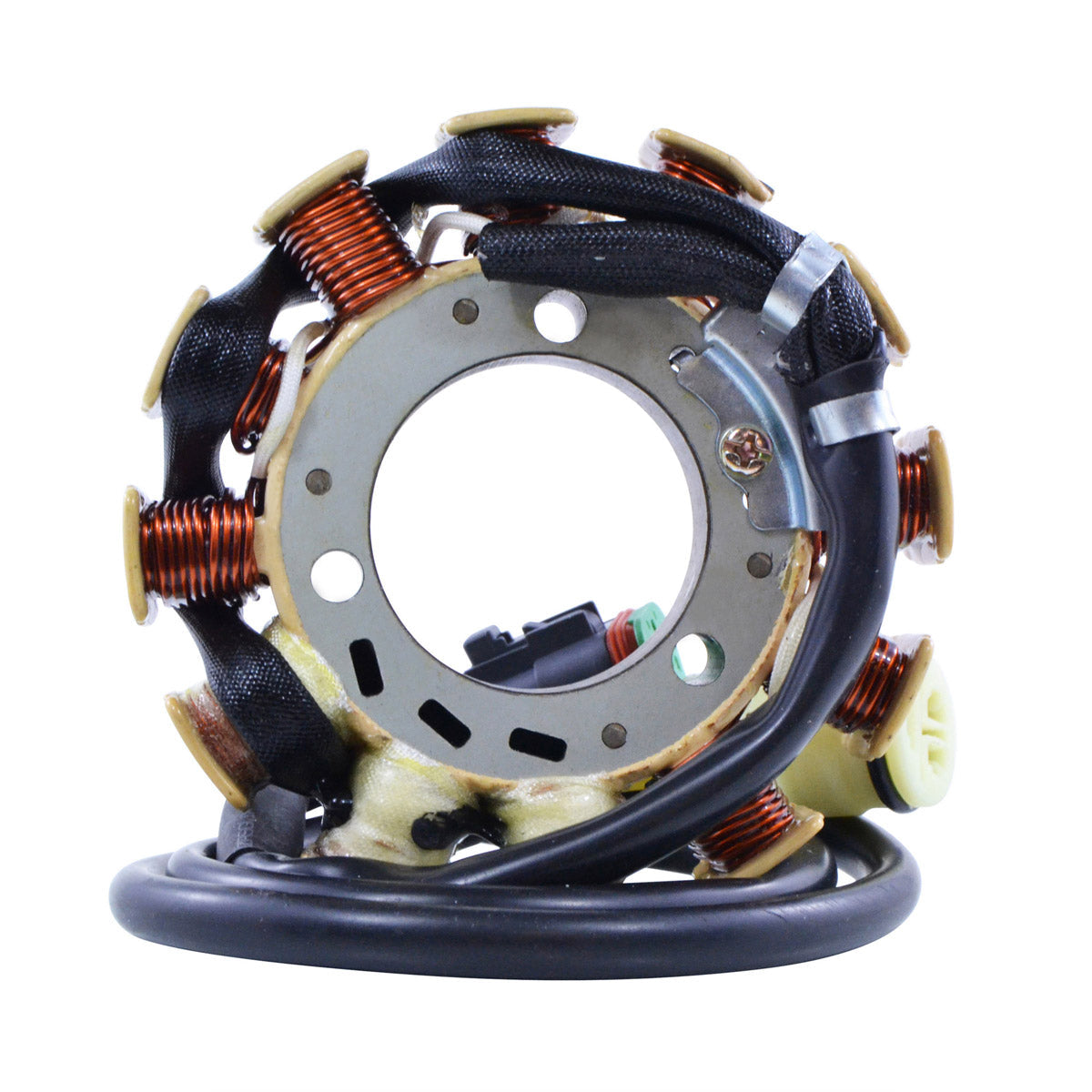

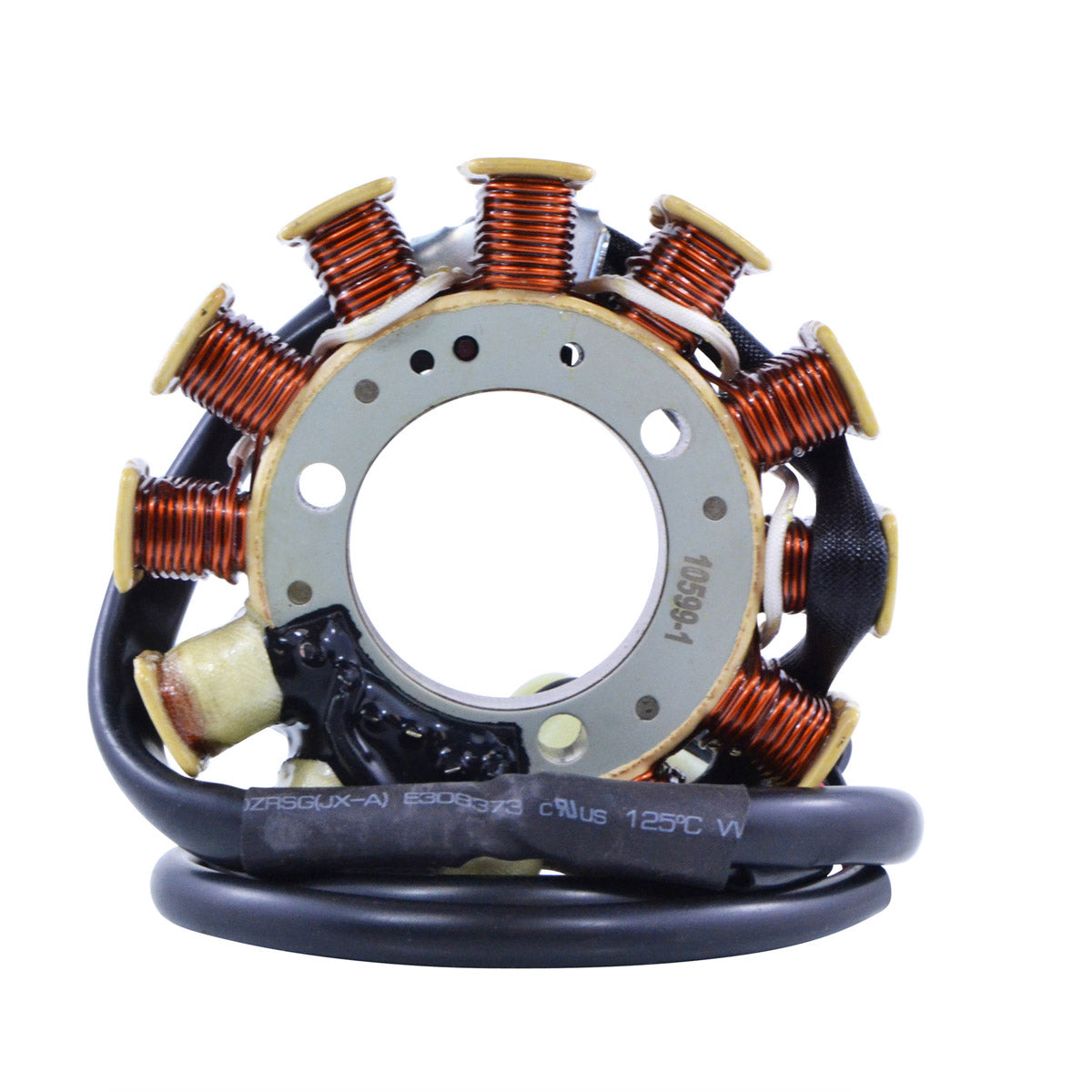

This is a brand new stator for Ski-Doo Formula, Grand Touring, MX-Z and Skandic snowmobiles, supplied under part number RM01008. It is a direct replacement for the original unit and fits plug-and-play, so it connects to your existing harness without cutting, splicing or adapters.
Six wires terminate in two plugs, carrying both the alternator winding that charges the battery and runs the lights and the source winding that feeds the ignition, so one component covers both jobs. The core is built on the highest grade lamination materials and wound with the highest grade copper, rated to withstand 200 degrees Celsius. The connector is supplied fitted, every unit is tested before it is shipped, and the part cross references to eight Ski-Doo part numbers.
Key Features
- Brand new stator, a direct replacement for the original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials and highest grade copper windings
- Copper windings resistant to 200 degrees Celsius
- Separate alternator and source windings on one stator

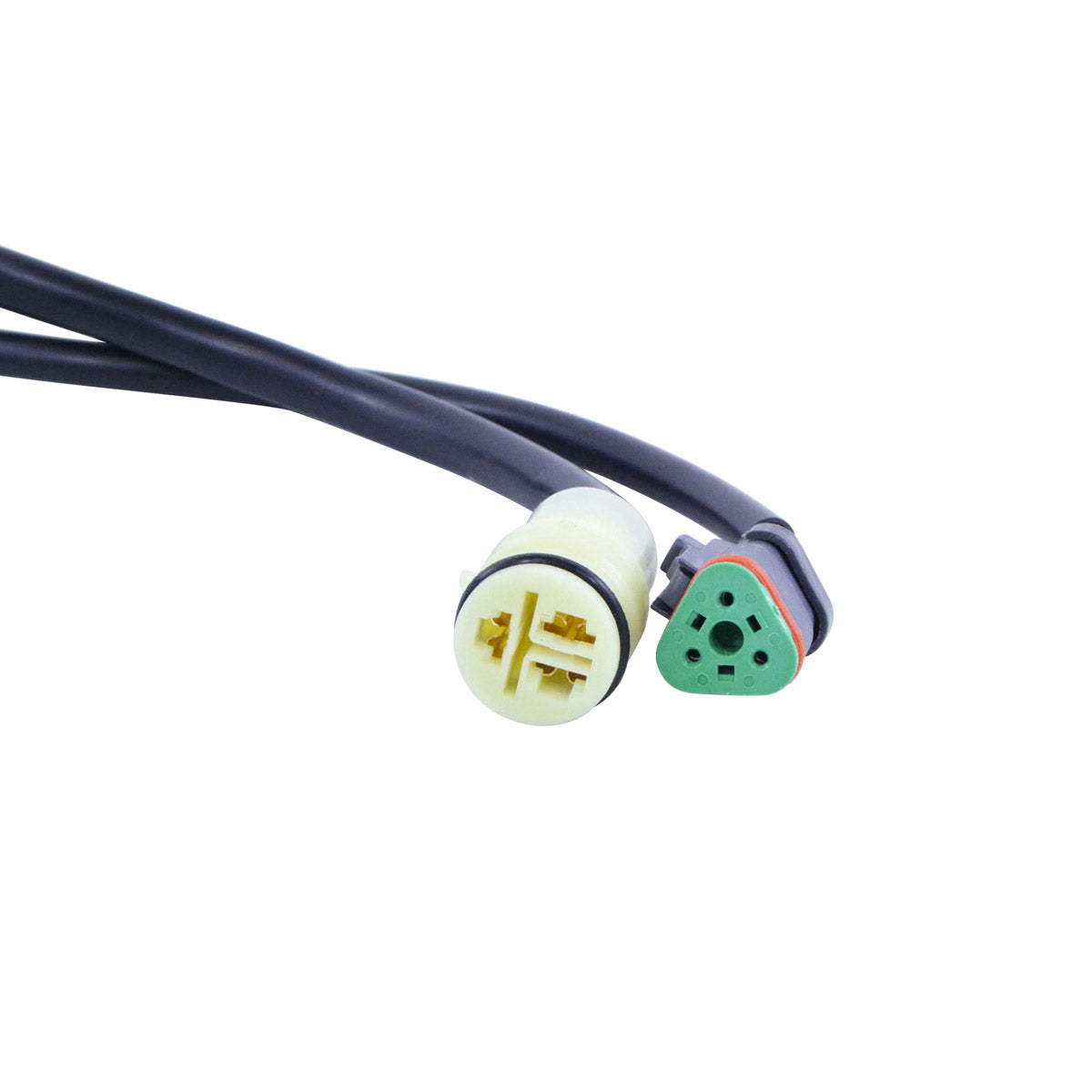

- 6 wires, 2 plugs and 6 pins with a 400 mm lead to the plugs
- Connector included
- Covers Ski-Doo 500 to 800 cc models 1999-2007 and Lynx 500 / 600 for 2000-2001
- Cross references to eight Ski-Doo part numbers
- All products shipped are tested
Technical Specs
| Specification |
Detail |
| Interior diameter |
40 mm |
| Exterior diameter |
103 mm |
| Thickness |
20 mm |
| Wire length, stator to plug |
400 mm |
| Number of wires |
6 |
| Number of plugs |
2 |
| Number of pins |
6 |
| Alternator resistance (yellow to yellow) |
0.4 ohms +/- 20% |
| Source resistance (red to black/red) |
18 ohms +/- 20% |
| Temperature rating |
200 degrees Celsius |
| Part number |
RM01008 |
Vehicle Fitment Guide
| Make & Model |
Years |
| Ski-Doo Formula 500 / 600 / 700 / 800 |
1999-2007 |
| Ski-Doo Grand Touring 500 / 600 / 700 / 800 |
1999-2007 |
| Ski-Doo MX-Z 500 / 600 / 700 / 800 |
1999-2007 |
| Ski-Doo Skandic 500 / 600 / 700 / 800 |
1999-2007 |
| Lynx 500 / 600 |
2000-2001 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 410922936 |
Ski-Doo |
| 410922914 |
Ski-Doo |
| 410922915 |
Ski-Doo |
| 410922923 |
Ski-Doo |
| 410922934 |
Ski-Doo |
| 410922949 |
Ski-Doo |
| 420888613 |
Ski-Doo |
| 420888619 |
Ski-Doo |
Frequently Asked Questions
Does this stator fit without modification?
Yes. It is a plug-and-play direct replacement for the original unit on the listed Ski-Doo models from 1999 to 2007 and the Lynx 500 and 600 for 2000 and 2001. The two plugs match the factory harness, so no cutting or splicing is required. Given the number of variants in this range, check the eight cross reference numbers above against your machine before ordering.
What is included?
The stator complete with its connector. Every unit is tested before it leaves the warehouse.
How do I know the old stator has failed?
Symptoms depend on which winding has gone down: a failed alternator winding gives a flat battery and dim lights, while a failed source winding gives no spark. Test both at the plugs - yellow to yellow should read about 0.4 ohms and red to black/red about 18 ohms, each within 20 per cent. Any reading that is open circuit, near zero, or shows continuity to the stator body means the stator needs replacing.
Why does the winding temperature rating matter?
A stator sits directly behind the flywheel with limited cooling, and insulation breakdown from heat is one of the most common causes of failure. Copper windings rated to 200 degrees Celsius give a margin against that, which is why this unit is specified with the highest grade winding and lamination materials.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
