RELIABILITY: Built with high-grade laminations and copper windings rated to 200°C, to cope with the heat, cold and vibration of hard snowmobile use.

Key Features

• ✔ Direct fit for 1999 Ski-Doo Formula III 600 / 700 / 800
• ✔ Replaces Ski-Doo 410922952, 410922931, 410922967 and more
• ✔ Copper windings rated to 200°C
• ✔ Plug-and-play, connector included

Technical Specs

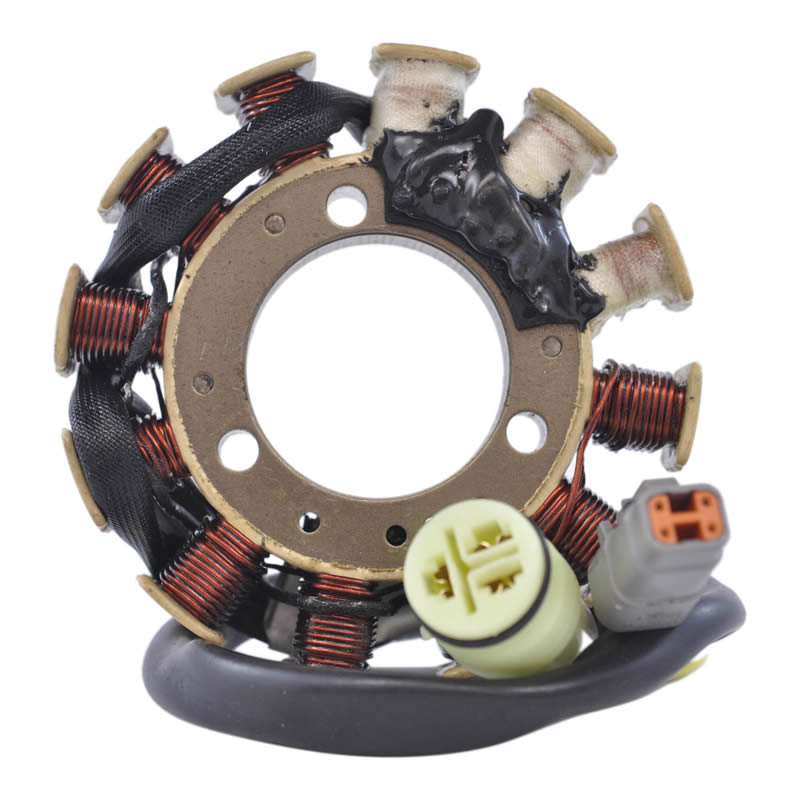

Unit Type:	Generator Stator
Winding Rating:	200°C
Part Number:	RM01009
Condition:	New, Aftermarket

Model	Year	Engine
Ski-Doo Formula III 600 / 700 / 800	1999	Carb, Liquid Cooled
Ski-Doo MX Z X 440	2000, 2001, 2003	Carb, Liquid Cooled
Ski-Doo MX Z X 440 Racing	2001, 2004, 2005	Carb, Liquid Cooled
Ski-Doo Mach 1 700 / Mach Z 800	Check OEM number	Match part number on old stator

Is this a genuine original part?

This is a premium quality 4Drive aftermarket replacement part, manufactured to meet or exceed original equipment (OE) standards for fitment and performance.

How do I know if it is compatible?

Ski-Doo used several different stators on Formula III, Mach 1 and Mach Z sleds across 1993-2003, so the model name alone is not enough. Compare the part number on your old stator with the cross reference above. If it matches, this is the correct part.

What should I check before replacing the stator?

Check the connectors and wiring for corrosion or damage and test the regulator/rectifier, as these can cause the same charging symptoms. A resistance test on the stator windings will confirm a failed coil.
