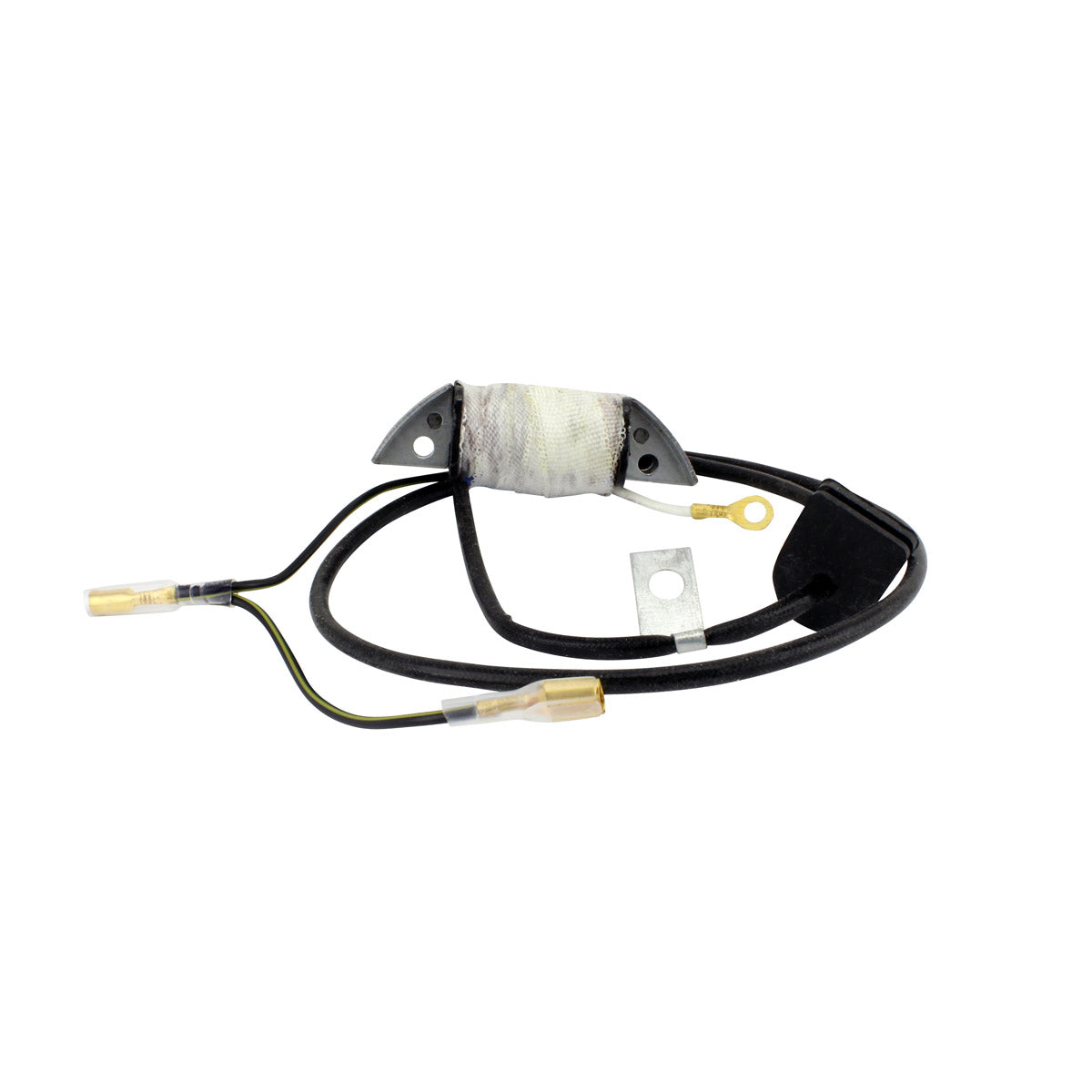

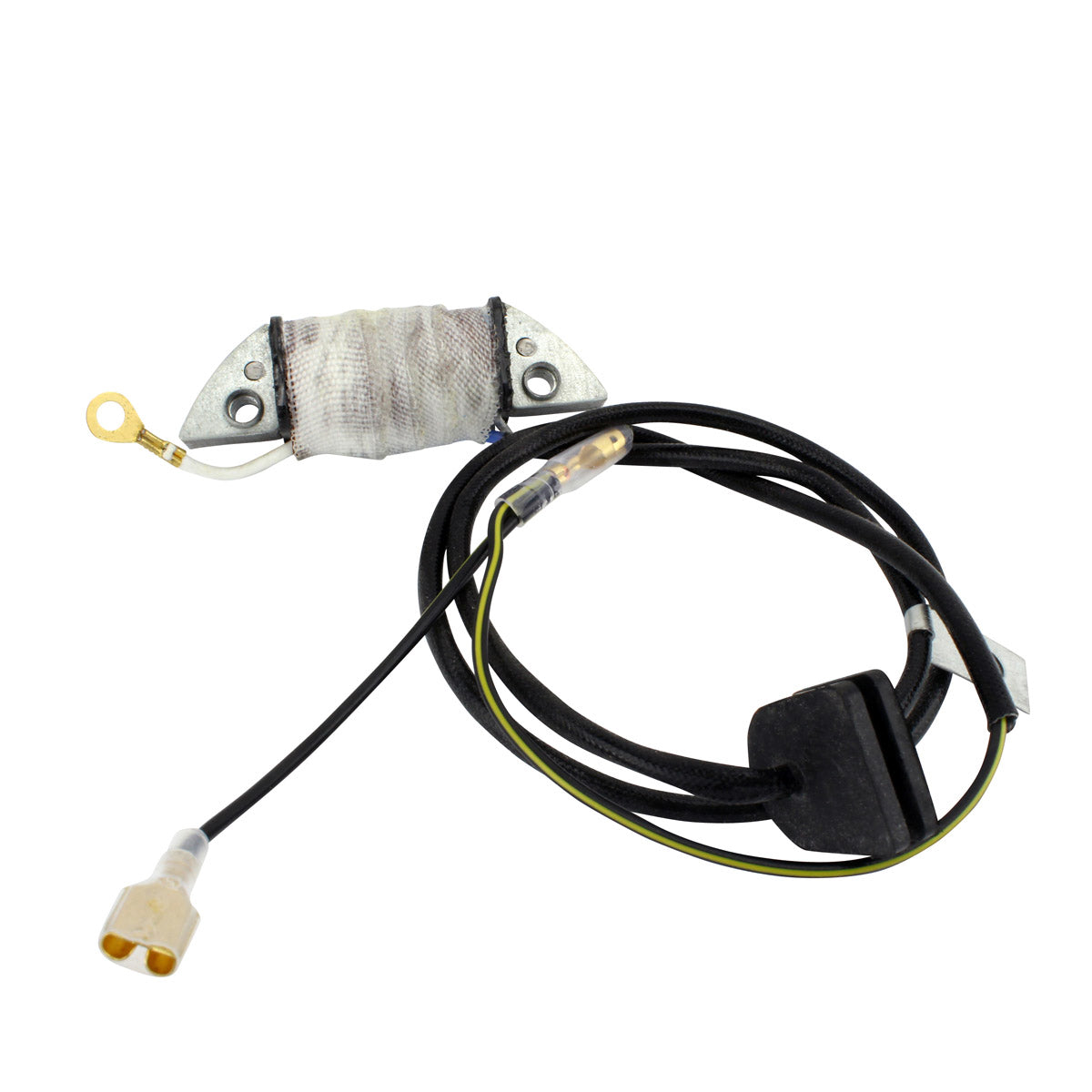

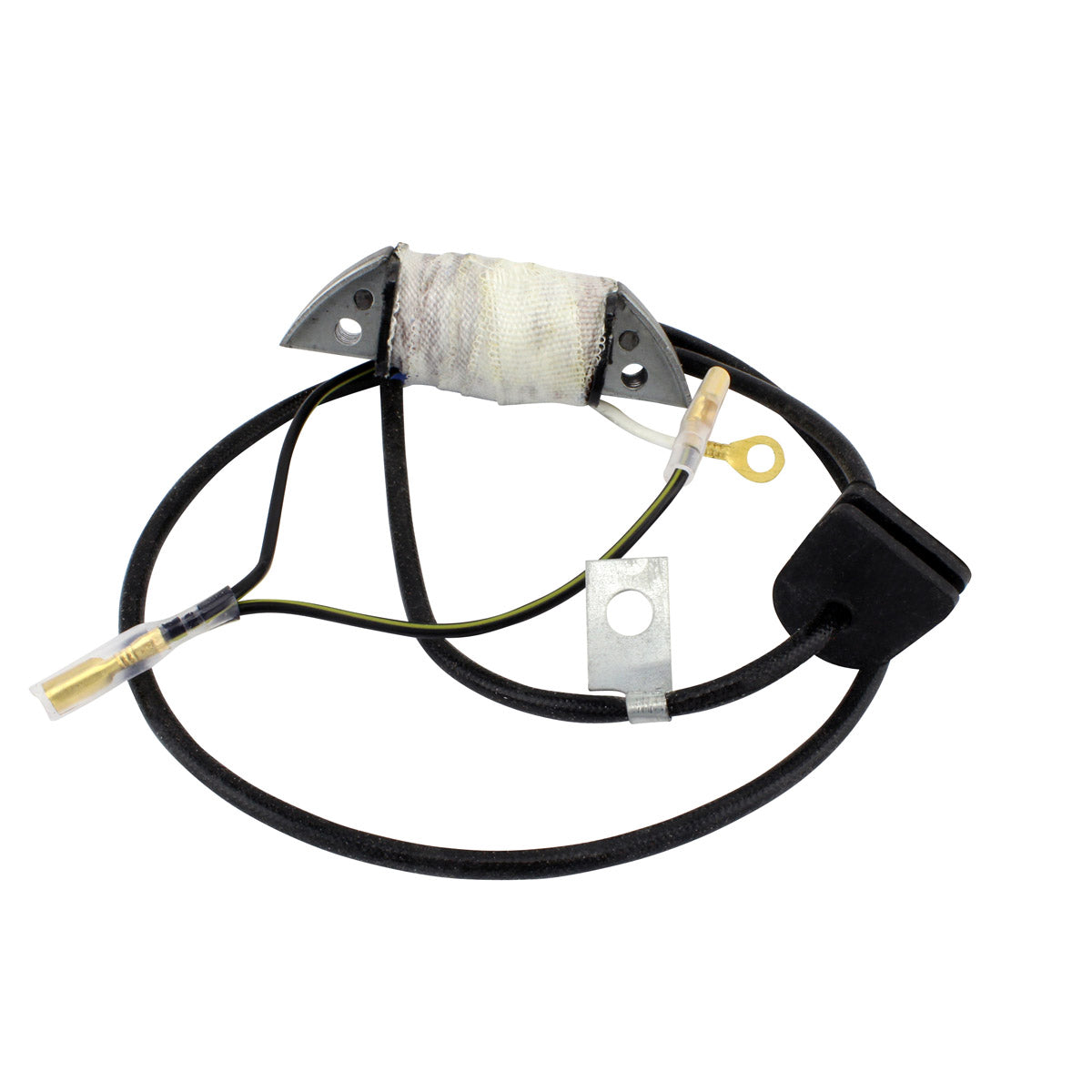

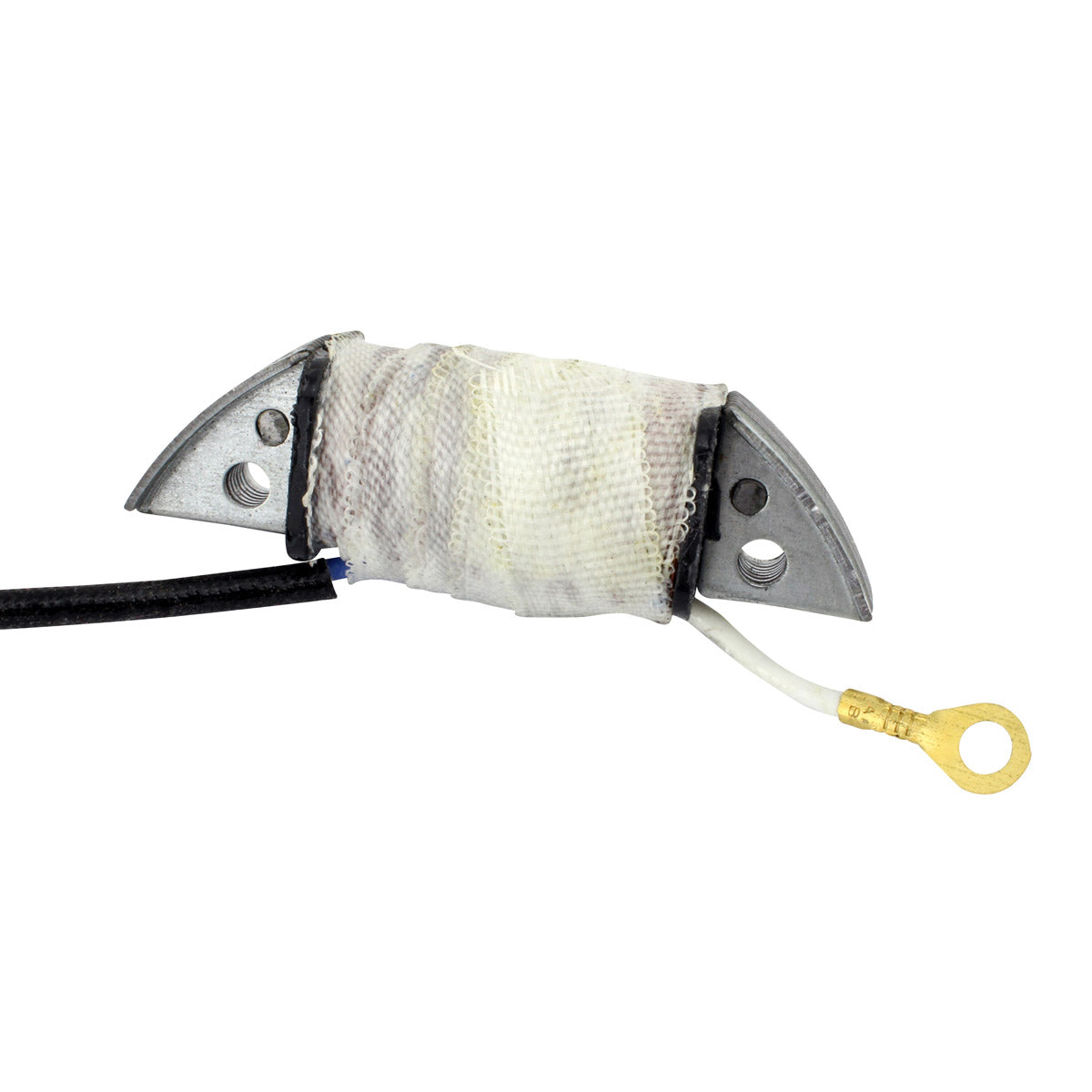

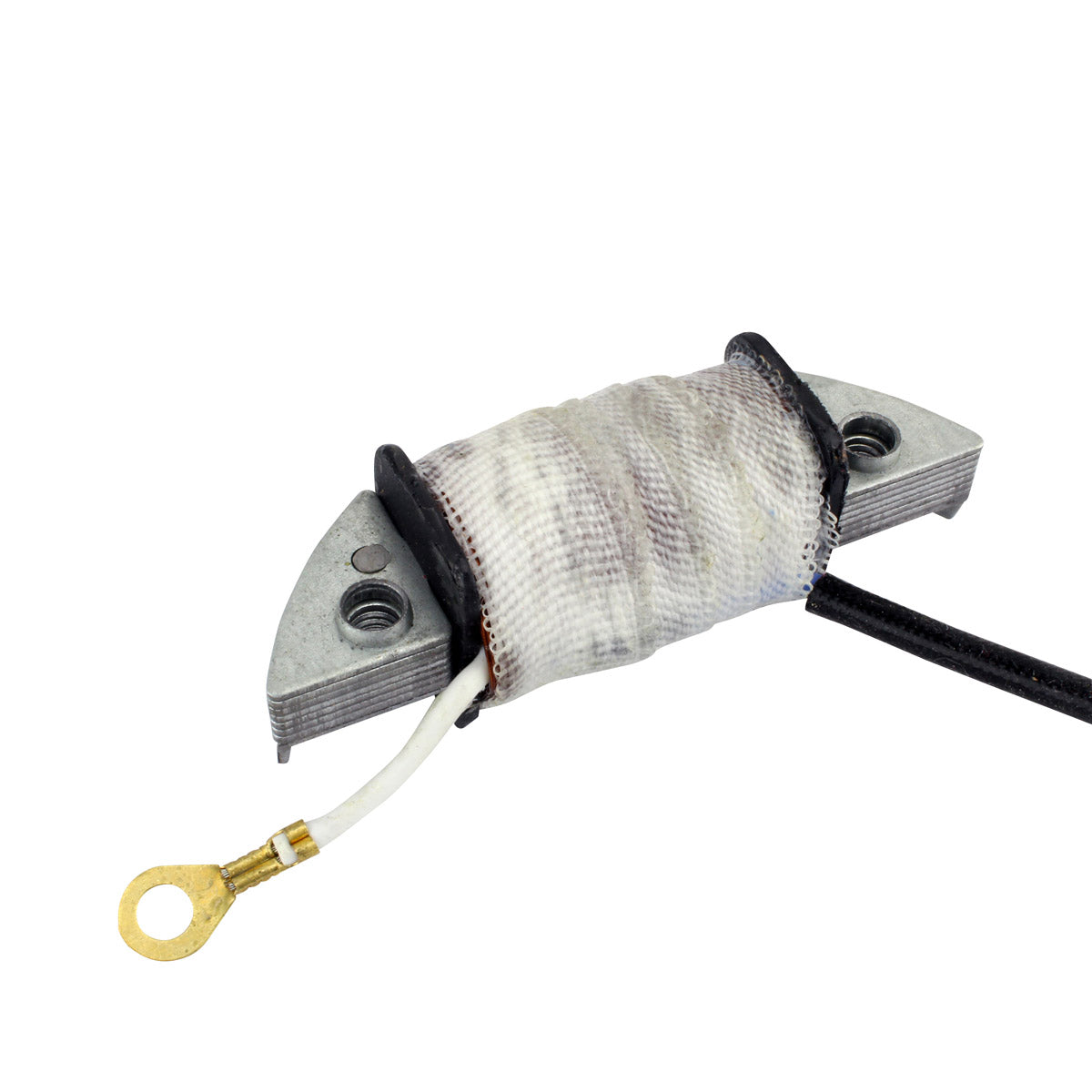

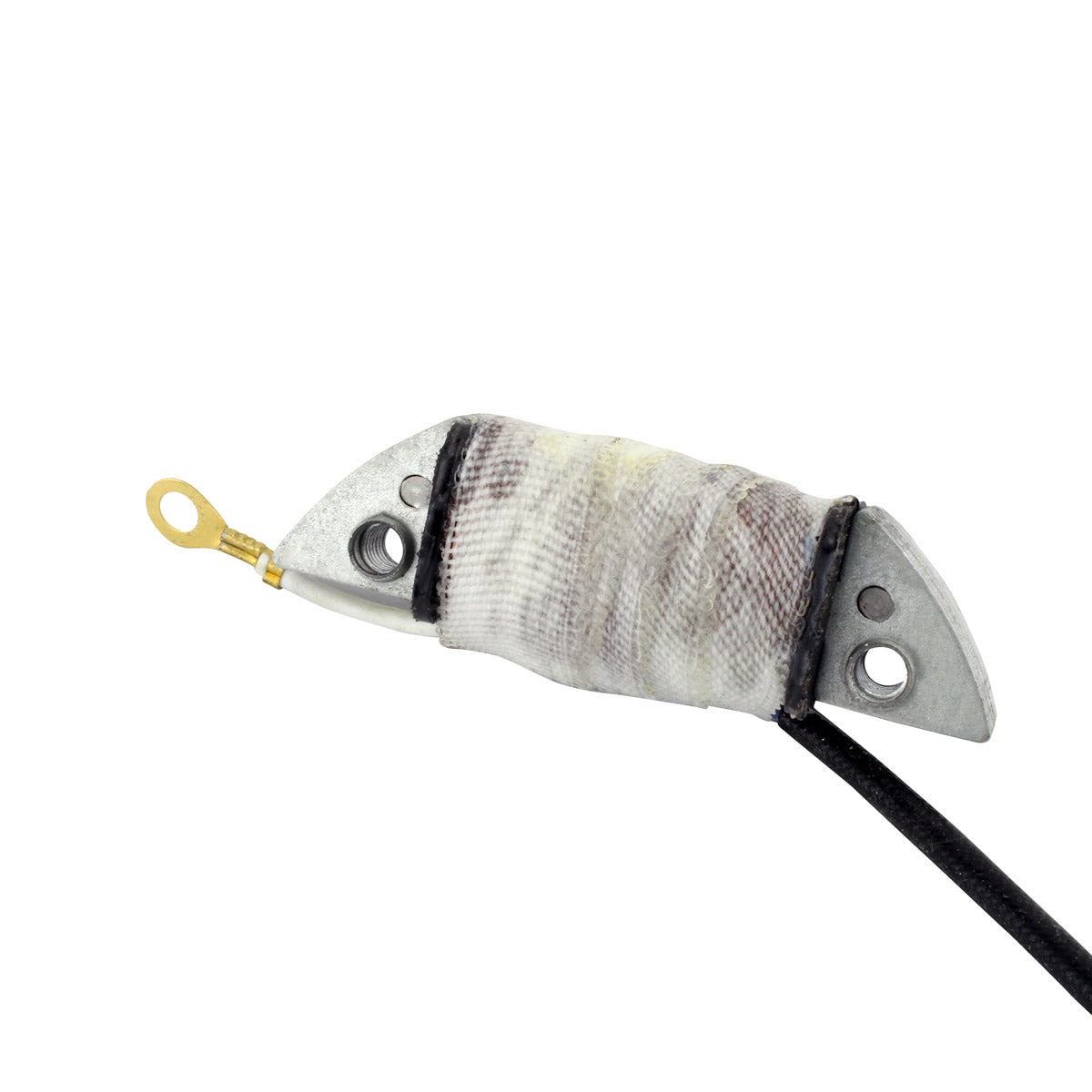

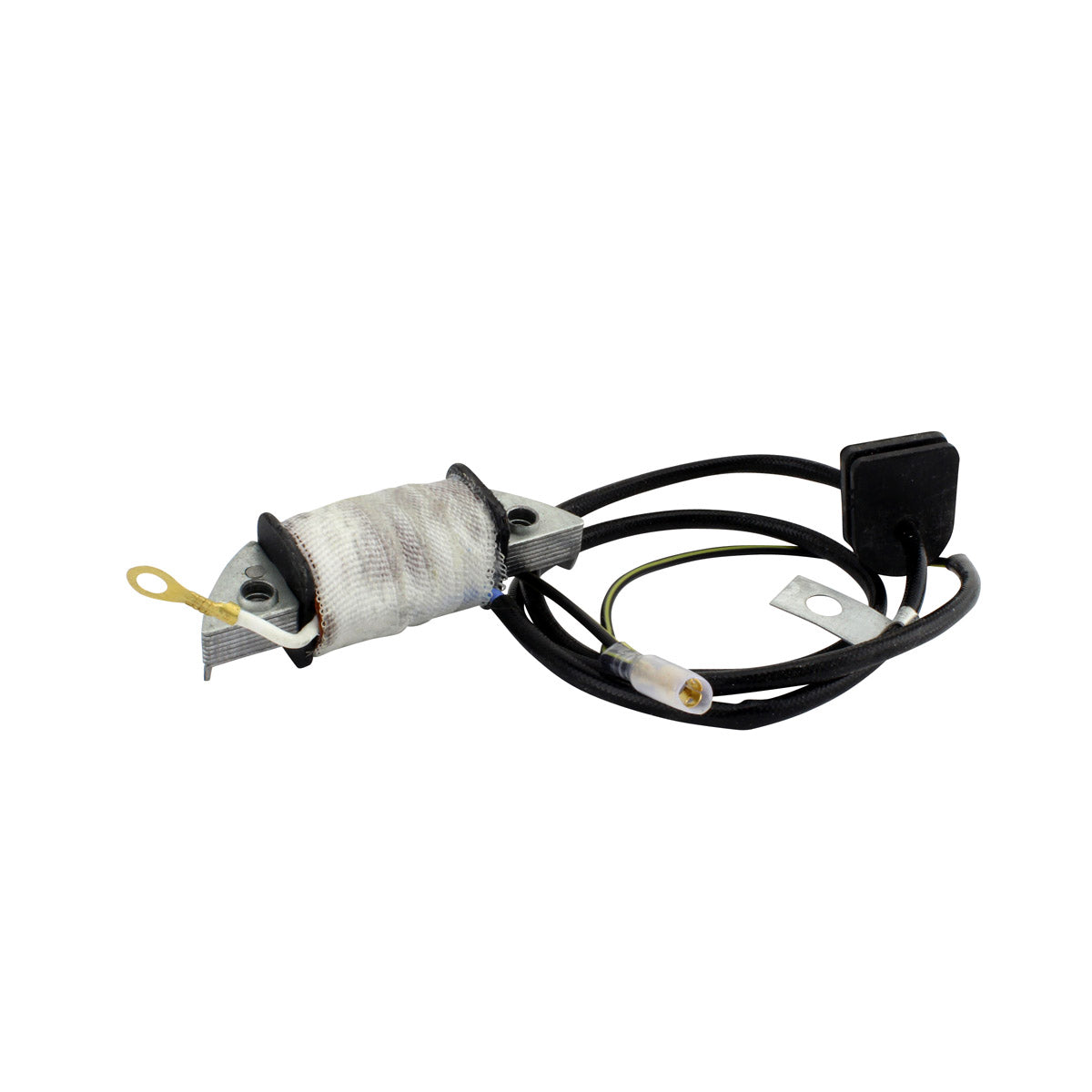

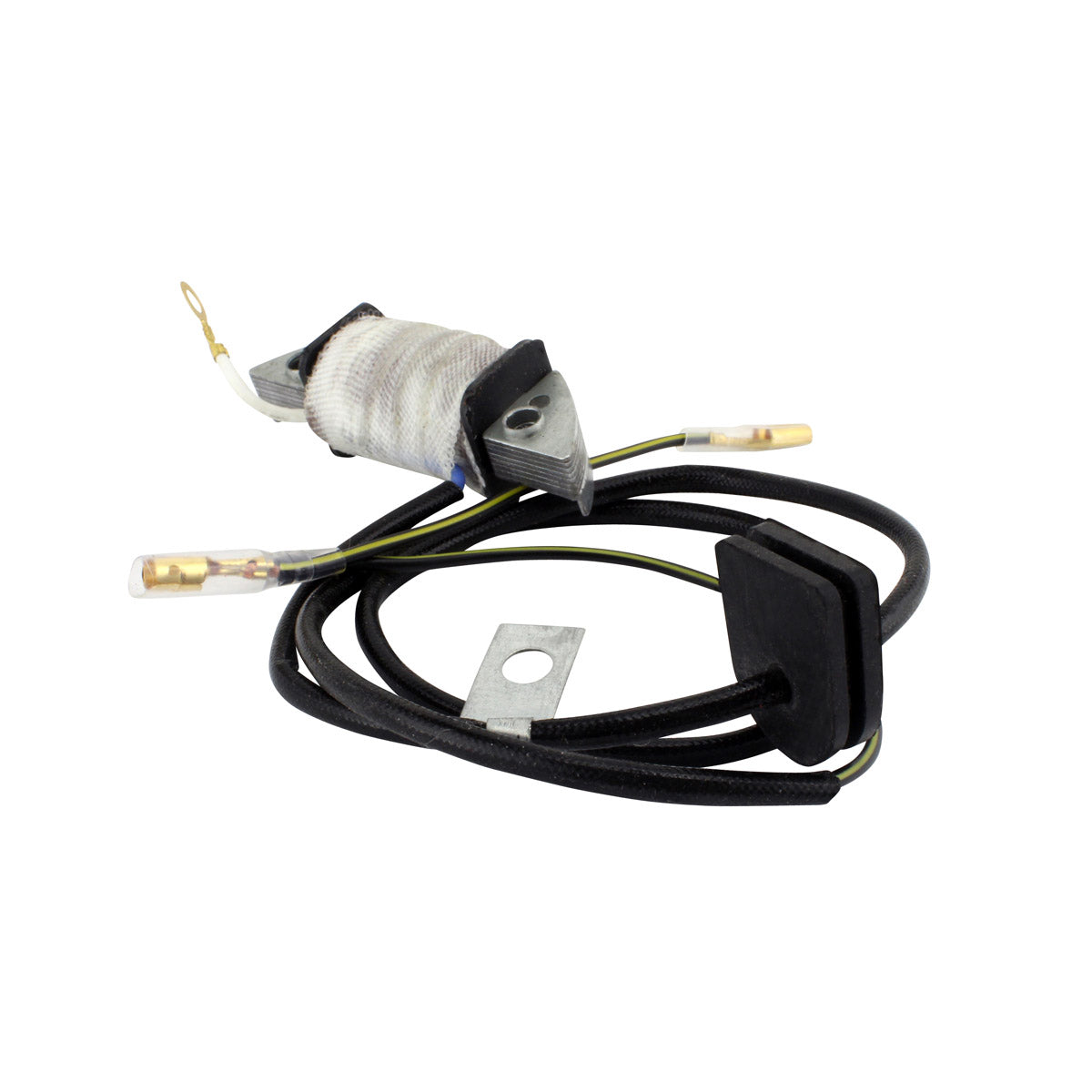

This is a brand new ignition source coil supplied so that you can repair your existing stator rather than replace the whole assembly. It is the coil that generates the ignition charge on the Suzuki JR50 and the LTA 50 Quadmaster, and it mounts to the original stator plate on the standard fixation holes.
RMSTATOR build it from high-grade lamination material with copper winding resistant to 200 degrees Celsius, and the coil is made to work with the original OEM components around it. Every coil is tested before it leaves the factory. Because it is a two-wire, two-terminal component with a generous 630 mm lead, it suits a workshop rebuild of a tired stator plate on these small Suzukis, where a complete replacement stator is often no longer available.
Key Features
- Brand new ignition source coil for stator repair
- High-grade lamination materials
- Copper winding resistant to 200 degrees Celsius
- Compatible with the original OEM components
- Standard 49 mm fixation hole spacing
- 630 mm lead length
- Tested before shipping
Technical Specs
| Specification |
Detail |
| Number of wires |
2 |
| Number of terminals |
2 |
| Coil resistance, Black/Yellow to ground |
125 ohms |
| Wire length |
630 mm |
| Distance between fixation holes |
49 mm |
| Winding temperature rating |
200 degrees Celsius |
Vehicle Fitment Guide
| Make & Model |
Years |
| Suzuki JR50 |
1984-2006 |
| Suzuki LTA 50 Quadmaster |
2002-2005 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 32101-19G00 |
Suzuki |
| 32101-04430 |
Suzuki |
| 32101-04431 |
Suzuki |
| 32101-04432 |
Suzuki |
| 32140-04430 |
Suzuki |
Frequently Asked Questions
Does it fit without modification?
It is made to the original dimensions, with 49 mm between the fixation holes, and is compatible with the OEM parts around it, so it bolts onto the standard stator plate on the models and years listed above. It is supplied as a repair component, so the coil has to be fitted to your existing stator plate rather than dropped in as a complete assembly.
What is included?
The source coil itself, with its 630 mm lead. No further items are listed in the packaging details for this part.
How do I know the old source coil has failed?
Measure the resistance from the black/yellow wire to ground: a healthy coil reads about 125 ohms. An open circuit reading, or a reading close to zero, means the winding has failed. In practice a dead source coil shows up as no spark at all, or a spark that disappears once the engine warms up.
Is this the whole stator or just one coil?
Just the ignition source coil. It is sold so that a stator with one failed coil can be repaired instead of scrapped, which matters on these older Suzuki 50s where complete stator plates are getting hard to find.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
