This RMSTATOR kit pairs a brand new generator stator with the matching stator crankcase cover gasket, so the cover can be sealed properly on reassembly instead of being re-used. The stator is a direct replacement for the original unit and is plug-and-play, a direct fit and easy to install.
It is built with high grade lamination materials and copper windings rated to resist 200 degrees Celsius, and the pickup pulsar coil is supplied already fitted to the plate. The connector, the rubber grommet and an additional opposite connector for the main harness side are all in the box - the harness-side plug is a frequent failure point on a hard-used quad and renewing both halves at once avoids a repeat fault.
Key Features
- Brand new generator stator plus the stator crankcase cover gasket
- Direct replacement, plug-and-play, easy installation

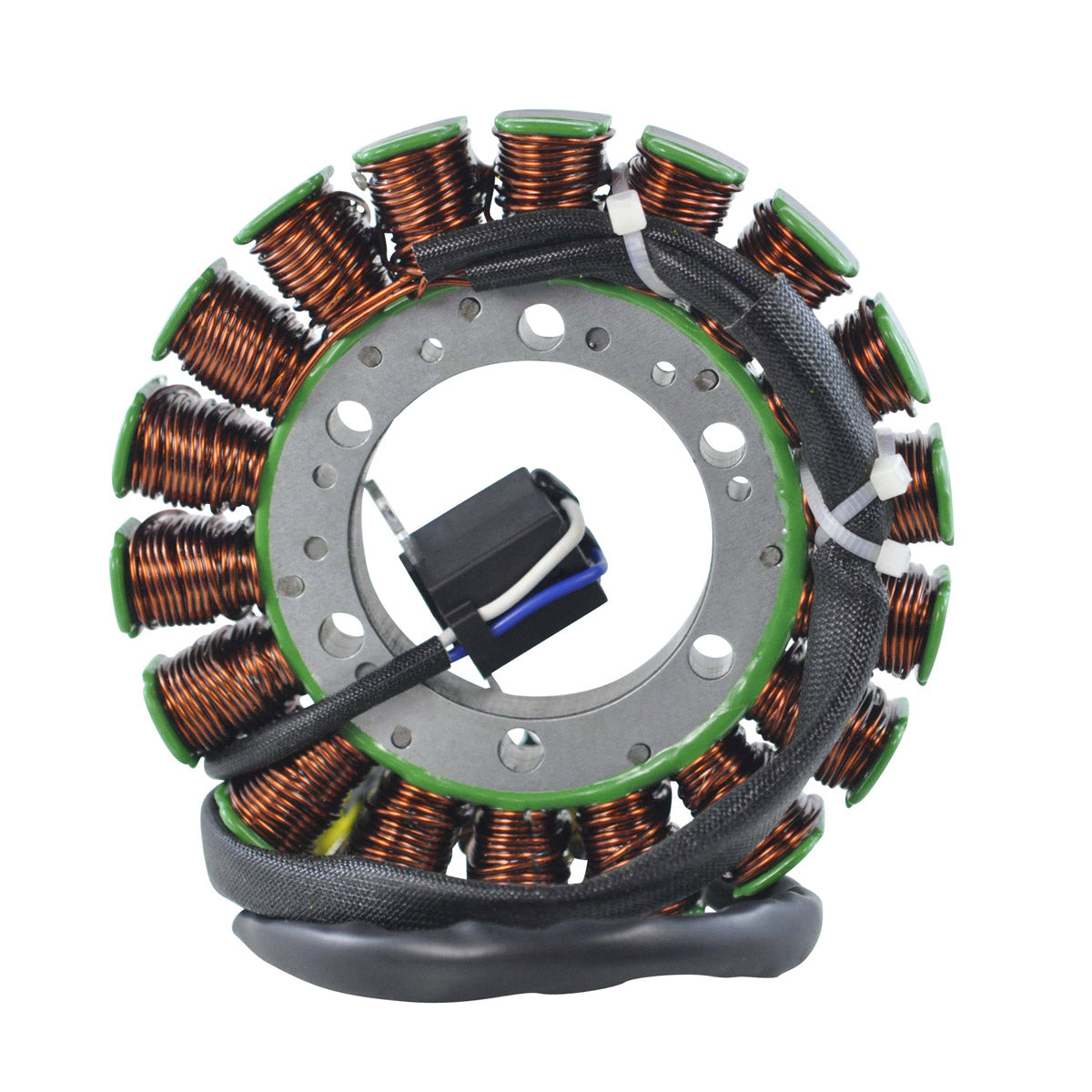

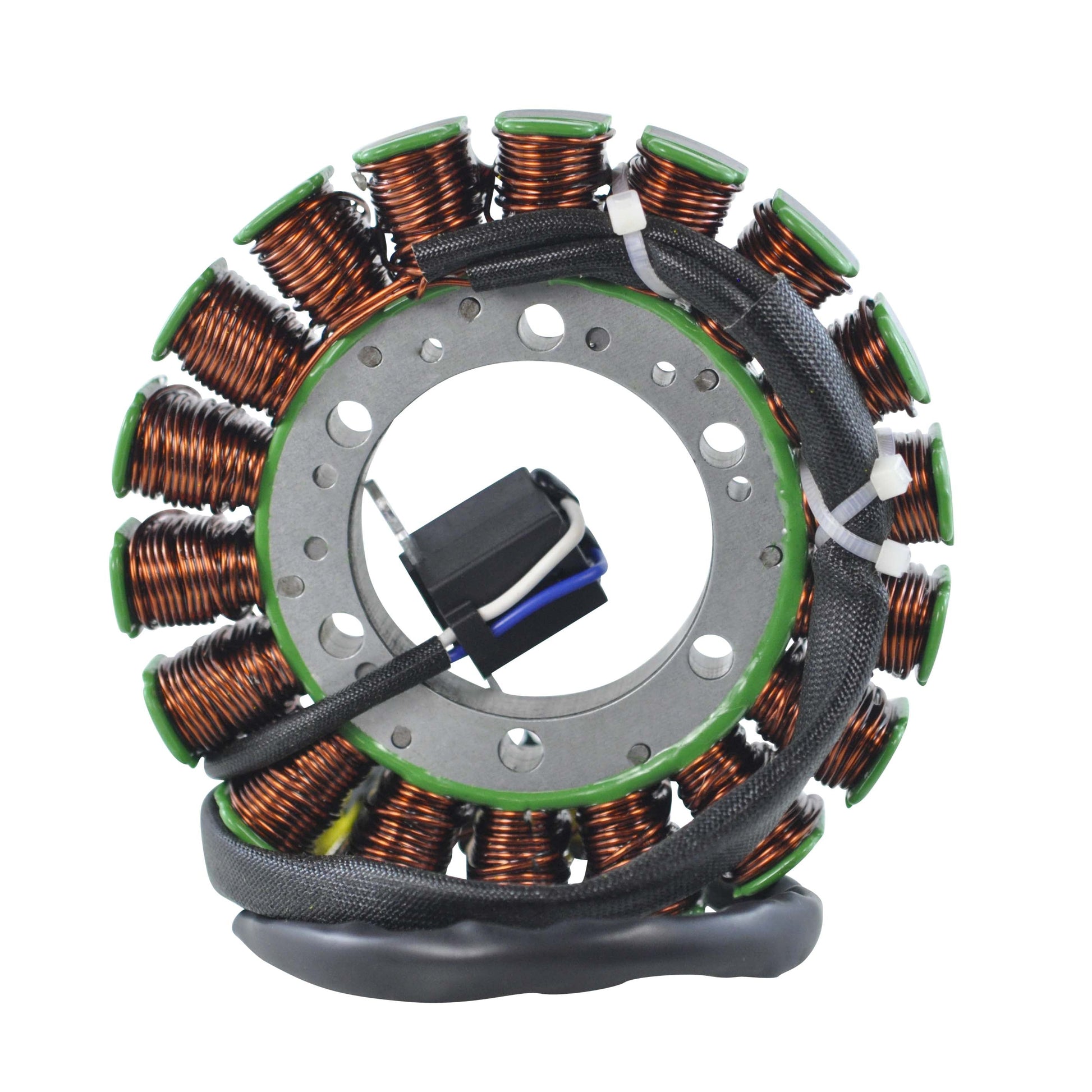

- Pickup pulsar coil included and pre-fitted
- High grade lamination materials
- Copper windings resistant to 200 degrees Celsius

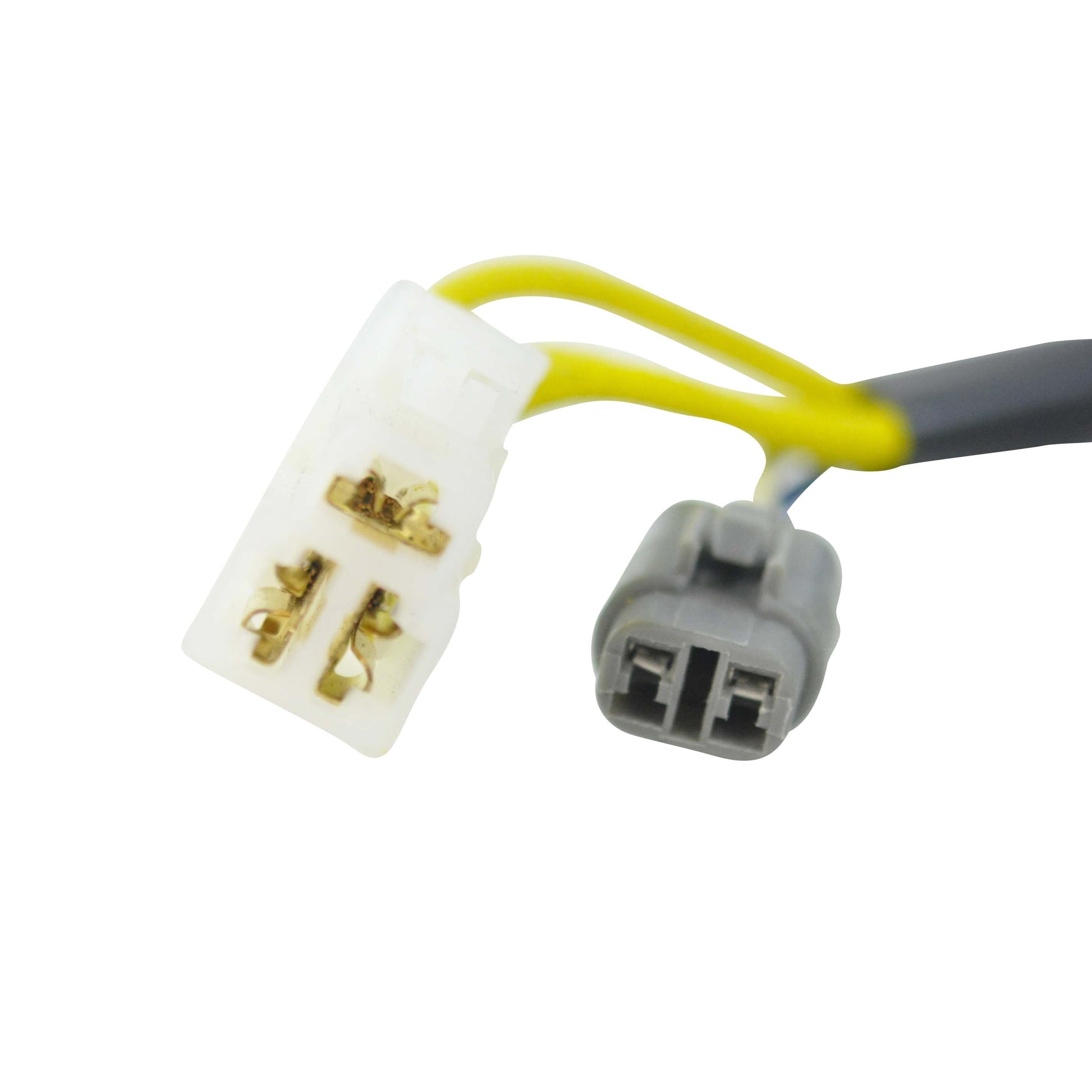

- Connector, rubber grommet and opposite connector supplied
- Five wires, two plugs, five pins
Technical Specs
| Specification |
Detail |
| Interior diameter |
53 mm |
| Exterior diameter |
125 mm |
| Thickness |
20 mm |
| Wire length, stator to grommet |
155 mm |
| Wire length, grommet to plug |
435 mm and 475 mm |
| Pickup coil wire length |
175 mm |
| Number of wires |
5 |
| Number of plugs |
2 |
| Number of pins |
5 |
| Alternator resistance, Yellow to Yellow |
0.4 ohms +/-20% |
| Pickup resistance, Blue to White |
208 ohms +/-20% |
| Winding temperature rating |
200 degrees Celsius |
| RMSTATOR part number |
RM01358G |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Suzuki LTA 700 X KingQuad |
2005-2018 |
| Suzuki LTA 750 KingQuad AXi |
2005-2018 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 32101-31G00 |
Suzuki - stator |
| 32101-31G01 |
Suzuki - stator |
| 32101-31G02 |
Suzuki - stator |
| 11483-31G00 |
Suzuki - cover gasket |
Frequently Asked Questions
Does this kit fit without modification?
Yes. The stator is a direct replacement for the original Suzuki unit on the LTA 700 X and LTA 750 KingQuad AXi - plug-and-play, direct fit, easy installation. No alteration to the loom or the crankcase cover is required.
What is included in the box?

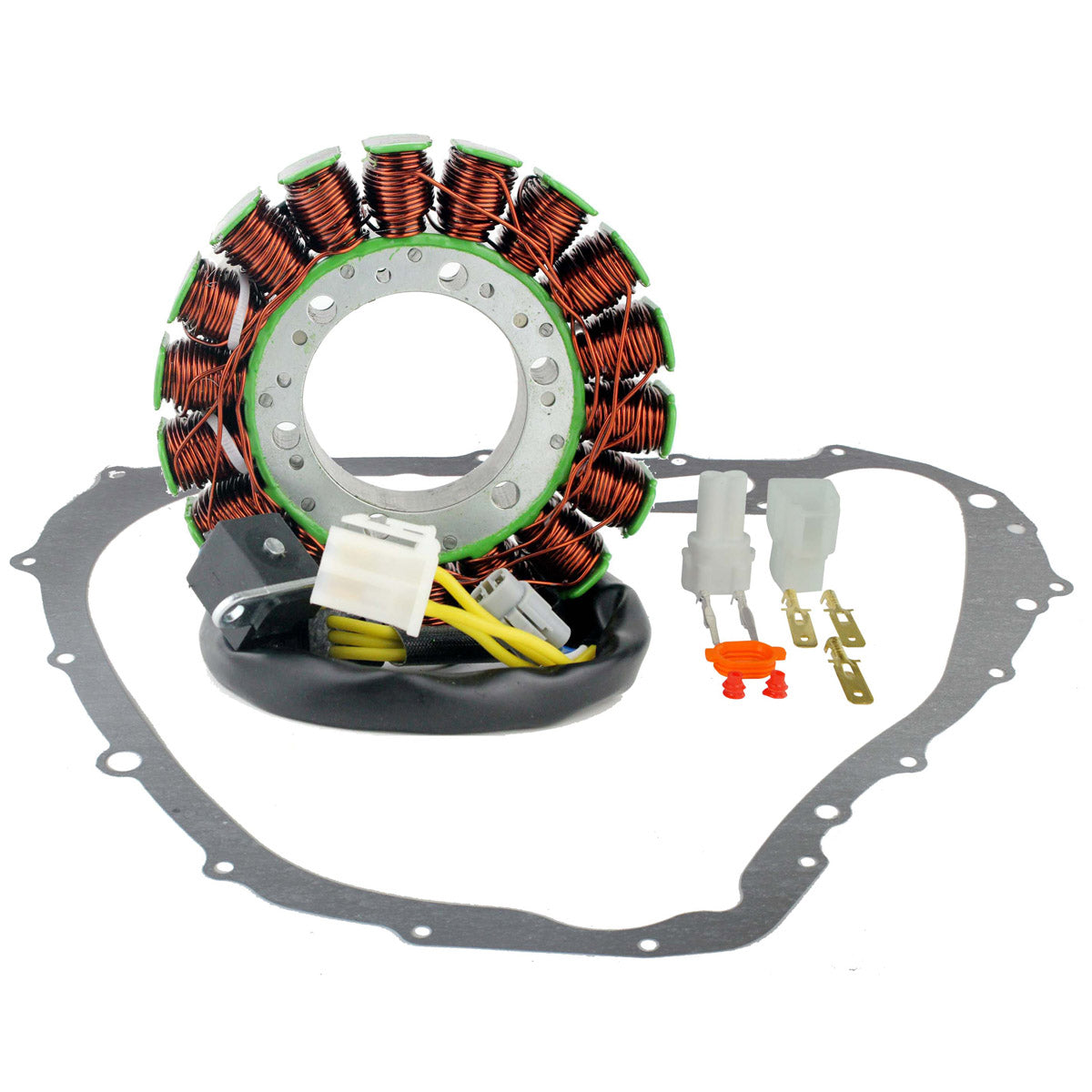

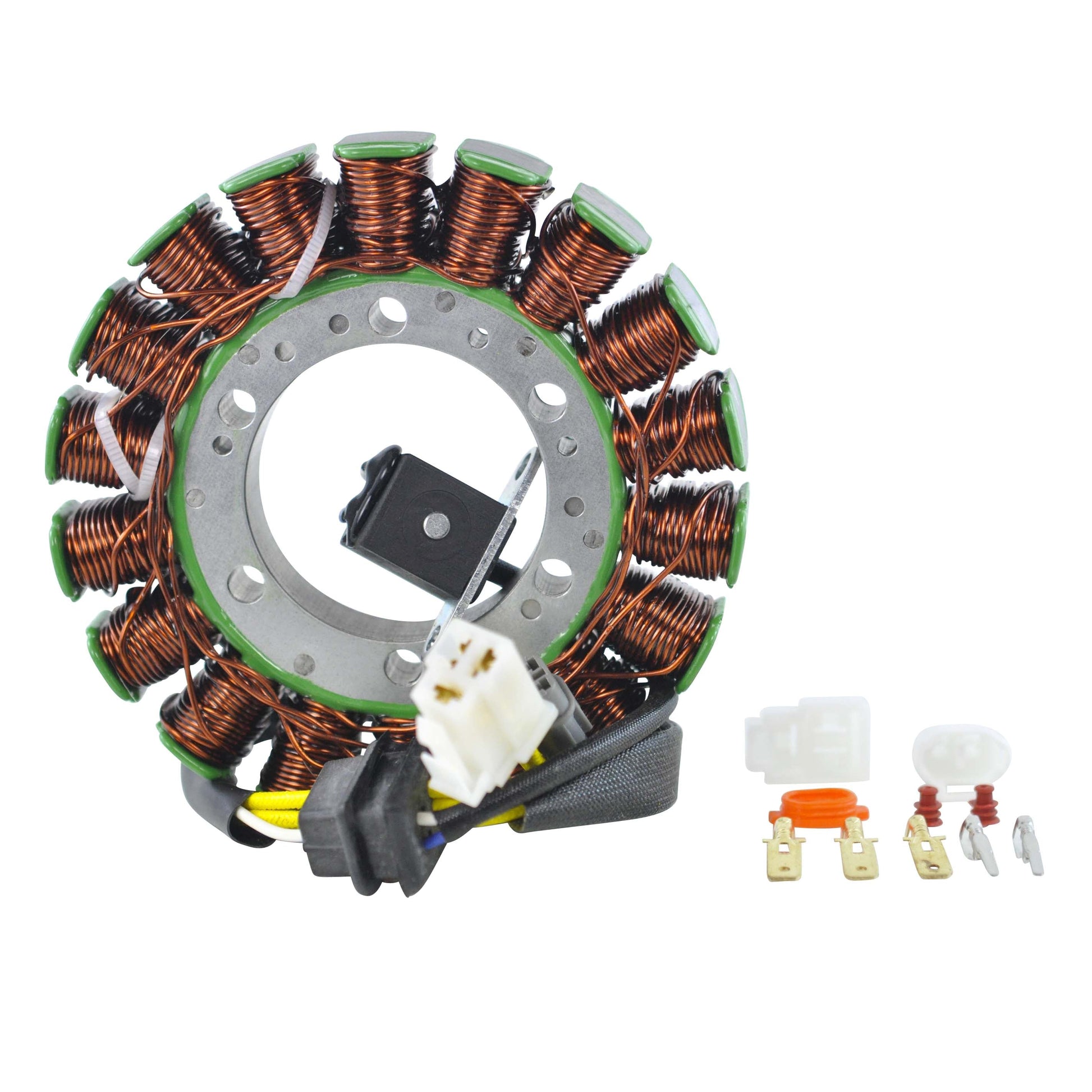

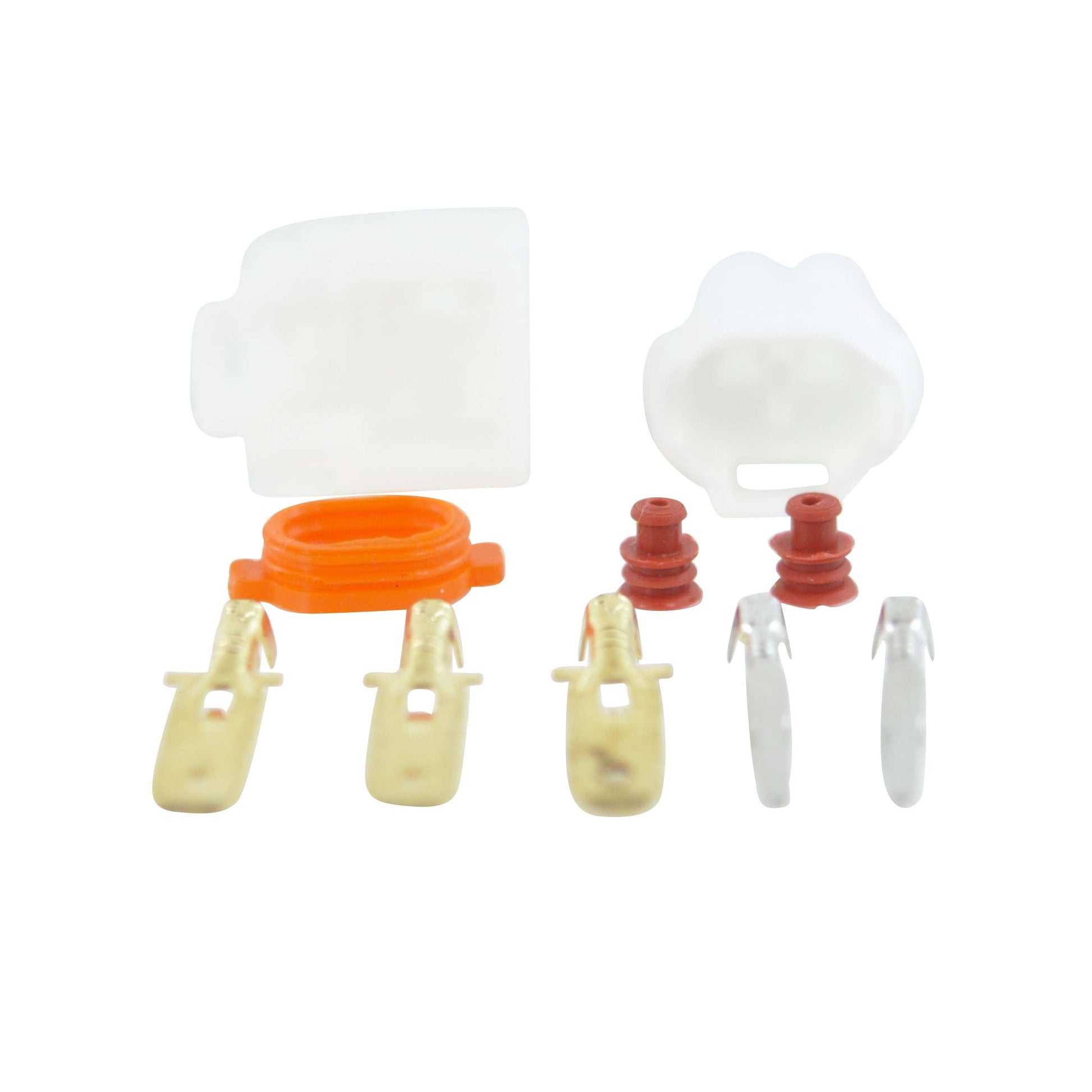

The generator stator, the stator crankcase cover gasket, the pickup pulsar coil, the connector, the rubber grommet, and an opposite connector for the main harness side.
How do I know the old stator is the problem?
Test it with a multimeter. The alternator windings should read 0.4 ohms +/-20% between the Yellow wires and the pickup coil should read 208 ohms +/-20% from Blue to White. Open circuit, a short to the stator body, or readings well outside those figures confirm a failed unit.
Why is the cover gasket included?

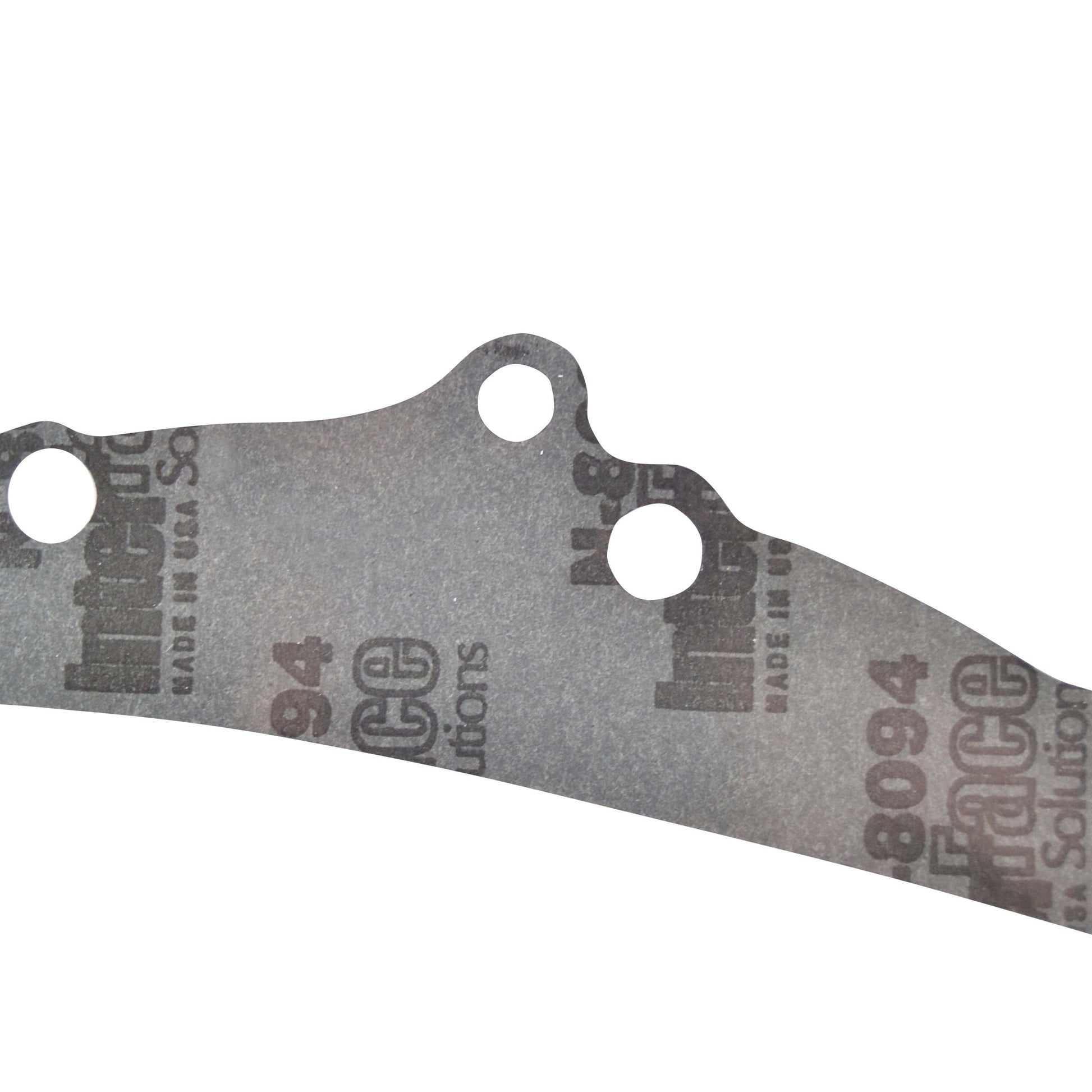

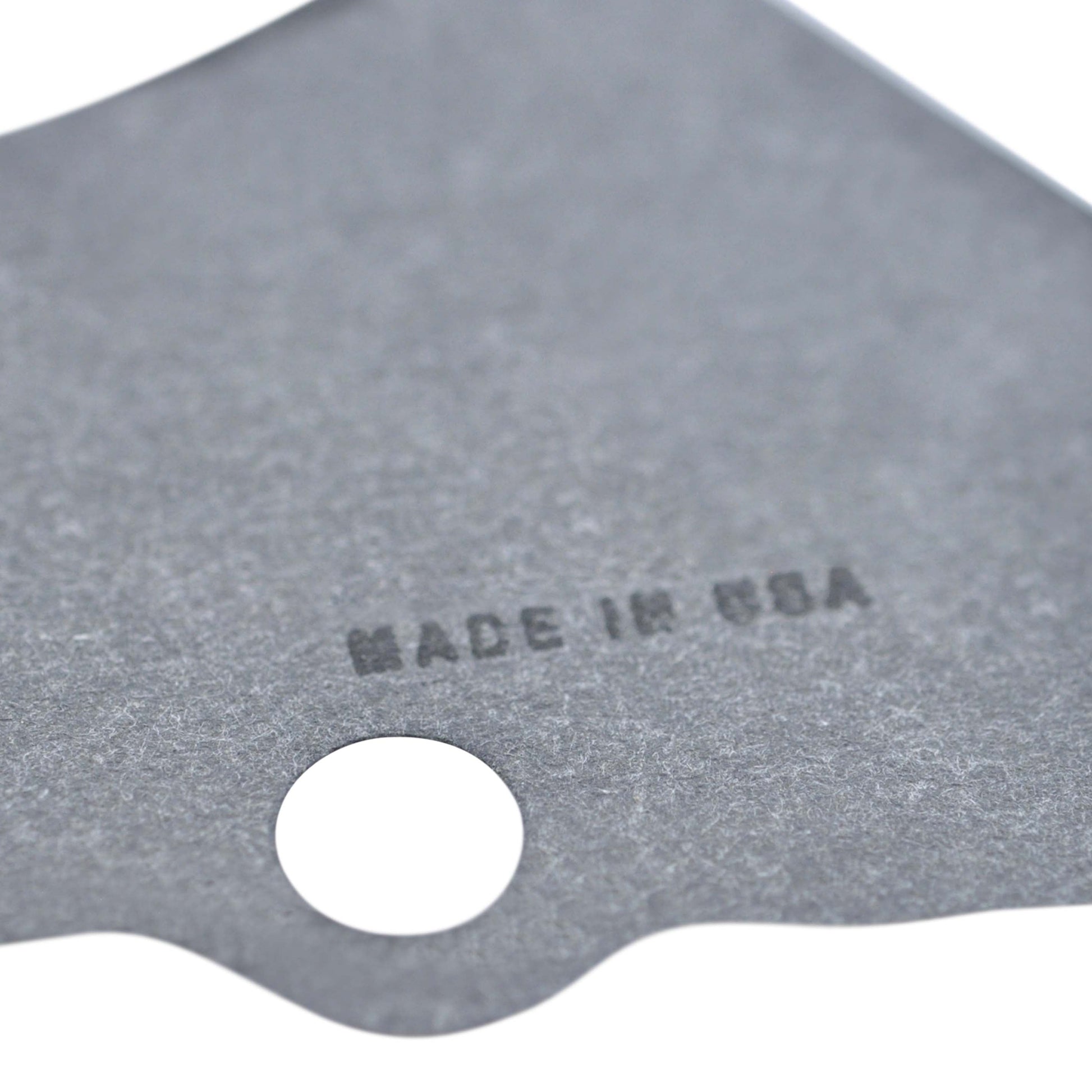

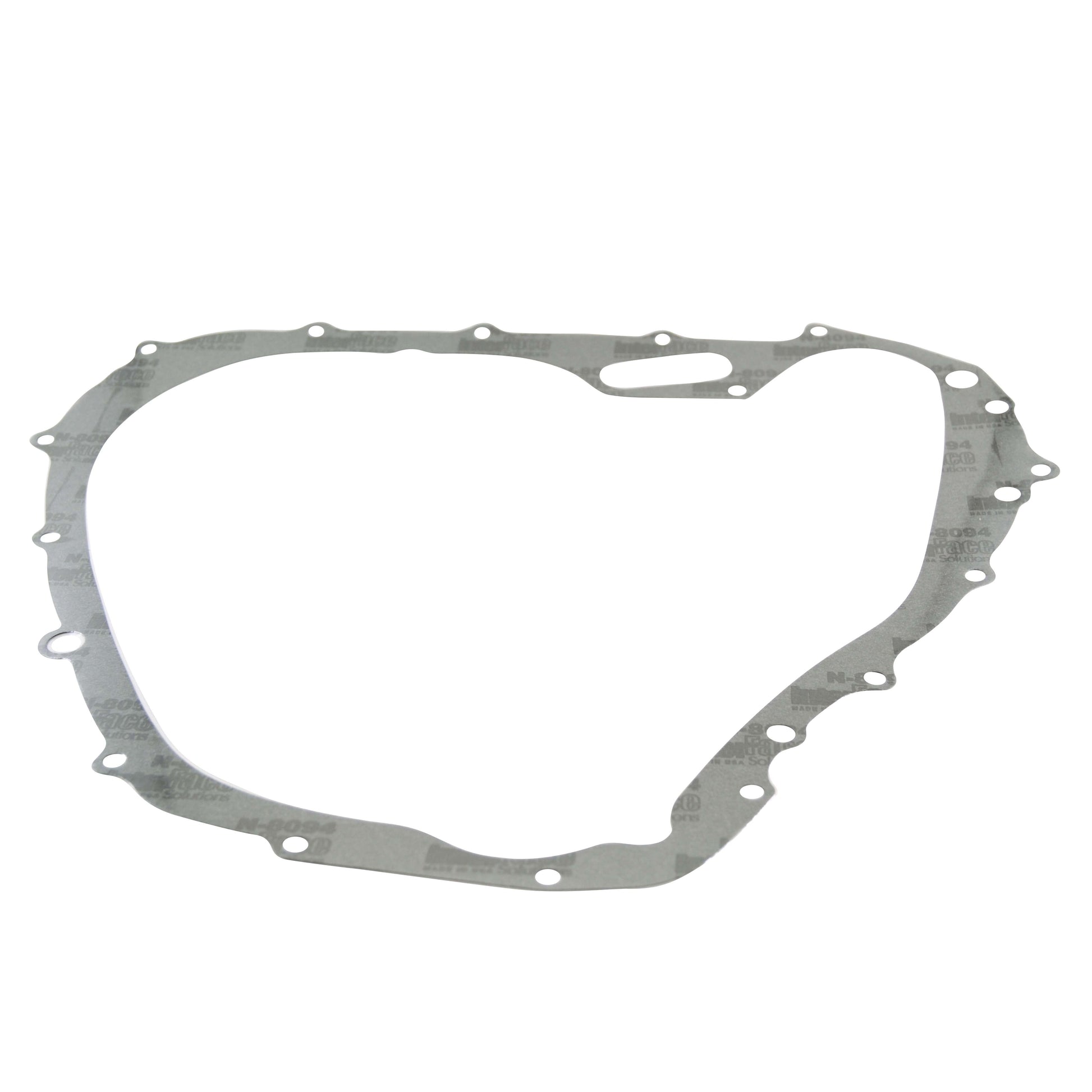

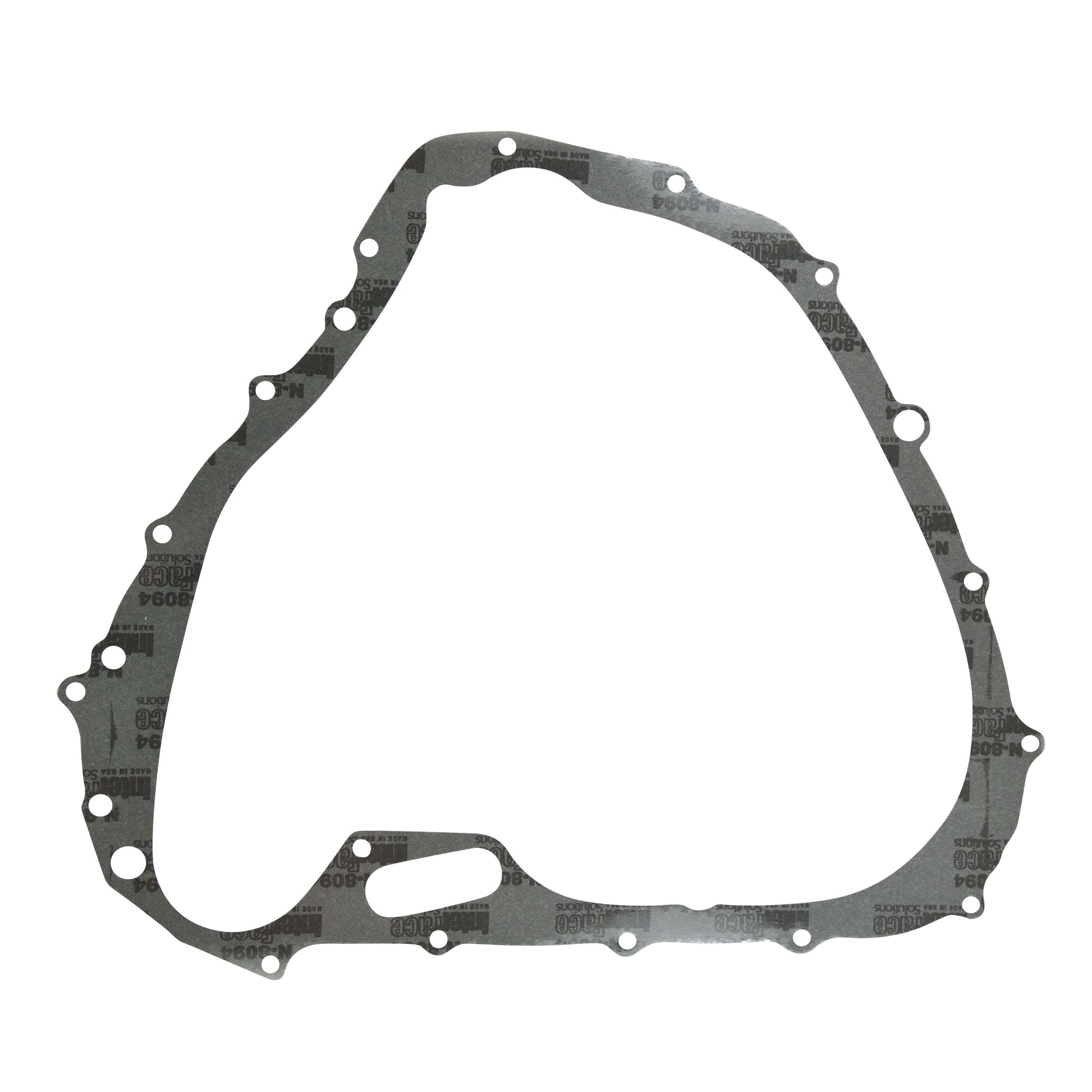

Getting to the stator means removing the stator crankcase cover, and a used gasket rarely seals reliably a second time. Supplying the correct 11483-31G00 gasket in the kit means the cover goes back on properly without a separate order.
