Stator and Crankcase Cover Gasket Kit
Yamaha YFM 350 Moto 4 and YFP 350 Terrapro - 1987-1989 - Part RM01035G

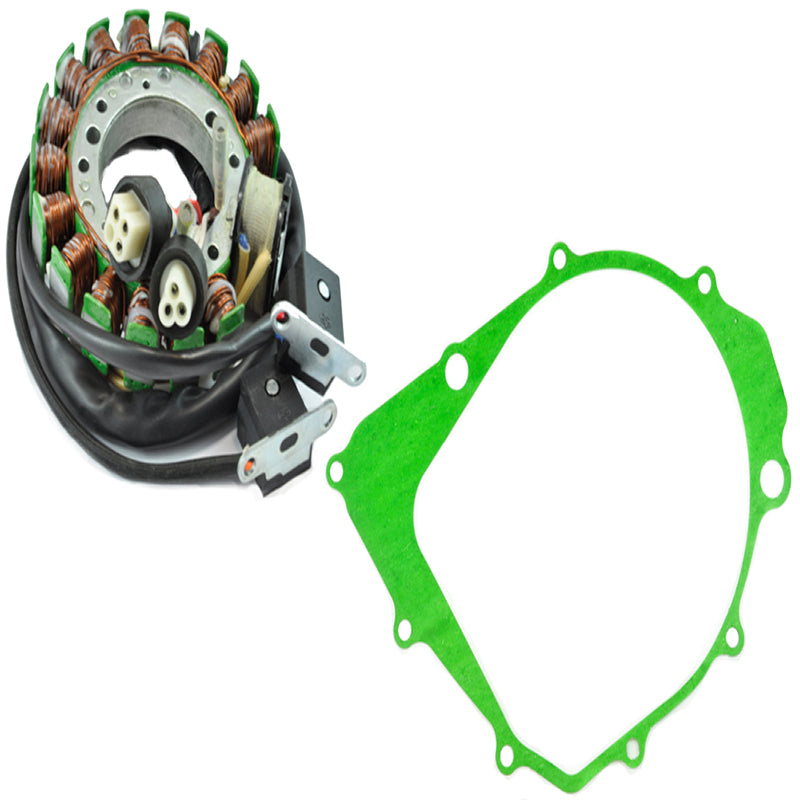

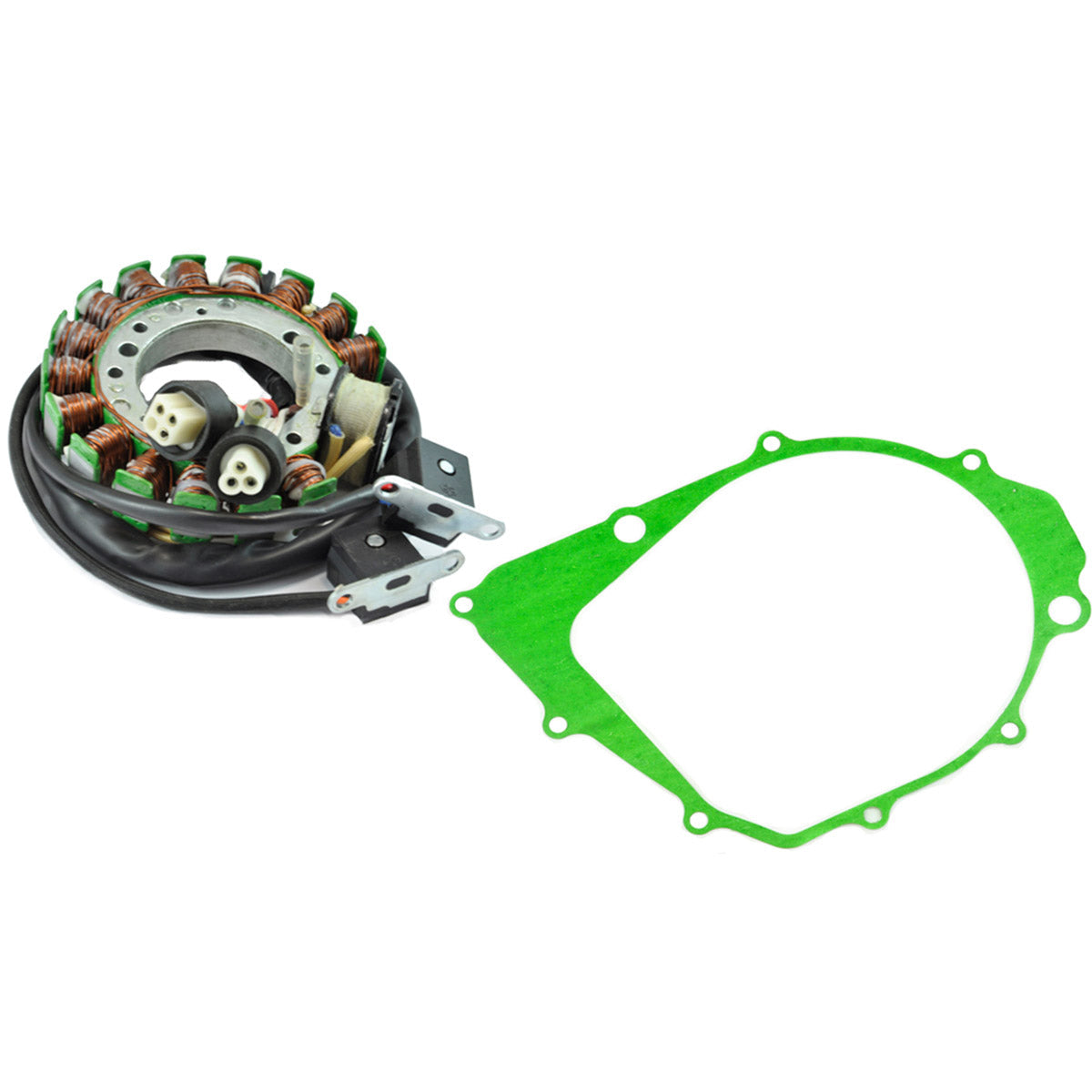

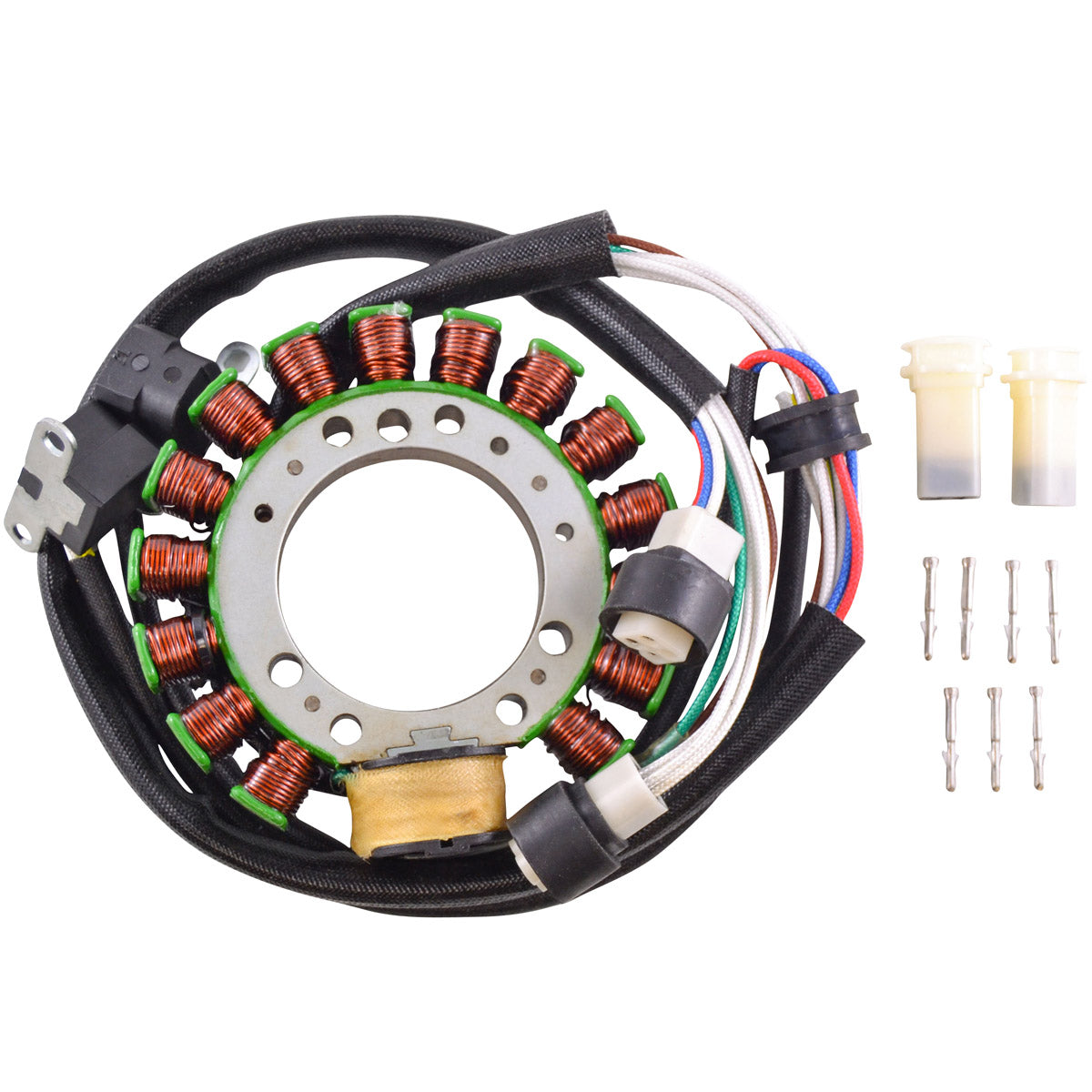

This is a brand new stator and gasket kit for the Yamaha YFM 350 Moto 4 and YFP 350 Terrapro built between 1987 and 1989. It is a direct replacement for the original unit and installs plug-and-play, a direct fit requiring no modification. Supplying the stator crankcase cover gasket alongside the stator means the cover can be resealed properly on reassembly rather than reusing a gasket that has already been crushed once.

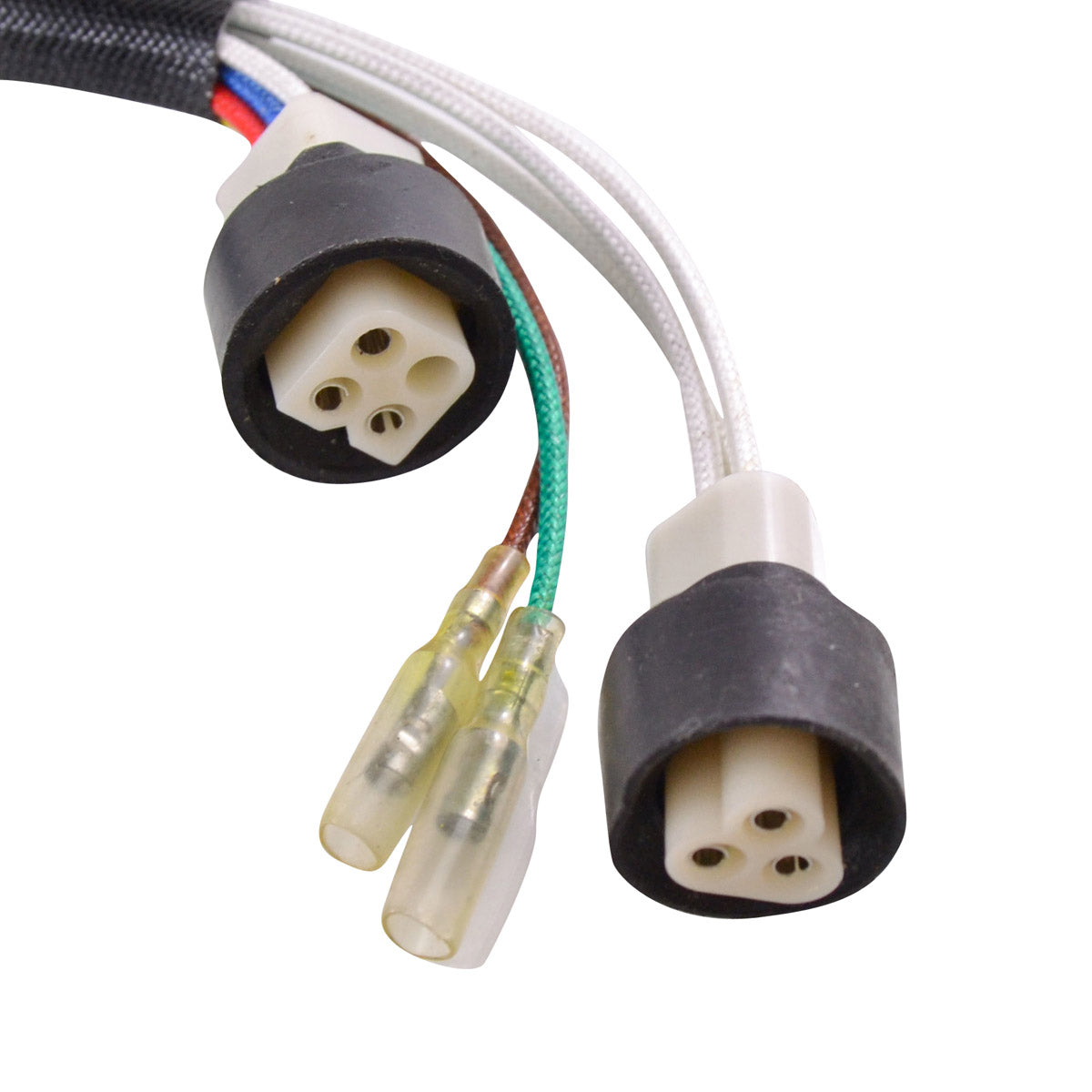

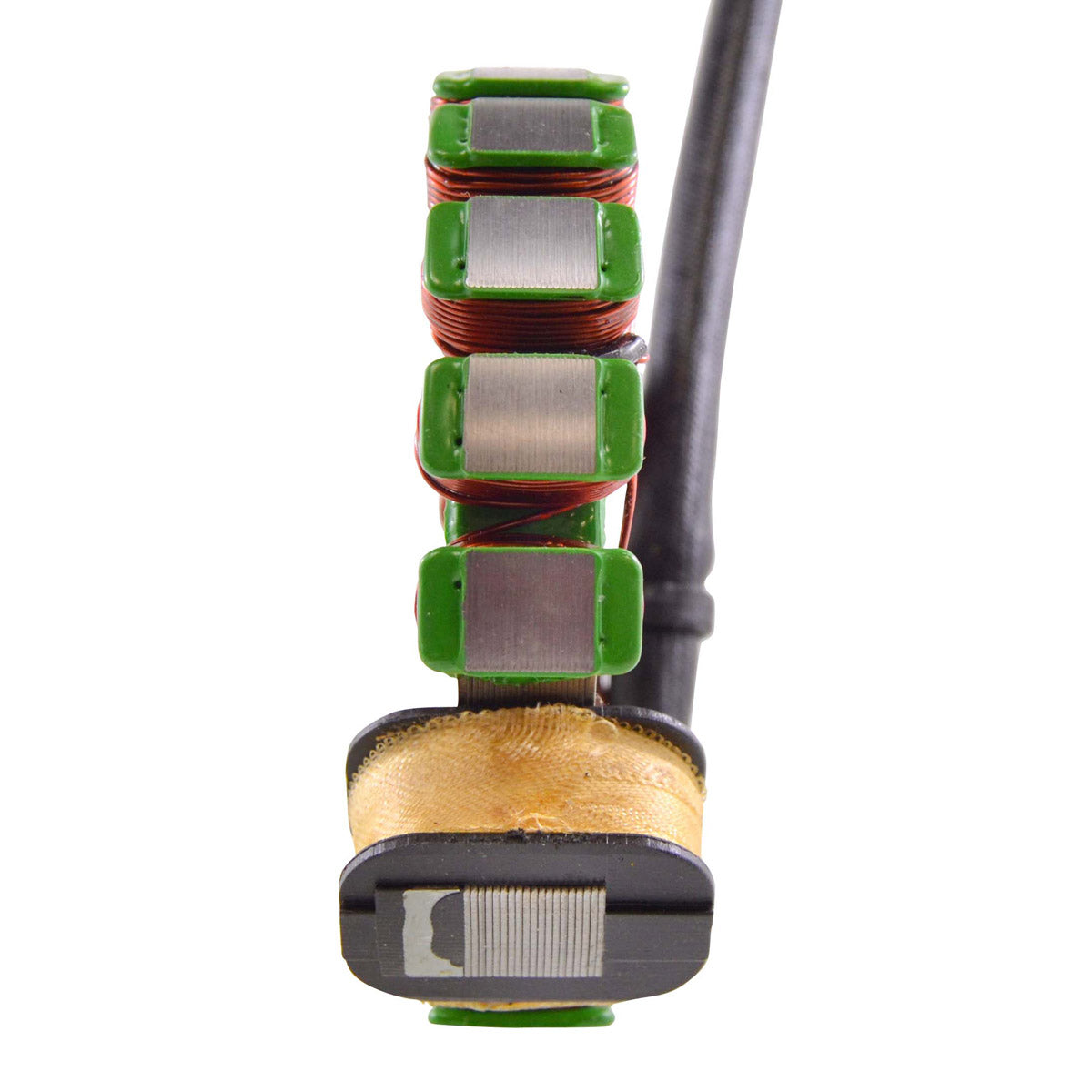

The stator is built on the highest grade lamination materials and wound with copper resistant to 200 degrees Celsius. The pickup coil, connector and rubber grommet are all included. This is a full nine-wire assembly running through four plugs and eight pins, carrying the alternator charging winding, two separate pickup circuits and a source coil, so it replaces the complete generator side in one part rather than as separate components.
Key Features
- Brand new stator and gasket kit
- Direct replacement for the original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Copper windings resistant to 200 degrees Celsius
- Pickup coil included

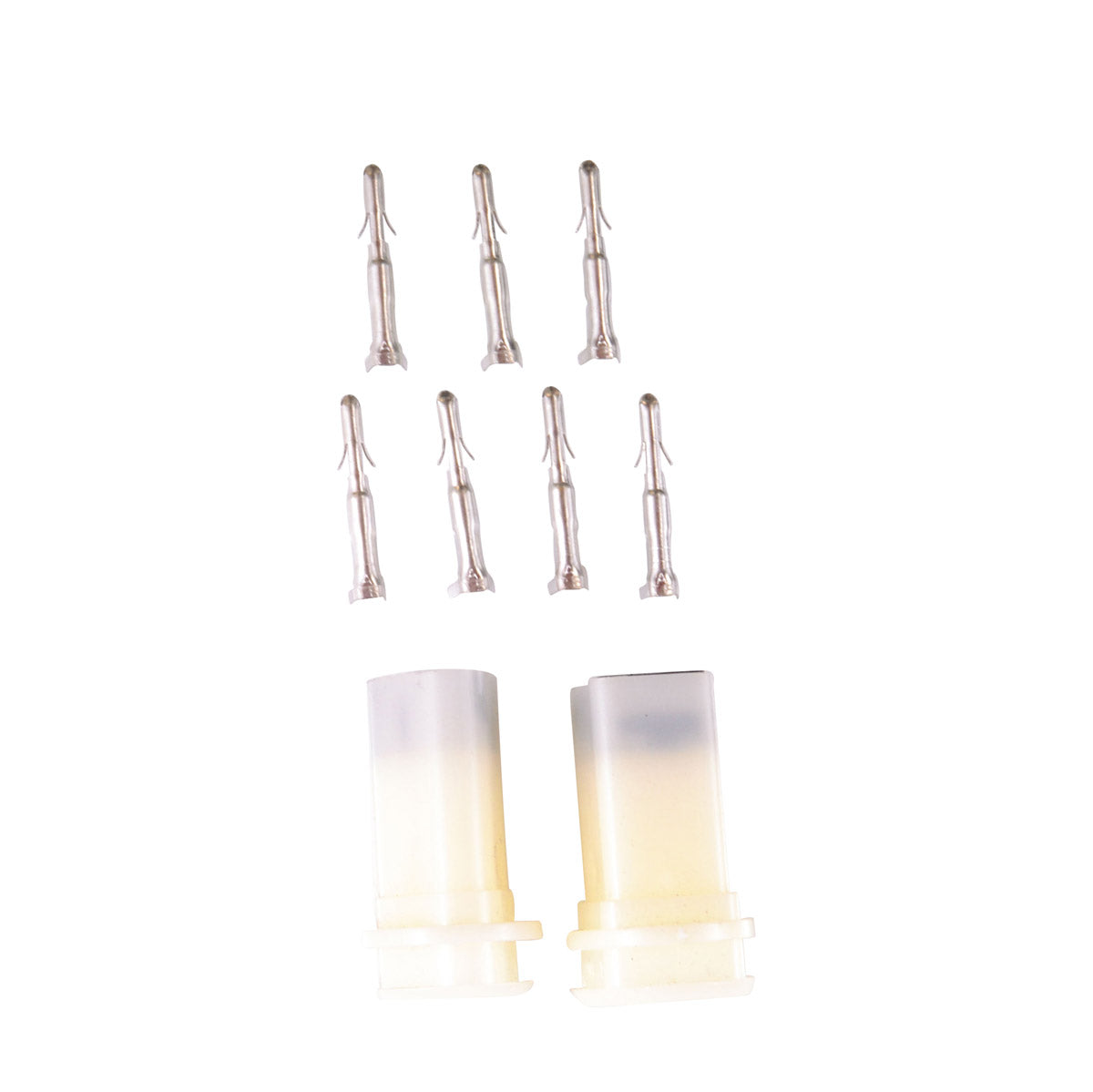

- Connector and rubber grommet included
- Stator crankcase cover gasket supplied in the kit
Technical Specs
| Specification | Detail |
|---|---|
| Interior Diameter | 52 mm |
| Exterior Diameter | 115 mm |
| Thickness | 40 mm |
| Wire Length (stator to grommet) | 300 mm |
| Wire Length (grommet to plug) | 490 mm |
| Pickup Coil Wire to Grommet | 295 mm |
| Number of Wires | 9 |
| Number of Plugs | 4 |
| Number of Pins | 8 |
| Alternator (White to White) | 0.4 ohms +/-20% |
| Pickup (Blue to Red) | 215 ohms +/-20% |
| Pickup (Yellow to White) | 215 ohms +/-20% |
| Source (Green to Brown) | 300 ohms +/-20% |
| Manufacturer Part Number | RM01035G |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Yamaha YFM 350 Moto 4 | 1987-1989 |
| Yamaha YFP 350 Terrapro | 1987-1989 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 1YW-85510-21-00 | Yamaha - stator |
| 3GD-15451-00-00 | Yamaha - crankcase cover gasket |
Frequently Asked Questions
Does this need any modification to fit?
No. It is a direct replacement for the original unit and installs plug-and-play with the supplied connector and rubber grommet. No cutting or splicing of the loom is required.
What is included in the box?
The stator, the crankcase cover gasket, the pickup coil, the connector and the rubber grommet.
How can I tell my old stator has failed?
Test each circuit with a multimeter against the Technical Specs table. The white alternator wires should read about 0.4 ohms between each other, both pickup circuits about 215 ohms, and the green to brown source coil about 300 ohms, each within plus or minus 20 percent. Any circuit reading open, shorted to the engine case, or well outside tolerance has failed. A flat battery after running, an intermittent misfire, or no spark at all are the usual signs.
Do I have to replace the gasket at the same time?

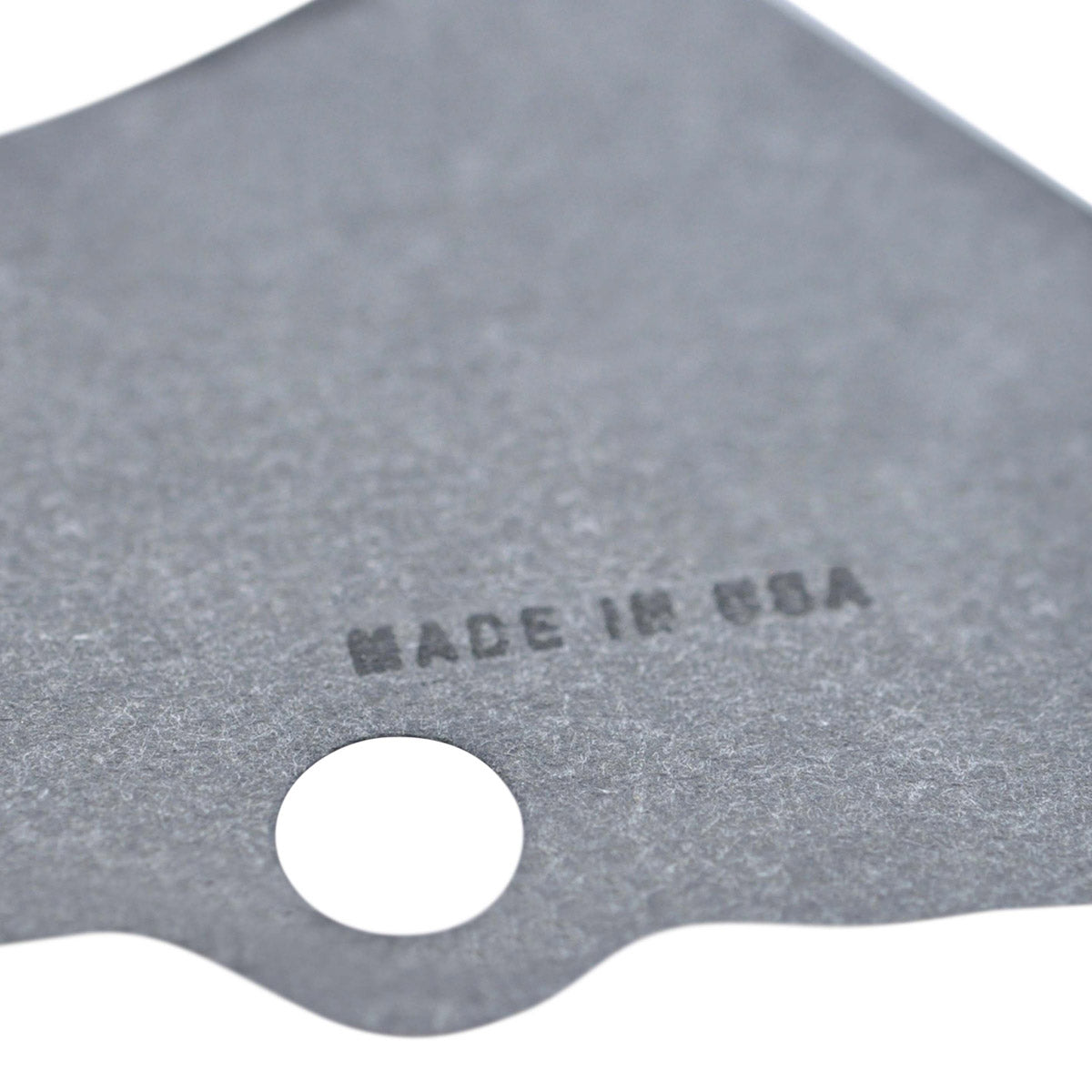

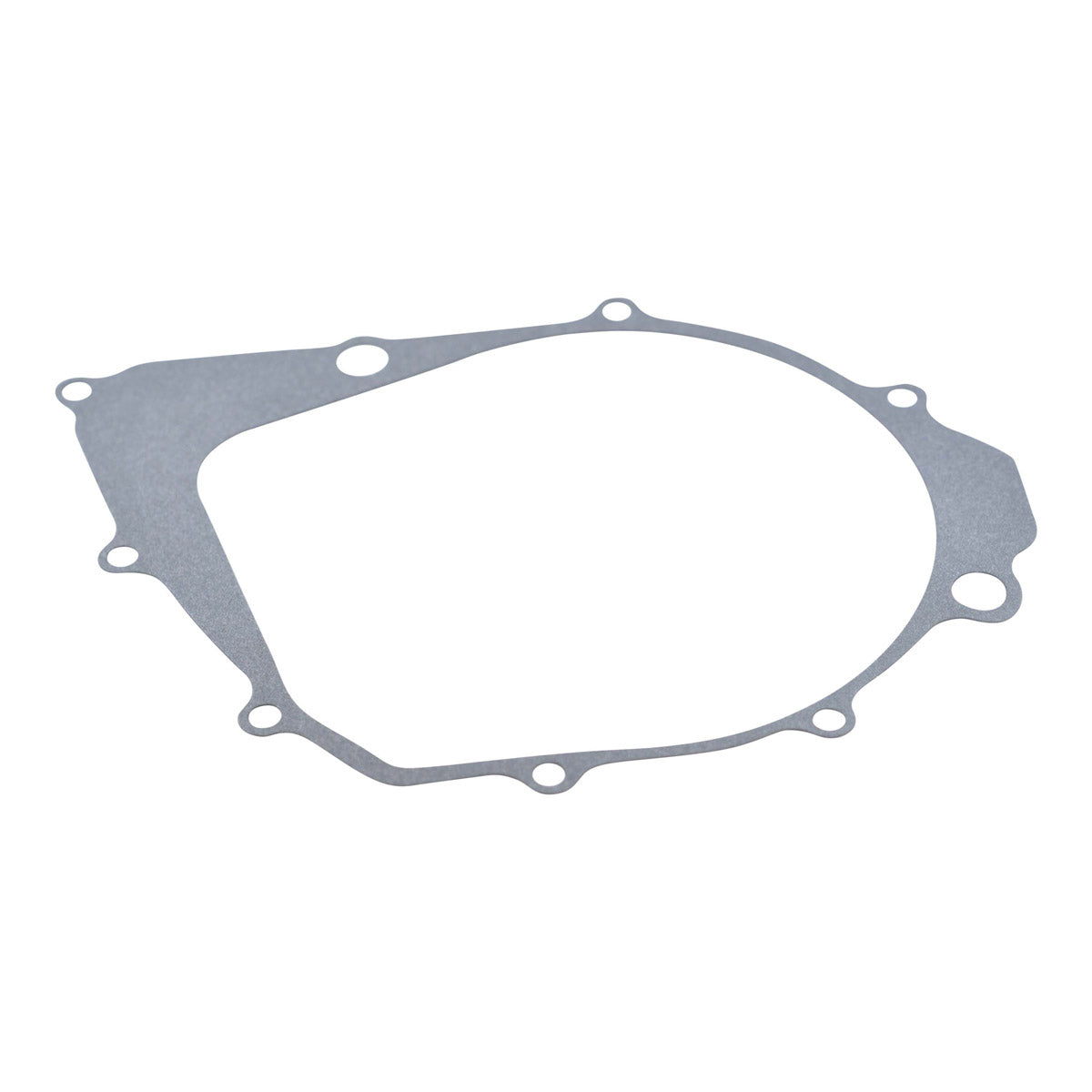

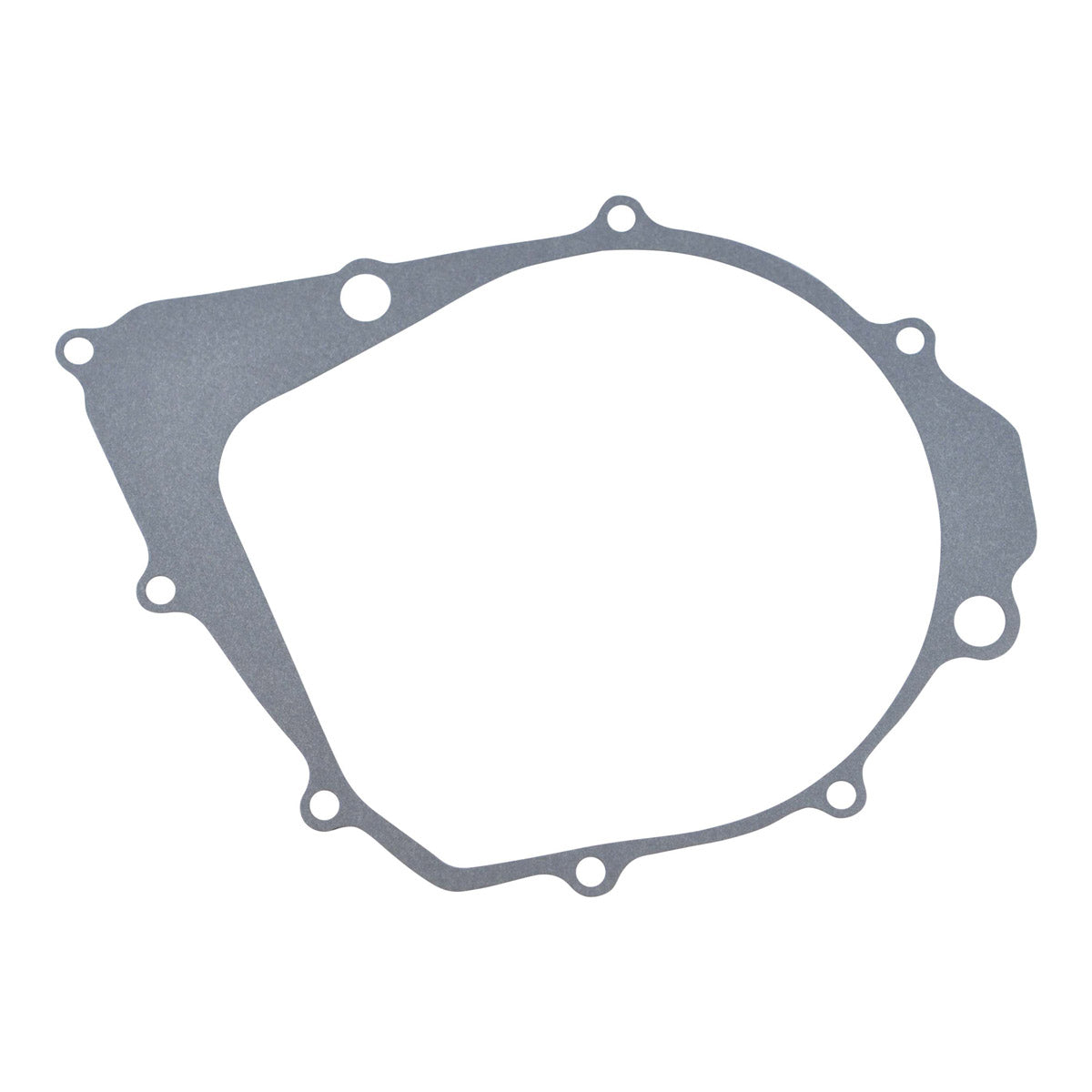

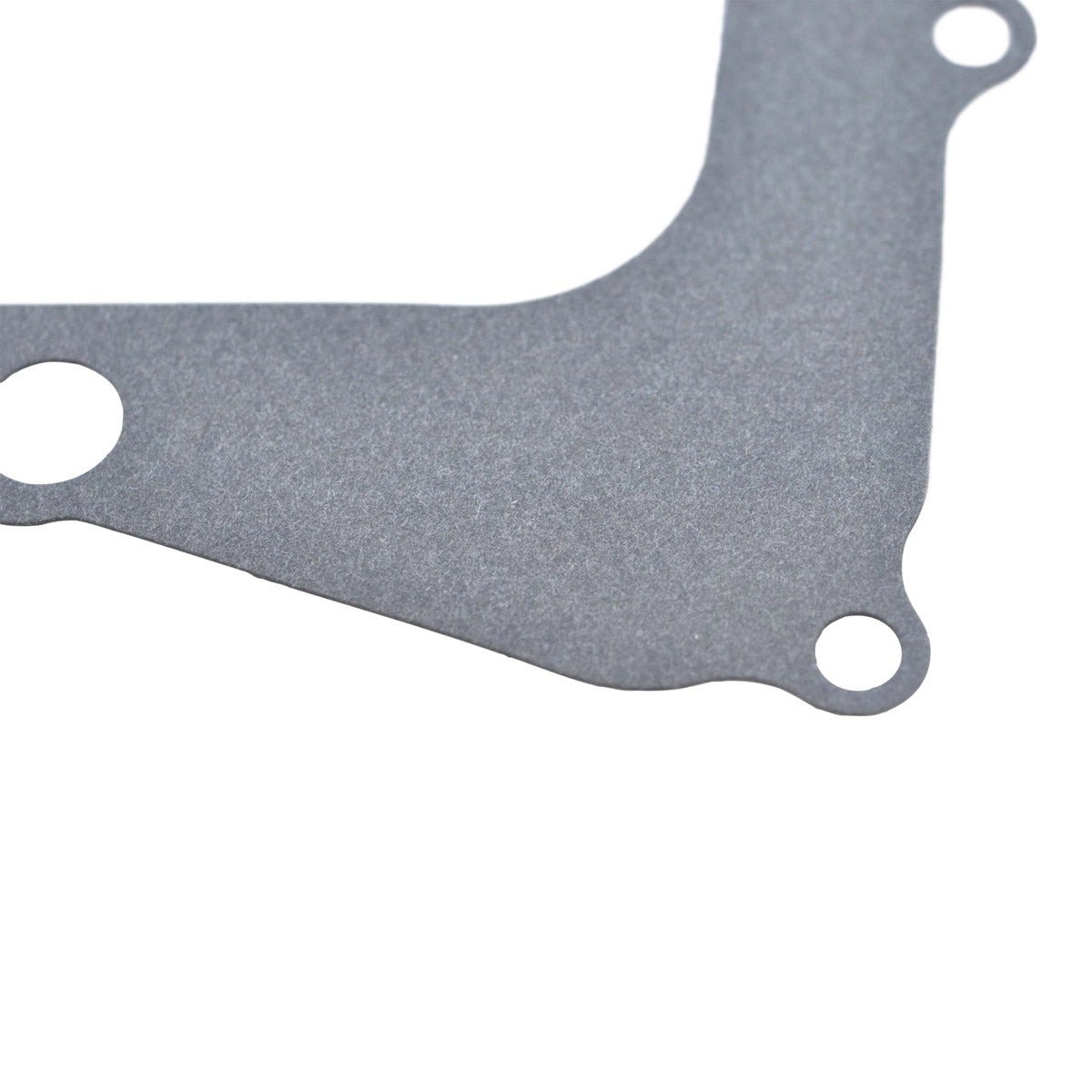

Fitting the stator means removing the crankcase cover, and a used gasket rarely seals reliably a second time. The correct gasket, Yamaha 3GD-15451-00-00, is included in this kit so the cover can be resealed properly without a separate order.
