Replacement Generator Stator

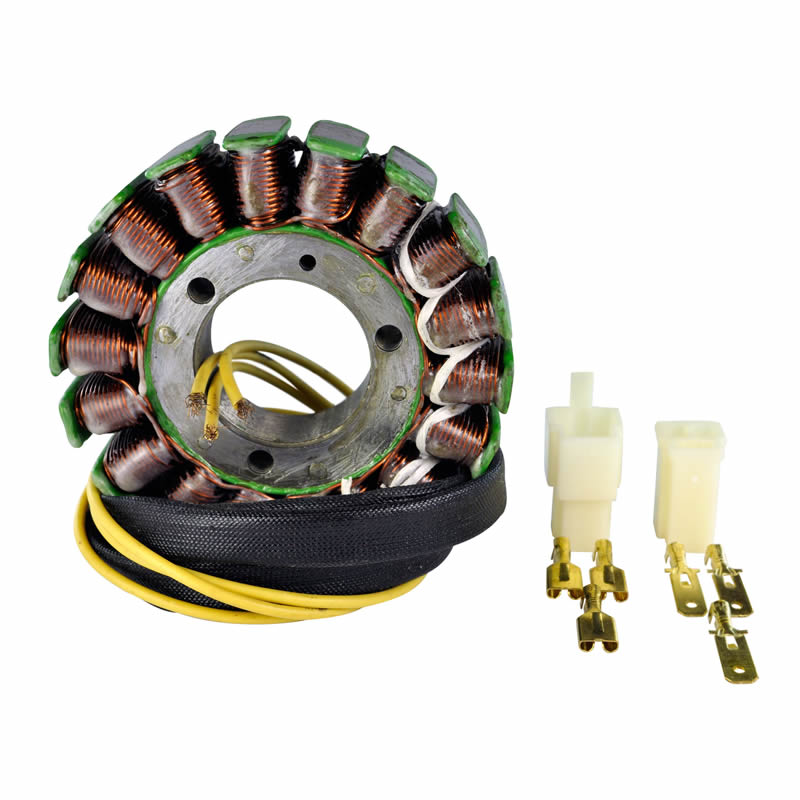

Suzuki GS 500 and GS 500F 2001-2009, Kawasaki Voyager ZN 1300 1983-1988 - Part RM01038

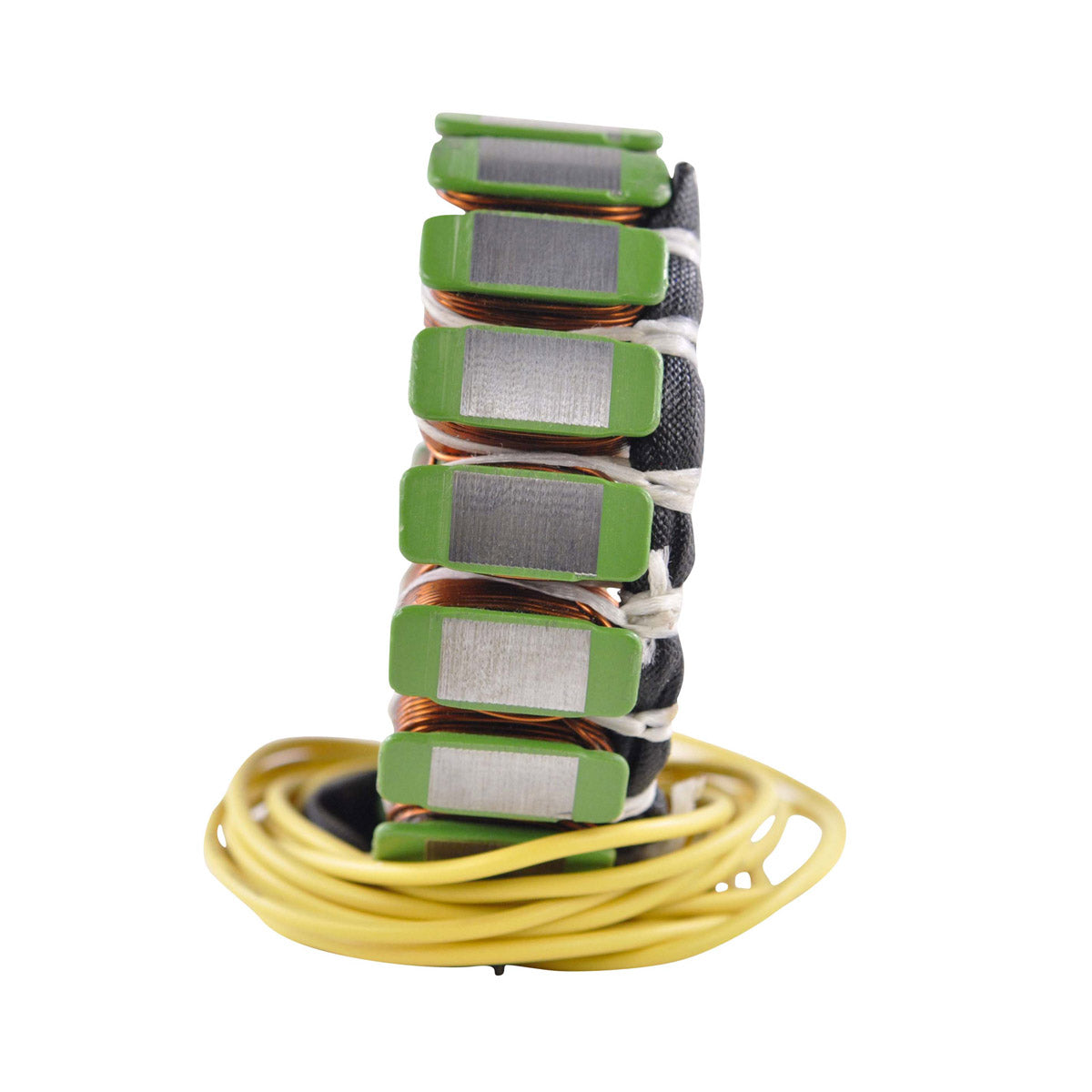

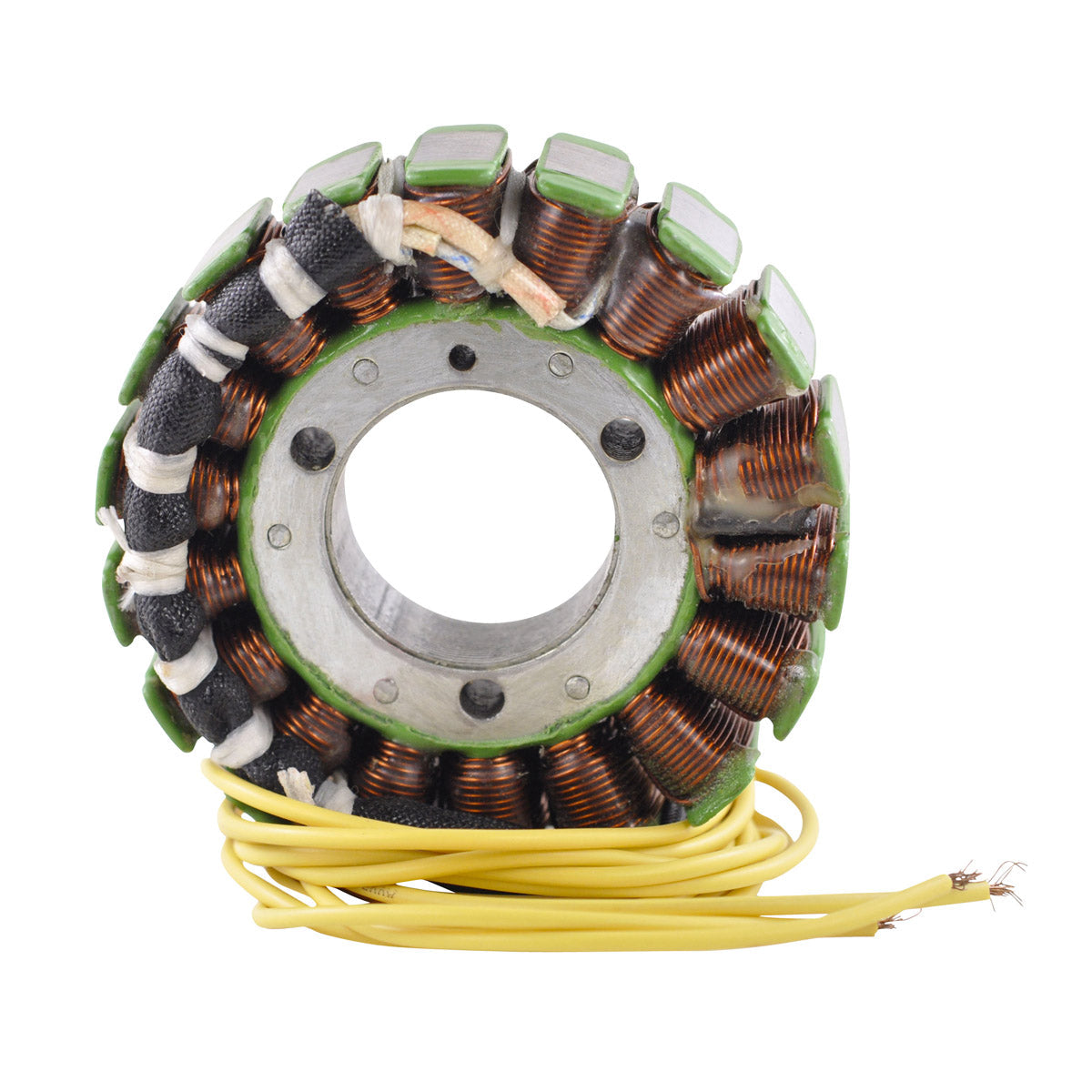

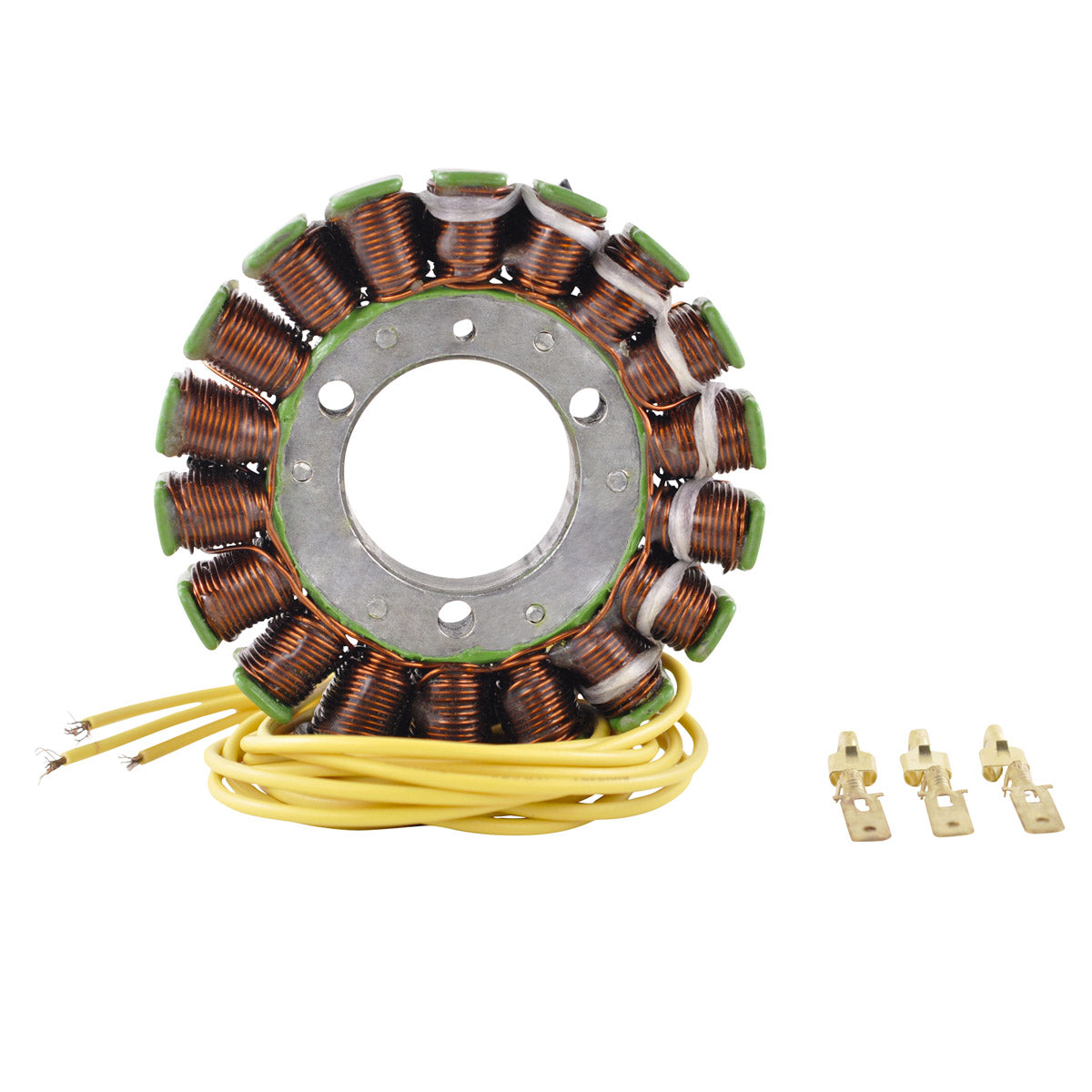

This is a brand new aftermarket generator stator covering the Suzuki GS 500 and GS 500F from 2001 to 2009 and the Kawasaki Voyager ZN 1300 from 1983 to 1988. It replaces the original three-phase charging winding behind the alternator cover and restores full charging output to a machine that is running its battery flat.
The original connector and grommet are reinstalled onto the new unit during fitting. Once transferred, it is a plug-and-play, direct-fit component with no modification to the wiring loom. Higher grade electrical components are used throughout, and the copper winding is rated to 200 degrees Celsius, which matters on a stator that sits in engine oil at sustained temperature. The opposite connector for the main harness side is supplied with the part, and every unit is tested before shipping. The harness measures 800 mm from the stator, with three wires and three terminals.
Key Features
- Brand new aftermarket generator stator
- Plug-and-play and direct fit once the original connector and grommet are reinstalled
- Higher grade electrical components
- Copper windings rated to 200 degrees Celsius

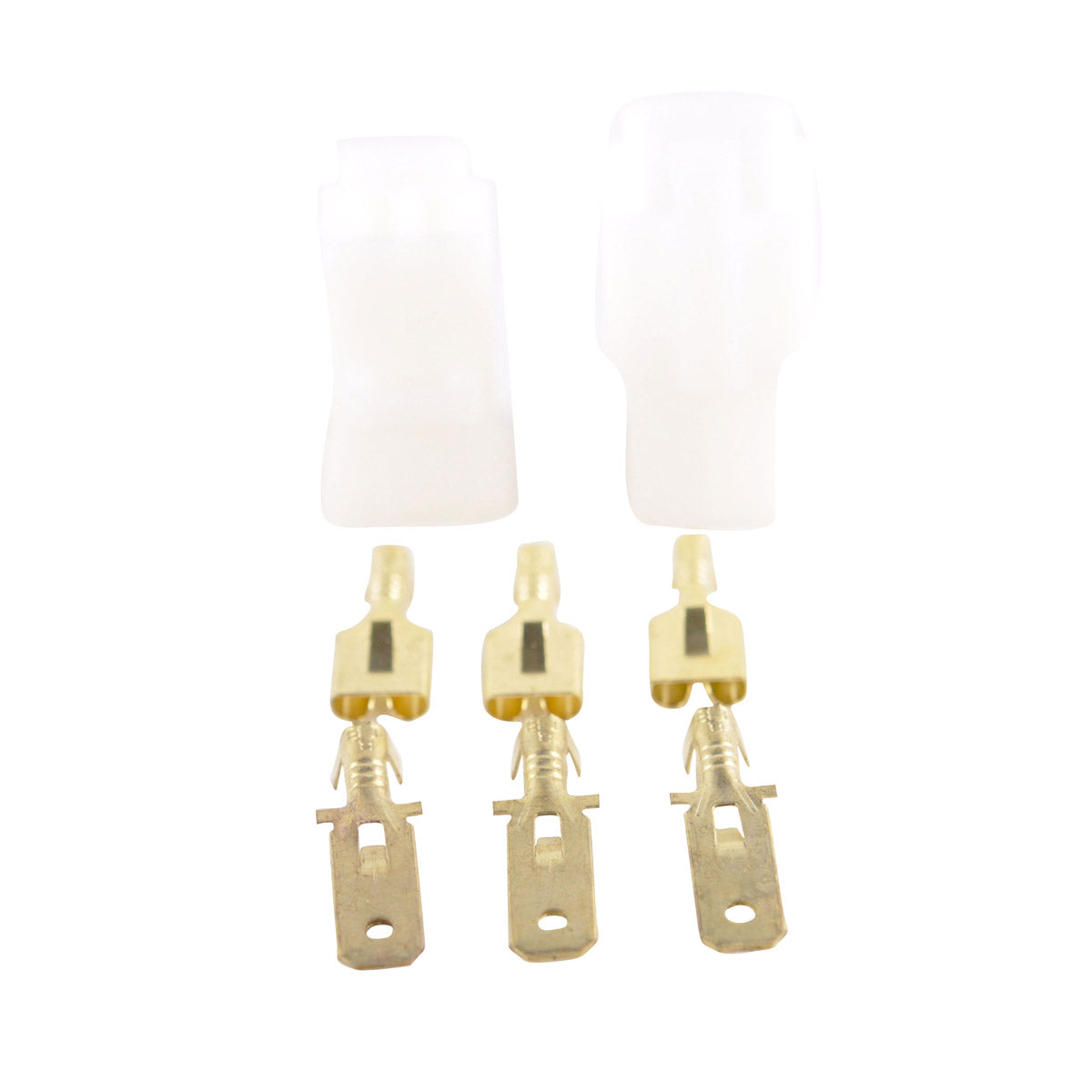

- Opposite connector for the main harness side included
- 800 mm harness length
- Every unit tested before shipping
- No modification to the wiring loom required
Technical Specs
| Specification | Detail |
|---|---|
| Interior Diameter | 34 mm |
| Exterior Diameter | 93 mm |
| Thickness | 27 mm |
| Harness Length | 800 mm |
| Number of Wires | 3 |
| Number of Terminals | 3 |
| Alternator (Yellow between each) | 0.9 ohms +/-20% |
| Alternator (Yellow to Ground) | Open line |
| Winding Temperature Rating | 200 degrees Celsius |
| Manufacturer Part Number | RM01038 |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Suzuki GS 500 | 2001-2009 |
| Suzuki GS 500F | 2001-2009 |
| Kawasaki Voyager ZN 1300 | 1983-1988 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 31401-01D10 | Suzuki |
| 21003-1064 | Kawasaki |
| 2112-0309 | Cross reference |
Frequently Asked Questions
Does this need any modification to fit?
No. Reinstall the original connector and grommet onto the new stator and it becomes a plug-and-play, direct fit. No cutting or splicing of the loom is needed.
What is included in the box?
The stator plus the opposite connector for the main harness side. The original connector and grommet from your machine are reused on the stator itself.
How can I tell my old stator has failed?
Unplug the three yellow wires and measure between each pair with a multimeter. Each pair should read about 0.9 ohms, within plus or minus 20 percent. Then measure each yellow wire to the engine case: all three should read open line. A pair reading open circuit, or any wire showing continuity to ground, means the winding has broken down. A battery that goes flat on a ride is the usual first symptom.
Why does one stator cover both a Suzuki and a Kawasaki?
The same three-phase winding was used in both applications, which is why it cross-references to Suzuki 31401-01D10 and Kawasaki 21003-1064. Check the number on your original unit against that list before ordering.
