Upgrade Stator for Kawasaki KFX 80 & Suzuki LT 80 Quadsport
KFX 80 2003-2006 and LT 80 Quadsport 1987-2006

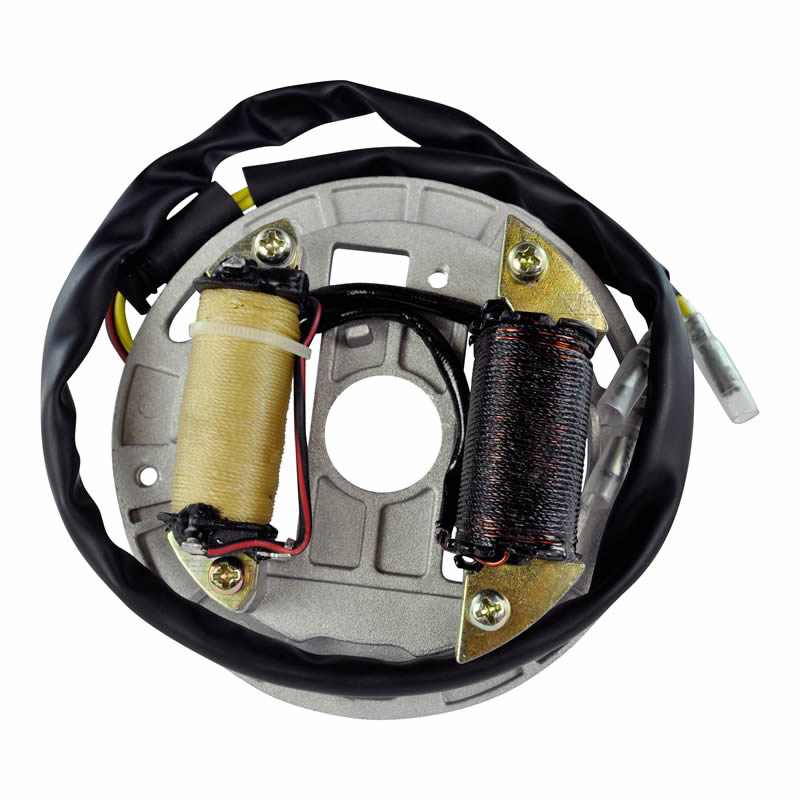

This is a brand new aftermarket upgrade stator for the Kawasaki KFX 80 built between 2003 and 2006 and the Suzuki LT 80 Quadsport built between 1987 and 2006, supplied as RMSTATOR part RM01203. It is a direct replacement for the original unit and fits the factory mounting points, so installation is plug-and-play with no cutting or splicing.

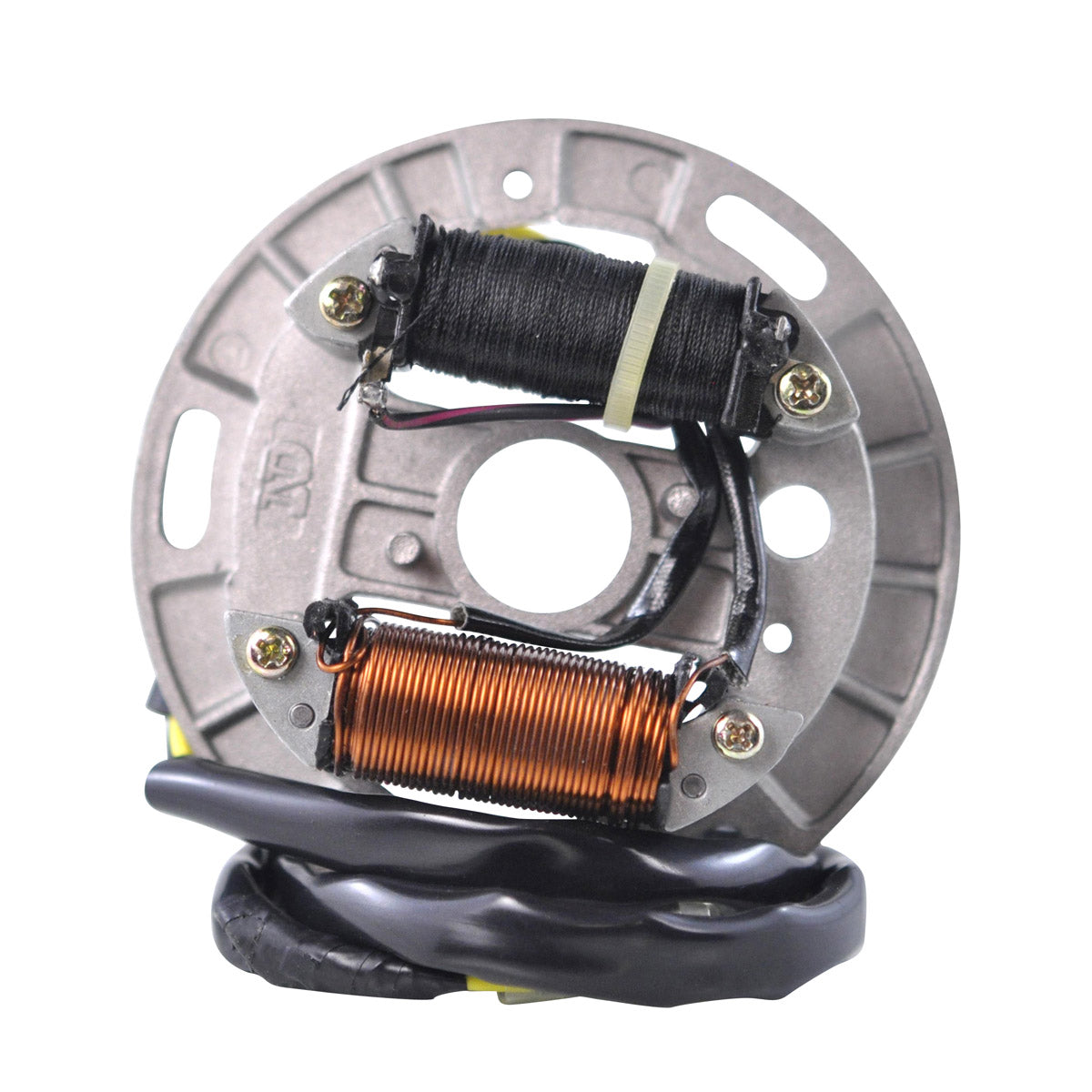

The stator carries both the alternator winding and the source coil that feeds the ignition, and both are wound with the highest grade copper on the highest grade lamination materials, resistant to 200 degrees Celsius. The connector, the rubber grommet and the back plate are supplied with the unit, so nothing has to be salvaged from the old stator.
Key Features
- Brand new aftermarket upgrade stator
- Direct replacement for the original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius

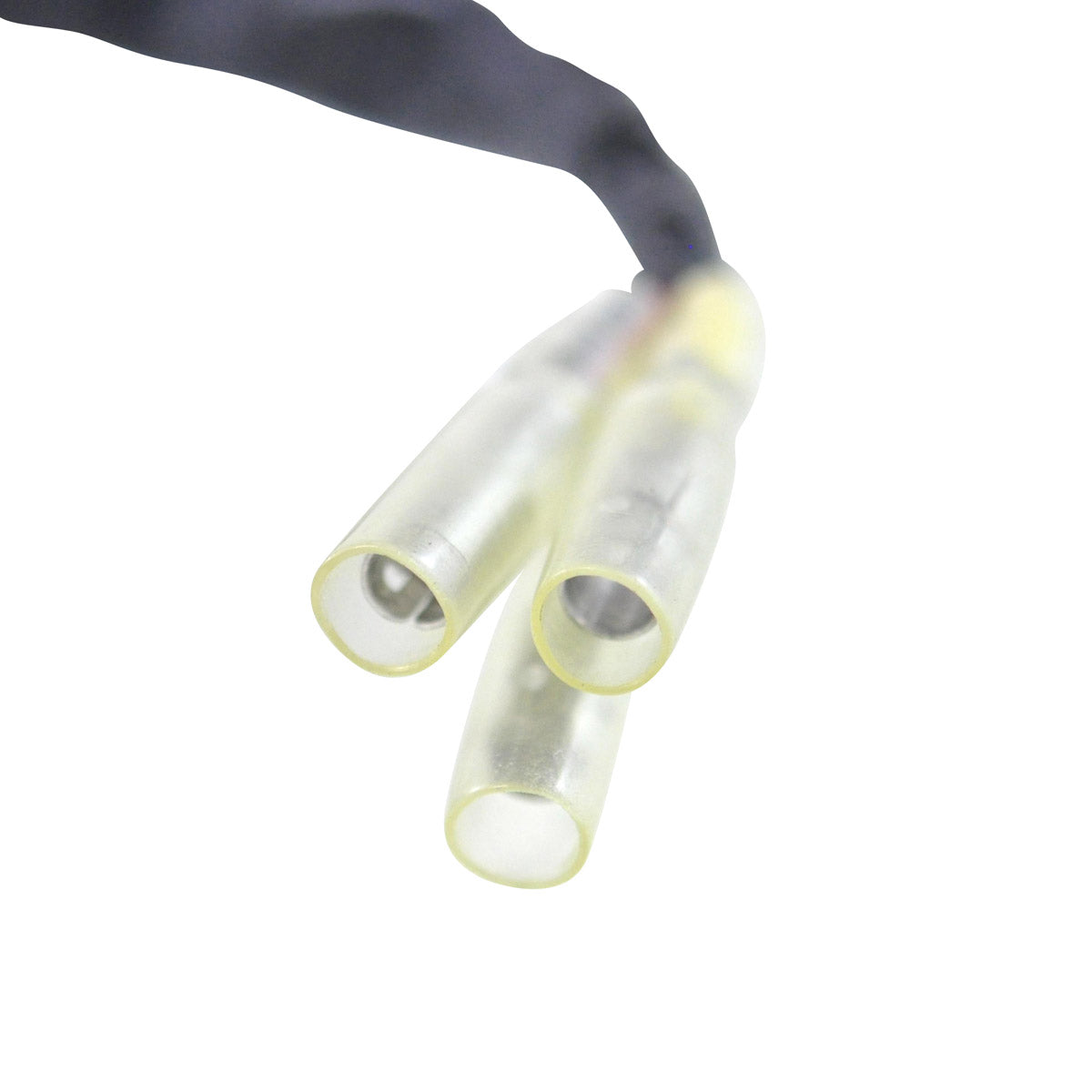

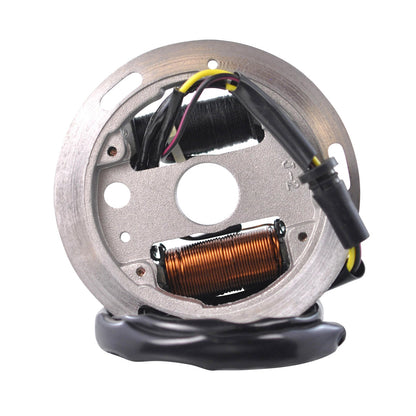

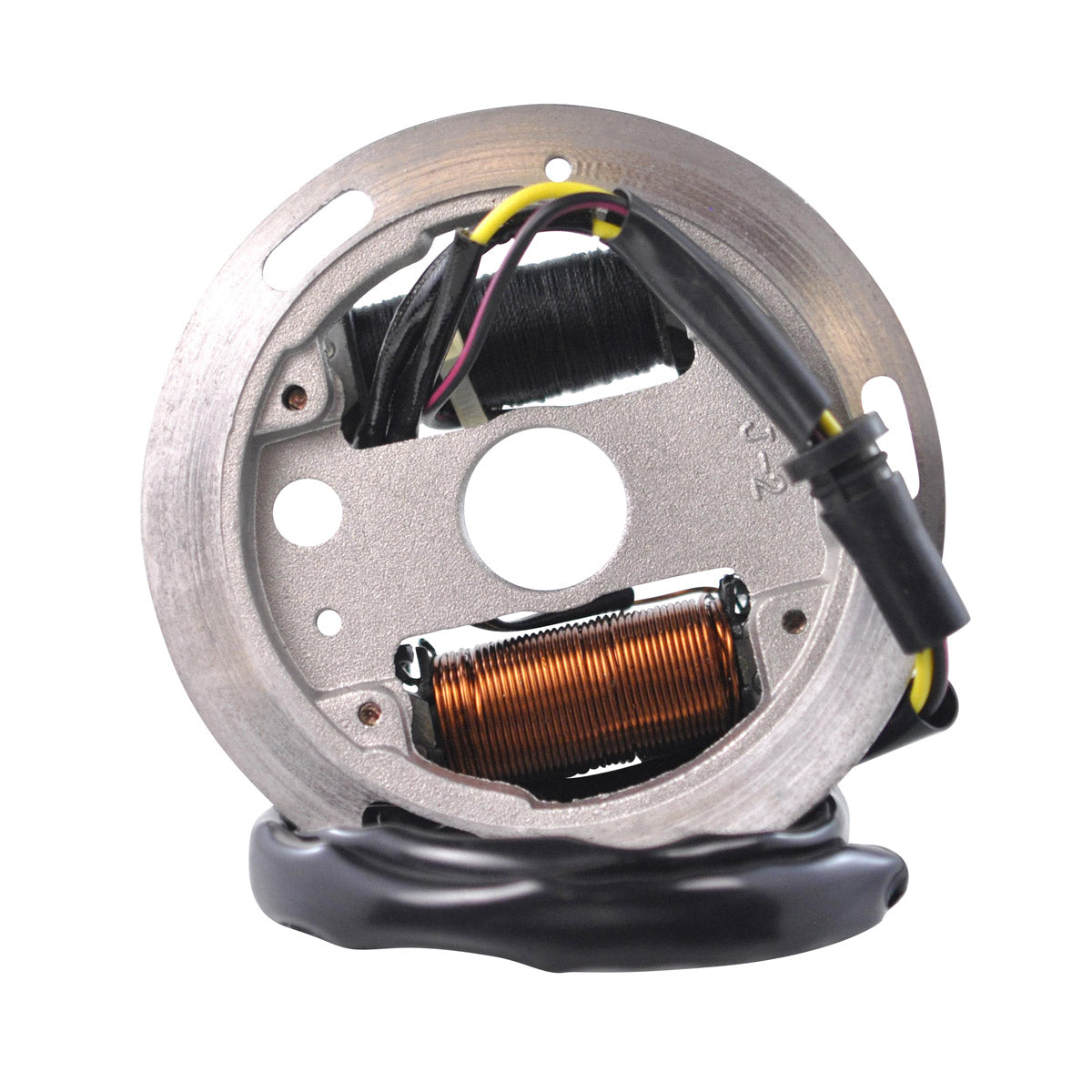

- Connector, rubber grommet and back plate included

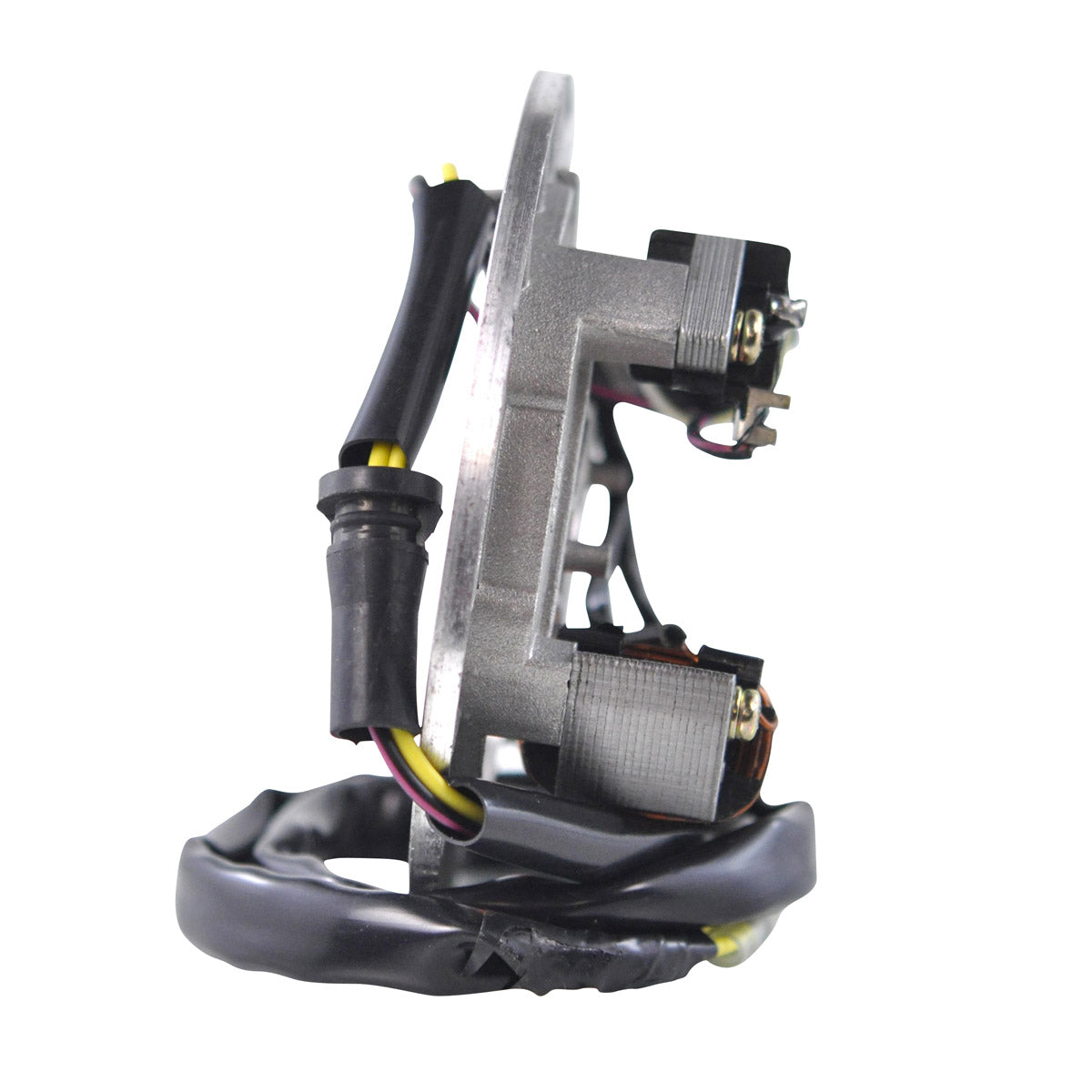

Technical Specs
| Specification | Detail |
|---|---|
| Interior diameter | 20 mm |
| Exterior diameter | 107 mm |
| Thickness | 5 mm |
| Length of wires, stator to grommet | 25 mm |
| Length of wires, grommet to plug | 500 mm |
| Number of wires | 3 |
| Number of plugs | 3 |
| Number of pins | 3 |
| Alternator resistance, yellow to yellow | 0.4 ohms plus or minus 20% |
| Source resistance, black/red to ground | 190 ohms plus or minus 20% |
| Copper winding temperature rating | 200 degrees Celsius |
| Part number | RM01203 |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Kawasaki KFX 80 | 2003-2006 |
| Suzuki LT 80 Quadsport | 1987-2006 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 21003-S005 | Kawasaki |
| 32101-40B00 | Suzuki |
Frequently Asked Questions
Does this stator fit without modification?
Yes. It is a direct replacement for the original unit on both the KFX 80 and the LT 80 Quadsport, using the factory mounting points and the supplied connector, so no cutting, splicing or drilling is needed.
What is included?
The stator, the connector, the rubber grommet and the back plate.
How can I tell my old stator has failed?
Test it cold with a multimeter. The alternator winding should read 0.4 ohms plus or minus 20% yellow to yellow, and the source coil should read 190 ohms plus or minus 20% from the black/red wire to ground. A reading well outside those figures, or a winding that shows continuity to the stator body, means the unit has failed.
Why is the same stator listed for two different makes?
The Kawasaki KFX 80 and the Suzuki LT 80 Quadsport share the same engine and charging system, which is why one stator covers both, cross referencing to Kawasaki 21003-S005 and Suzuki 32101-40B00.
