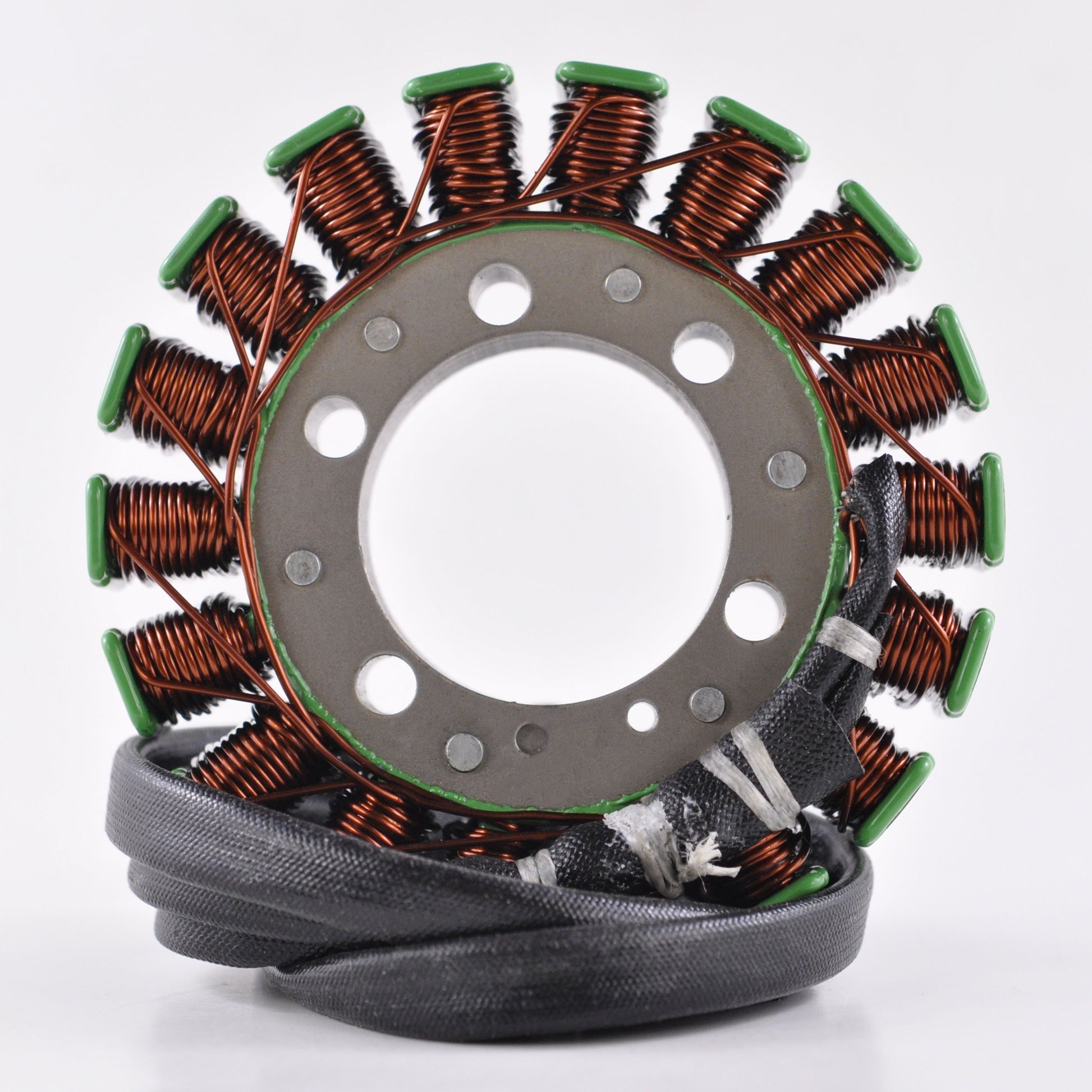

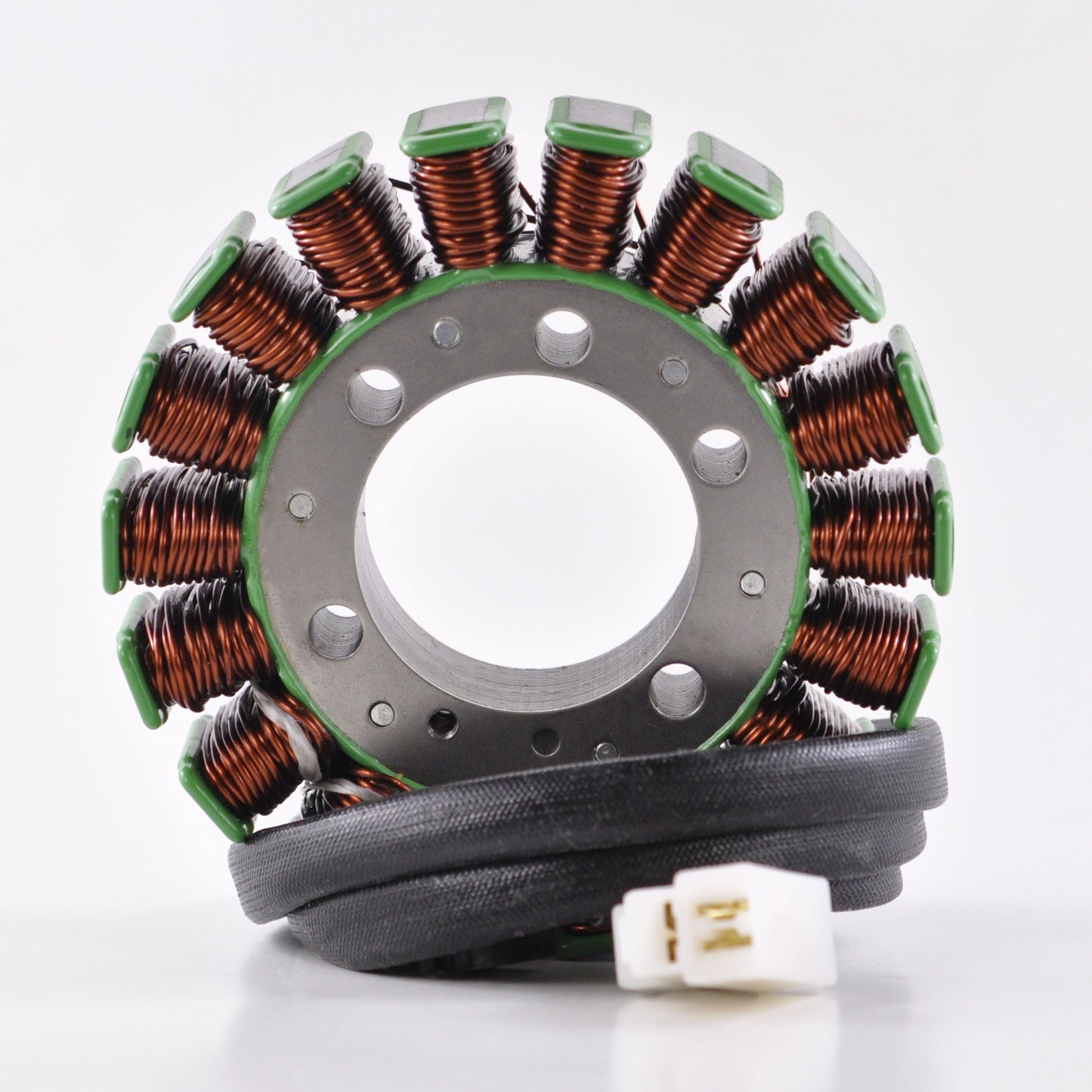

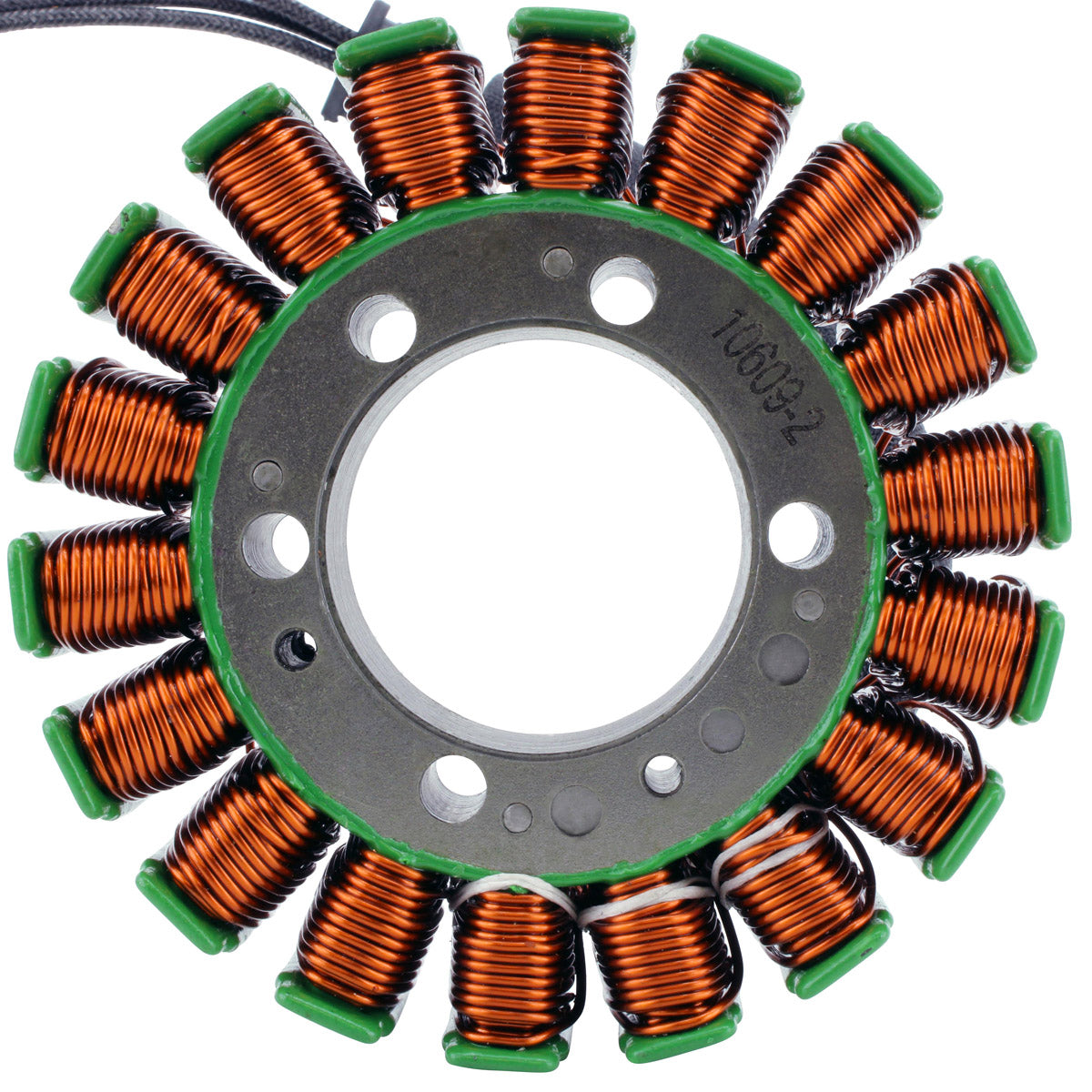

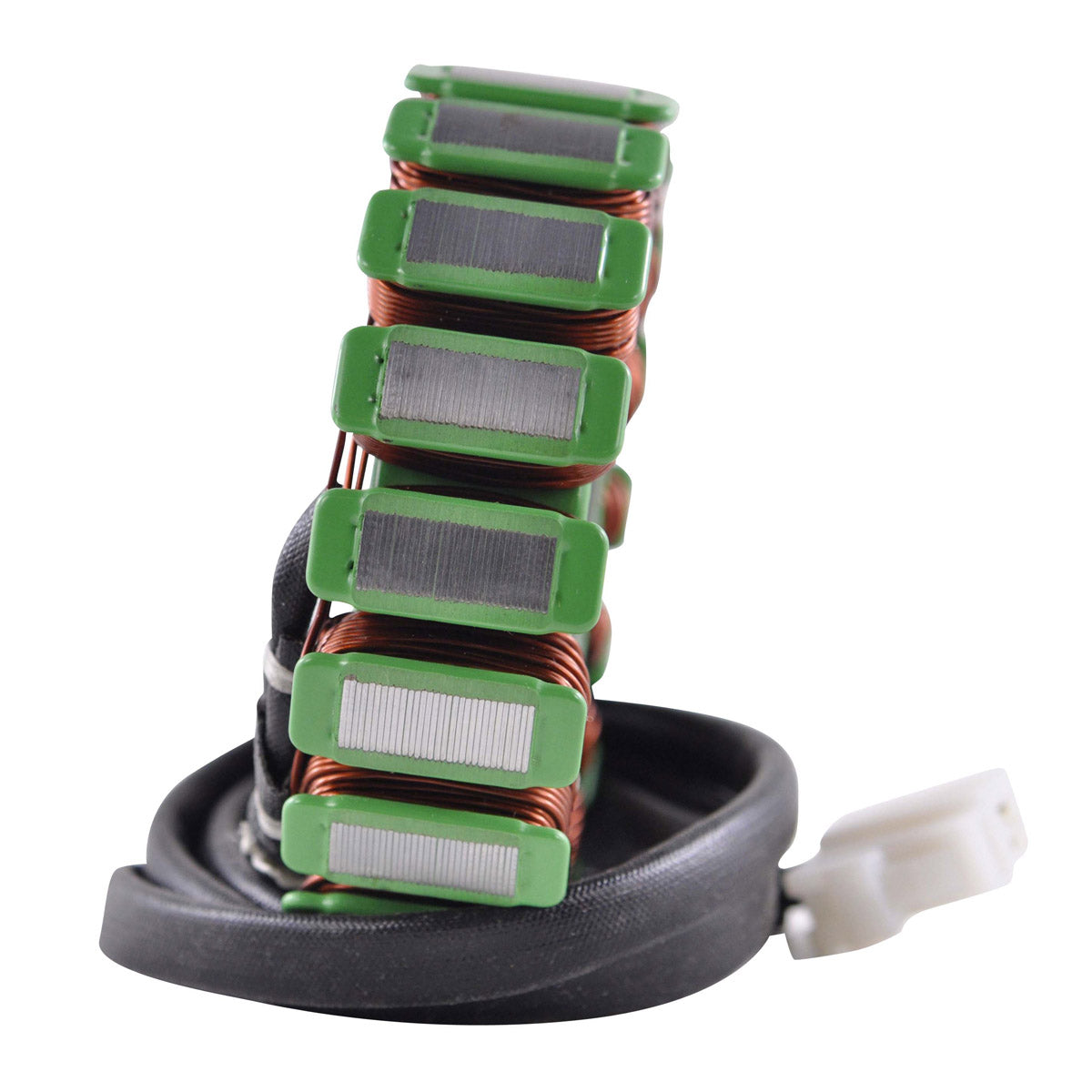

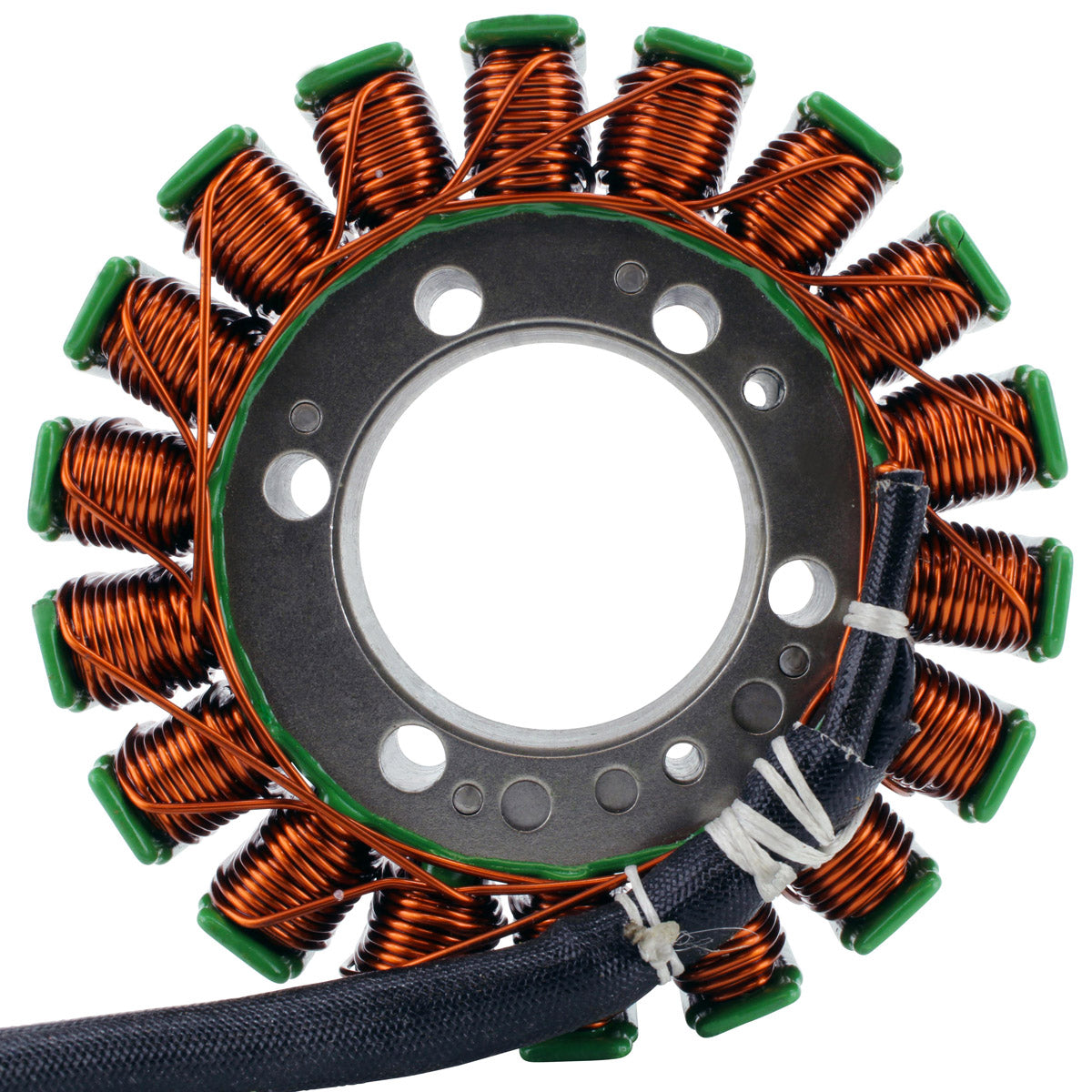

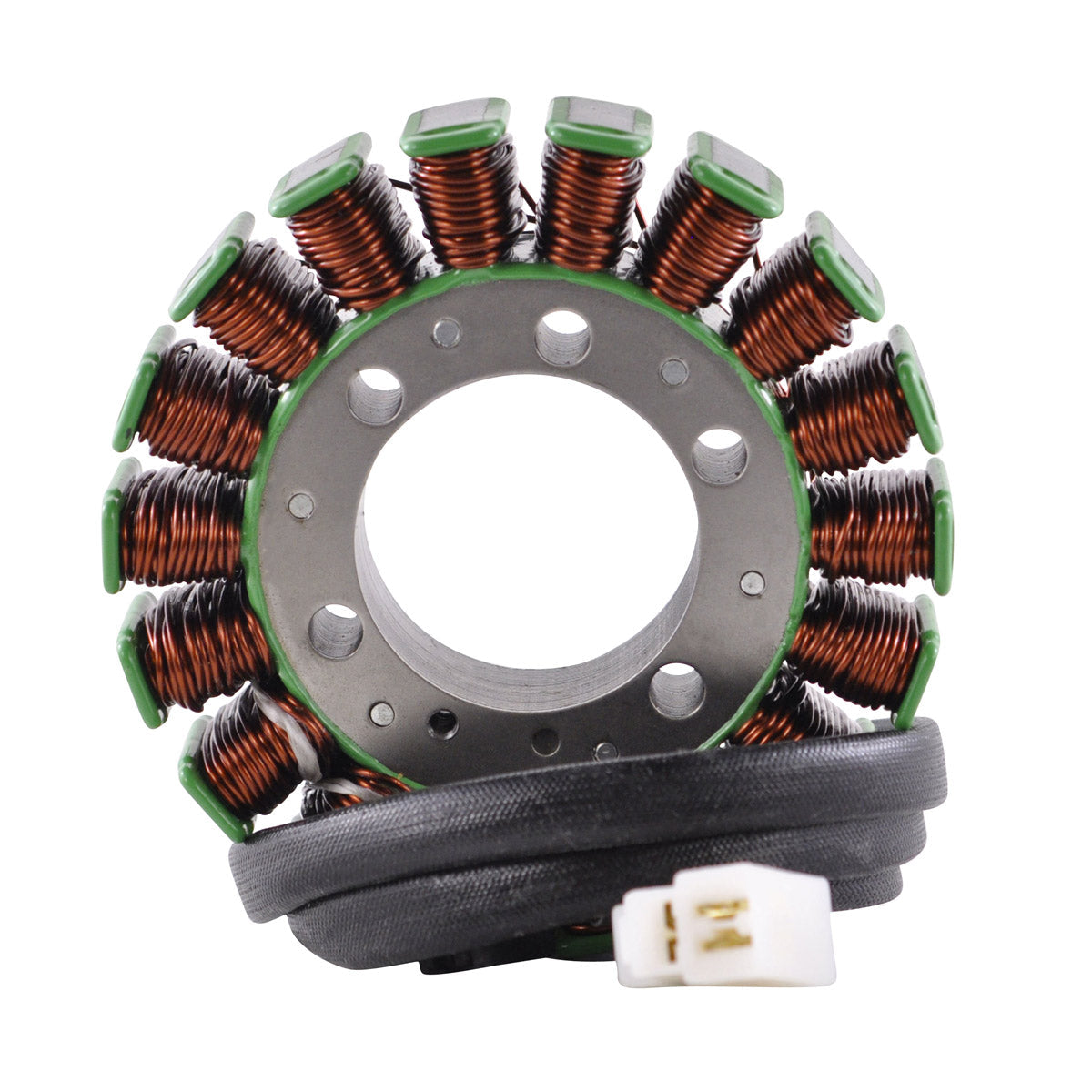

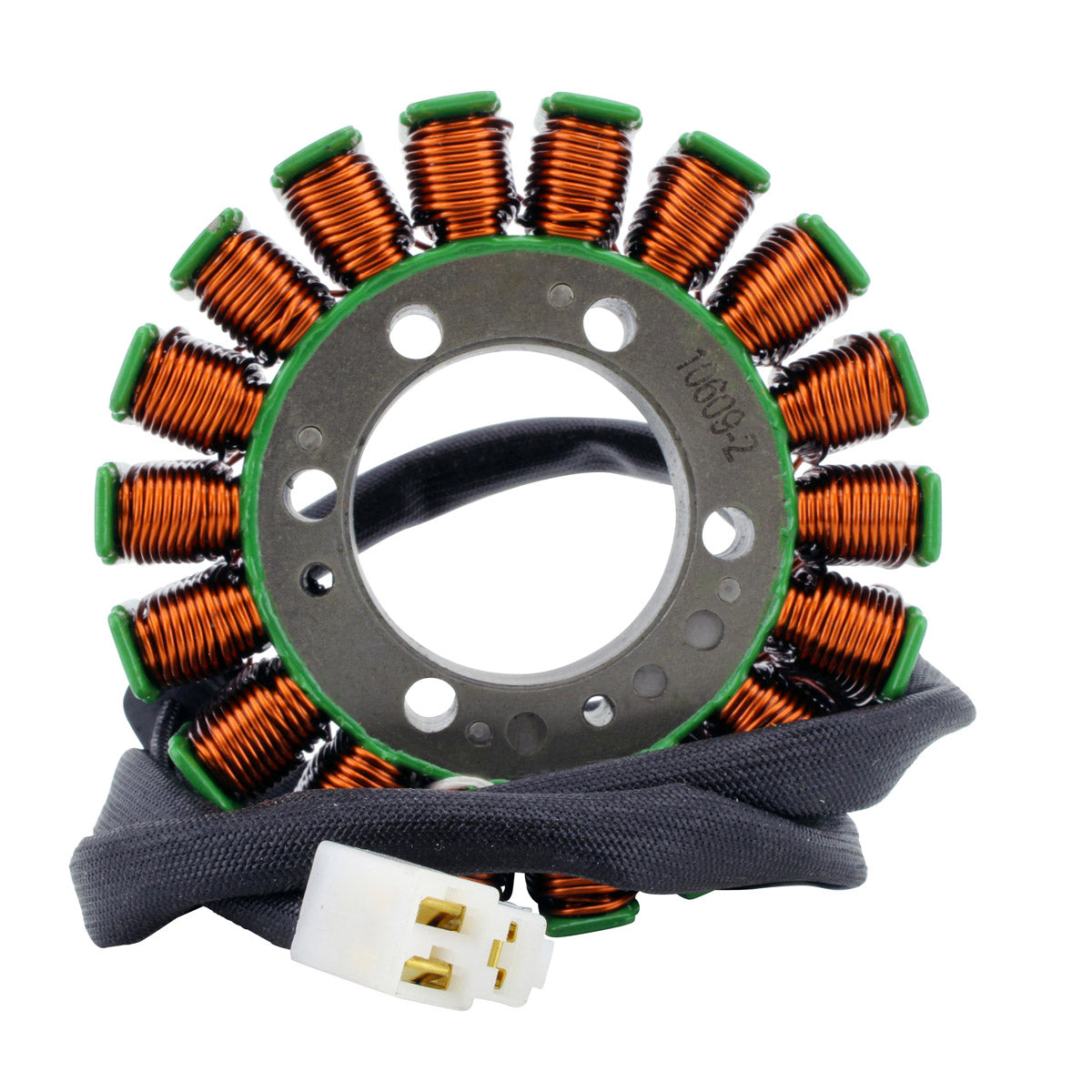

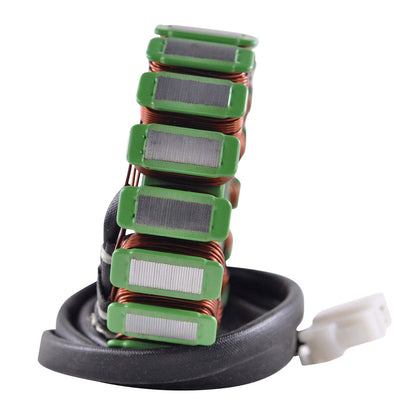

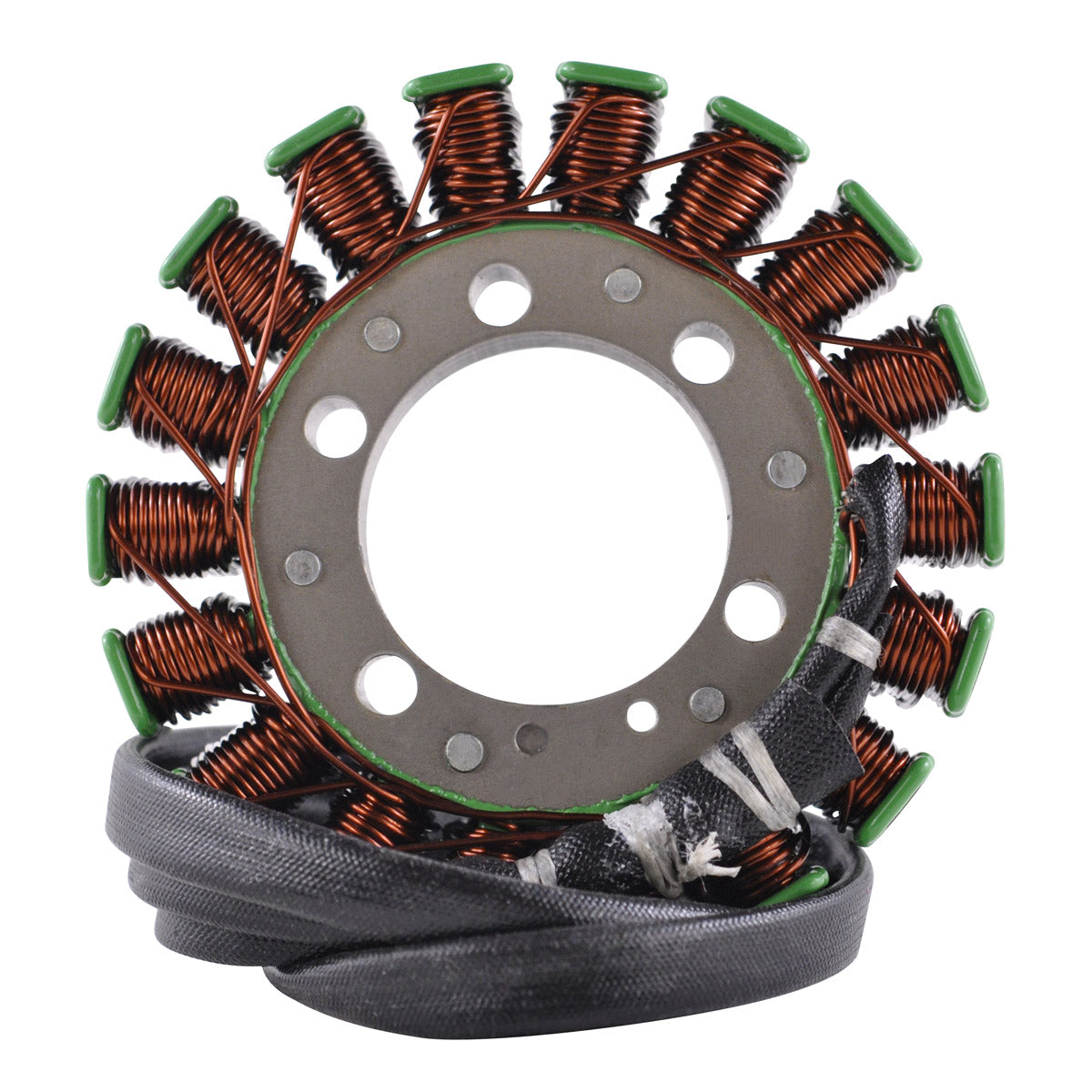

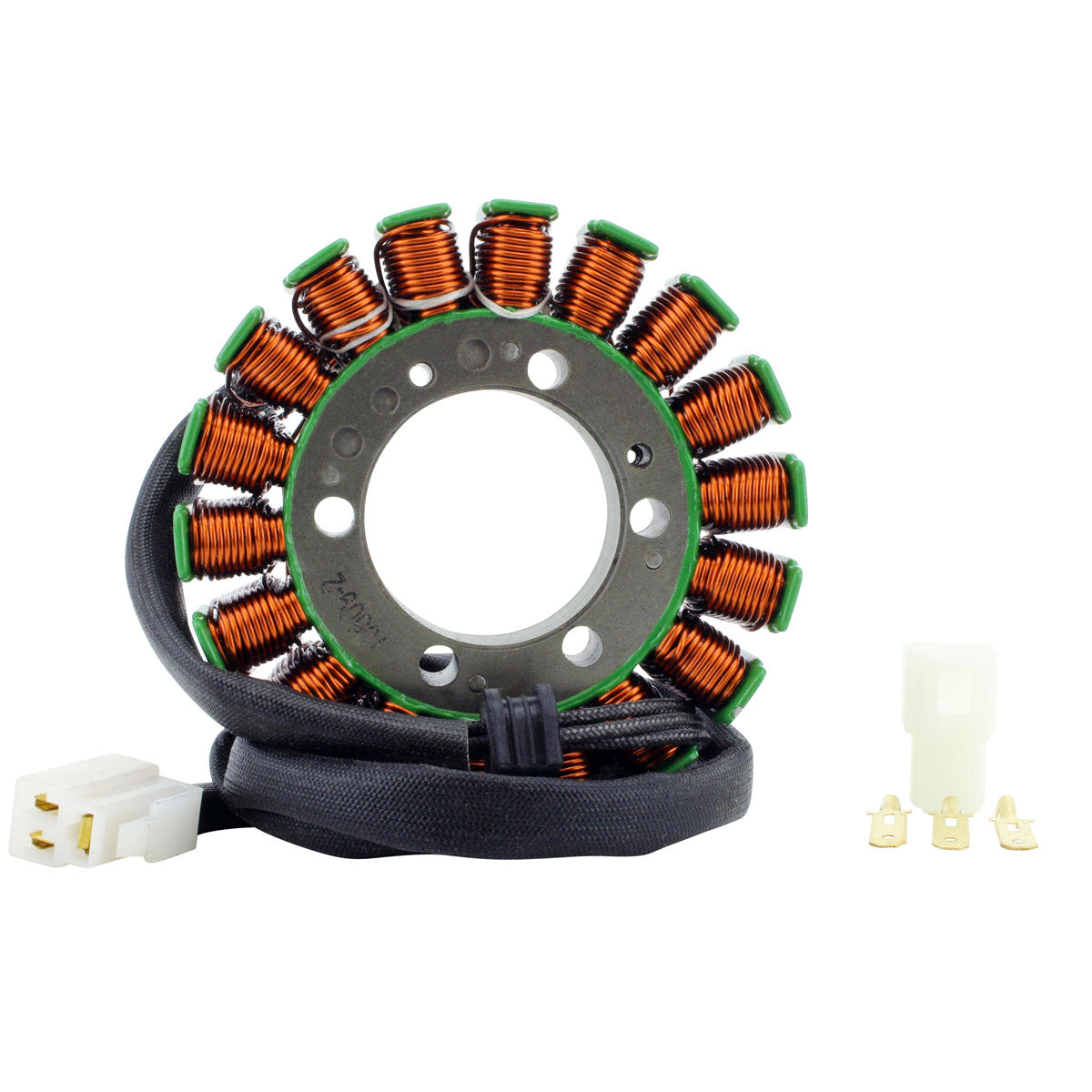

This is a brand new aftermarket stator for the Triumph 955 range, covering the Speed Triple, Sprint RS, Sprint ST and Tiger built between 1997 and 2006. It is a direct replacement to your original unit and is plug-and-play, a direct fit and easy to install. The stator generates the charging current that keeps the battery topped up and runs the lights and electronics, so when a winding fails or shorts to the case the bike slowly drains its battery and eventually stops - often after a long ride when everything is hot.

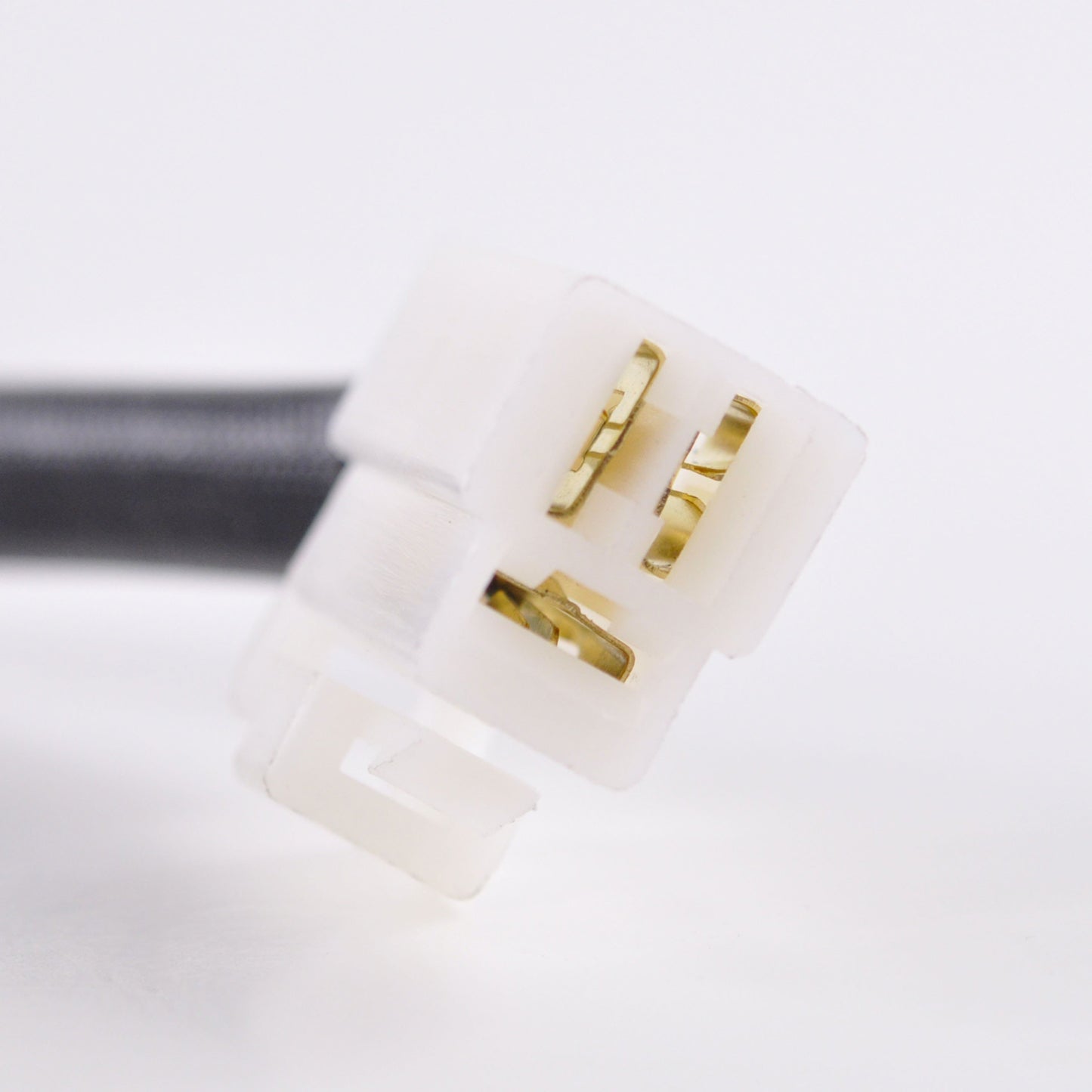

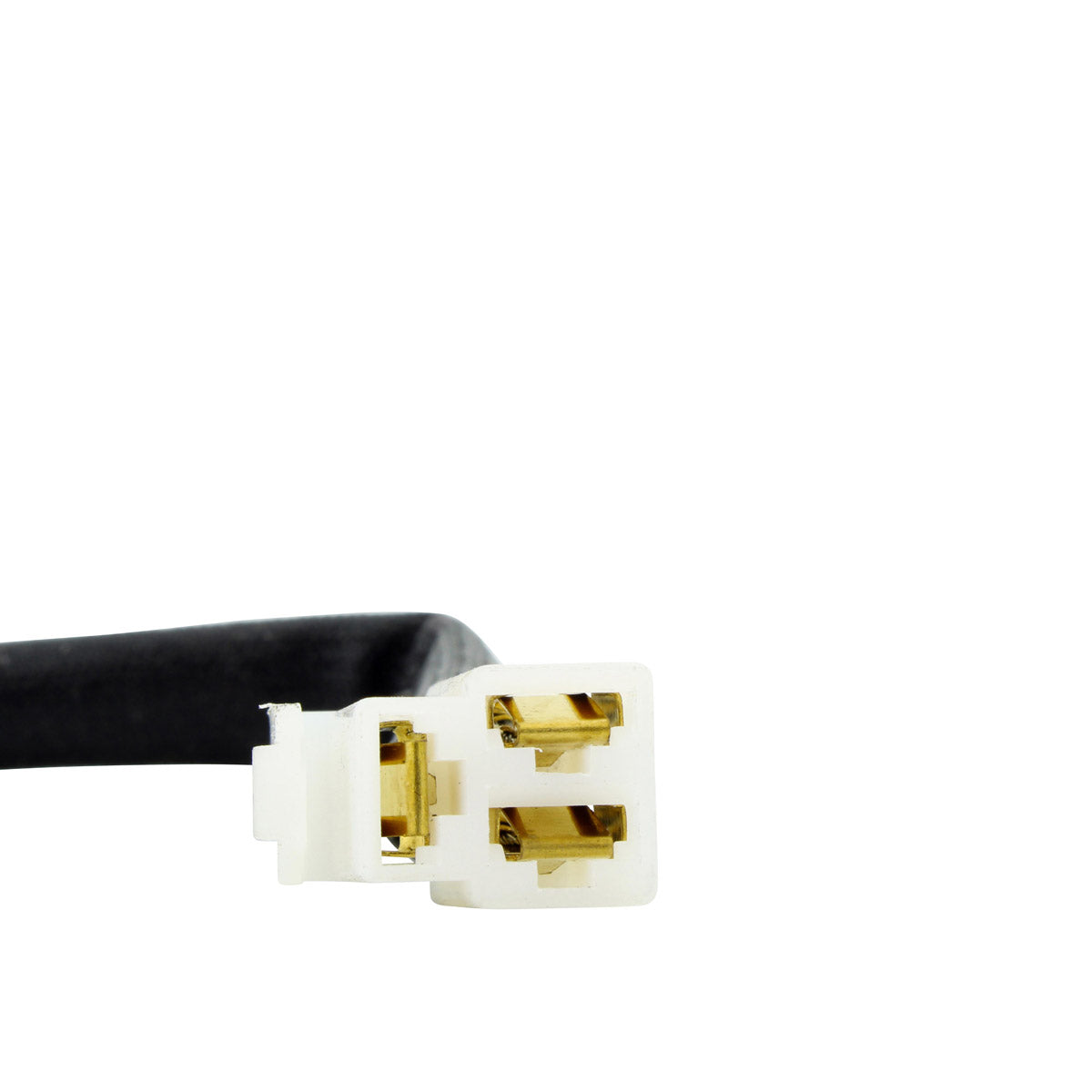

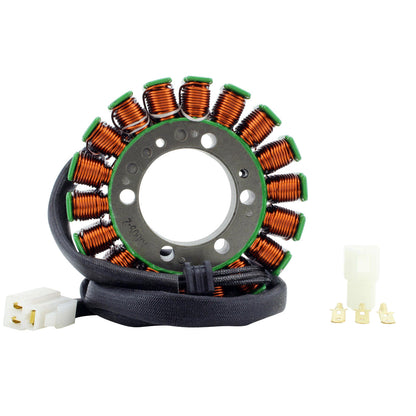

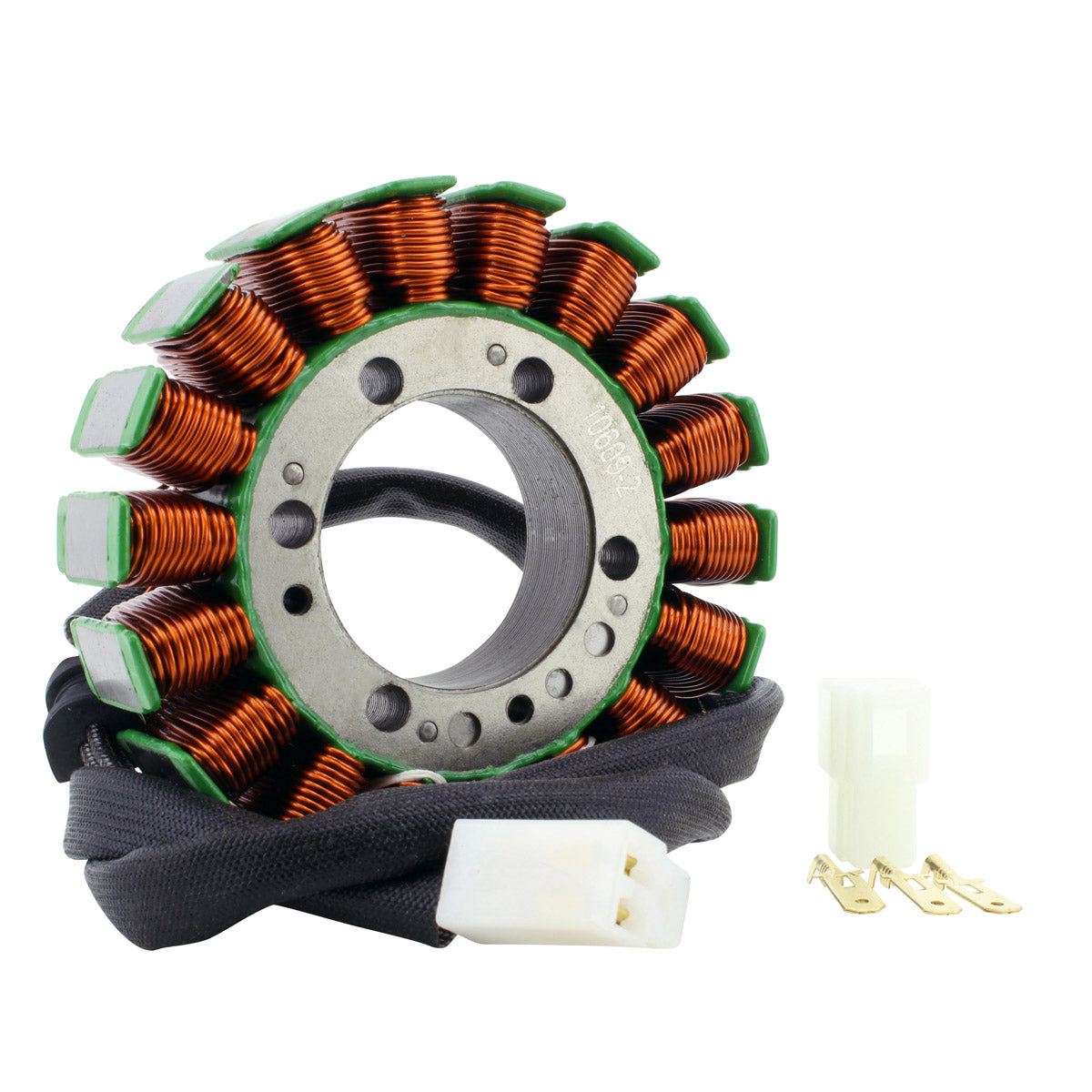

The unit is built with a higher grade of electric components and the highest grade copper windings, rated to withstand 200 degrees Celsius. All products shipped are tested. Importantly, the opposite connector - the one on the main harness side - is supplied with this stator. Those connectors are often melted, corroded or defective on these bikes and are a major cause of repetitive electrical issues, so replacing both halves at the same time removes the most common source of a repeat failure. The three-wire loom runs 115 mm from the stator to the grommet and a further 650 mm from the grommet to the plug.
Key Features
- Brand new aftermarket stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Higher grade of electric components
- Highest grade copper windings, resistant to 200 degrees Celsius

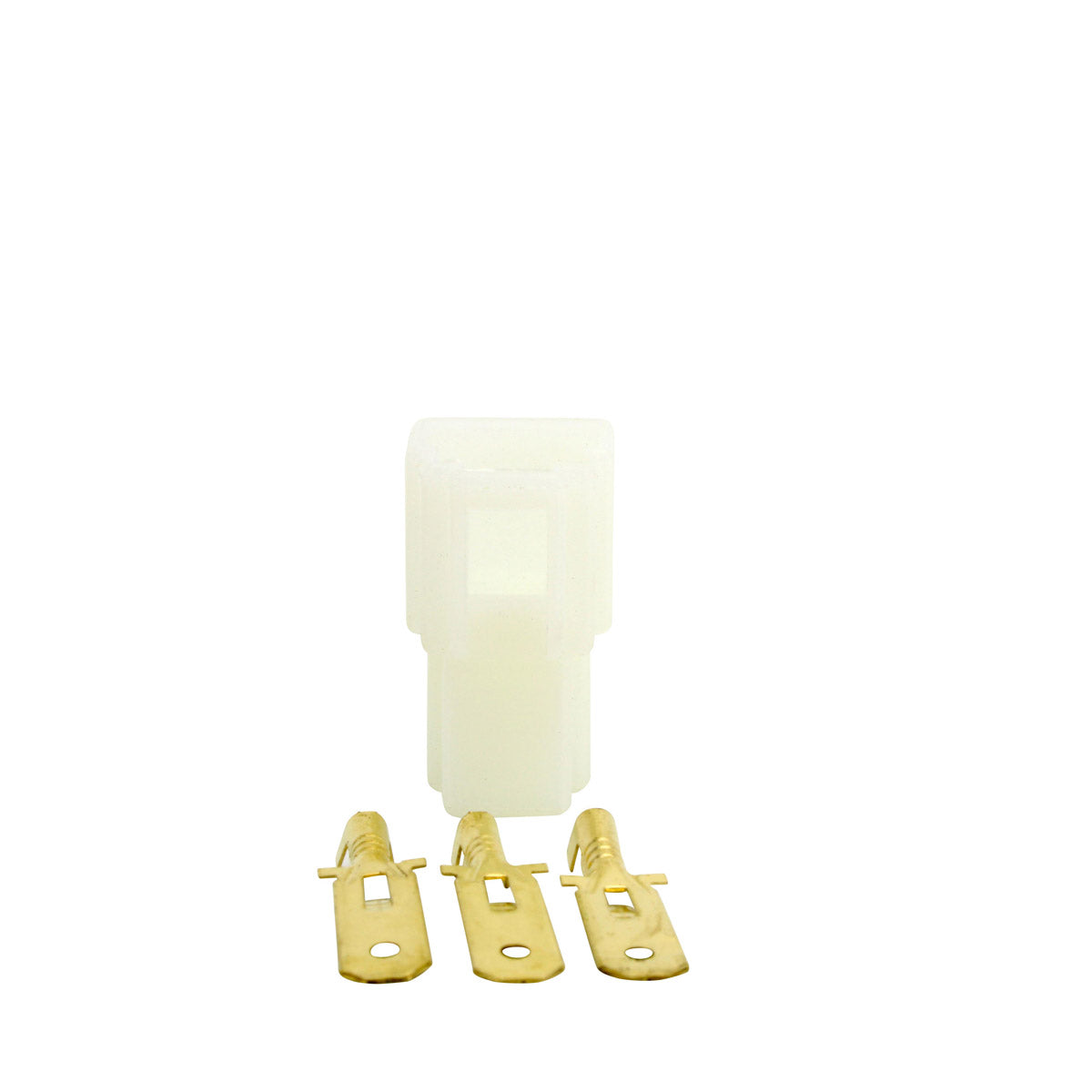

- Opposite connector (main harness side) included
- Addresses melted and corroded connectors, a major cause of repeat faults
- All products shipped are tested
Technical Specs
| Specification |
Detail |
| Part number |
RM01348 |
| Interior diameter |
41 mm |
| Exterior diameter |
104 mm |
| Thickness |
22 mm |
| Wire length (stator to grommet) |
115 mm |
| Wire length (grommet to plug) |
650 mm |
| Number of wires |
3 |
| Number of plugs |
1 |
| Wire-to-wire resistance (Black to Black) |
0.4 ohms +/-20% |
| Copper winding temperature rating |
200 degrees Celsius |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Triumph Speed Triple 955 |
1997-2006 |
| Triumph Sprint RS 955 |
1997-2006 |
| Triumph Sprint ST 955 |
1997-2006 |
| Triumph Tiger 955 |
1997-2006 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| T1300502 |
Triumph |
| T1300350 |
Triumph |
Frequently Asked Questions
Does it fit without modification?

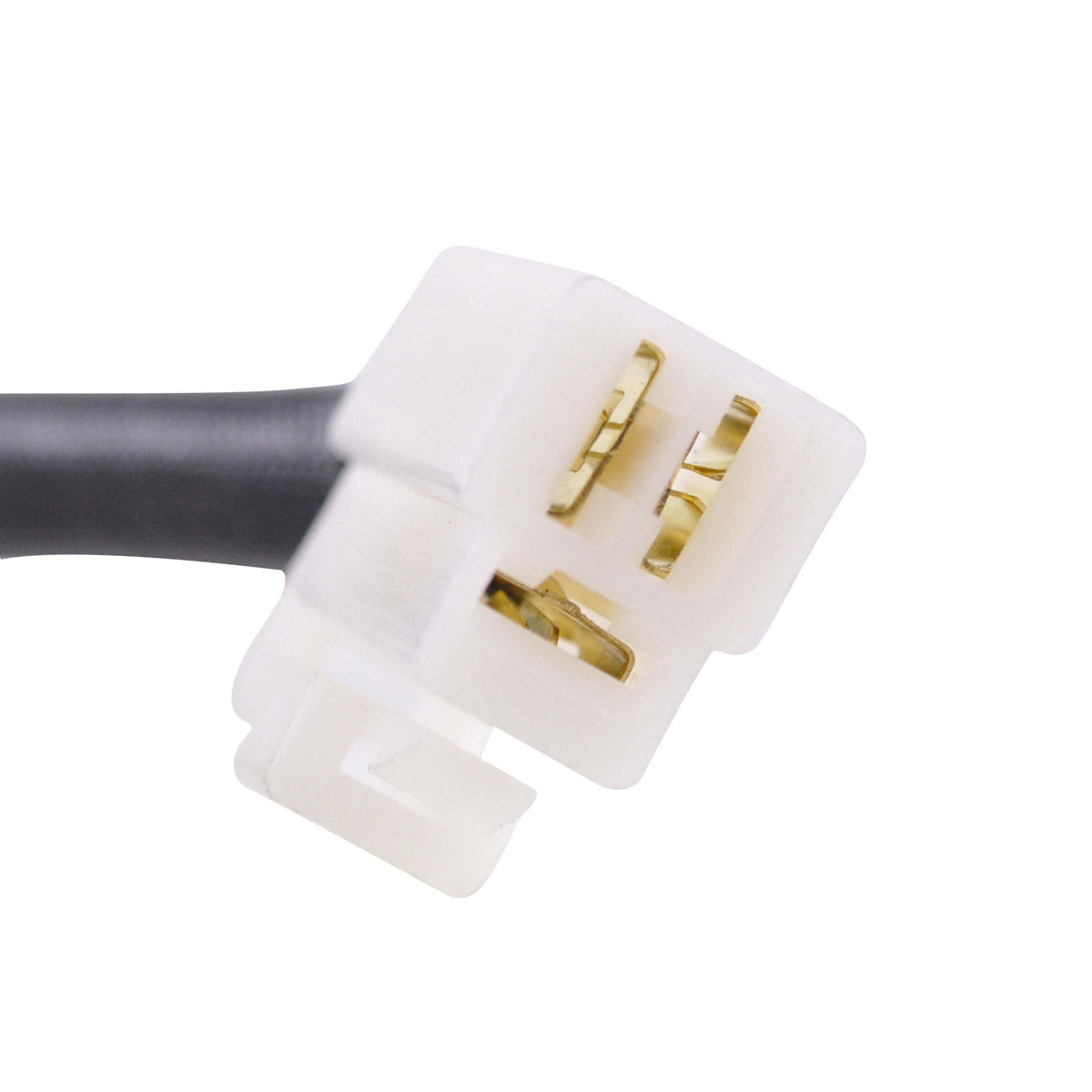

Yes. It is a direct replacement to your original unit and is plug-and-play with the same three-wire, single-plug arrangement. Confirm OEM number T1300502 or T1300350 on your original stator before ordering.
What is included?

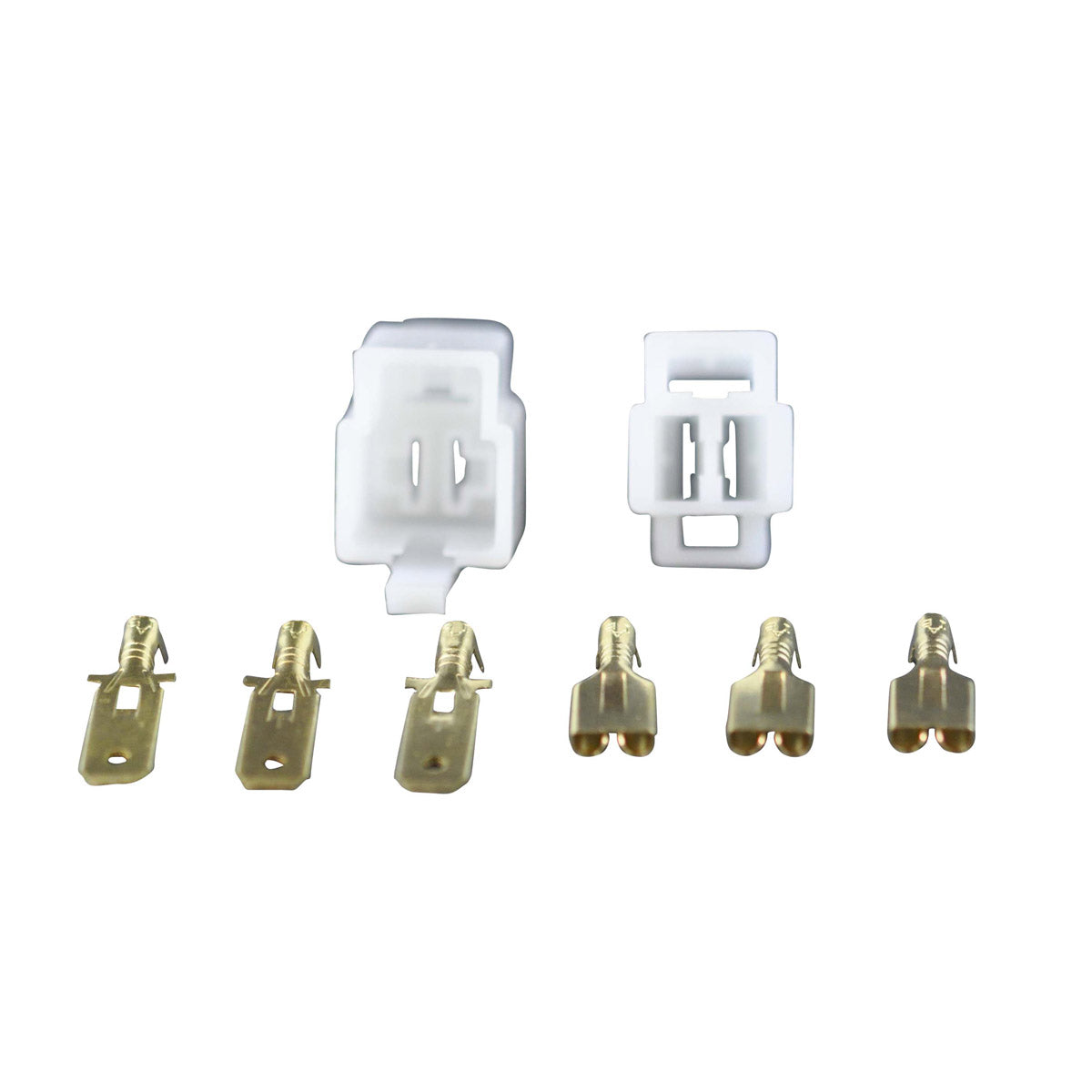

One brand new stator with its wiring and plug fitted, plus the opposite connector for the main harness side. Every unit is tested before it is shipped.
How do I know the original stator has failed?
The classic pattern is a battery that will not stay charged, a warning light or low voltage at the battery with the engine running, dimming lights and eventually a bike that will not restart. Measure resistance black to black across the three phases: this stator reads 0.4 ohms plus or minus 20 percent, and any phase reading open circuit or shorted to the casing means the stator is finished.
Why is a second connector supplied?
On these Triumphs the harness-side connector is frequently melted, corroded or defective and is a major cause of repetitive electrical issues. Fitting a new stator into a damaged connector often leads to the same fault returning, so the opposite connector is included to let you renew both halves of the joint at once.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
