Stator for Yamaha Venture 500 and V-Max
Fits Yamaha Venture 500, V-Max 500 and V-Max 600 1997-2001 - RMSTATOR part RM01095

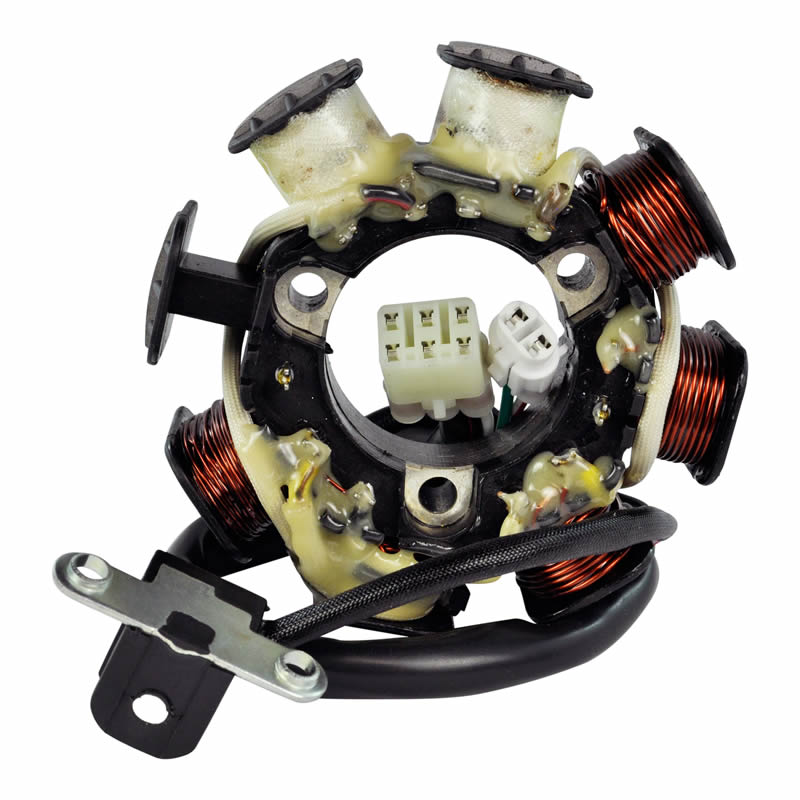

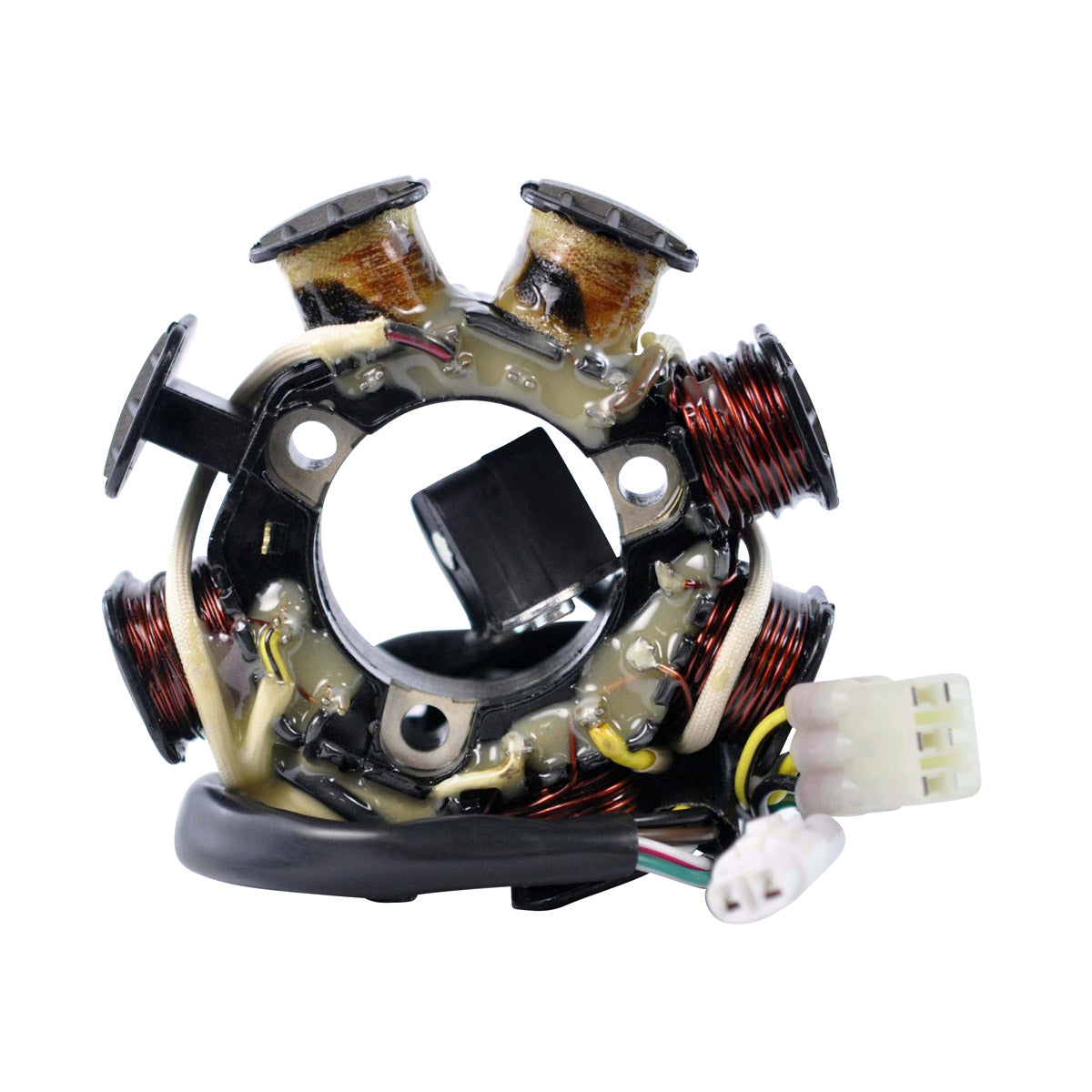

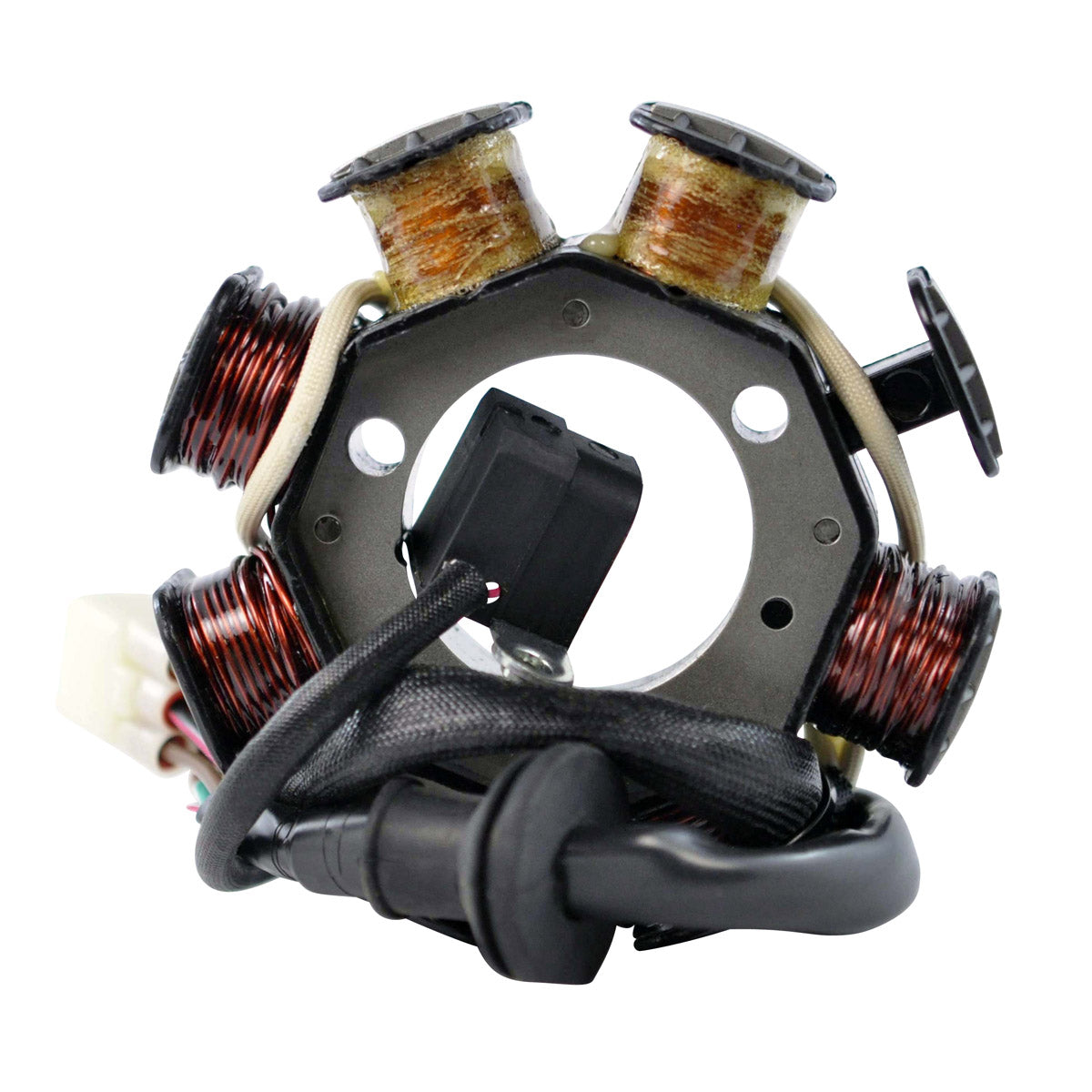

A brand new RMSTATOR stator for the Yamaha Venture 500 and V-Max snowmobiles, supplied as a direct replacement for the original unit. It is plug-and-play, a direct fit and easy to install, and the pickup pulsar coil is included so the ignition trigger is renewed in the same job.
The stator carries eight wires across two plugs and combines the alternator, pickup, source and lighting circuits on one plate. It is built from the highest grade lamination materials with the highest grade copper windings, resistant to 200 degrees Celsius, and the connector and rubber grommet are supplied with it. All product shipped is tested.
Key Features
- Brand new stator, direct replacement for the original Yamaha unit
- Pickup pulsar coil included
- Plug-and-play, direct fit, easy installation

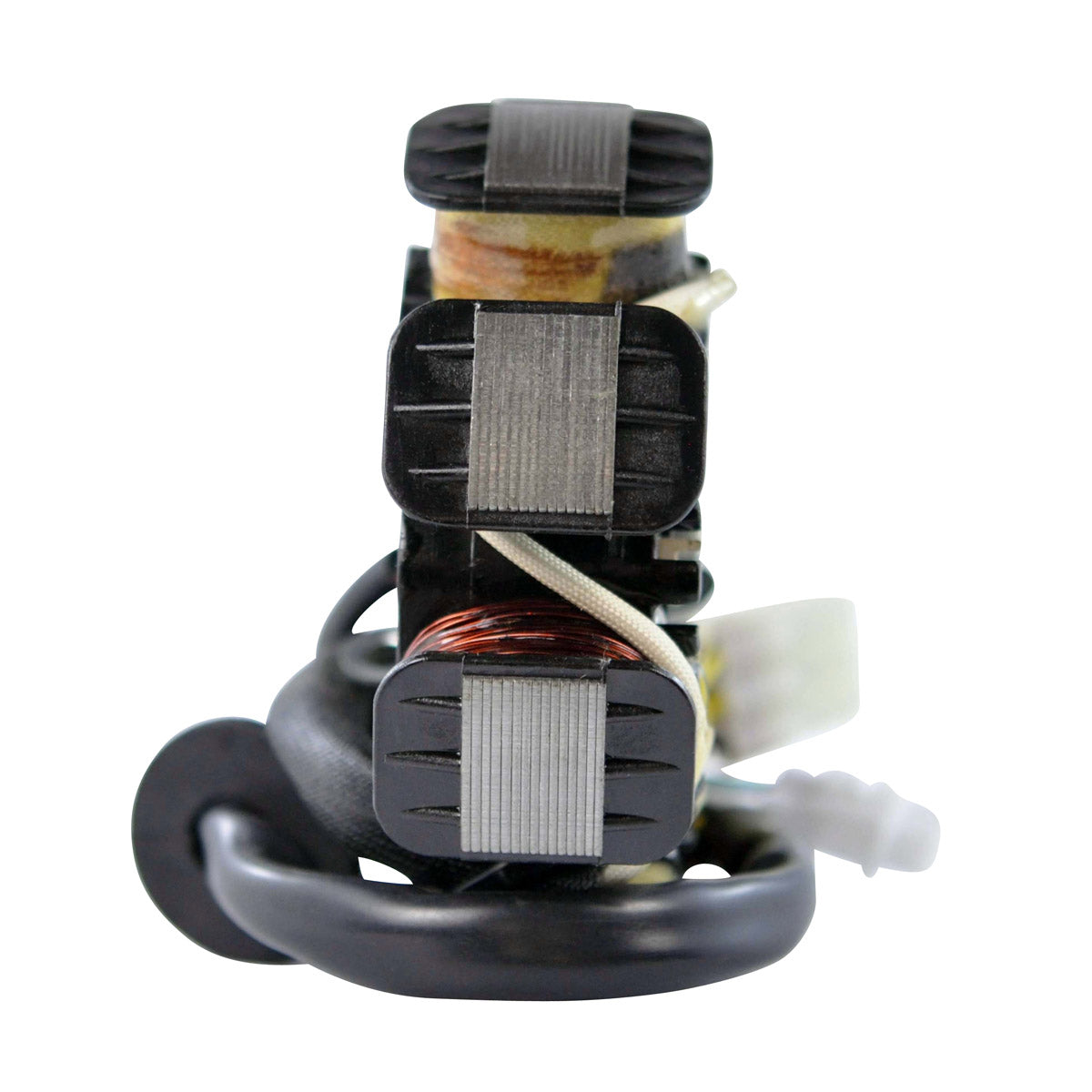

- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius

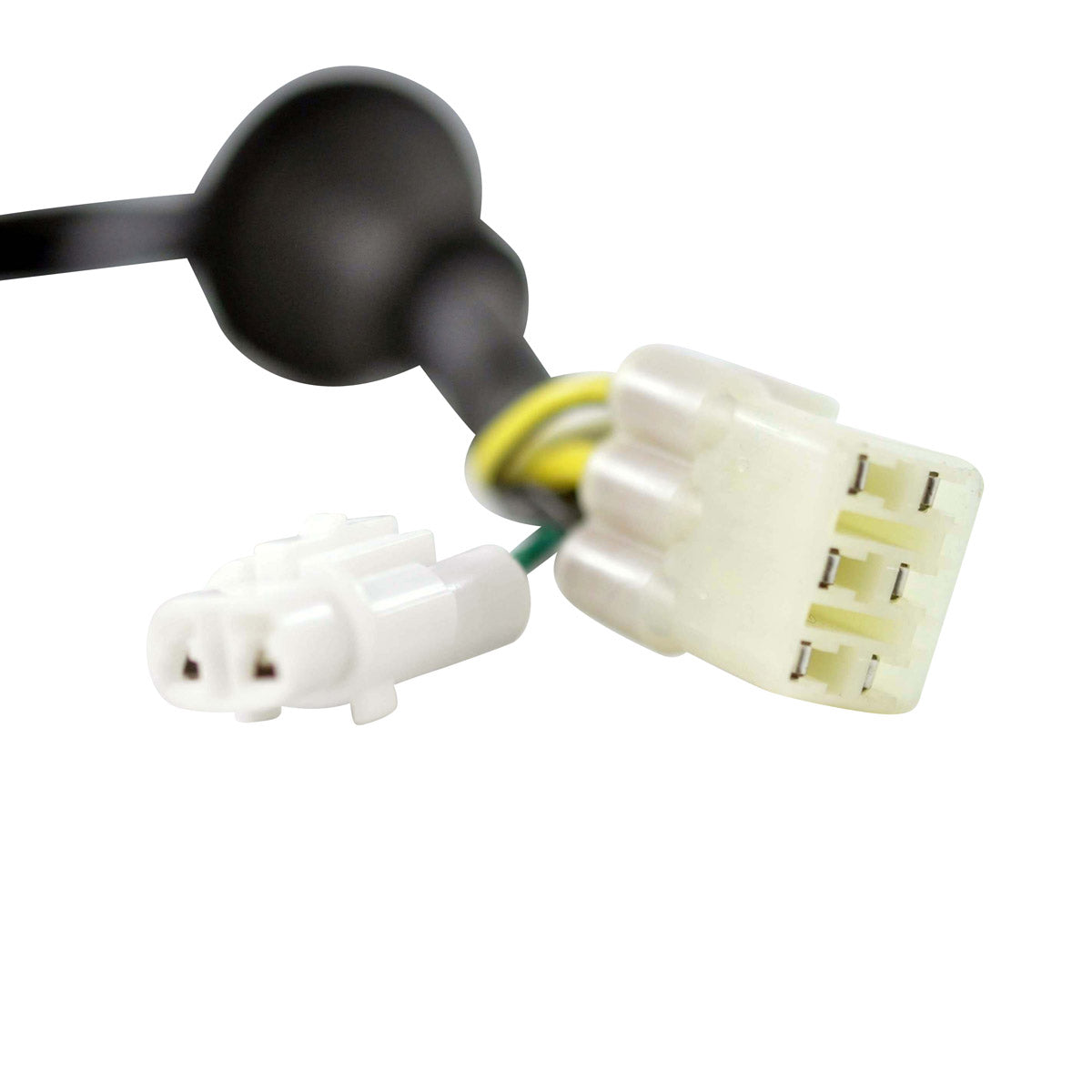

- Connector and rubber grommet included

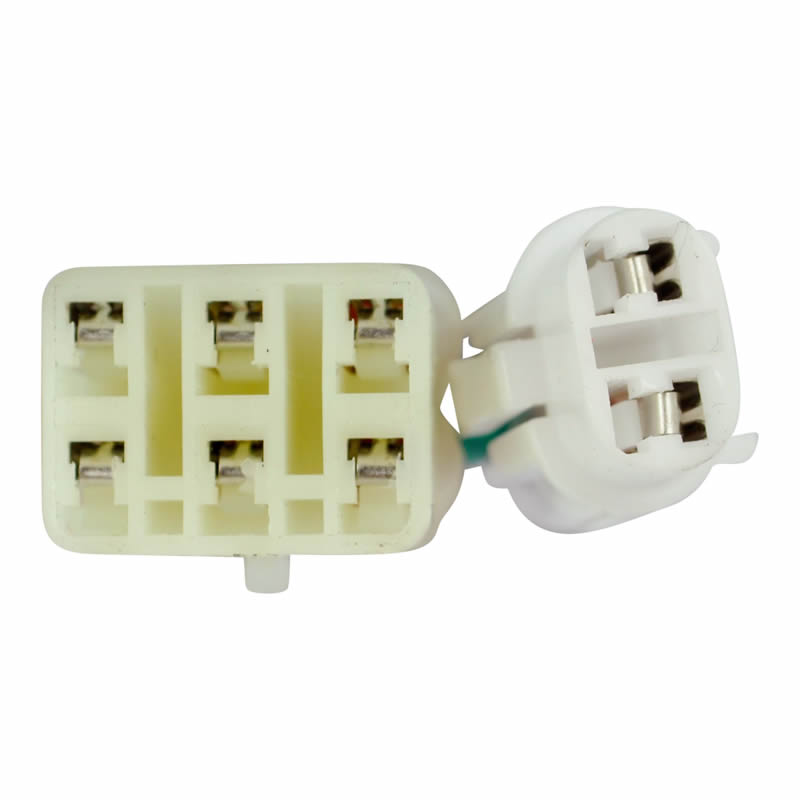

- Eight wires, two plugs, eight pins
Technical Specs
| Specification | Detail |
|---|---|
| Interior diameter | 41 mm |
| Exterior diameter | 103 mm |
| Thickness | 13 mm |
| Wire length, stator to grommet | 85 mm |
| Wire length, grommet to plug | 200 mm |
| Pickup coil wire length to grommet | 100 mm |
| Number of wires | 8 |
| Number of plugs | 2 |
| Number of pins | 8 |
| Alternator resistance, Yellow/Brown to Yellow | 0.4 ohms +/-20% |
| Pickup resistance, White/Green to White/Red | 200 ohms +/-20% |
| Source resistance, Red/Black to Brown | 320 ohms +/-20% |
| Other circuit, Black to White | 0.3 ohms +/-20% |
| Temperature rating | 200 degrees Celsius |
| RMSTATOR part number | RM01095 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Yamaha Venture 500 | 1997-2001 |
| Yamaha V-Max 500 XT / XTC | 1997-2001 |
| Yamaha V-Max 600 SX / SXS / XT / XTC / XTR | 1997-2001 |
| Yamaha SX 500 R | 1997-2001 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 8CR-85510-00-00 | Yamaha |
| 8CR-85510-01-00 | Yamaha |
Frequently Asked Questions
Will this fit without modification?
Yes. It is a direct replacement for the original Yamaha unit - plug-and-play, direct fit, easy installation, with the connector and rubber grommet supplied.
What is included in the box?
The stator, the pickup pulsar coil, the connector and the rubber grommet.
How do I test the old stator before replacing it?
Use a multimeter across each circuit. The alternator should read 0.4 ohms +/-20% from Yellow/Brown to Yellow, the pickup 200 ohms +/-20% from White/Green to White/Red, the source coil 320 ohms +/-20% from Red/Black to Brown, and the remaining circuit 0.3 ohms +/-20% from Black to White. Any circuit reading open or shorted has failed.
Why does this stator have so many wires?
On these sleds the one plate carries the alternator windings, the pickup pulsar coil, the source coil and a further low resistance circuit - eight wires across two plugs in total. Replacing the plate renews all of them together rather than chasing one circuit at a time.
