Stator for Yamaha Mountain Max, Venture & V-Max 600 700
Yamaha Mountain Max, SX, Venture and V-Max - 600 and 700 - 1997 to 2001 - RMSTATOR part RM01132

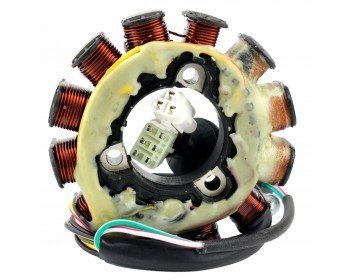

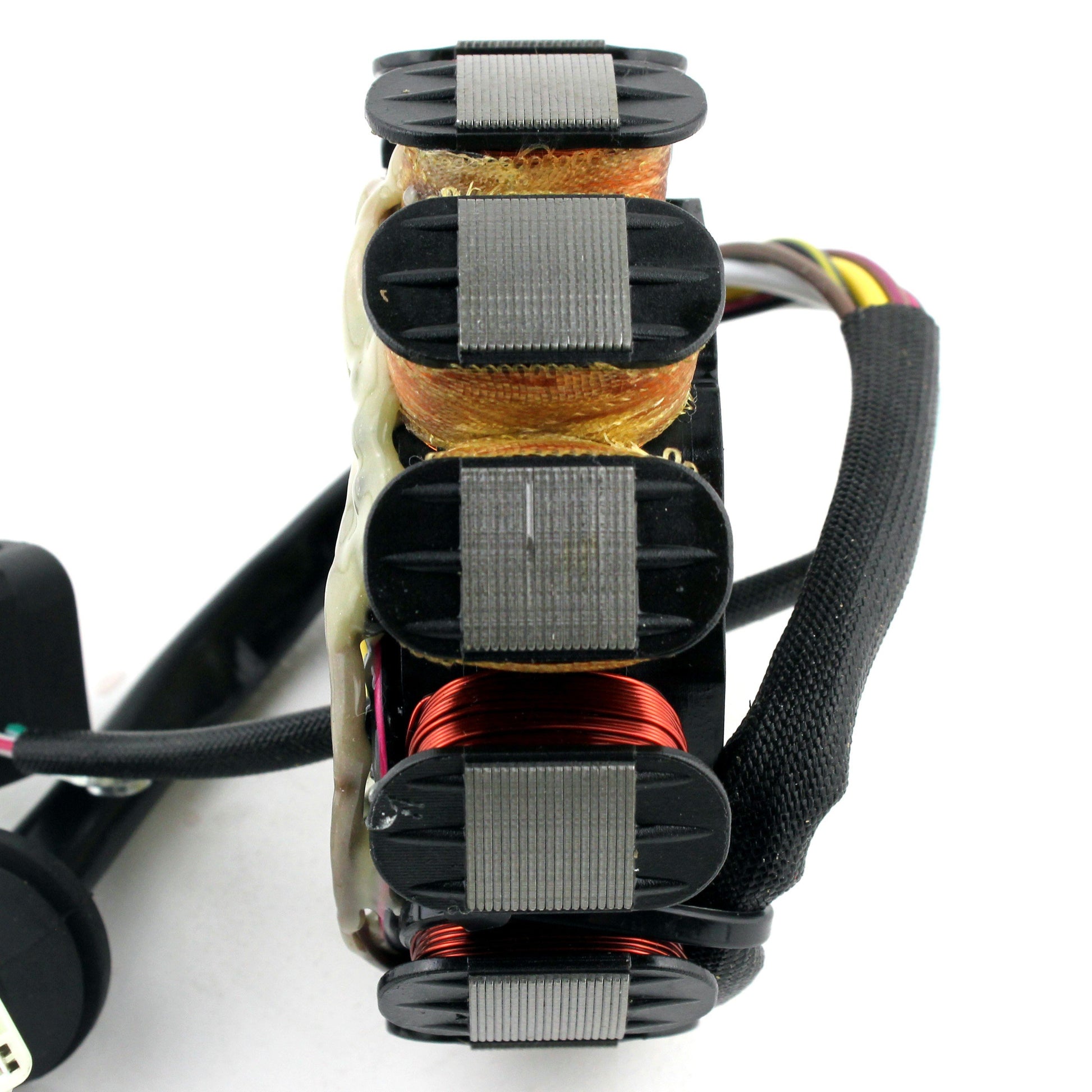

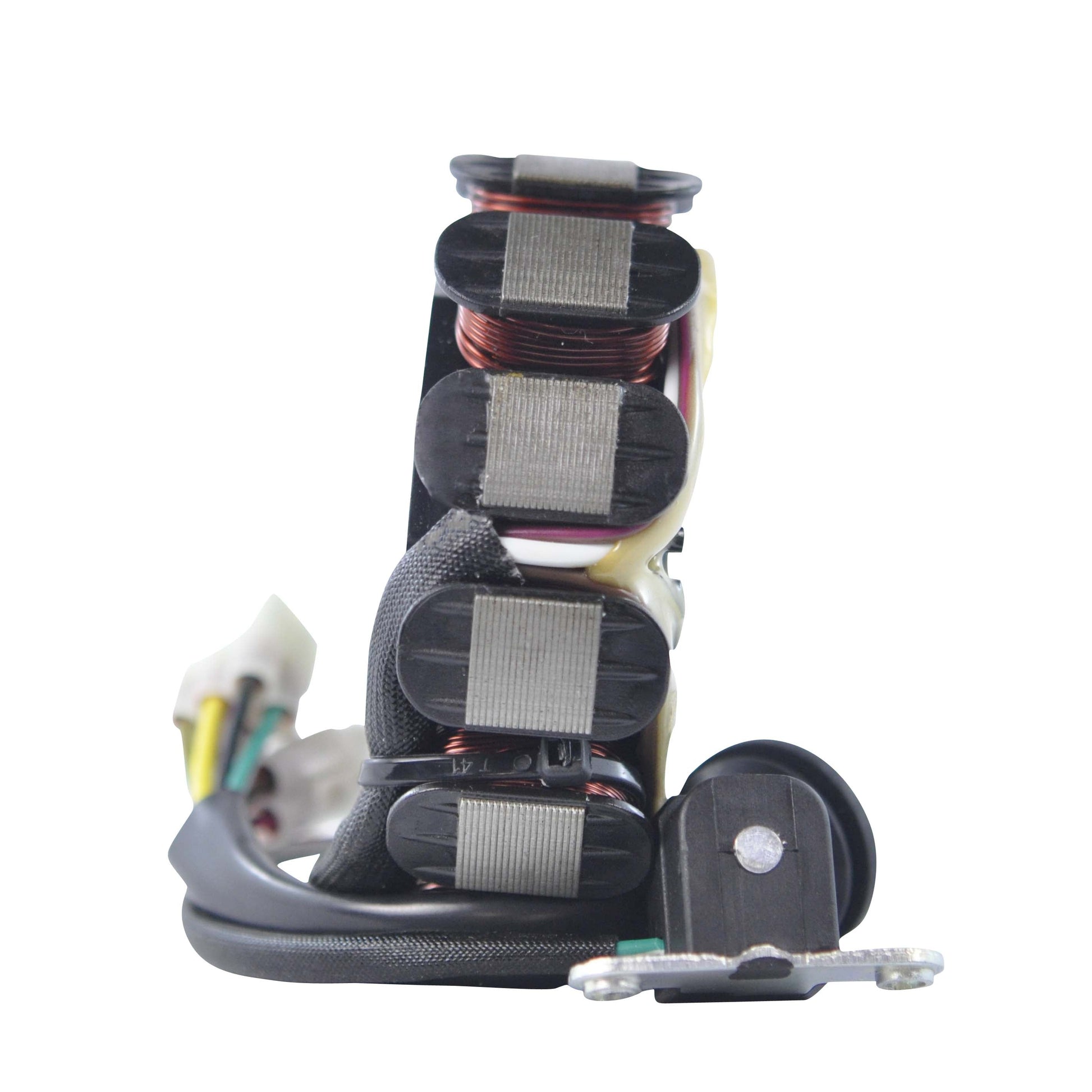

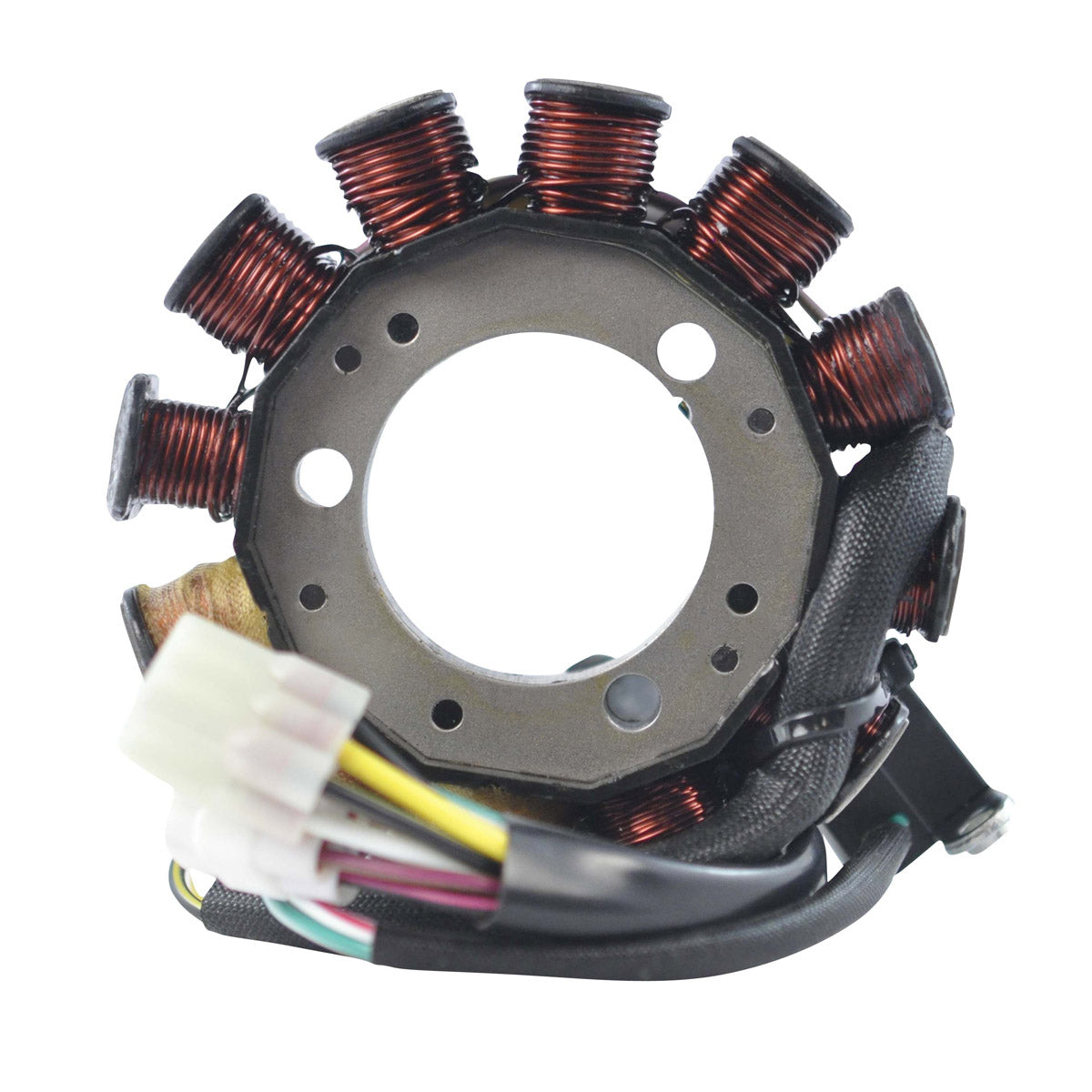

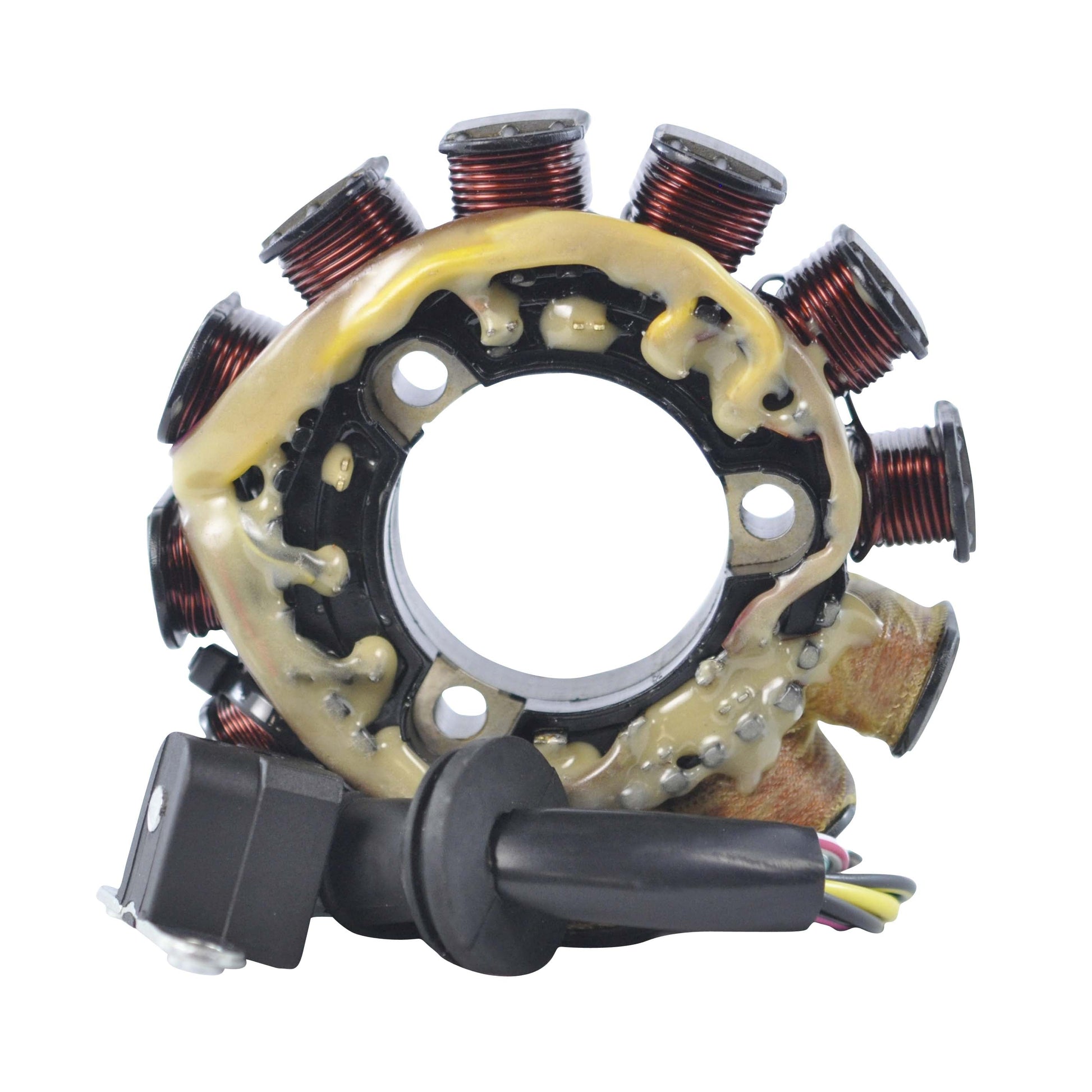

This is a brand new stator for the Yamaha Mountain Max, SX, Venture and V-Max snowmobiles with the 600 and 700 engines, built between 1997 and 2001. It is a direct replacement for the original unit: plug-and-play, a direct fit, and easy to install in the original position behind the flywheel.

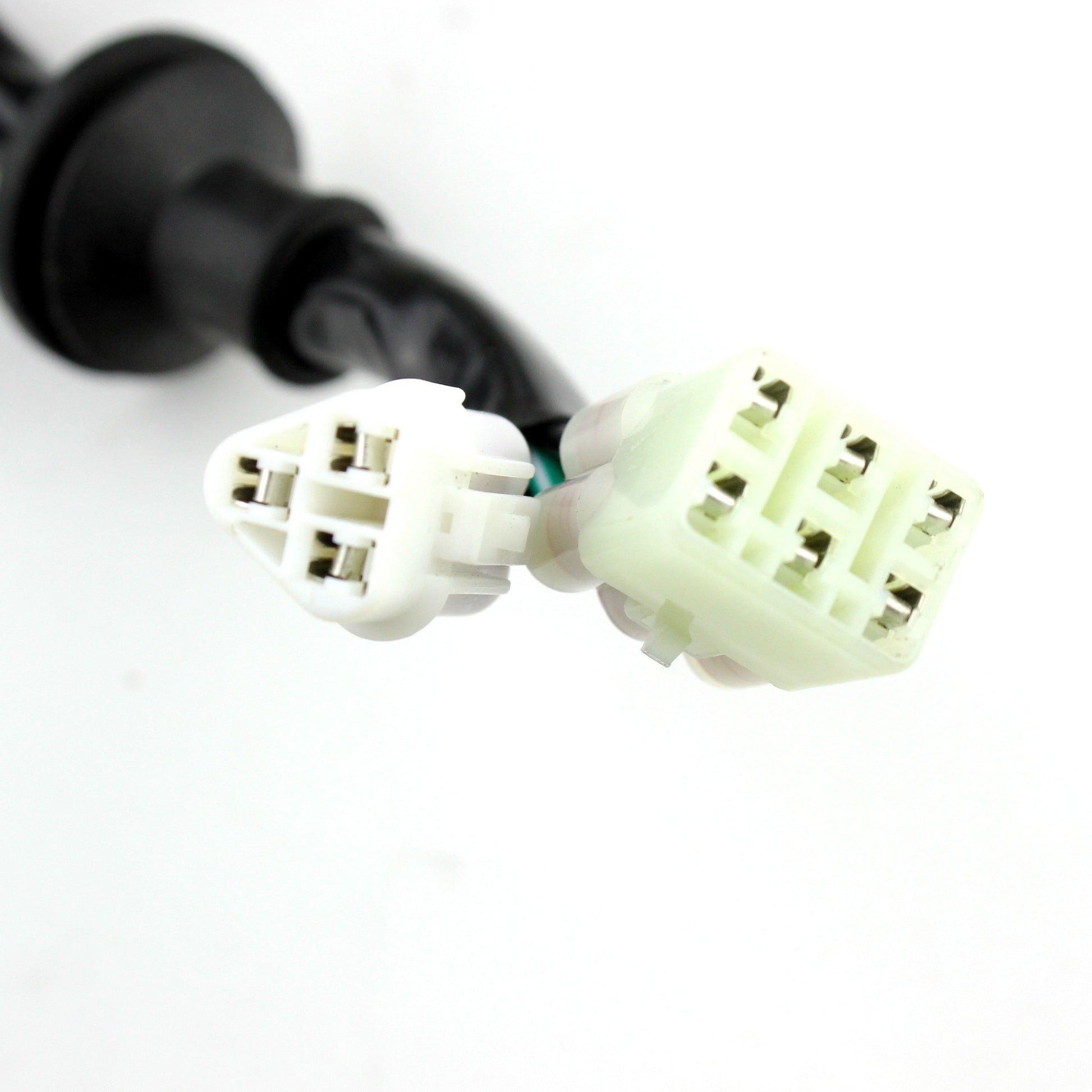

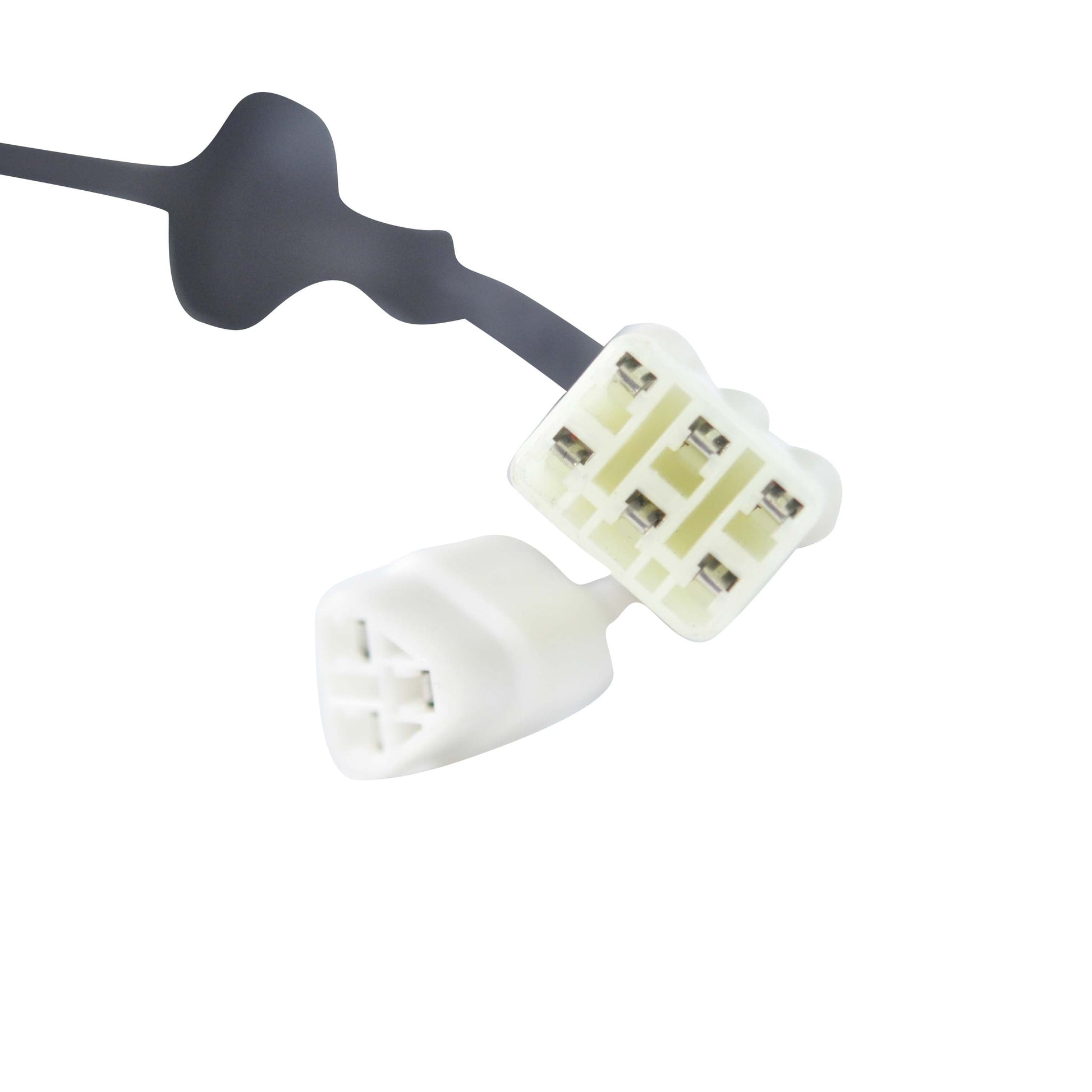

The plate carries six wires on two plugs and includes the pickup pulsar coil, so the ignition trigger and the charging and source windings are all renewed in one part. The core is built from the highest grade of lamination material and the windings from the highest grade of copper, resistant to 200 degrees Celsius. Quality exceeds the original equipment specification. The connector and the rubber grommet are supplied with the unit.
Key Features
- Brand new stator, not a rewound core
- Direct replacement for the original Yamaha unit
- Plug-and-play, direct fit, easy installation
- Pickup pulsar coil included on the plate
- Highest grade copper winding, resistant to 200 degrees Celsius
- Highest grade lamination material
- Quality exceeds the original equipment specification
- Connector and rubber grommet included
Technical Specs
| Specification | Detail |
|---|---|
| Interior diameter | 42 mm |
| Exterior diameter | 103 mm |
| Thickness | 15 mm |
| Wire length, stator to grommet | 95 mm |
| Wire length, grommet to plug | 160 mm |
| Pickup coil wire length | 140 mm |
| Number of wires | 6 |
| Number of plugs | 2 |
| Number of pins | 6 |
| Alternator resistance (Yellow to White) | 0.04 ohms +/- 20% |
| Pickup resistance (White to White/Red) | 225 ohms +/- 20% |
| Source 1 resistance (Black to Brown/Red) | 124 ohms +/- 20% |
| Source 2 resistance (Brown to Black/Red) | 443 ohms +/- 20% |
| Copper winding temperature rating | 200 degrees Celsius |
| RMSTATOR part number | RM01132 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Yamaha Mountain Max 600 / 700 | 1997-2001 |
| Yamaha SX 600 / 700 | 1997-2001 |
| Yamaha Venture 600 / 700 | 1997-2001 |
| Yamaha V-Max 600 / 700 | 1997-2001 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 8CH-85510-00-00 | Yamaha |
| 8CH-85510-01-00 | Yamaha |
| 8CH-85510-02-00 | Yamaha |
Frequently Asked Questions
Does fitting this stator require modification?
No. It is a plug-and-play direct fit in the original position, with the same six wires on two plugs as the unit it replaces.
What is included in the box?
The stator plate with the pickup pulsar coil fitted, the connector and the rubber grommet.
How do I tell whether my old stator has failed?
Measure each circuit with a multimeter against the table above. The alternator winding reads about 0.04 ohms from yellow to white, the pickup about 225 ohms from white to white/red, source 1 about 124 ohms from black to brown/red and source 2 about 443 ohms from brown to black/red, all within 20 per cent. An open circuit on any of them, or continuity from a winding to the plate, means the stator has failed. No spark usually traces back to the pickup or a source winding, while dim lights and a flat battery point at the alternator winding.
Do I need to order the pickup pulsar coil separately?
No. The pickup pulsar coil is fitted to this stator plate, so the single part renews both the ignition trigger and the charging windings.
