Stator for Yamaha MT-07, XSR 700 and XTZ 700 Tenere
Also fits FZ 700 and YZF-R7 - 2015-2024 - Part RMS010-107082

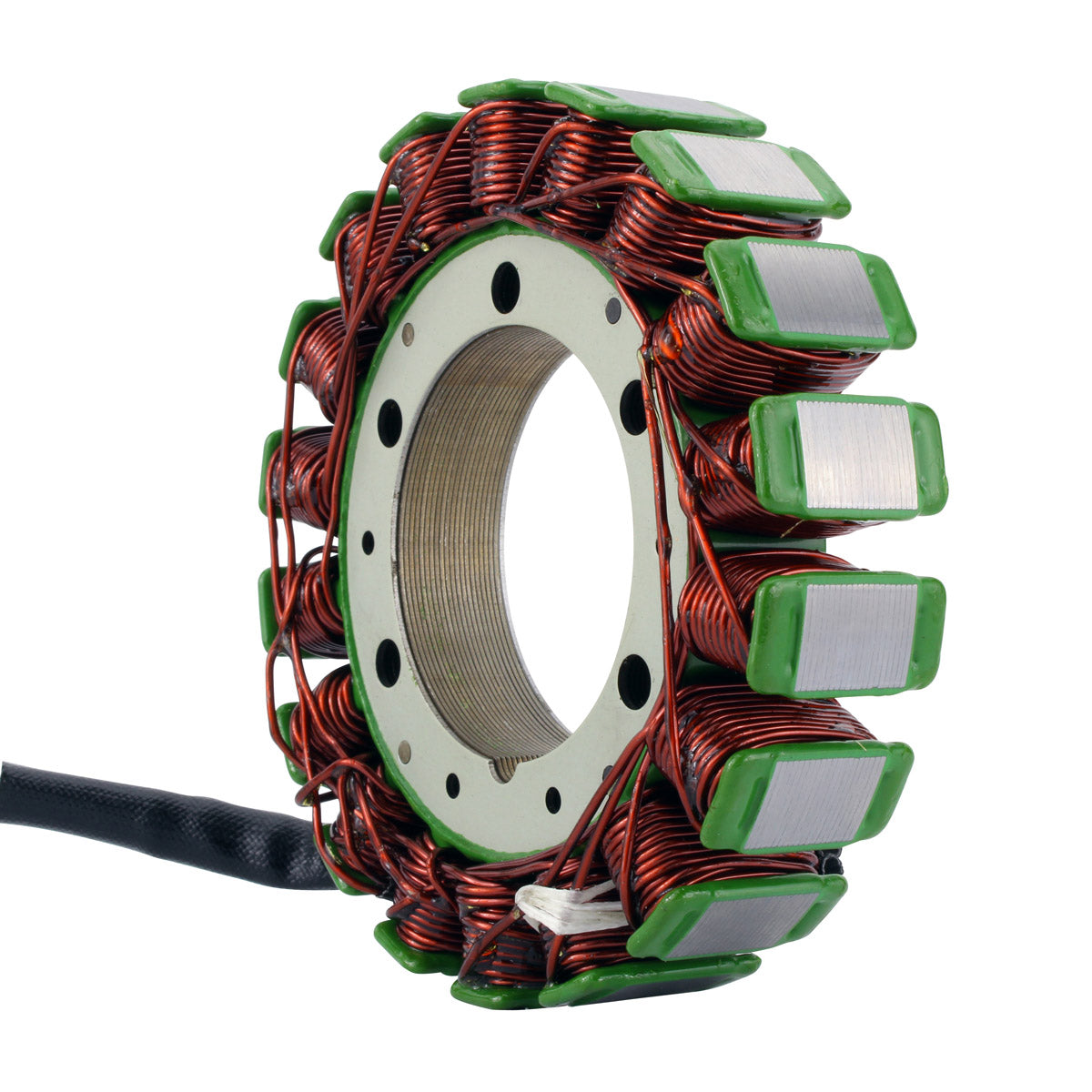

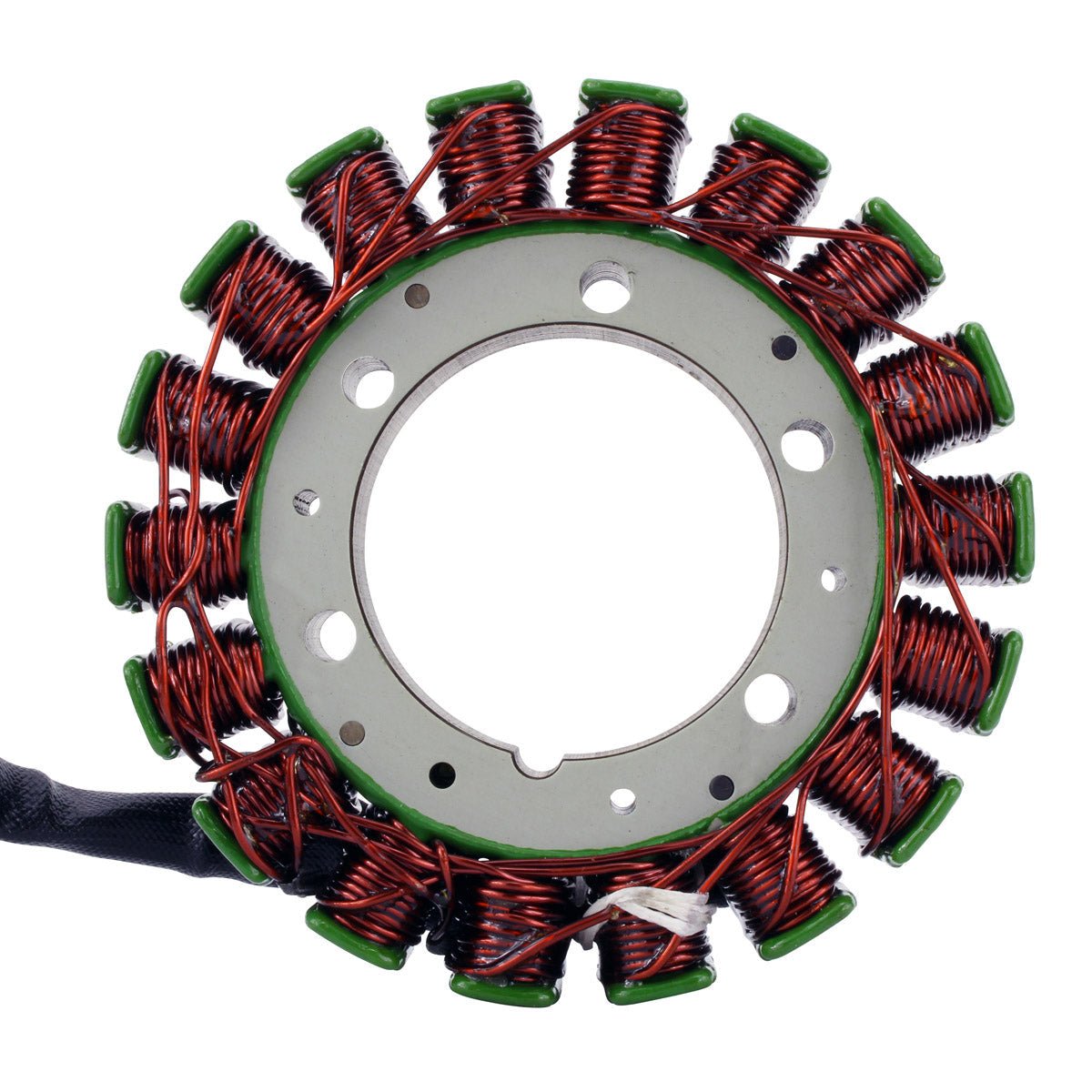

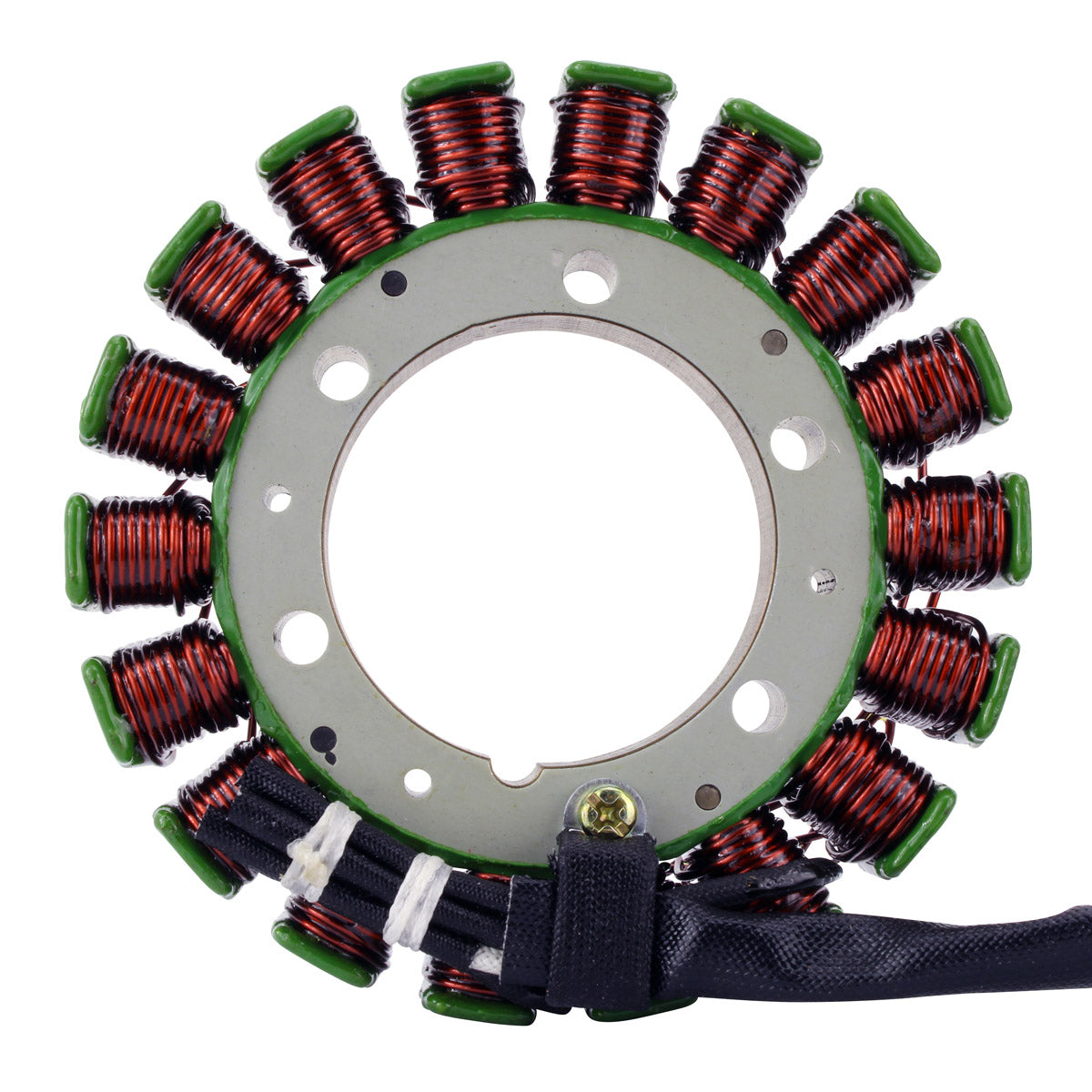

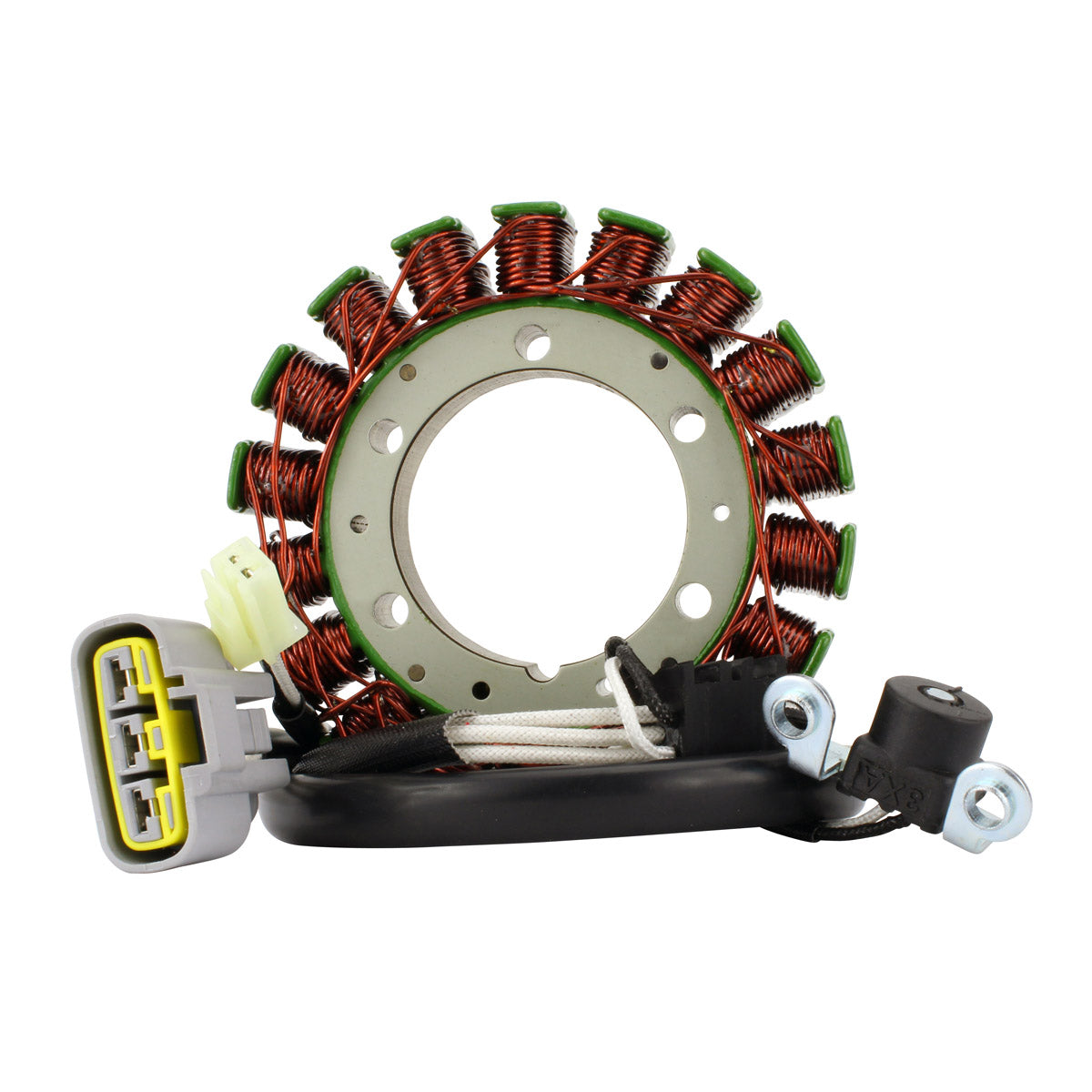

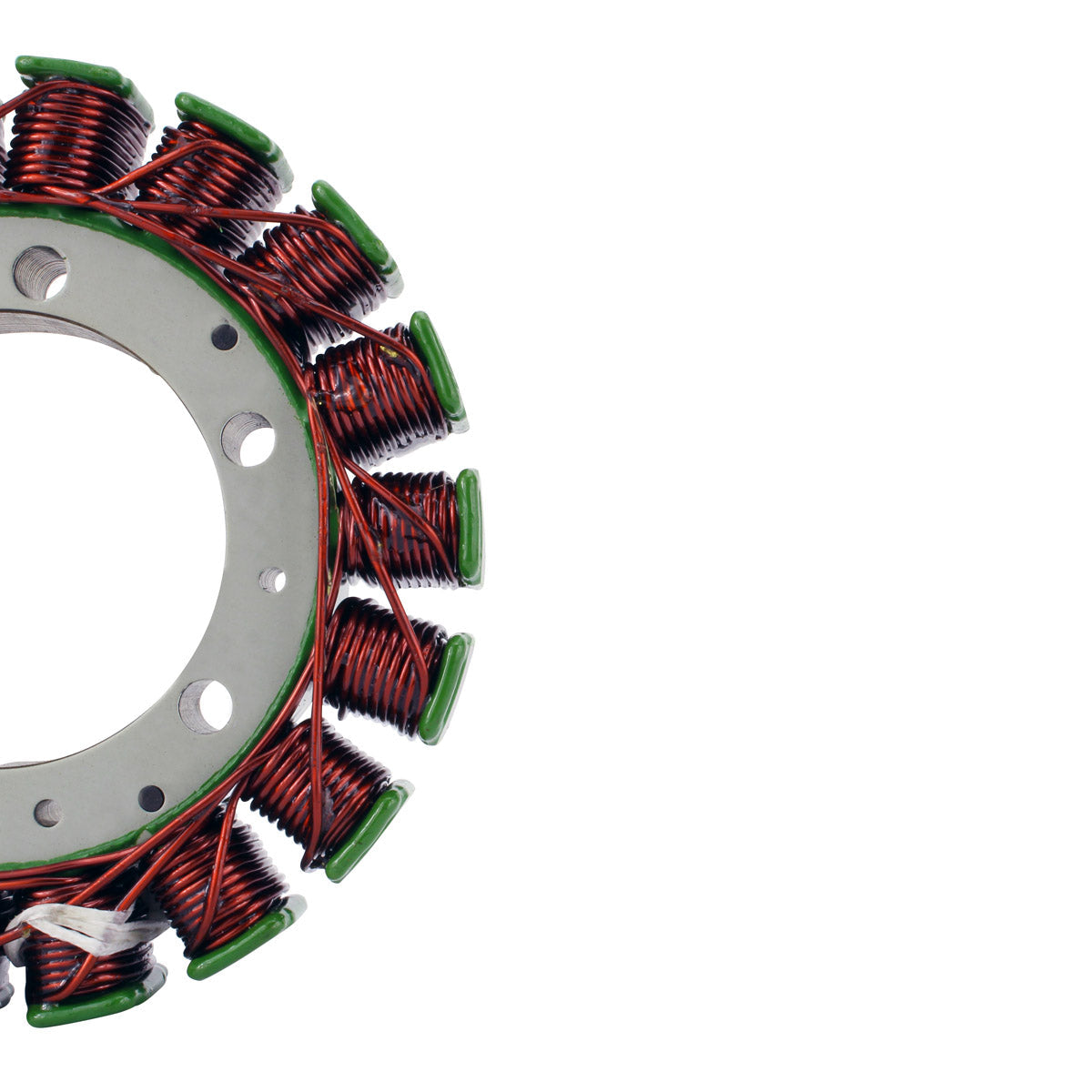

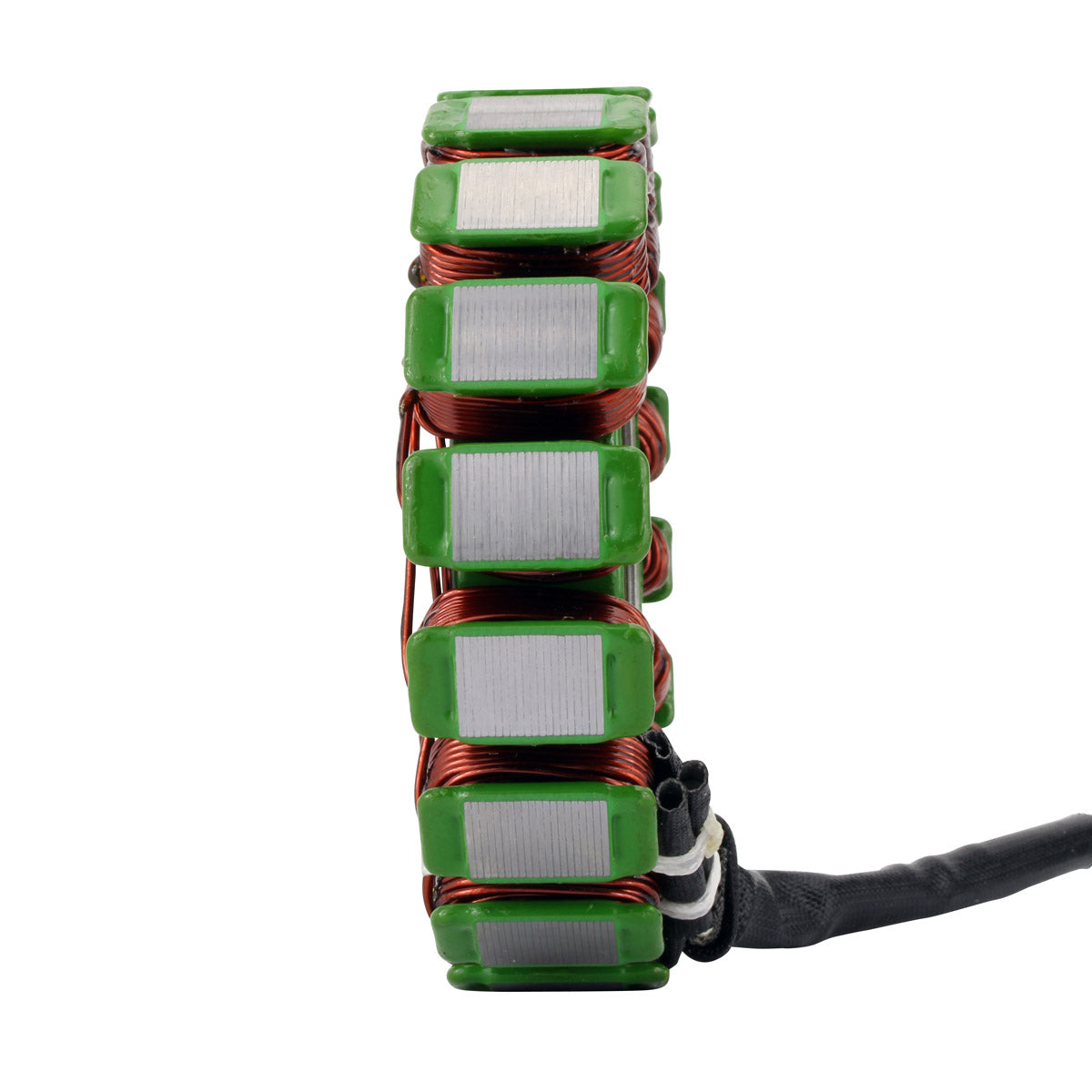

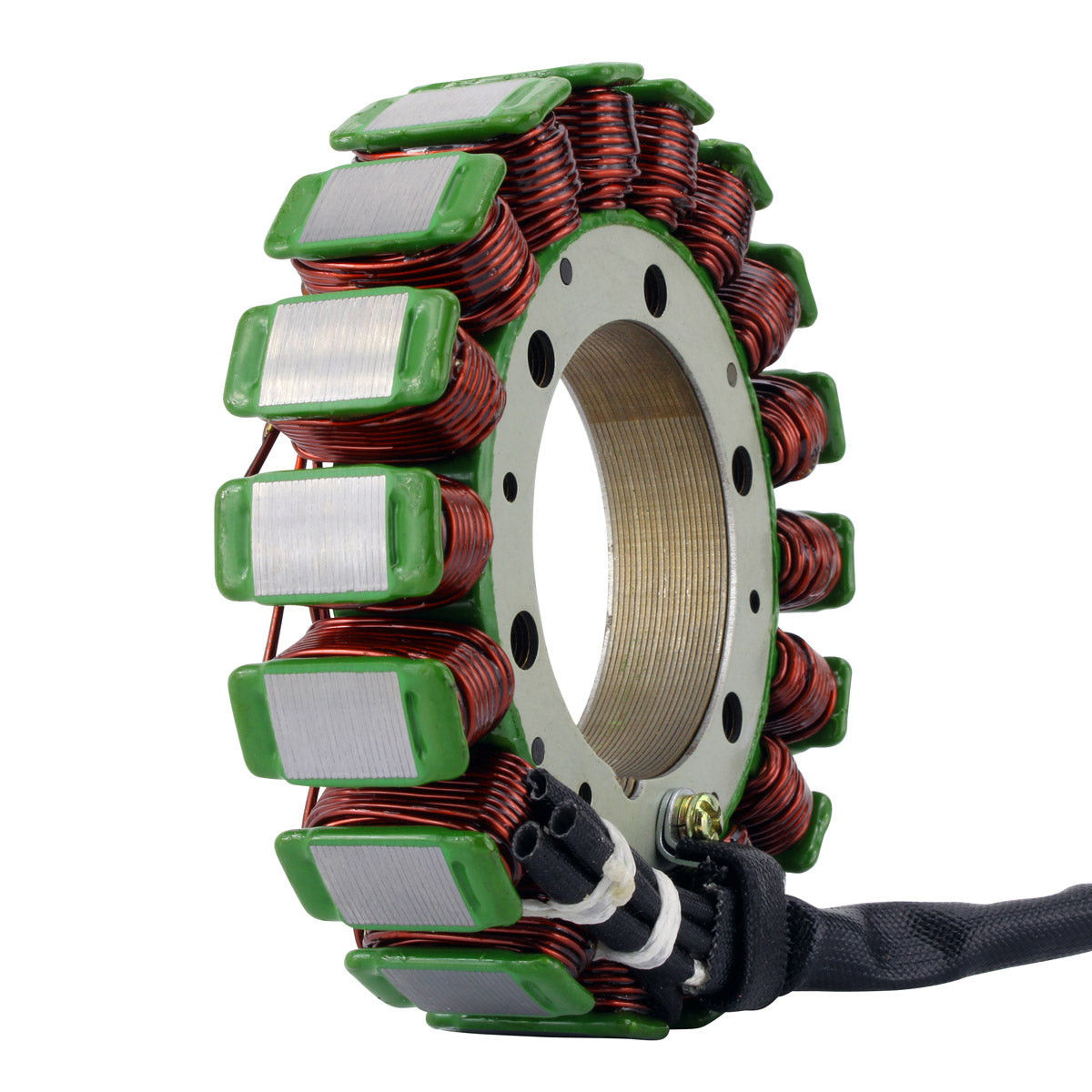

This is a brand new aftermarket stator built as a direct replacement for the original unit fitted across Yamaha's 700 twin range. It is a plug-and-play, direct fit part: it uses the original mounting points and the original connectors, so nothing on the loom has to be cut, spliced or modified. The pick-up pulsar coil, the connectors and the rubber grommet are all supplied with the stator, so the whole assembly comes out and goes back in as a complete unit instead of being rebuilt around parts that have already spent years inside a hot engine case.
The stator is the generating half of the charging system. It produces the AC current that the regulator rectifier turns into the DC current your battery, lights and fuel injection depend on, and it carries the pick-up coil that gives the ignition its crank position signal. When the winding breaks down the usual symptoms are a battery that will not stay charged, warning lights appearing after a short ride, dim or flickering lights, or a bike that simply stops once the battery is exhausted. This unit is wound on high grade lamination material with copper rated to a 200 degree Celsius working temperature, it uses the standard eighteen pole layout with five wires into two plugs, and every unit is tested before it is shipped.
Key Features
- Brand new aftermarket stator, direct replacement for your original unit
- Plug-and-play, direct fit, easy installation

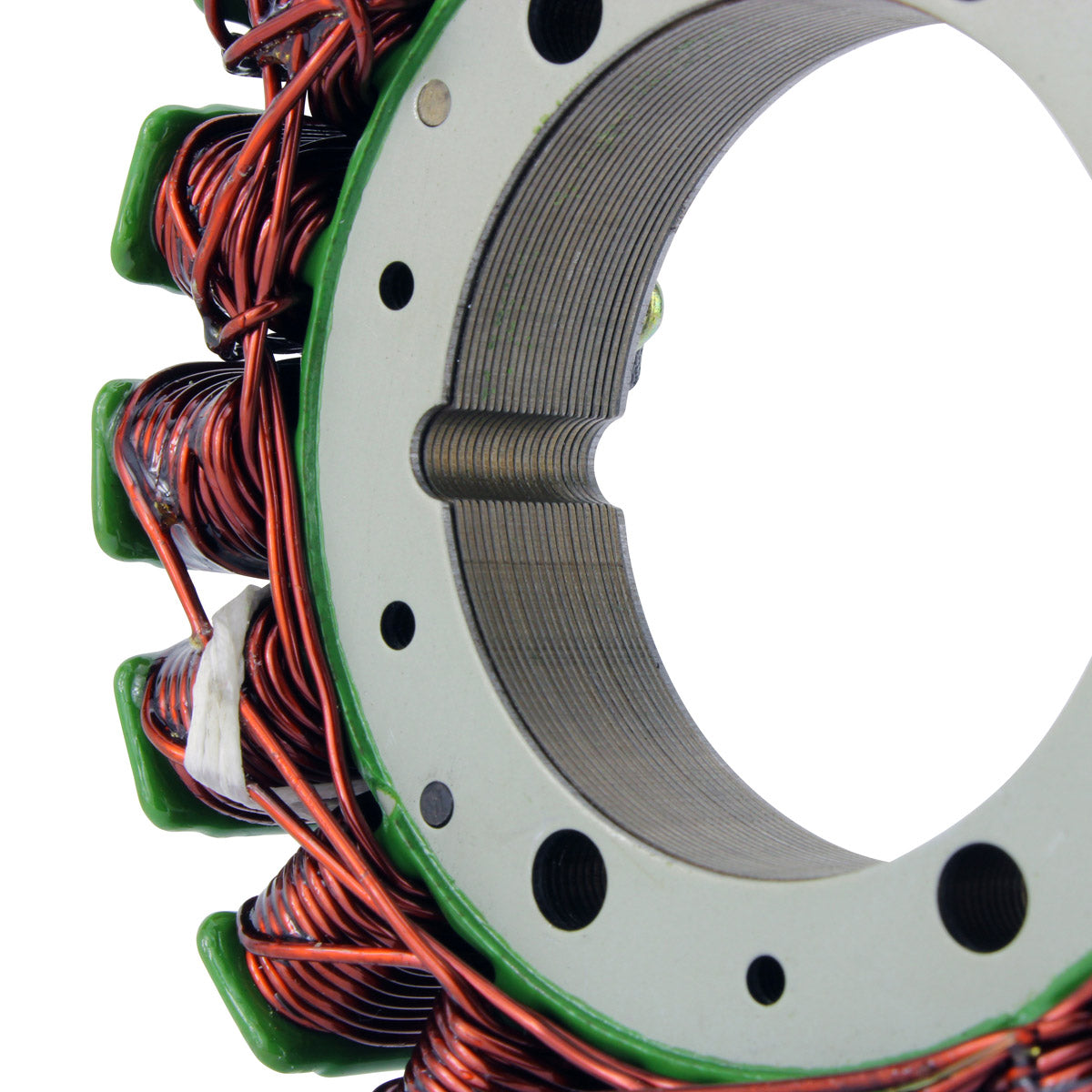

- High grade lamination material
- Copper winding rated to 200 degrees Celsius

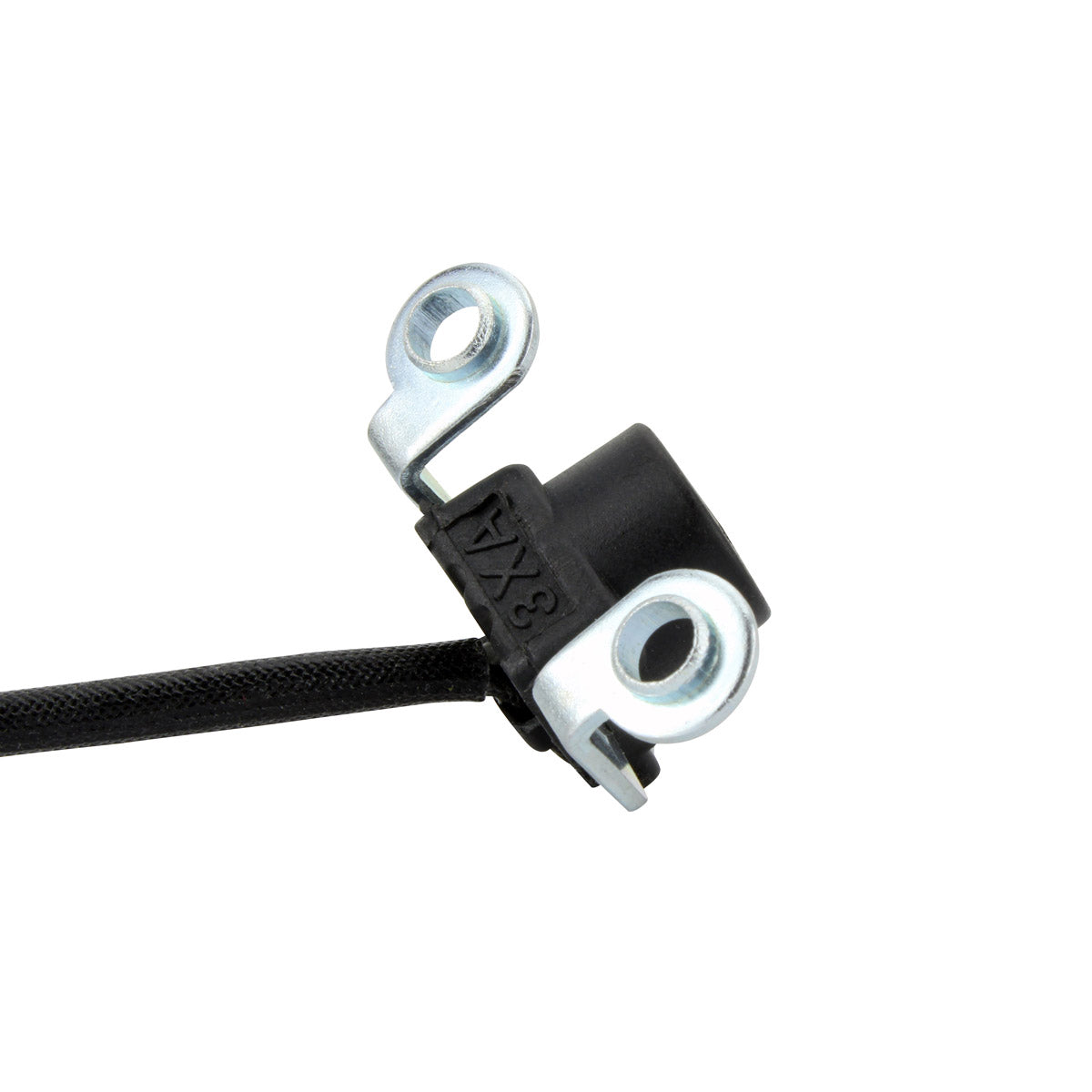

- Pick-up pulsar coil included

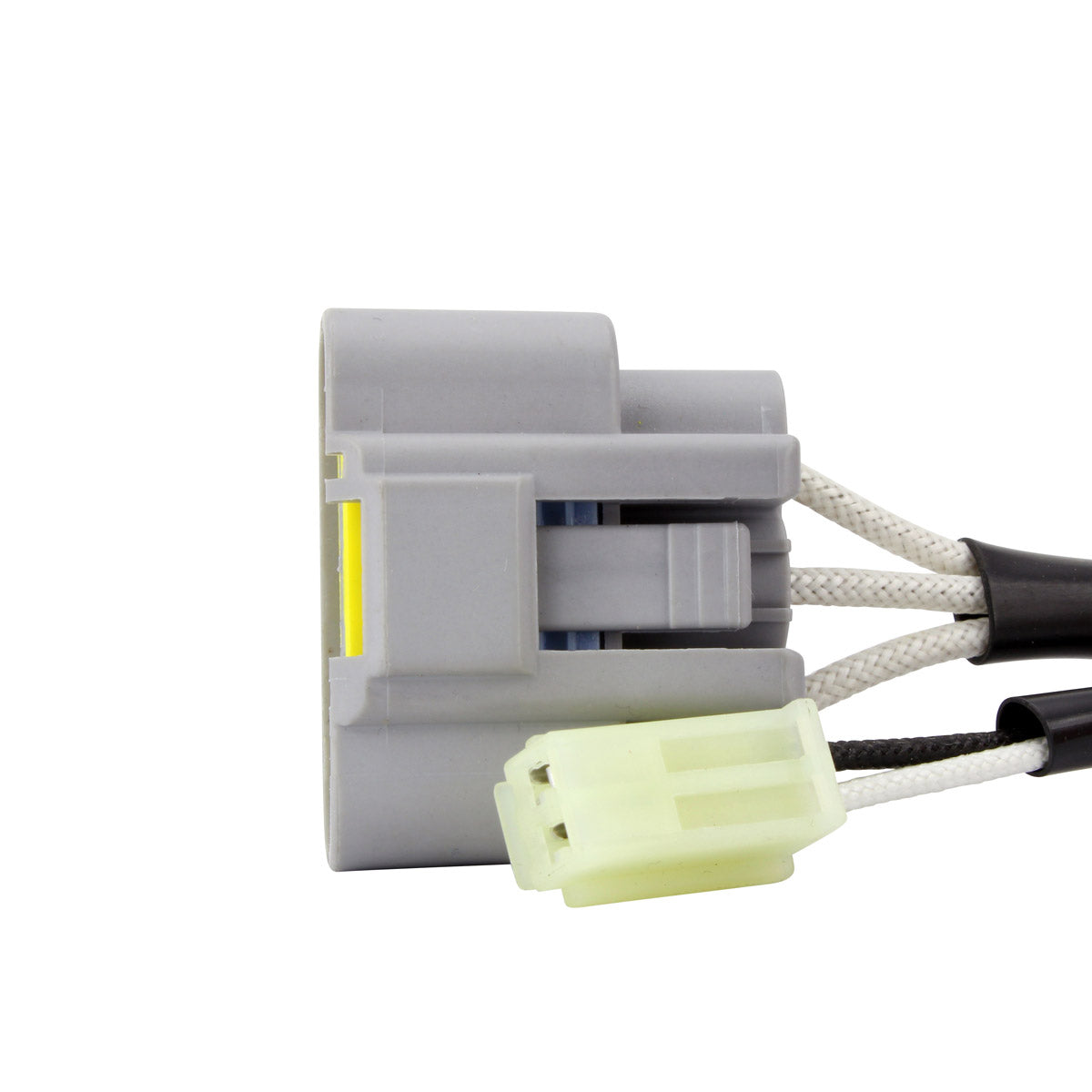

- Connectors included

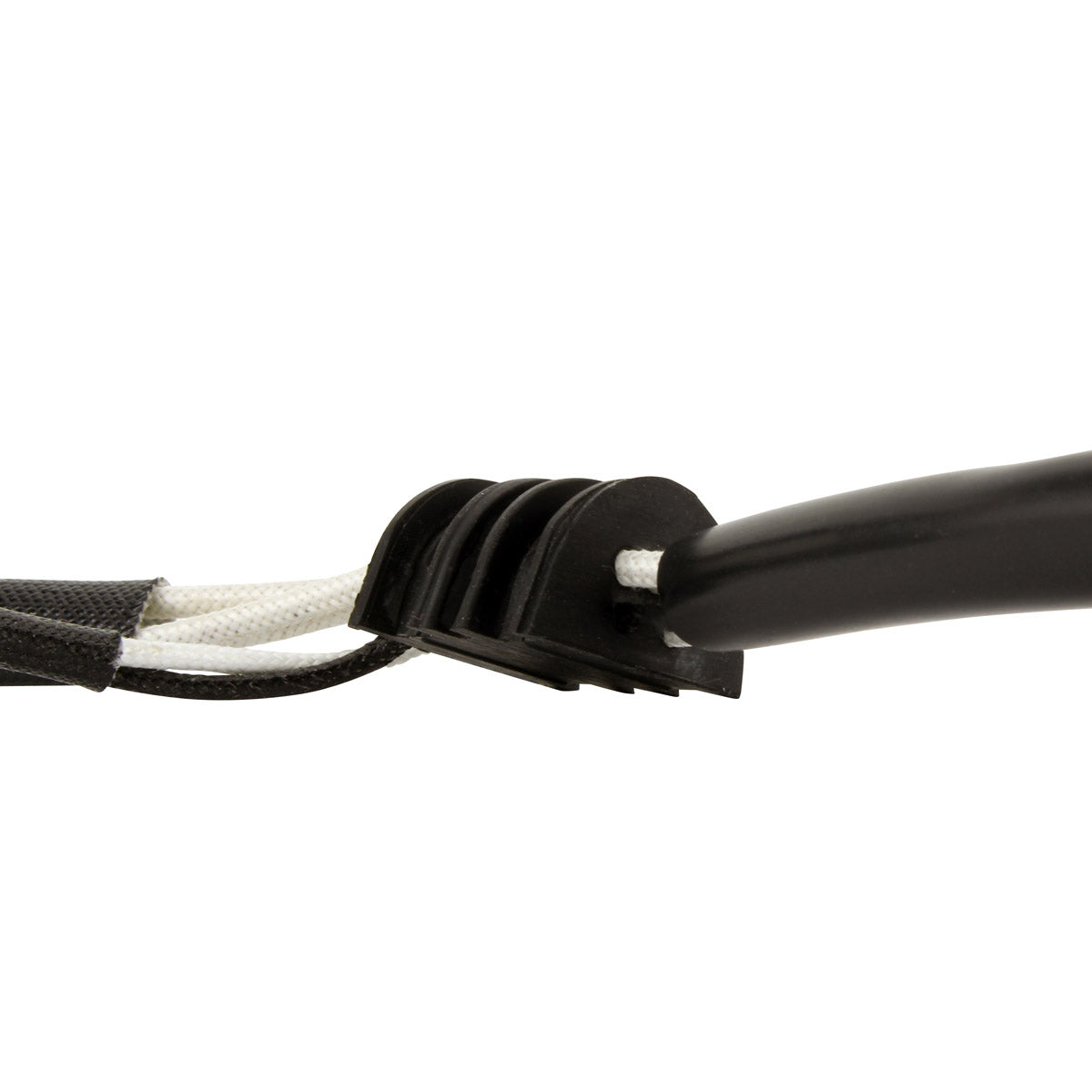

- Rubber grommet included

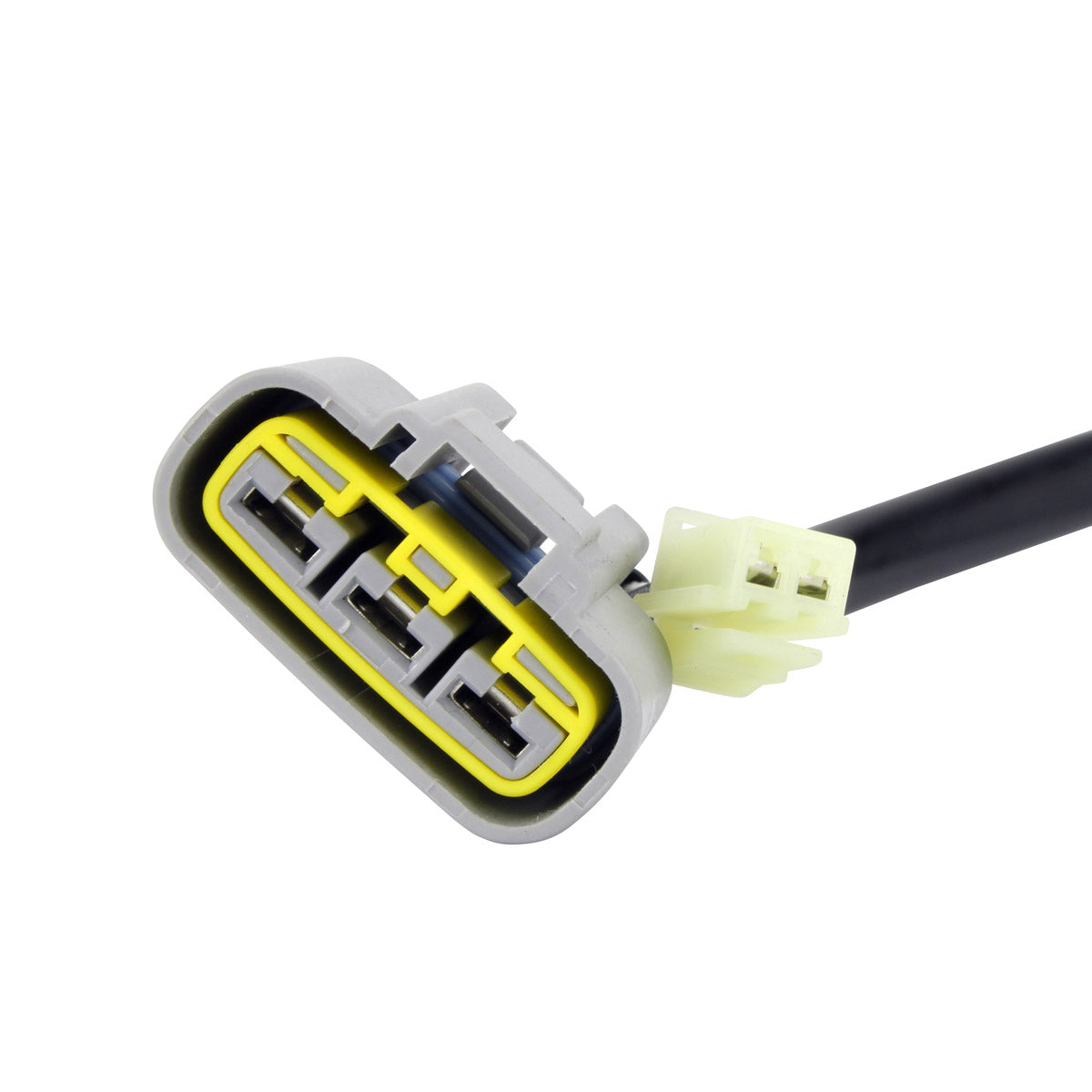

- Eighteen pole winding, five wires into two plugs
- All units are tested before shipment
Technical Specs
| Specification | Detail |
|---|---|
| Interior diameter | 54 mm |
| Exterior diameter | 115 mm |
| Thickness | 16 mm |
| Number of poles | 18 |
| Number of wires | 5 |
| Number of plugs | 2 |
| Number of holes | 3 |
| Length of wires, stator to grommet | 150 mm |
| Length of wires, grommet to plug | 500 mm |
| Length of pick-up coil wire to grommet | 100 mm |
| Alternator resistance, White to White | 0.5 ohms, plus or minus 20 per cent |
| Pick-up resistance, Black to Grey | 269 ohms, plus or minus 20 per cent |
| Copper winding temperature rating | 200 degrees Celsius |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Yamaha FZ 700 | 2015-2024 |
| Yamaha MT-07 | 2015-2024 |
| Yamaha XTZ 700 Tenere | 2015-2024 |
| Yamaha XSR 700 | 2015-2024 |
| Yamaha YZF-R7 | 2015-2024 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 1WS-81410-00-00 | Yamaha |
| 1WS-81410-02-00 | Yamaha |
Frequently Asked Questions
Does fitting this stator require any modification?
No. It is a direct fit, plug-and-play replacement that uses the original three mounting holes and the original connectors, so no cutting or splicing is needed. Check your model against the fitment table and confirm the number on your old unit matches one of the OEM references above.
What comes in the box?
The stator assembly, the pick-up pulsar coil, the connectors and the rubber grommet.
How can I tell that the stator is what has failed?
A battery that keeps going flat, dim or flickering lights and a bike that runs progressively worse on a long ride all point at the charging circuit. To confirm, measure the alternator winding white to white, which should read about 0.5 ohms, and the pick-up black to grey, which should read about 269 ohms, both within 20 per cent. Readings well outside those values, an open circuit, or continuity between a winding and the stator body mean the unit has failed.
Will one stator really cover all these models?
Yes. Yamaha uses the same CP2 parallel twin engine and the same charging setup across the MT-07, XSR 700, XTZ 700 Tenere, FZ 700 and YZF-R7, so a single stator carrying the 1WS-81410 part number covers the whole family across the years listed.
