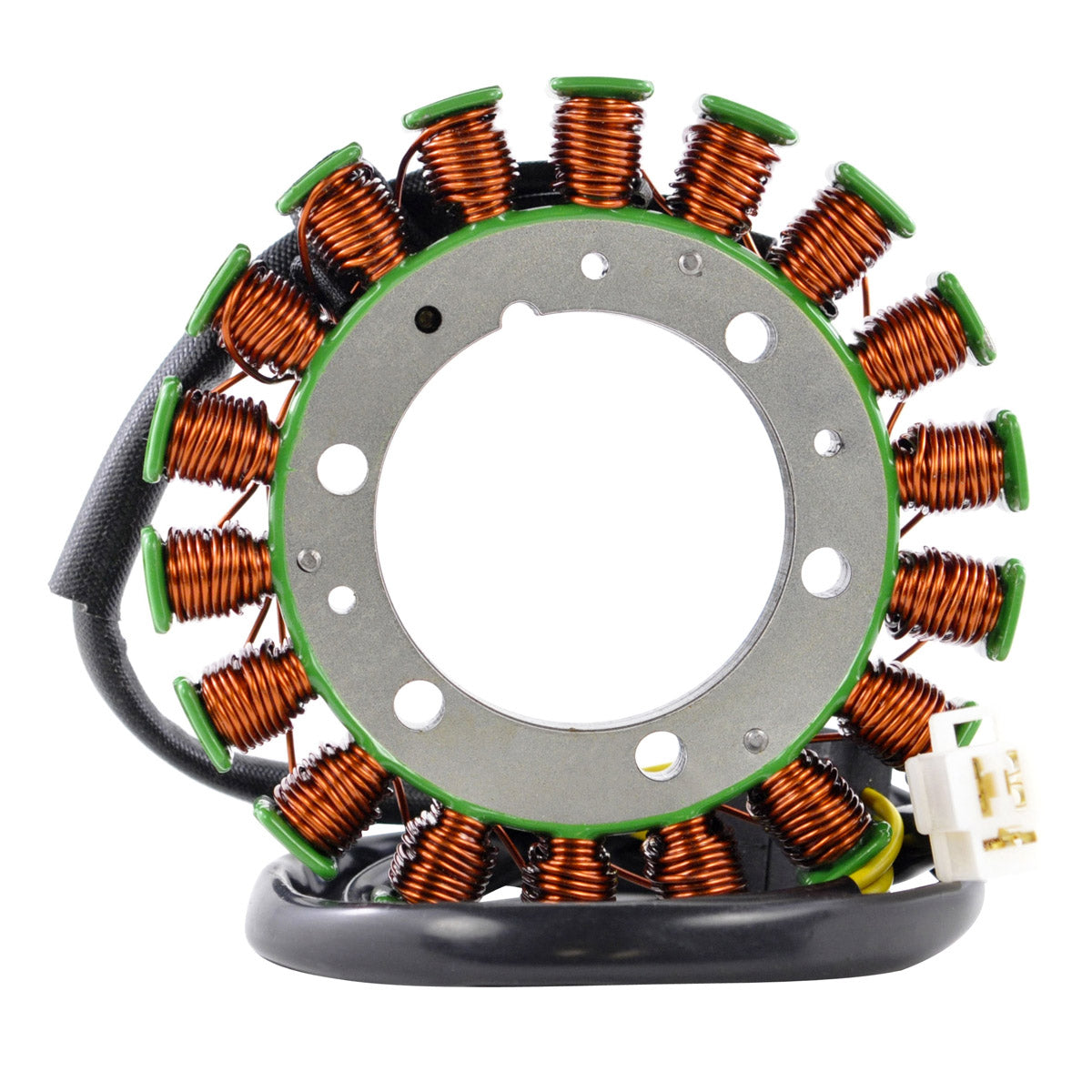

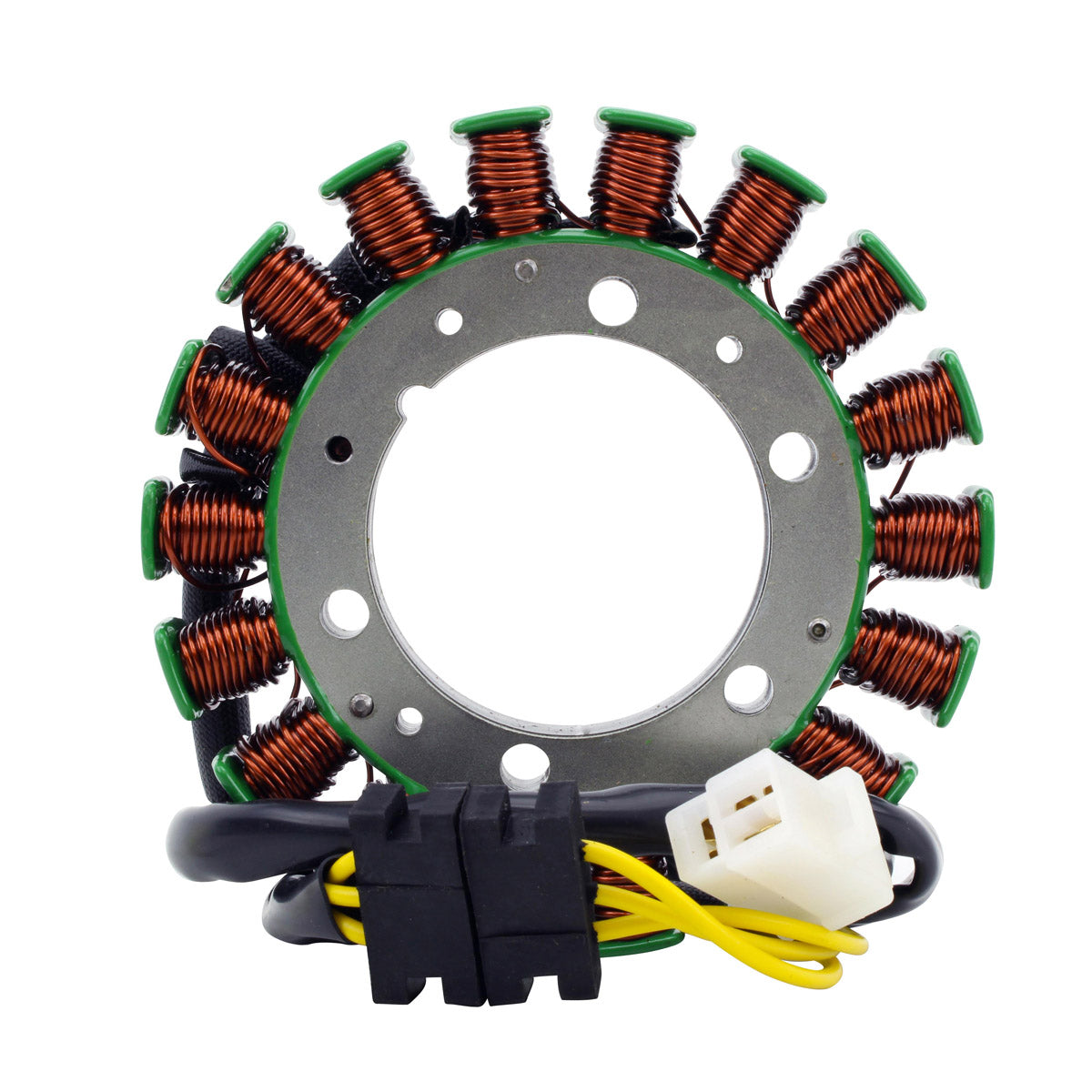

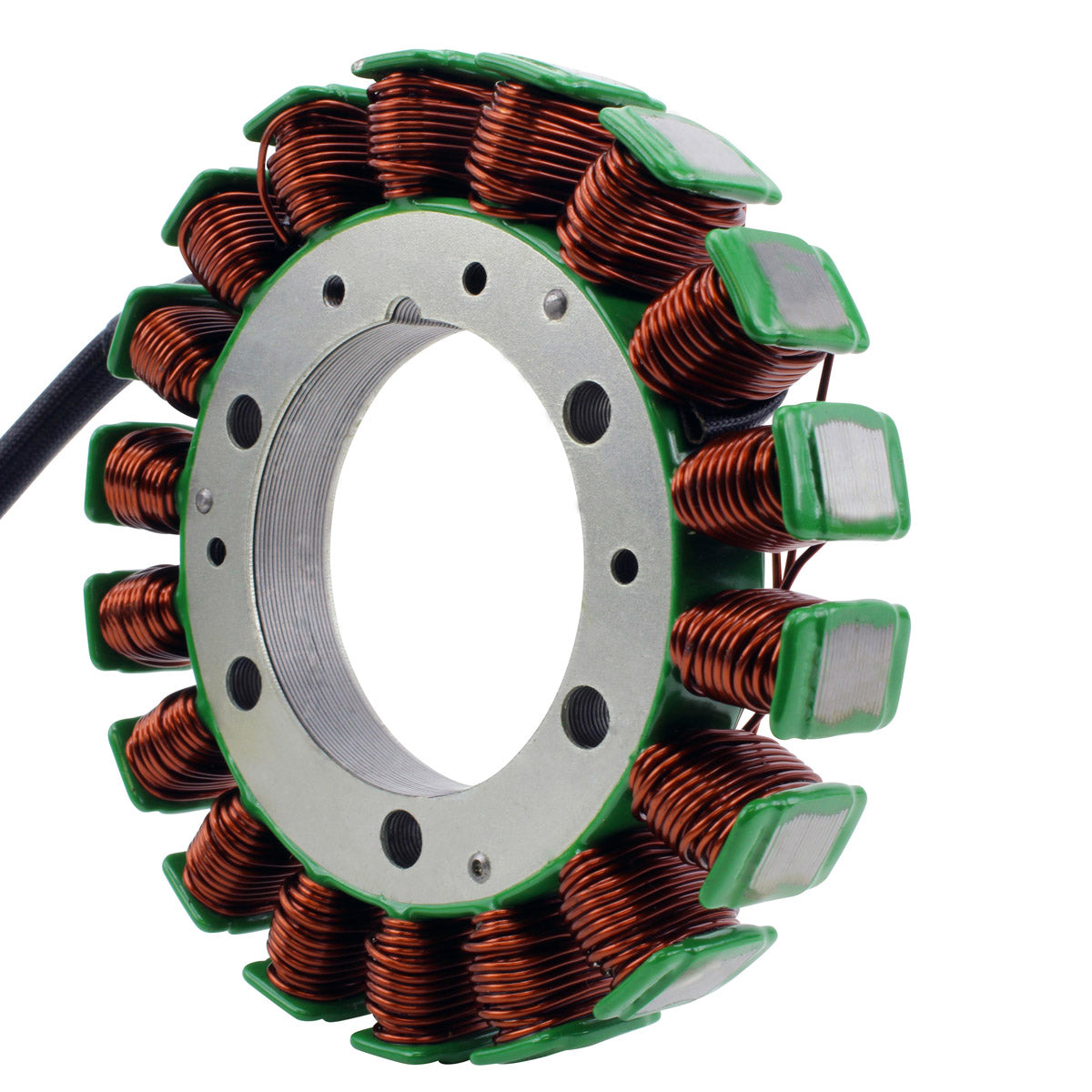

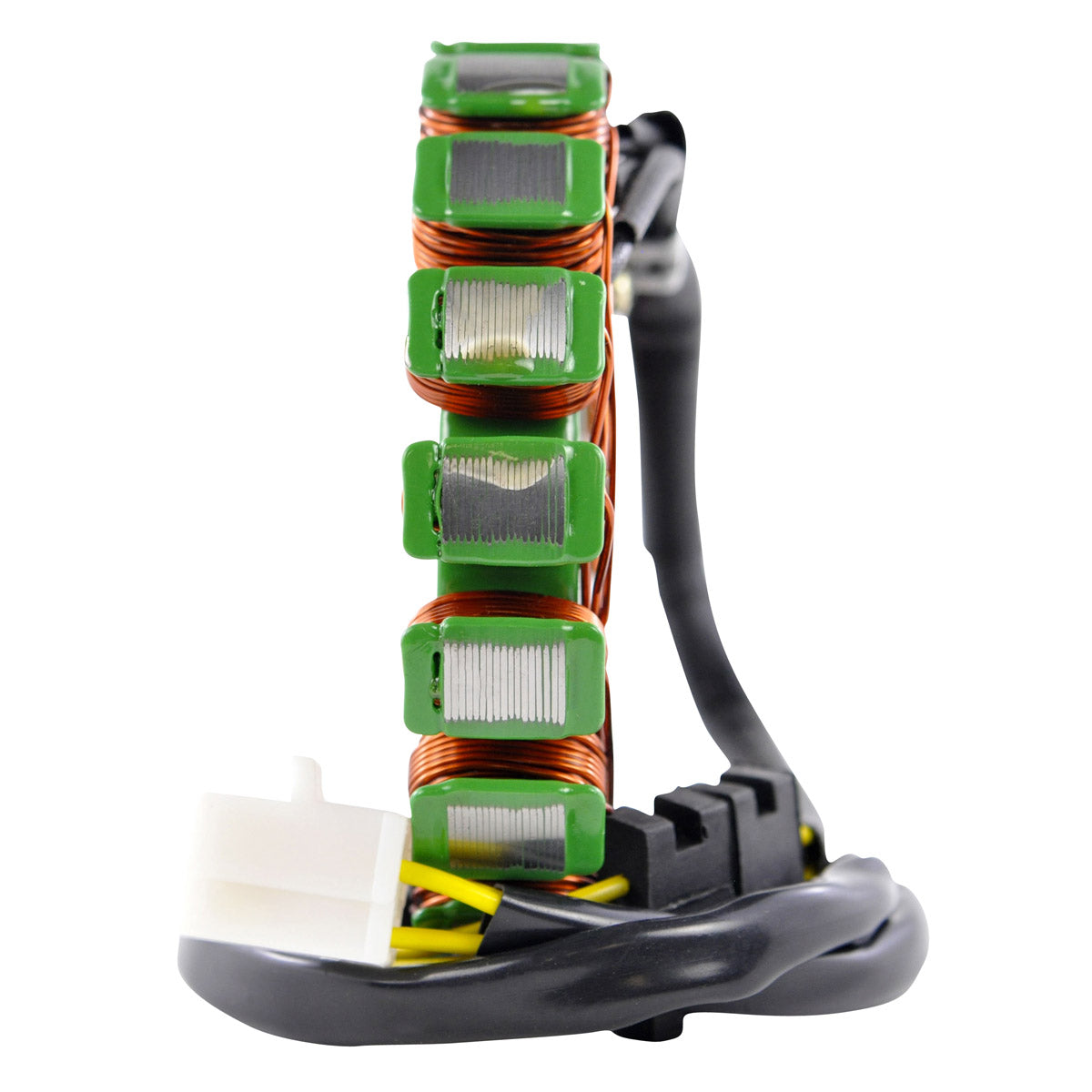

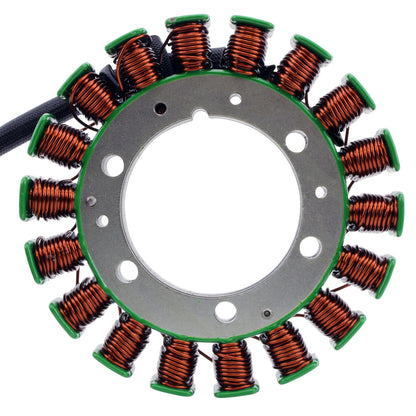

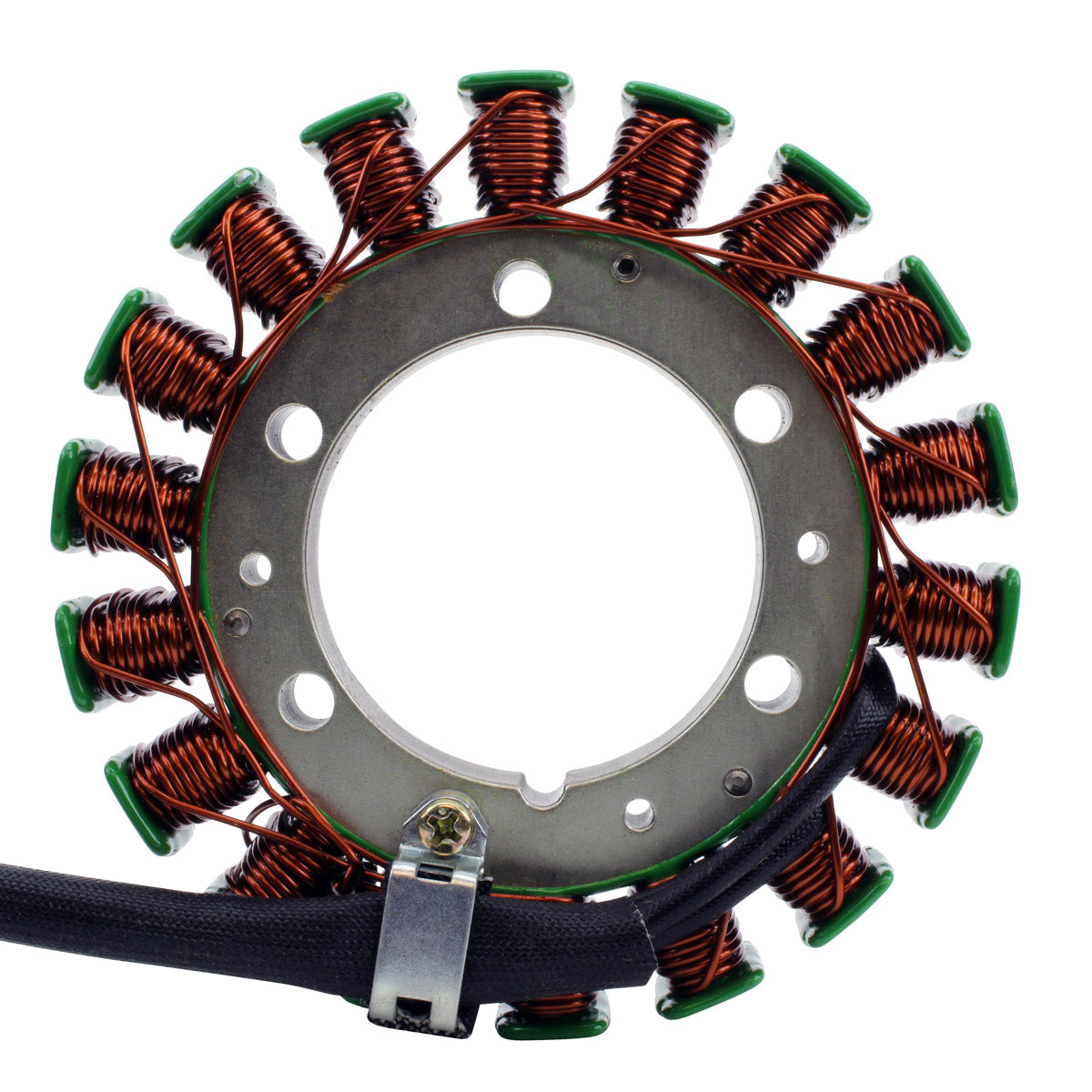

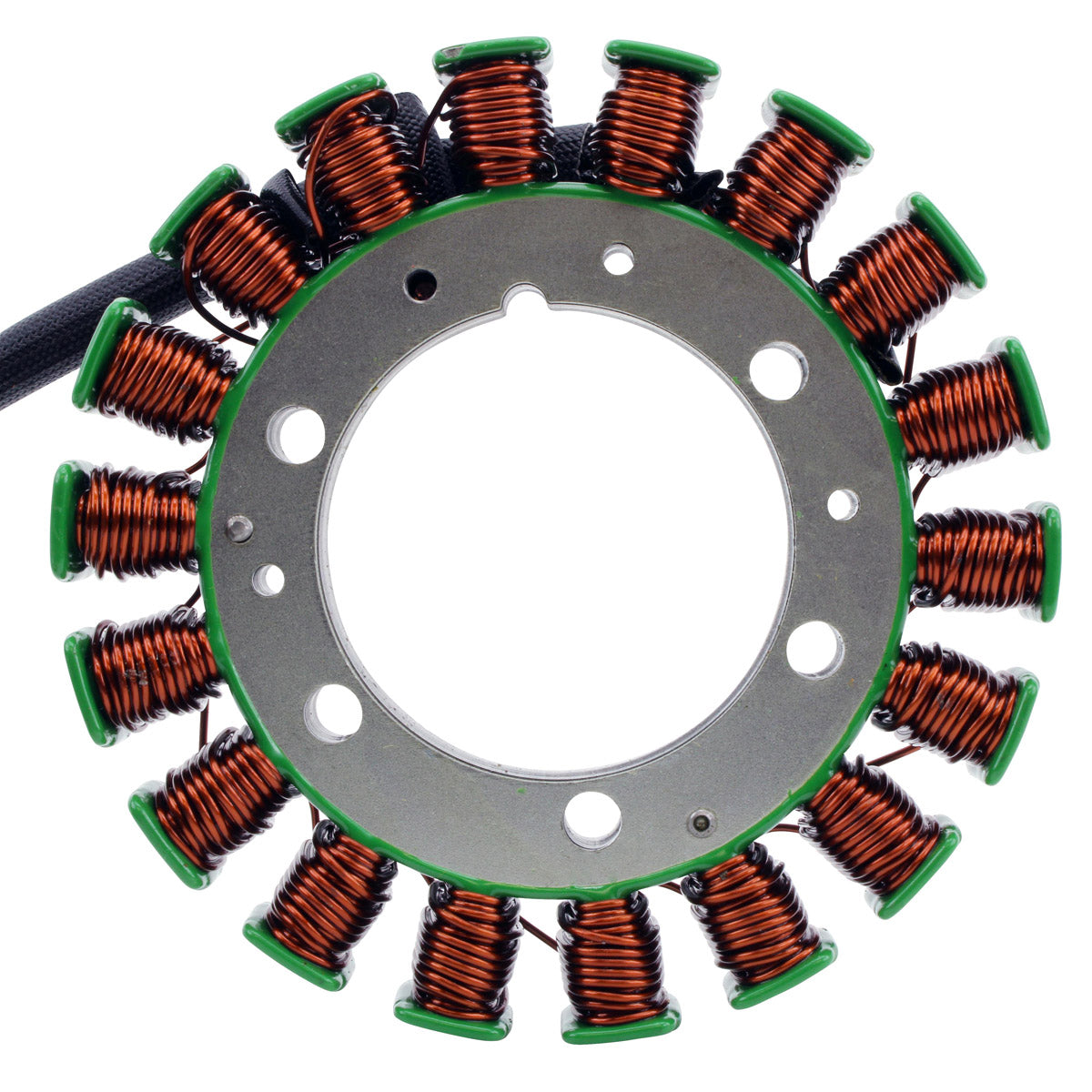

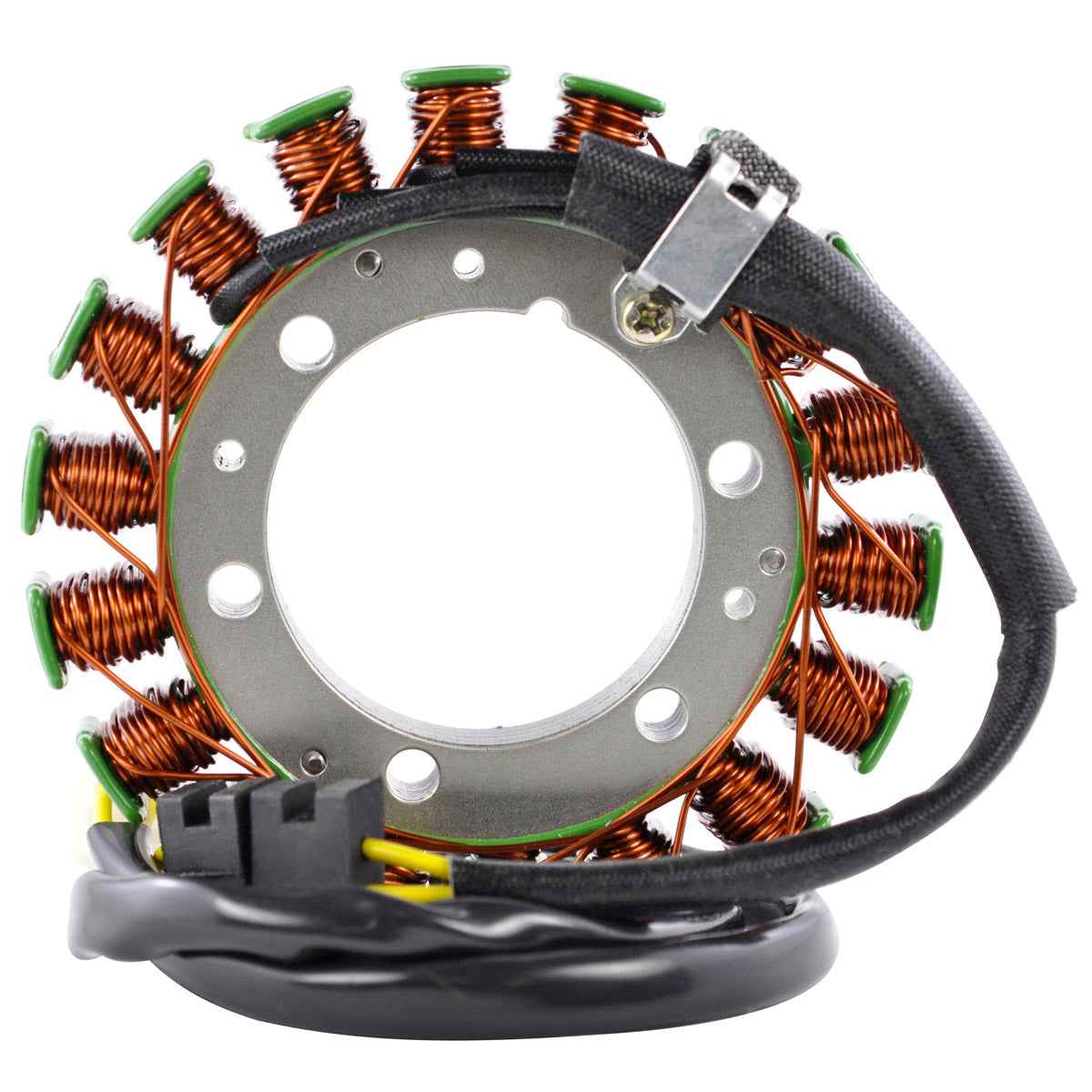

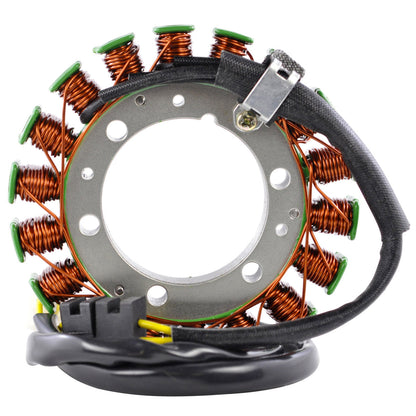

A brand new aftermarket generator stator for the Yamaha Virago 535 and the Virago 535 Special. It is a direct replacement for the original unit, restoring charging output on a bike that is flattening its battery, showing low or unstable voltage at the terminals, or has burnt windings after years of heat cycling.
The stator is wound with copper resistant to 200 degrees Celsius on the highest grade lamination materials, and fits plug-and-play with no modification. The connector and rubber grommet are included. Importantly, the opposite connector for the main harness side is also supplied, because on machines of this age that connector is very often melted, corroded or defective - and a poor connector there will destroy a new stator just as quickly as it destroyed the old one. All products shipped are tested.
Key Features
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Copper winding resistant to 200 degrees Celsius

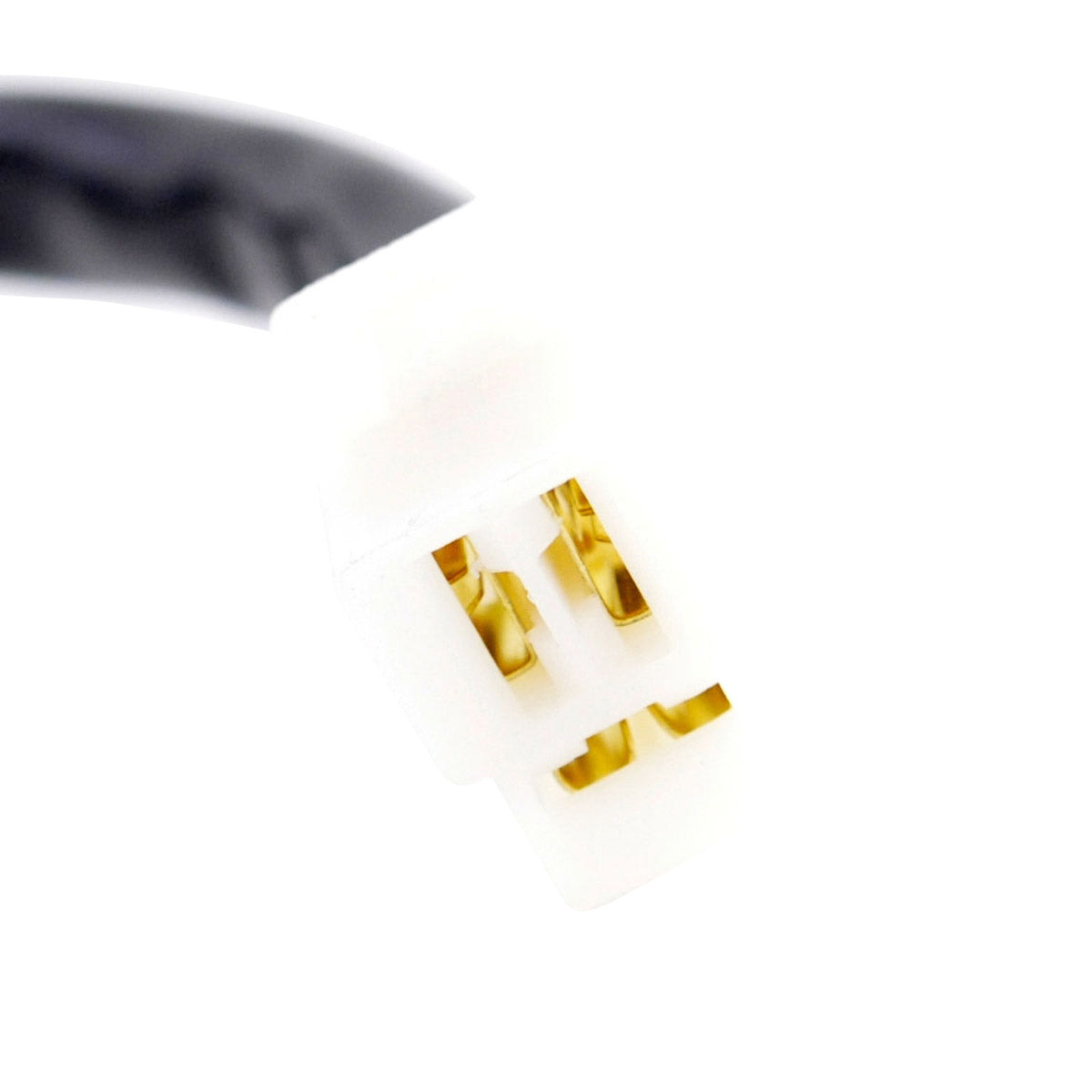

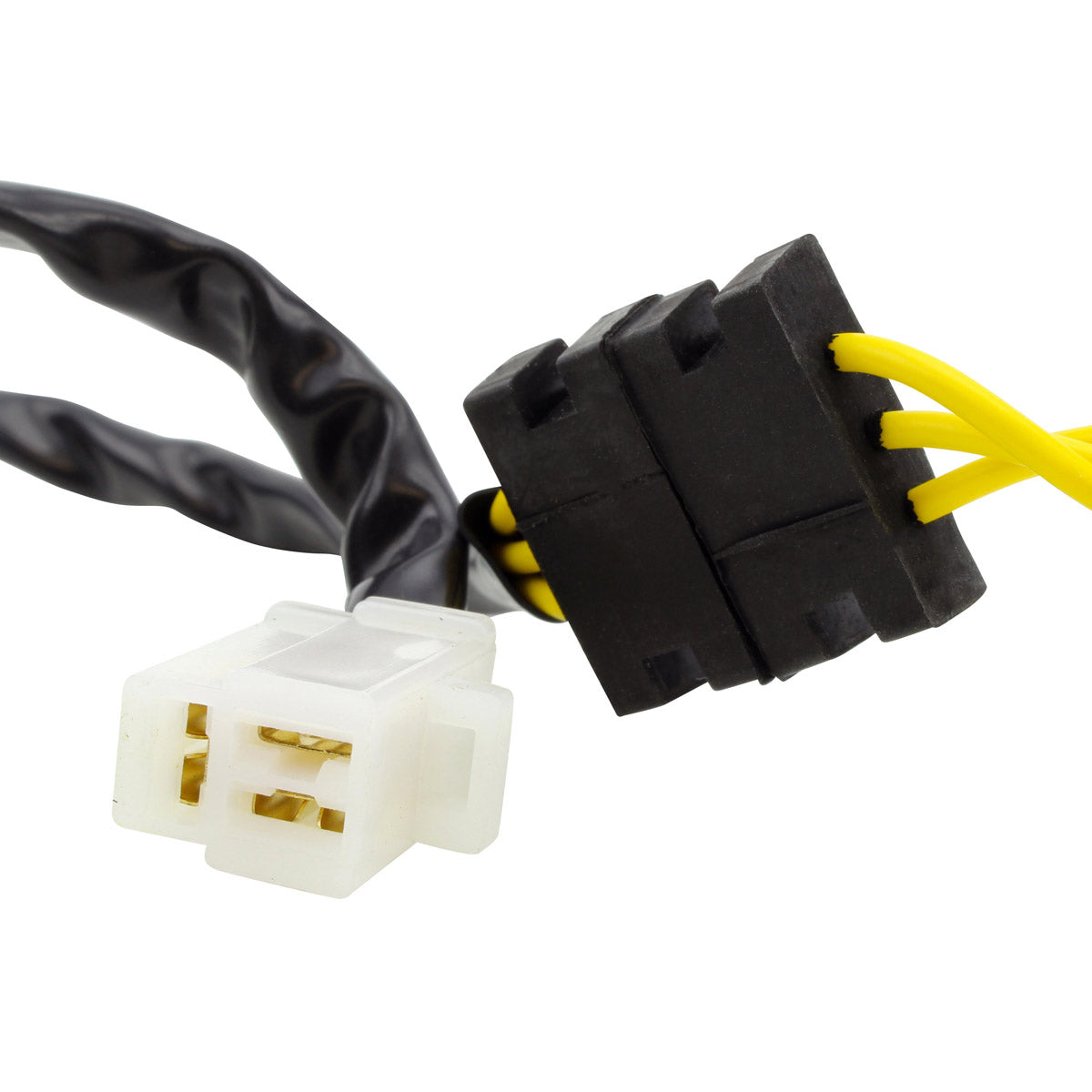

- Connector and rubber grommet included

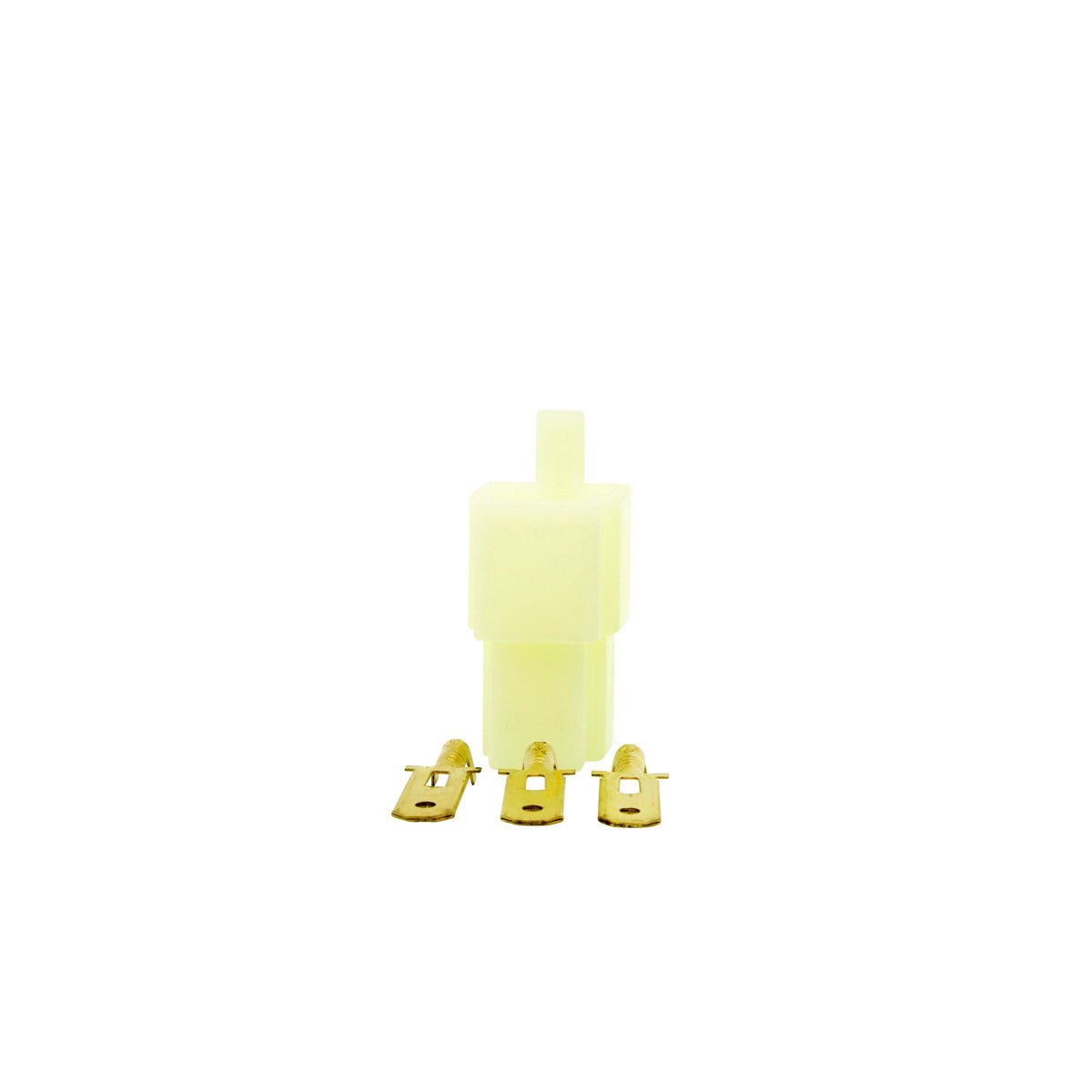

- Opposite connector for the main harness side included
- All products shipped are tested
Technical Specs
| Specification |
Detail |
| Interior diameter |
54 mm |
| Exterior diameter |
115 mm |
| Thickness |
14 mm |
| Wire length (stator to grommet 1) |
140 mm |
| Wire length (between grommets) |
7 mm |
| Wire length (grommet 2 to plug) |
580 mm |
| Number of wires |
5 |
| Number of plugs |
1 |
| Number of pins |
3 |
| Alternator resistance (white to white) |
0.7 ohms +/- 20% |
| Winding temperature rating |
200 degrees Celsius |
Vehicle Fitment Guide
| Make & Model |
Years |
| Yamaha Virago 535 |
1987-2000 |
| Yamaha Virago 535 Special |
1987-2000 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 2GV-81410-20-00 |
Yamaha |
Frequently Asked Questions
Does this stator need modification to fit?
No. It is a plug-and-play, direct fit replacement for the original unit, using the standard single 3-pin plug and the factory grommet positions.
What is included?

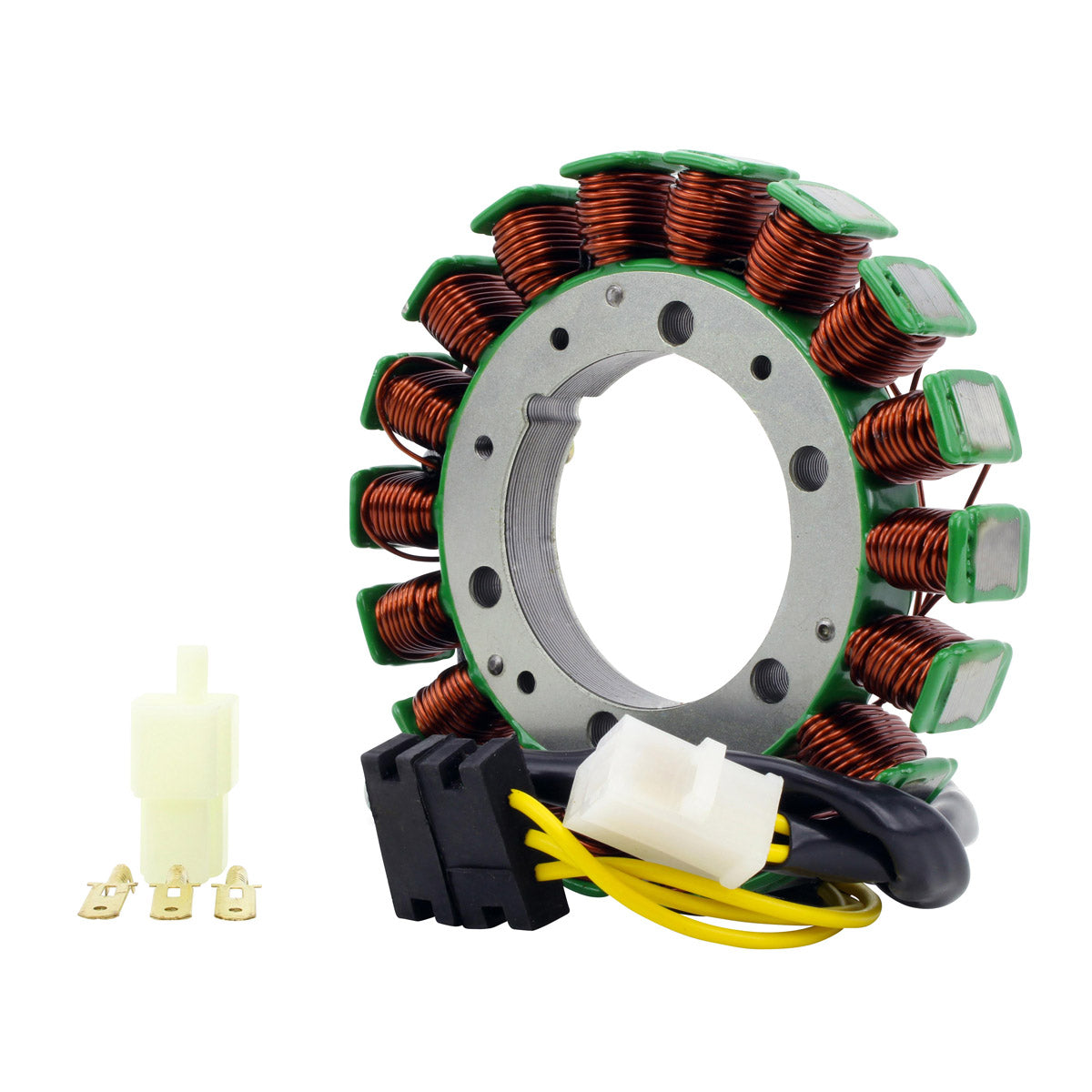

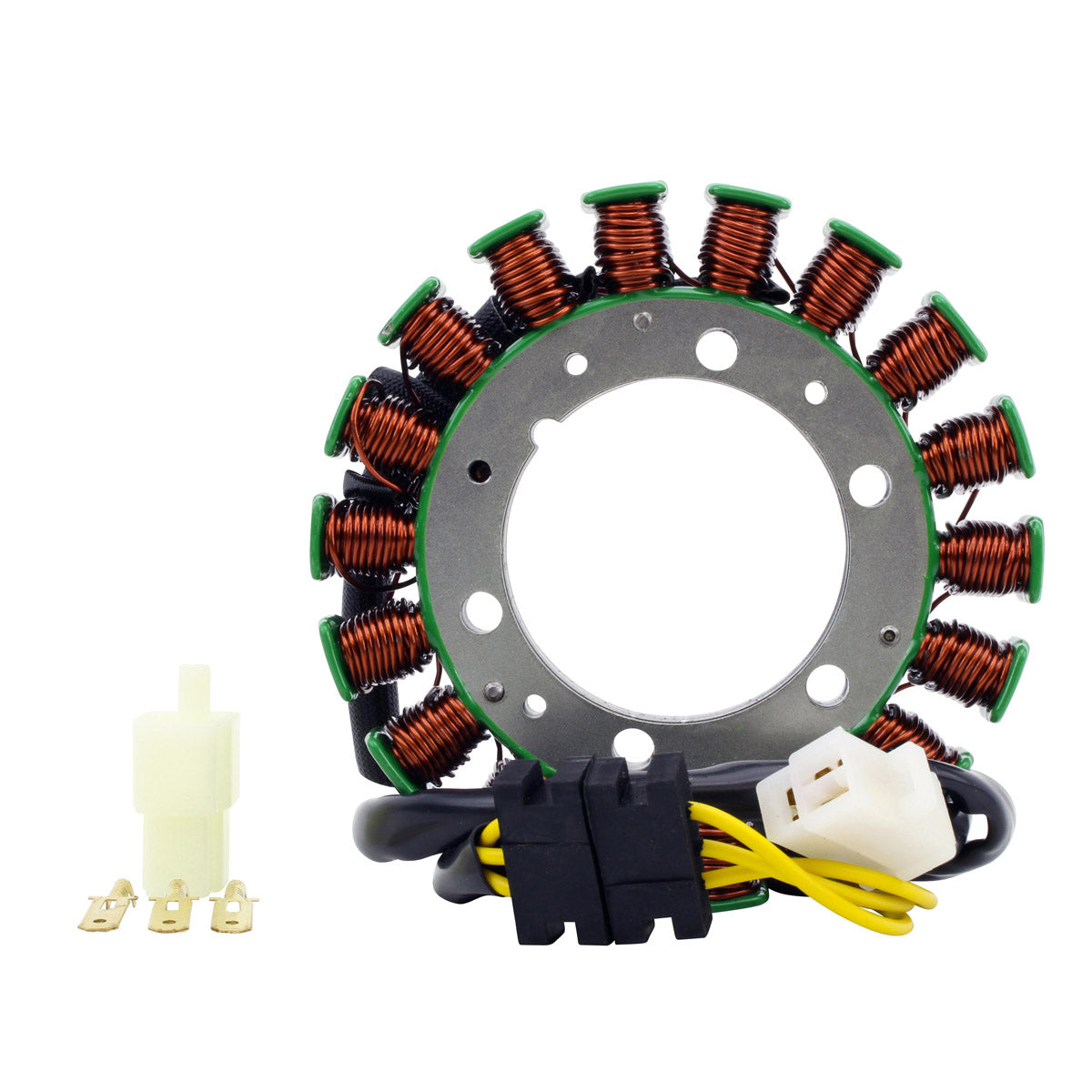

The stator, the connector, the rubber grommet, and the opposite connector for the main harness side.
How can I tell whether my old stator has failed?
Measure white to white across the three alternator wires with the connector unplugged. This replacement unit reads 0.7 ohms plus or minus 20%. An open circuit, a large imbalance between the three legs, or any continuity from a winding to the stator core means the old unit has failed.
Why is a second connector supplied?
The connector on the main harness side is very often melted, corroded or defective on these machines. Fitting the supplied opposite connector at the same time removes the high-resistance joint that commonly caused the original stator to overheat.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
