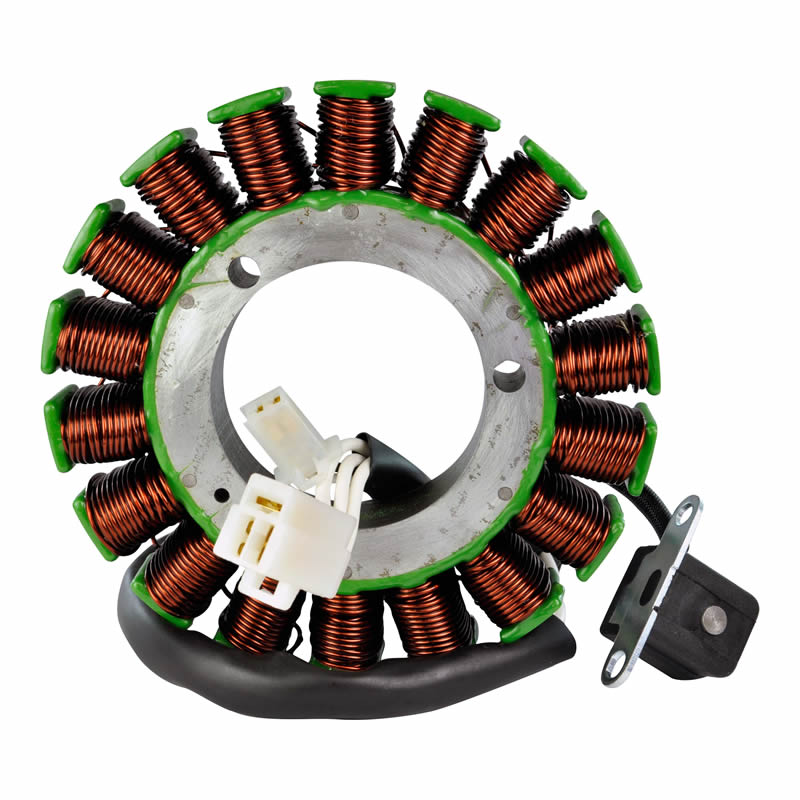

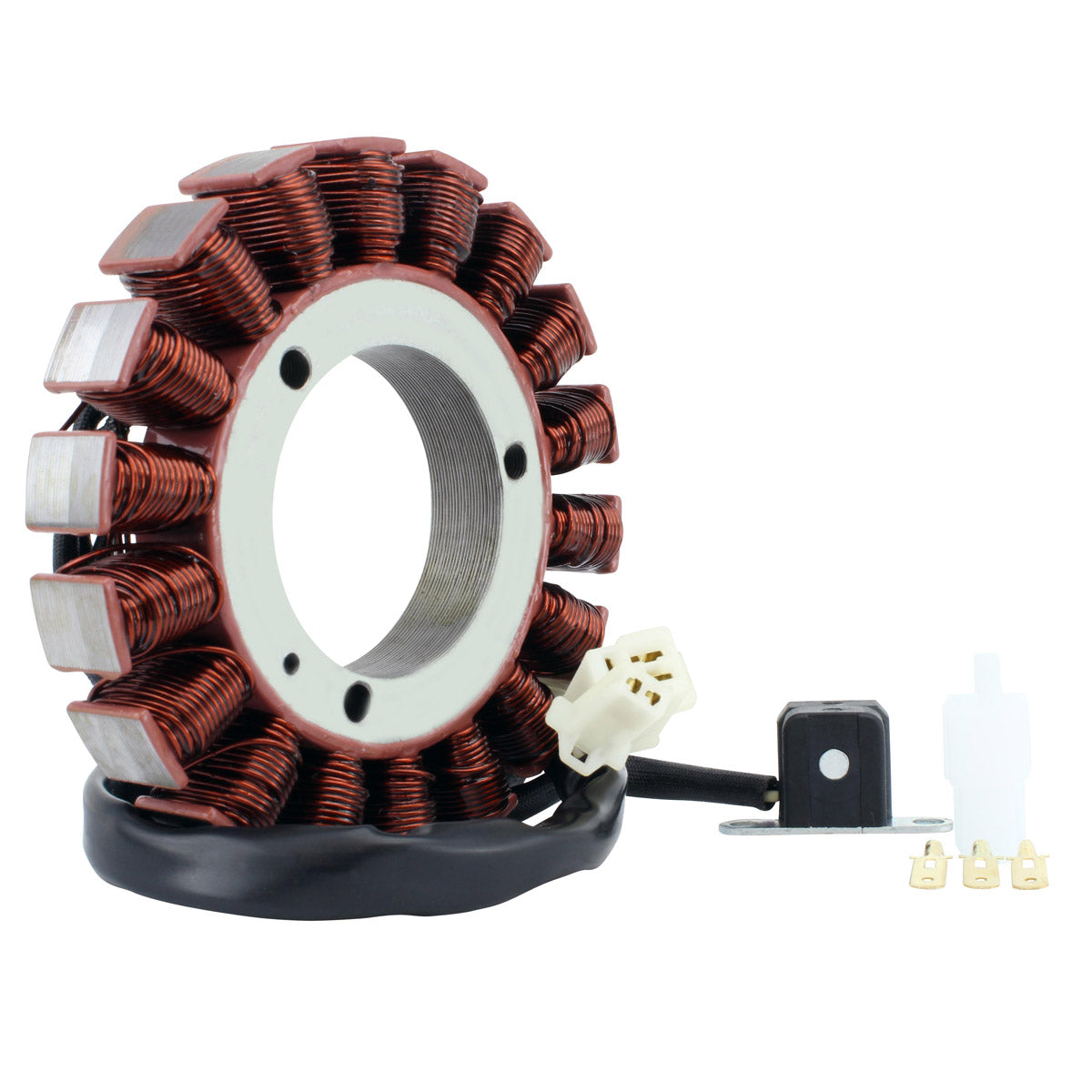

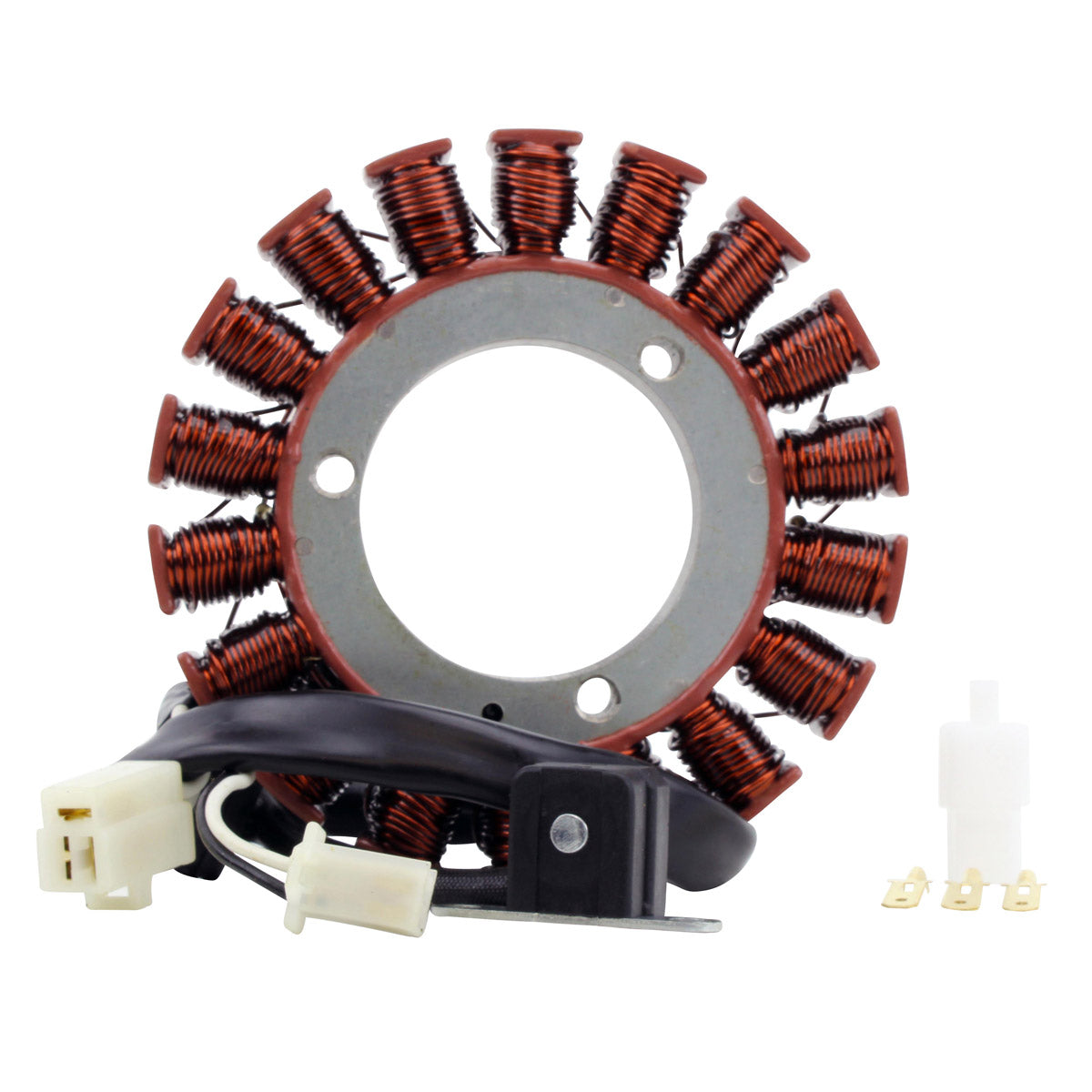

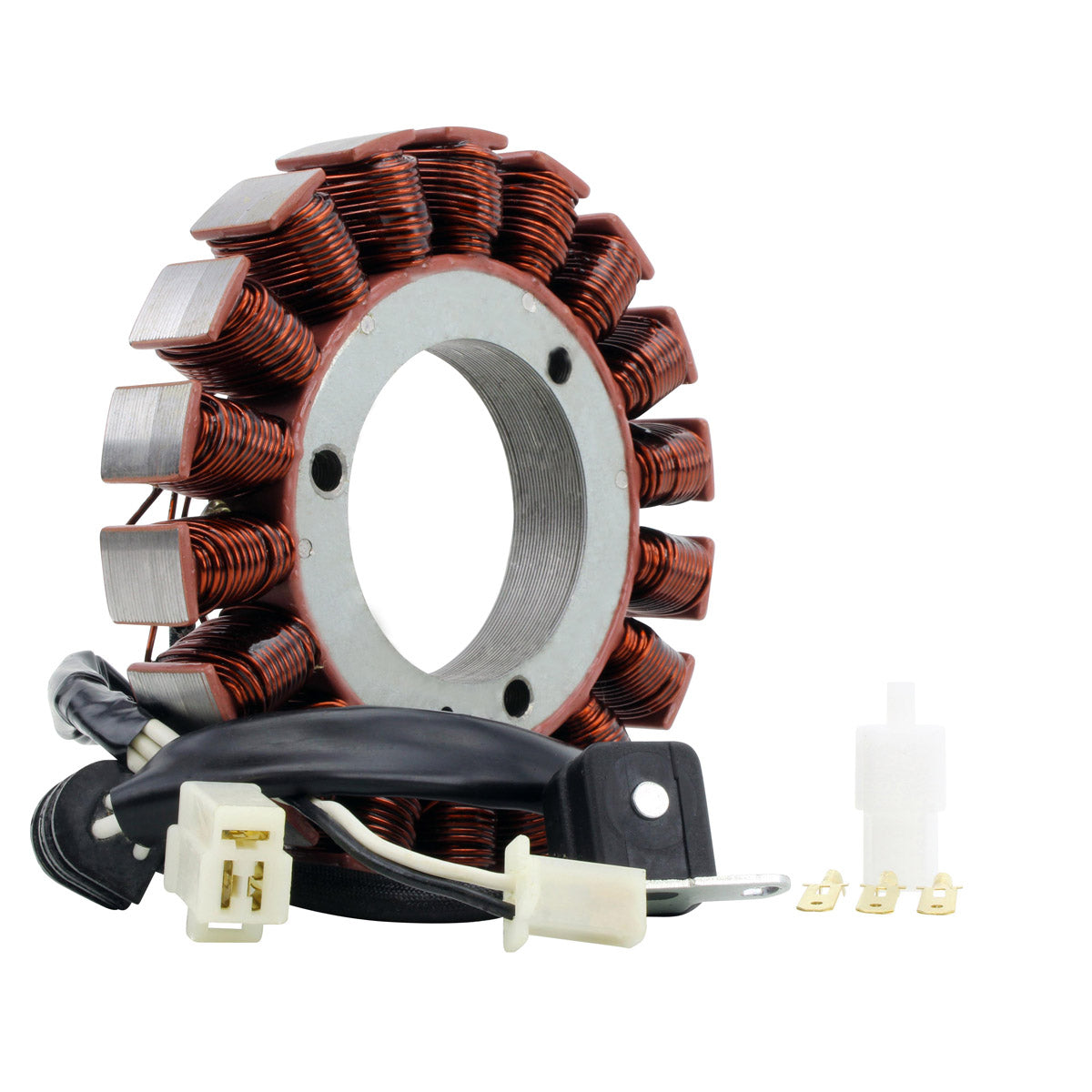

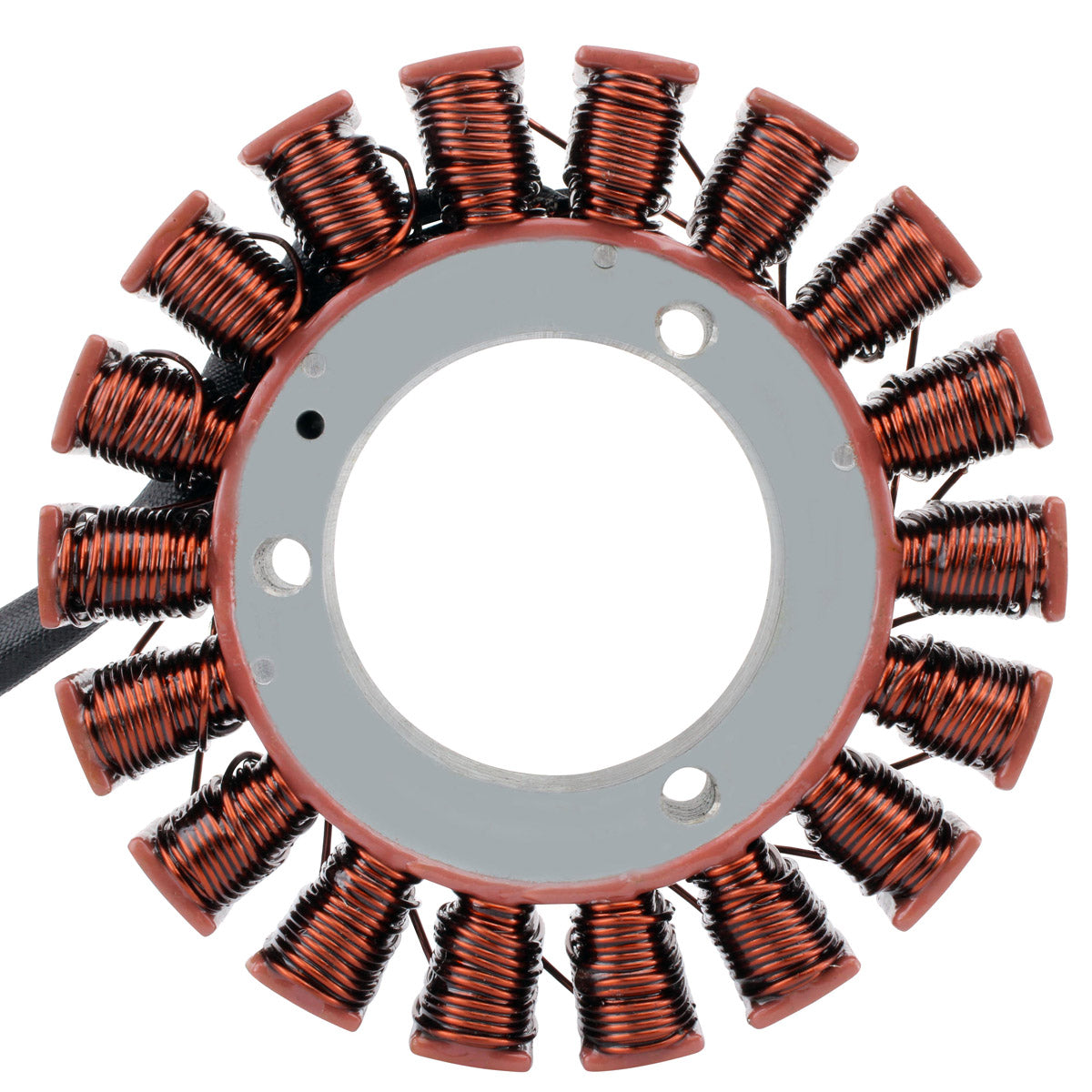

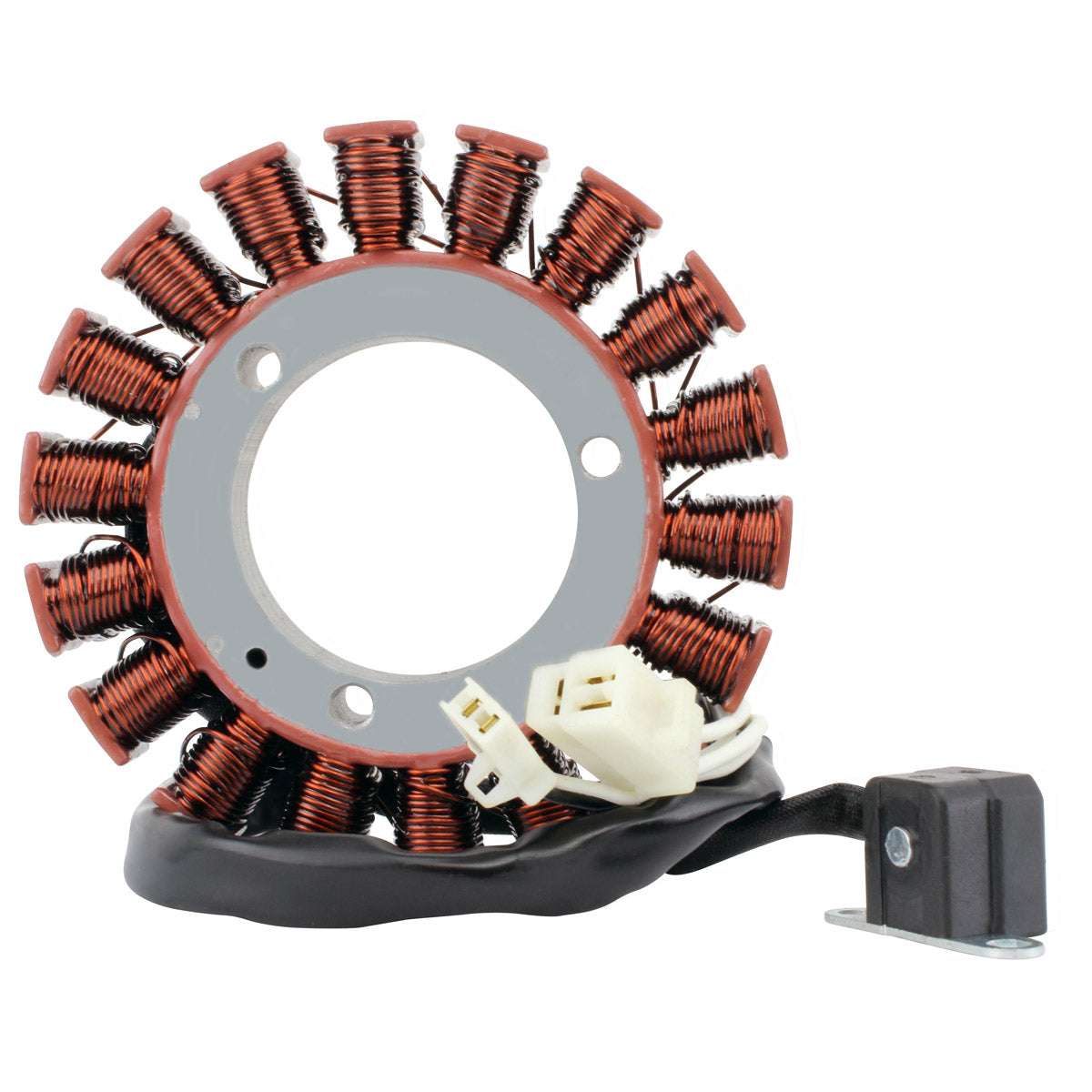

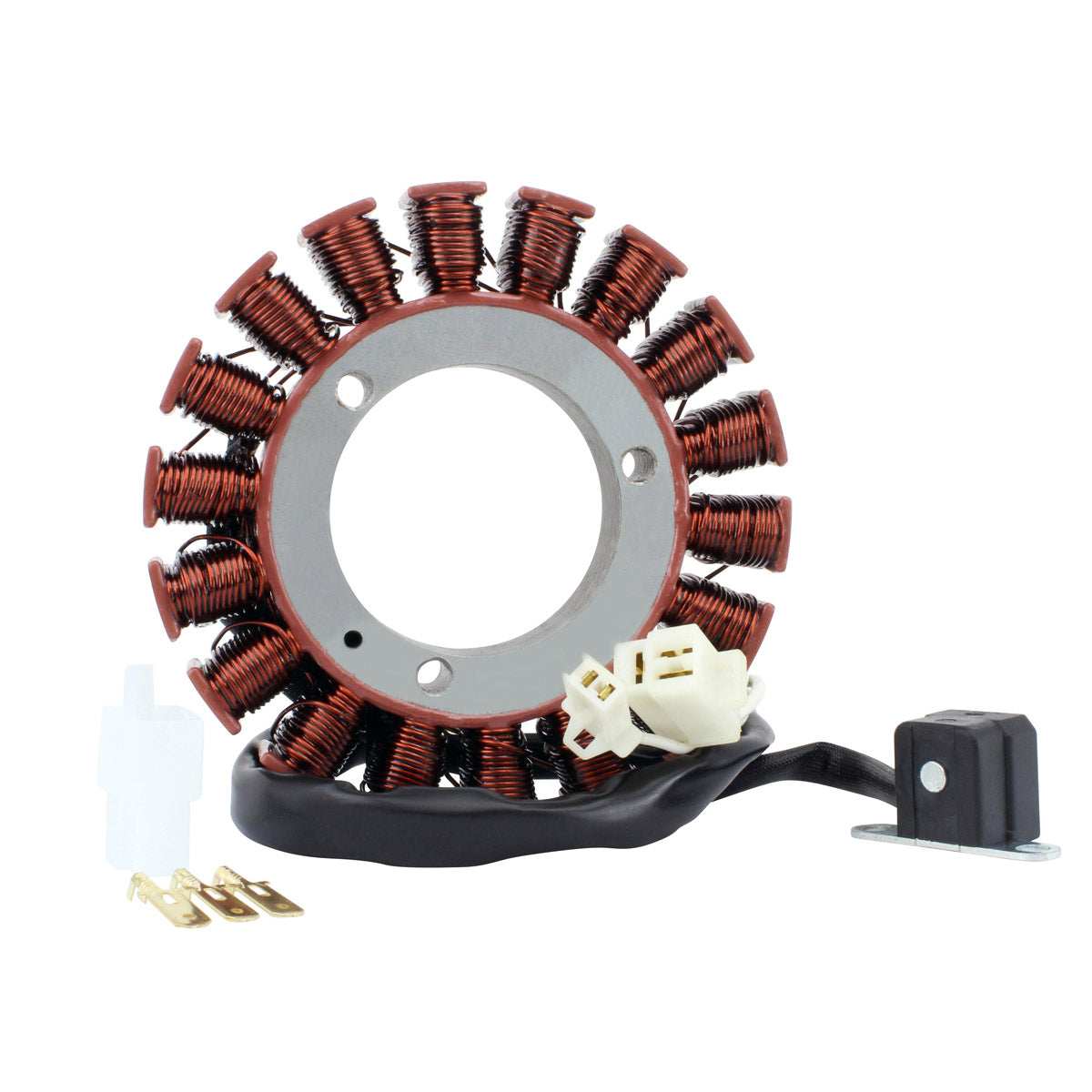

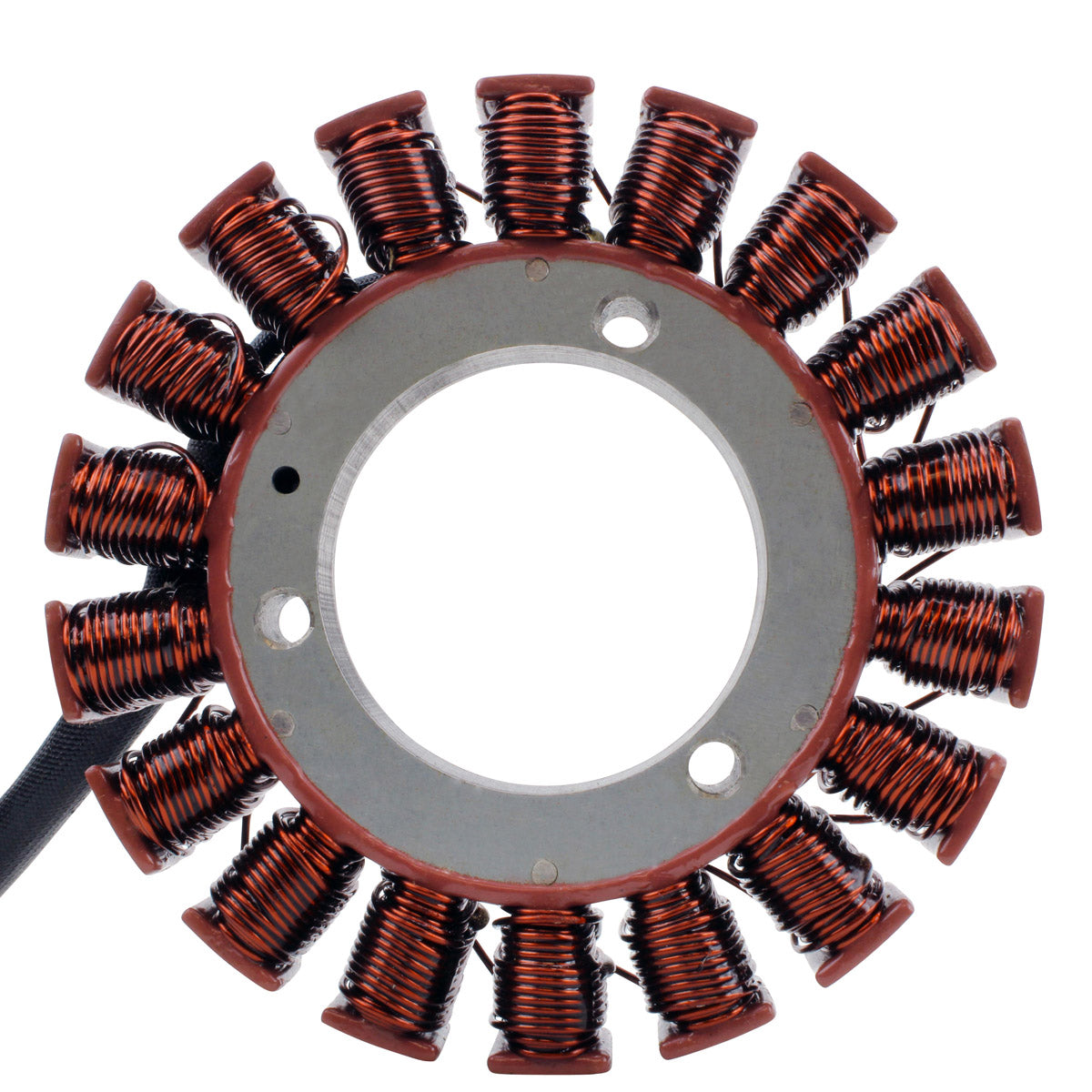

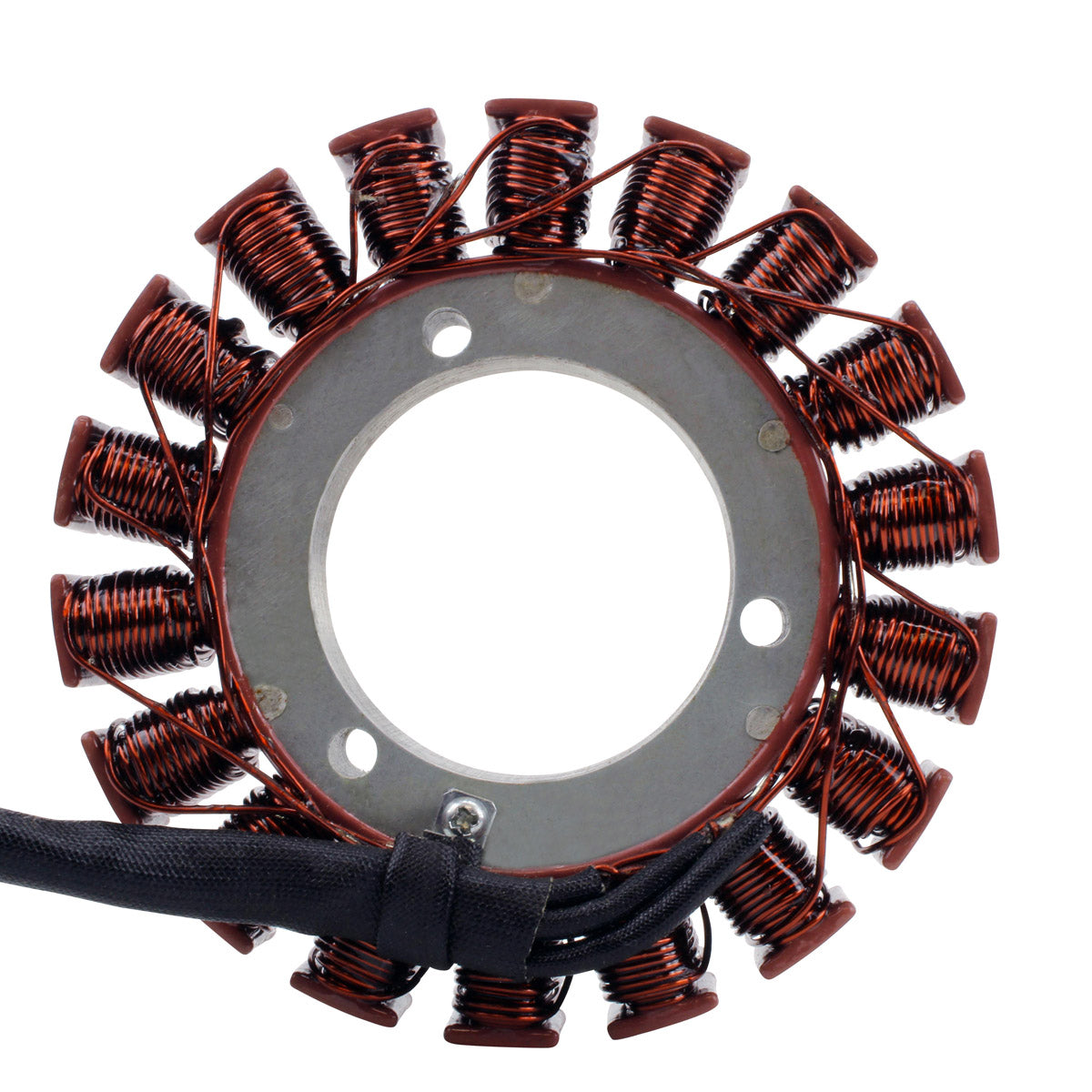

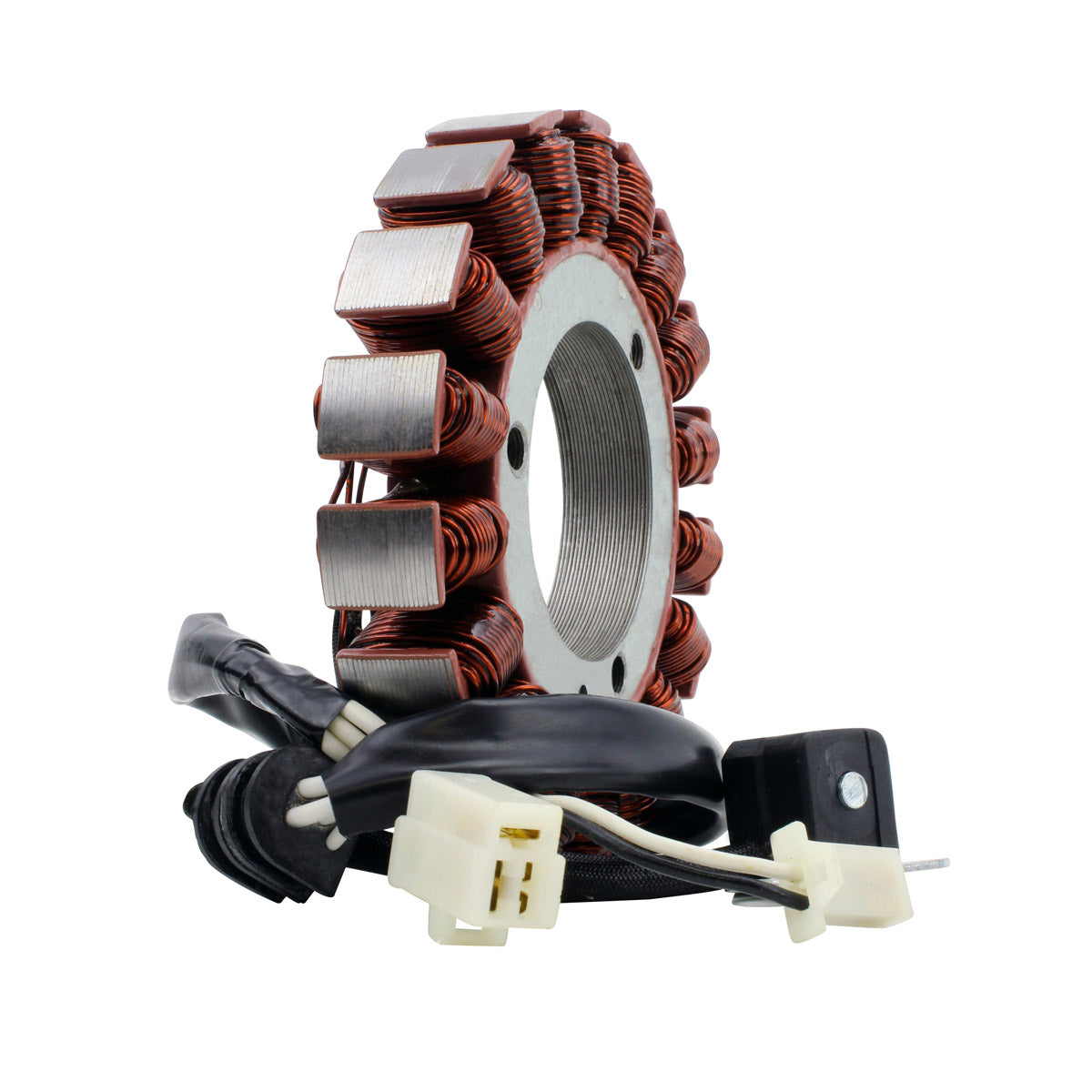

A brand new aftermarket generator stator for the Yamaha XVS 1100 V-Star, supplied by RMSTATOR as a direct replacement for the original unit. It is plug-and-play, a direct fit and easy to install, and the pickup pulsar coil is already mounted on the plate so the ignition trigger is renewed at the same time as the charging windings.
The stator uses the highest grade lamination materials and copper windings rated to resist 200 degrees Celsius. The connector, with both plugs, and the rubber grommet are included, along with an opposite connector for the main harness side - that plug is frequently melted or corroded on a machine of this age and is a common cause of repeat charging faults. All products are tested before they are shipped.
Key Features
- Brand new generator stator, direct replacement for the original Yamaha unit
- Pickup pulsar coil included and pre-fitted
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Copper windings resistant to 200 degrees Celsius

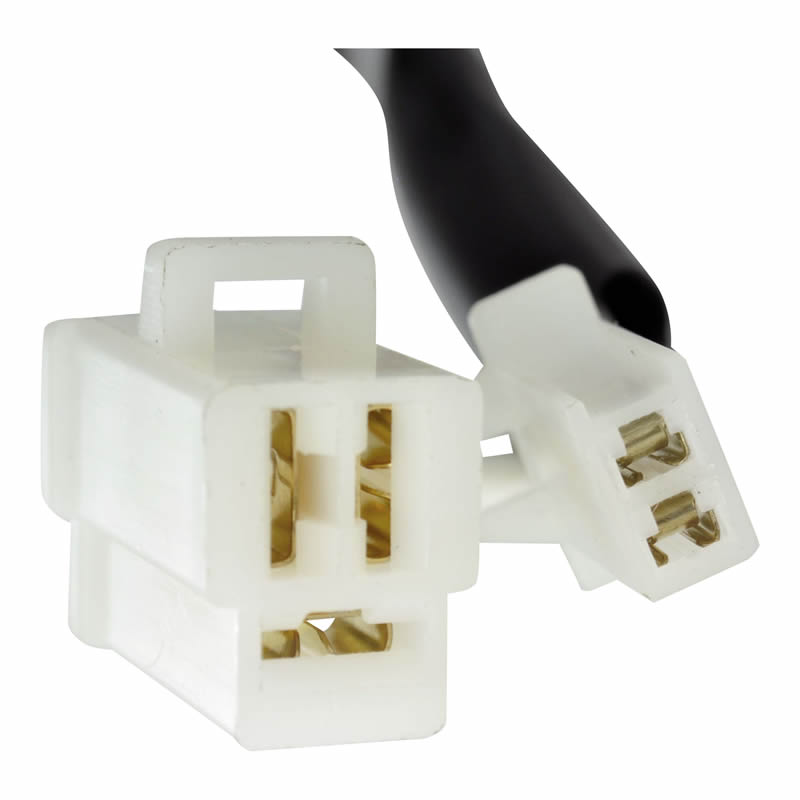

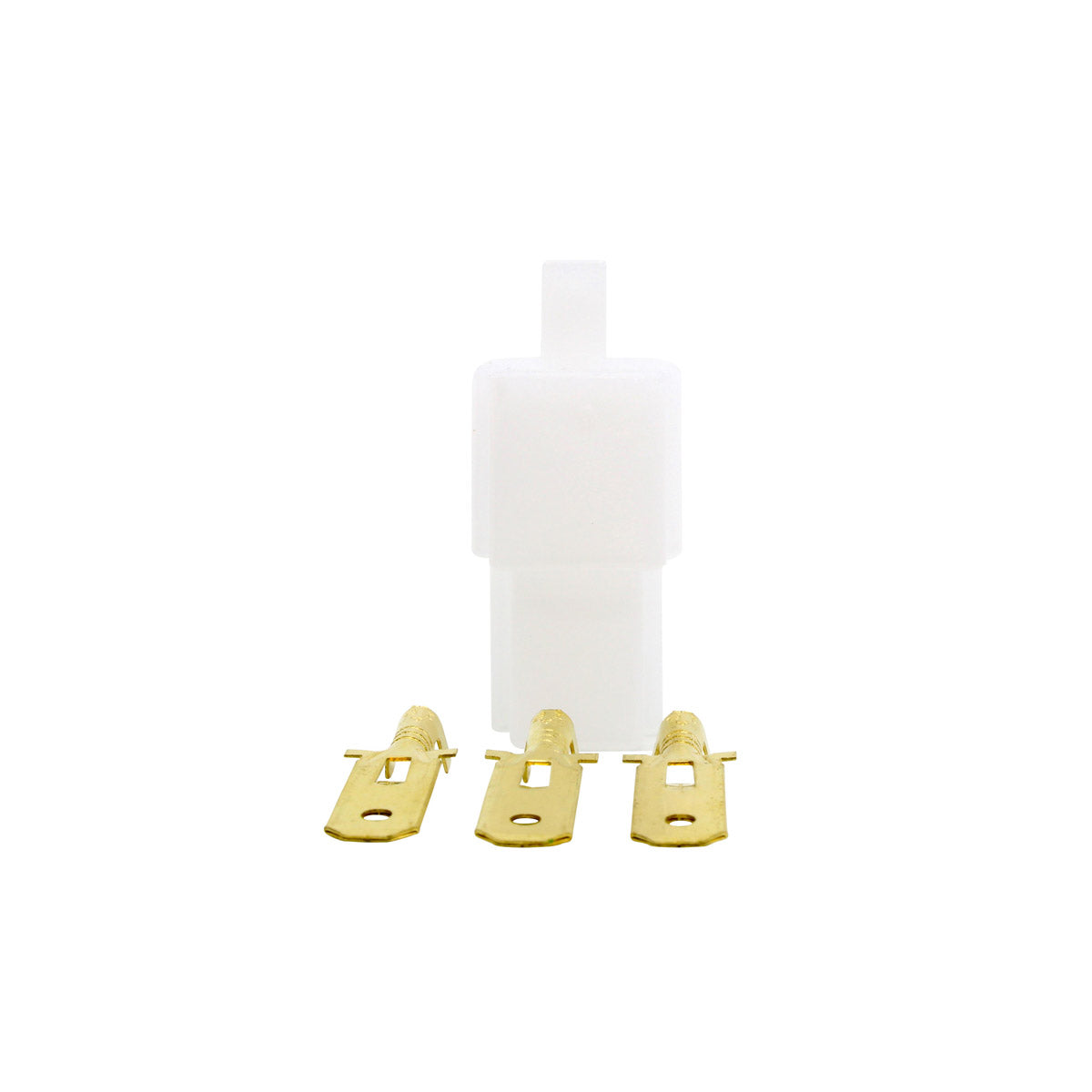

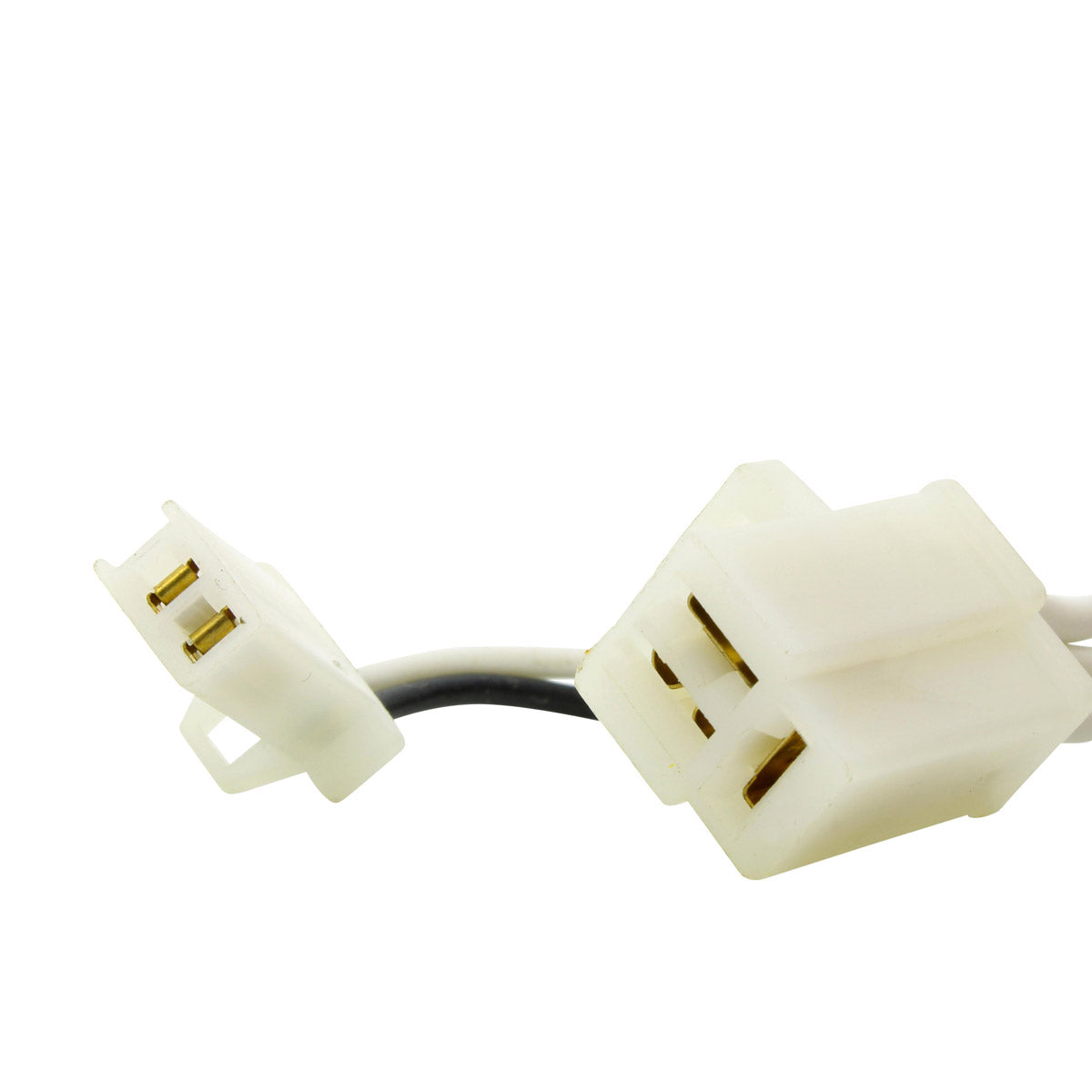

- Connector with two plugs, rubber grommet and opposite connector supplied
- All products tested before shipment
Technical Specs
| Specification |
Detail |
| Interior diameter |
58 mm |
| Exterior diameter |
130 mm |
| Thickness |
18 mm |
| Wire length, stator to grommet |
103 mm |
| Wire length, grommet to plug 1 |
300 mm |
| Wire length, grommet to plug 2 |
320 mm |
| Pickup coil wire length to grommet |
114 mm |
| Number of wires |
5 |
| Number of plugs |
2 |
| Number of pins |
5 |
| Alternator resistance, White wire to wire |
0.4 ohms +/-20% |
| Alternator, White to ground |
O.L. on display |
| Pickup resistance, White to Black |
190 ohms +/-20% |
| Winding temperature rating |
200 degrees Celsius |
| RMSTATOR part number |
RM01063 |
Vehicle Fitment Guide
| Make & Model |
Years |
| Yamaha XVS 1100 V-Star Custom |
1999-2003 |
| Yamaha XVS 1100 V-Star Classic |
1999-2003 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 5EL-81410-00-00 |
Yamaha |
| 5EL-81410-01-00 |
Yamaha |
Frequently Asked Questions
Will it fit without modifying the bike?
Yes. RMSTATOR builds this as a direct replacement for the original XVS 1100 V-Star unit - plug-and-play, direct fit, easy installation. Nothing on the loom or the engine cover needs altering.
What is included in the box?
The generator stator assembly, the pickup pulsar coil, the connector with both plugs, the rubber grommet, and an opposite connector for the main harness side.
How do I test my existing stator and pickup coil?
With a multimeter, the alternator White wires should read 0.4 ohms +/-20% between each other and O.L. to ground. The pickup coil should read 190 ohms +/-20% from White to Black. Readings that are open circuit, short to ground or far outside these values point to a failed unit.
Do I have to buy the pickup pulsar coil separately?
No. On this part number the pickup pulsar coil is included and already fitted to the stator plate, so the ignition trigger and the charging windings are replaced together in one job.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
