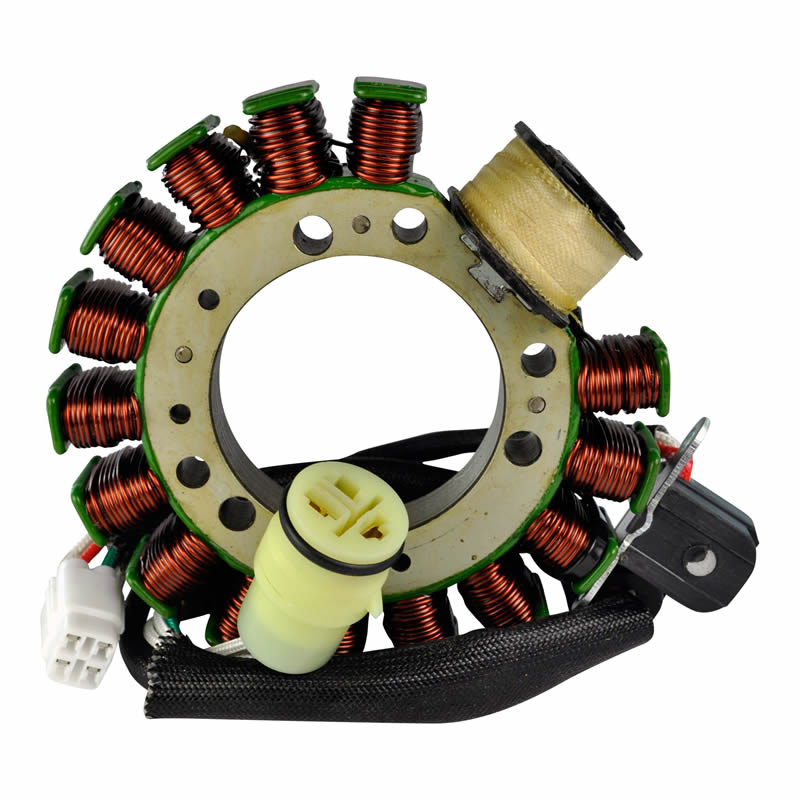

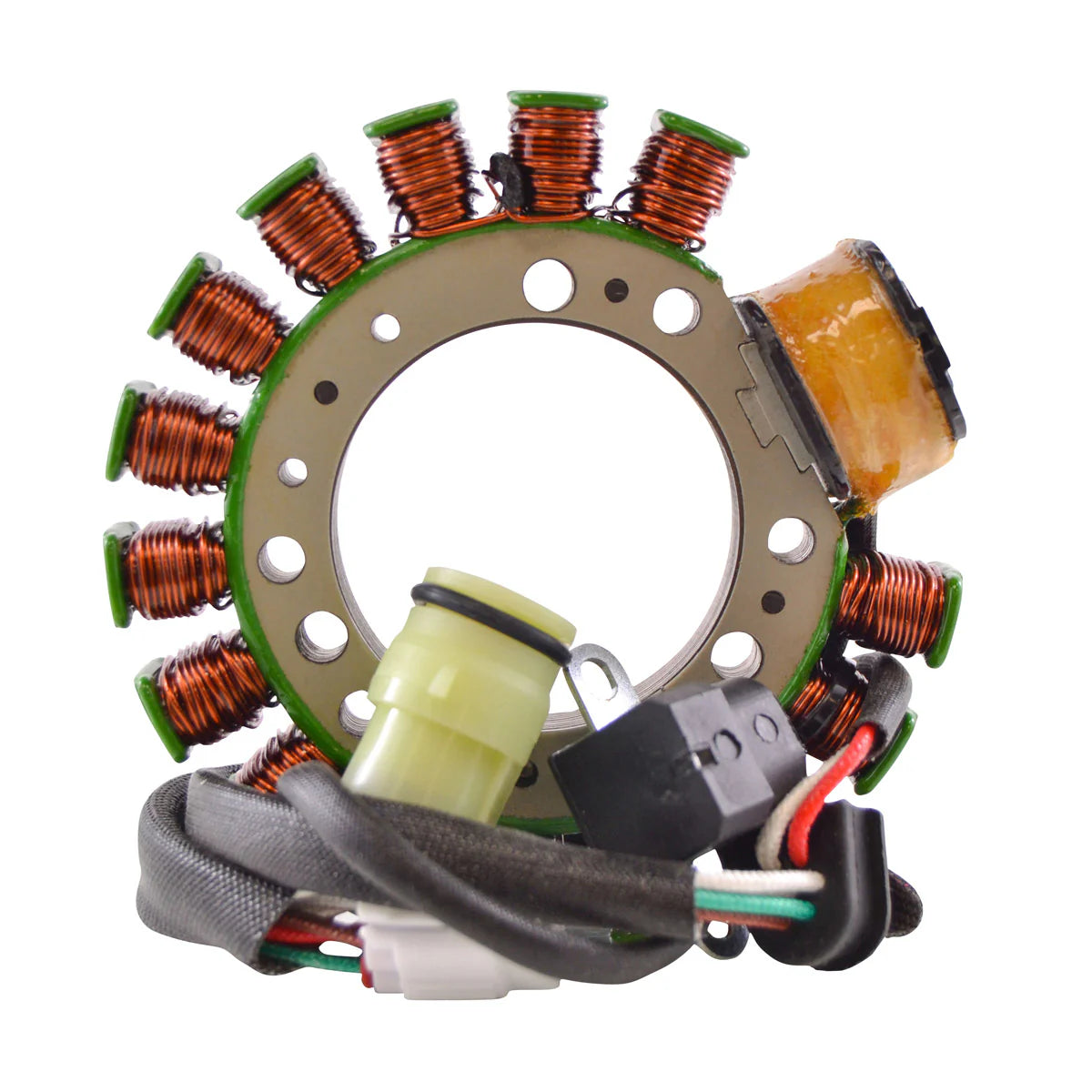

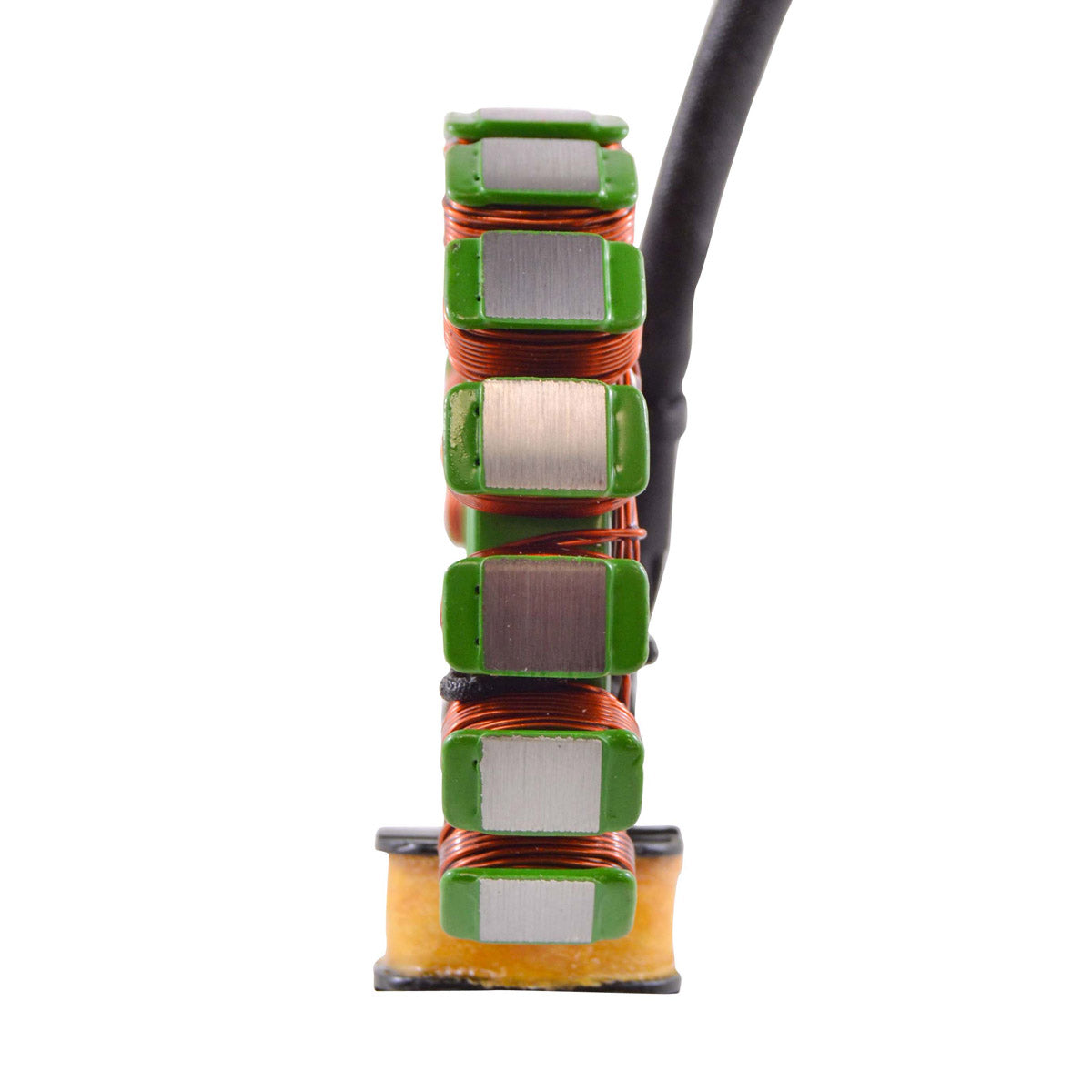

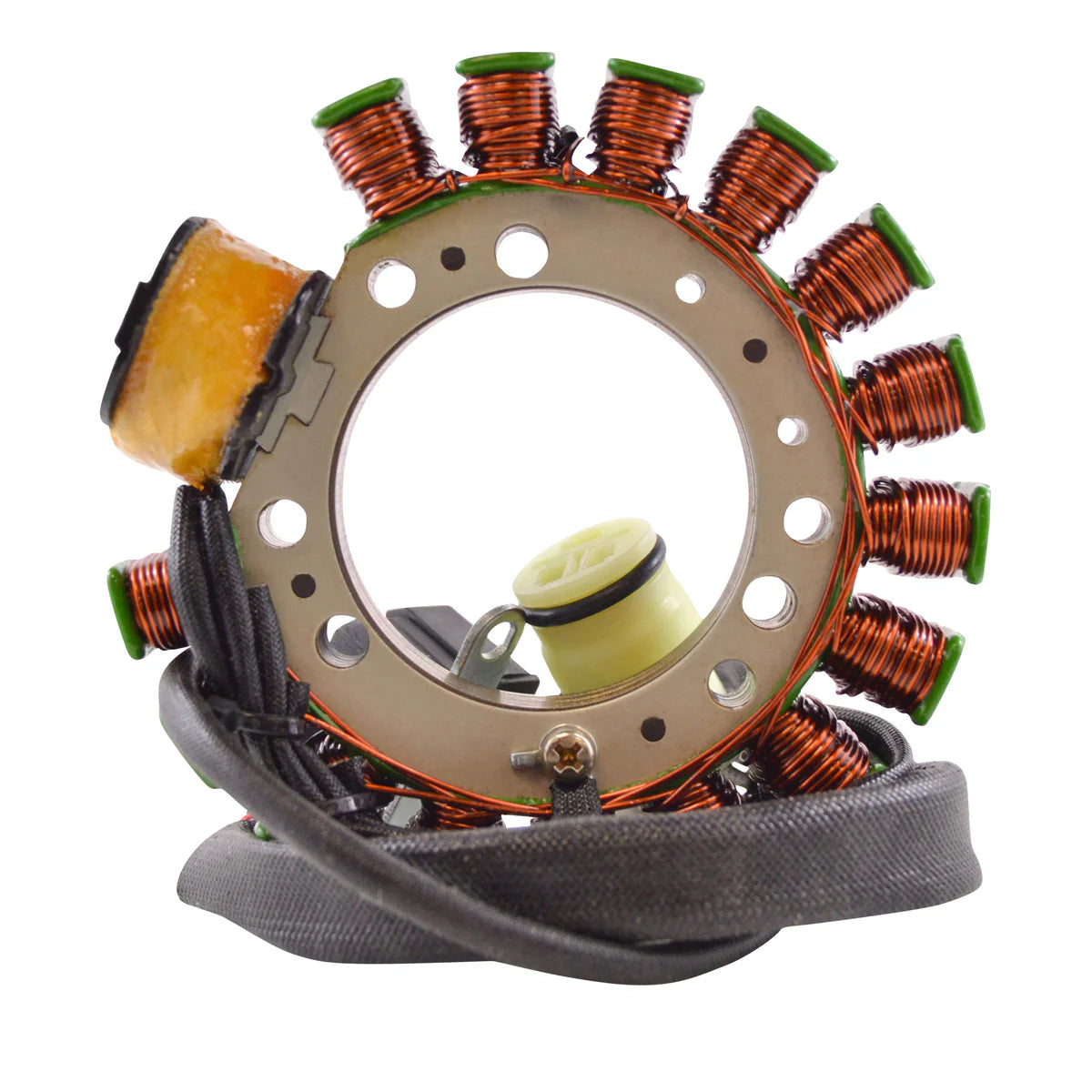

Generator Stator for Yamaha YFM 400 Kodiak 4x4
Part RM01037 - Yamaha YFM 400 Kodiak 4x4 1999 - OEM reference 5EH-85510-00-00
The RM01037 is a brand new aftermarket stator built as a direct replacement for the original generator coil fitted to the 1999 Yamaha YFM 400 Kodiak 4x4. It is a plug-and-play, direct fit part that uses the standard mounting points and mates with the original connector, so the repair can be completed without cutting, splicing or otherwise modifying the wiring loom.

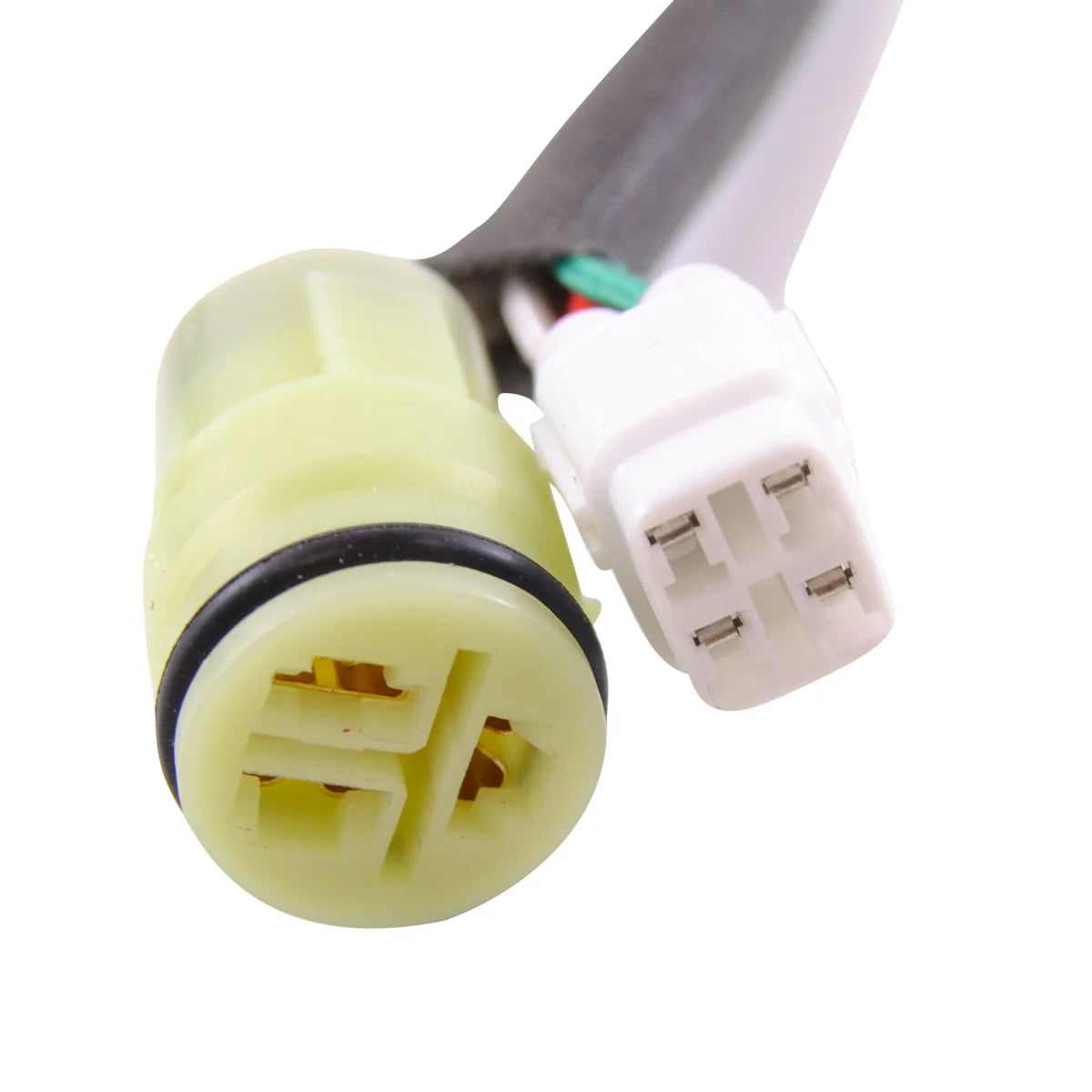

The unit is built on the highest grade lamination material and wound with the highest grade copper, resistant to 200 degrees Celsius. The pick-up pulsar coil, the connector and the rubber grommet are all supplied. RMSTATOR also include the opposite connector for the main harness side, because the original is frequently found melted, corroded or defective and is a major cause of repeat electrical faults. Every stator is tested before it is shipped, and the product photographs are accurate, so you can compare the item directly against your original part if you are in any doubt.
Key Features
- Brand new aftermarket stator and generator coil
- Direct replacement for the original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius
- Pick-up pulsar coil included
- Connector and rubber grommet included
- Opposite connector for the main harness side also included
- Every unit tested before dispatch
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RM01037 |
| Interior diameter | 53 mm |
| Exterior diameter | 114 mm |
| Thickness | 13 mm |
| Wire length, stator to grommet | 110 mm |
| Wire length, grommet to plug | 150 mm |
| Pick-up coil wire to grommet | 210 mm |
| Number of wires | 7 |
| Number of plugs | 2 |
| Number of pins | 7 |
| Alternator resistance, White between each White | 0.2 ohms +/-20% |
| Pick-up resistance, Red to White | 575 ohms +/-20% |
| Source resistance, Green to Brown | 320 ohms +/-20% |
| Winding temperature rating | 200 degrees Celsius |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Yamaha YFM 400 Kodiak 4x4 | 1999 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 5EH-85510-00-00 | Yamaha |
Frequently Asked Questions
Does this stator need any modification to fit?
No. The RM01037 is a direct replacement for the original unit on the 1999 Yamaha YFM 400 Kodiak 4x4. It is plug-and-play, uses the standard mounting points and connects to the existing harness, so no cutting or splicing is needed.
What is included in the box?
You receive the stator, the pick-up pulsar coil, the connector, the rubber grommet and an opposite connector for the main harness side.
How do I confirm my old stator has failed?
Check the wire-to-wire resistance with a multimeter against the values listed above. The alternator windings should read about 0.2 ohms between each White wire, the pick-up about 575 ohms from Red to White, and the source coil about 320 ohms from Green to Brown, each within 20 percent. Open circuit, shorted or badly out-of-range readings indicate a failed stator.
Why is a second connector supplied?
The connector on the main harness side is often melted, corroded or damaged by the time a stator fails, and a poor connection there causes repeat electrical problems. RMSTATOR supply the opposite connector so that both halves of the joint can be renewed at the same time.
