Stator for Yamaha YXR 450 Rhino 4x4 2006-2009
Yamaha YXR 450 Rhino 4x4, 2006-2009 - RMSTATOR reference RM01355

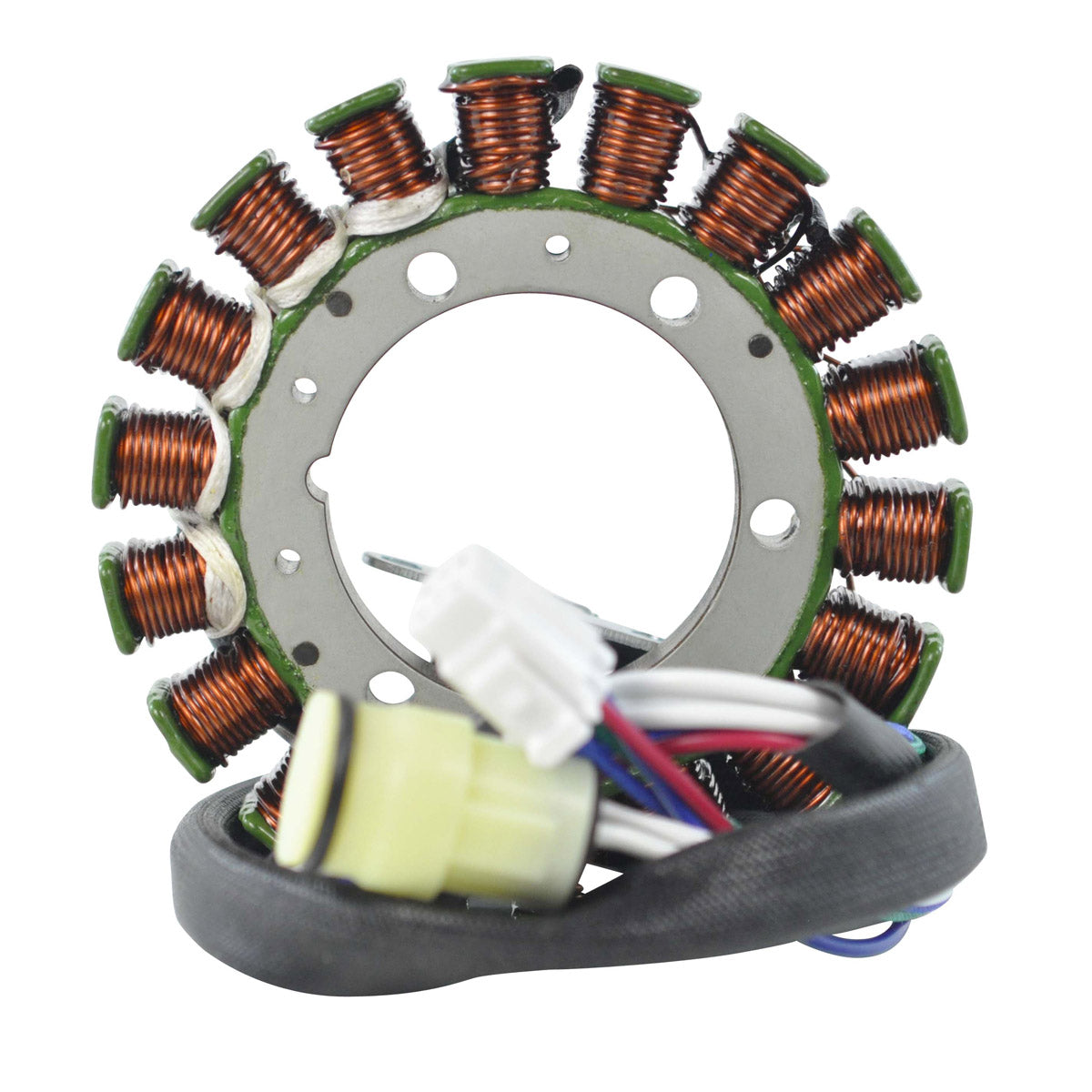

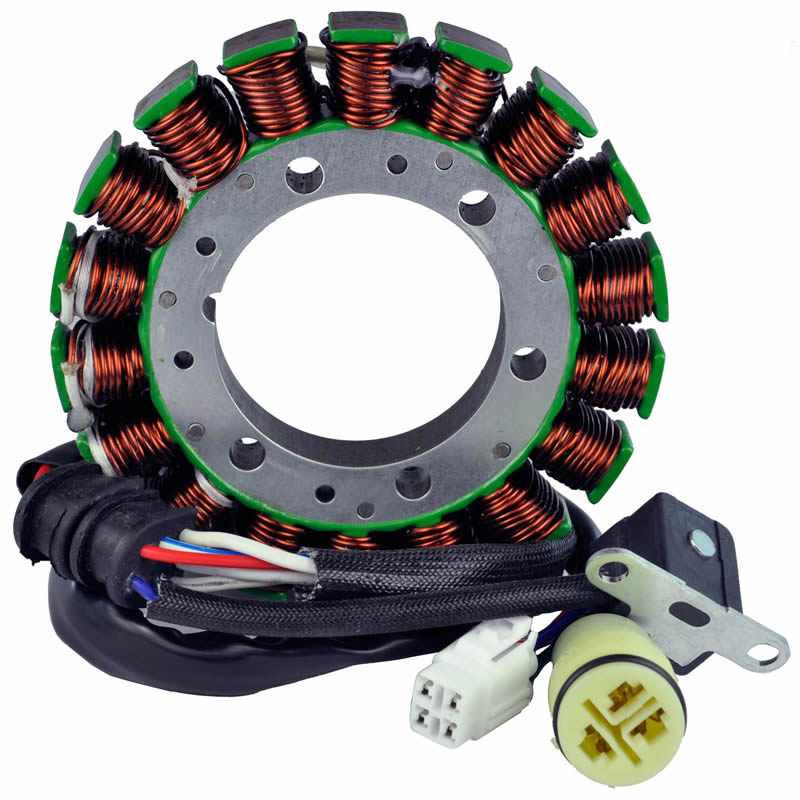

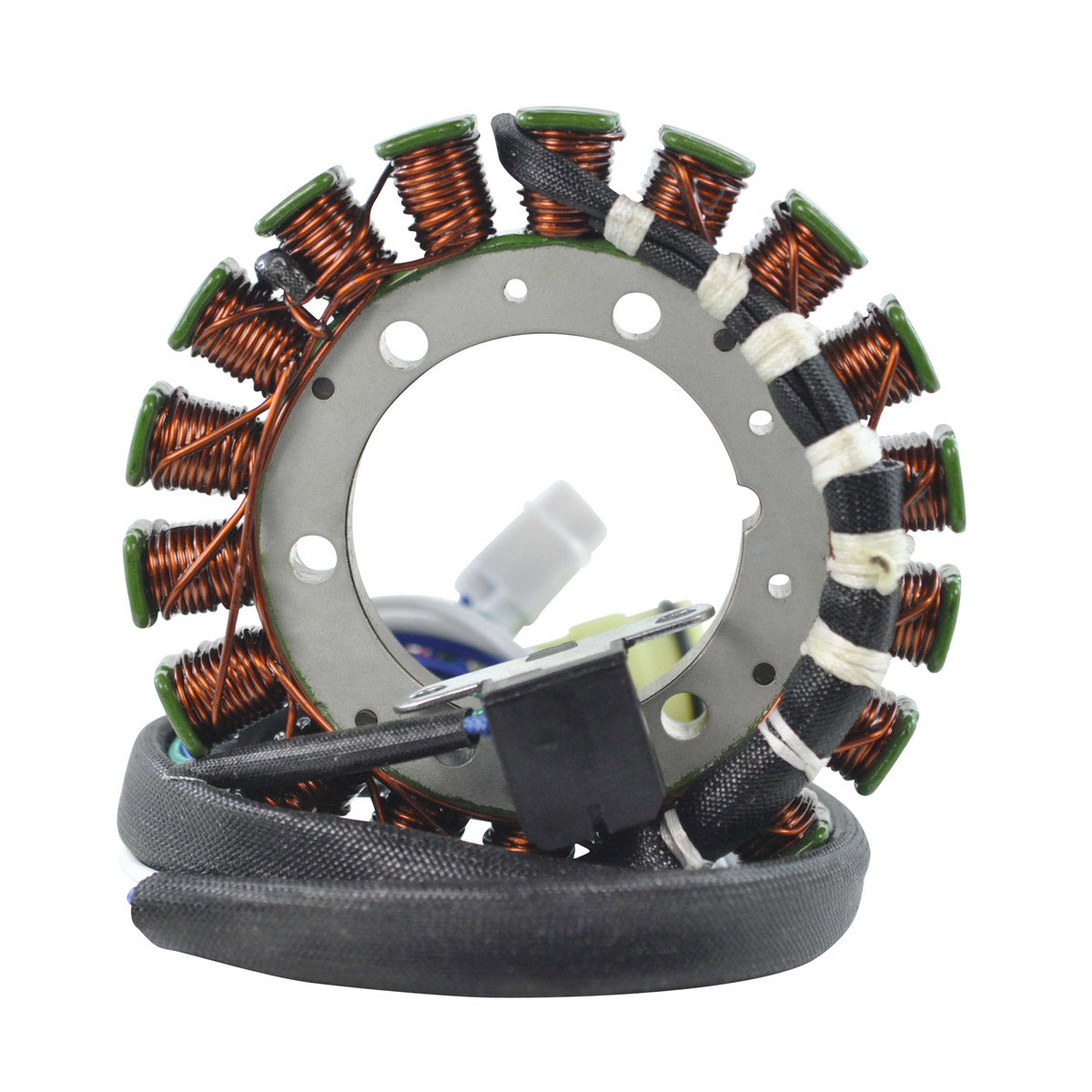

Brand new stator for the Yamaha YXR 450 Rhino 4x4, built as a direct replacement to your original unit. It is plug-and-play, a direct fit and an easy installation: the mounting pattern and the plugs match the original part, so the loom does not need to be cut, spliced or re-pinned.
The unit is wound with the highest grade copper windings, resistant to 200 degrees Celsius, on the highest grade lamination materials. The pick-up pulsar coil, the connector and the rubber grommet are supplied with the stator, and all product shipped is tested. This part carries the reference RM01355 and cross-references Yamaha OEM part number 2P5-81410-00-00.
Key Features
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius
- Pick-up pulsar coil included
- Connector included
- Rubber grommet included
- All product shipped is tested
- Cross-references Yamaha OEM 2P5-81410-00-00
Technical Specs
| Specification | Detail |
|---|---|
| Interior diameter | 53 mm |
| Exterior diameter | 115 mm |
| Thickness | 14 mm |
| Number of wires | 7 |
| Number of plugs | 2 |
| Number of pins | 7 |
| Wire length, stator to grommet | 380 mm |
| Wire length, grommet to plug | 410 mm |
| Pick-up coil wire to grommet | 250 mm |
| Alternator resistance, White between each White | 0.4 ohms +/-20% |
| Pickup resistance, Green to Blue | 450 ohms +/-20% |
| Source resistance, Red to Blue/White | 0.6 ohms +/-20% |
| Temperature rating | 200 degrees Celsius |
| Part reference | RM01355 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Yamaha YXR 450 Rhino 4x4 | 2006-2009 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 2P5-81410-00-00 | Yamaha |
Frequently Asked Questions
Does it fit without modification?

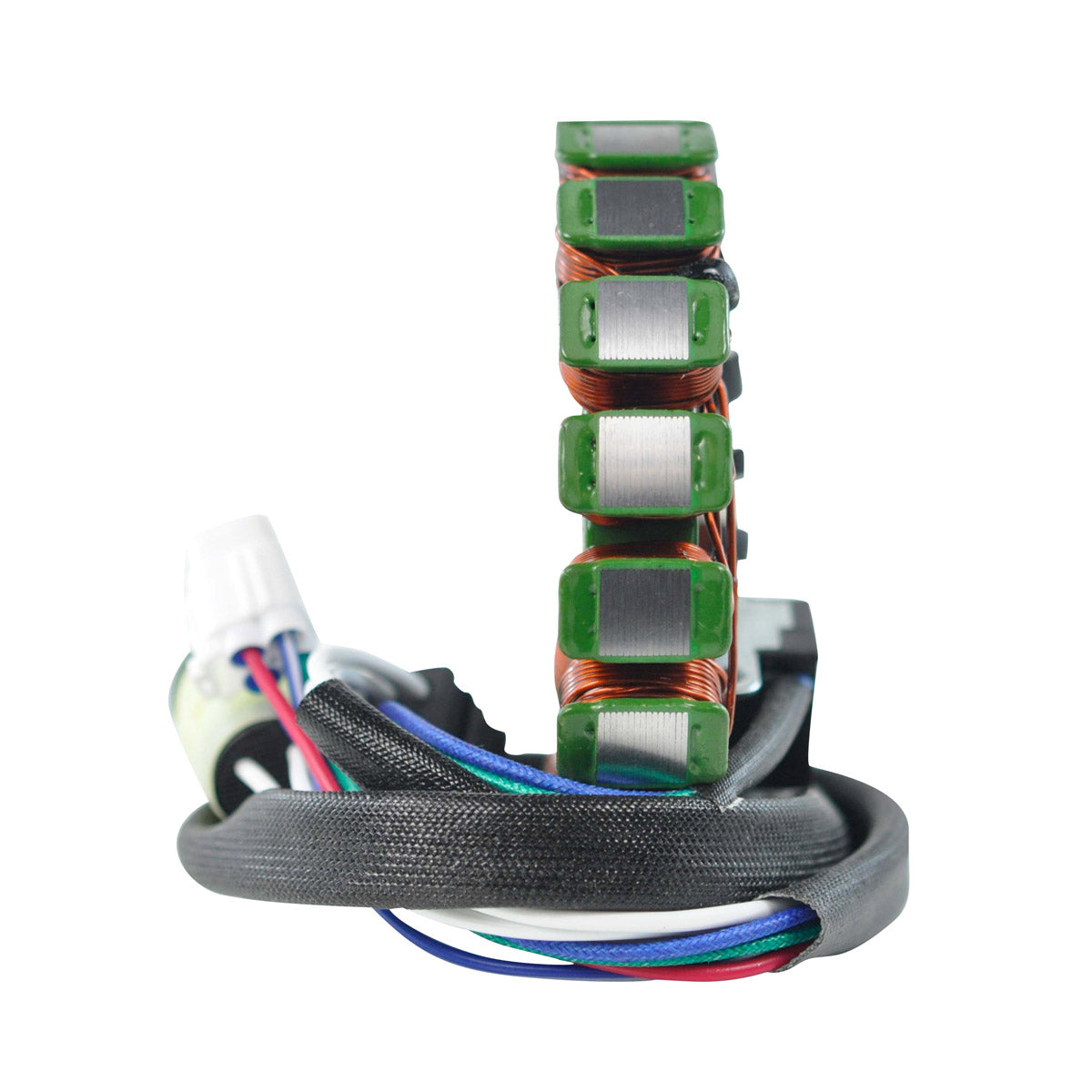

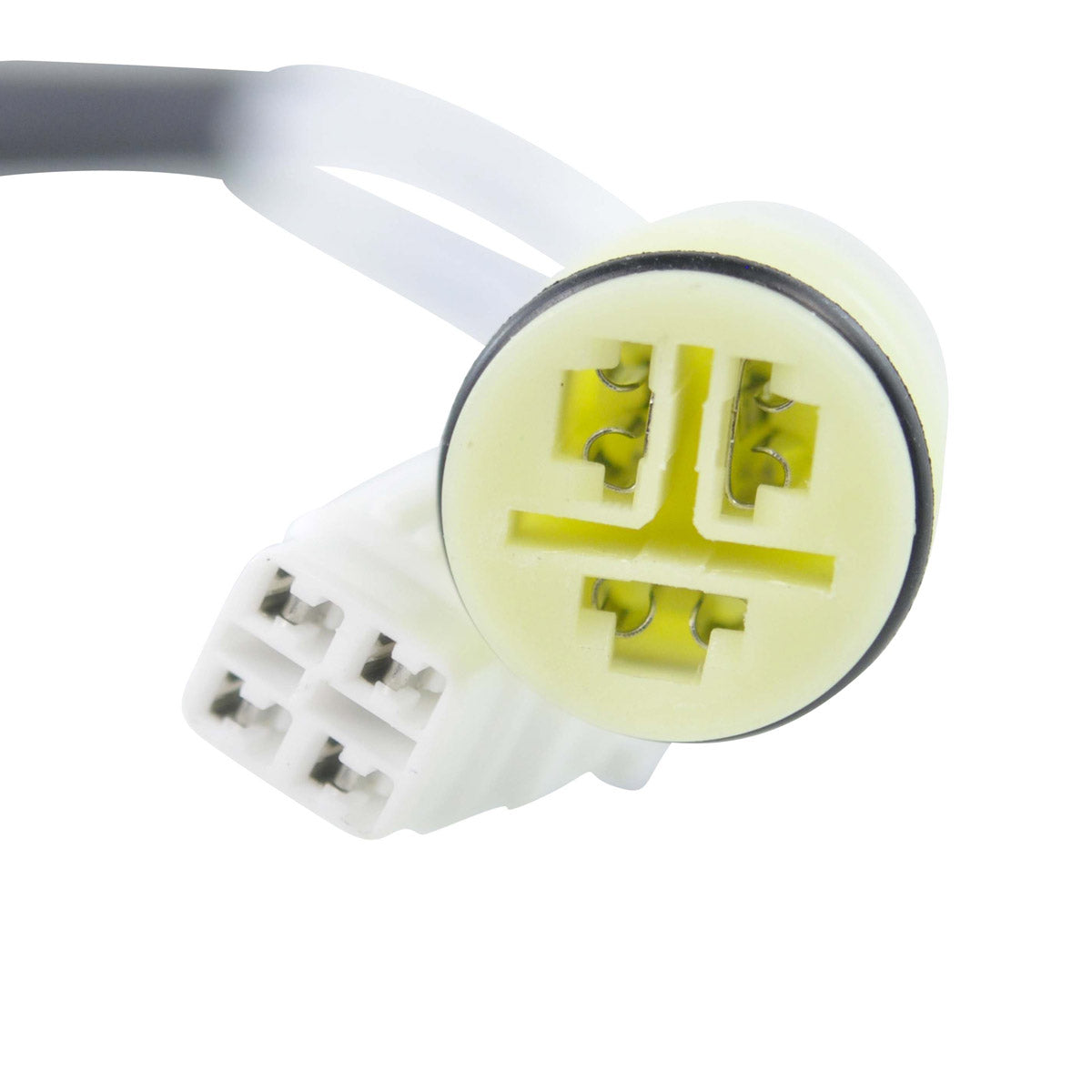

Yes. It is a direct replacement to your original unit on the YXR 450 Rhino 4x4, with the same mounting pattern and the same two plugs on a seven-wire harness, so it is plug-and-play. No cutting, splicing or re-pinning of the loom is needed.
What is included?
The stator assembly, the pick-up pulsar coil, the connector and the rubber grommet. All product shipped is tested before dispatch.
How do I confirm the old stator has failed?
A failing stator normally shows up as a flat or under-charged battery, dim or flickering lights, weak or intermittent spark, and no rise in charging voltage as the engine is revved. Measure the windings cold with a multimeter and compare against the table above: the alternator windings should read 0.4 ohms +/-20% between each White wire, the pickup 450 ohms +/-20% from Green to Blue, and the source coil 0.6 ohms +/-20% from Red to Blue/White. An open circuit, a dead short, or continuity from any winding to the stator body means the unit is finished.
How long are the leads?
The harness runs 380 mm from the stator to the grommet and a further 410 mm from the grommet to the plug, and the pick-up coil lead is 250 mm to the grommet. These match the original Yamaha routing, so the loom sits in the standard clips and the plugs reach their original positions.
