Stator for Yamaha YZF R1 2002-2003 - Replaces 5PW-81410-00-00
Stator for Yamaha YZF R1 2002-2003 - Replaces 5PW-81410-00-00
SKU:RM01370
Free shipping over £150. Terms apply
Couldn't load pickup availability

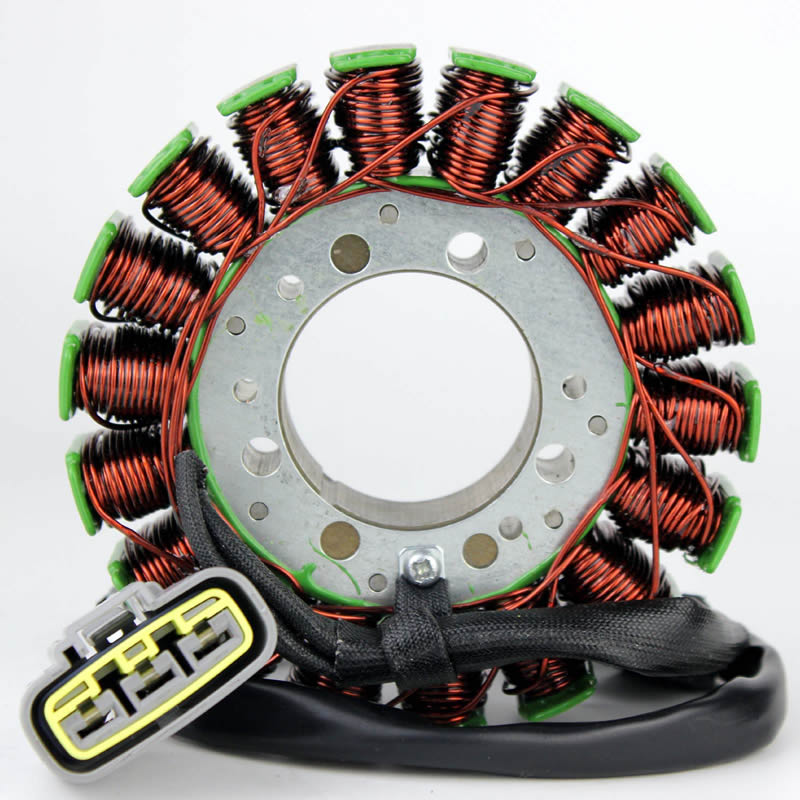

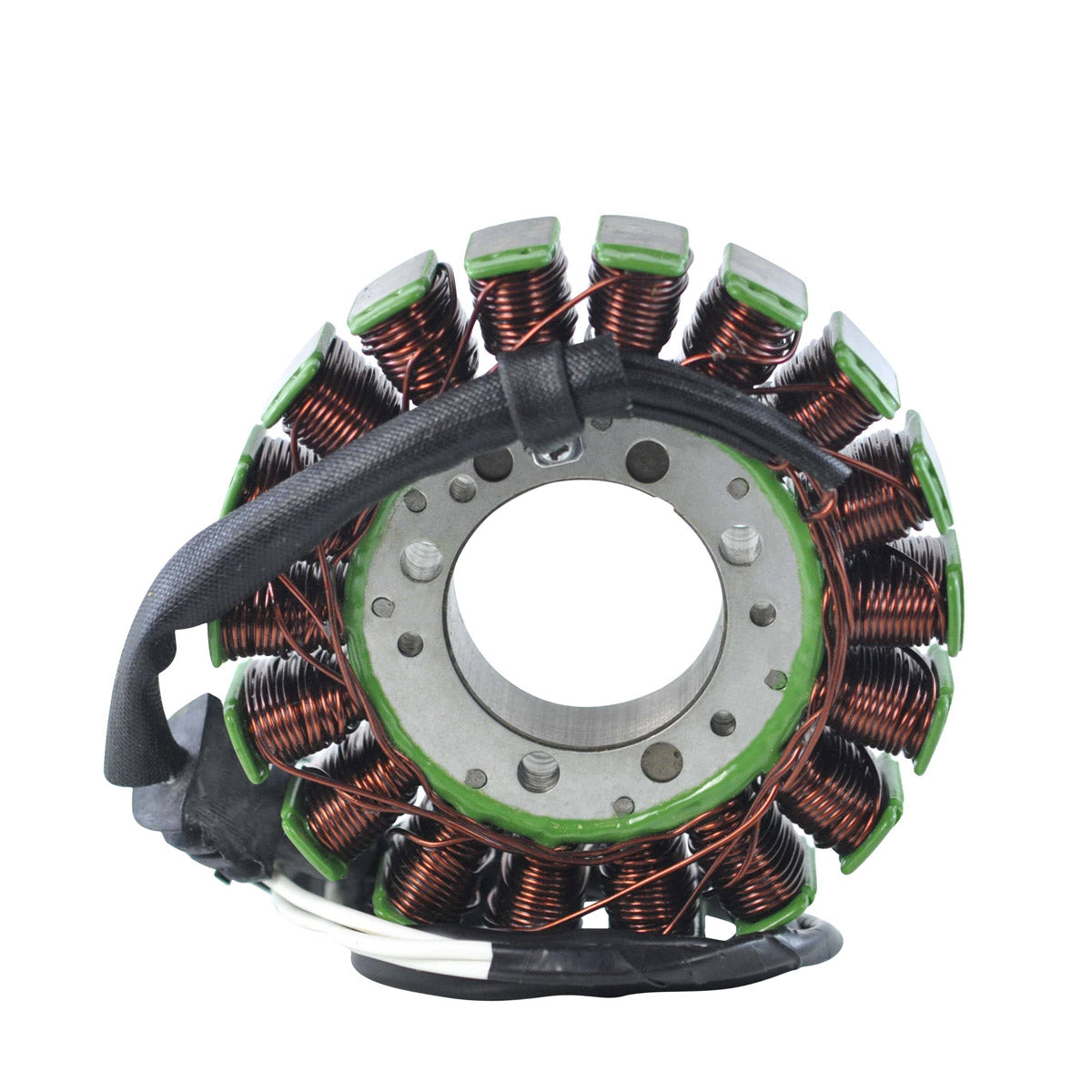

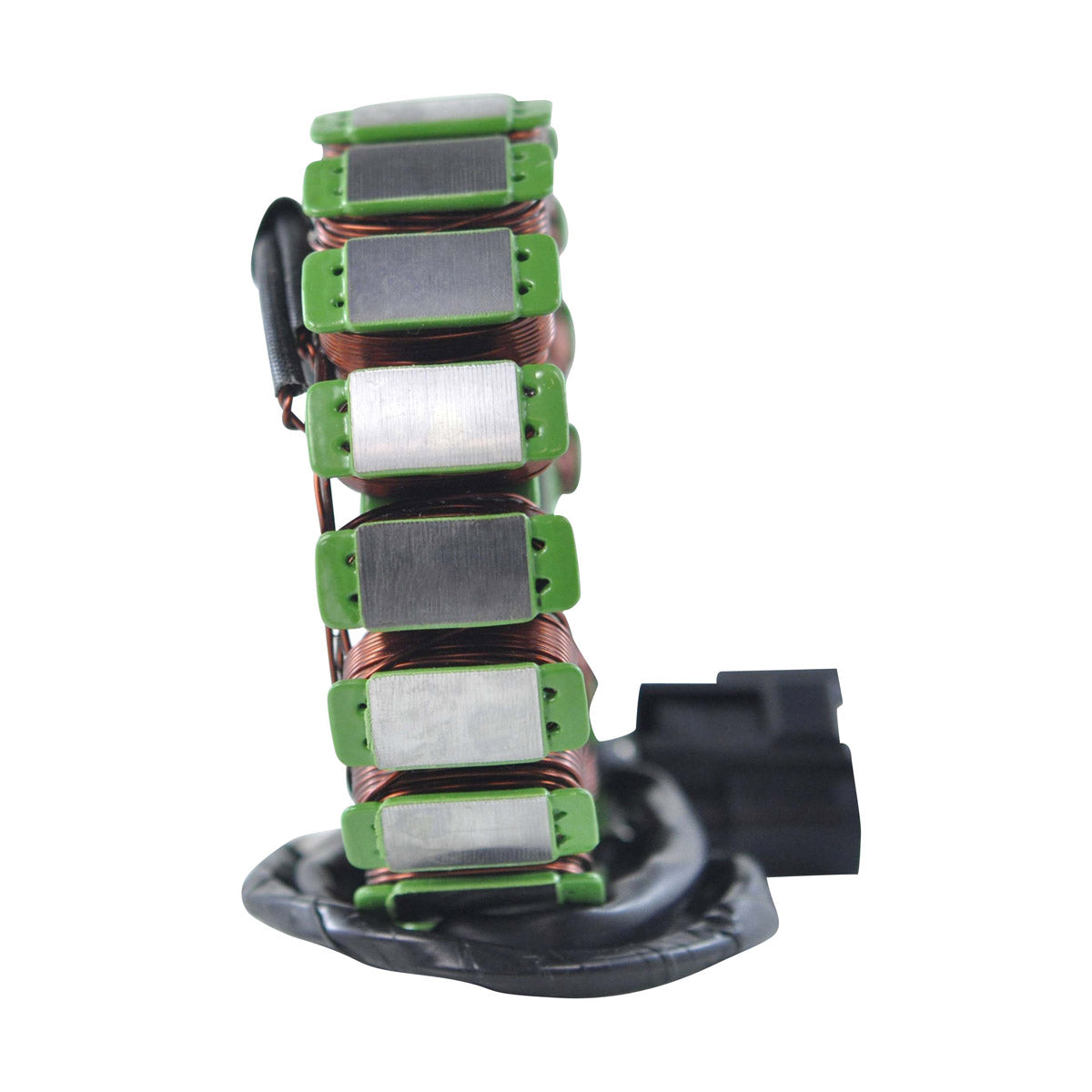

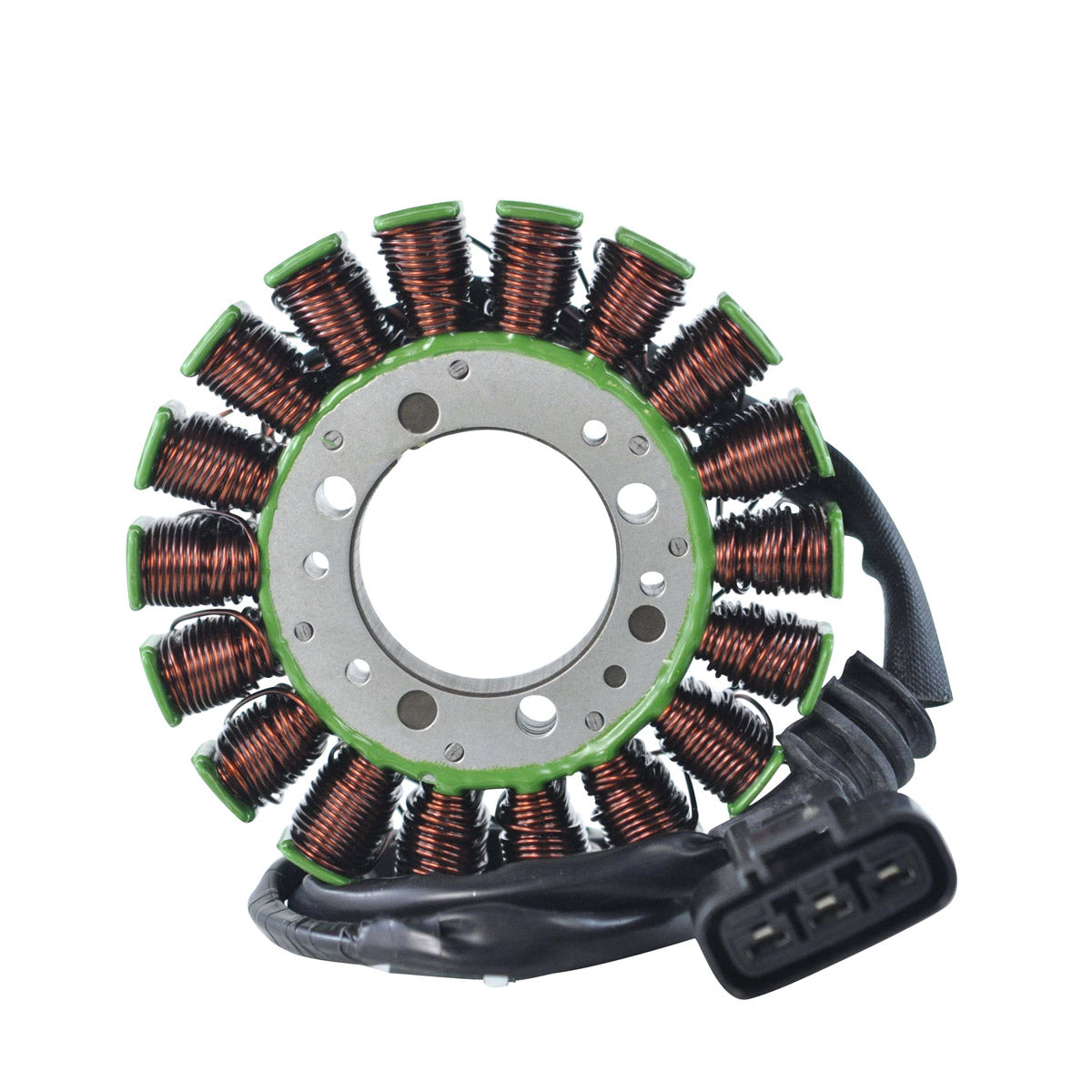

Stator for Yamaha YZF R1
YZF R1, 2002 and 2003 - Part number RM01370

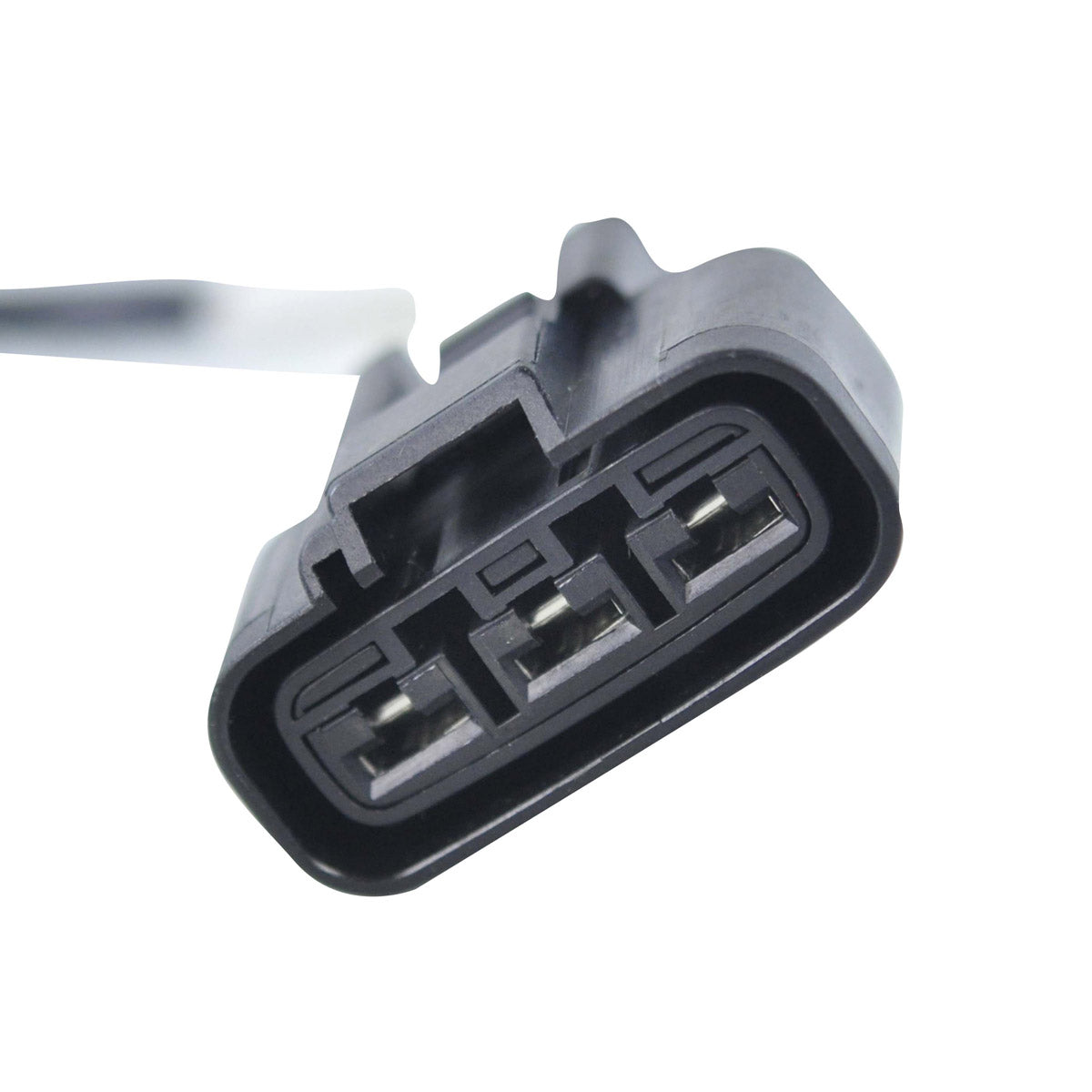

This is a brand new generator stator built as a direct replacement for the original charging unit fitted to the Yamaha YZF R1 in the 2002 and 2003 model years. It is a plug-and-play, direct fit part that uses the factory mounting pattern and the original three-pin connector, so the loom does not need to be cut, spliced or modified in any way.
The stator is built on the highest grade lamination materials and wound with the highest grade copper, with insulation rated to resist 200 degrees Celsius. On the 2002-2003 R1 the stator lives in the oil-filled left-hand case and runs hot, which is why the temperature rating and the quality of the winding insulation are the two things that decide how long a replacement lasts. A tired stator on this bike usually announces itself with a battery that will not hold charge overnight, a headlight that visibly dims at idle, or charging voltage at the battery terminals that stays close to resting voltage instead of climbing when the revs rise. The lead from the grommet to the plug is a generous 400 mm, matching the original routing across the crankcase. The connector is included and every unit is tested before it is shipped.
Key Features
- Brand new stator
- Direct replacement for your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius
- Connector included
- All products shipped are tested
Technical Specs
| Specification | Detail |
|---|---|
| Interior diameter | 41 mm |
| Exterior diameter | 115 mm |
| Thickness | 21 mm |
| Length of wires, stator to grommet | 50 mm |
| Length of wires, grommet to plug | 400 mm |
| Number of wires | 3 |
| Number of plugs | 1 |
| Number of pins | 3 |
| Alternator resistance, White between each White | 0.4 ohms +/-20% |
| Temperature rating | 200 degrees Celsius |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Yamaha YZF R1 | 2002-2003 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 5PW-81410-00-00 | Yamaha |
| 5PW-81410-01-00 | Yamaha |
Frequently Asked Questions
Does fitting this need any modification?
No. It is a plug-and-play, direct fit replacement that uses the original three-pin connector and the standard mounting holes in the left-hand case. Nothing on the loom needs to be cut or spliced.
What is included in the box?
The stator with its lead and the connector. Every unit is tested before it leaves the warehouse.
How do I tell whether the stator or the regulator rectifier has failed?
Unplug the three-pin connector and measure between each pair of white wires. All three pairs should read about 0.4 ohms, plus or minus 20 per cent, with no continuity to the engine case. If those readings are good but the battery still will not charge, the fault is downstream in the regulator rectifier or its wiring rather than in the stator.
My original carries part number 5PW-81410-01-00. Is this still the right unit?
Yes. Both 5PW-81410-00-00 and 5PW-81410-01-00 are covered by this stator, so either original number can be replaced with it.
