Stator for Suzuki LTF 250 Ozark & LTZ 250 Quadsport 2002-2014 - Replaces 32101-05G00
Stator for Suzuki LTF 250 Ozark & LTZ 250 Quadsport 2002-2014 - Replaces 32101-05G00
SKU:RM01396
Free shipping over £150. Terms apply
Couldn't load pickup availability

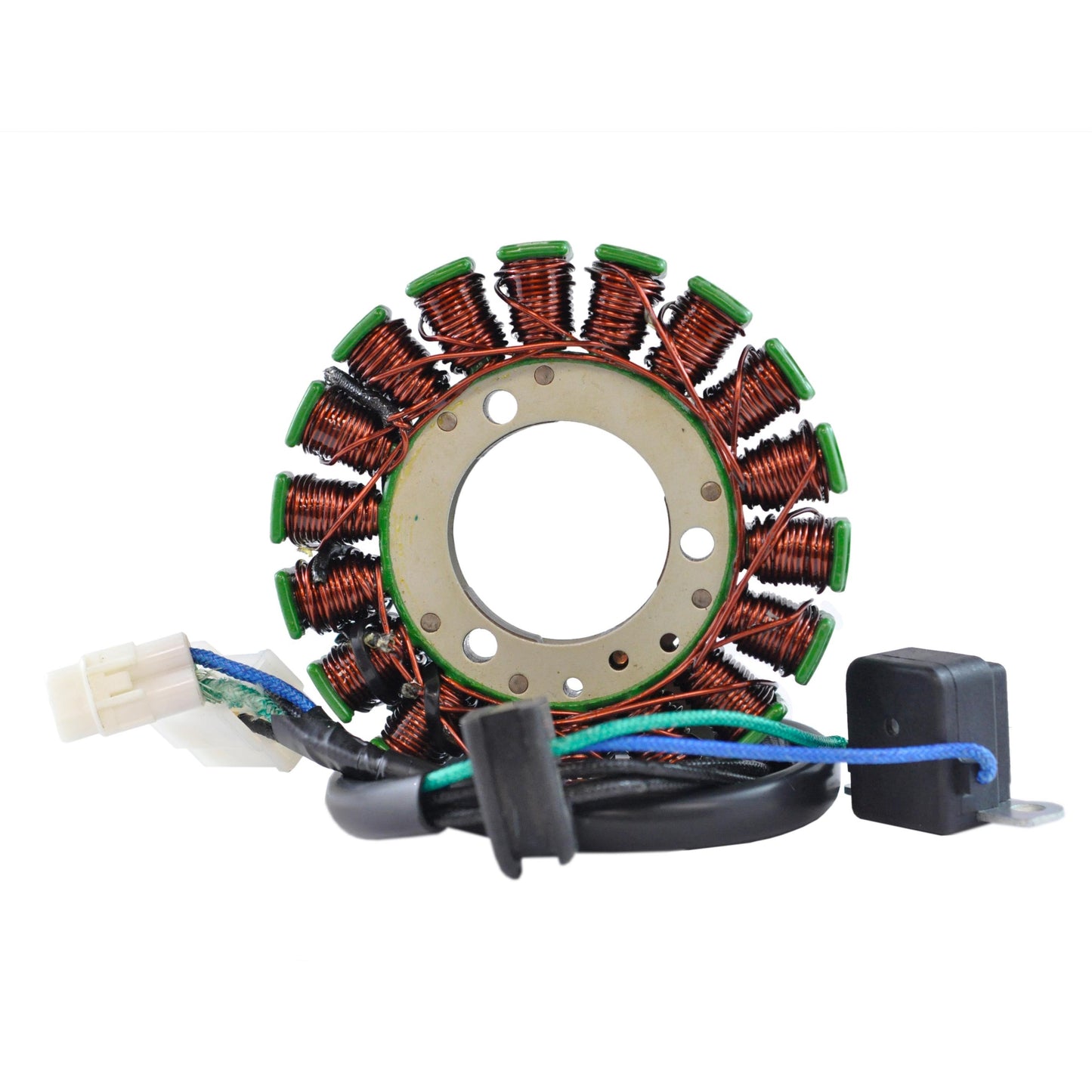

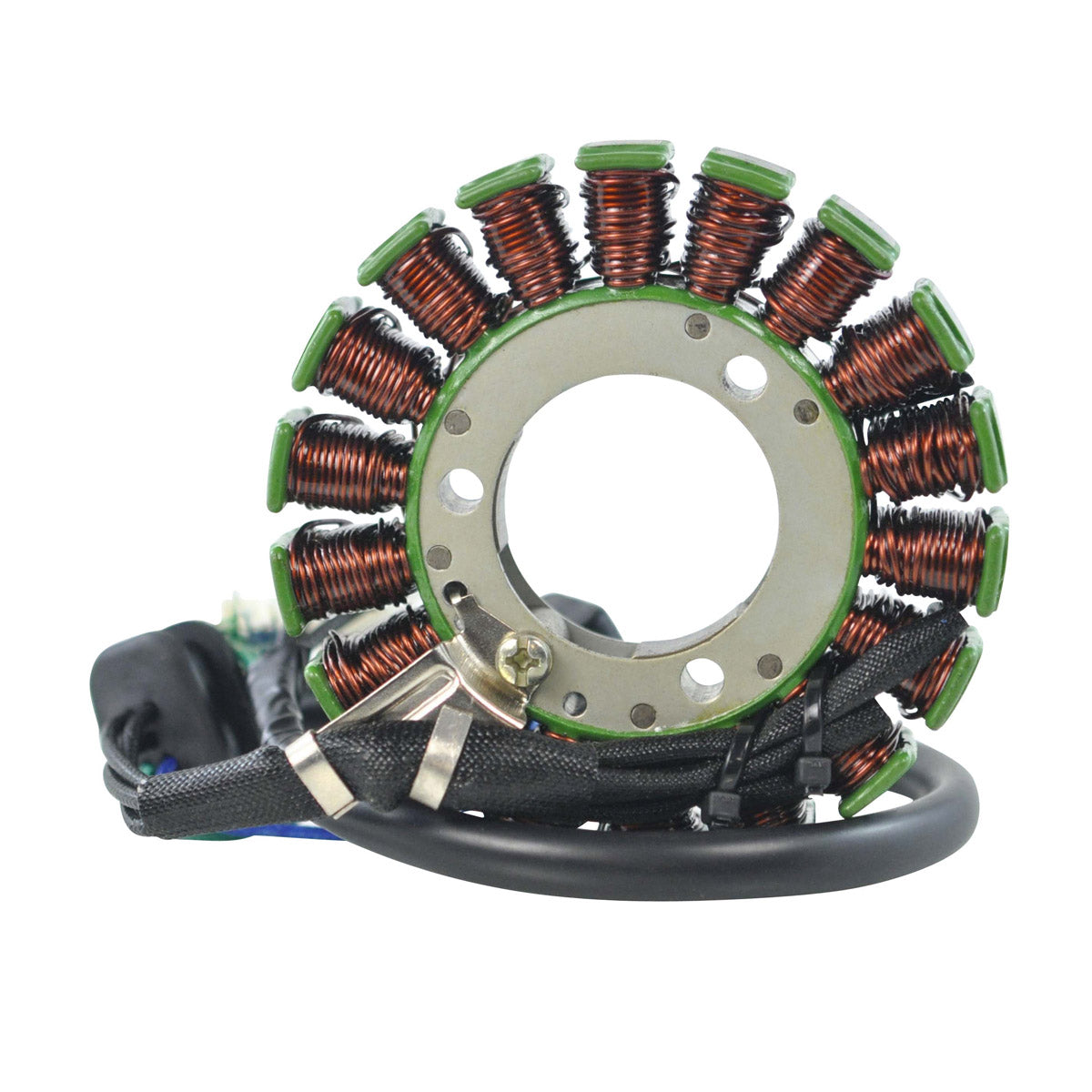

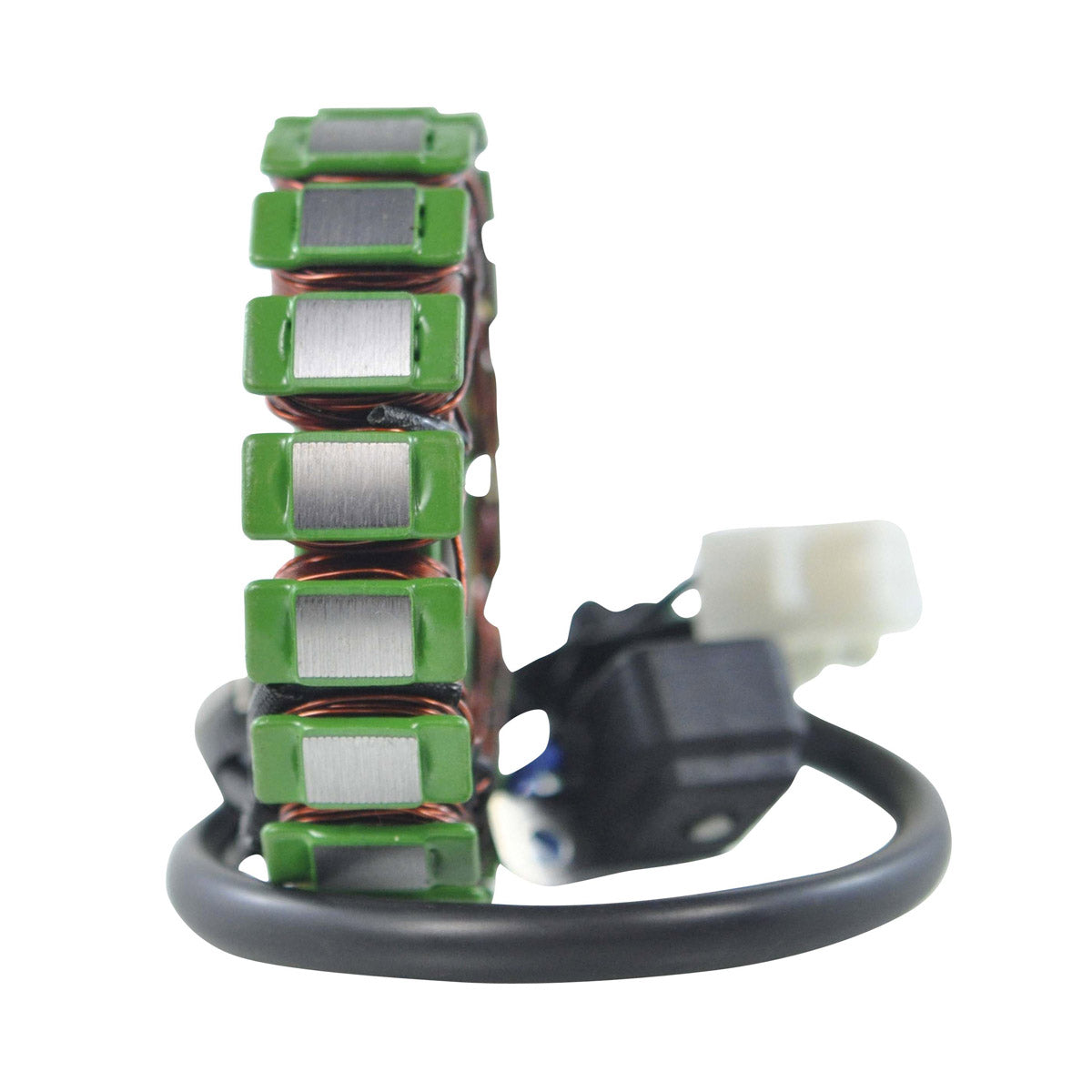

Stator for Suzuki LTF 250 Ozark and LTZ 250 Quadsport
Fits LTF 250 Ozark and LTZ 250 Quadsport, 2002 to 2014 - Part RM01396
This is a brand new aftermarket stator for the Suzuki LTF 250 Ozark and the LTZ 250 Quadsport, covering model years 2002 to 2014. It is a direct replacement for the original Suzuki unit and is supplied ready to fit, with the pick-up pulsar coil and the connector already in place. The stator mounts inside the left engine cover and generates the alternating current that the machine's regulator rectifier converts into the DC charging voltage for the battery, while the pick-up coil supplies the crank position signal that tells the ignition when to fire.
These two quarter-litre Suzukis are hard-working machines and the stator lives in a hot, oily environment right next to the flywheel, so the winding insulation and the pick-up coil are the parts that eventually give up. Typical symptoms are a battery that will not stay charged, headlights that brighten noticeably as you open the throttle, a machine that needs a jump start after standing, or an intermittent stumble that comes and goes with engine temperature. This unit is built with the highest grade lamination materials and the highest grade copper windings, insulated to withstand 200 degrees Celsius, so it tolerates the heat that killed the original. Every unit is bench tested before it is shipped.
Key Features
- Brand new aftermarket stator, a direct replacement for the original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius
- Pick-up pulsar coil included

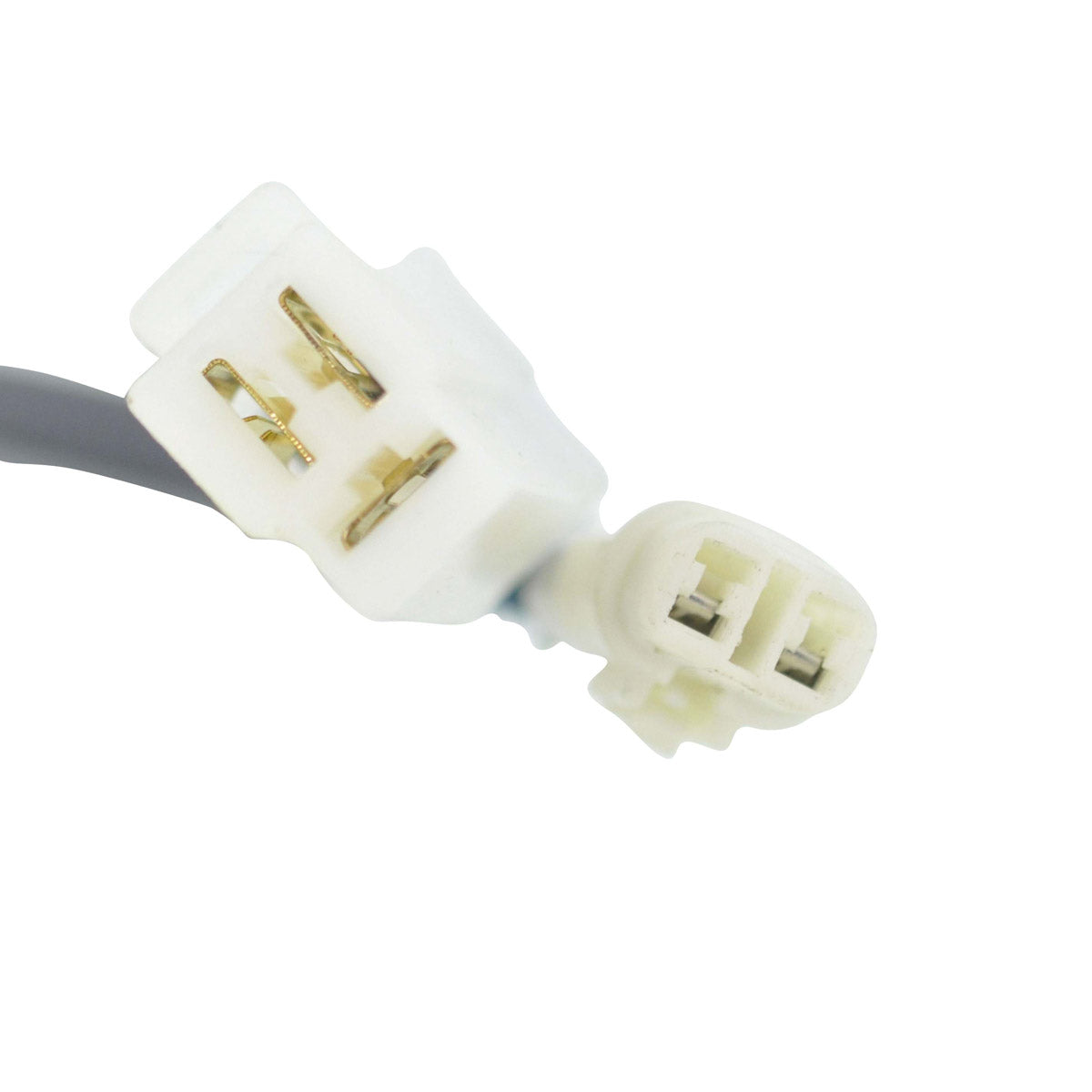

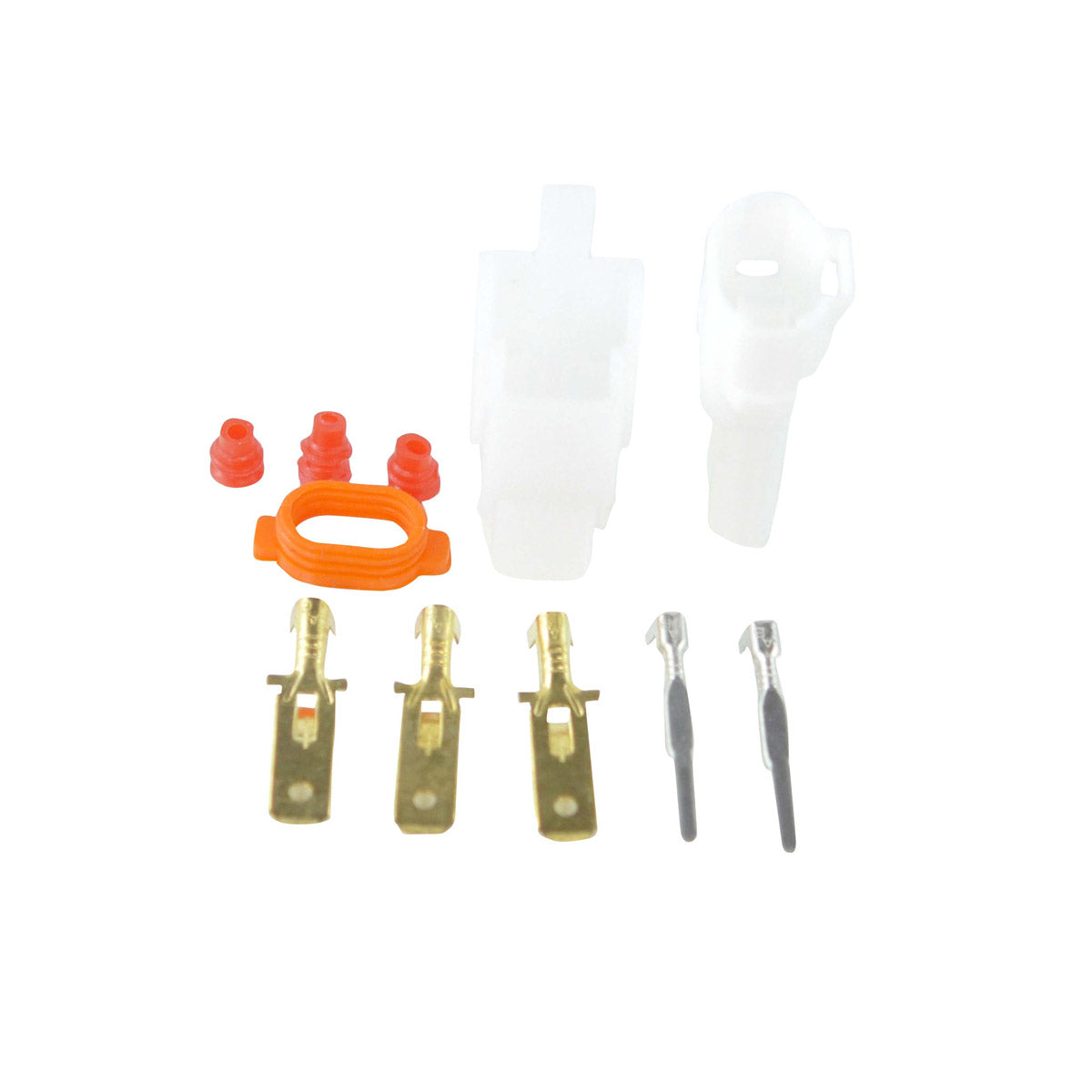

- Connector included
- Covers thirteen model years across two Suzuki 250 platforms
- All products shipped are tested
Technical Specs
| Specification | Detail |
|---|---|
| Alternator resistance (White to White) | 0.4 ohms +/- 20% |
| Pick-up resistance (Green to Blue) | 200 ohms +/- 20% |
| Number of wires | 5 |
| Number of plugs | 2 |
| Number of pins | 5 |
| Wire length, stator to grommet | 60 mm |
| Wire length, grommet to plug | 240 mm |
| Pick-up coil wire length to grommet | 40 mm |
| Interior diameter | 36 mm |
| Exterior diameter | 93 mm |
| Thickness | 14 mm |
| Winding temperature rating | 200 degrees Celsius |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Suzuki LTF 250 Ozark | 2002 - 2014 |
| Suzuki LTZ 250 Quadsport | 2002 - 2014 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 32101-05G00 | Suzuki |
| RM01396 | RMSTATOR (this part) |
Frequently Asked Questions
Will this fit without modification?
Yes. It is a plug-and-play direct fit for the LTF 250 Ozark and the LTZ 250 Quadsport across the 2002 to 2014 span. The mounting pattern and the two connectors match the original, so nothing needs to be cut or spliced. Confirm the OEM number stamped on your existing unit reads 32101-05G00 before ordering.
What is included in the box?

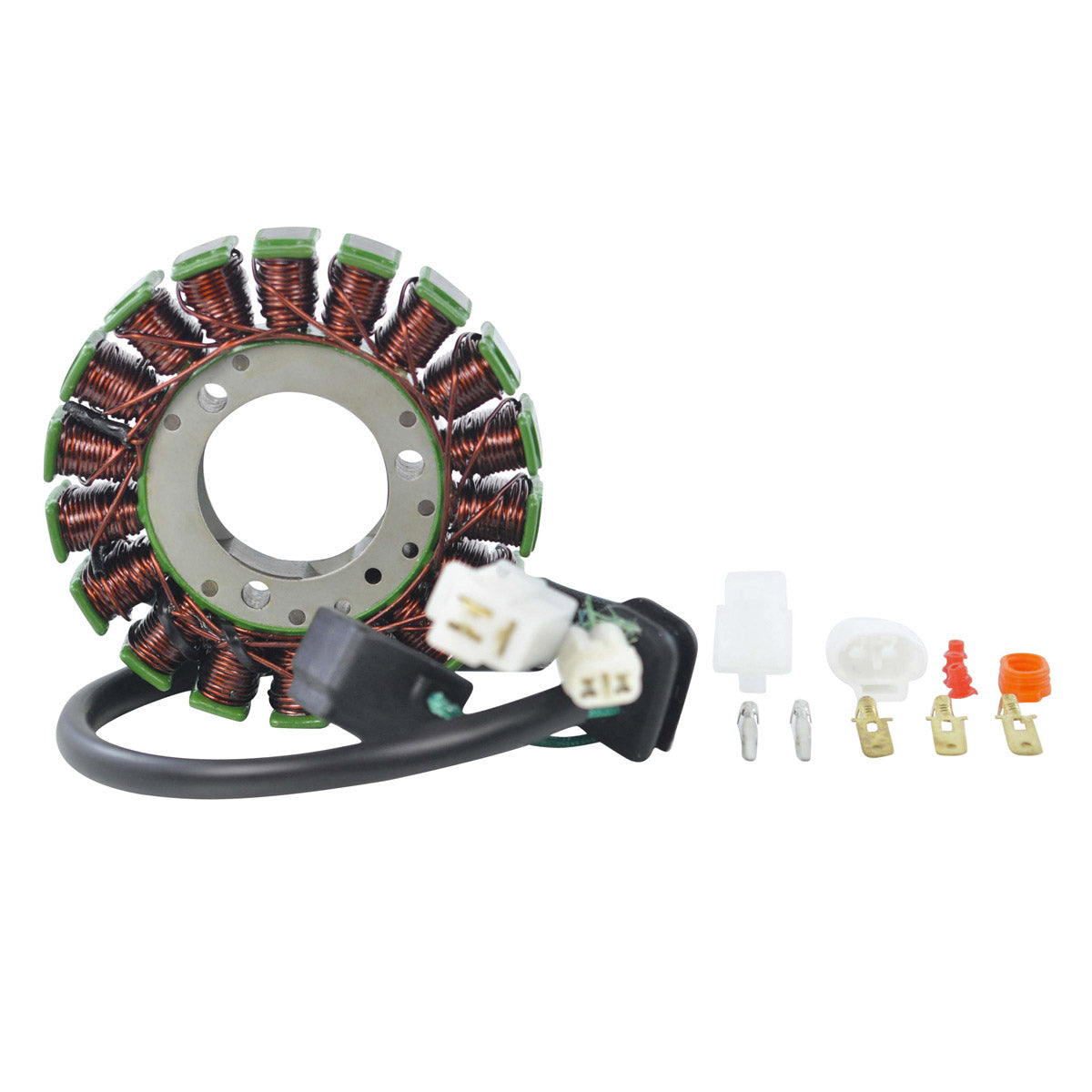

The stator unit, the pick-up pulsar coil and the connector.
How do I know my old stator has failed?
With a multimeter on ohms, measure white to white: a healthy alternator winding reads about 0.4 ohms, plus or minus 20 per cent. Measure green to blue for the pick-up: about 200 ohms, plus or minus 20 per cent. An open circuit on either reading, or continuity between any wire and the stator body, confirms a failure. A charging voltage at the battery that does not rise above resting voltage as you raise the revs points the same way.
Does the same stator really cover both the Ozark and the Quadsport?
It does. Both machines share the same 250 platform and the same charging system, and Suzuki used the single part number 32101-05G00 across them for the whole 2002 to 2014 run, so one stator covers the pair.
