Stator for Suzuki LTF 500 F Quadrunner 500 1998-2002
Suzuki LTF 500 F Quadrunner 500 (LTF500F), 1998 to 2002 - RMSTATOR part RM01429 - replaces OEM 32101-09F20

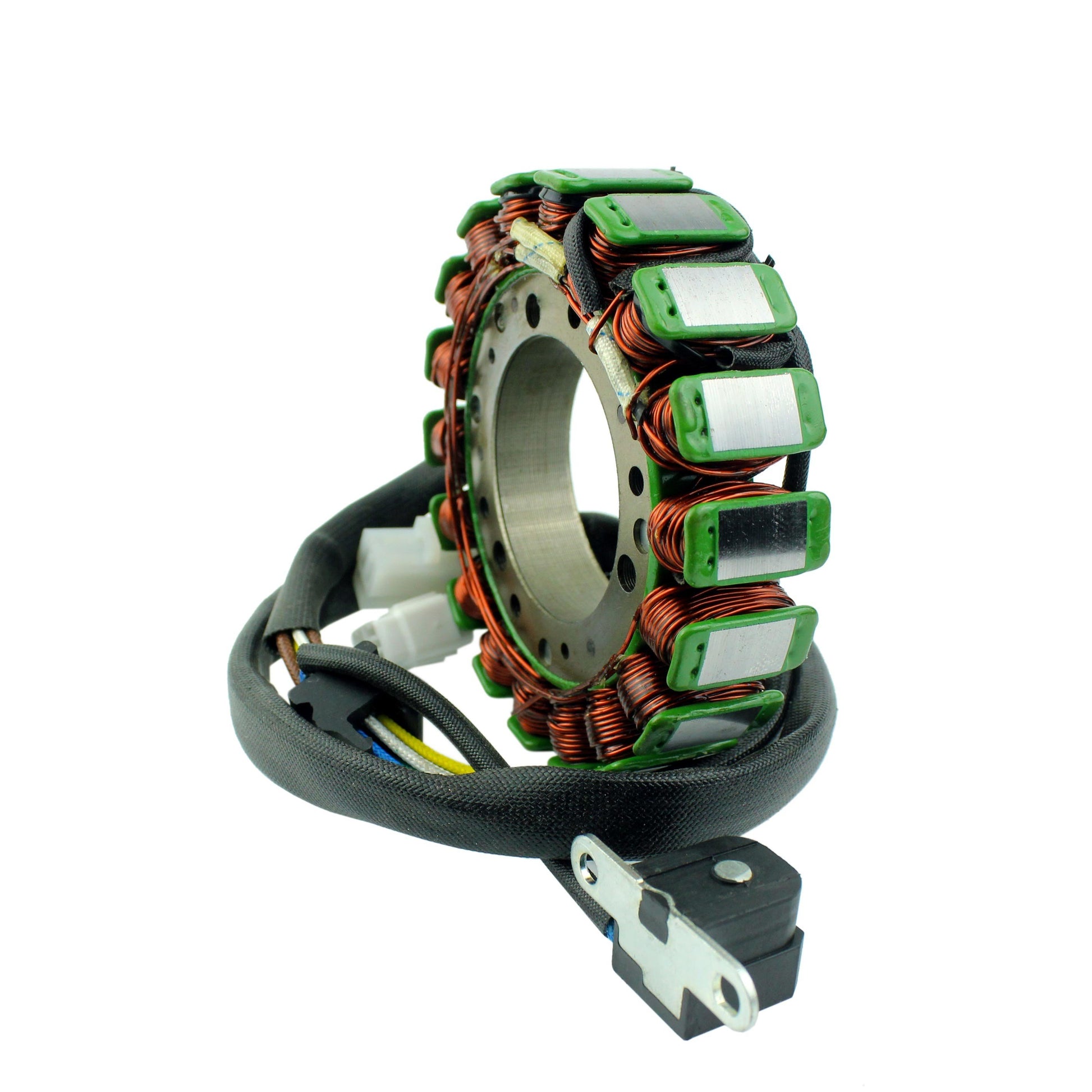

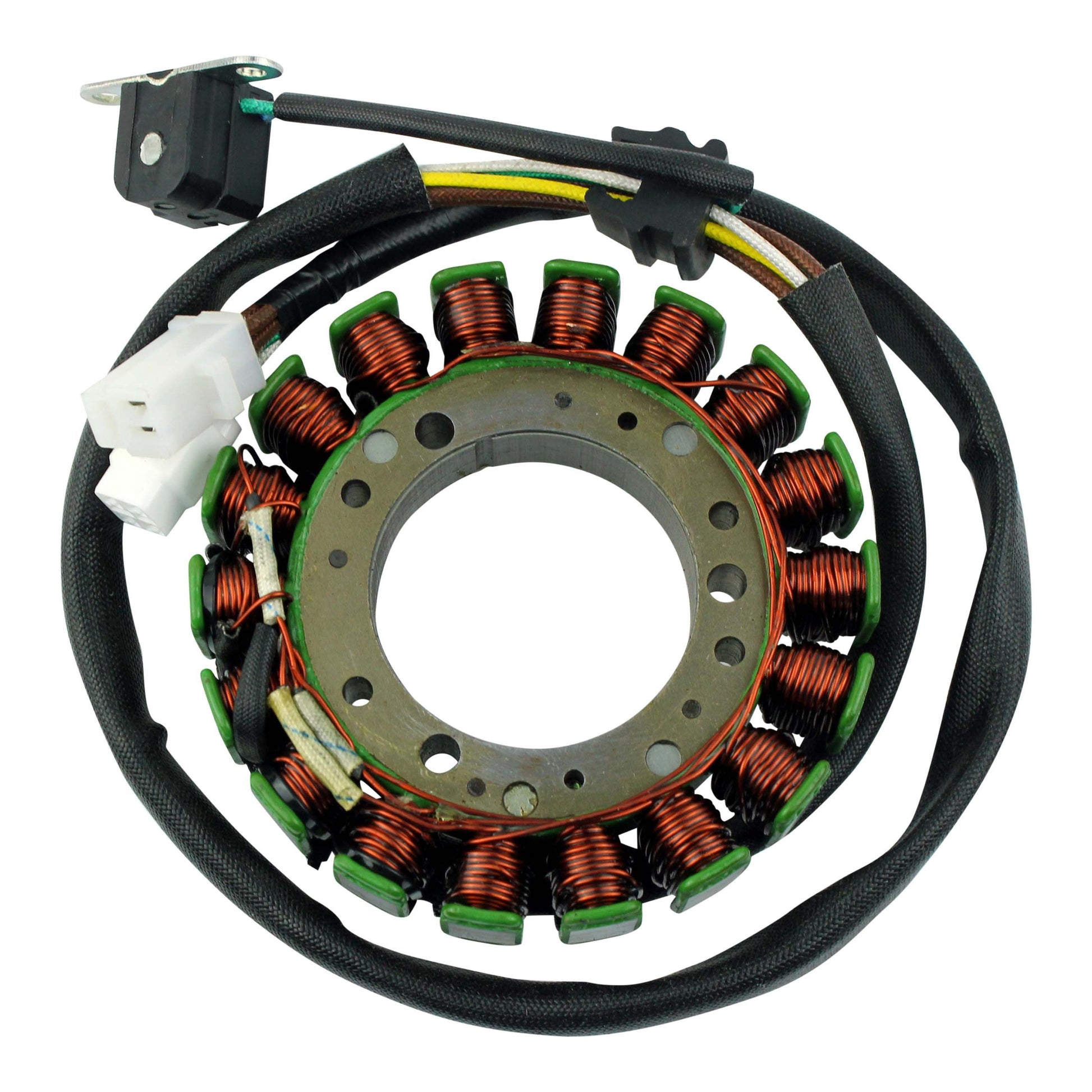

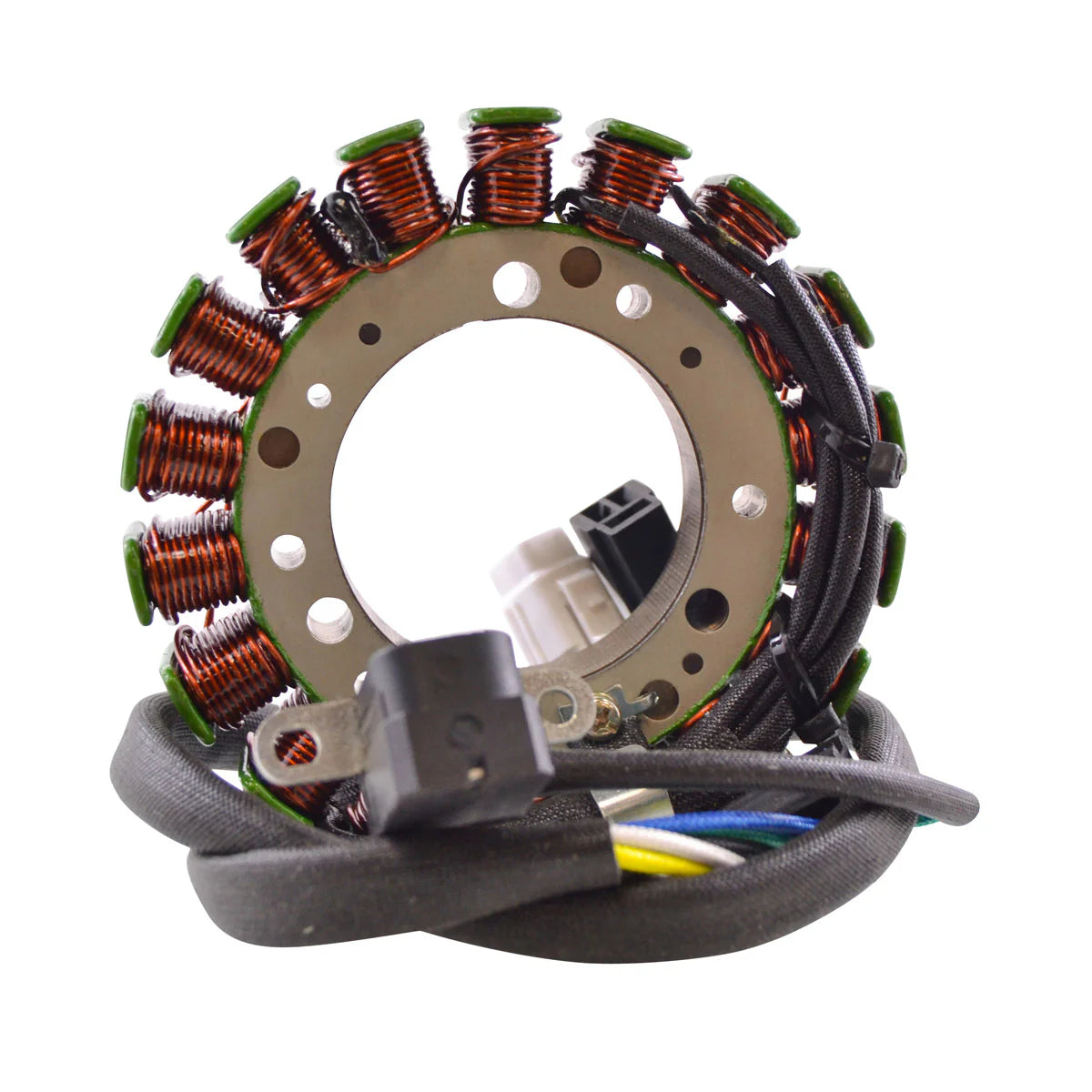

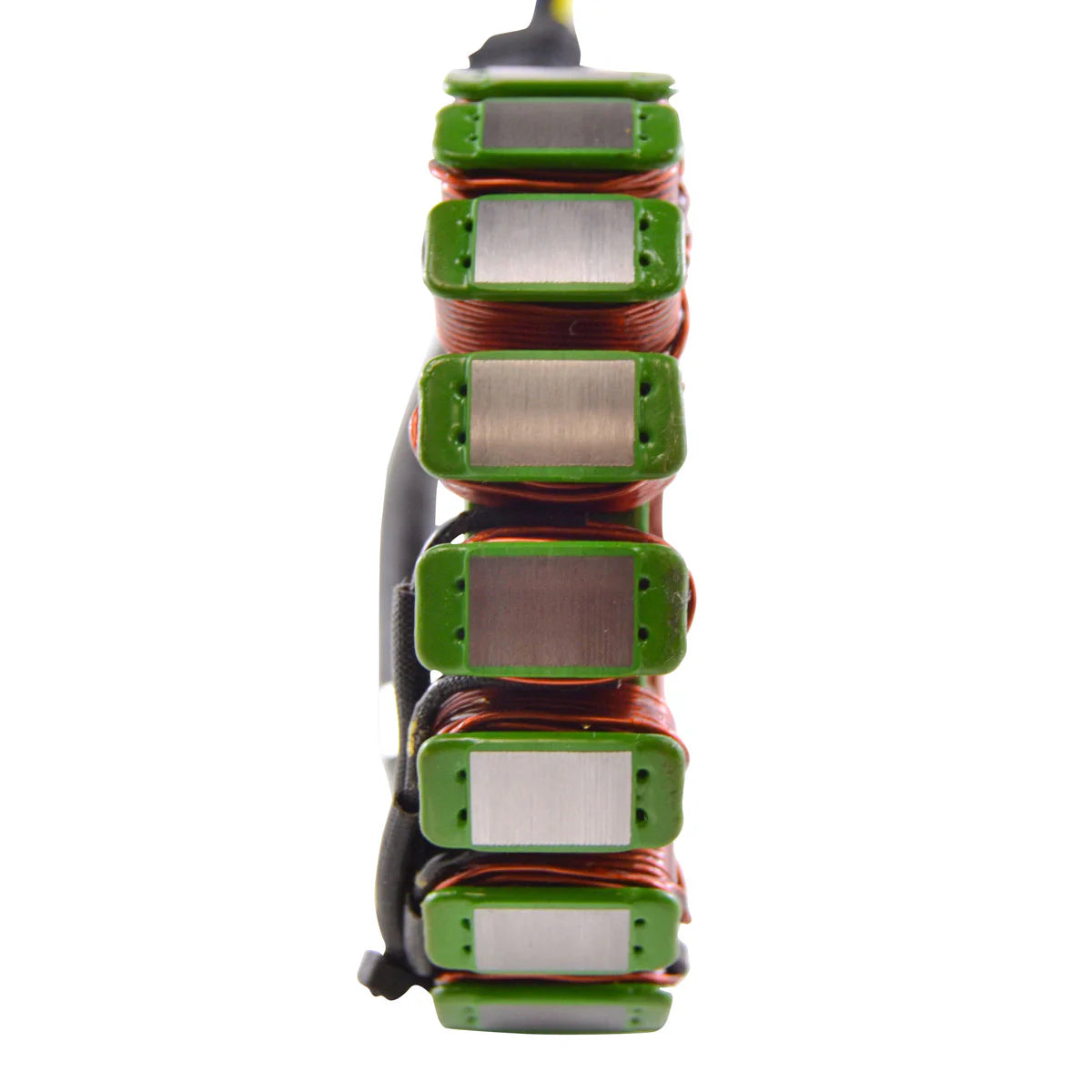

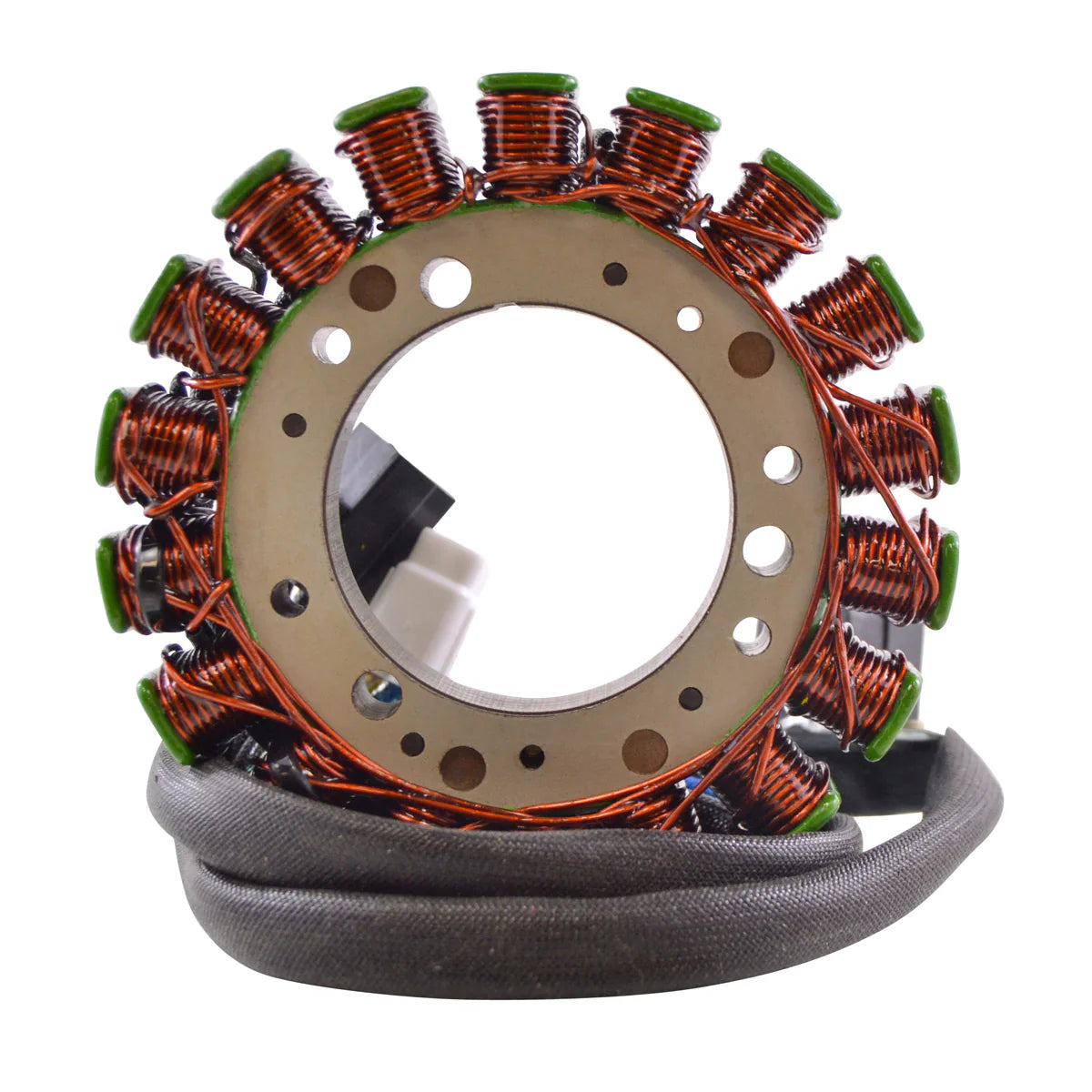

This is a brand new generator stator built as a direct replacement for the original unit on the Suzuki LTF 500 F Quadrunner 500 from 1998 to 2002. The Quadrunner runs a substantial eight-wire plate that carries three separate circuits: the alternator windings that supply the regulator rectifier and battery, a source winding for the ignition, and the pickup pulsar coil that times the spark. A working utility quad puts this component under constant heat and vibration, and the original insulation is usually what fails first.

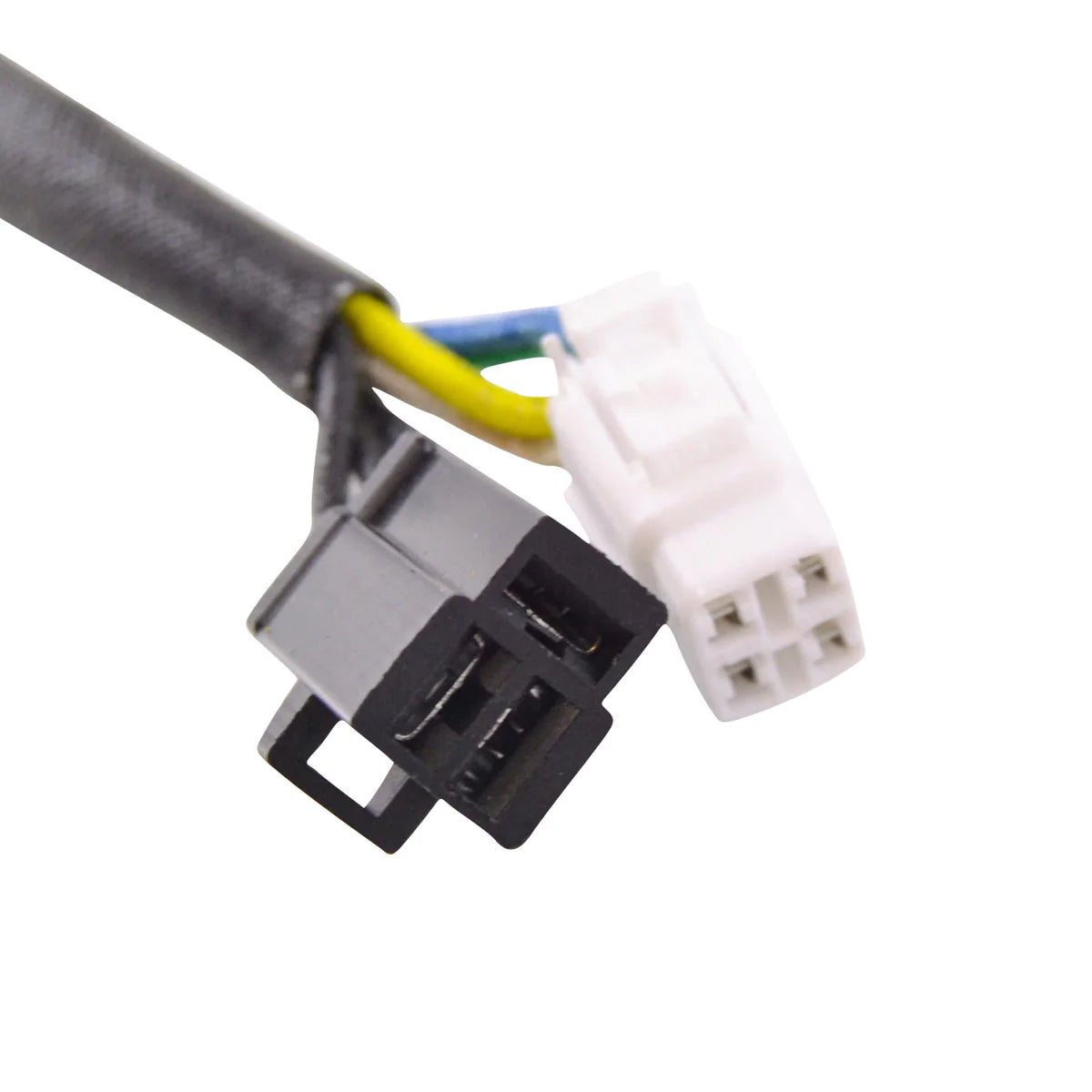

The assembly is plug-and-play and a direct fit - eight wires into two plugs, matching the factory connectors, wire lengths and mounting pattern, so no cutting, splicing or modification is required. It is built on the highest grade lamination materials and wound with the highest grade copper, rated to withstand 200 degrees C. Generous lead lengths are provided, 120 mm from the stator to the grommet and 550 mm from the grommet to the plug, so the harness routes as the factory intended. The pickup pulsar coil, the connector and the rubber grommet are all included, and every unit is tested before shipment.
Key Features
- Brand new generator stator - direct replacement for the original unit
- Plug-and-play, direct fit - no cutting, splicing or modification
- Eight-wire, two-plug layout matching the factory harness
- Alternator, source and pickup circuits on one plate
- Highest grade lamination materials and copper windings
- Windings resistant to 200 degrees C
- Pickup pulsar coil, connector and rubber grommet included
- Every unit tested before shipment
- Cross references to Suzuki 32101-09F20
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RM01429 |
| Interior diameter | 53 mm |
| Exterior diameter | 115 mm |
| Thickness | 18 mm |
| Wire length, stator to grommet | 120 mm |
| Wire length, grommet to plug | 550 mm |
| Pickup coil wire length | 85 mm |
| Number of wires | 8 |
| Number of plugs | 2 |
| Number of pins | 8 |
| Alternator resistance, Black to Black | 0.4 ohms +/- 20% |
| Pickup resistance, Green to Blue | 210 ohms +/- 20% |
| Source resistance, Yellow to White | 0.2 ohms +/- 20% |
| Temperature rating | 200 degrees C |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Suzuki LTF 500 F Quadrunner 500 (LTF500F) | 1998-2002 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 32101-09F20 | Suzuki |
| RM01429 | RMSTATOR |
Frequently Asked Questions
Will this fit without modification?
Yes. It is a plug-and-play, direct fit stator for the Suzuki LTF 500 F Quadrunner 500 from 1998 to 2002. The eight wires terminate in the same two plugs as the original and the lead lengths match, so no cutting or splicing is required. Please still check the number on your existing unit before ordering.
What is included in the box?
The generator stator, the pickup pulsar coil, the connector and the rubber harness grommet. Every unit is tested before it is shipped.
How do I know my old stator has failed?
The classic signs are a battery that will not hold charge, dim lights that do not brighten with revs, hard starting and a machine that cuts out when hot. Confirm with a multimeter: about 0.4 ohms +/- 20% Black to Black on the alternator, about 210 ohms +/- 20% Green to Blue on the pickup, and about 0.2 ohms +/- 20% Yellow to White on the source winding. An open reading means a broken winding, and continuity to the stator body means it has shorted to earth.
Are the leads long enough to route as standard?
Yes. This stator is supplied with 120 mm of lead from the stator to the grommet and 550 mm from the grommet to the plug, matching the original routing on the Quadrunner 500, with an 85 mm pickup coil lead.
