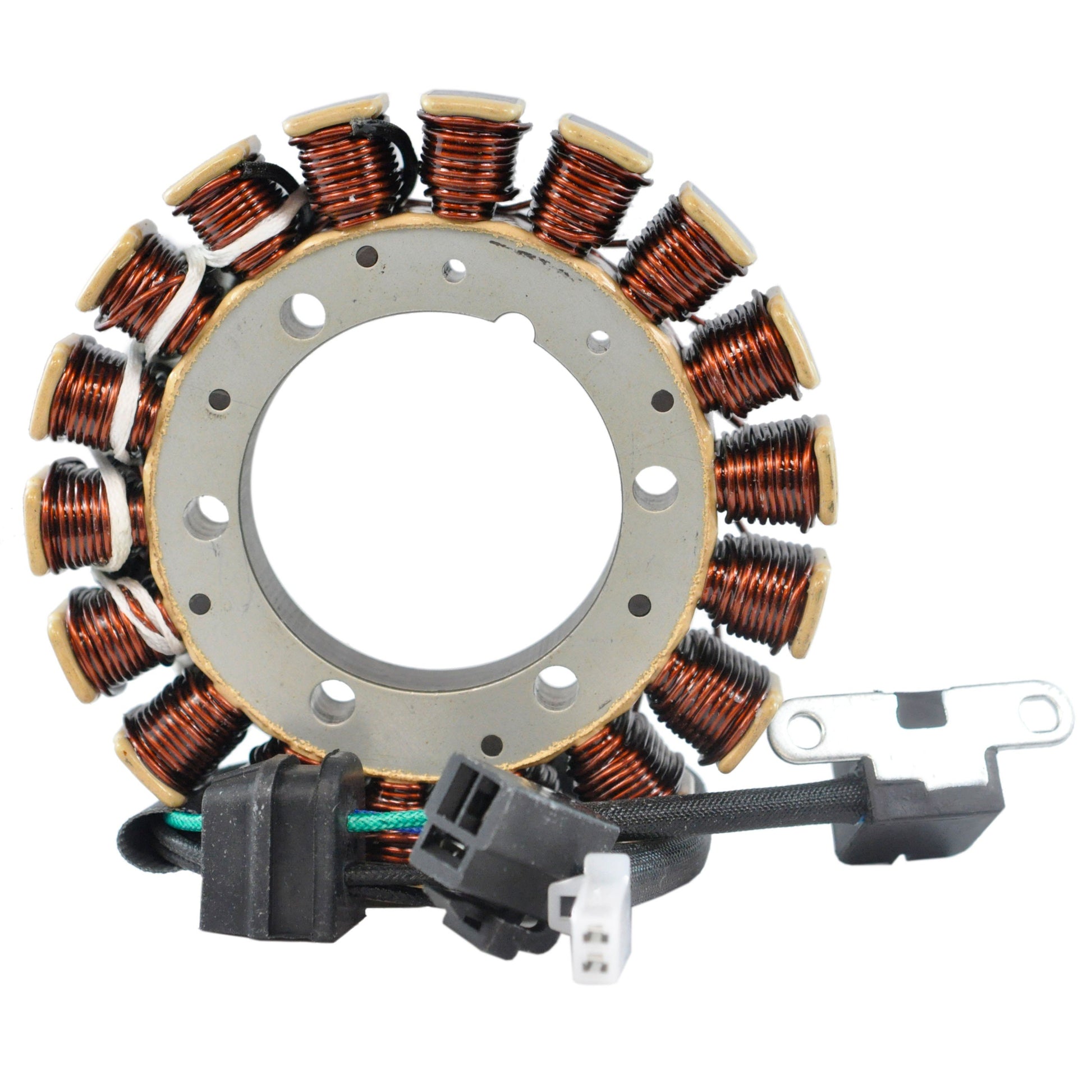

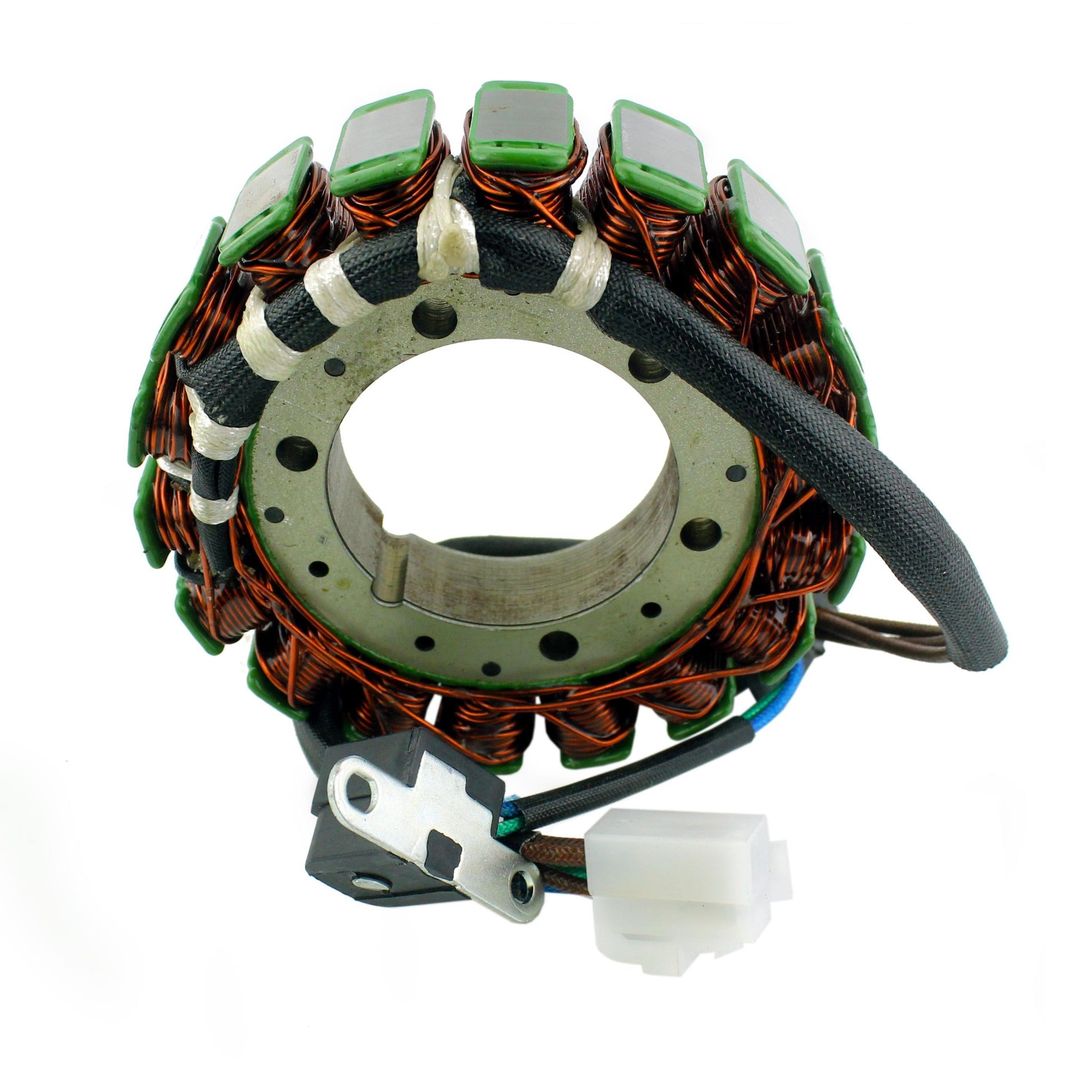

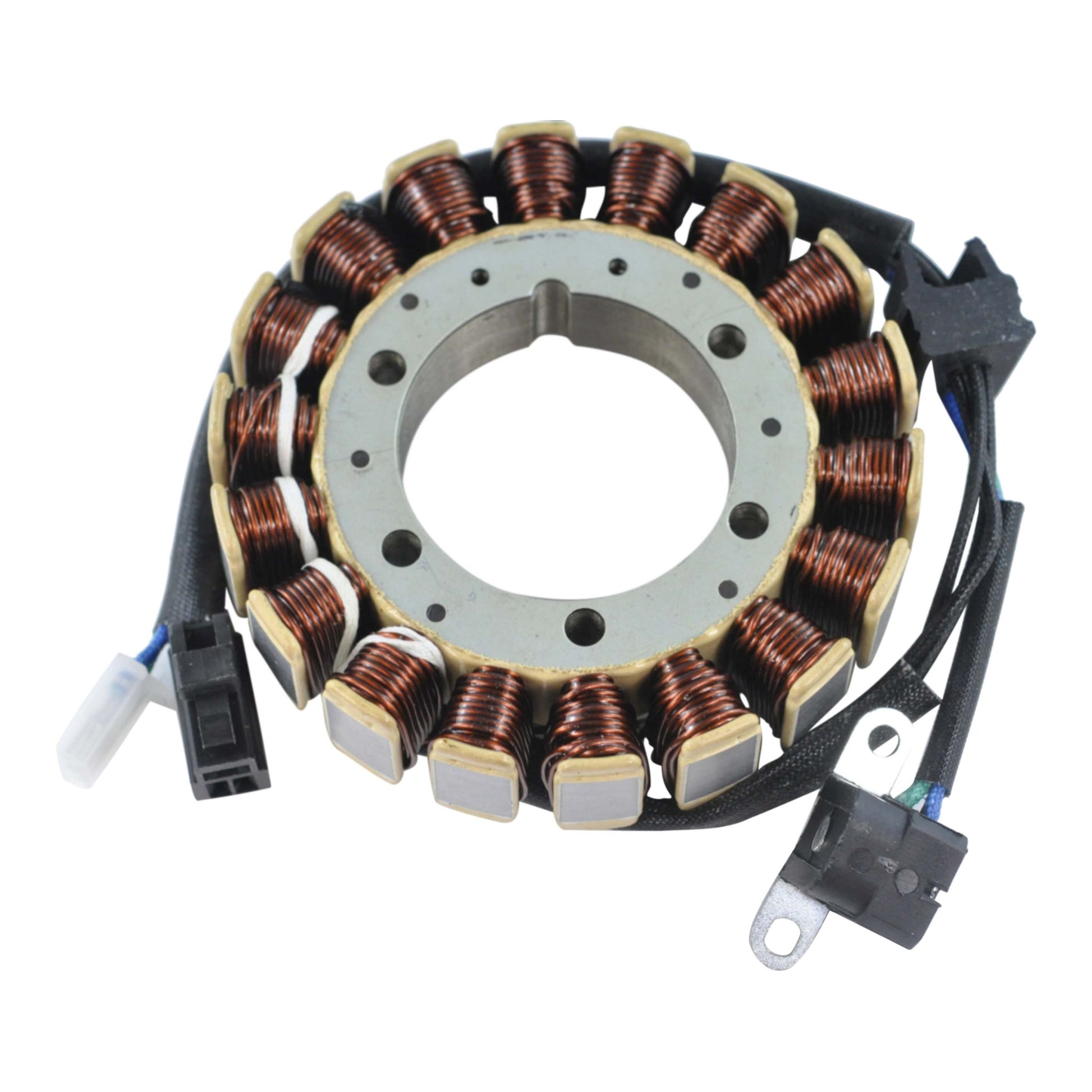

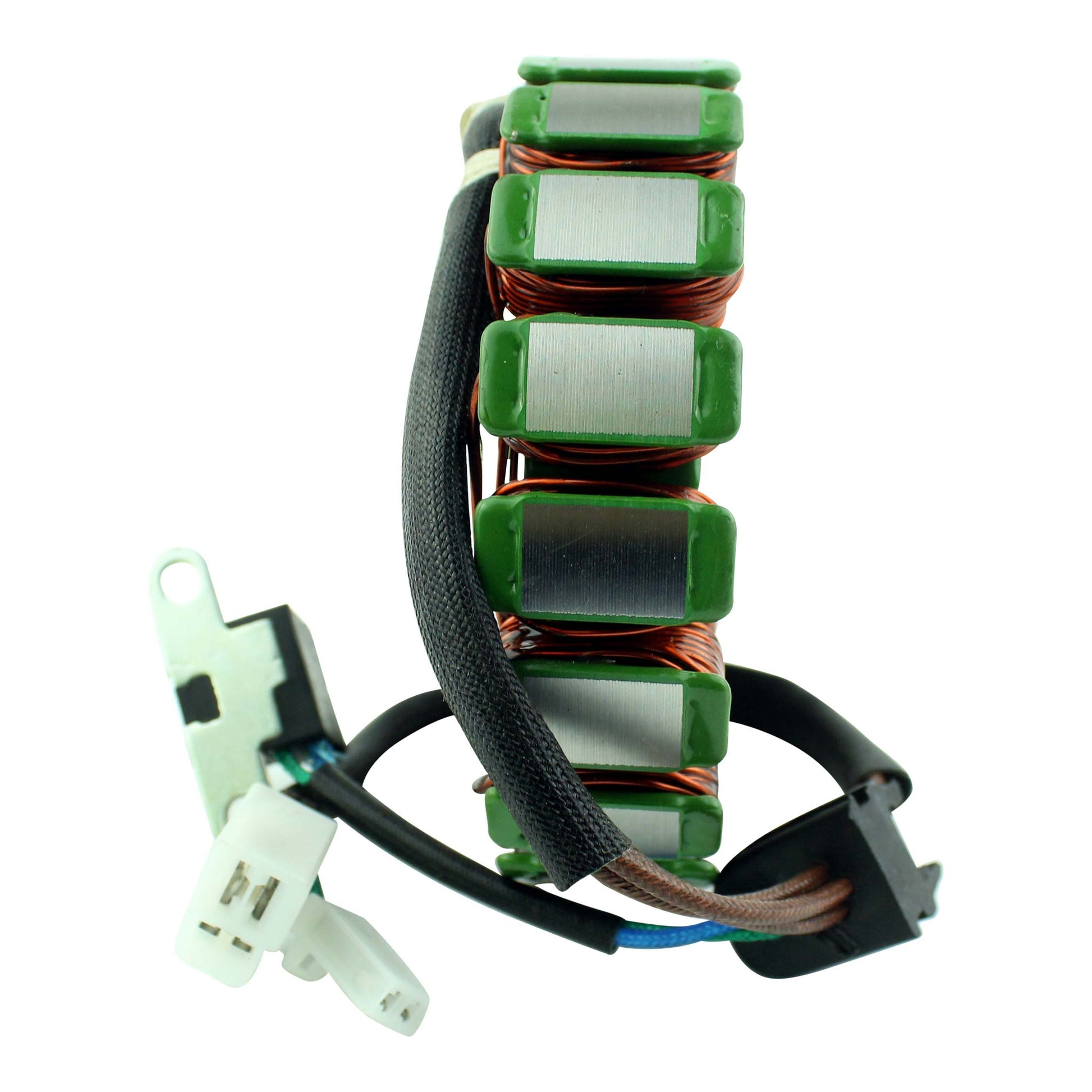

Generator Stator for Suzuki VL1500 / VL1500B Intruder 1500
Suzuki VL1500 and VL1500B Intruder 1500, 1998-2004 - replaces OEM 32101-10F00 and 32101-10F01
This is a brand new aftermarket generator stator built as a direct replacement for the original charging unit fitted to the Suzuki VL1500 Intruder 1500. It is a plug-and-play, direct fit part, so it goes back in exactly where the original came out with no modification to the engine cases or the wiring loom. The part number is RM01196S.
The unit is wound with the highest grade copper windings, rated to withstand 200 degrees Celsius, and built on the highest grade lamination materials. The pick up pulsar coil, the connector and the rubber grommet are all supplied already fitted to the assembly, and every unit is tested before it is shipped.
Key Features
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius
- Pick up pulsar coil included

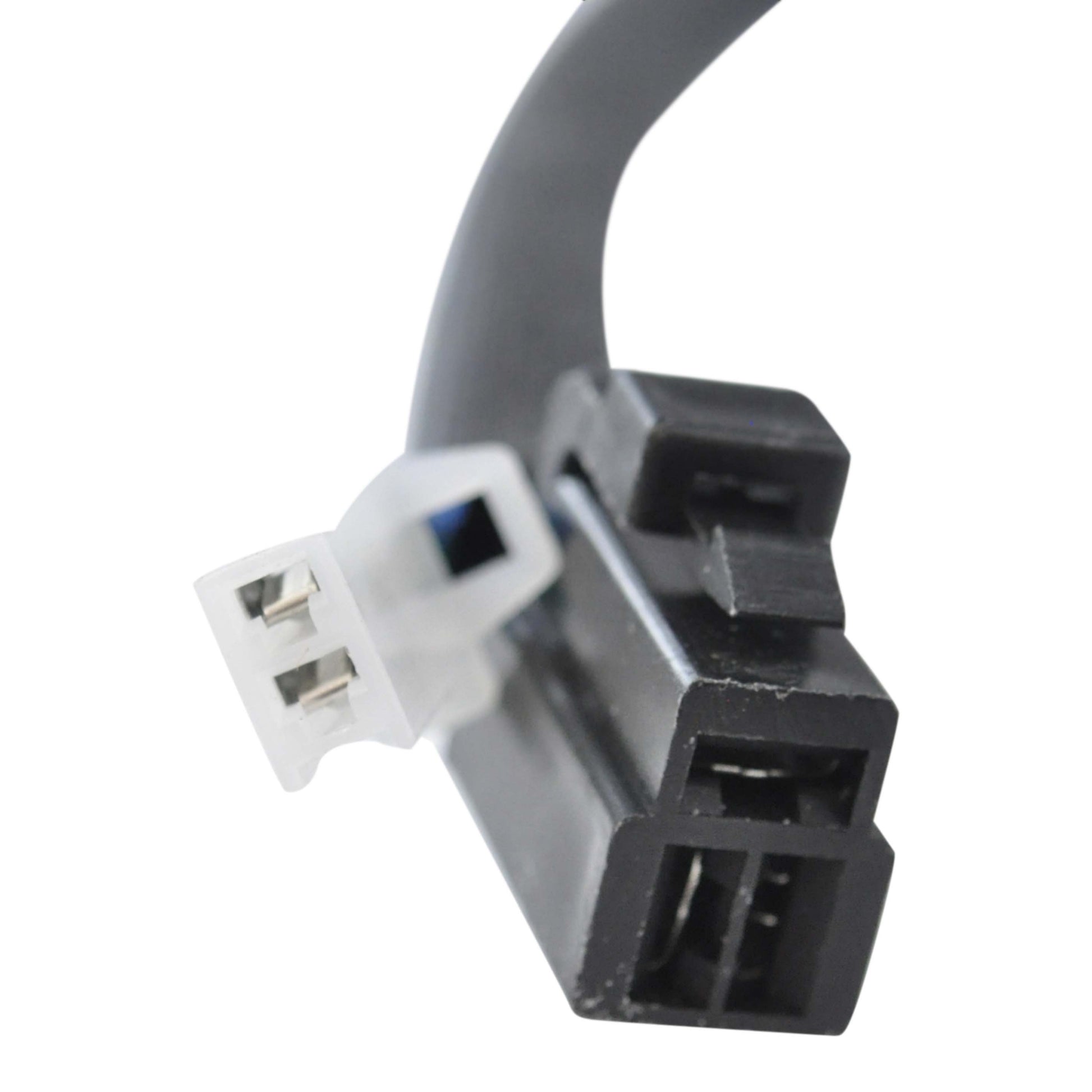

- Connector included
- Rubber grommet included
- All products shipped are tested
- Part number RM01196S
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RM01196S |
| Interior diameter | 53 mm |
| Exterior diameter | 115 mm |
| Thickness | 20 mm |
| Wire length, stator to grommet | 100 mm |
| Wire length, grommet to plug | 130 mm |
| Pickup coil wire length | 45 mm |
| Number of wires | 5 |
| Number of plugs | 2 |
| Number of pins | 5 |
| Alternator resistance, black to black | 0.4 ohms +/- 20% |
| Pickup resistance, blue to green | 220 ohms +/- 20% |
| Winding temperature rating | 200 degrees Celsius |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Suzuki VL1500 Intruder 1500 | 1998-2004 |
| Suzuki VL1500B Intruder 1500 | 1998-2004 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 32101-10F00 | Suzuki |
| 32101-10F01 | Suzuki |
Frequently Asked Questions
Does this stator need any modification to fit?
No. It is a direct, plug-and-play replacement for the original unit on the Suzuki VL1500 and VL1500B Intruder 1500. The connector and rubber grommet are already fitted, so there is no cutting, splicing or reworking of the wiring loom.
What is included in the box?
The stator assembly, the pick up pulsar coil, the connector and the rubber grommet. Everything listed in the specification table is supplied as one ready to fit assembly.
How do I know my original stator has failed?
A multimeter check is the quickest confirmation. Across the alternator windings this unit reads 0.4 ohms +/- 20% black to black, and the pickup reads 220 ohms +/- 20% blue to green. A reading that is open circuit, shorted to earth, or well outside those figures points to a failed stator.
Which OEM numbers does it replace?
Suzuki 32101-10F00 and 32101-10F01. Check the number on your original unit against that list before ordering, as it is the most reliable way to confirm fitment.
