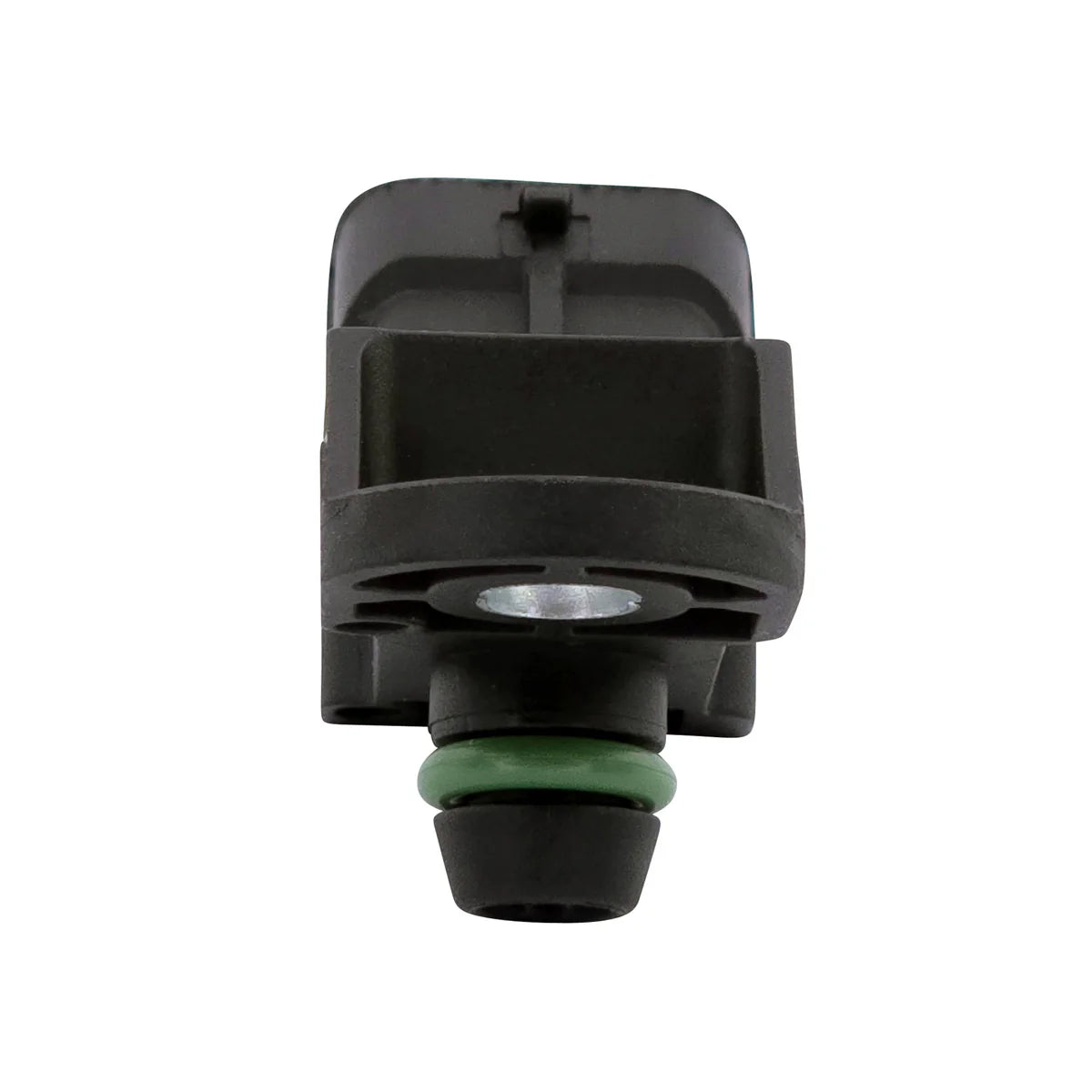

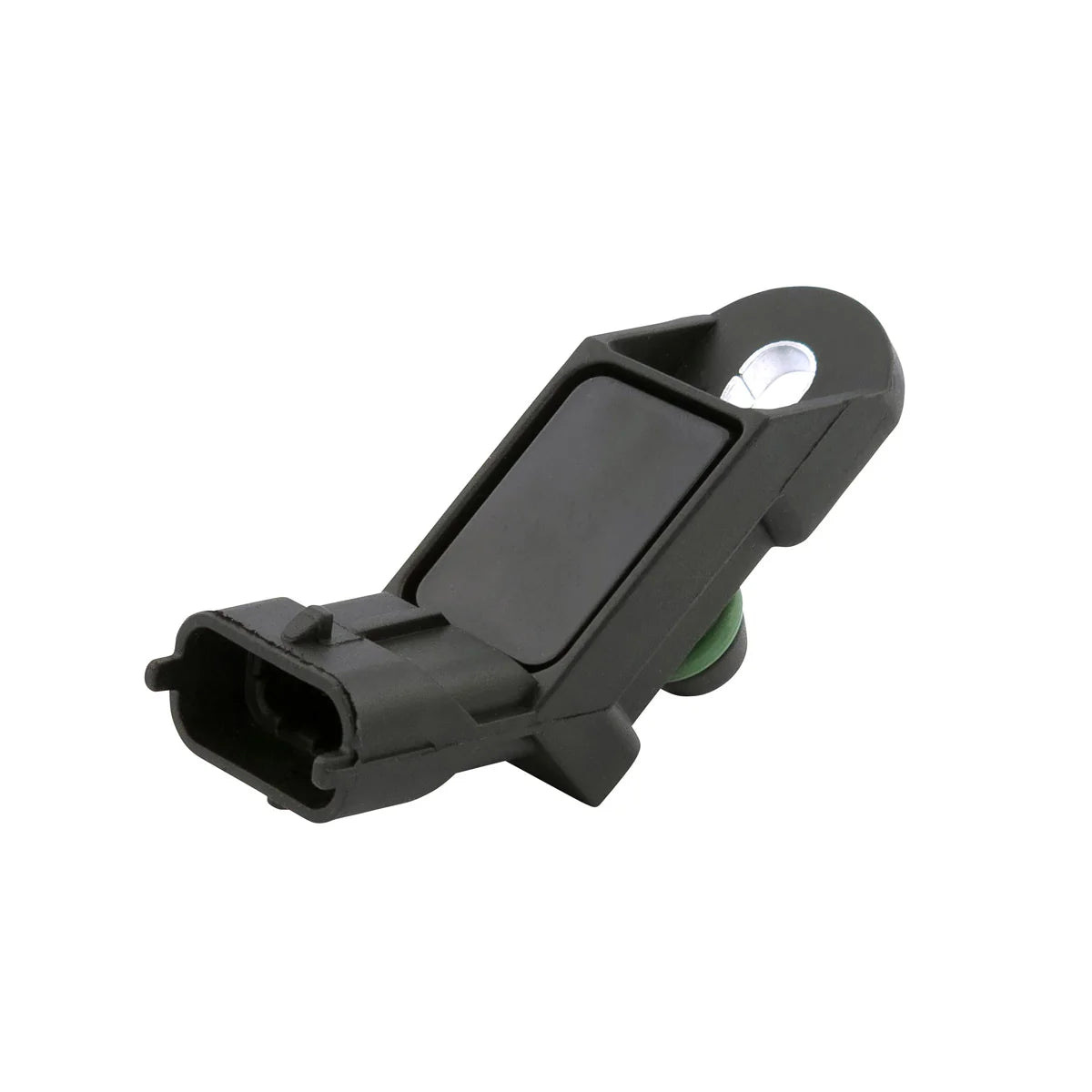

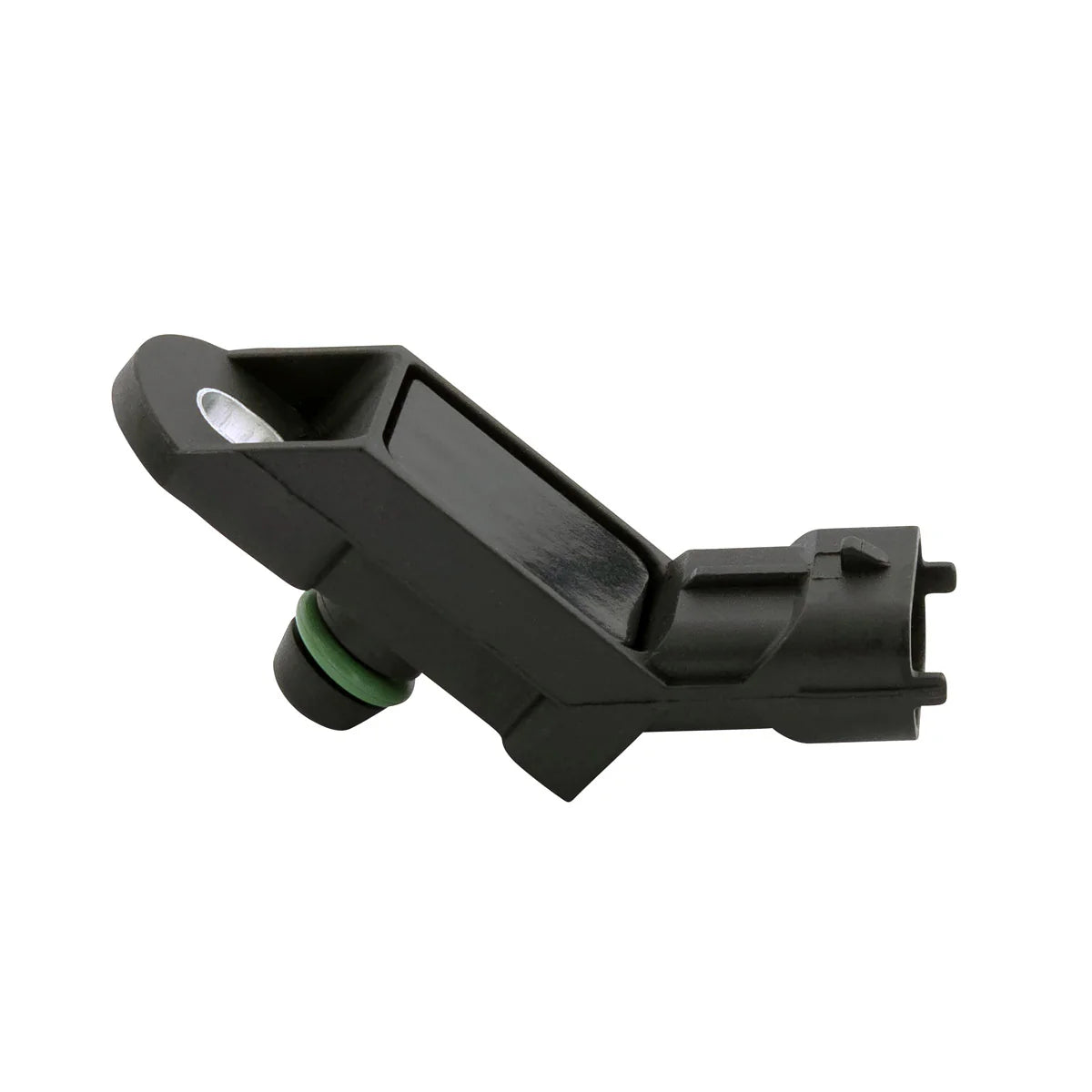

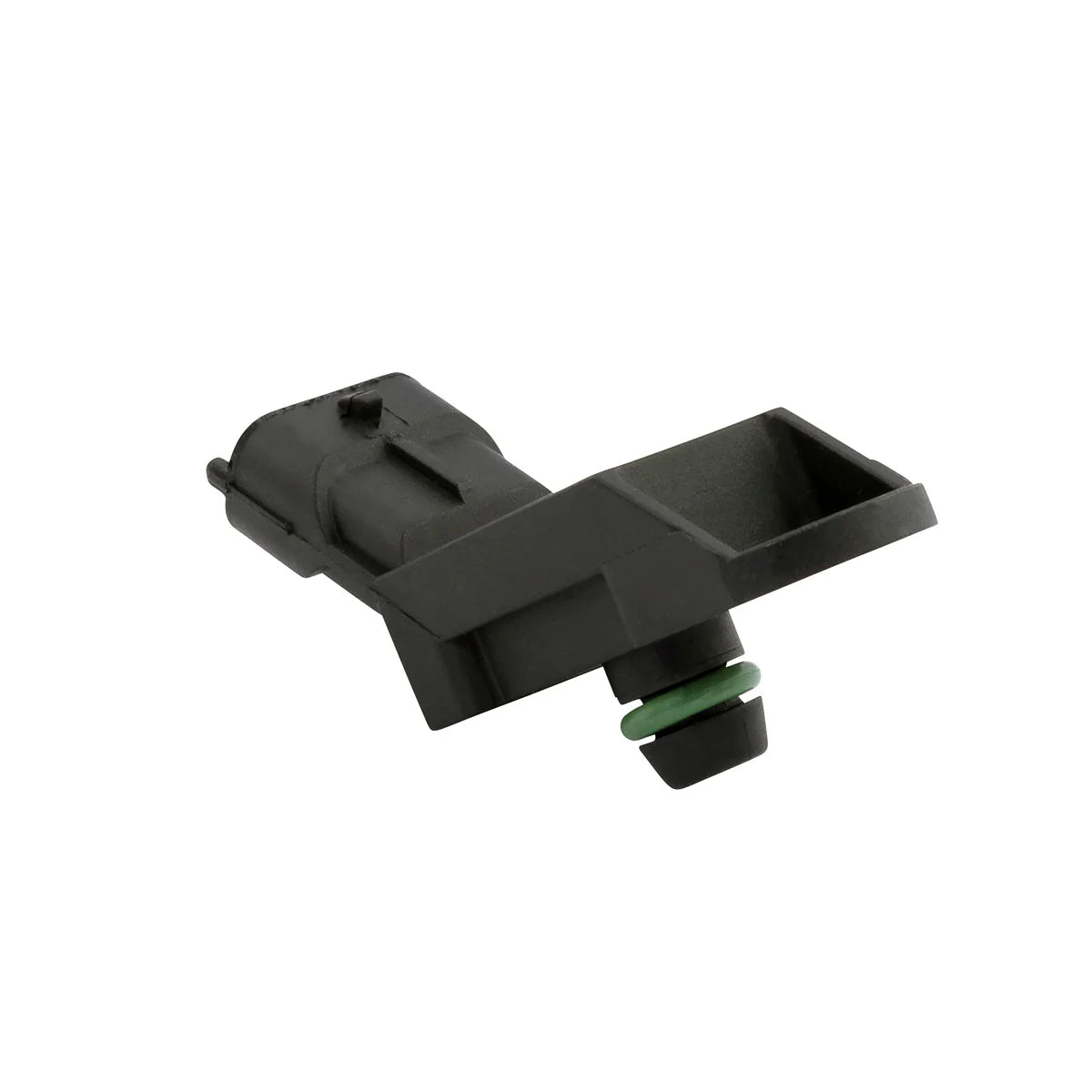

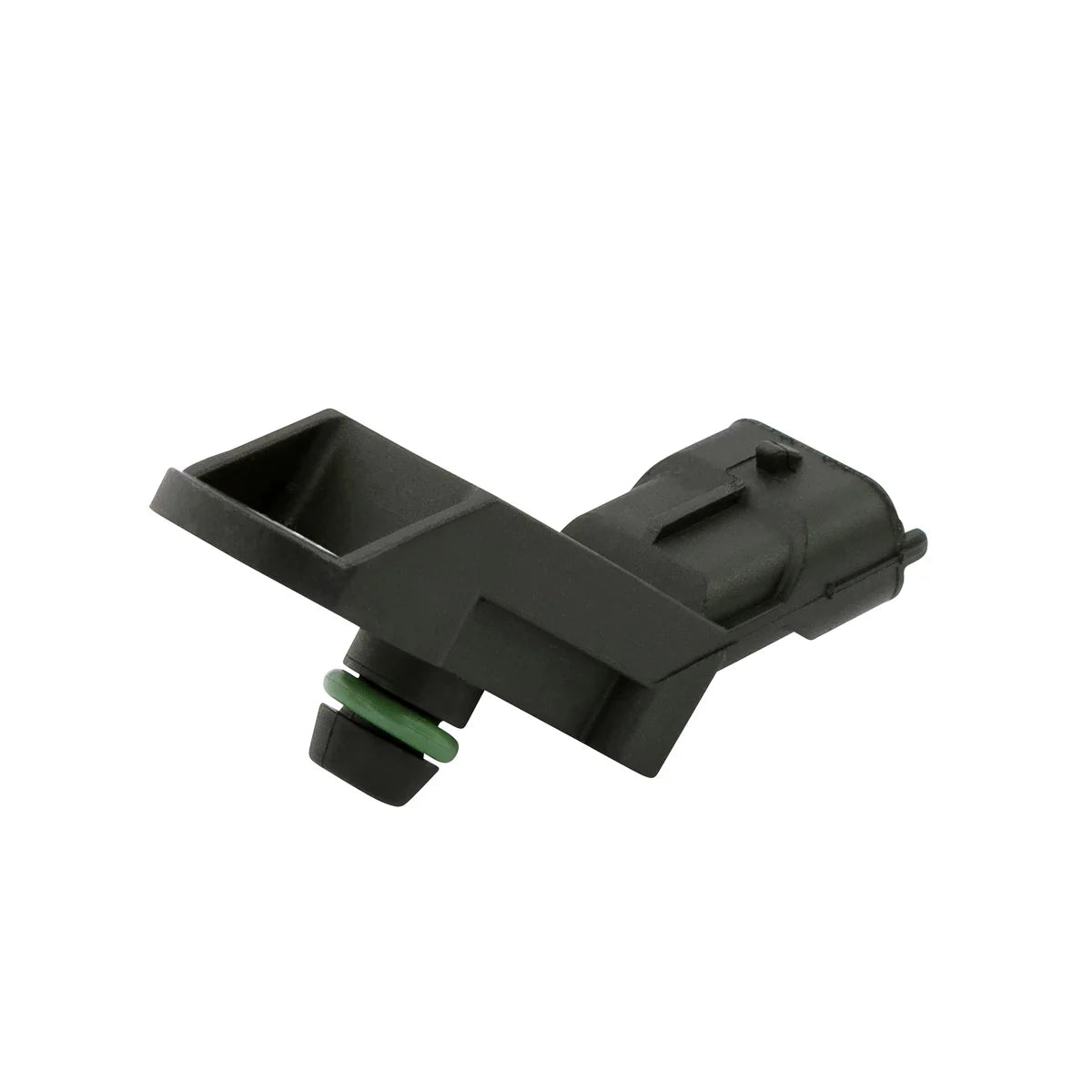

T-Map Pressure Sensor for Can-Am Maverick, Sea-Doo & Ski-Doo 900 ACE 2003-2022
T-Map Pressure Sensor for Can-Am Maverick, Sea-Doo & Ski-Doo 900 ACE 2003-2022
SKU:RMS140-108688
Free shipping over £150. Terms apply
Couldn't load pickup availability
T-Map Pressure Sensor for Can-Am Maverick, Sea-Doo & Ski-Doo 900 ACE 2003-2022
Fits Can-Am Maverick, Sea-Doo GTX/GTI/WAKE & Ski-Doo/Lynx 900 ACE models, 2003-2022
This is a direct-fit replacement T-MAP (Temperature and Manifold Absolute Pressure) sensor built to OEM specifications, covering a wide range of Can-Am, Sea-Doo, Ski-Doo and Lynx models fitted with the 900 ACE engine family. It is a complete, ready-to-fit unit engineered to match the form, fit and function of the original sensor.
The sensor uses a single wiring plug on a 3-terminal connector and measures 23mm wide, 72mm long and 44mm high, matching the specification of the sensor originally fitted across this engine range.
Key Features
- Direct OEM fit and function - no modification required
- Single plug, 3-terminal connector
- Compact 23mm x 72mm x 44mm housing
- Covers Can-Am, Sea-Doo, Ski-Doo and Lynx 900 ACE applications
- 12-month warranty as standard
Technical Specs
| Specification | Detail |
|---|---|
| Width | 23mm |
| Length | 72mm |
| Height | 44mm |
| Number of Plugs | 1 |
| Number of Terminals | 3 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Can-Am Maverick | 2003-2022 |
| Can-Am Maverick 1000 / 1000R / Max 1000 / Max 1000R | 2003-2022 |
| Can-Am Maverick X3 / X3 Max / X3 1000RR | 2003-2022 |
| Lynx Commander 900 Turbo ACE | 2003-2022 |
| Lynx 69 Ranger 900 / Alpine 900 ACE Turbo | 2003-2022 |
| Lynx Xterrain 900 ACE Turbo | 2003-2022 |
| Ski-Doo Grand Touring 900 ACE Turbo | 2003-2022 |
| Ski-Doo Renegade 900 (Enduro / Adrenaline / X / XRS) ACE Turbo | 2003-2022 |
| Ski-Doo Expedition 900 / Expedition 900 SWT ACE Turbo EFI | 2003-2022 |
| Sea-Doo GTX / GTI / GTS / GTR / WAKE / RXP / RXT / Speedster / Challenger / Utopia / Islandia | 2003-2022 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 420274057 | OEM |
| 420274058 | OEM |
Frequently Asked Questions
Will this sensor fit without any modification?
Yes, this is a direct plug-in replacement across the listed Can-Am, Sea-Doo, Ski-Doo and Lynx 900 ACE applications and requires no modification to install.
What is included?
One complete T-MAP pressure sensor, ready to fit in place of the original.
How do I know my old sensor has failed?
Common signs include a rough or hesitant idle, poor throttle response, a stored engine fault code relating to manifold pressure or intake air temperature, or the engine warning light illuminating.
Does one sensor cover both the Sea-Doo and Ski-Doo ranges?
Yes, this sensor is shared across the listed Can-Am, Sea-Doo, Ski-Doo and Lynx applications fitted with the 900 ACE engine family - please confirm your OEM part number against the codes listed above before ordering.
