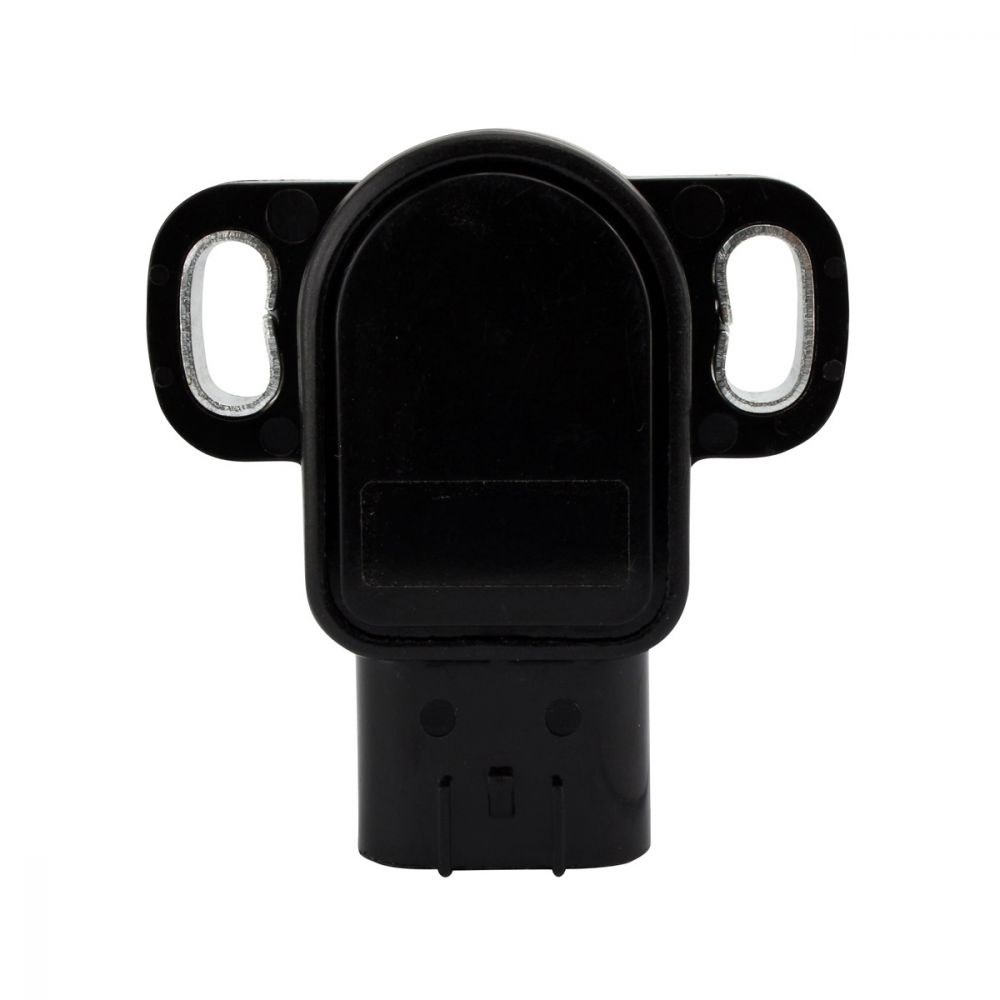

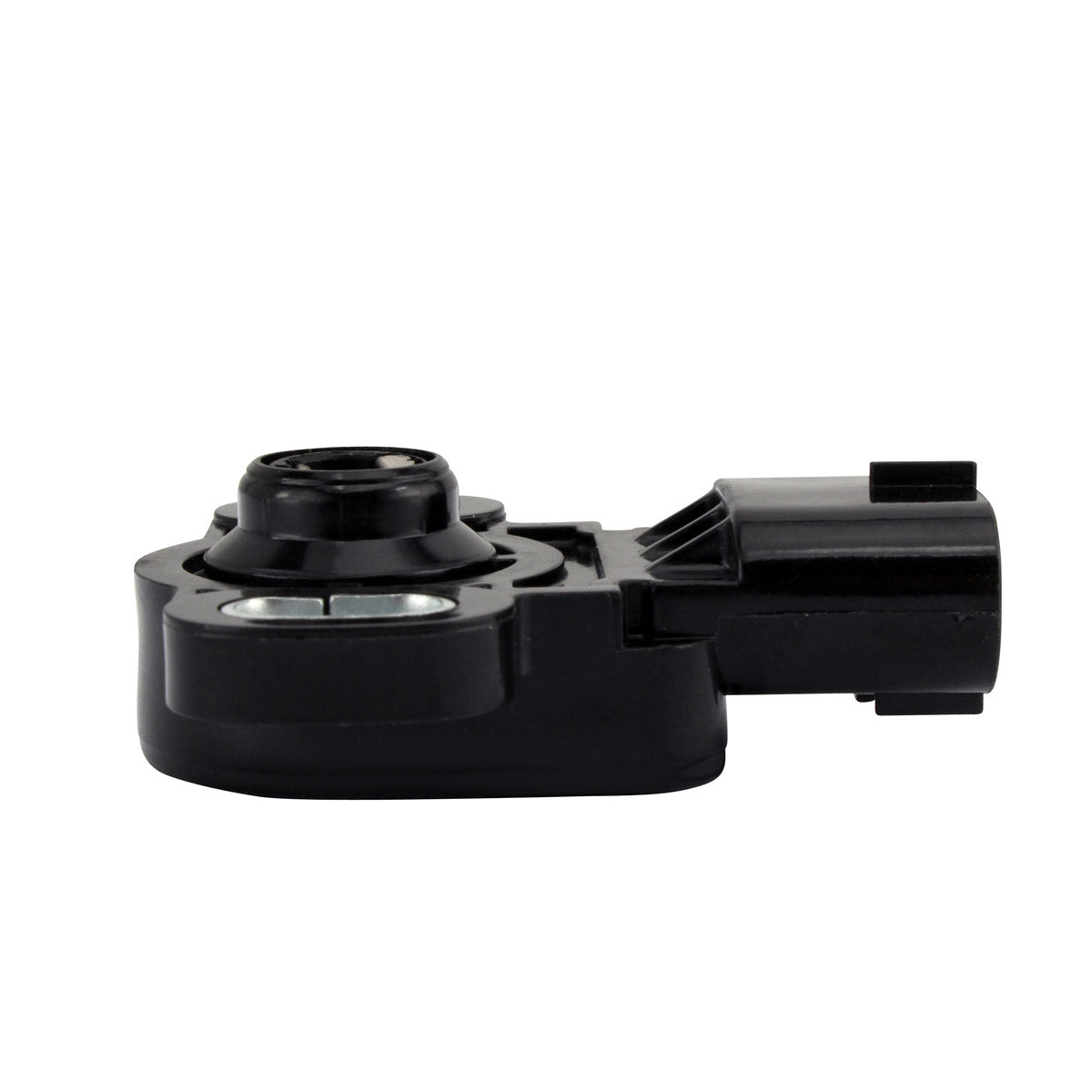

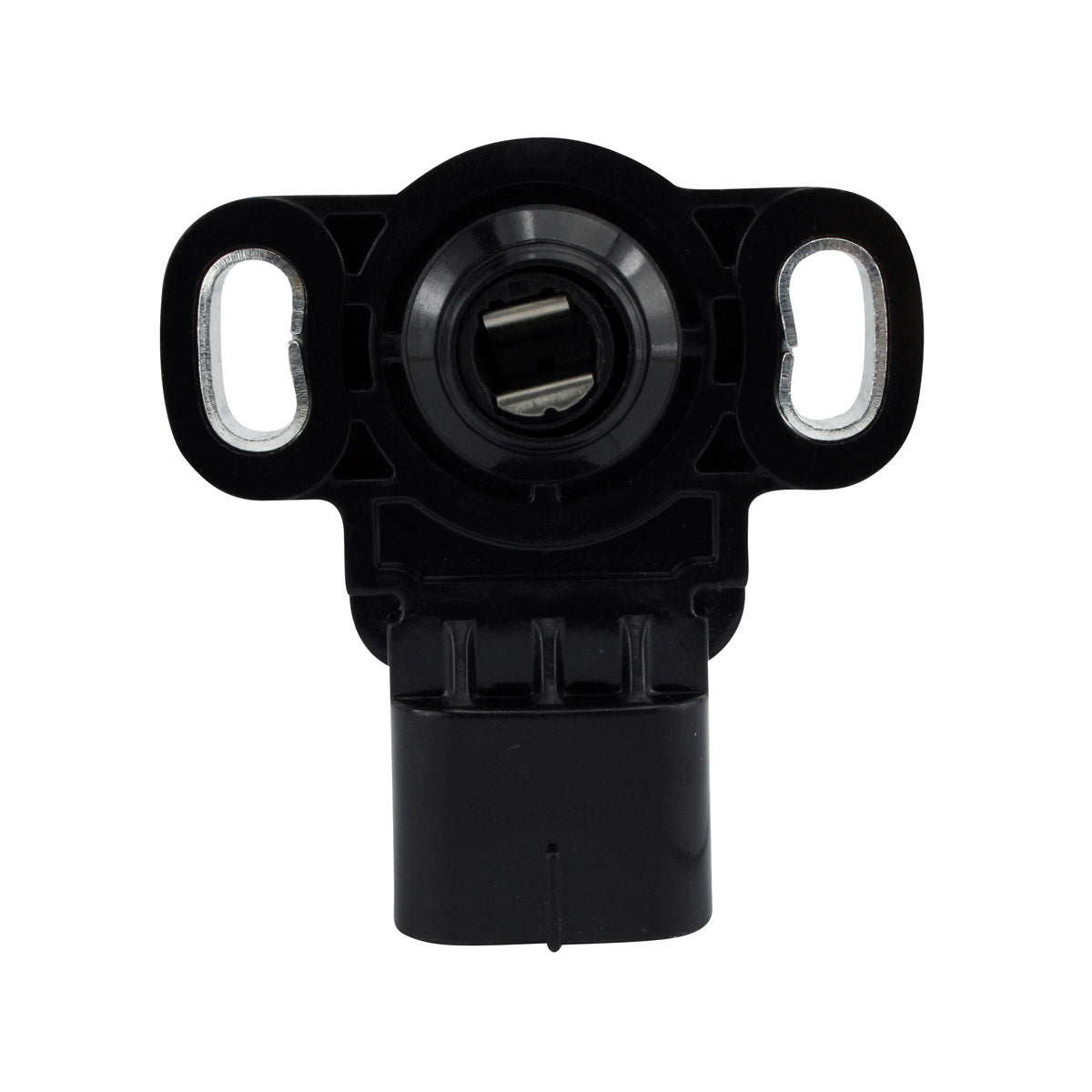

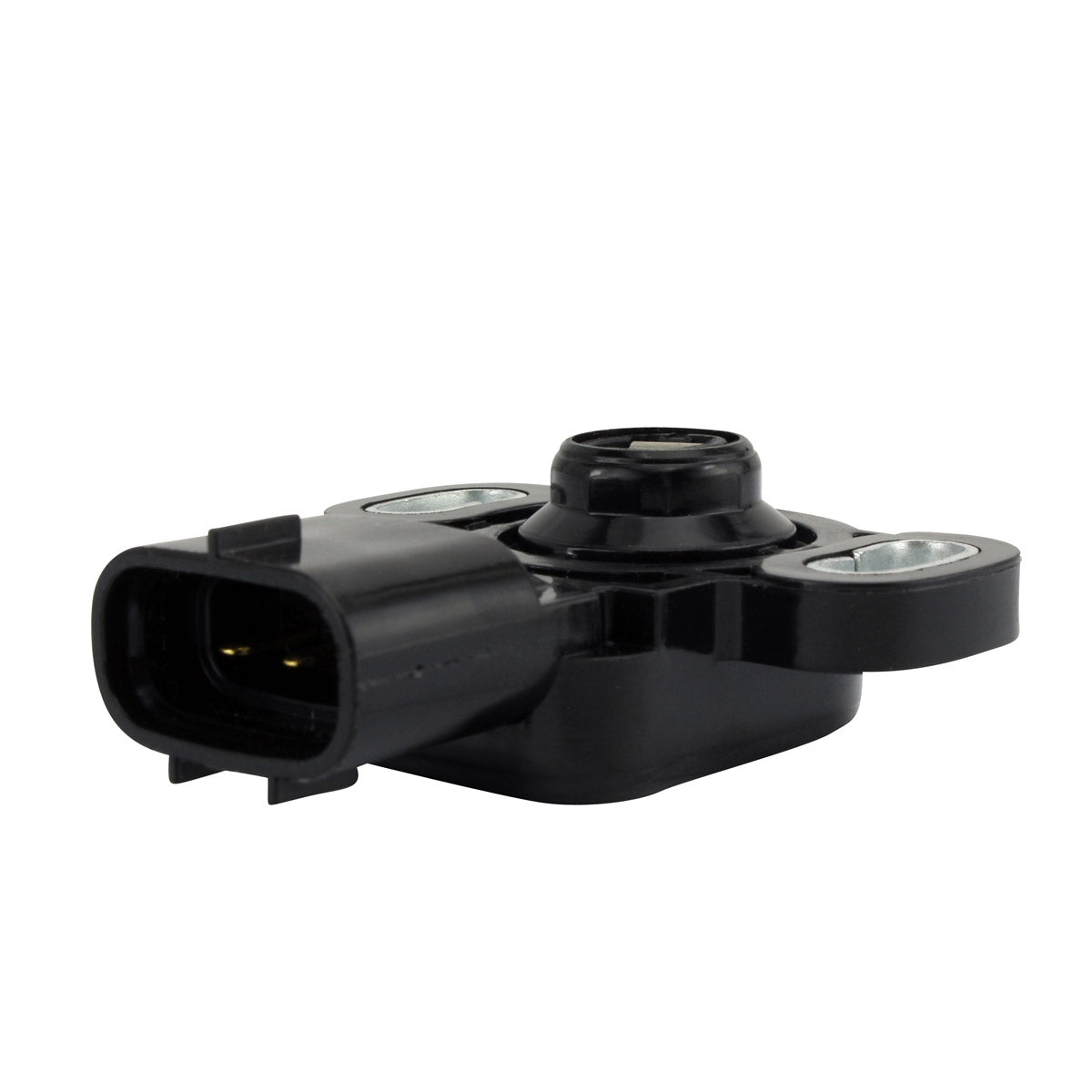

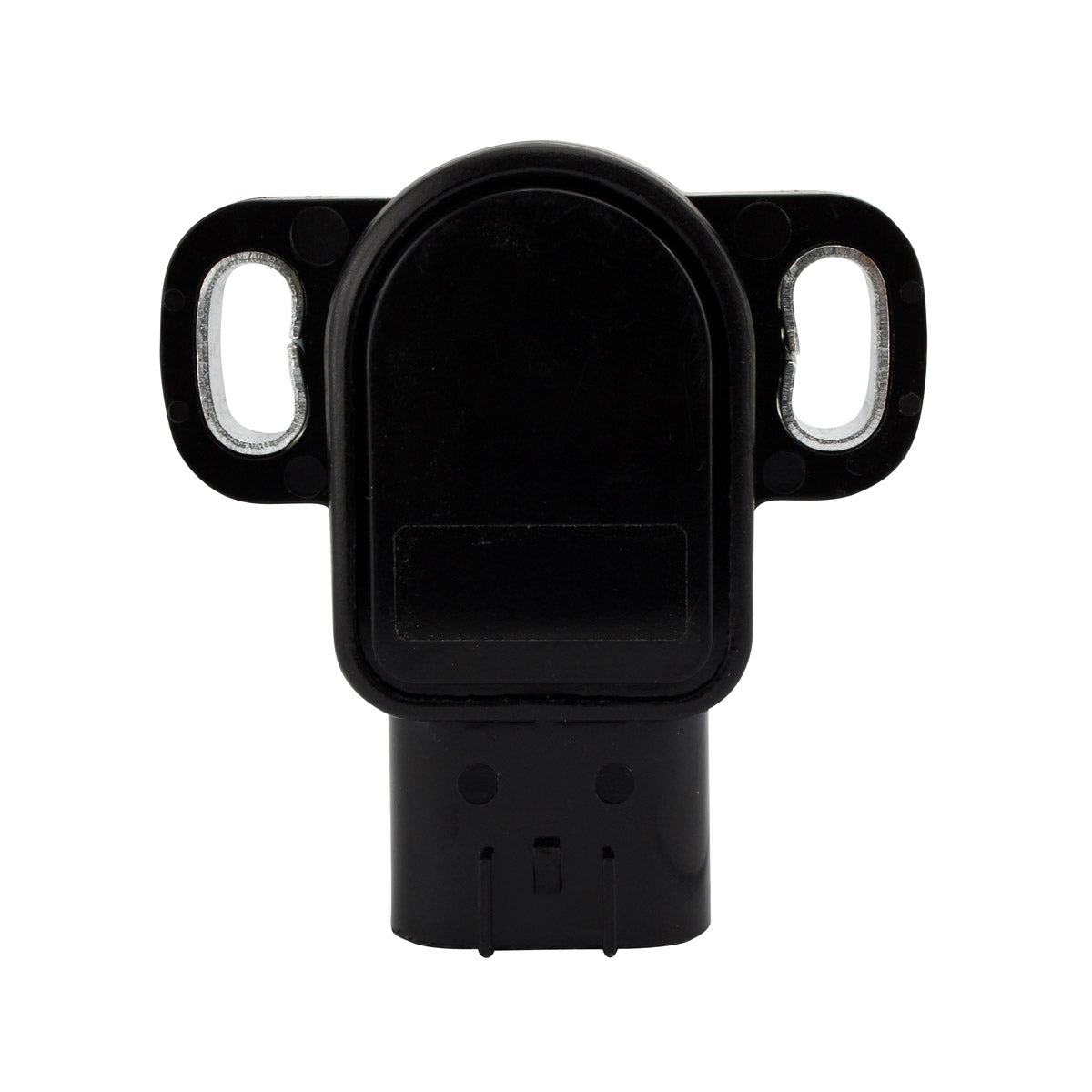

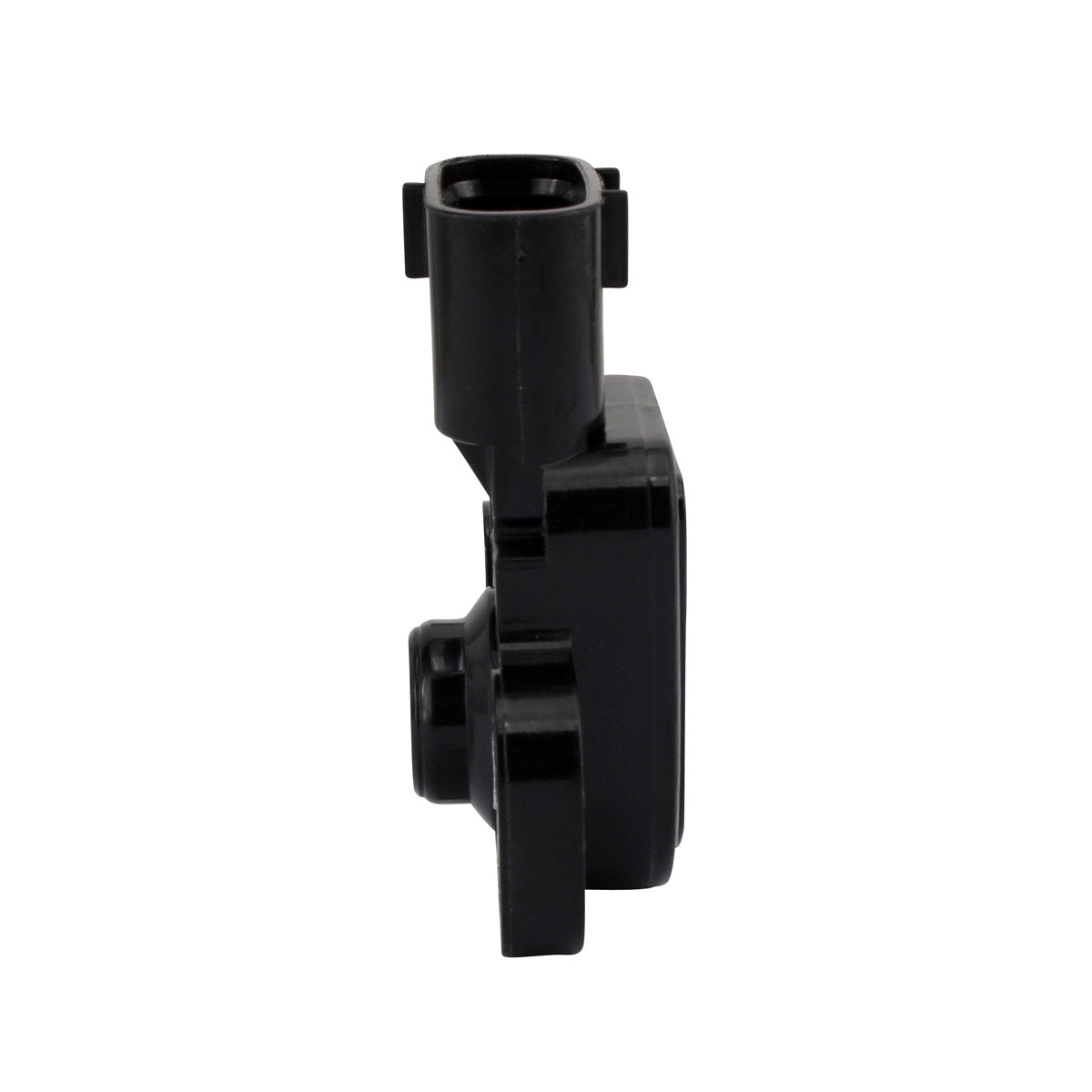

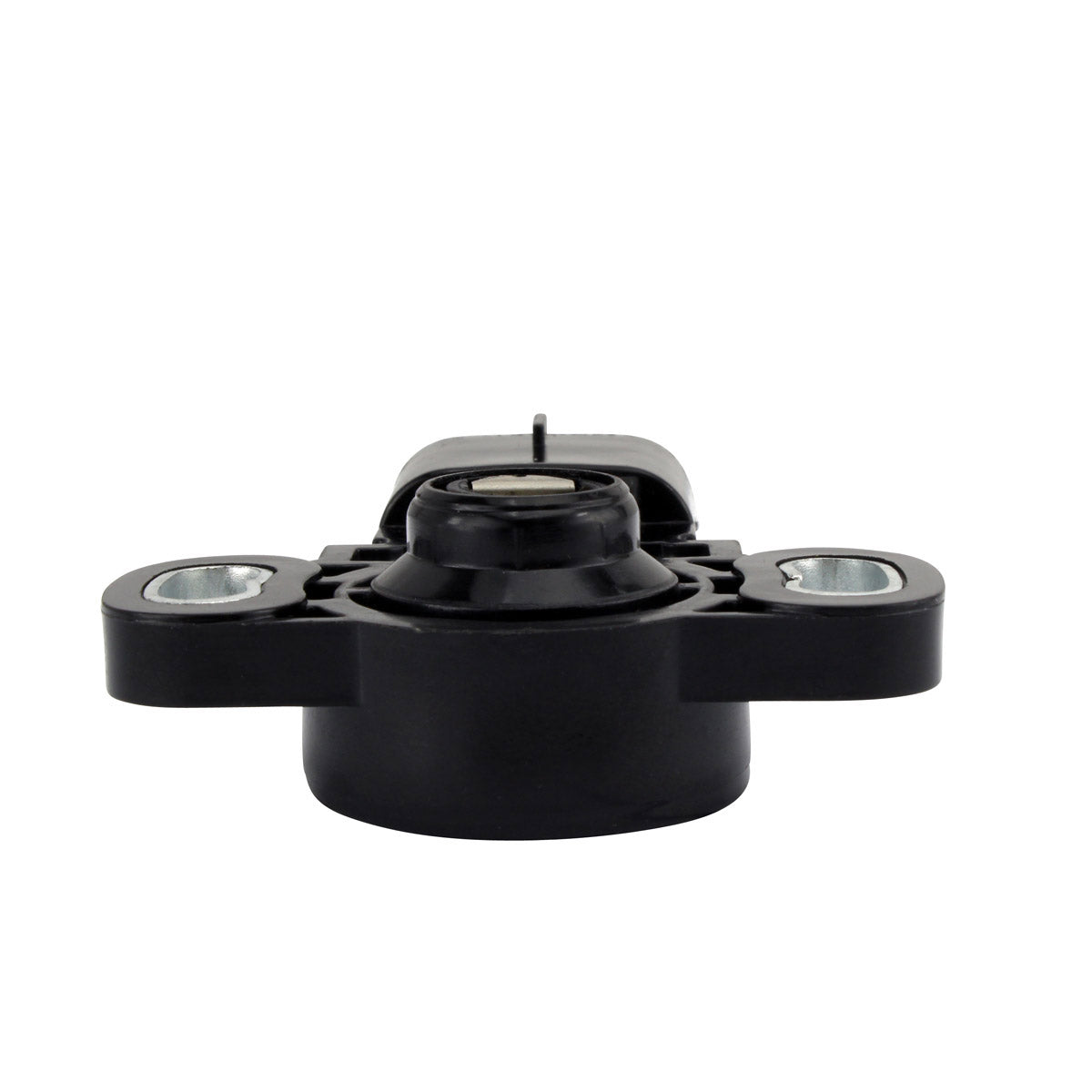

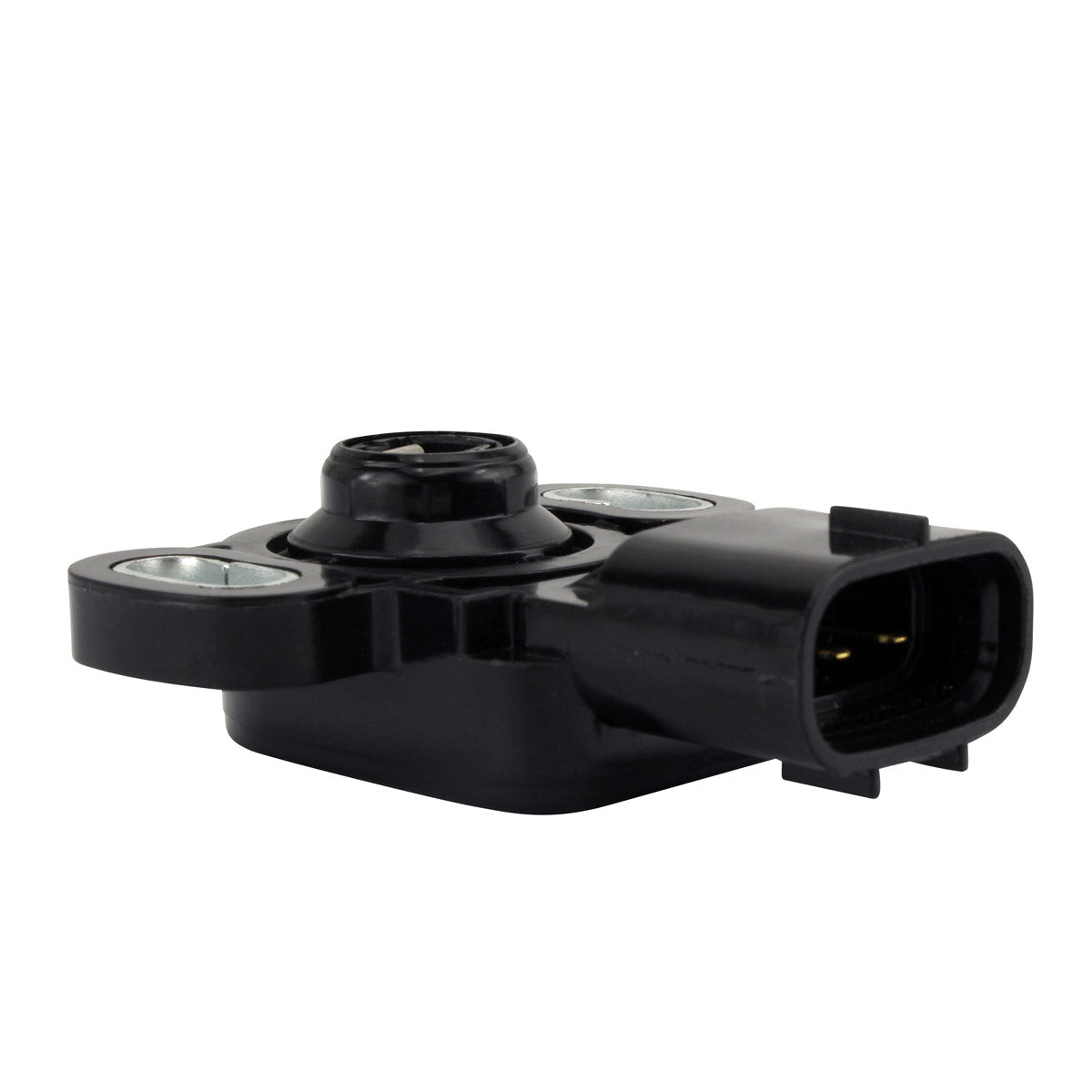

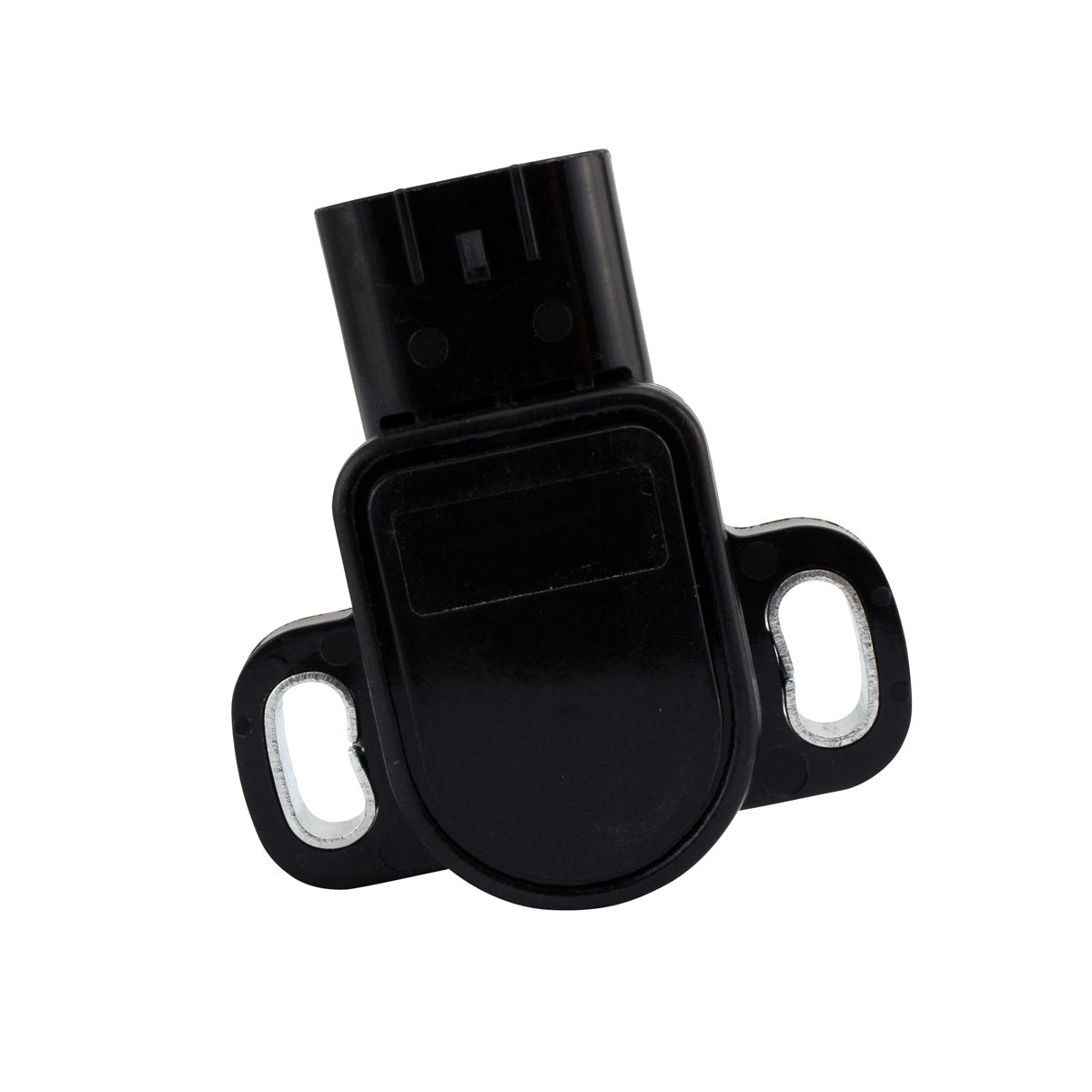

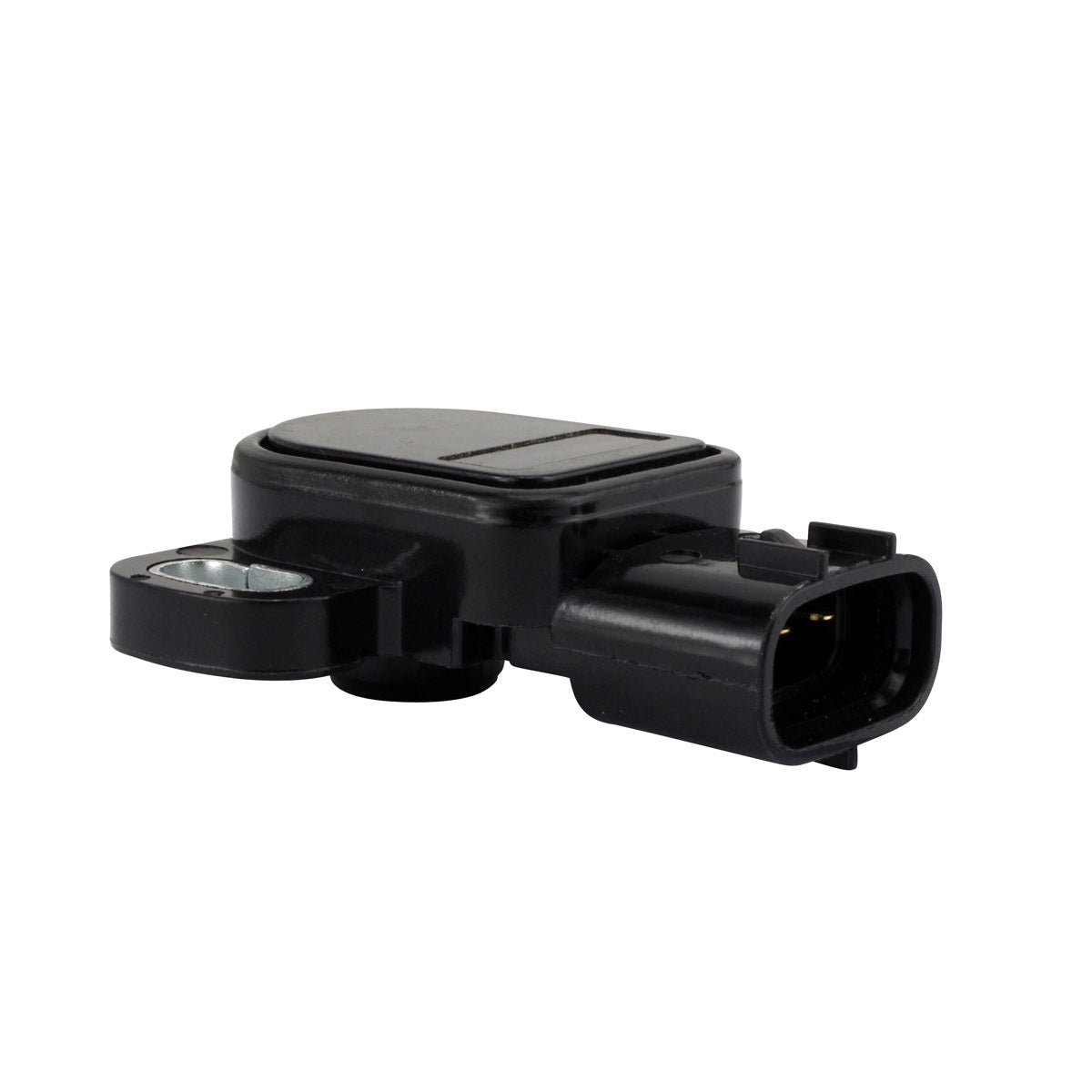

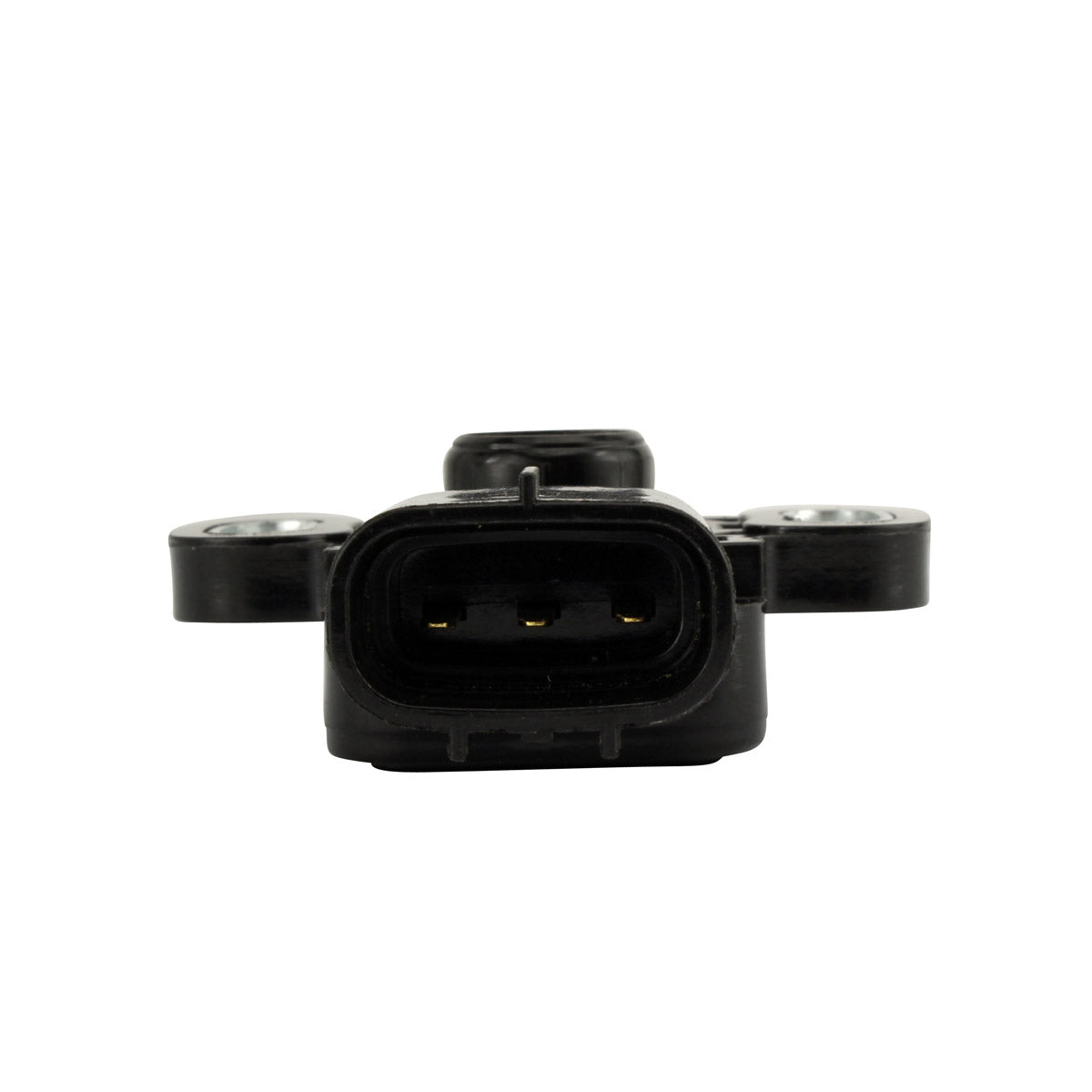

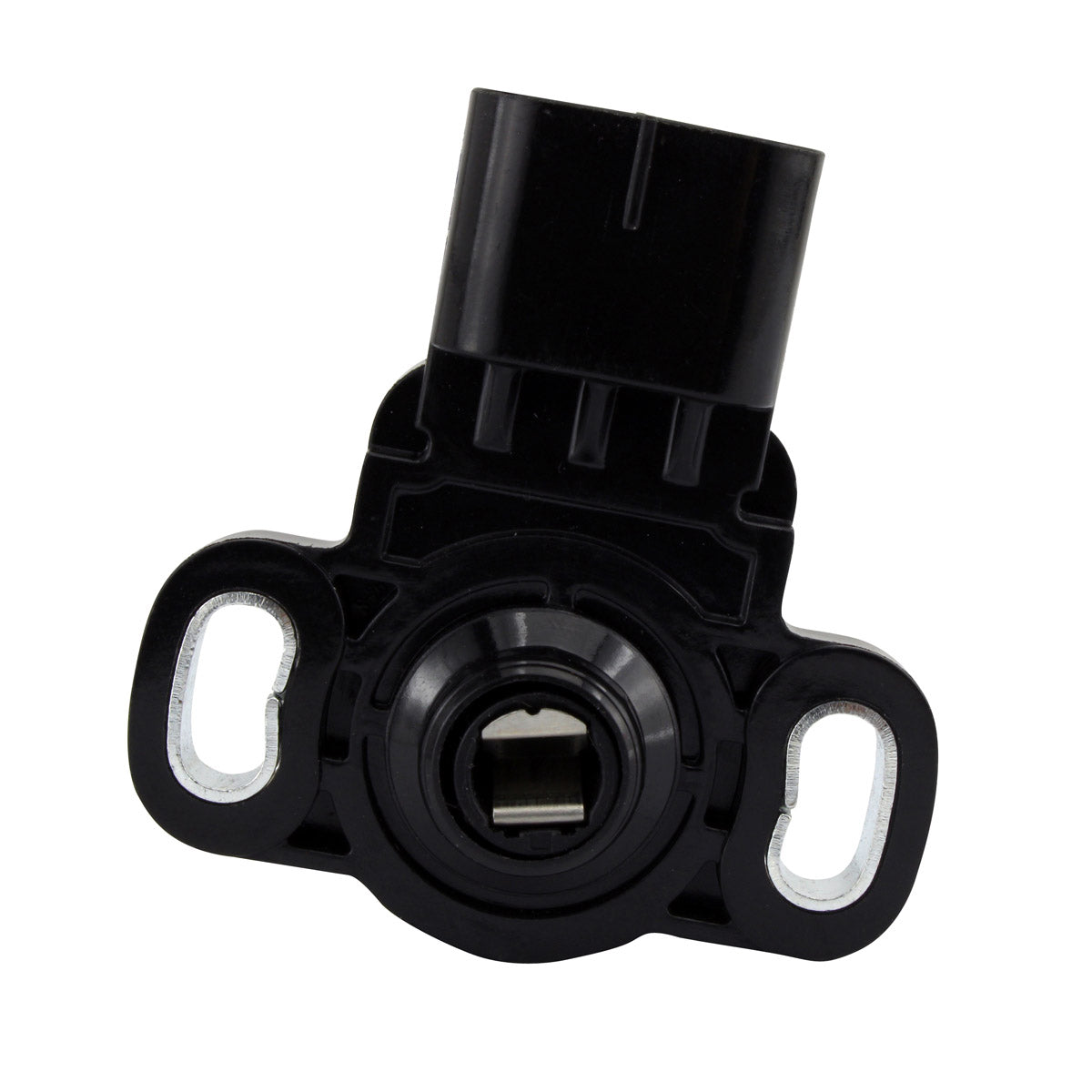

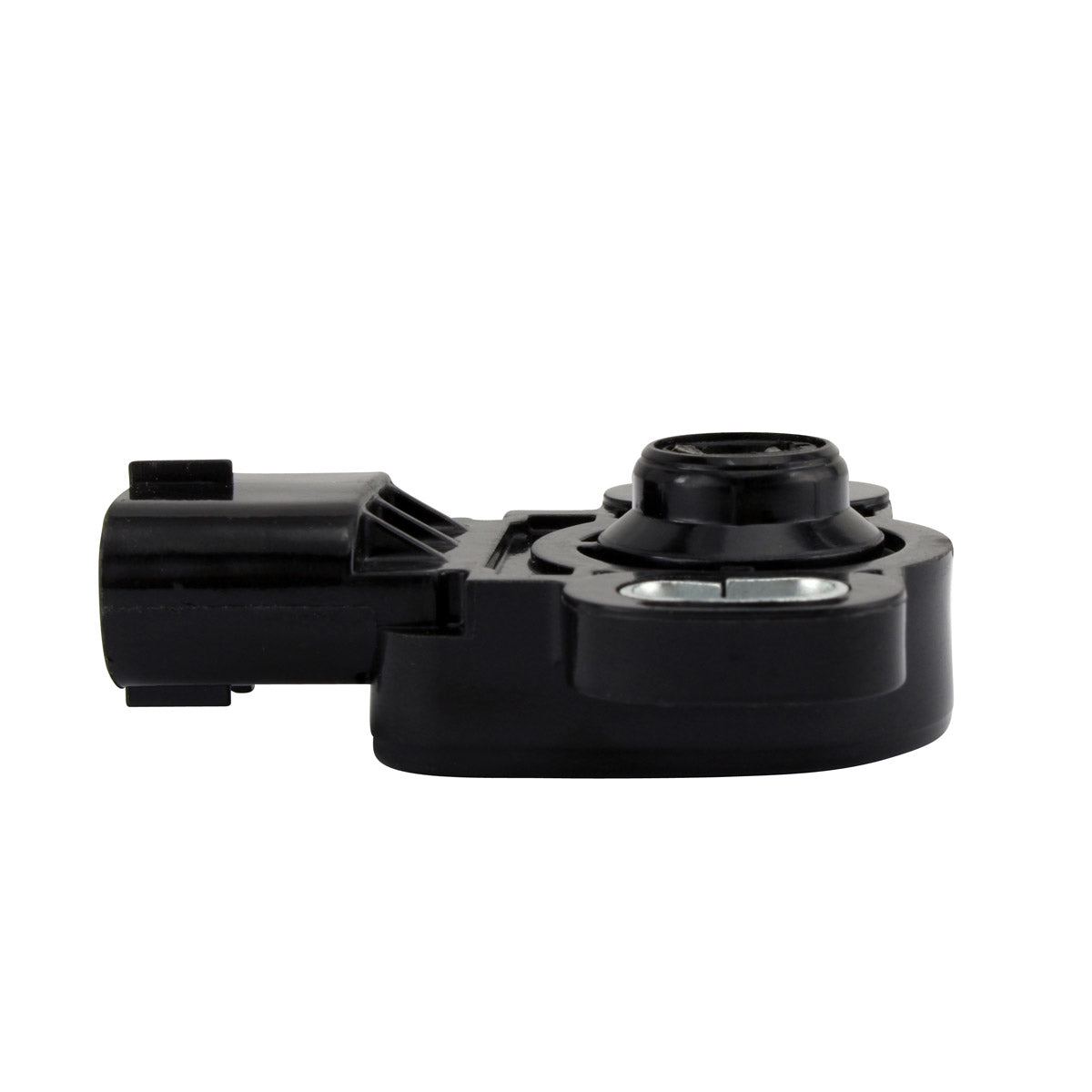

Brand new aftermarket throttle position sensor (TPS), built as a direct replacement for your original unit. It is a plug-and-play, direct fit part with easy installation, and every unit is tested before it is shipped. All item pictures are accurate - if in doubt, compare the item against your original part before ordering.
The throttle position sensor reports throttle opening to the engine control unit. When the sensor drifts or breaks down the engine can hesitate, idle badly, surge or throw a fault code, because the control unit is working from a bad throttle reading. This sensor measures 56 mm wide by 58 mm long by 21.5 mm high, with 42 mm between the fixation holes, and carries 3 plugs and 3 terminals.
Key Features
- Brand new aftermarket throttle position sensor - not a remanufactured core
- Direct replacement for the original unit
- Plug-and-play, direct fit, easy installation
- 3 plugs and 3 terminals, matching the original layout
- 42 mm fixation hole spacing
- All products shipped are tested
- Dispatched from the UK with technical fitment support
Technical Specs
| Specification |
Detail |
| SKU / Part Code |
RMS140-108260 |
| Component |
Throttle Position Sensor (TPS) |
| Width |
56 mm |
| Length |
58 mm |
| Height |
21.5 mm |
| Distance between fixation holes |
42 mm |
| Number of plugs |
3 |
| Number of terminals |
3 |
| Condition |
New aftermarket |
| Warranty |
12 months |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Yamaha YFM 700 R Raptor |
2008-2024 |
| Arctic Cat XF 7000 |
2008-2024 |
| Arctic Cat ZR 9000 |
2008-2024 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 8GL-85885-00-00 |
OEM reference |
| 8GL-85885-01-00 |
OEM reference |
| 3020-342 |
OEM reference |
Frequently Asked Questions
Does it fit without modification?
Yes. On the applications listed above it is a plug-and-play direct fit that replaces the original unit with no wiring changes or modification.
What is included?
The throttle position sensor itself, with its 3 plugs and 3 terminals. No other hardware is supplied with this part.
How do I tell the old sensor has failed?
Typical symptoms are poor or hunting idle, hesitation as the throttle is opened, surging at steady throttle and stored fault codes pointing at the throttle sensor circuit. A resistance or voltage sweep test through the full throttle travel, compared with your service manual figures, will confirm a dead spot or an out-of-range reading.
How do I check this is the right sensor for my machine?
Compare the OEM number stamped or printed on your original unit against the cross reference table above, and check the body dimensions - 56 mm x 58 mm x 21.5 mm with 42 mm between the mounting holes. If the numbers and the dimensions match, this is the correct part.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
