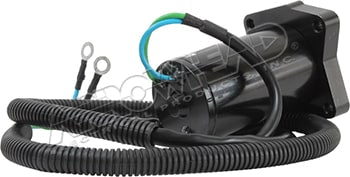

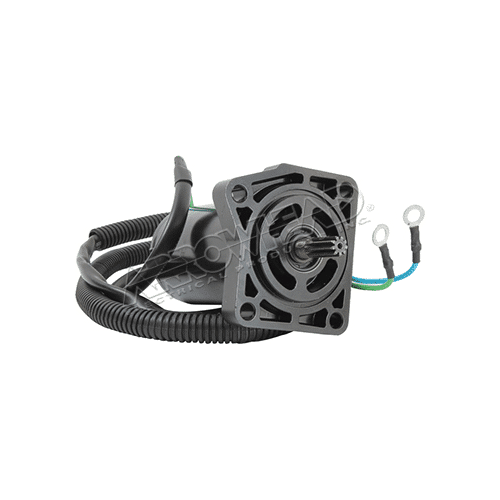

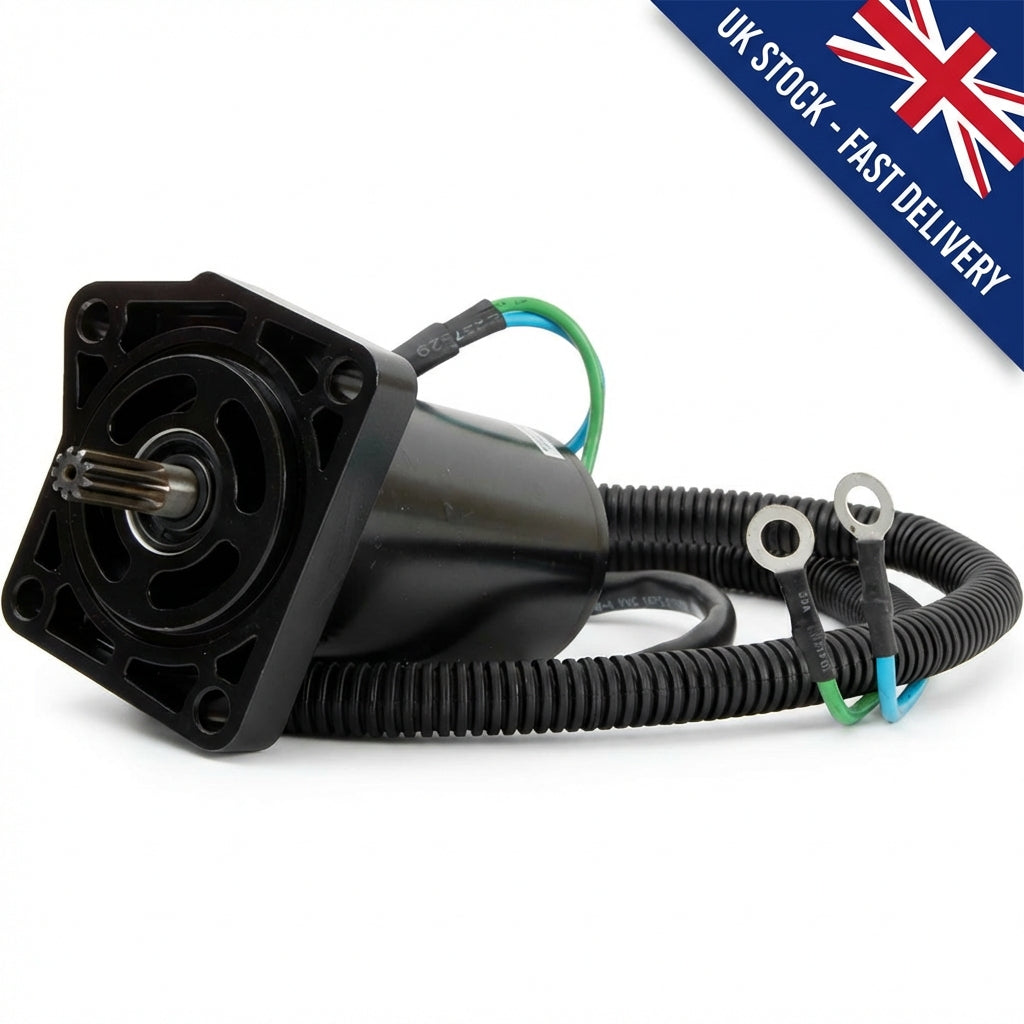

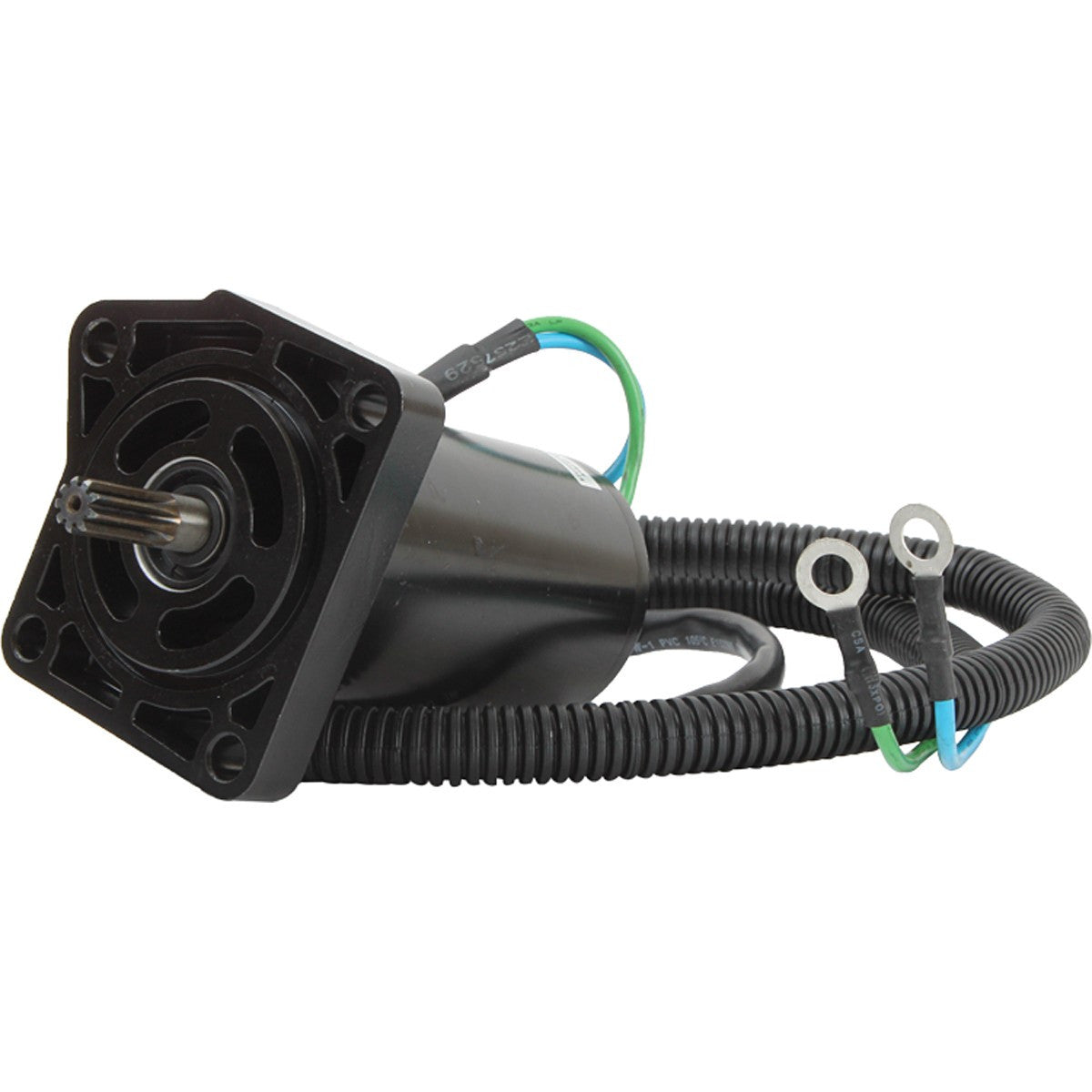

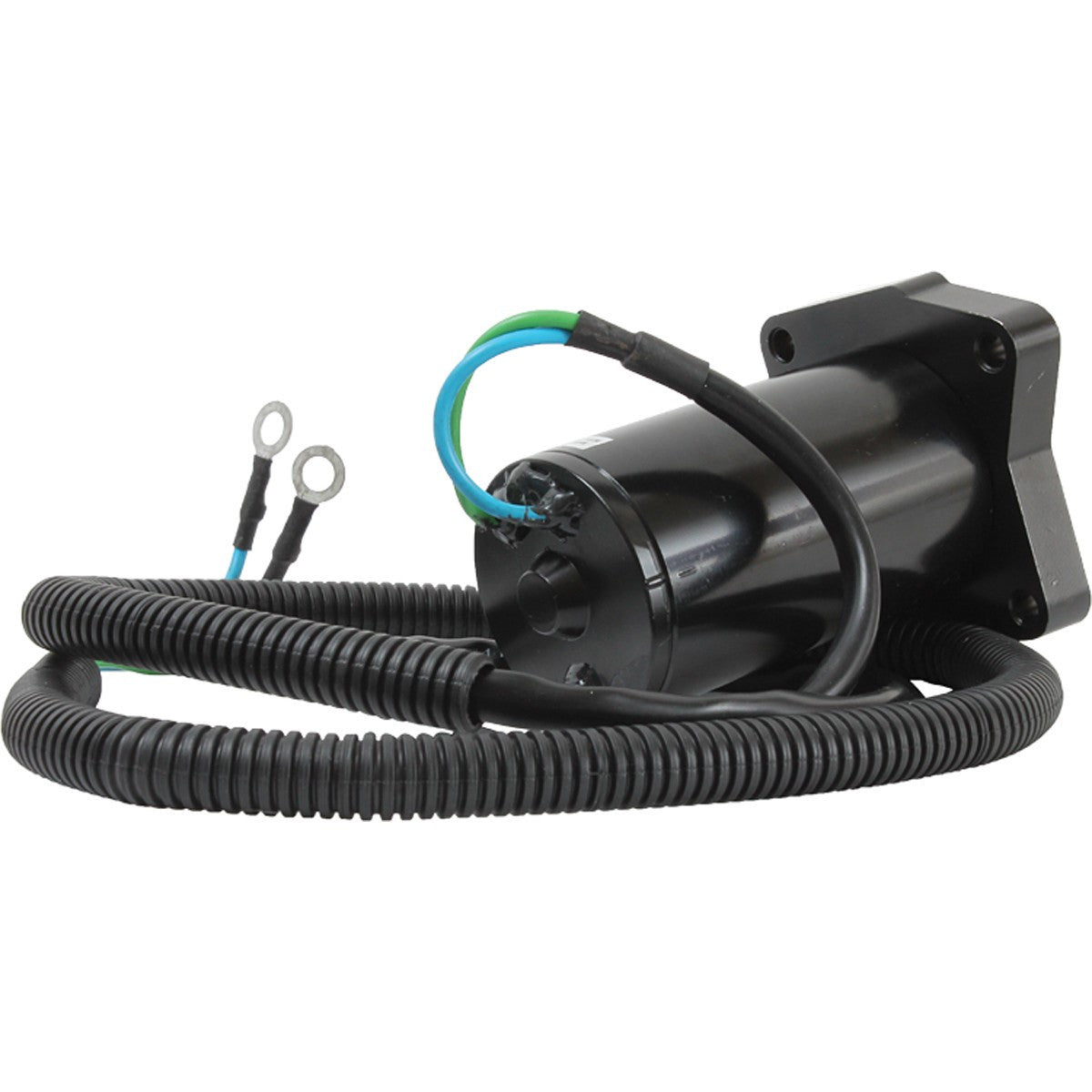

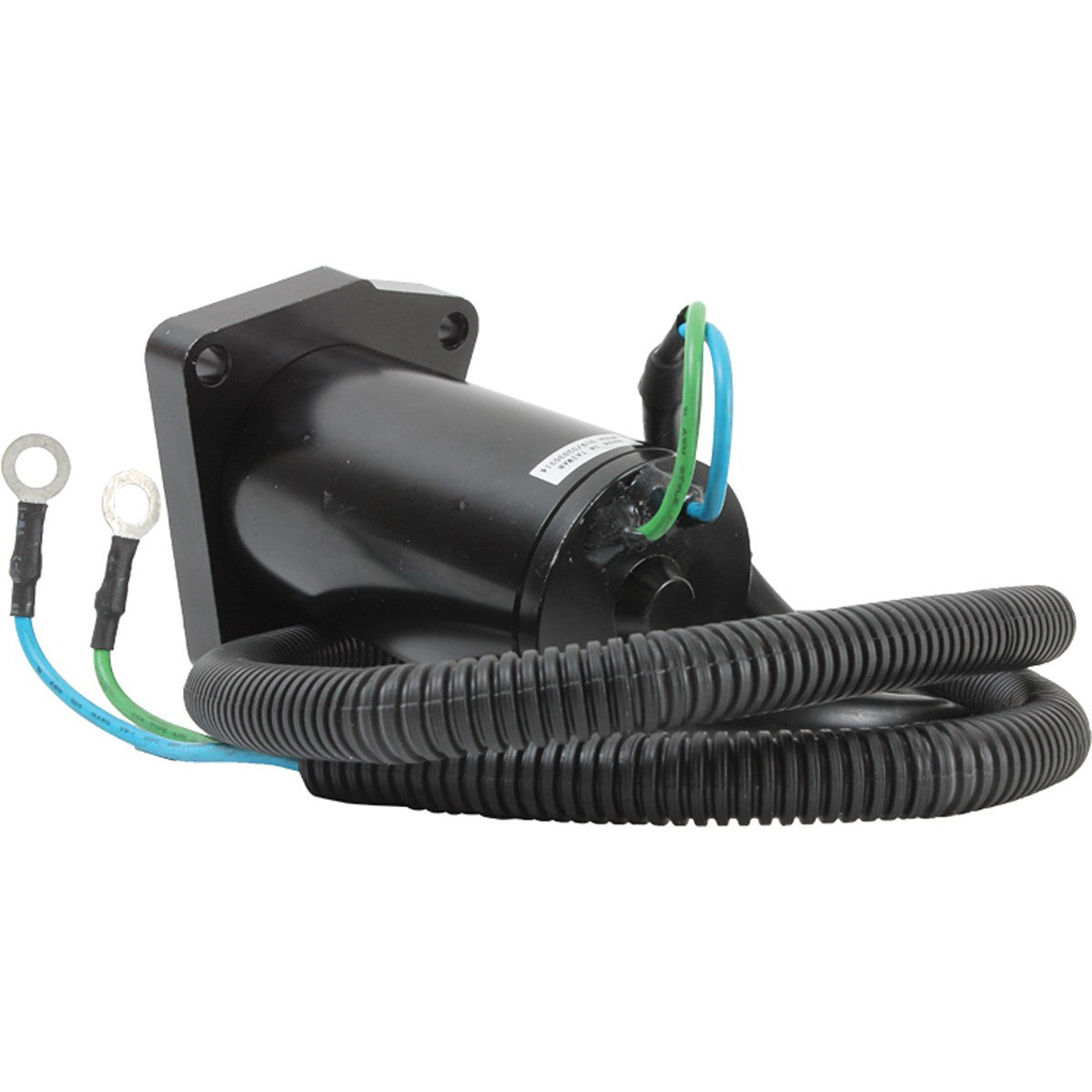

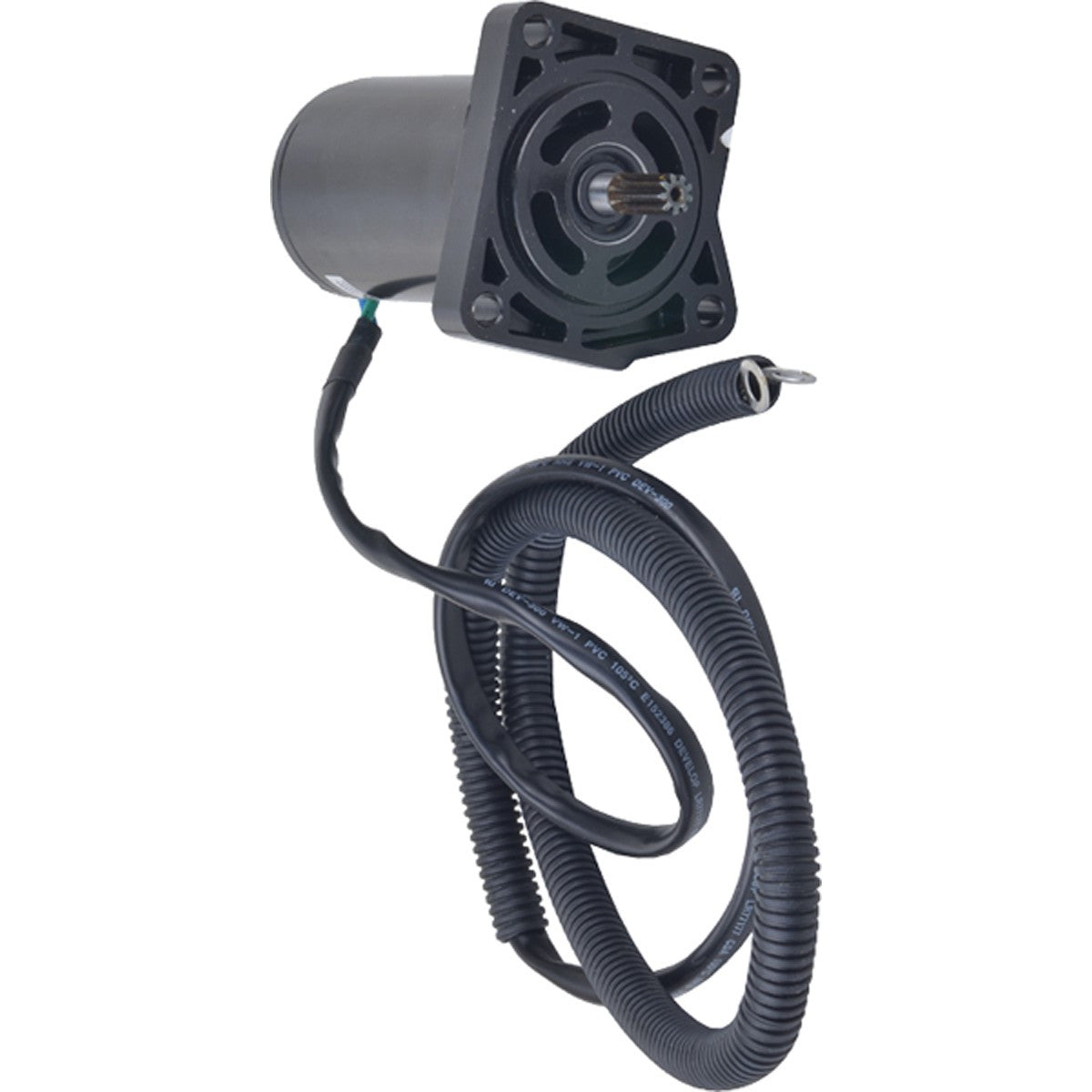

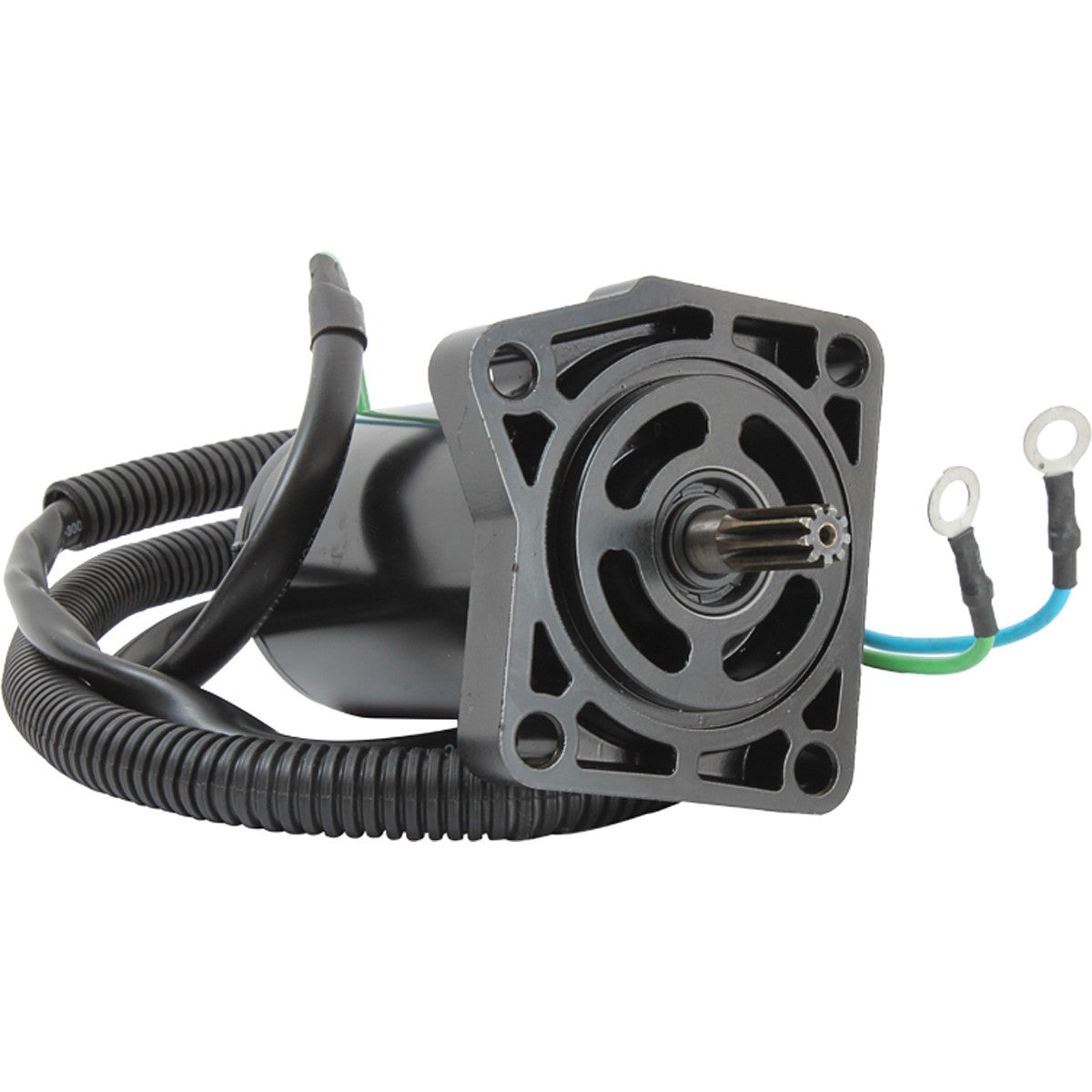

Tilt Trim Motor for Yamaha 25 30 40 HP Outboard 67C-43880-01-00 F30TLR F40ESR
Tilt Trim Motor for Yamaha 25 30 40 HP Outboard 67C-43880-01-00 F30TLR F40ESR
SKU:430-22112
Free shipping over £150. Terms apply
Couldn't load pickup availability

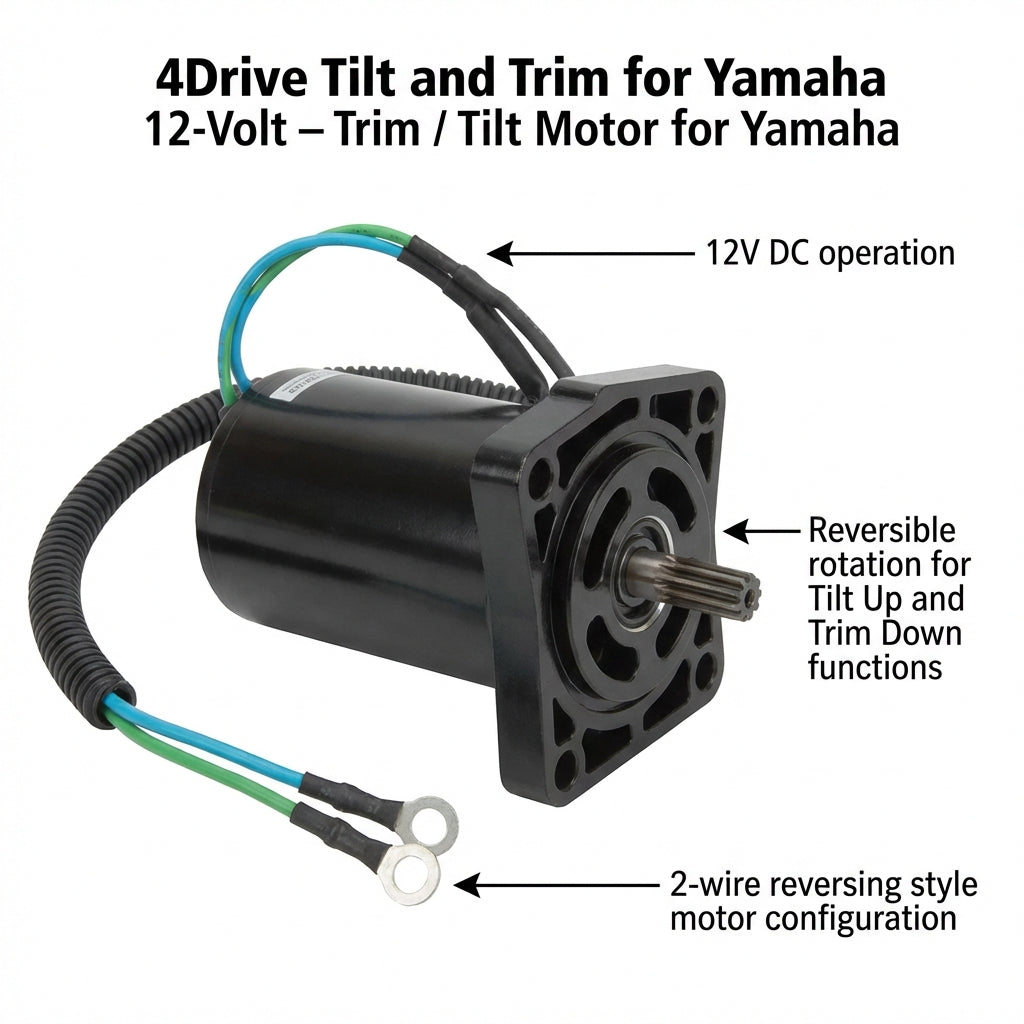

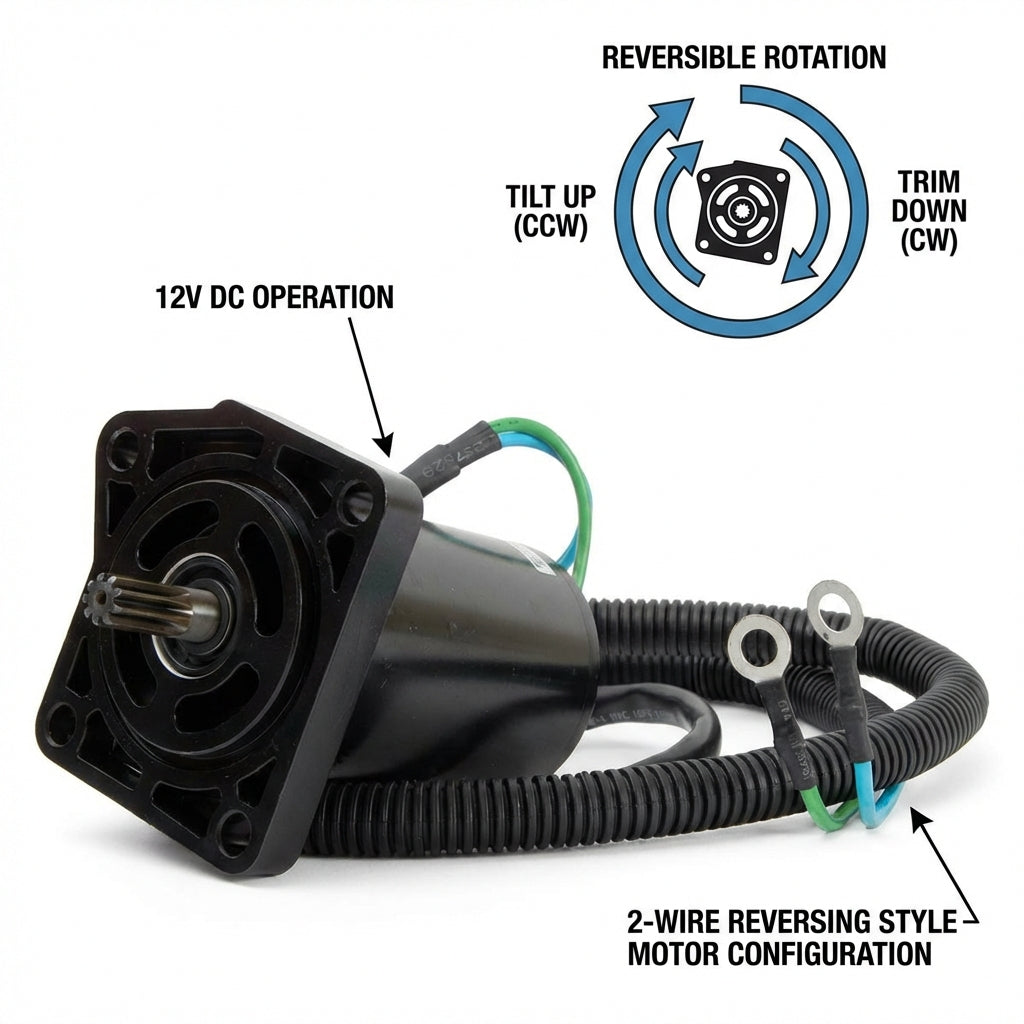

Yamaha Trim Motor 25 30 40 HP
Replaces OEM 67C-43880-01-00 & 67C-43880-00-00
Restore the effortless lift and precision of your boat's trim system with this premium 4Drive Aftermarket tilt trim motor. Specifically engineered for Yamaha 25HP to 40HP 4-stroke outboard engines, this unit provides the necessary torque and reliability required for marine environments. Designed to meet or exceed original equipment standards, it ensures smooth engine angling for improved fuel economy and safe shallow-water navigation.
Key Features
- ✔ 100% Brand New – No core charges
- ✔ Corrosion Resistant – Marine-grade coating
- ✔ 2-Wire Setup – Features standard bullet terminals
- ✔ 9-Spline Shaft – Precision fit for the pump assembly
Technical Specs
| Voltage | 12V DC |
| Rotation | Reversible |
| Spline Count | 9-Spline |
| Shaft OD | 8.8mm |
| Field Case OD | 52mm (2.047") |
| Mounting | 4-Bolt Flange |
Compatibility / Fitment Guide
| Make/Application | Model Series | Year Range |
|---|---|---|
| Yamaha Outboard 25HP | T25 / T25TLR (4-Stroke) | 2001–2006+ |
| Yamaha Outboard 30HP | F30 / F30TLR (4-Stroke) | 2001–2006+ |
| Yamaha Outboard 40HP | F40 (EJR, ESR, MLH, TLR) | 1999–2009+ |
Note: Fits most 2-wire tilt trim systems on the HP models listed. Always check your original mounting flange and spline count.
OEM Cross Reference
| Yamaha OEM | 67C-43880-01-00, 67C-43880-00-00, 67C-43880-10-00 |
| Yamaha (Alt) | 65W-43880-10-00, 65W-43880-01-00, 65W-43880-00-00 |
| Arco Marine | 6296 |
| Lester / J&N | 10887 / 430-22112 |
| Arrowhead | TRM0100 |
Questions & Answers
Is this a genuine original part?
This is a premium quality aftermarket replacement part from 4Drive, manufactured to meet or exceed original equipment (OE) standards for fitment and performance.
How do I know if it is compatible?
We recommend checking the SKU/MPN and Cross Reference list provided above. If your original part number matches any of these, or if your outboard is an F25-F40 4-stroke with a 4-bolt motor, it is a guaranteed fit.
What is the wire configuration?
This is a 2-wire motor. The blue wire carries power to raise the engine, and the green wire carries power to lower the engine. It utilizes a reversing-style system common on modern Yamaha outboards.
Note: Visit 4drive.co.uk for more premium marine components. Please verify your original part number against the references above before purchasing.
