Power Tilt Trim Motor for Yamaha 40-90HP Outboard 6H1-43880-02 6H1-43880-00 12V
Power Tilt Trim Motor for Yamaha 40-90HP Outboard 6H1-43880-02 6H1-43880-00 12V
SKU:430-22028
Free shipping over £150. Terms apply
Couldn't load pickup availability

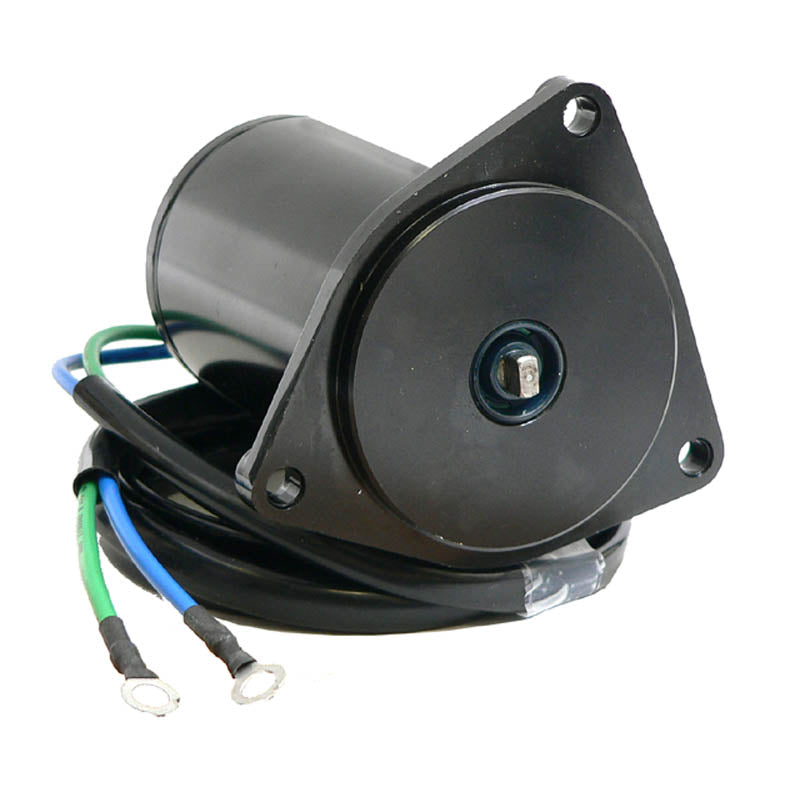

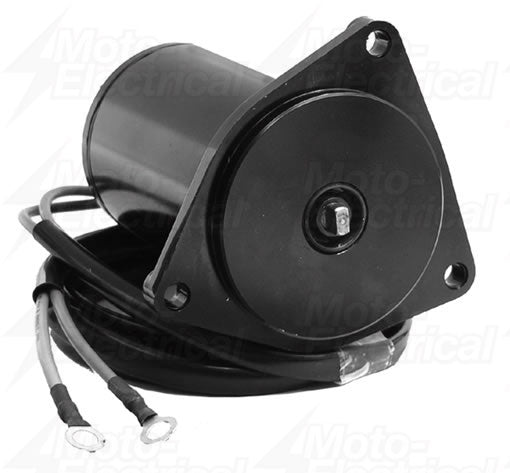

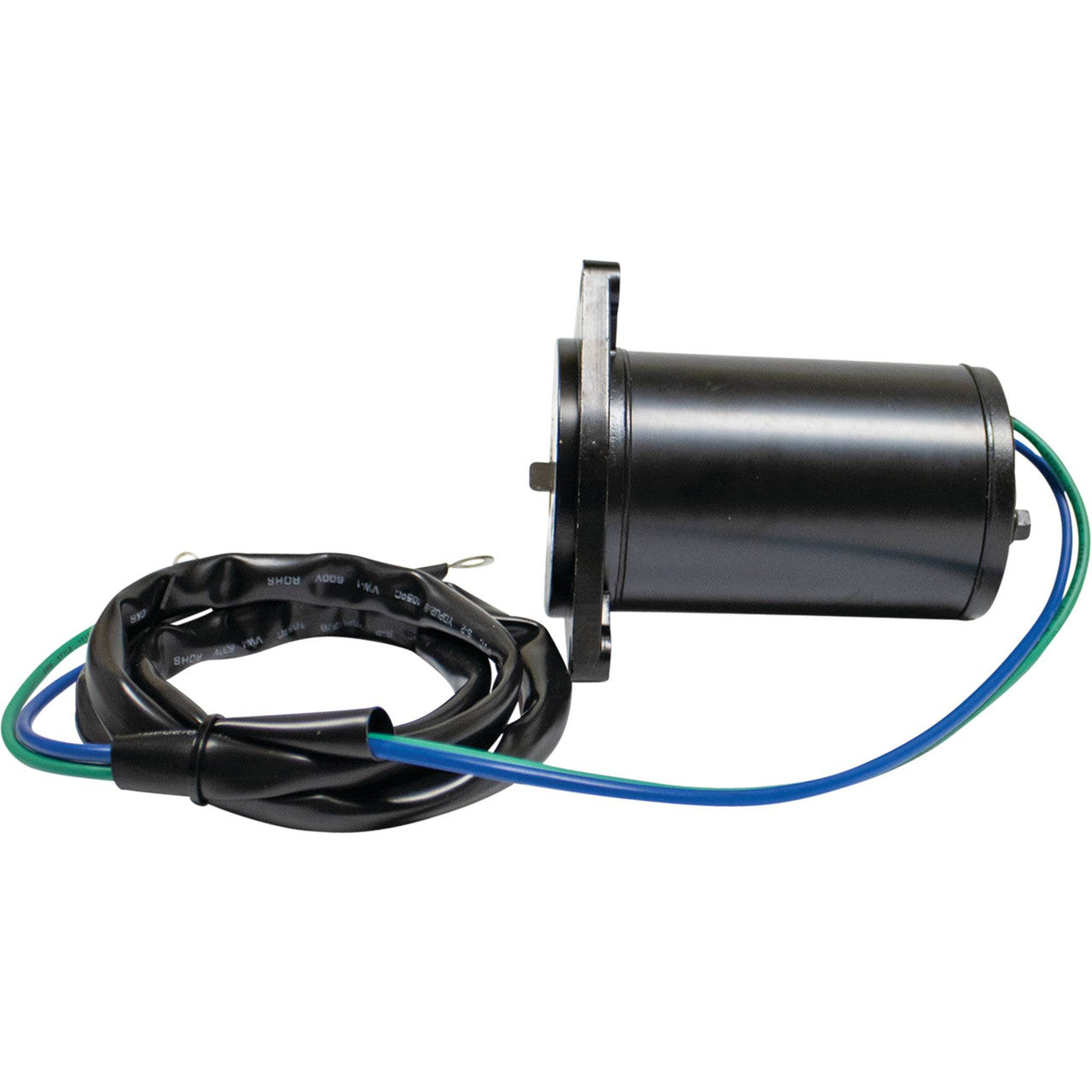

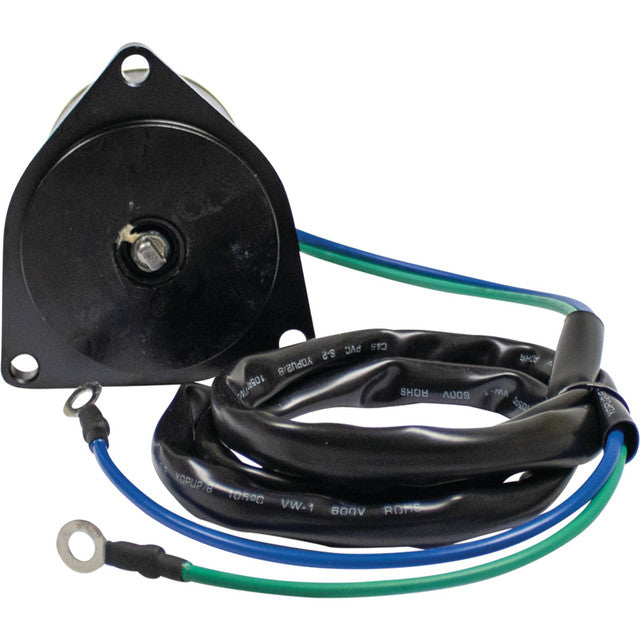

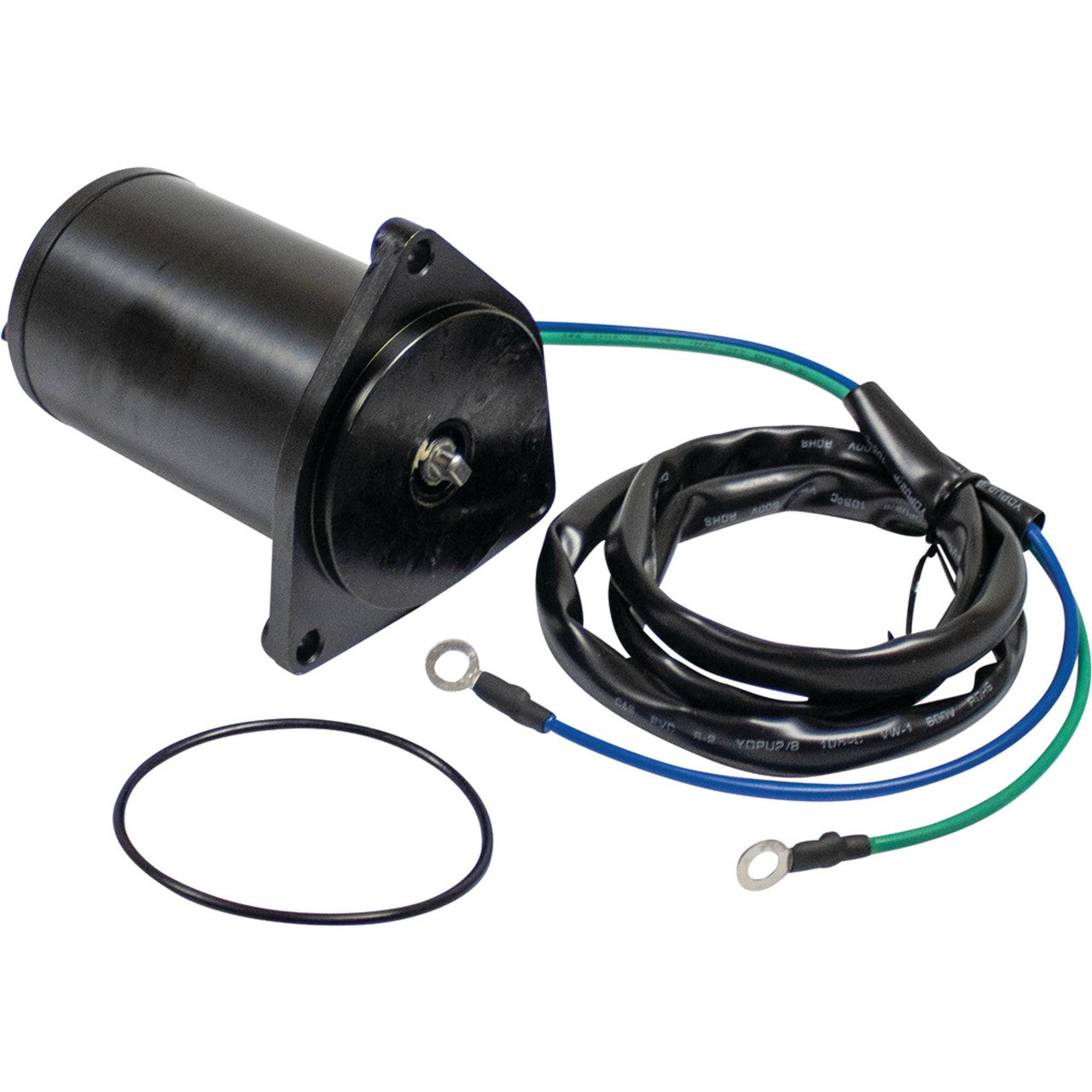

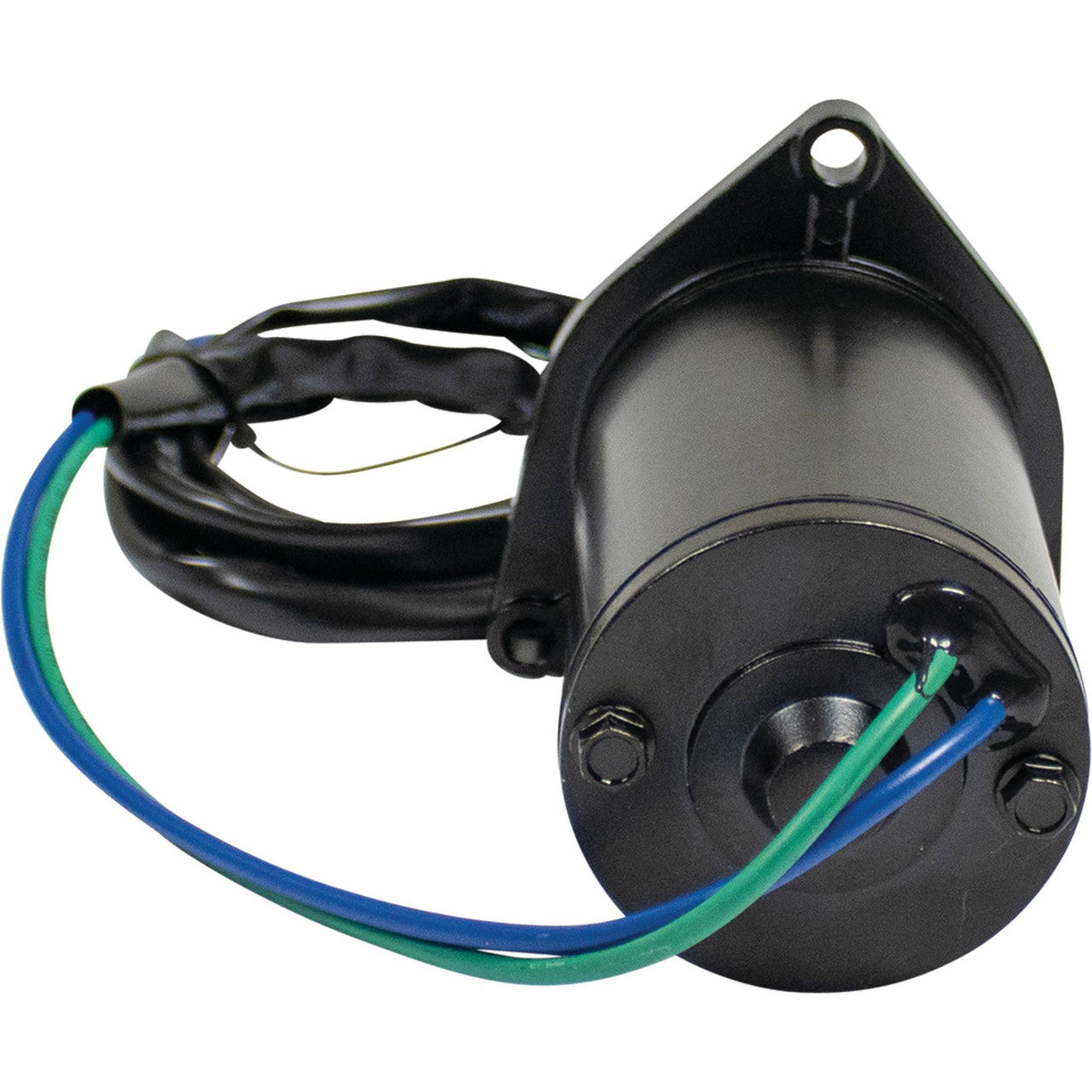

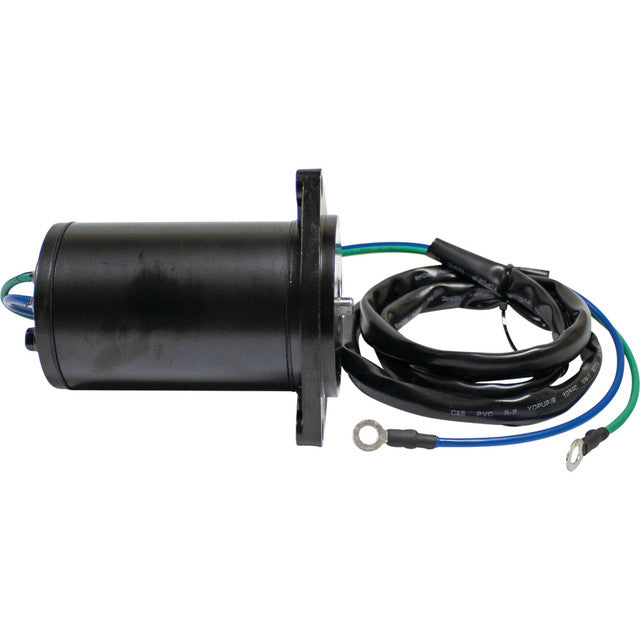

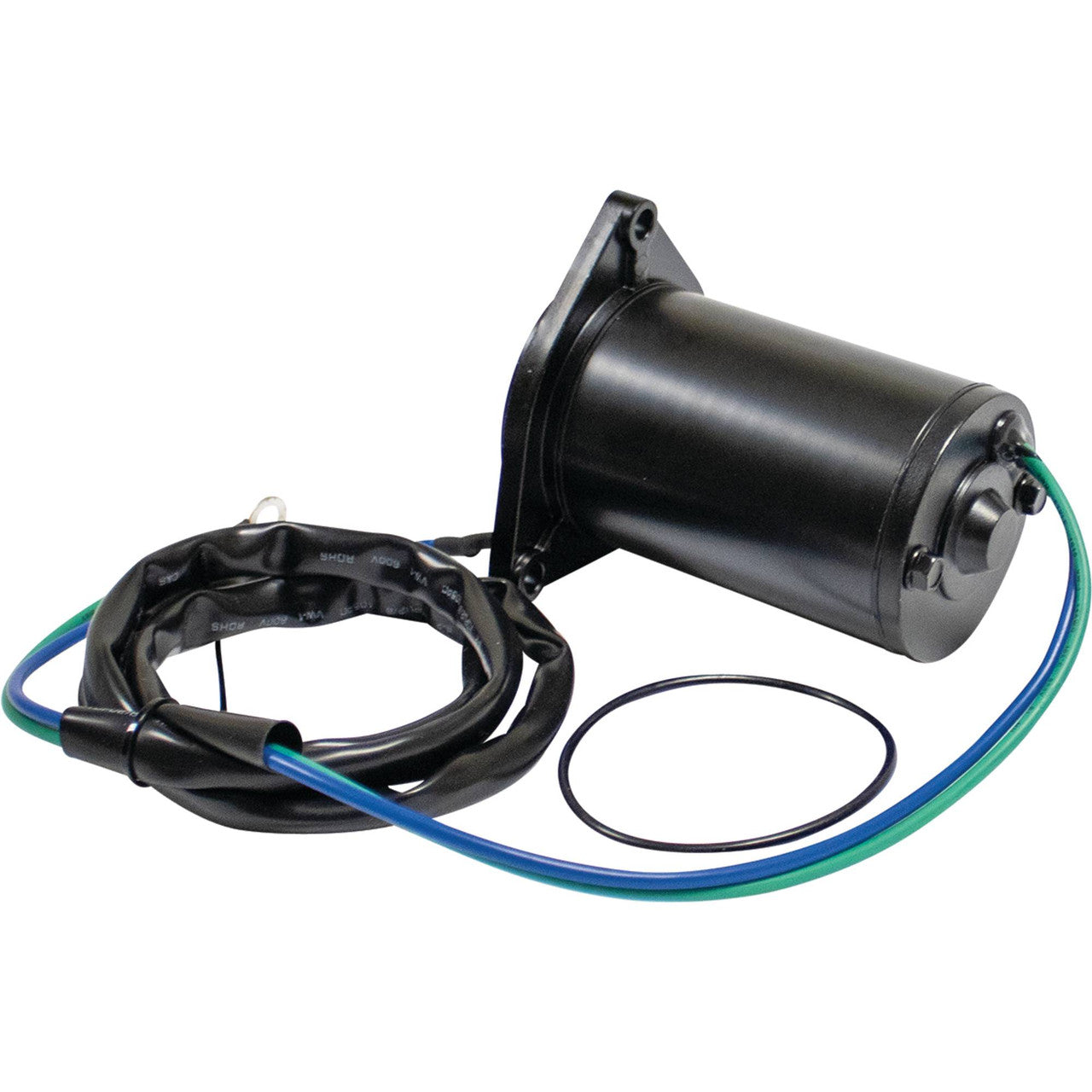

Yamaha Power Tilt Trim Motor 6H1-43880-02
Premium Replacement for 40HP - 90HP Outboard Engines
Restore the effortless functionality of your boat’s trim system with the 4Drive premium replacement power tilt trim motor. Specifically designed for Yamaha 40-90HP outboards, this 12V DC motor is built to withstand harsh marine environments, featuring a corrosion-resistant housing and heavy-duty internal components.
Key Features
- ✔ Direct fit replacement for Yamaha 6H1 series
- ✔ Durable 2-wire configuration with ring terminals
- ✔ Marine-grade seals for moisture protection
- ✔ 4mm drive tang for precise mechanical engagement
Technical Specs
| Voltage | 12V DC |
| Rotation | Reversible |
| Shaft Type | 4mm Drive Tang (Blade) |
| Mounting | 3-Bolt (6mm unthreaded) |
| Body OD | 64mm (2.52") |
| Overall Length | 119mm (4.68") |
Compatibility / Fitment Guide
| Make | Engine Range | Approximate Years |
|---|---|---|
| Yamaha | 40HP (Models 40EJR, 40ELR, etc.) | 1994 |
| Yamaha | 50HP (Models 50ETG, etc.) | 1992 - 1995 |
| Yamaha | 60HP / 70HP / 75HP / 85HP | 1987 - 2006 |
| Yamaha | 90HP (Models 90TJ, 90TR, 90TJR) | 1992 - 2006 |
OEM Cross Reference
| Yamaha | 6H1-43880-02, 6H1-43880-02-00, 6H1-43880-00, 6H1-43880-01, 6L2-43880-01, 6L2-43880-02 |
| Arco Marine | 6260, 6267, 6268 |
| Sierra Marine | 18-6781, 18-6259, 18-6821 |
| Lester / PIC | 10830 / 107-130 |
| WAI / Arrowhead | 82-68101, 10830N / TRM0025 |
Questions & Answers
Is this a genuine original part?
This is a premium quality aftermarket replacement part by 4Drive, manufactured to meet or exceed original equipment (OE) standards for fitment and performance.
How do I know if it is compatible?
We recommend checking the SKU/MPN (6H1-43880-02) and Cross Reference list provided above. If your original part number matches any of these, it is a guaranteed fit.
Does it include the wiring harness?
Yes, this motor comes with a 2-wire configuration (Blue and Green wires) typically terminated with ring connectors for easy installation on standard Yamaha trim systems.
Note: Please verify your original part number and the 4mm drive tang shaft type against the references above before purchasing. Domain: 4drive.co.uk
