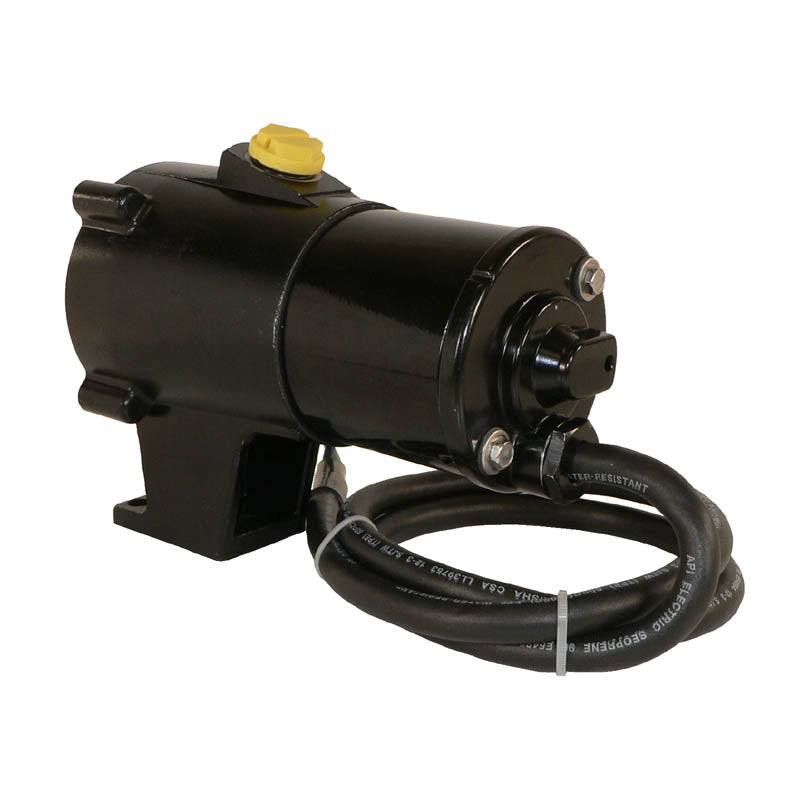

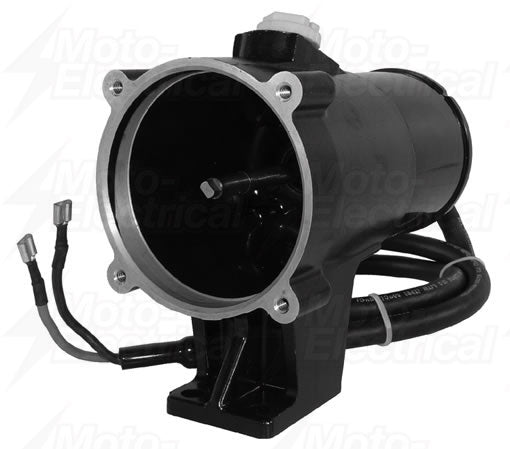

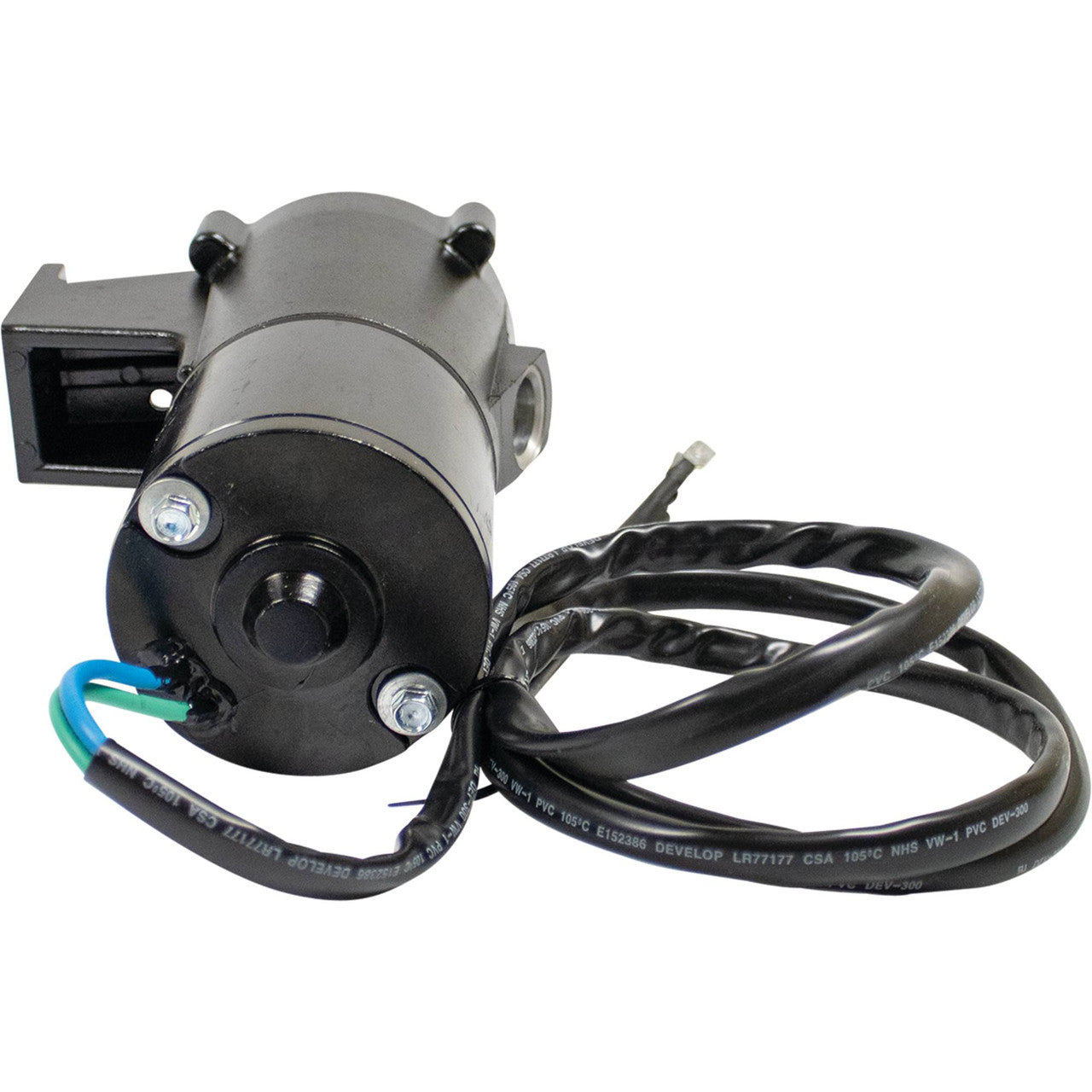

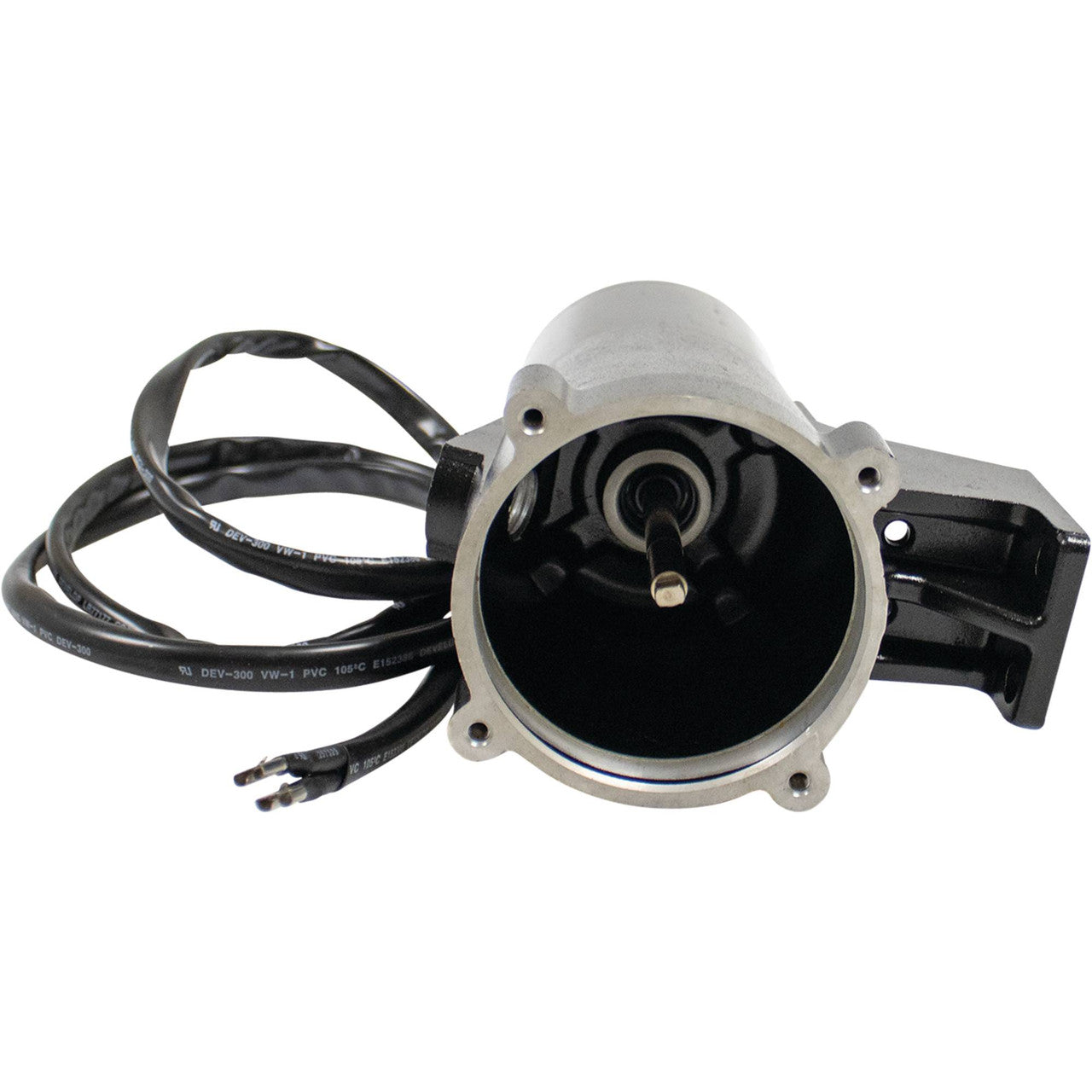

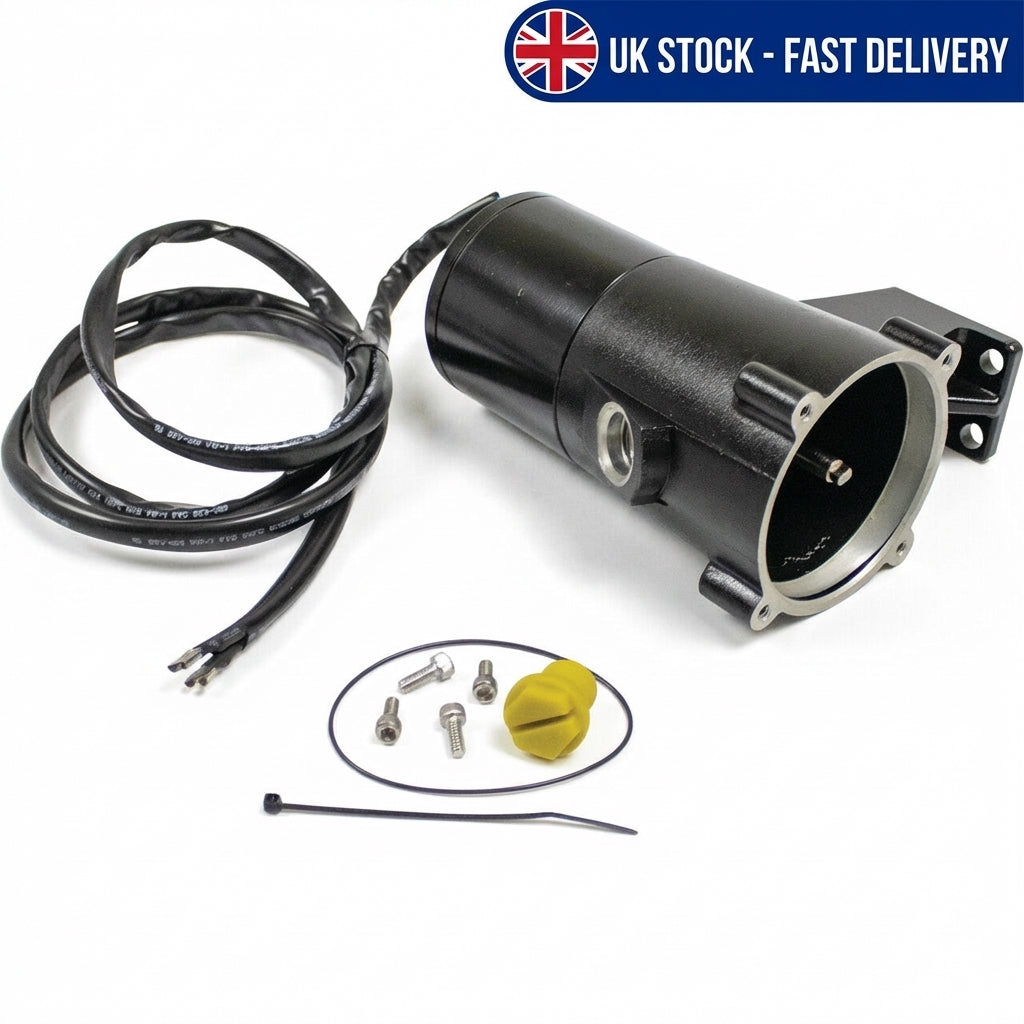

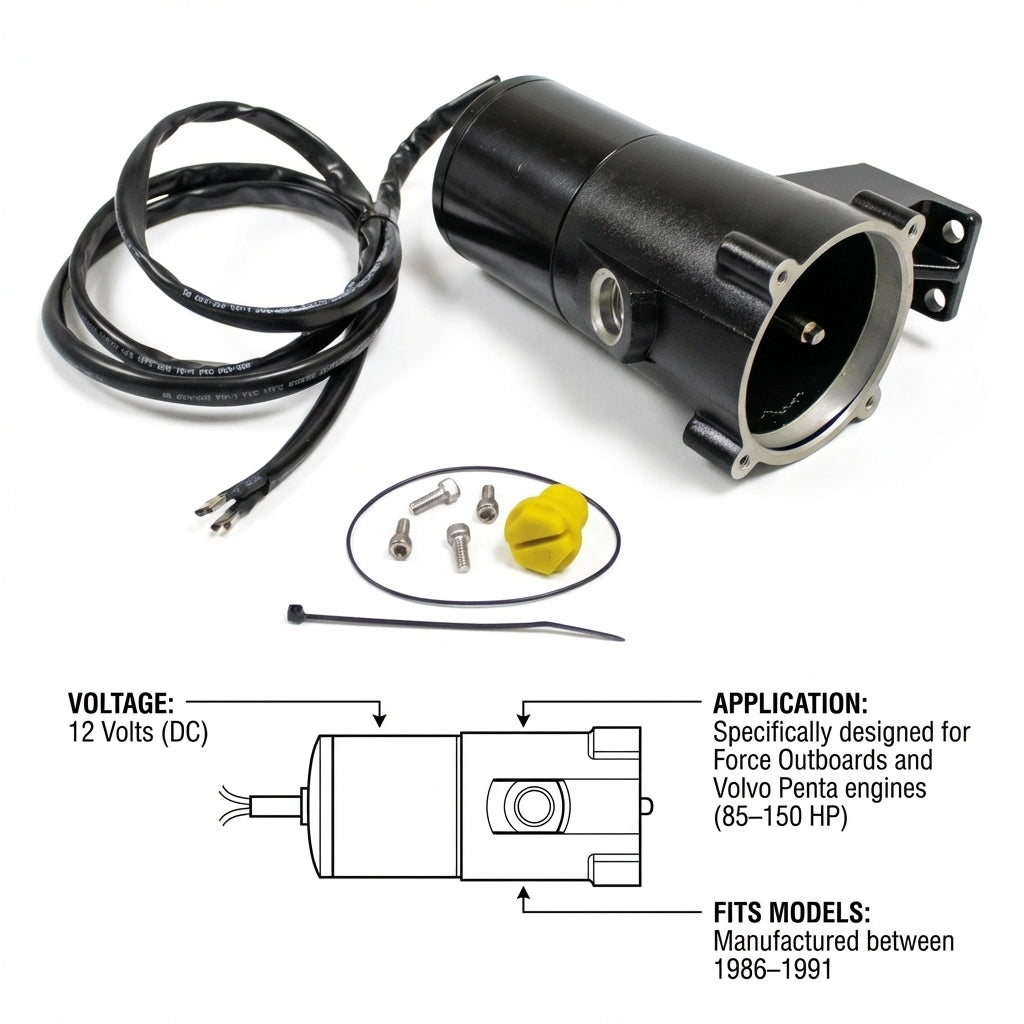

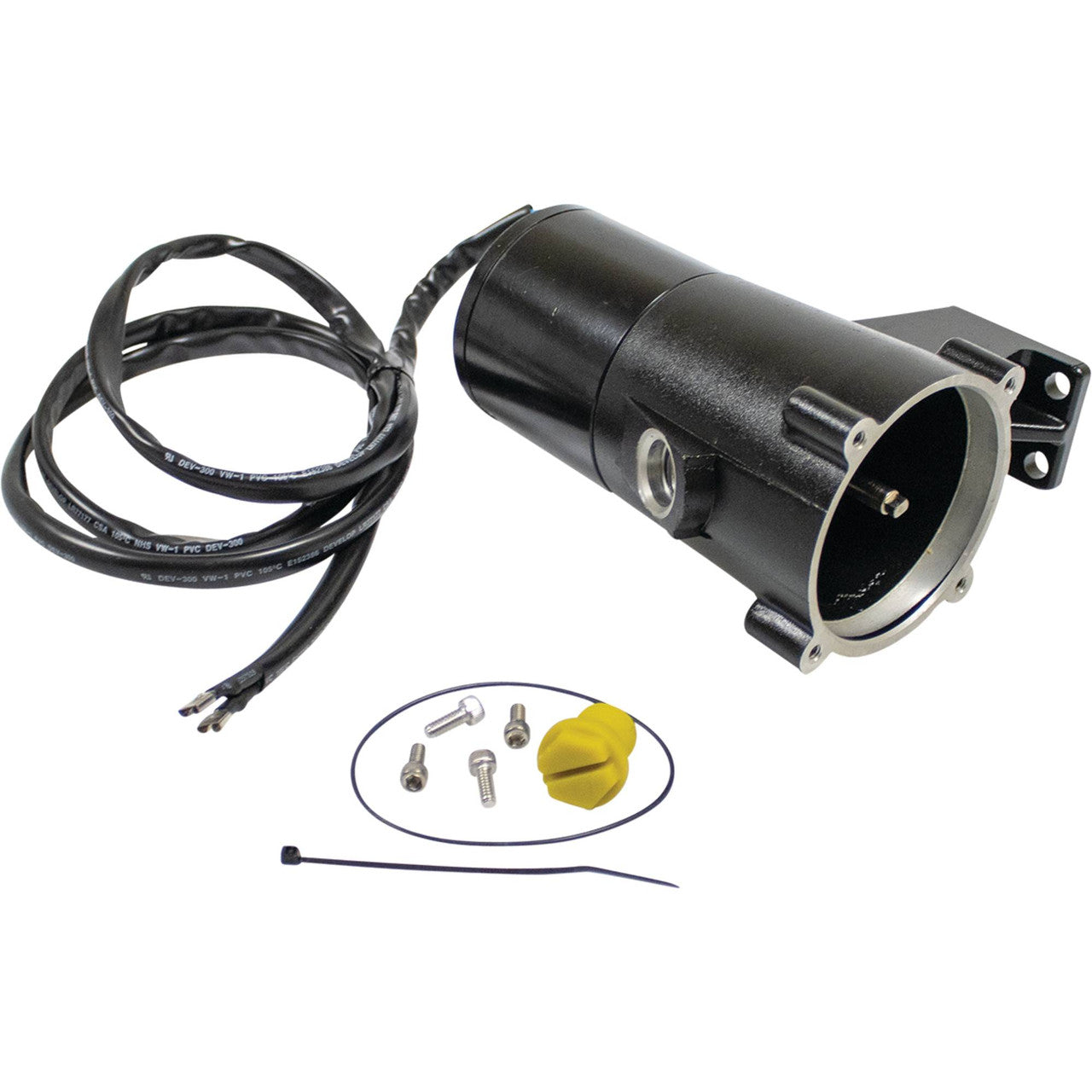

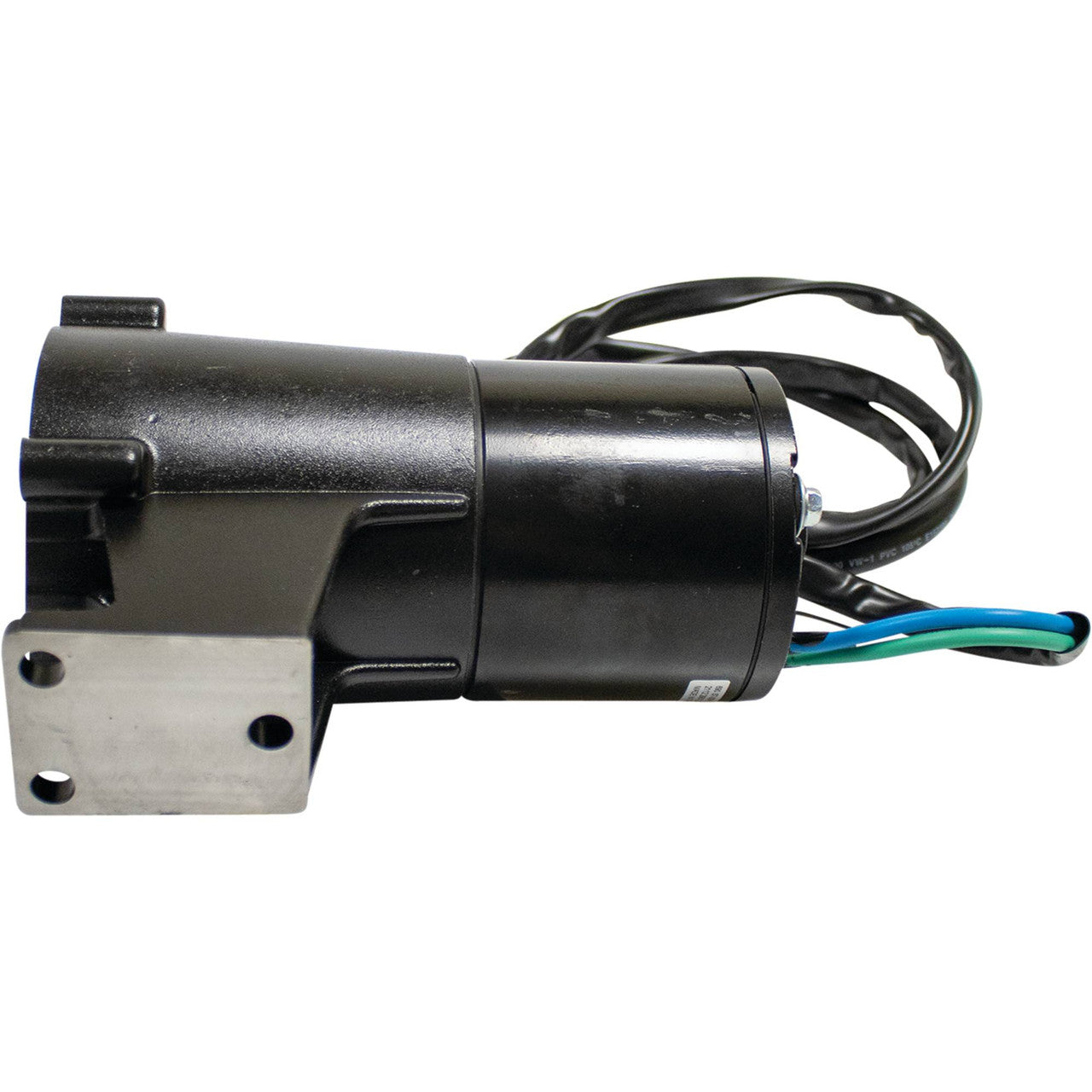

12V Tilt and Trim Motor for Volvo Penta 85-150HP Engines (1986-1991)

12V Tilt and Trim Motor for Volvo Penta 85-150HP Engines (1986-1991)

SKU:430-22053

Regular price £433.50 GBP
Regular price £520.20 GBP Sale price £433.50 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Free shipping over £150. Terms apply

Tilt Trim Motor 6212 / 820545

For Force Marine & Volvo Penta 85-150HP (1986-1991)

This premium aftermarket tilt trim motor and reservoir assembly is engineered specifically for Force Marine and Volvo Penta outboard engines ranging from 85HP to 150HP (1986-1991). Designed to restore smooth hydraulic operation, this unit features a 2-wire connection and an integrated reservoir for a direct-fit replacement of your original equipment.

RELIABILITY: Marine-grade construction meeting SAE J1171 standards for ignition protection and corrosion resistance in harsh saltwater environments.

Key Features

  • ✔ Includes Integrated Reservoir
  • ✔ 2-Wire Reversible Connection
  • ✔ SAE J1171 Marine Certified
  • ✔ 4-Bolt Mounting Configuration

Technical Specs

Voltage 12V DC
Rotation Reversible
Field HSG OD 74.7mm / 2.94in
Shaft OD 8.2mm / 0.32in
Overall Length 175.1mm / 6.89in

Compatibility / Fitment Guide

Make Model / Application Years
Force Marine 85HP, 90HP, 120HP, 125HP, 150HP 1986 - 1991
Volvo Penta 85HP, 90HP, 120HP, 125HP, 150HP 1986 - 1991
US Marine Various 3/4/5 Cylinder Models 1986 - 1991

OEM Cross Reference

Force / Chrysler 820545, F694541-1, F694541-2, F660541, F694541
Arco Marine 6212
Sierra Marine 18-6279
API Marine PT116N-3

Questions & Answers

Is this a genuine original part?

This is a premium quality aftermarket replacement part from 4Drive, manufactured to meet or exceed original equipment (OE) standards for marine performance.

How do I know if it is compatible?

Check your existing motor for a 2-wire connection and the 4-bolt mounting pattern. If your OEM part number is 820545 or F694541-1, this is the correct unit.

Does this unit include the hydraulic reservoir?

Yes, this model features the integrated plastic hydraulic reservoir as shown, making it a complete motor and tank assembly ready for installation.

Note: Please verify your original part number against the references above before purchasing. All domain mentions 4drive.co.uk are for reference only.
