Trim and Tilt Motor for Evinrude Engines, Part 430-22099 - Replaces 5005756
Trim and Tilt Motor for Evinrude Engines, Part 430-22099 - Replaces 5005756
SKU:430-22099
Free shipping over £150. Terms apply
Couldn't load pickup availability

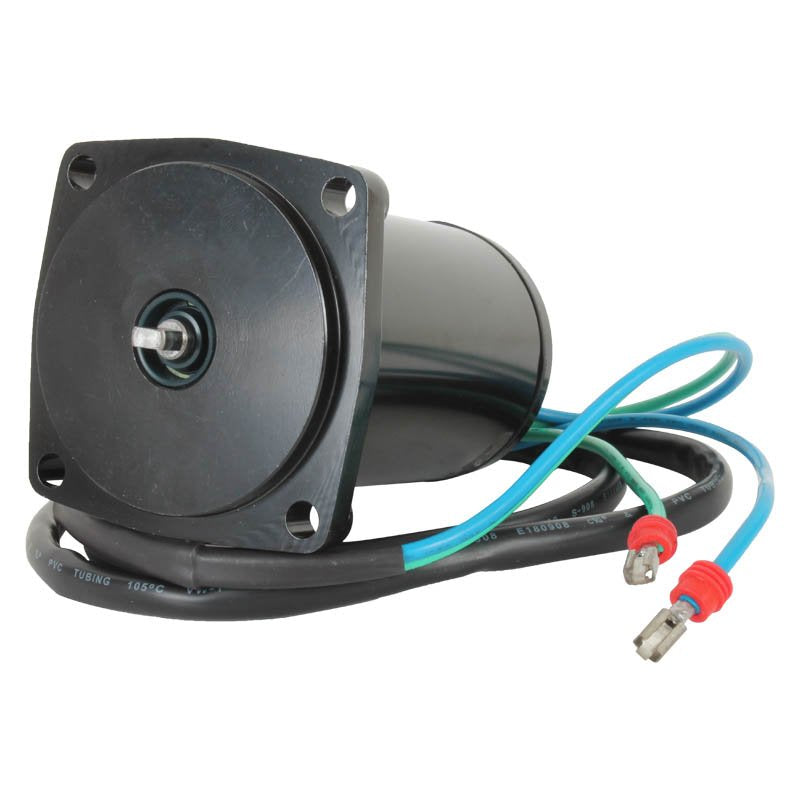

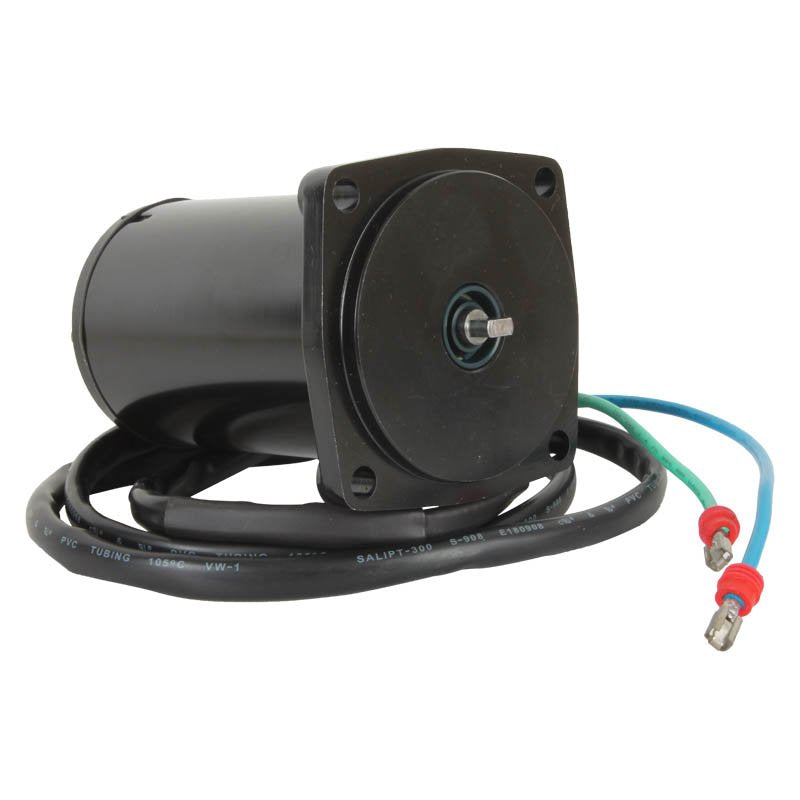

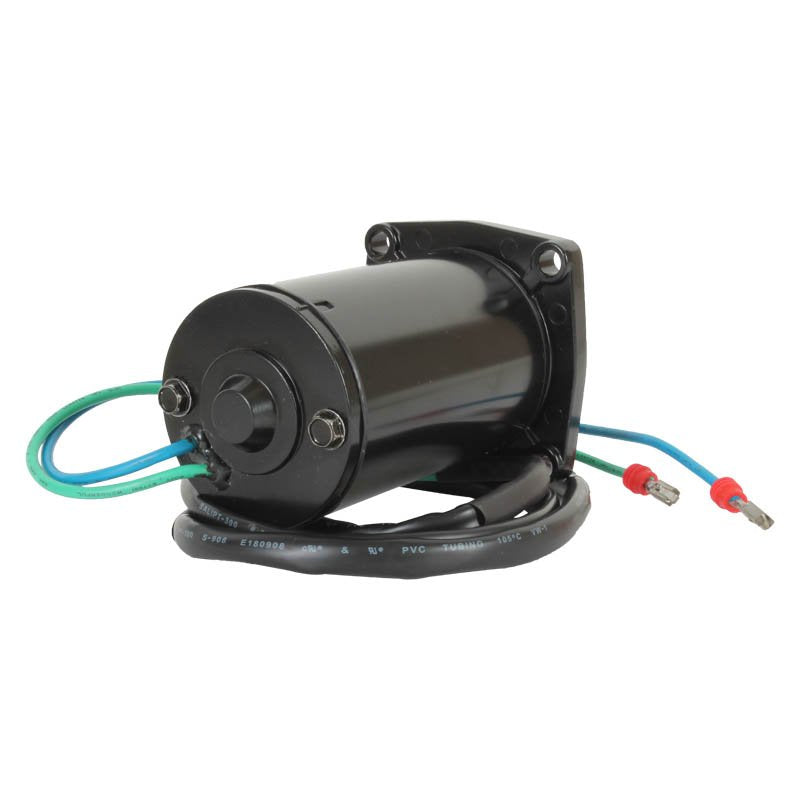

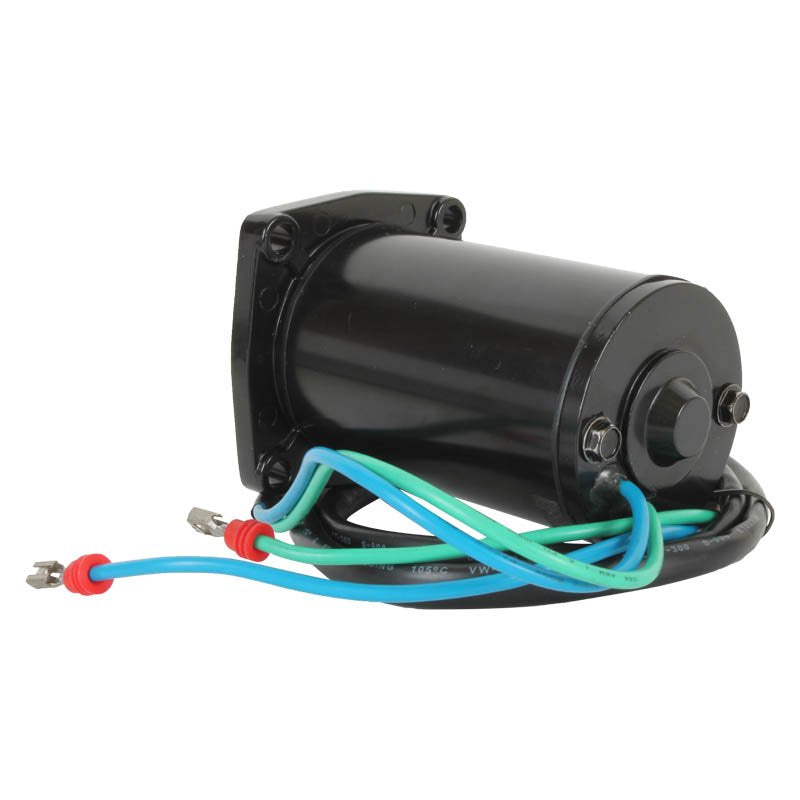

Trim and Tilt Motor for Evinrude Engines, Part 430-22099
Cross-references: Arrowhead | OMC | Mercury Marine | Pic Picture ID
Trim and Tilt Motor for Evinrude Engines, Part 430-22099 - a new aftermarket power trim / tilt motor, supplied ready to fit as a replacement for 5005756.
Power trim and tilt motors work in the worst place on a boat - low, wet and salty - so they are a common failure point on outboards and sterndrives.
Key Features
- 100% new aftermarket unit - not a remanufactured core
- Direct-fit replacement, no modification required on listed applications
- Cross-referenced to Arrowhead, OMC, Mercury Marine, Pic Picture ID part numbers
- Built to meet or exceed the original equipment specification
- Dispatched from the UK with technical fitment support
Technical Specs
| Specification | Detail |
|---|---|
| SKU / Part Code | 430-22099 |
| Component | Power Trim / Tilt Motor |
| Condition | New aftermarket |
| Warranty | 12 months |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only and remain the property of their respective manufacturers.
| Part Number | Manufacturer / Brand |
|---|---|
| TRM0097 | Arrowhead |
| 5005756 | OMC |
| 8M6007529 | Mercury Marine |
| 107-172 | Pic Picture ID |
| 5006319 | OMC |
| 5007776 | OMC |
Frequently Asked Questions
How do I know the motor is at fault and not the pump or relay?
Listen at the helm: if the relay clicks but nothing moves, check for voltage at the motor. Voltage present with no movement means the motor has failed; no voltage points to the relay, fuse or switch.
Is the reservoir or pump included?
No - this is the electric motor only unless stated otherwise. Transfer your existing pump and reservoir.
Will it handle salt water?
It is built to the original marine specification with sealed housings, but rinse the transom area with fresh water after use to get the full service life.
Are the O-rings included?
Check the images and specification table - seals are included where the original was supplied with them.
