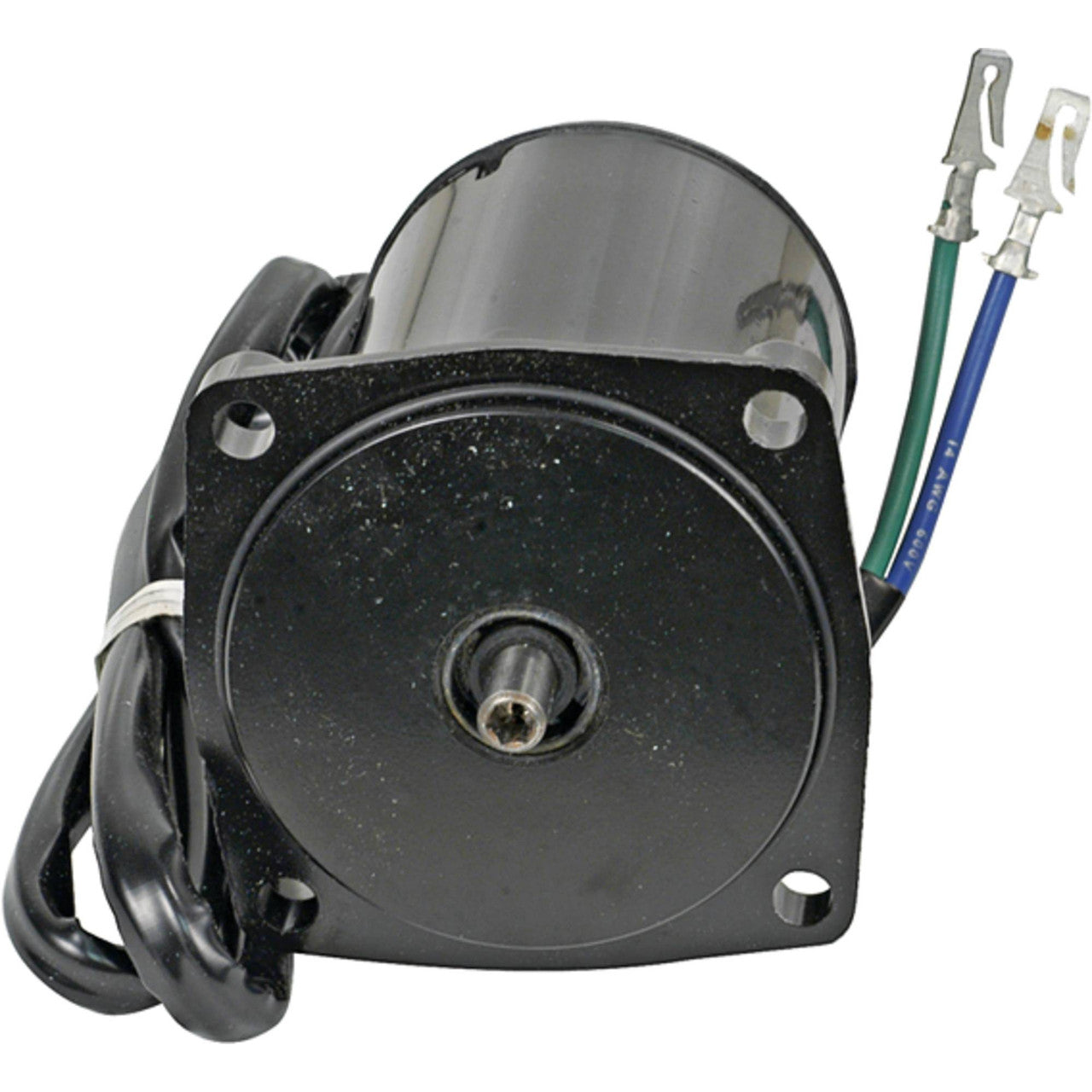

A direct-fit 12-volt reversing tilt and trim motor for Evinrude and Johnson 40-48HP (M suffix) outboard engines, restoring smooth raising and lowering of the outboard.
Built to marine standards SAE J1171 and ISO8866, this unit uses a 2-wire connection with male spade terminal ends (blue wire raises, green wire lowers). Backed by our 12-month warranty.
Key Features
- 12-volt DC reversing motor
- Meets SAE J1171 and ISO8866 marine standards
- 2-wire connection, male spade terminal ends
- Colour-coded wiring (blue = raise, green = lower)
- Direct bolt-in replacement
Technical Specs
| Specification |
Detail |
| Voltage |
12V |
| Configuration |
2-Wire, male spade terminal ends |
Vehicle Fitment Guide
| Make |
Application |
Notes |
| Evinrude & Johnson |
40-48HP outboards (M suffix) |
2-wire connection, male spade terminal ends |
| Evinrude & Johnson |
40HP & 50HP outboards, incl. E40EC, E40EE, J50BEE, VE50TLE |
Model years 1989-1992 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM and cross-reference part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 433226 |
OMC |
| TRM0070 |
Arrowhead |
| 18-6285 |
Sierra Marine |
| 10811AN / 82-6894 |
WAI |
Frequently Asked Questions
Will this fit without modification?
Yes, this is a direct bolt-in replacement for Evinrude and Johnson 40-48HP (M suffix) outboards with a 2-wire male spade terminal connection.
What is included?
One tilt and trim motor unit.
How do I know my old motor has failed?
Common signs are an outboard that fails to tilt or trim, a motor that hums but does not move the leg, or a tilt motor running continuously without movement.
How do I identify the correct wiring version for my outboard?
This version uses male spade terminal ends. If your outboard uses female spade terminals, or is the Honda/Suzuki version, you will need a different part - check your existing motor's connector before ordering.
