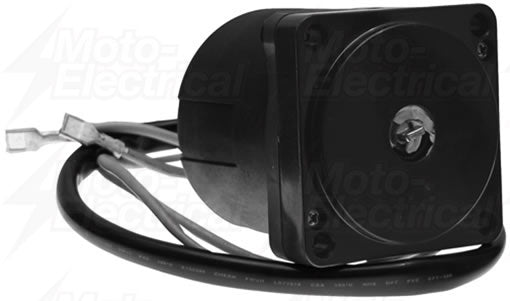

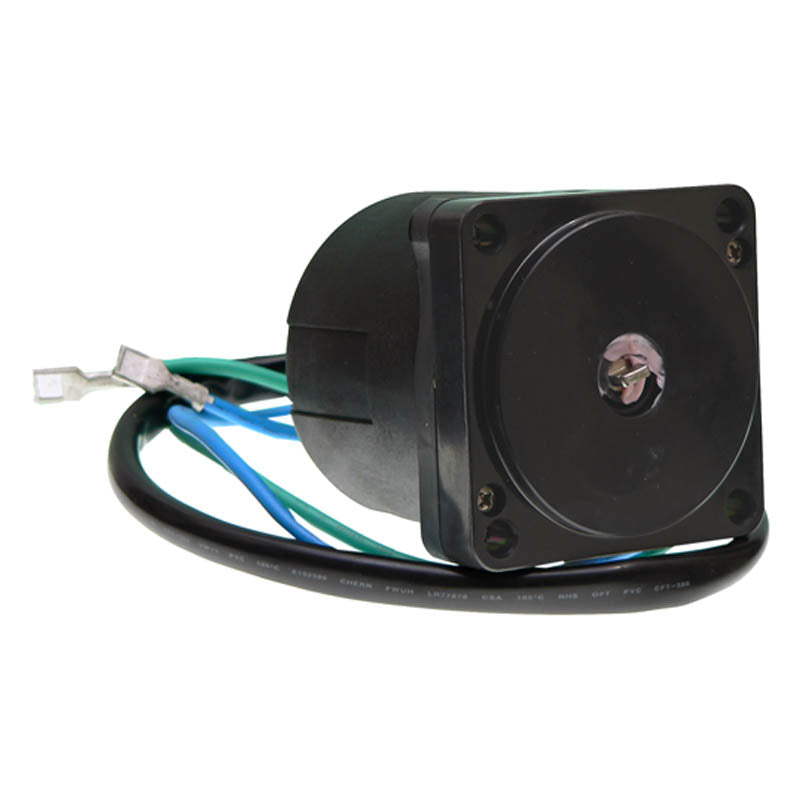

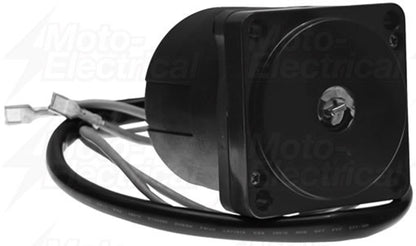

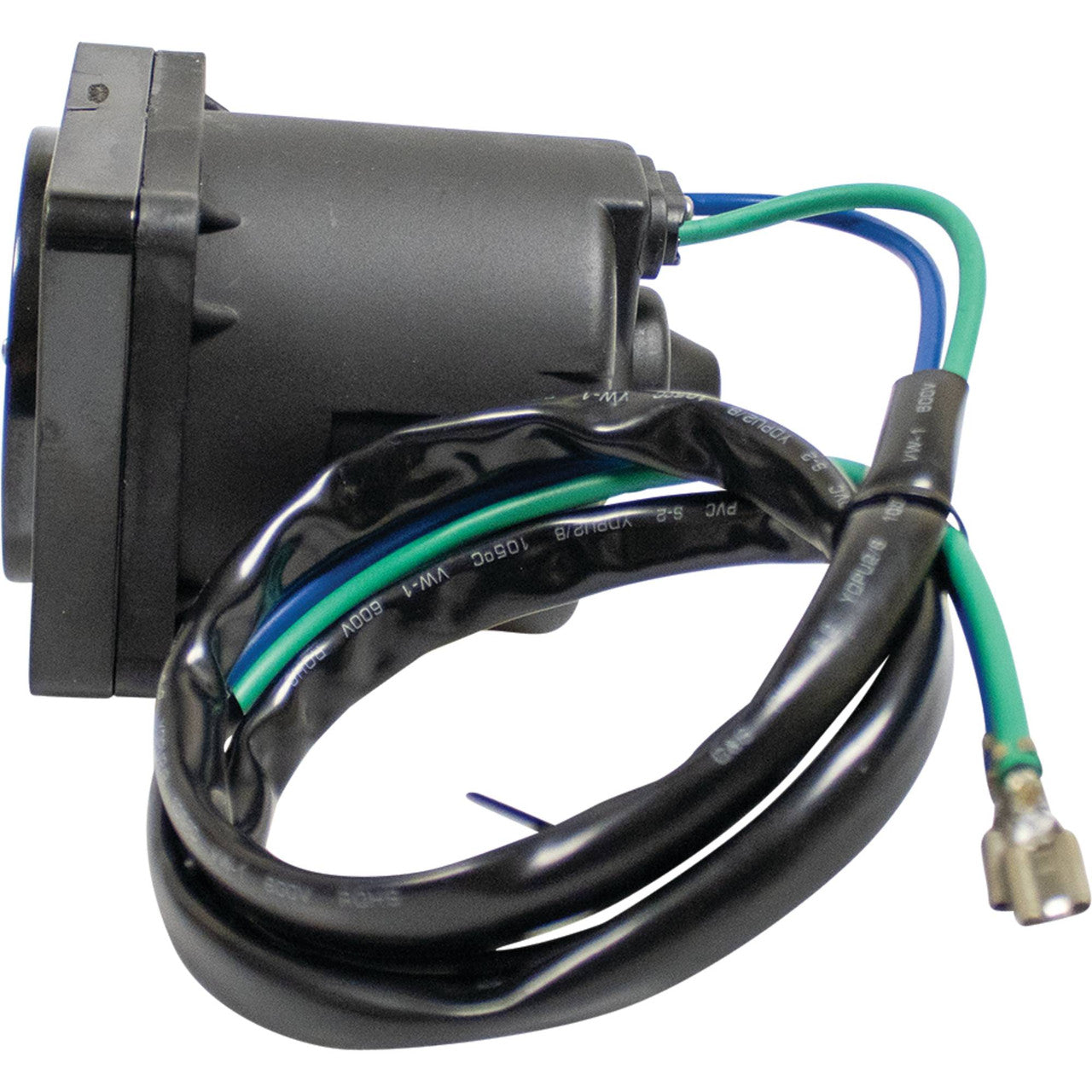

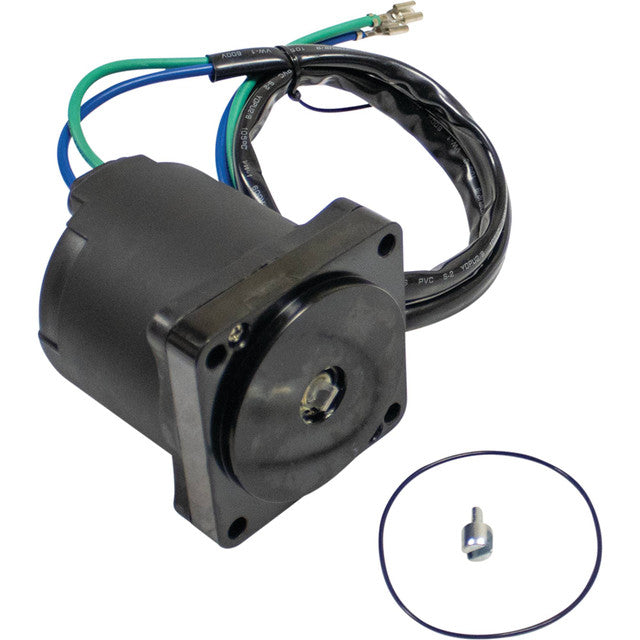

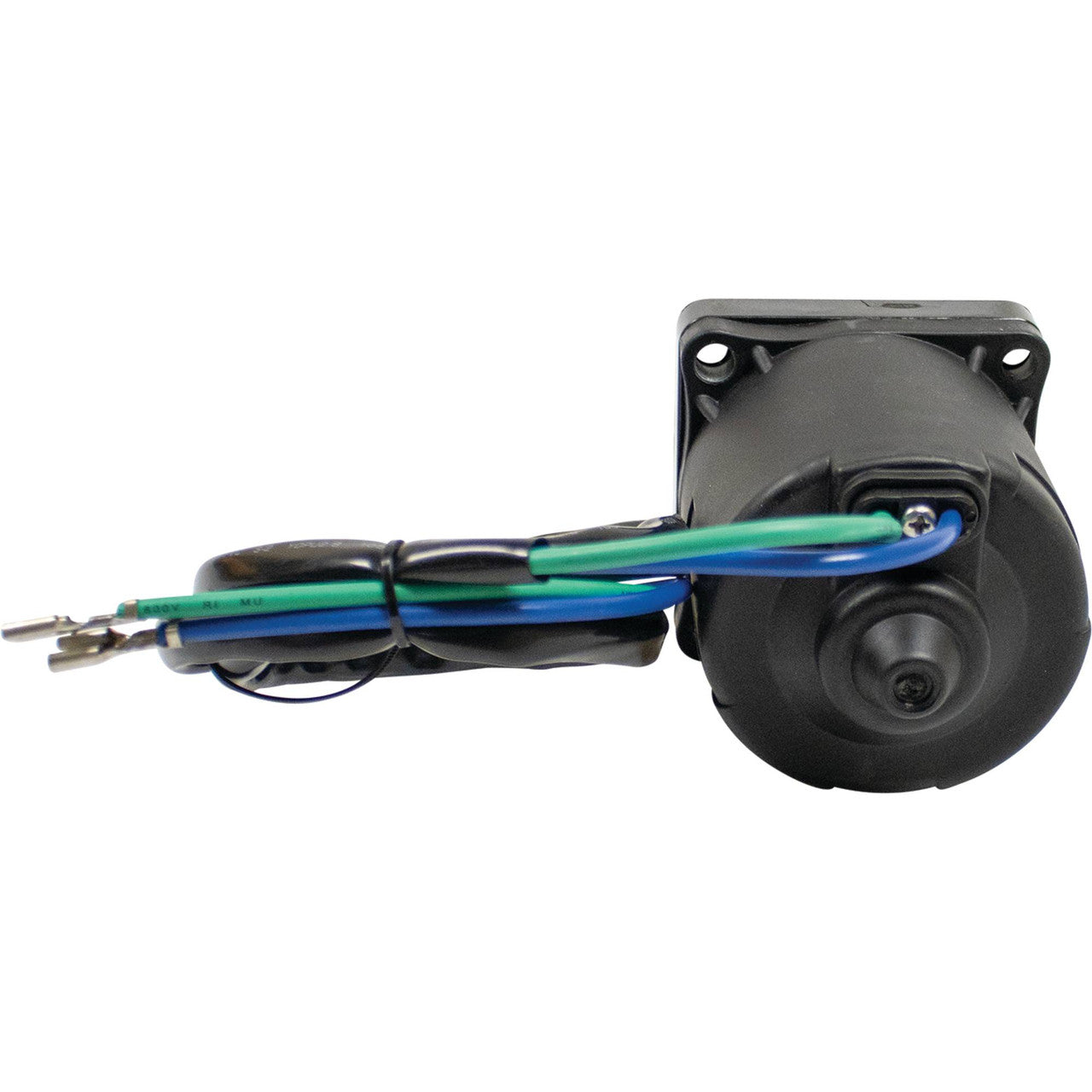

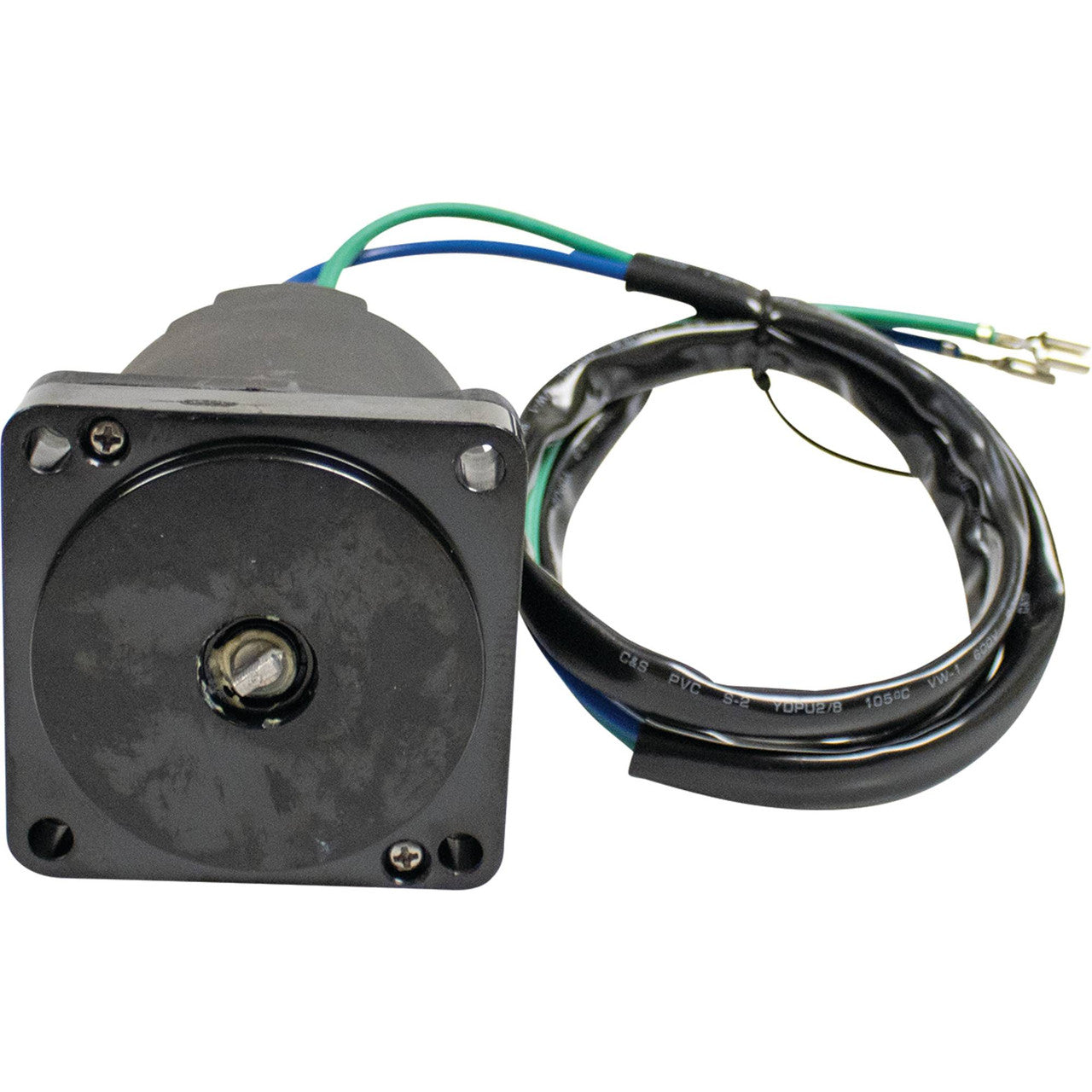

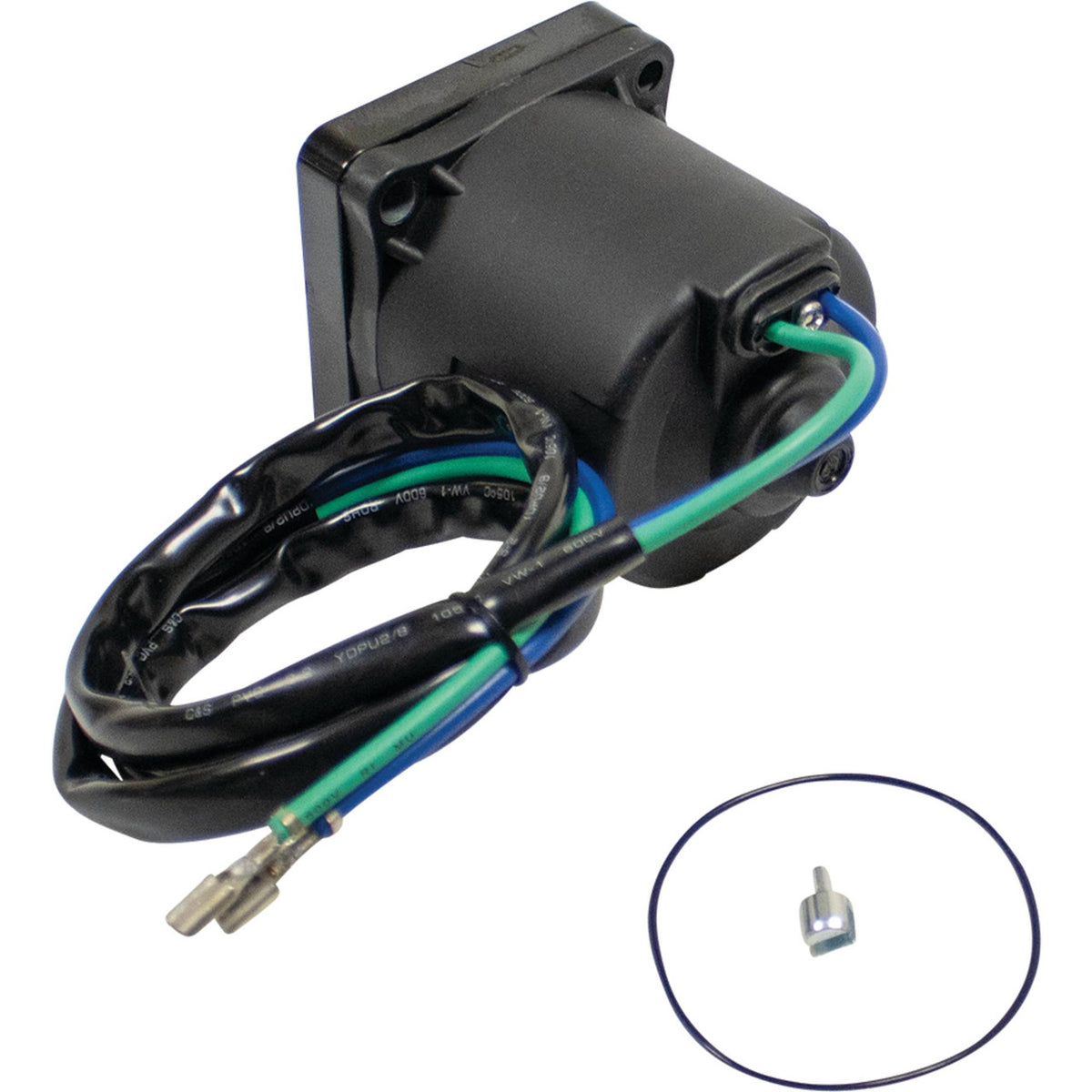

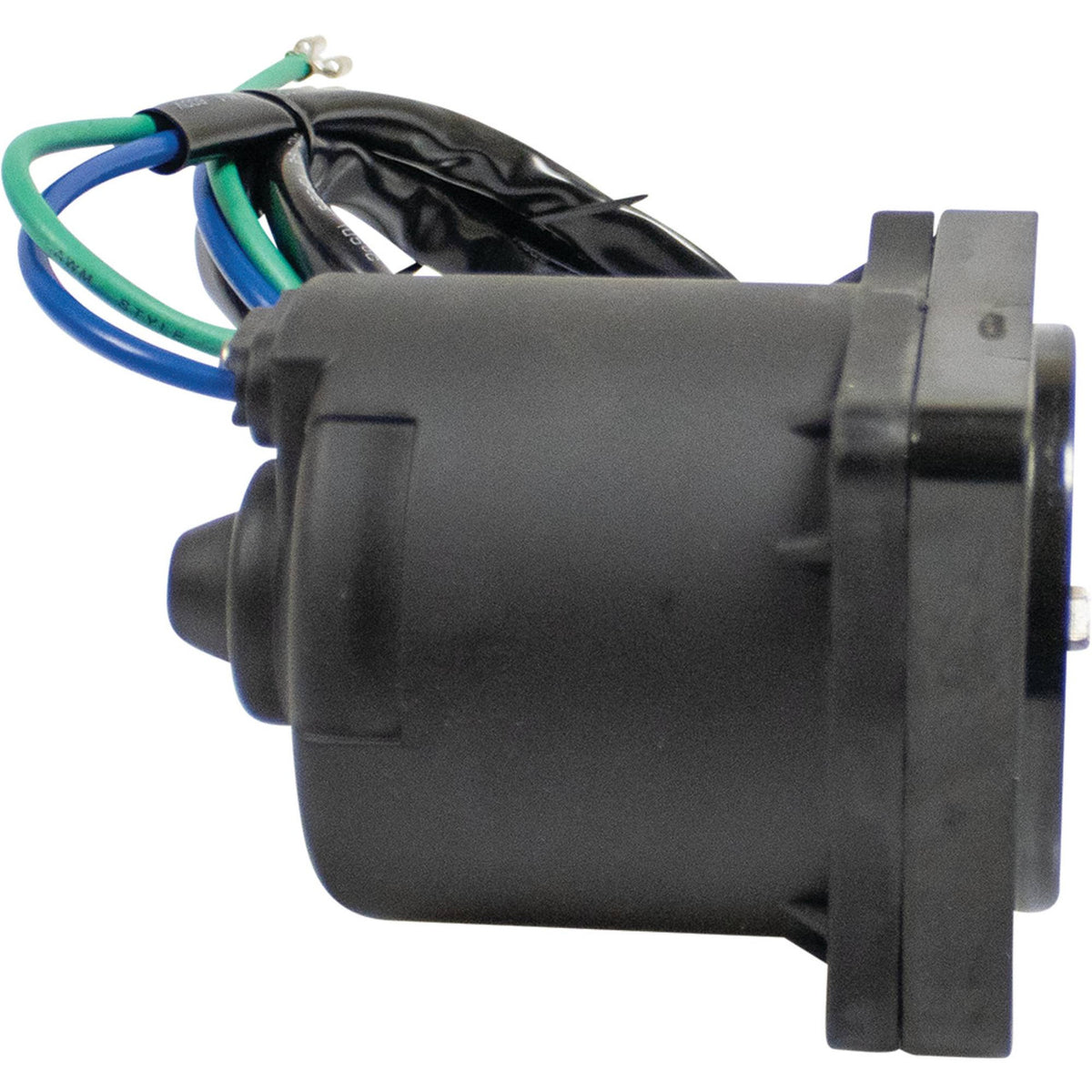

OMC Johnson Evinrude Tilt Trim Motor 430-22025
Premium Quality 12V Marine Replacement
Restore the lifting power of your outboard with this high-performance tilt trim motor. Specifically designed for the "Fast Track" trim systems, this unit provides smooth, reliable operation to help you maintain optimal boat plane and effortless trailering.
Key Features
- ✔ Direct fit for 3-bolt mounting bases
- ✔ 2-Wire harness with ring terminals
- ✔ Reversible rotation for up/down trim
- ✔ High-grade marine-spec materials
Technical Specs
| Voltage | 12V |
| Rotation | Reversible |
| Shaft Type | Tang Shaft / Flat |
| OD | 76mm (2.99in) |
| Length | 103mm (4.05in) |
| Mounting | 3-Bolt Base |
Compatibility / Fitment Guide
| Application | Horsepower Range | Years |
|---|---|---|
| Johnson / Evinrude Outboards | 50, 60, 70, 90 HP | 1991 - 2004 |
| Johnson / Evinrude V4 / V6 | 115, 130, 150, 175 HP | 1991 - 2004 |
| Johnson / Evinrude V6 / V8 | 200, 225, 250, 300 HP | 1991 - 1999 |
OEM Cross Reference
| OMC / Johnson / Evinrude | 434495, 434496, 438529, 438531, 5005374, 5005376 |
| Lester | 10816, 10816N-LDB |
| API Marine | PT303NM |
| Arco Marine | 6241 |
| Sierra Marine | 18-6780 |
Questions & Answers
Is this a genuine original part?
This is a premium quality aftermarket replacement part, manufactured to meet or exceed original equipment (OE) standards for fitment and performance.
How do I know if it is compatible?
We recommend checking the SKU/MPN and Cross Reference list provided above. This motor fits the 3-bolt system found on most 1991+ larger HP engines. If your motor has 2 wires and a 3-bolt flange, this is the correct part.
Does this unit include the reservoir?
No, this is the tilt trim motor only. It is designed to bolt onto your existing hydraulic reservoir pump assembly.
Note: Please verify your original part number or measure your mounting base against the specs above before purchasing. All products at 4drive.co.uk are quality tested for the marine environment.
