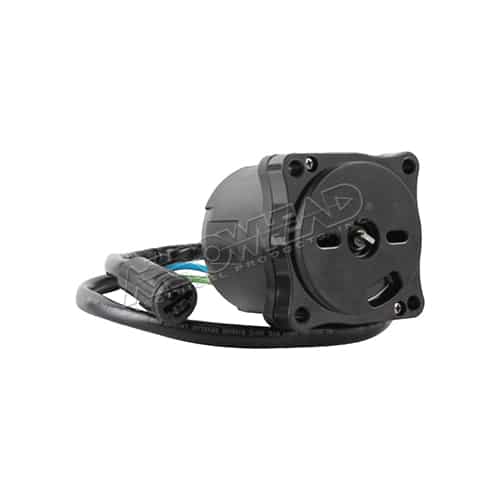

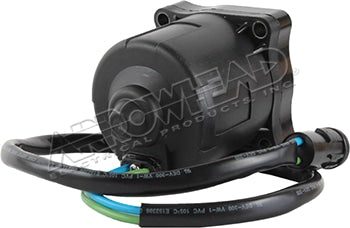

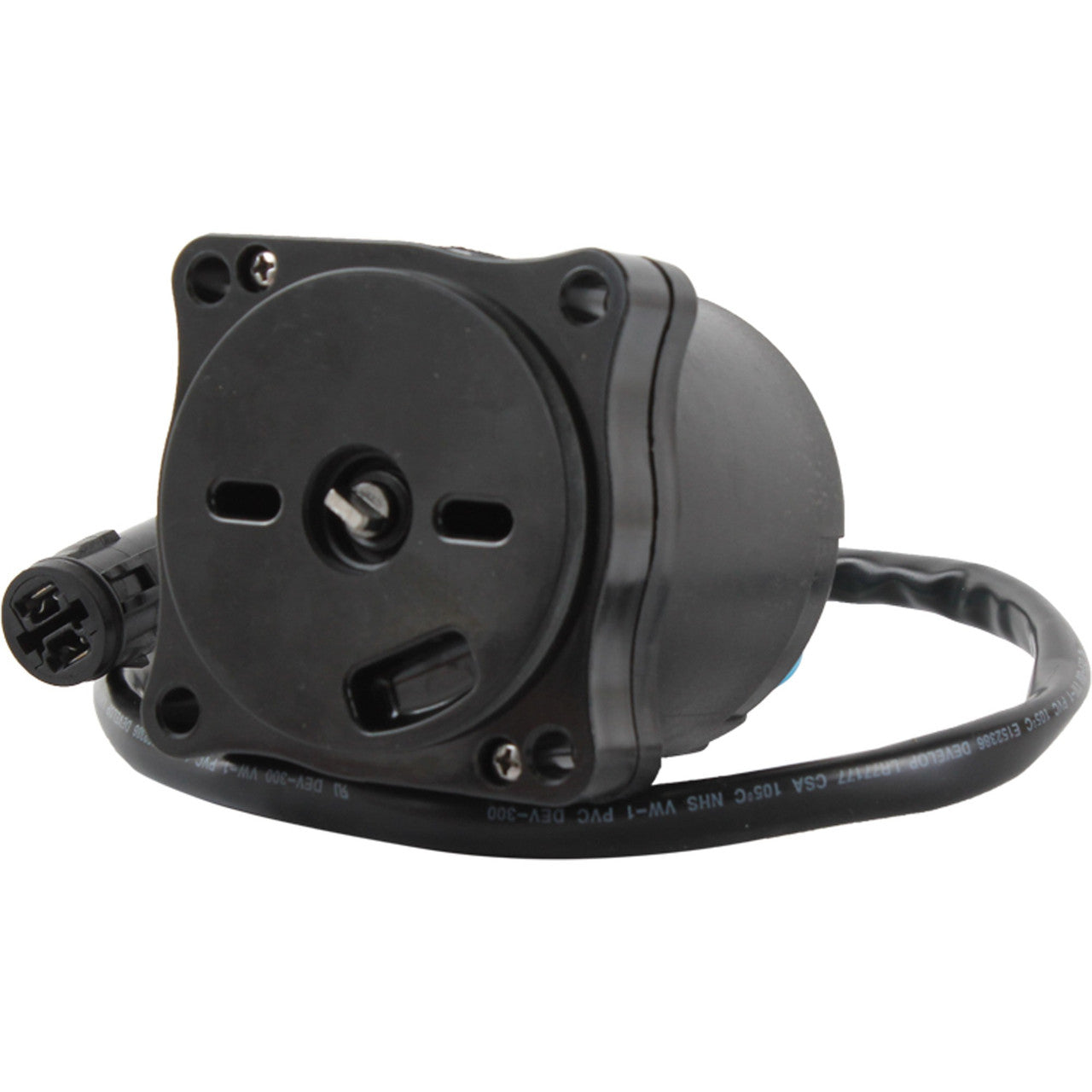

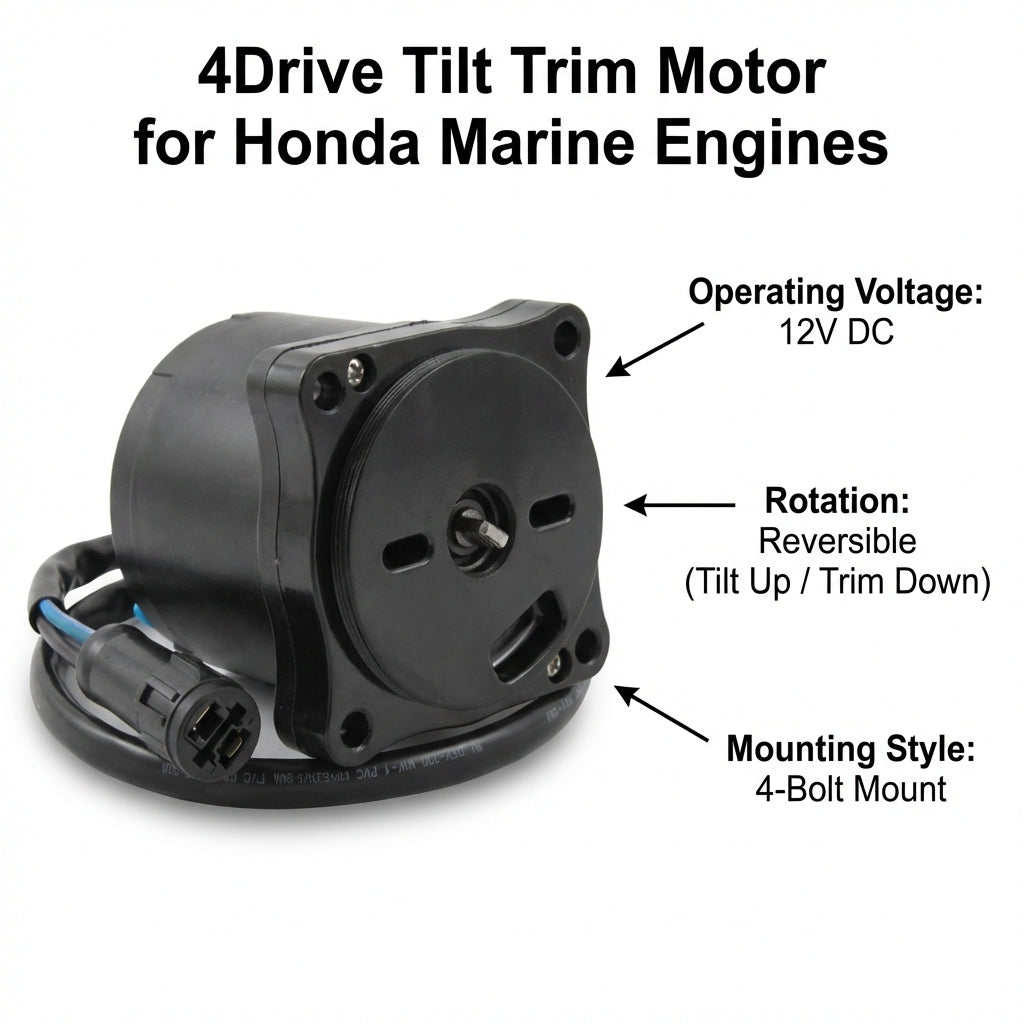

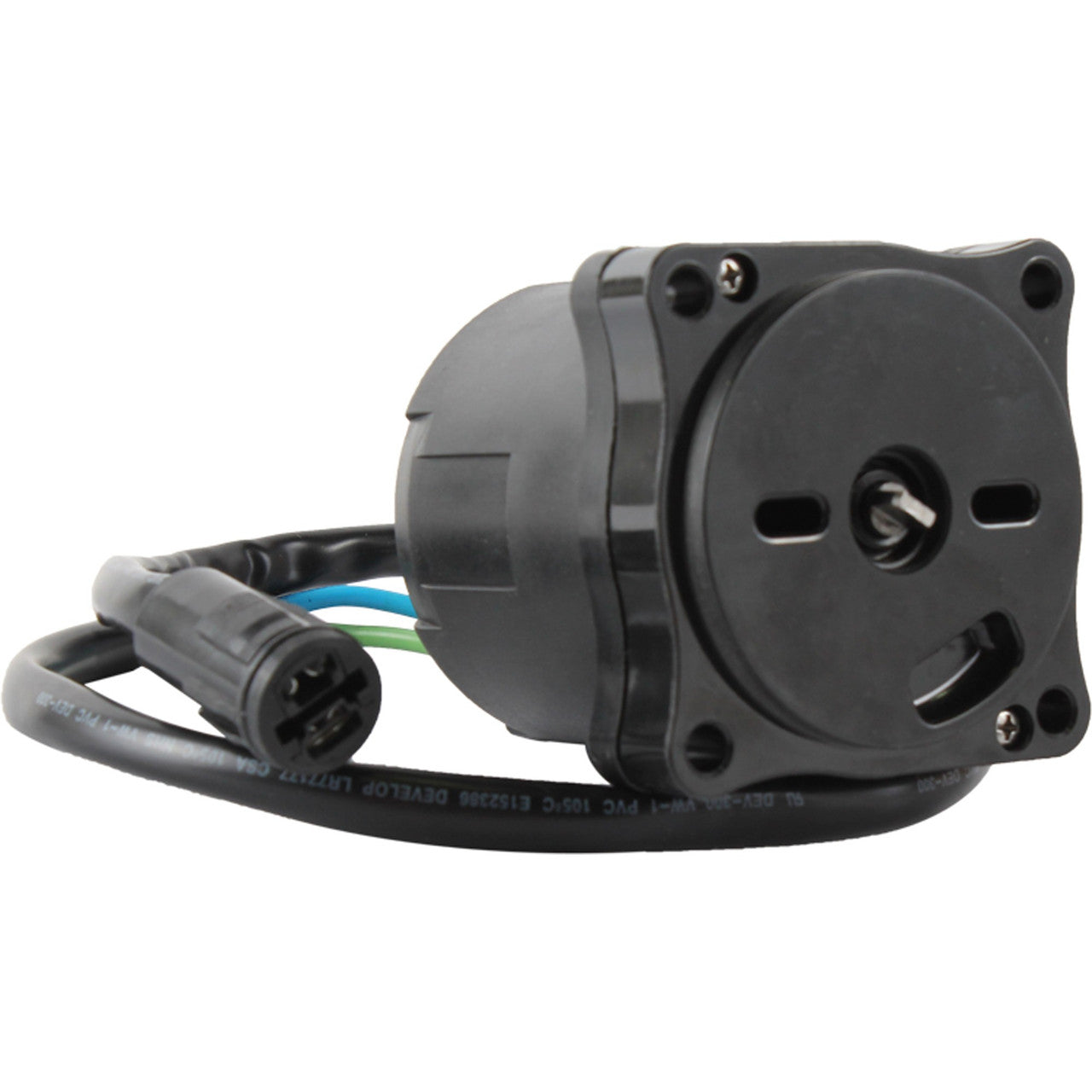

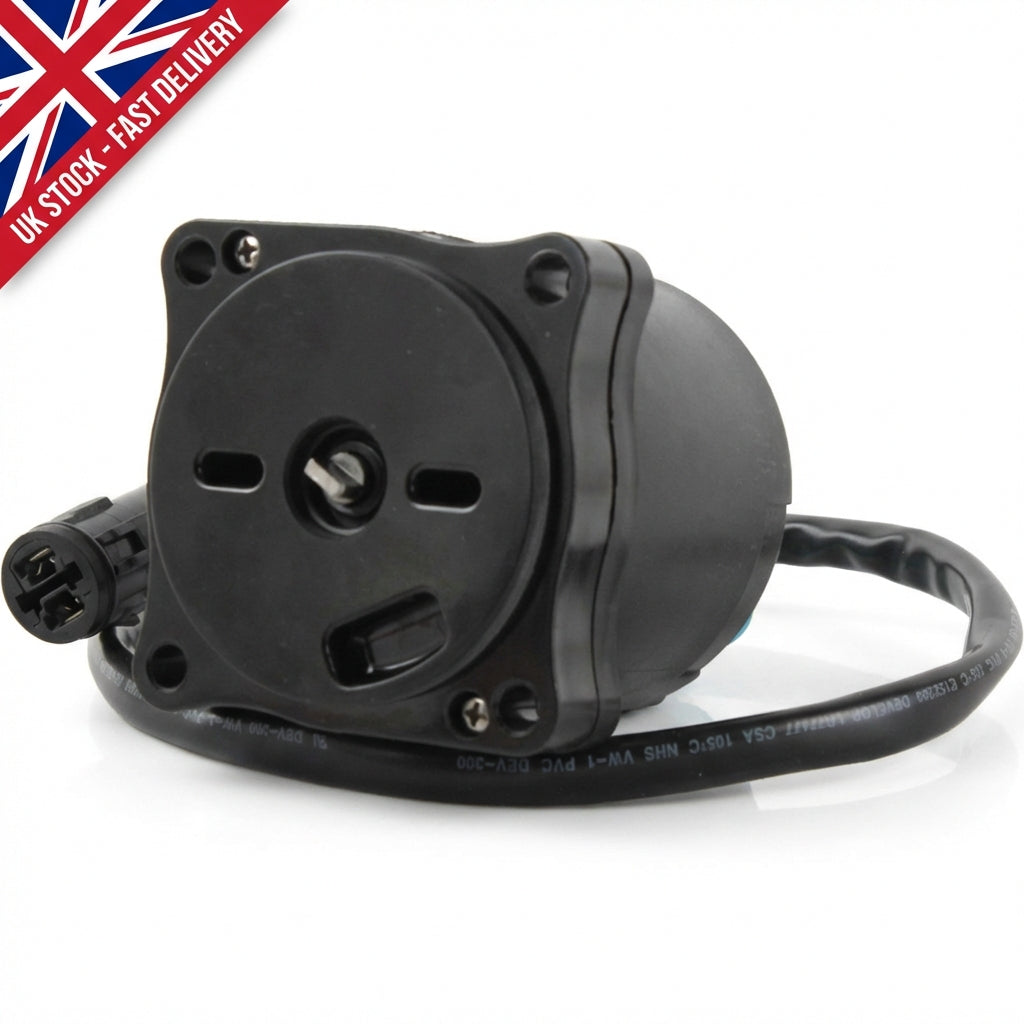

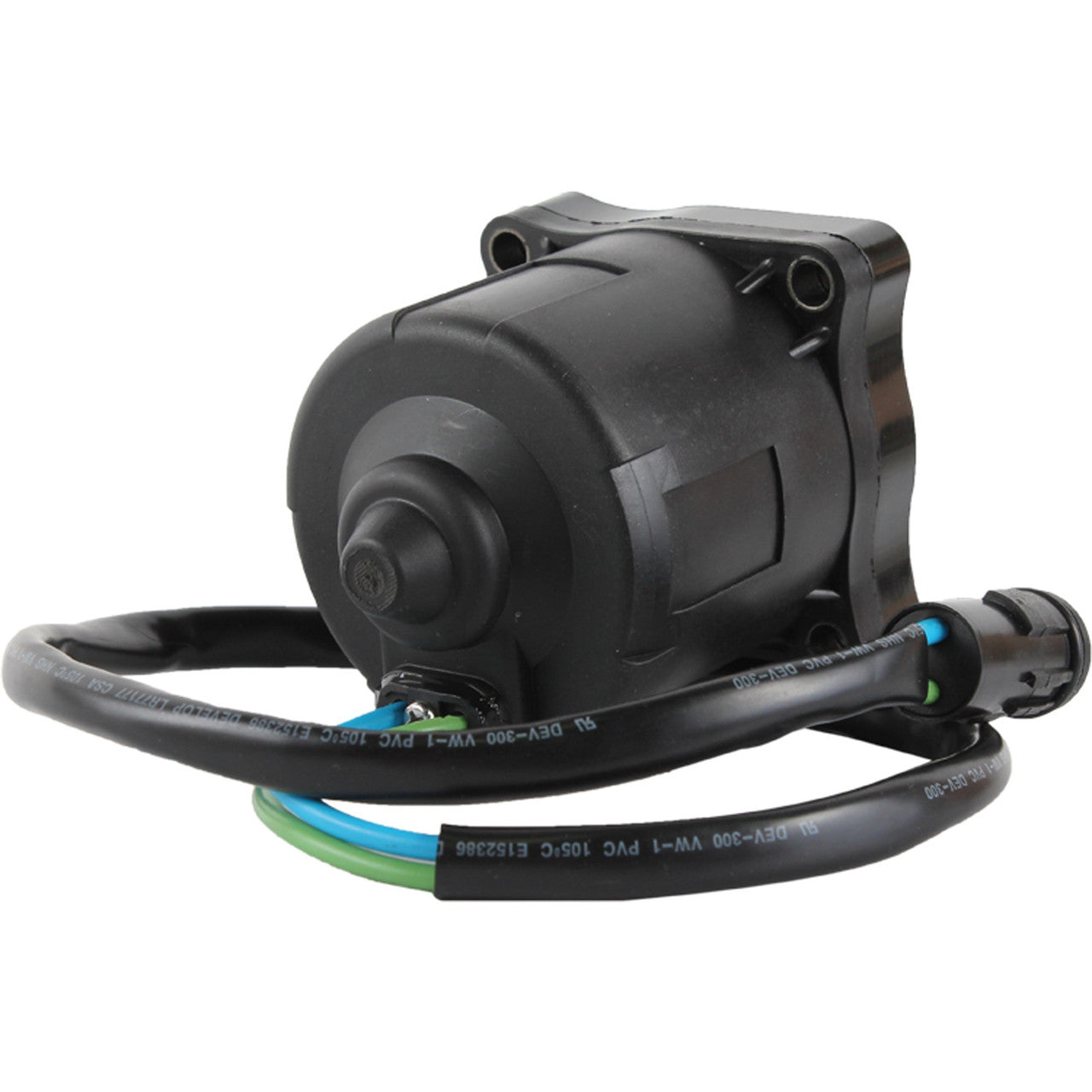

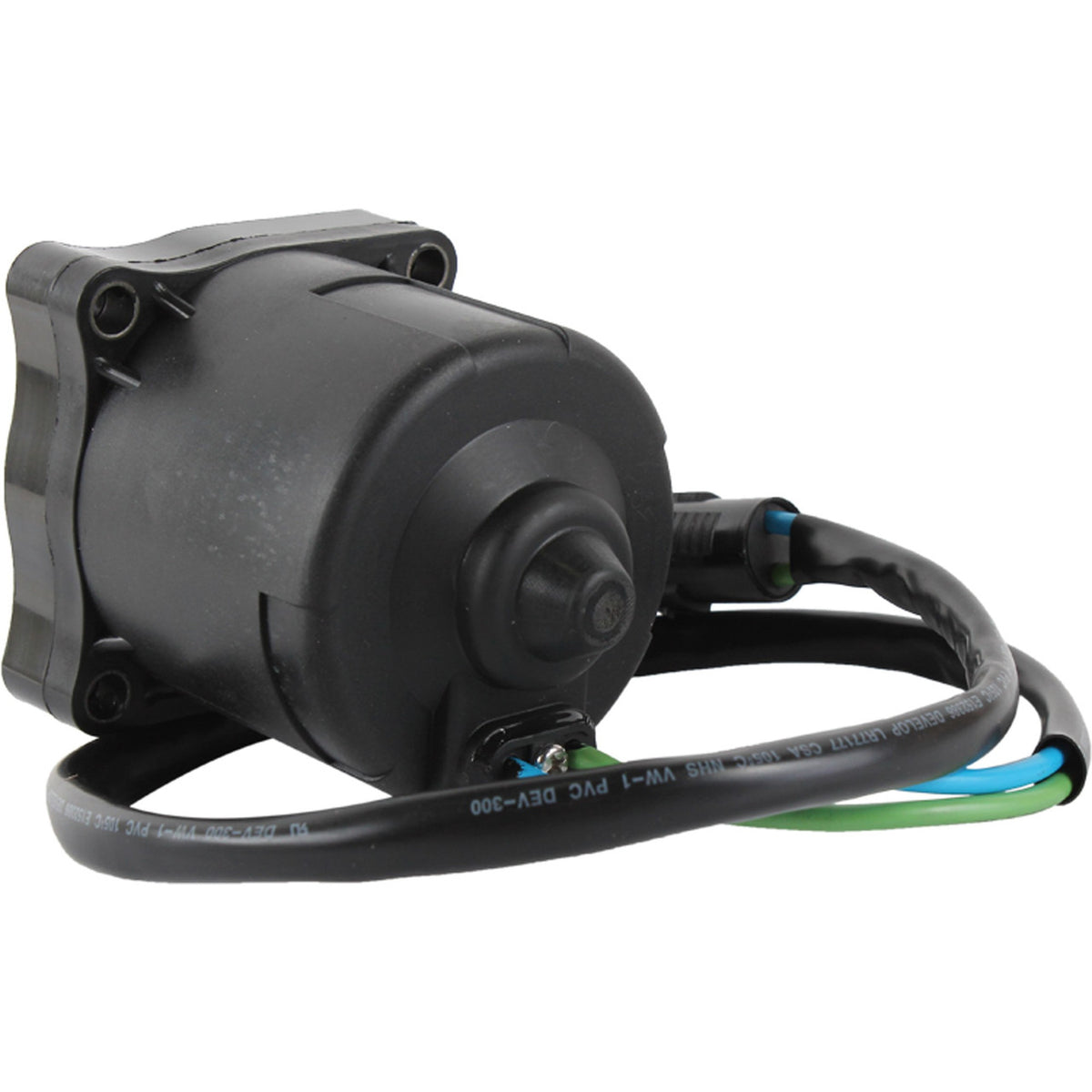

Restore the full functionality of your Honda outboard’s hydraulic system with this precision-engineered Tilt Trim Motor. Designed specifically for Honda Marine BF75 through BF100 4-stroke engines manufactured from 2007 onwards, this motor provides smooth, reliable lifting and lowering of your engine for optimal performance and fuel efficiency.
RELIABILITY: Engineered to meet SAE J1171 marine standards with high-quality brushes and moisture-resistant seals for maximum longevity in saltwater environments.
Key Features
✔ Direct fit 4-bolt mounting
✔ 2-Wire harness with plug connector
✔ Corrosion-resistant field case
✔ Includes sealing O-ring
Technical Specs
Voltage:
12V DC
Rotation:
Reversible
Shaft OD:
8mm (0.315")
Shaft Type:
2.6mm Drive Tang
Mounting:
4-Bolt (66mm OC)
Case OD:
78.5mm / 3.09"
Compatibility / Fitment Guide
Engine Model
Year Range
Notes
Honda BF75 / BF75D
2007 - 2019+
4-Stroke Engines
Honda BF80 / BF80A
2007 - 2019+
4-Stroke Engines
Honda BF90 / BF90D
2007 - 2019+
4-Stroke Engines
Honda BF100 / BF100A
2007 - 2019+
4-Stroke Engines
OEM Cross Reference
Honda
36120-ZY9-003, 36120-ZY9-013, 36120-ZY3-013
Arco Marine
6236
Arrowhead
430-22120, TRM0106
Sierra
18-6831
Questions & Answers
Is this a genuine original part?
This is a premium quality aftermarket replacement part, manufactured by 4Drive to meet or exceed original equipment (OE) standards for fitment and performance.
How do I know if it is compatible?
We recommend checking the SKU/MPN and Cross Reference list provided above. If your original part number matches any of these, it is a guaranteed fit.
Does this unit include the sealing O-ring?
Yes, this tilt trim motor comes complete with the necessary sealing O-ring to ensure a watertight installation.
Note: Please verify your original part number against the references above before purchasing. Domain: 4drive.co.uk
