Tilt Trim Motor for Honda BF75 BF90 BF115 BF135 BF150 BF200 BF225 36120-ZY3-013
Tilt Trim Motor for Honda BF75 BF90 BF115 BF135 BF150 BF200 BF225 36120-ZY3-013
SKU:430-22121
Free shipping over £150. Terms apply
Couldn't load pickup availability

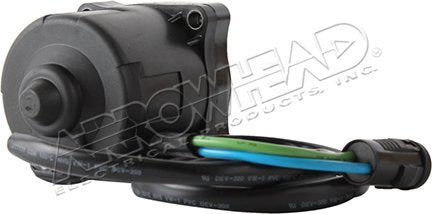

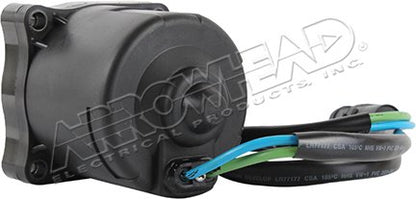

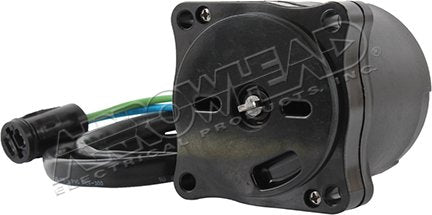

Honda Tilt Trim Motor | 36120-ZY3-013
Premium Quality Aftermarket Marine Component
Restore the full functionality of your Honda outboard's hydraulic system with this premium 4Drive aftermarket power tilt trim motor. Designed for the rigorous marine environment, this unit provides smooth, reliable operation for raising and lowering your engine, ensuring optimal boat performance and fuel efficiency.
Key Features
- ✔ Direct fit for 4-bolt mounting systems
- ✔ High-torque 12V reversible motor
- ✔ Sealed 2-wire connector for easy installation
- ✔ Corrosion-resistant powder-coated housing
Technical Specs
| Voltage: | 12V DC |
| Rotation: | Reversible |
| Shaft OD: | 8mm (Keyed) |
| Case OD: | 78.5mm |
| Mtg. Holes: | 66mm Center-to-Center |
| Configuration: | 2-Wire Connection |
Compatibility / Fitment Guide
| Make/System | Model/Application | Notes |
|---|---|---|
| Honda Outboard | BF75 / BF90 | 2007 - Present |
| Honda Outboard | BF115 / BF130 | 2007 - Present |
| Honda Outboard | BF135 / BF150 | 2004 - Present |
| Honda Outboard | BF175 / BF200 / BF225 / BF250 | 2002 - Present |
| Suzuki Outboard | DF150 to DF300 | Interchangeable 4-bolt unit |
OEM Cross Reference
| Honda OEM | 36120-ZY3-013, 36120-ZY3-023, 36120-ZY9-013, 36120-ZY9-003, 36120-ZW1-703, 36120-ZX2-013 |
| Suzuki OEM | 38100-93J02, 38100-93J03, 38100-93J04, 38100-96J00, 38100-96J11, 38100-96J12 |
| Sierra / Arco | Sierra 18-6742, Arco 6234 |
| Other Refs | API Marine PT314NM, WSM PH200-T077 |
Questions & Answers
Is this a genuine original part?
This is a premium quality 4Drive aftermarket replacement part, manufactured to meet or exceed original equipment (OE) standards for marine reliability and fitment.
How do I know if it is compatible?
Please check the mounting configuration on your current motor. This unit features a 4-bolt flange and a 2-wire electrical connection. Verify your original part number against the Cross Reference list provided above for a guaranteed fit.
Does this motor include the replacement O-ring?
Yes, this tilt trim motor comes complete with a high-quality replacement O-ring to ensure a watertight seal and professional installation.
Note: Technical data provided by 4Drive at 4drive.co.uk. Please verify your original part number before purchasing.
