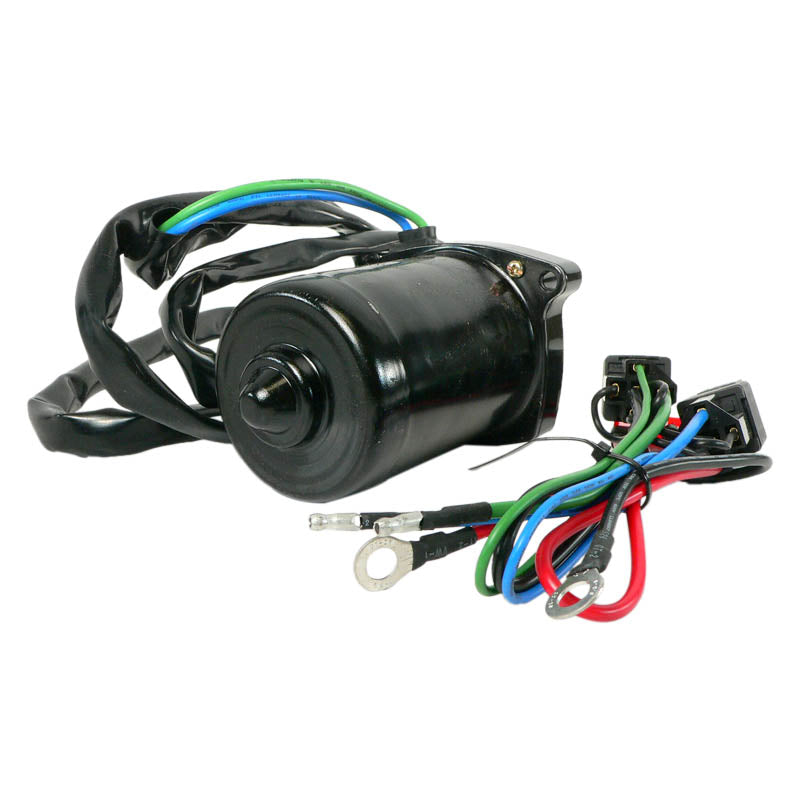

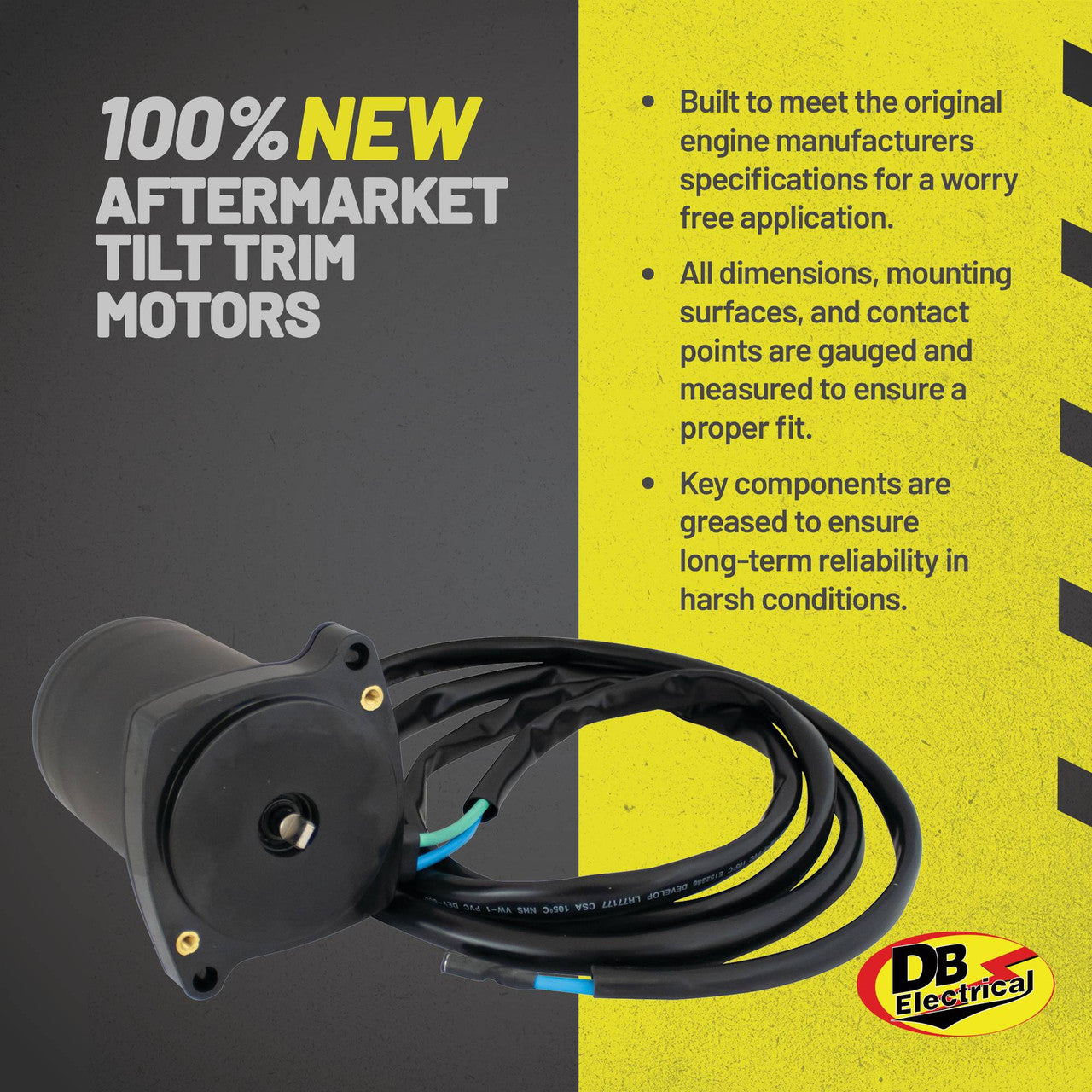

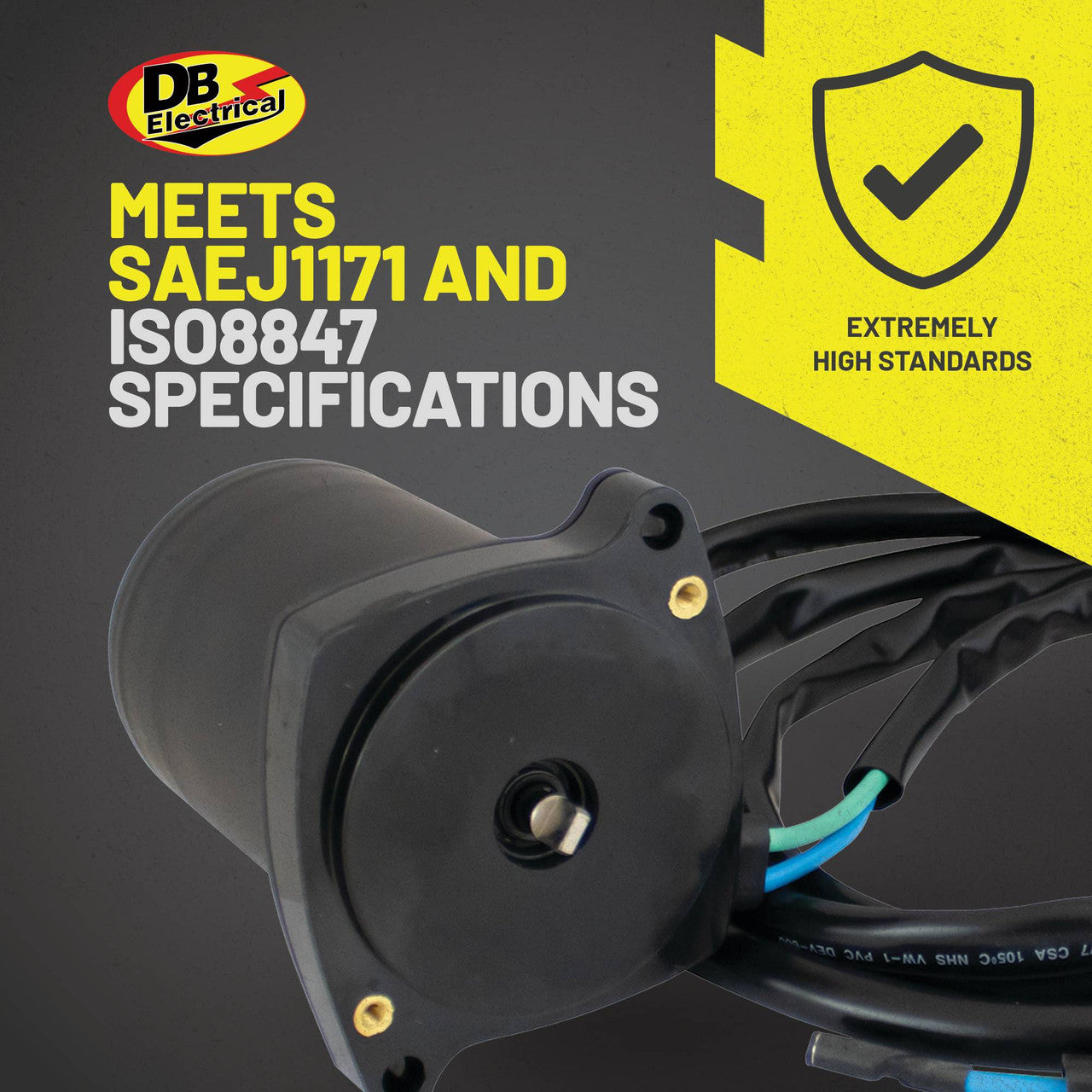

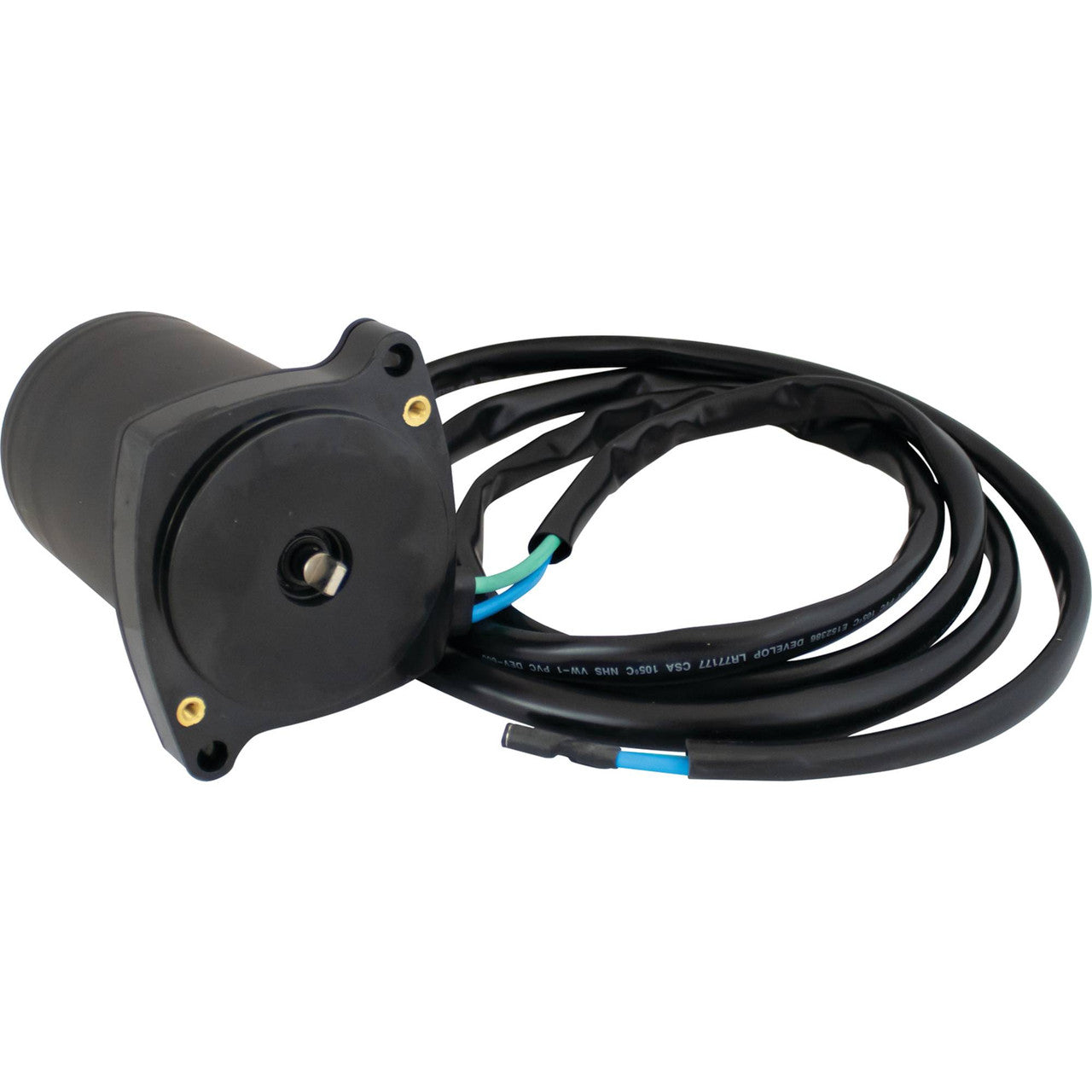

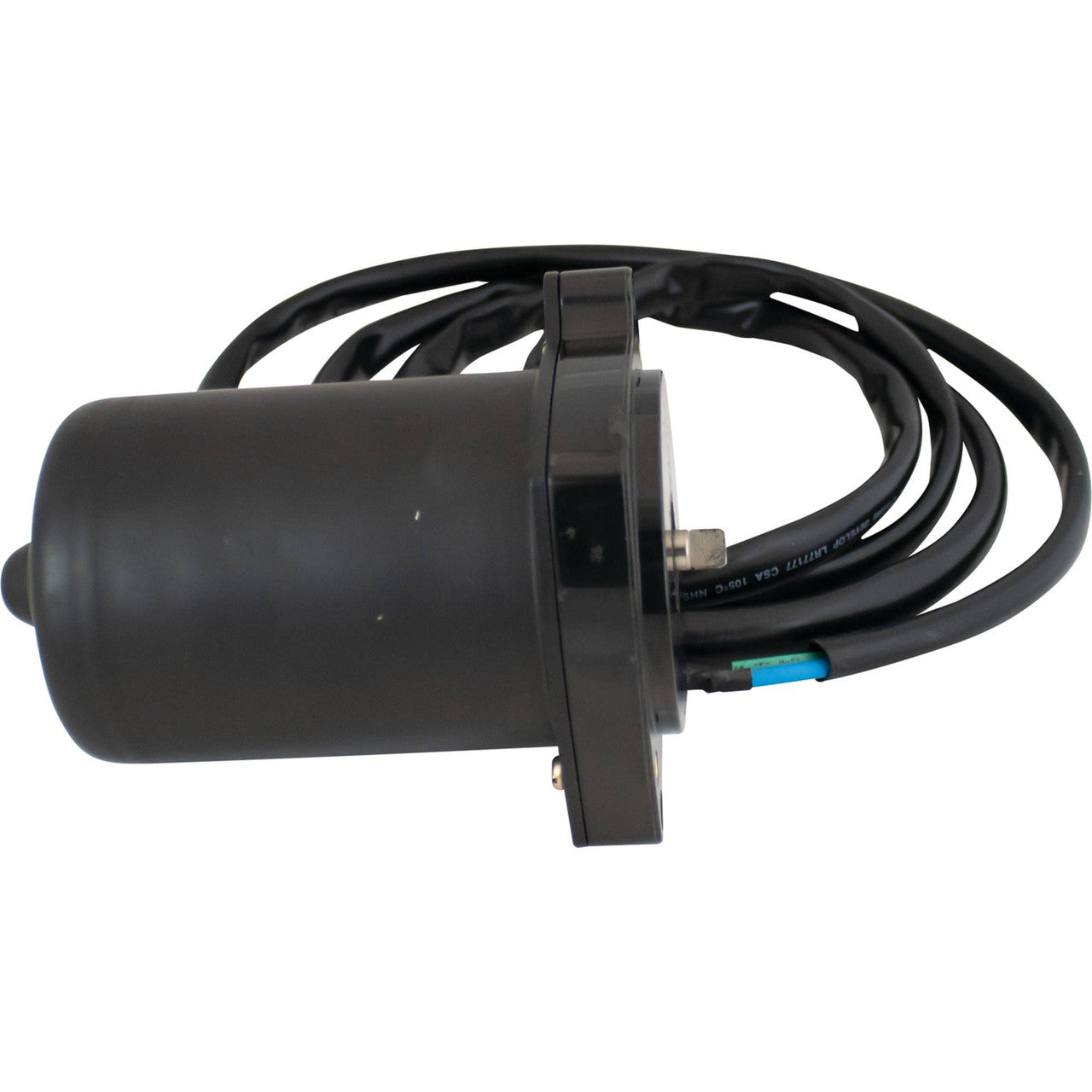

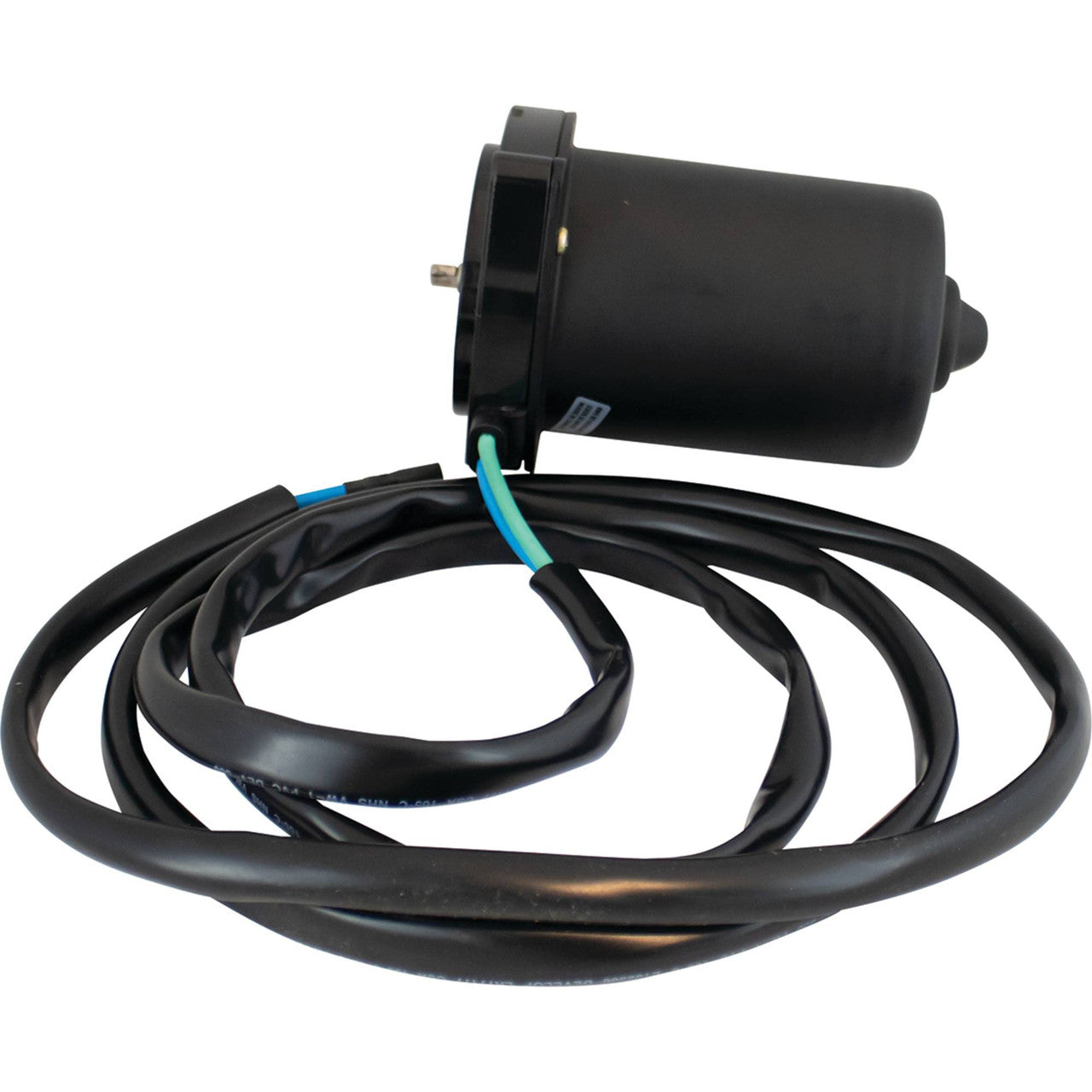

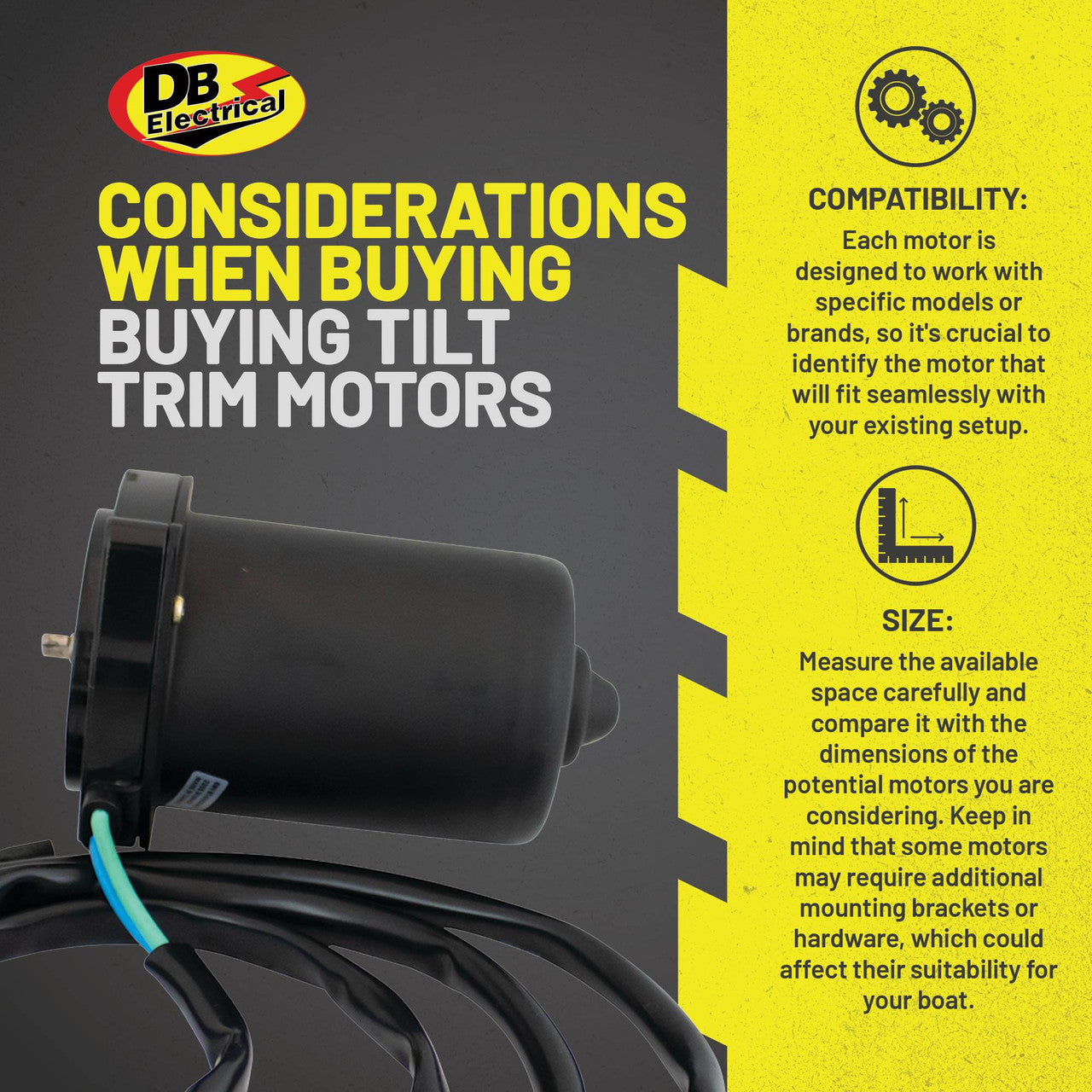

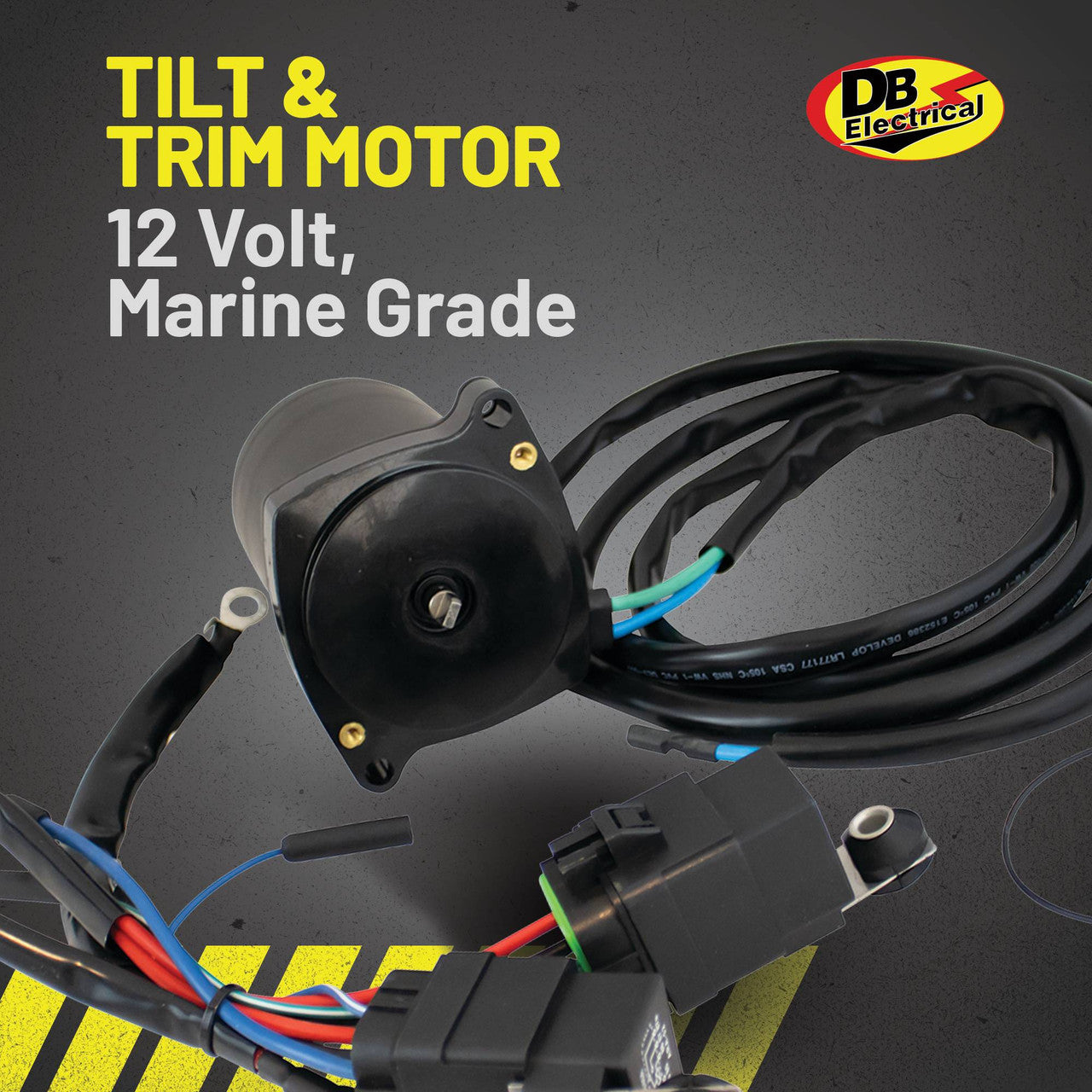

This tilt and trim motor is a direct replacement for the integral trim and tilt system fitted to Mercury and Mariner outboard engines from 1993 to 1995. It is built to OEM specifications for fit, form and function.
It is designed for the Design II aft fill 3-ram system and runs as a 2-wire motor, giving a simplified, reliable replacement for the original 3-wire OE system. It is a bolt-in fit using the original mounting points and connector type, so there is no need to splice or modify the trim harness during installation.
Key Features
- Direct fit for Mercury & Mariner 1993-95 outboard engines
- Compatible with Design II aft fill 3-ram trim system
- 2-wire motor design
- Simplified replacement for the original 3-wire OE system
- 12-month warranty as standard
Technical Specs
| Specification |
Detail |
| Voltage |
12V |
| Part Type |
Unit |
| System |
Design II Aft Fill 3-Ram |
| Wiring |
2-Wire Motor |
| Compatibility |
Replaces 3-Wire OE System |
Vehicle Fitment Guide
| Make & Model |
Years |
| Mercury & Mariner |
1993-1995 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
No OEM cross reference is published for this part.
Frequently Asked Questions
Will this fit without modification?
Yes, this motor is a direct OEM-spec replacement for the integral trim and tilt system on 1993-1995 Mercury and Mariner outboards and requires no modification to fit.
What's included?
You will receive one tilt and trim motor, ready to fit into your existing trim system housing. No wiring loom, pump or reservoir is included unless stated, so please compare your existing hardware before fitting.
How do I know my old motor has failed?
Common signs of a failed tilt and trim motor include the drive failing to tilt or trim, a humming noise with no movement, or slow and inconsistent operation. If the trim system moves in one direction only, stalls part-way through its travel, or trips a breaker under load, the motor is a common cause and worth checking first.

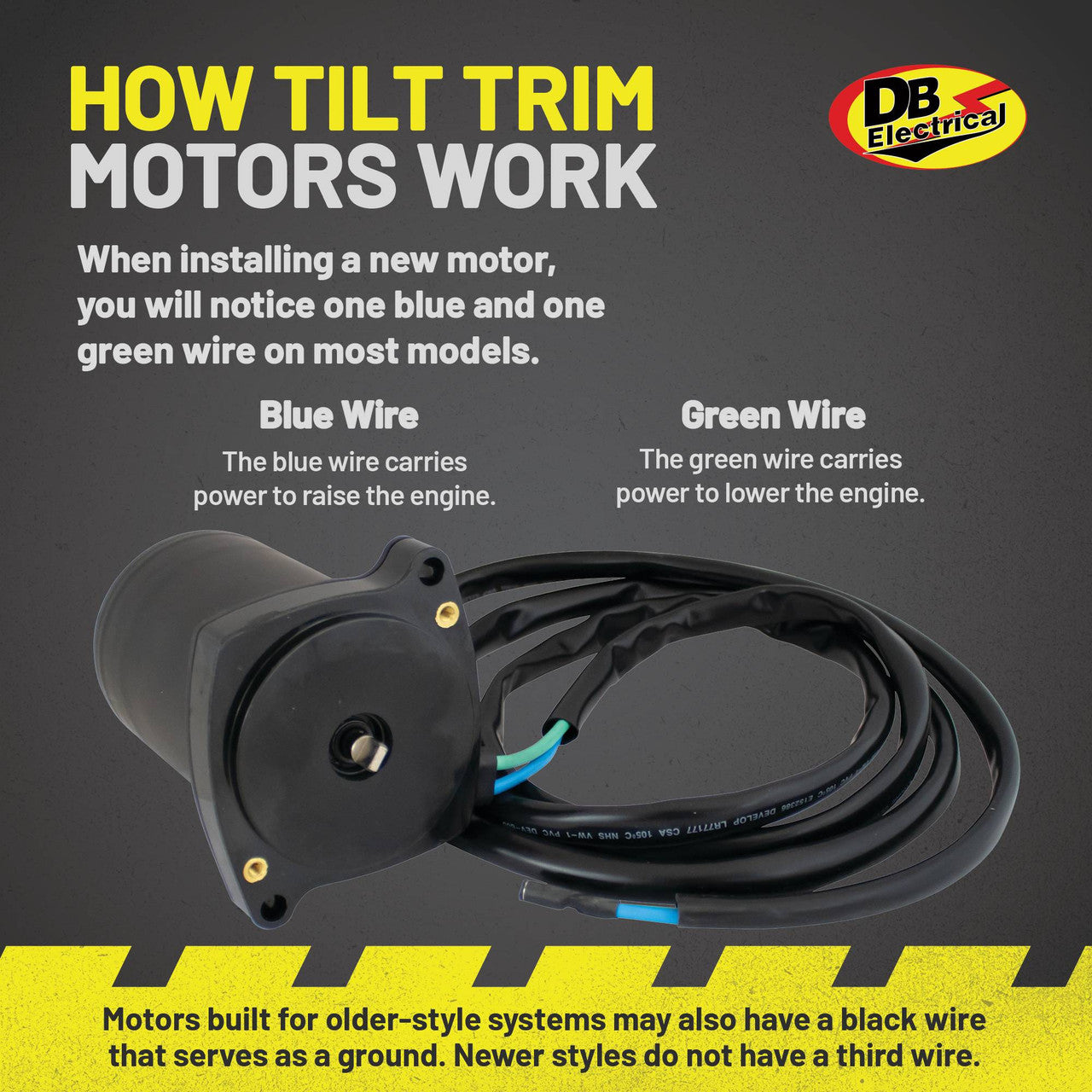

What is the difference between this and the original 3-wire motor?
This unit uses a simplified 2-wire design that performs the same tilt and trim function as the original 3-wire motor, without needing the additional OE wiring.
