Tilt & Trim Motor for OMC Stern Drive 100, 120, 140 & 155 1967-1978
Tilt & Trim Motor for OMC Stern Drive 100, 120, 140 & 155 1967-1978
SKU:430-20002
Free shipping over £150. Terms apply
Couldn't load pickup availability

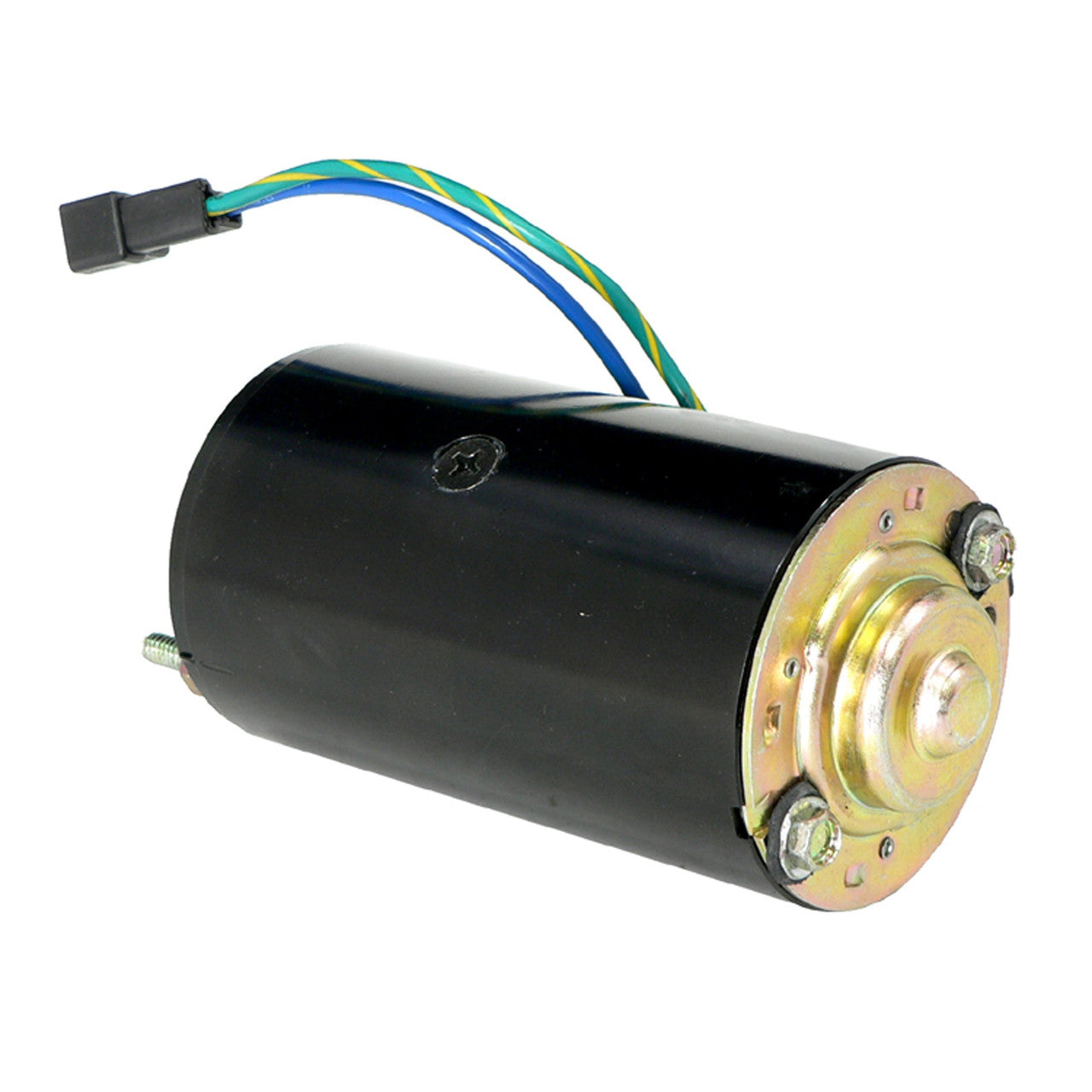

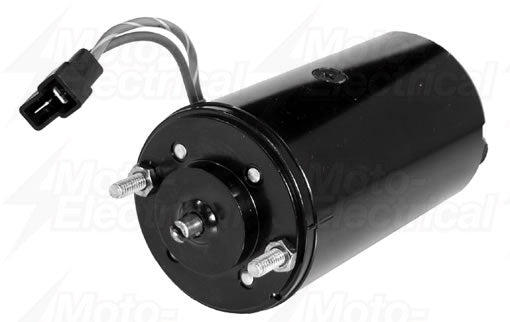

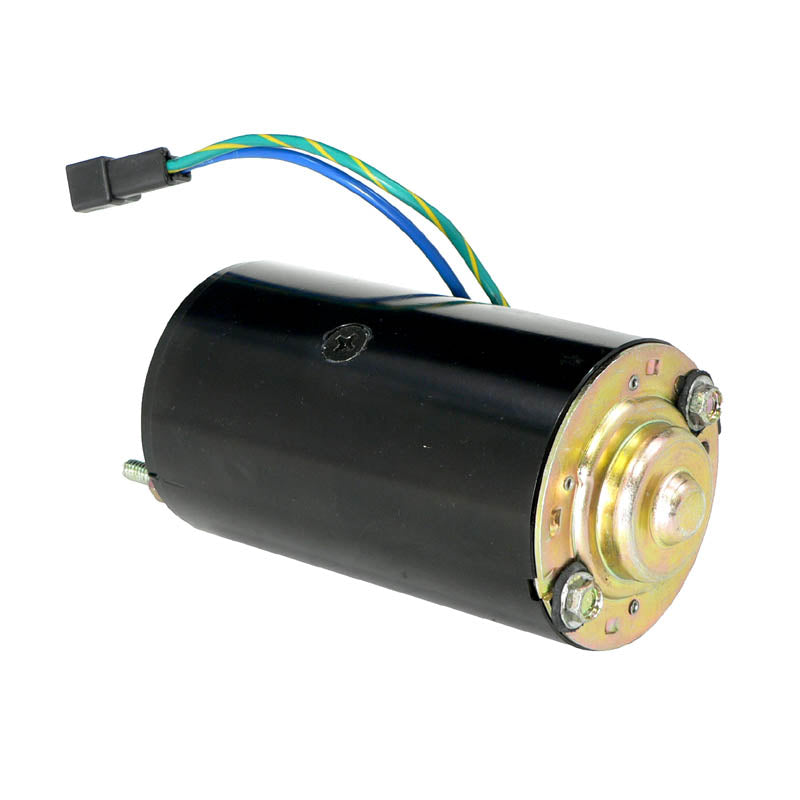

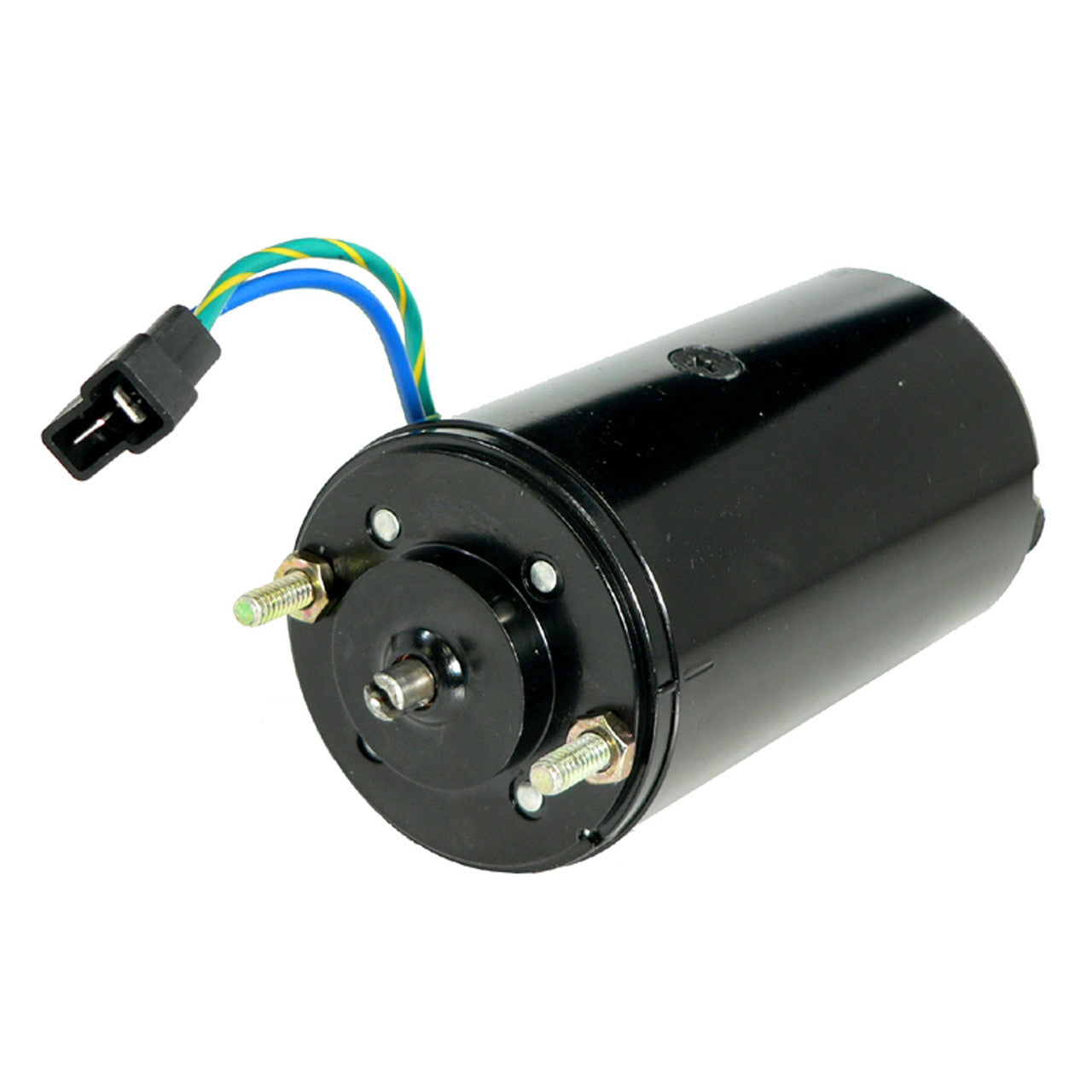

Tilt & Trim Motor for OMC Stern Drive Engines
Models 100, 120, 140 and 155, 1967-1978
This tilt and trim motor is built for OMC stern drive units fitted to the 100, 120, 140 and 155 engine models, covering 1967 to 1978. It is manufactured to OEM specifications for a direct, fit-and-function replacement of the original unit, and every motor is assembled and bench-tested before dispatch so it is ready to install and run.
It is a 12-volt unit with a 2-wire connection, matching the mounting and wiring of the original equipment motor it replaces. A worn tilt and trim motor can leave a stern drive stuck in one position, so replacing it with a correctly specified unit restores full control of drive angle for docking, trailering and running at different speeds.
Key Features
- 12-volt tilt and trim motor
- 2-wire connection
- Replaces OMC 0380361, 0382138 and 0382220
- Direct OEM fit and finish, no modification needed
- 12-month warranty as standard
Technical Specs
| Specification | Detail |
|---|---|
| Voltage | 12V |
| Connection | 2-Wire |
| Application | Stern drive tilt and trim |
| Lester Number | 10808 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| OMC Stern Drive 100 | 1972-1976 |
| OMC Stern Drive 120 | 1967-1978 |
| OMC Stern Drive 140 | 1973-1978 |
| OMC Stern Drive 155 | 1967-1972 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 0380361, 0382138, 0382220, 380361, 382138, 382220 | OMC (Johnson / Evinrude) |
| 18-6754 | Sierra |
| 10808N | Lester |
| 111863, 26209A | Aftermarket interchange references |
| 430-20002 | J&N / DB Electrical |
Frequently Asked Questions
Will this fit without modification?
Yes, this tilt and trim motor is built to OEM dimensions and mounting points for a direct fit with no modification required.
What's included?
One complete tilt and trim motor unit, ready to install.
How do I know my old tilt and trim motor has failed?
Common signs include the tilt/trim function not responding, moving slowly, straining without movement, or an audible hum from the motor with no corresponding movement of the drive.
Does this include the mounting bracket?
This listing is for the motor unit itself; check your original setup to confirm which mounting hardware is required.
Will the 2-wire connection match my existing wiring?
Yes, this motor uses the same 2-wire connection as the original OMC unit, so it connects into the existing wiring without any rewiring.
How do I confirm this is the right motor for my drive?
Check the OMC number stamped on your original motor against 0380361, 0382138 or 0382220 in the cross reference table above before ordering.
