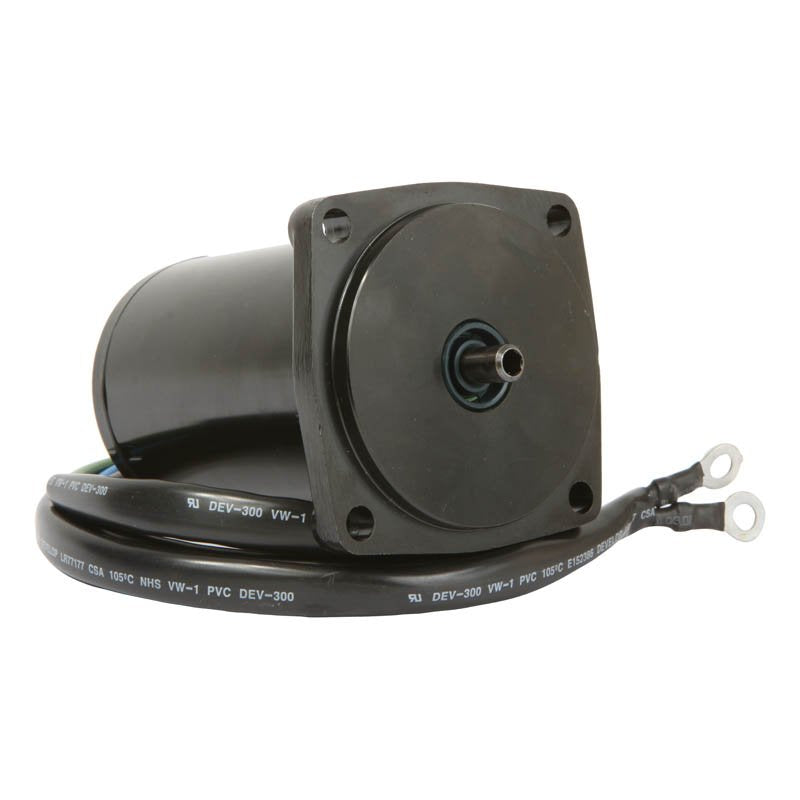

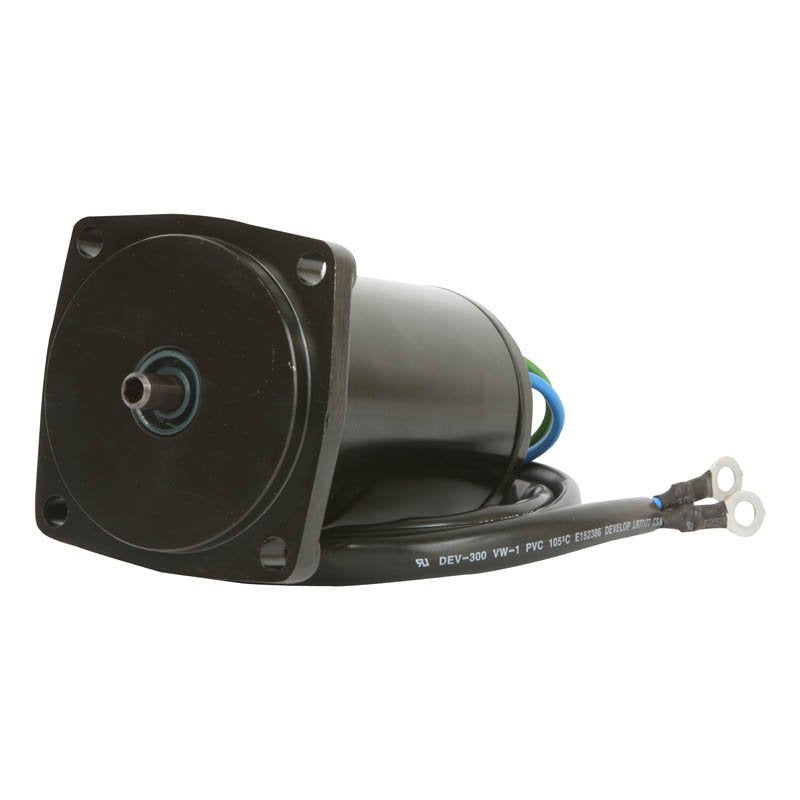

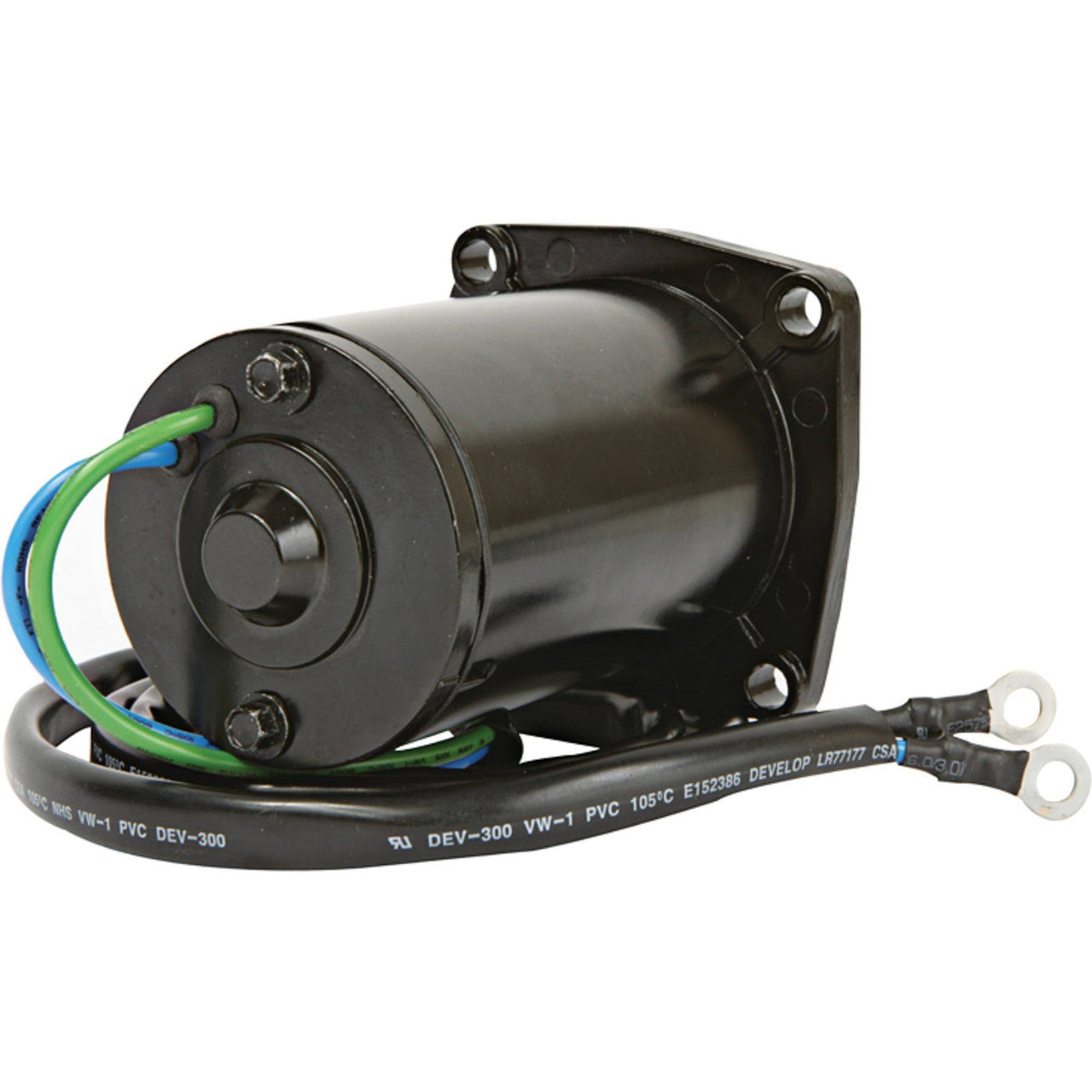

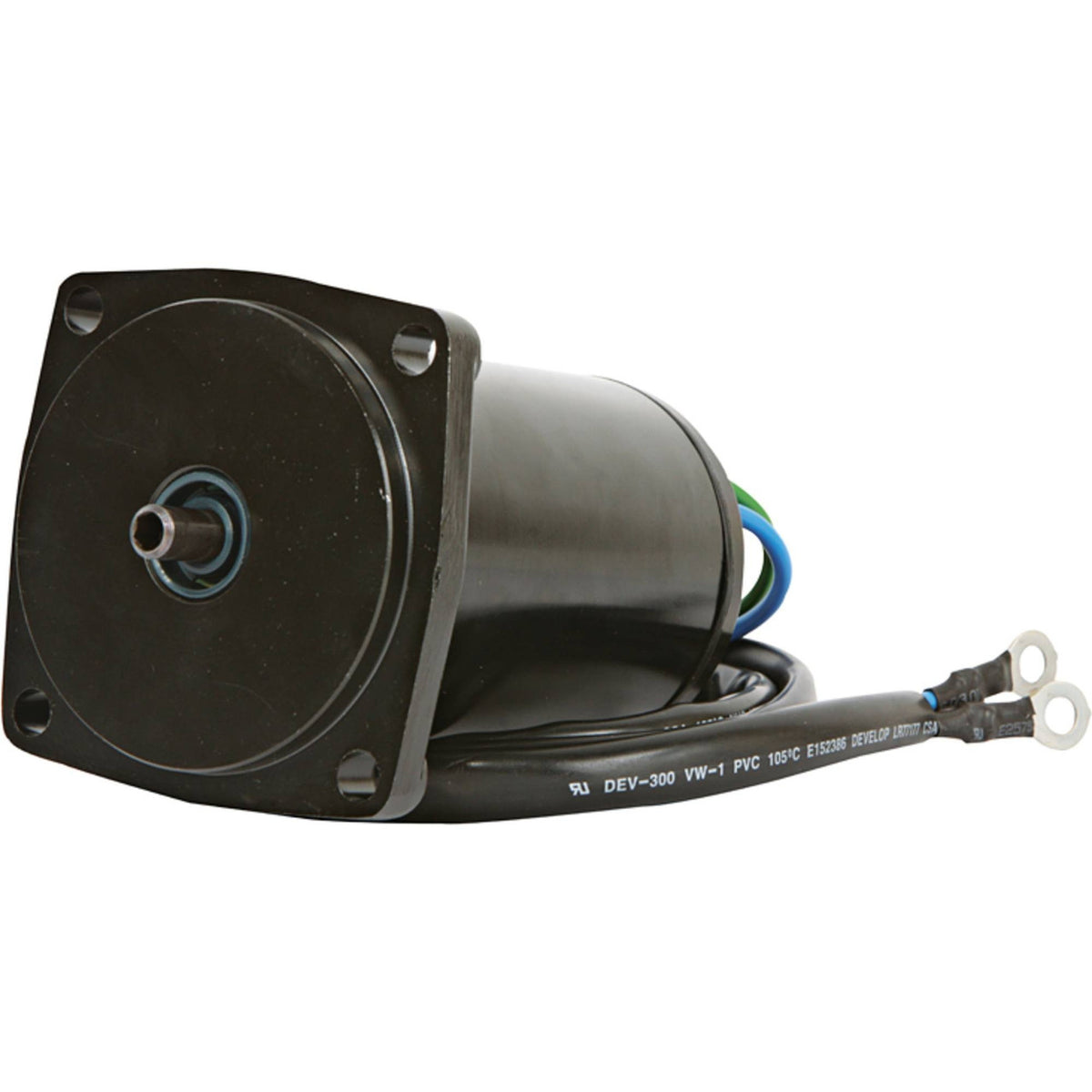

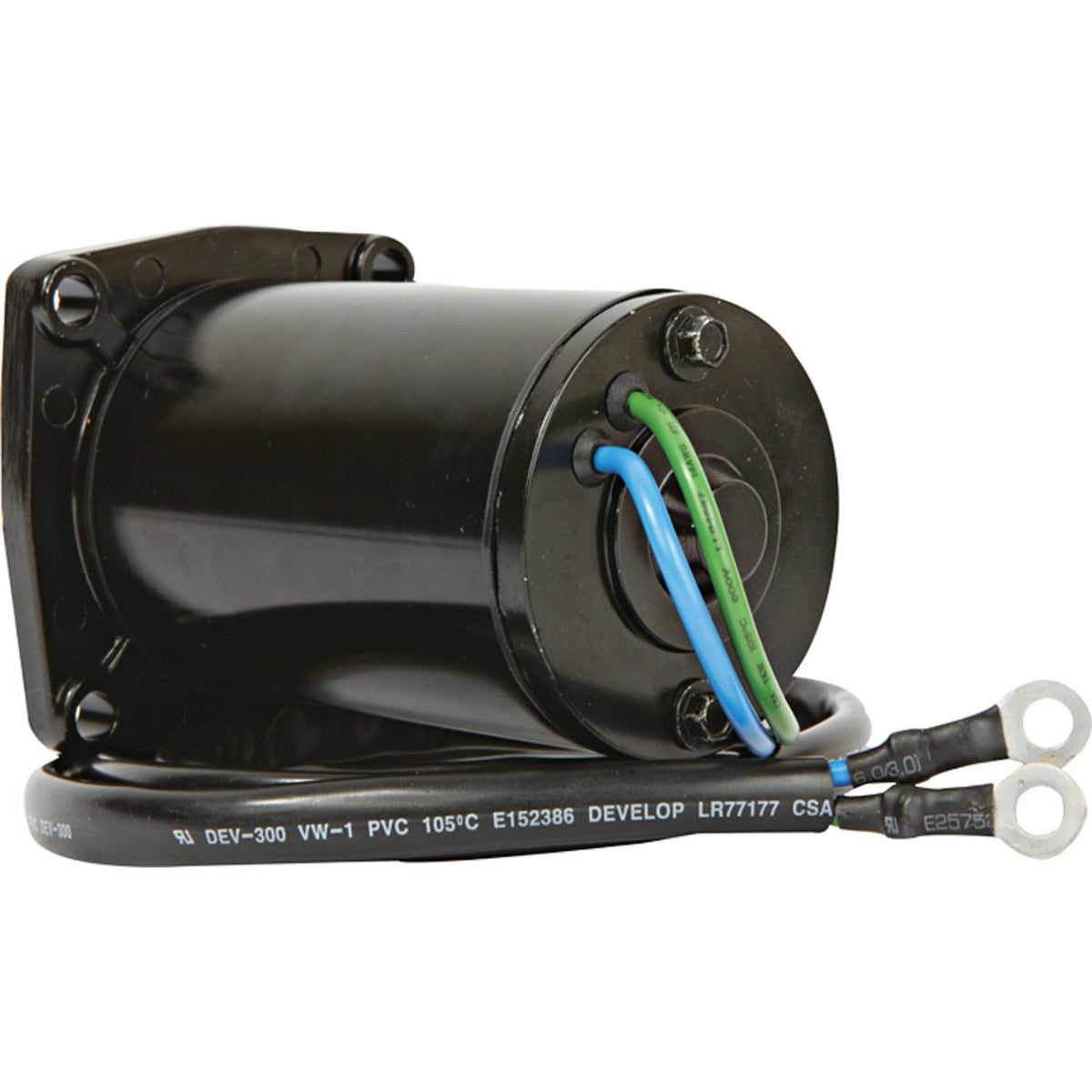

Suzuki DF40 DF50 Tilt Trim Motor
Premium Replacement Part: 38100-87J00 / 430-22151
This high-performance tilt trim motor is a precision-engineered replacement for Suzuki DF40 and DF50 4-stroke outboard engines. Designed specifically for the 1999-2000 model years, this unit ensures smooth and reliable operation of your engine's trim system, allowing for optimal vessel positioning and performance on the water.
Key Features
- ✔ Direct fit for easy installation
- ✔ Marine-grade seals for moisture protection
- ✔ High-quality brushes & armatures

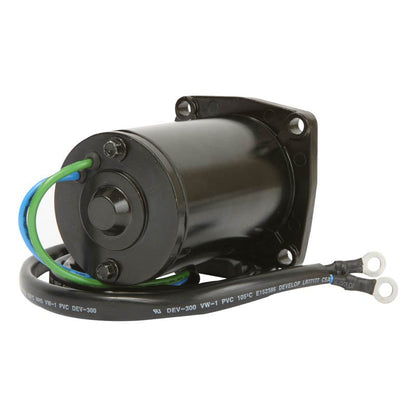

- ✔ 2-Wire connection (Blue/Green wires)
Technical Specs
| Voltage: | 12V |
| Rotation: | Reversible |
| Field OD: | 64.2mm (2.528in) |
| Shaft Type: | 4mm Female Hex |
| Mounting: | 3-Bolt Mount |
Compatibility / Fitment Guide
| Make | Model / Application | Year Range |
|---|---|---|
| Suzuki | DF40, DF40QHL, DF40TL, DF40TS | 1999-2000 |
| Suzuki | DF50, DF50QHL, DF50TL | 1999-2000 |
| Evinrude | E40PL, E50PL | 1999-2000 |
| Johnson | BJ40PL4, J40PL4, BJ50PL4, J50PL4 | 2005-2006 |
OEM Cross Reference
| Suzuki | 38100-87J00, 38100-87J00-0EP |
| OMC / Johnson / Evinrude | 5031482, 5036081 |
| Lester | 10852 |
| Arco | 6271 |
| Arrowhead / J&N | 430-22151 |
Questions & Answers
Is this a genuine original part?
This is a premium quality aftermarket replacement part from 4Drive, manufactured to meet or exceed original equipment (OE) standards for fitment and performance.
How do I know if it is compatible?
We recommend checking the SKU and Cross Reference list provided. If your original part number is 38100-87J00 or matches the Lester number 10852, this is a guaranteed fit.
What wire connection does this motor use?

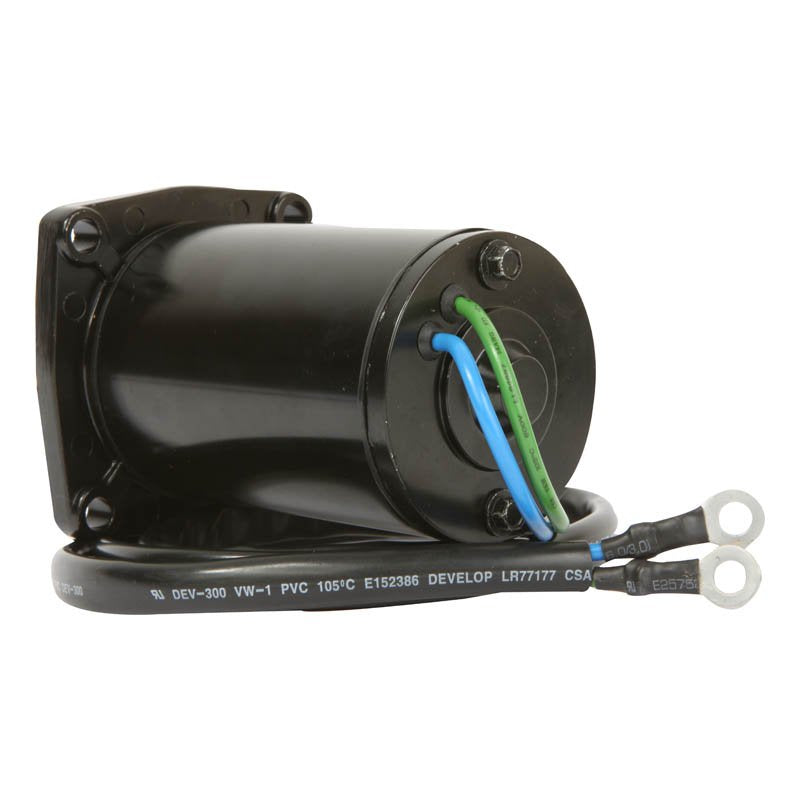

This motor uses a 2-wire system with one blue wire for lifting (up) and one green wire for lowering (down). It is a reversing-style DC motor.
Note: Please verify your original part number against the references above before purchasing. Domain: 4drive.co.uk
