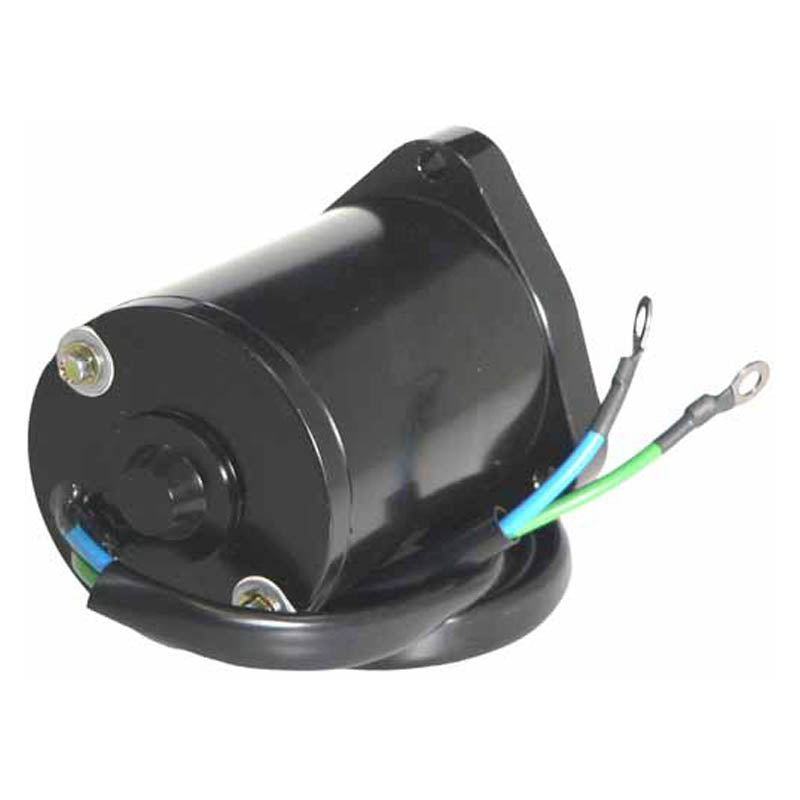

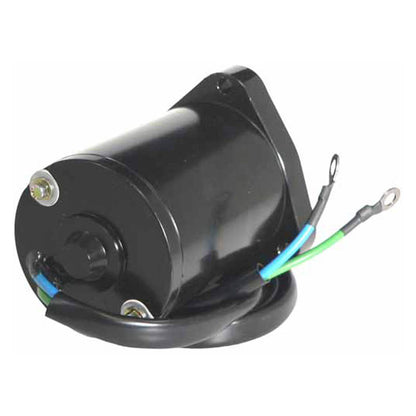

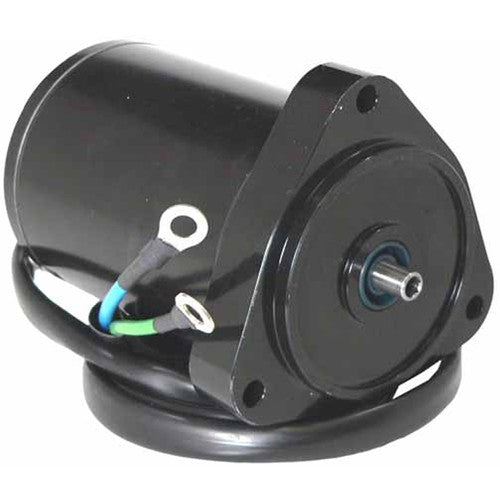

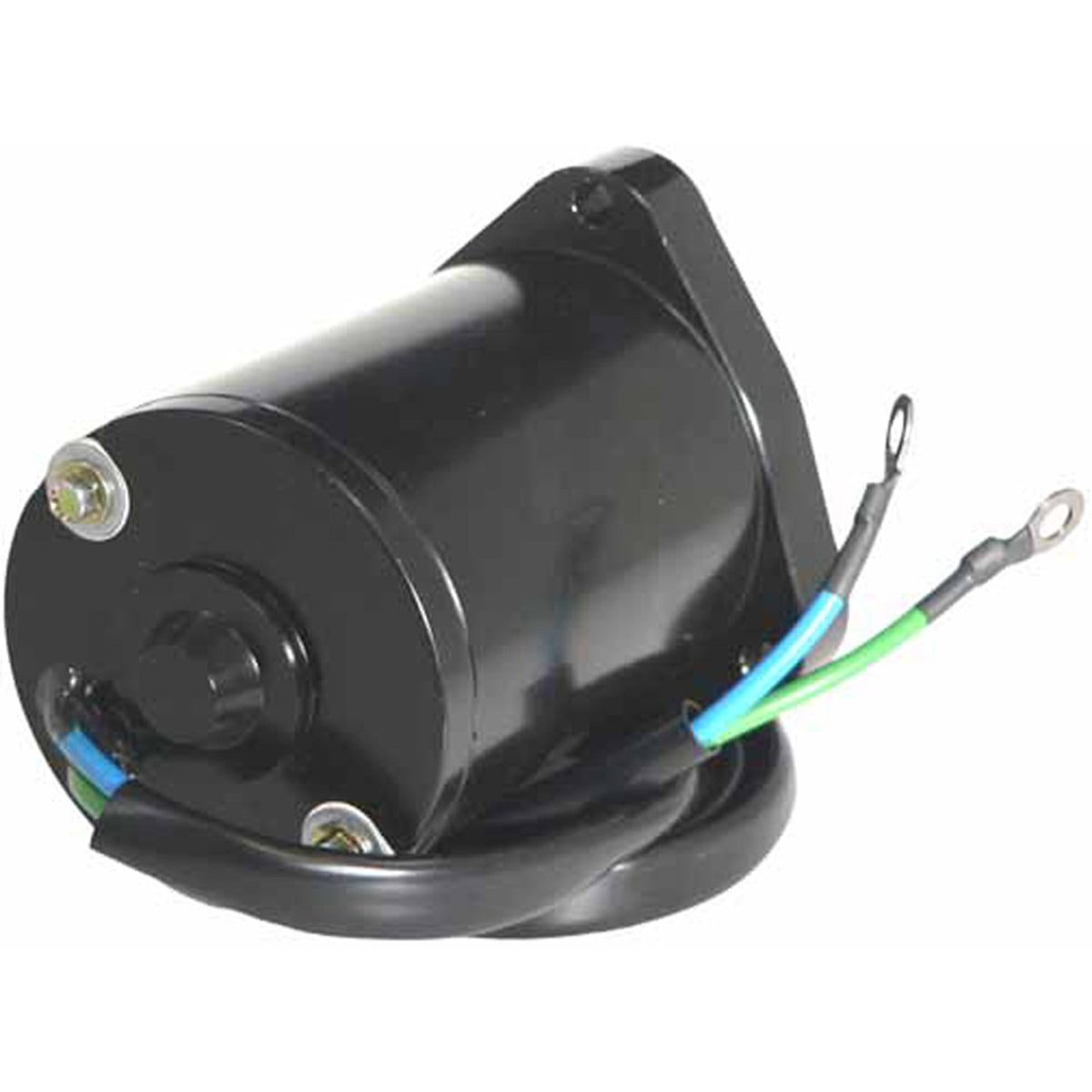

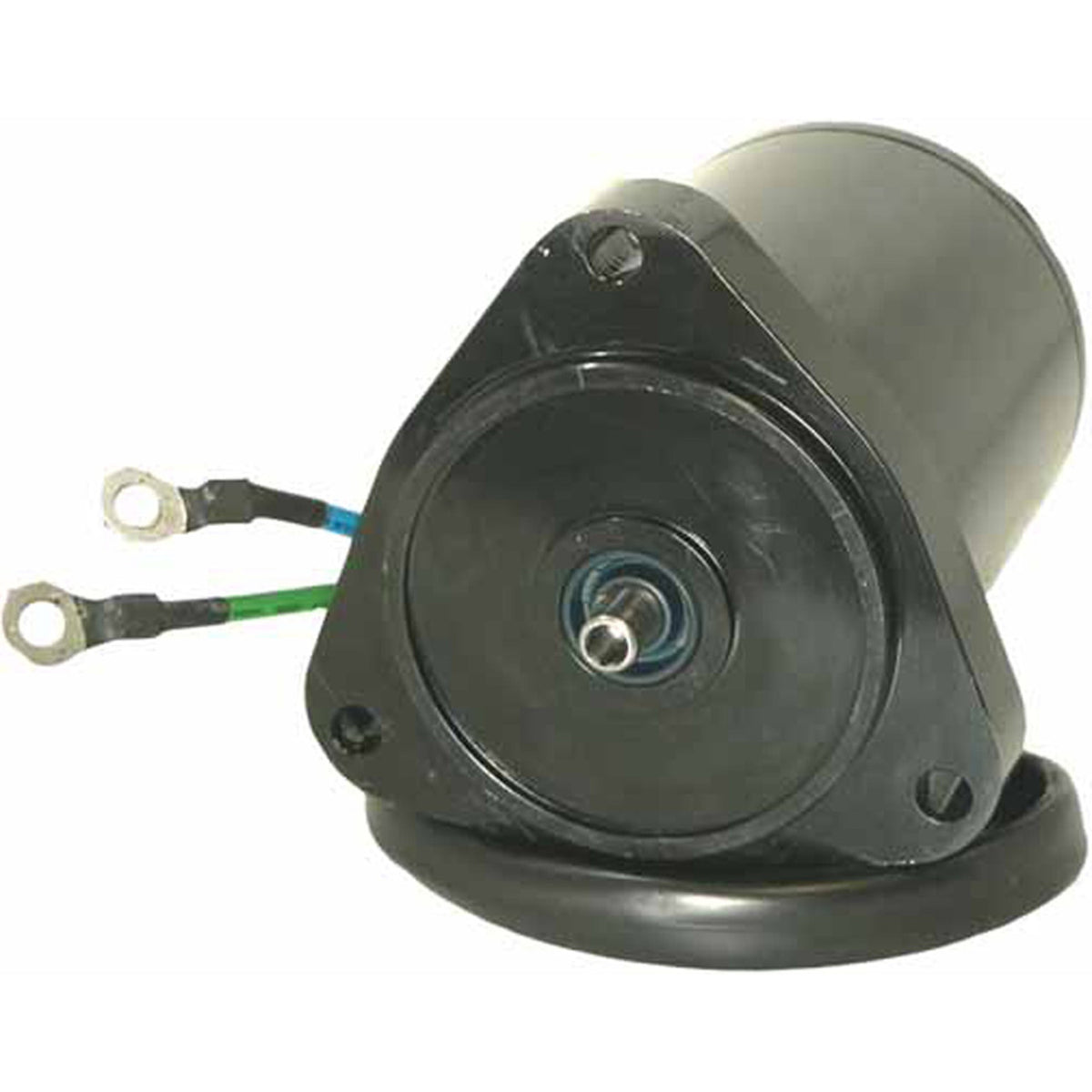

12V Tilt Trim Motor for Suzuki DT Tohatsu V4 V6 1990-03 38100-87D10 18-6786
12V Tilt Trim Motor for Suzuki DT Tohatsu V4 V6 1990-03 38100-87D10 18-6786
SKU:430-22089
Free shipping over £150. Terms apply
Couldn't load pickup availability
Suzuki / Tohatsu Tilt Trim Motor - TRM0063
Precision Engineering for Marine Outboard Systems
Restore the full functionality of your outboard's tilt and trim system with this premium aftermarket replacement motor. Specifically designed for Suzuki DT and Tohatsu V4/V6 engines, this 12V unit is built to withstand the rigorous demands of saltwater and freshwater environments.
Key Features
- ✔ Direct fit for 3-bolt flange systems
- ✔ 2-wire connection for simple installation
- ✔ Durable female hex shaft design
- ✔ High-torque reversible 12V motor
Technical Specs
| Voltage: | 12V DC |
| Rotation: | Reversible |
| Wire Count: | 2-Wire |
| Shaft Type: | Female Hex (8mm / 0.315in) |
| Housing OD: | 91mm / 3.583in |
| Mounting: | 3-Bolt Flange |
Compatibility / Fitment Guide
| Make | Models / Application | Year Range |
|---|---|---|
| Suzuki | DT Series V4 & V6 (DT100, DT115, DT140, DT150, DT175, DT200, DT225) | 1990 - 2003 |
| Tohatsu | All V4 & V6 Outboard Models | 1990 - 2003 |
| Nissan | 60HP to 140HP Outboard Models | 1990 - 2003 |
OEM Cross Reference
| Suzuki: 38100-87D10-0ED, 38100-87E20-0ED | Arrowhead: TRM0063, TRM0054 |
| Lester: 10838, 10846 | Sierra Marine: 18-6786 |
| API Marine: PT651NM-2 | Arco Marine: 6268 |
| Mercury Marine: 8M6007548 | EMP: 4-6786 |
Questions & Answers
Is this a genuine original part?
This is a premium quality aftermarket replacement part, manufactured to meet or exceed original equipment (OE) standards for fitment and performance.
How do I know if it is compatible?
Verify that your original unit has a 3-bolt flange and a 2-wire connection. Checking the OEM part numbers listed in our cross-reference table against your existing motor is the most accurate way to ensure a fit.
What type of shaft does this motor use?
This motor features a female hex shaft with an 8mm (0.315in) outer diameter, designed for precise engagement with the hydraulic pump.
Note: Please verify your original part number against the references above before purchasing. Domain: 4drive.co.uk
