Tilt & Trim Motor for Volvo Penta Outboards 25-150HP 1969-1973 - 2-Wire 12V
Tilt & Trim Motor for Volvo Penta Outboards 25-150HP 1969-1973 - 2-Wire 12V
SKU:430-20006
Free shipping over £150. Terms apply
Couldn't load pickup availability

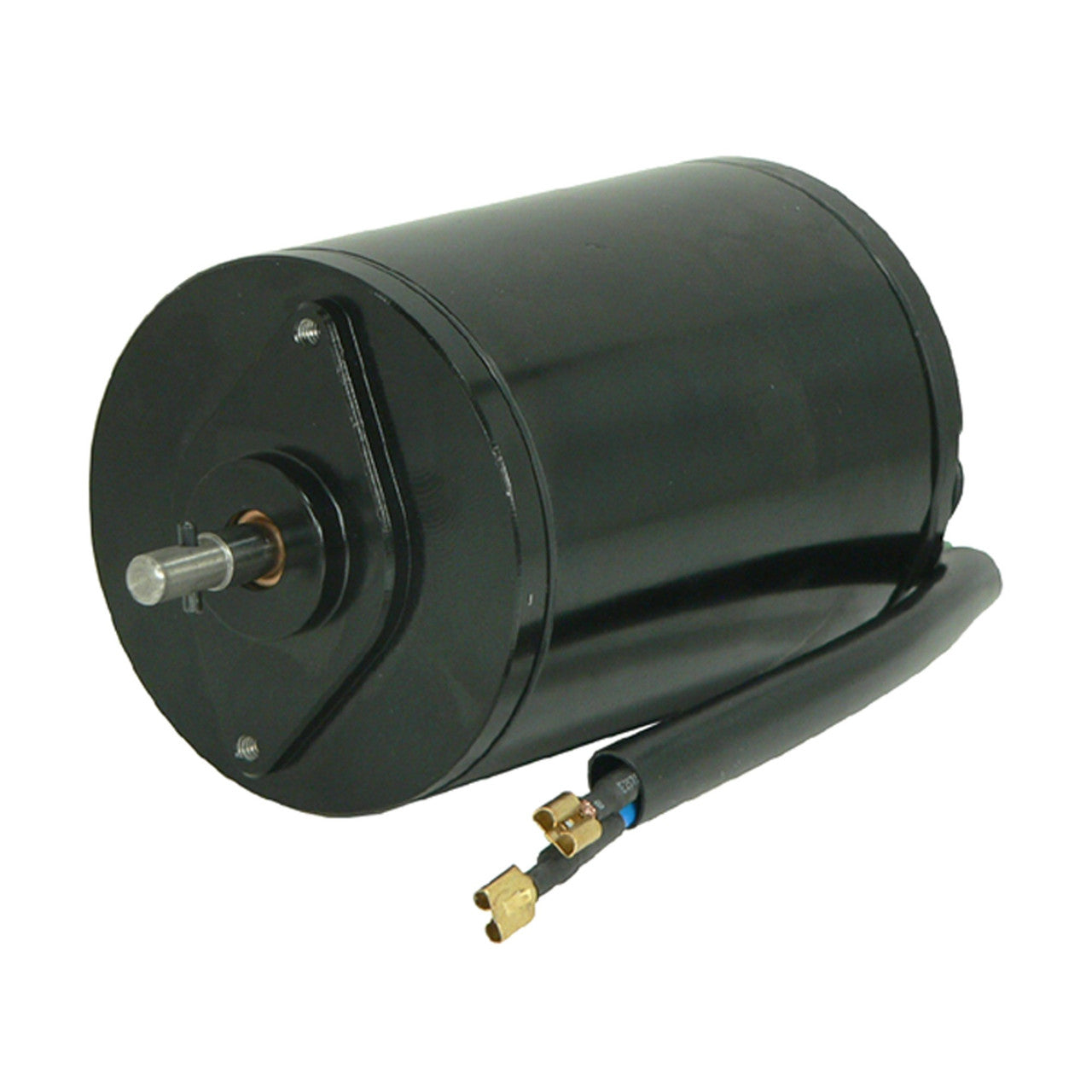

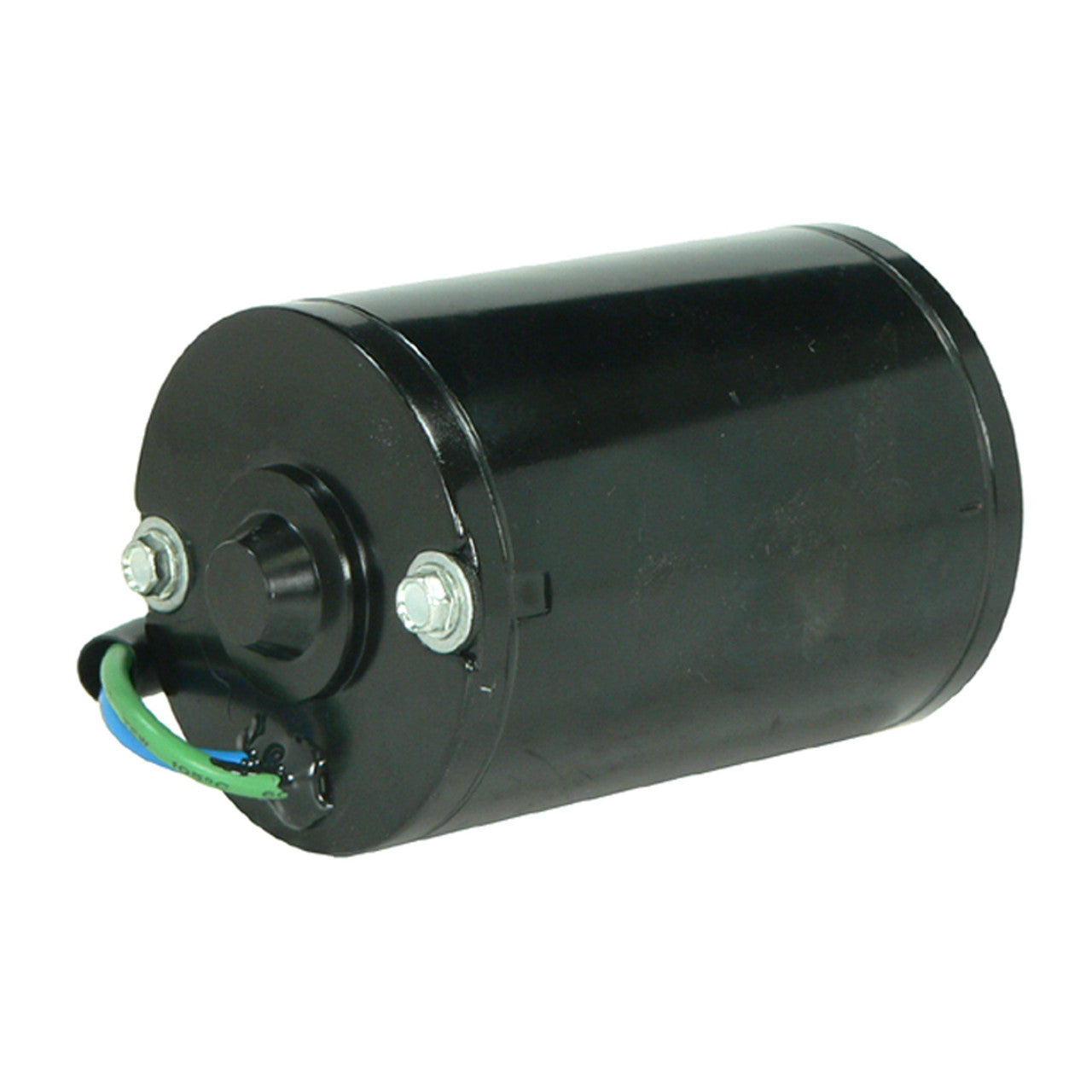

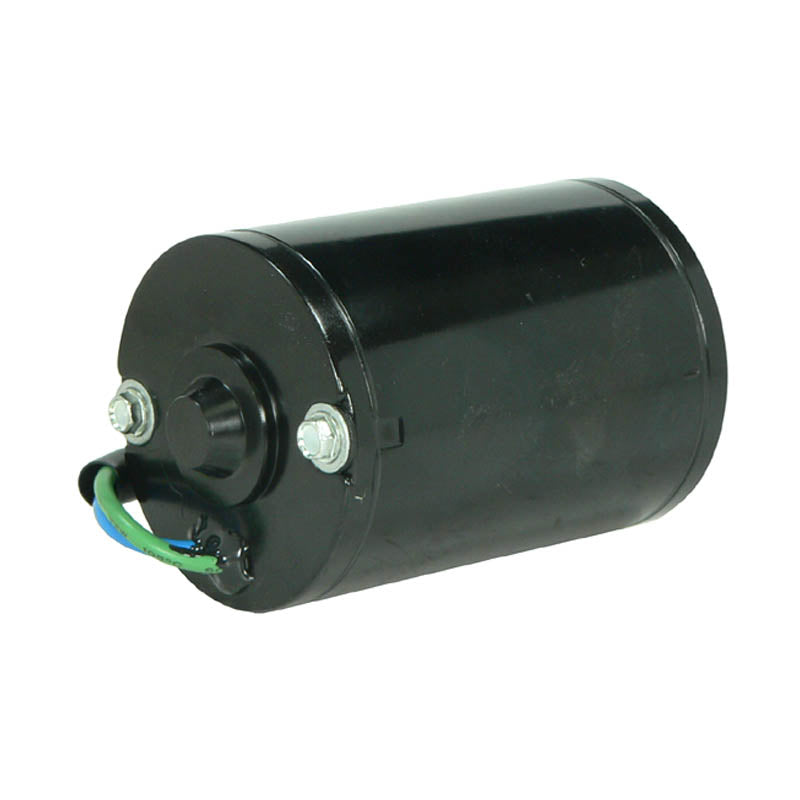

Tilt & Trim Motor for Volvo Penta Outboards
25HP to 150HP, 1969-1973, 2-wire female terminal connection
This tilt and trim motor is a direct replacement for the trim system fitted to Volvo Penta outboard motors from 25HP up to 150HP built between 1969 and 1973. It is built to OEM specifications for fit, form and function, allowing straightforward installation in place of the original unit.
The motor operates on a 12V system, is reversible, and terminates in a 2-wire female spade connector matching the original Volvo Penta wiring. It is also a direct replacement for units previously supplied under the Electrolux brand for the same application, and cross-references to Volvo Penta 850834 and 850834-3. It is a bolt-in fit using the original mounting points and connector type, so there is no need to splice or modify the trim harness during installation.
Key Features
- Direct replacement for Volvo Penta outboard tilt and trim systems
- 12V motor for OEM-matched performance
- Reversible operation
- 2-wire connection with female spade terminal ends
- Also replaces the equivalent Electrolux-branded unit
- Cross-references to Volvo Penta 850834 and 850834-3
- 12-month warranty as standard
Technical Specs
| Specification | Detail |
|---|---|
| Voltage | 12V |
| Rotation | Reversible |
| Part Type | Unit |
| Wiring | 2-Wire (Female Spade Terminal Ends) |
| Overall Length | 130.1 mm (5.122 in) |
| Outer Diameter | 75.4 mm (2.969 in) |
| Shaft Outer Diameter | 7.2 mm (0.283 in) |
| Weight | 1.83 kg (4.02 lb) |
| Lester Number | 10818 |
| Cross Reference | Replaces Electrolux Version |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Volvo Penta Outboard 25HP | 1969-1973 |
| Volvo Penta Outboard 40HP | 1969-1973 |
| Volvo Penta Outboard 50HP | 1969-1973 |
| Volvo Penta Outboard 70HP | 1969-1973 |
| Volvo Penta Outboard 80HP | 1969-1973 |
| Volvo Penta Outboard 85HP | 1969-1973 |
| Volvo Penta Outboard 90HP | 1969-1973 |
| Volvo Penta Outboard 115HP | 1969-1973 |
| Volvo Penta Outboard 140HP | 1969-1973 |
| Volvo Penta Outboard 150HP | 1969-1973 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 850834, 850834-3 | Volvo Penta |
| 62-68100, 82-68100 | Electrolux |
| 10818N | Lester |
| 430-20006 | J&N / DB Electrical |
Frequently Asked Questions
Will this fit without modification?
Yes, this tilt and trim motor is a direct OEM-spec replacement for the Volvo Penta application and requires no modification to fit.
What's included?
You will receive one tilt and trim motor, ready to fit into your existing trim system housing. No wiring loom, pump or reservoir is included unless stated, so please compare your existing hardware before fitting.
How do I know my old motor has failed?
Common signs of a failed tilt and trim motor include the engine failing to tilt or trim up and down, a humming noise with no movement, or slow and inconsistent operation. If the trim system moves in one direction only, stalls part-way through its travel, or trips a breaker under load, the motor is a common cause and worth checking first.
Does this replace the Electrolux version?
Yes, this motor is a direct replacement for the equivalent unit previously supplied under the Electrolux brand for the same Volvo Penta application, cross-referenced as 62-68100 and 82-68100.
How do I confirm this is right for my engine?
Check the number on your original motor against Volvo Penta 850834 or 850834-3 in the cross reference table above before ordering.
