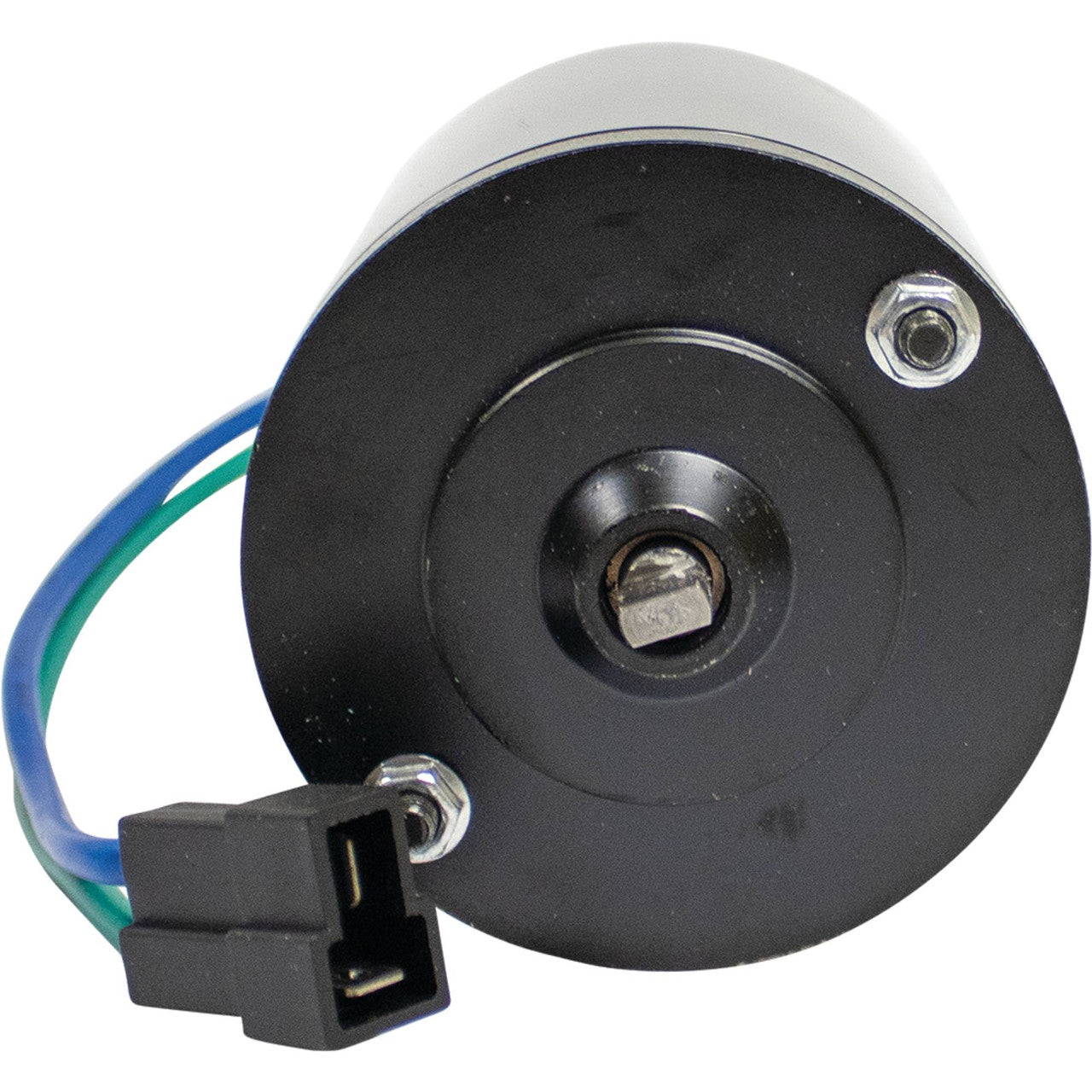

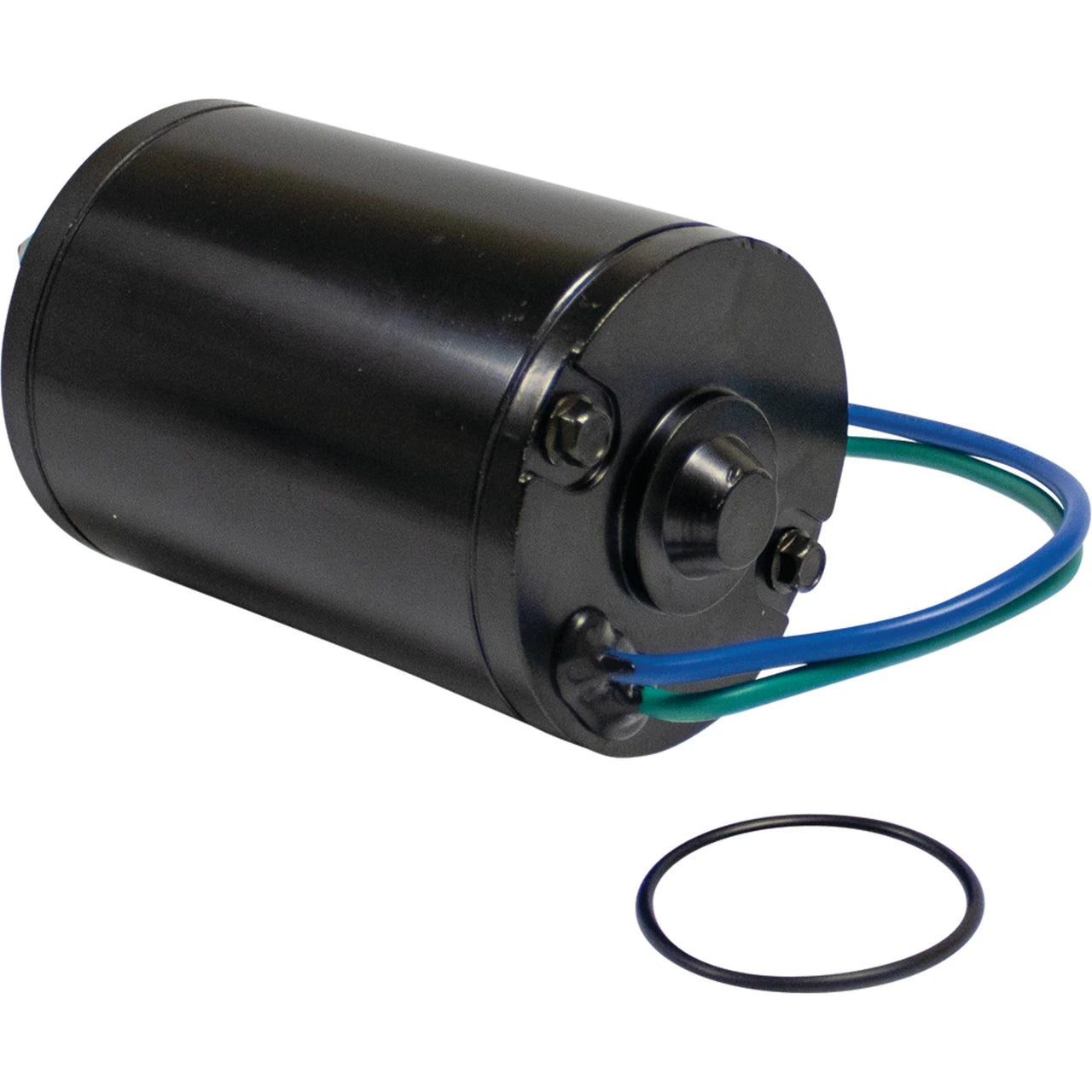

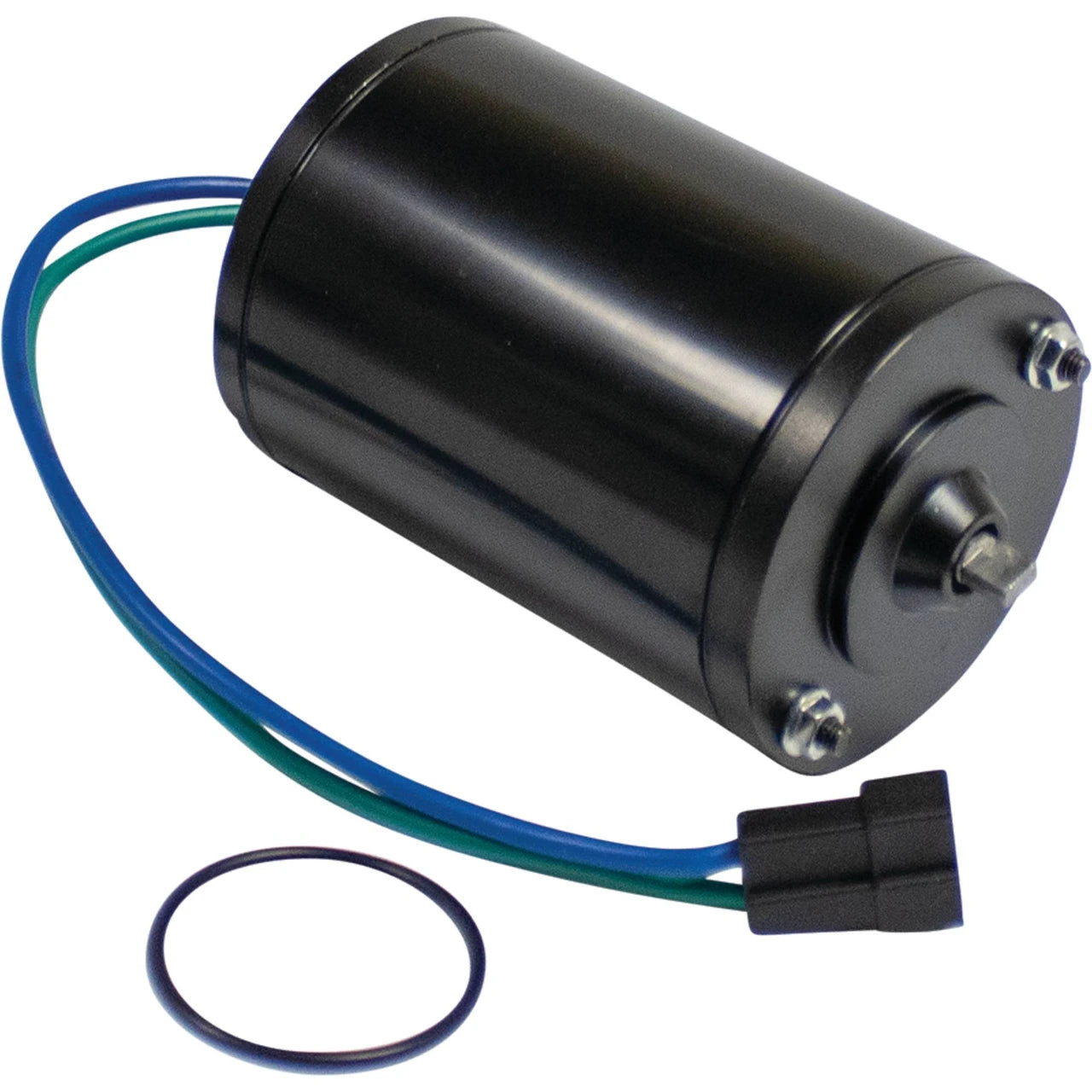

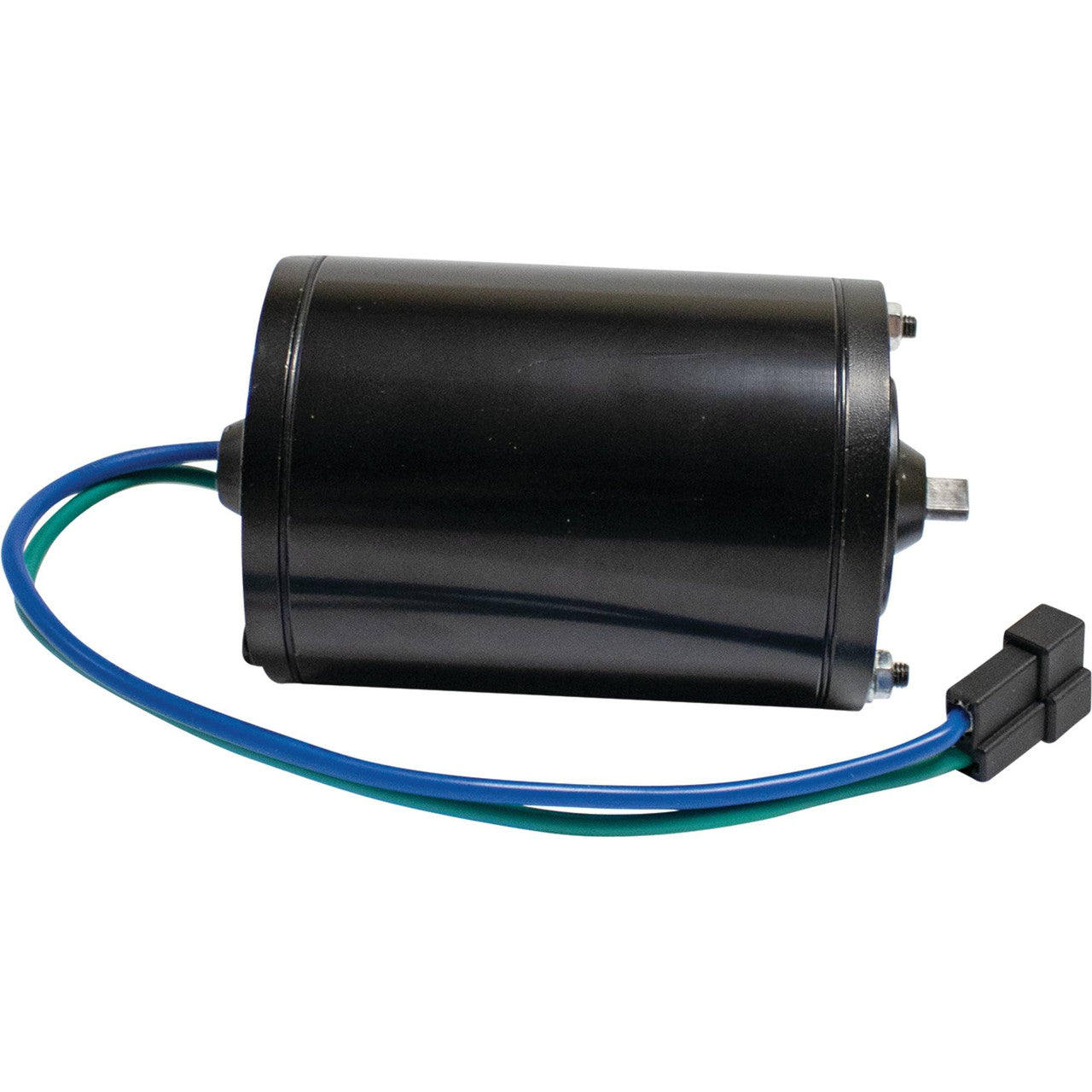

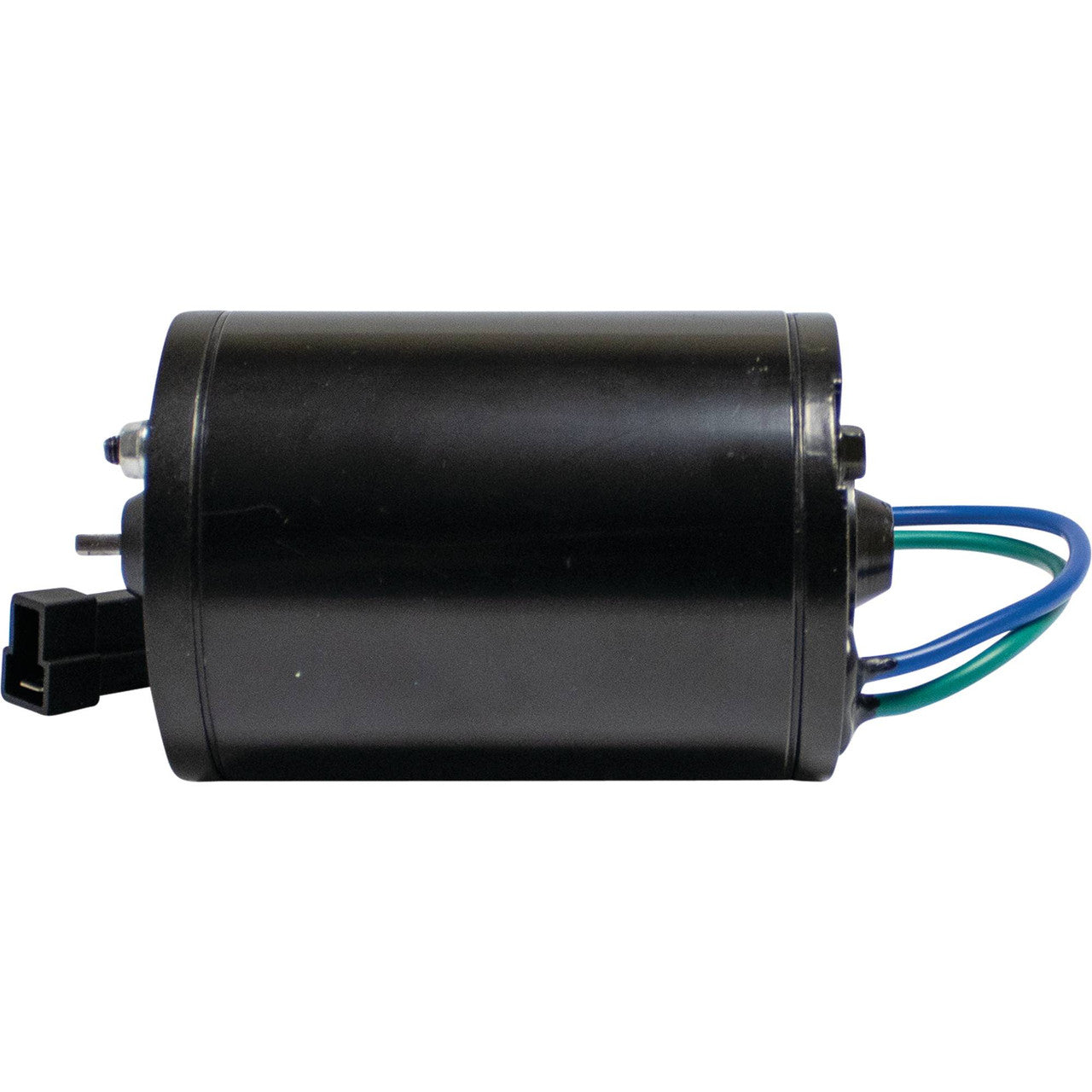

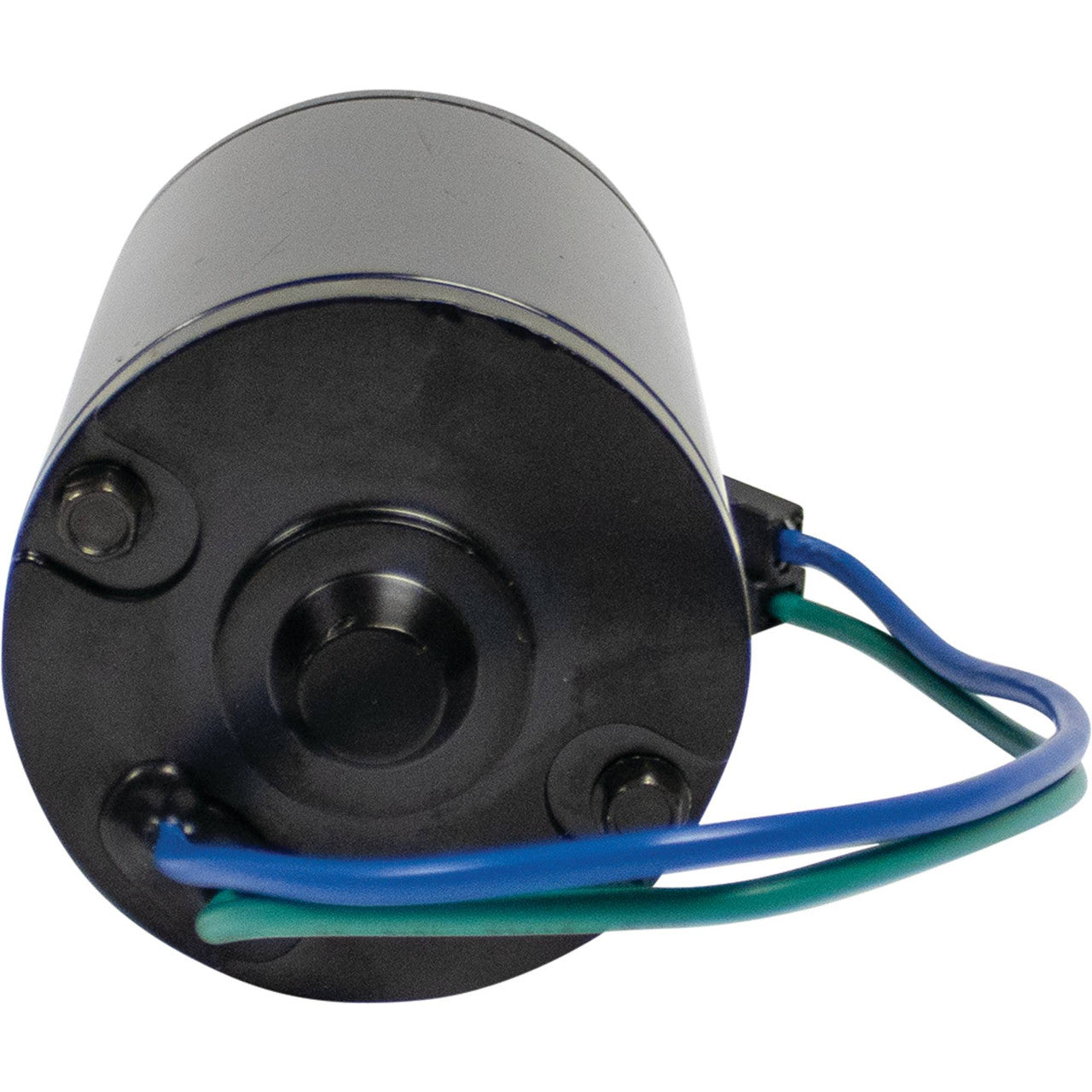

This 12-volt reversing tilt and trim motor is a direct aftermarket replacement for late model Volvo Penta sterndrive units, restoring smooth, reliable raising and lowering of the outboard/sterndrive leg.
Built to marine-grade standards (SAE J1171 and ISO8926) with premium brushes, bushings and armature construction for reliable saltwater and freshwater service. Supplied as the tilt motor only.
Key Features
- 12-volt DC reversing motor
- Meets SAE J1171 and ISO8926 marine standards
- Premium brushes, bushings and armature
- 2-wire configuration
- Direct bolt-in replacement
Technical Specs
| Specification |
Detail |
| Voltage |
12V |
| Rotation |
RE (Reversing) |
| Outer Diameter |
2.98in / 75.7mm |
| Shaft OD |
0.315in / 8mm |
| Length |
5.709in / 145mm |
| Drive Tang |
3.7mm x 8mm |
| Configuration |
2-Wire |
| Bolt Centers |
63.2mm / 2.5in |
| Weight |
5.00 lbs |
Vehicle Fitment Guide
| Make |
Application |
Coverage |
| Volvo Penta |
Late model sterndrive units |
All late model sterndrive applications |
| OMC-based Sterndrive |
3.0L, 4.3L, 5.0L, 5.7L, 7.4L, 8.2L GM engines |
1998-on |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| PT406NM-3 |
API Marine |
| 6232 |
Arco Marine |
| TRM0032 |
Arrowhead |
| 4-6805 |
EMP Units |
| 10845 / 10819M |
Lester |
| 3858071 |
OMC / Volvo |
| 8M6007555 |
Quicksilver |
| 854525-3 |
Volvo Penta |
| 10845N |
WAI |
Frequently Asked Questions
Will this fit without modification?
Yes, this is a direct bolt-in replacement for the late model Volvo Penta sterndrive tilt motor - no modification is required.
What is included?
One tilt and trim motor unit only. This listing does not include the complete tilt/trim assembly.
How do I know my old motor has failed?
Common signs are a sterndrive that fails to tilt or trim, a motor that hums but does not move the leg, or a tilt motor that runs continuously without moving the drive.
Is a core exchange required?
No core exchange is required for this part.
