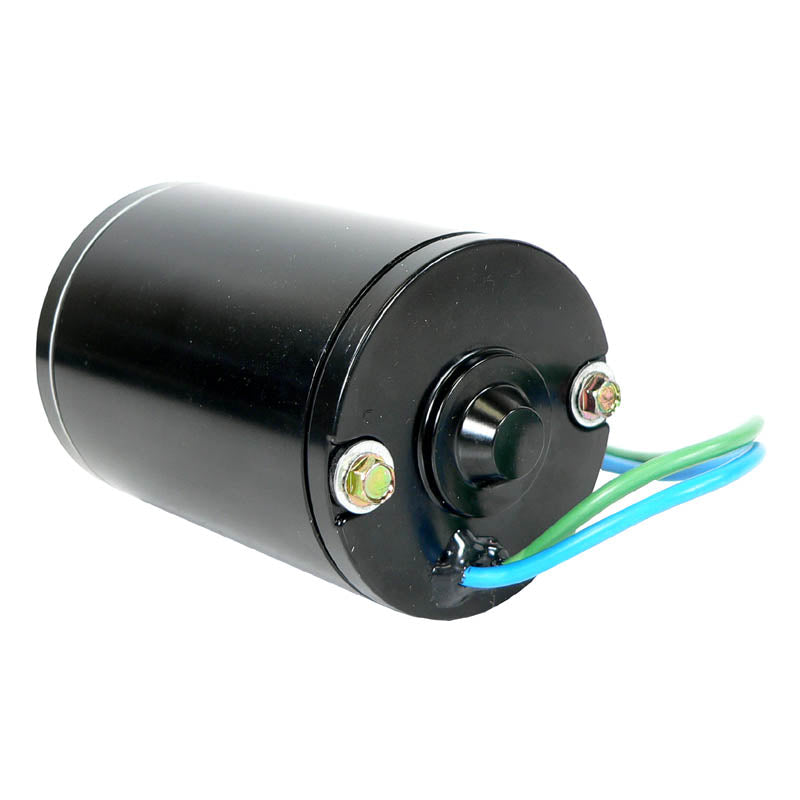

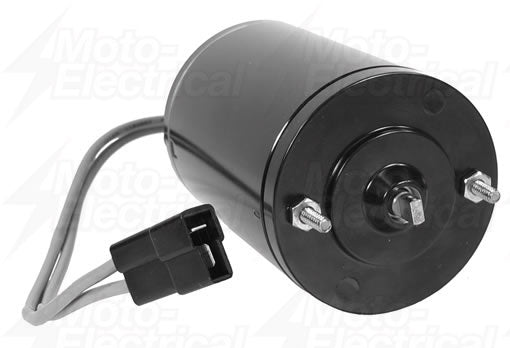

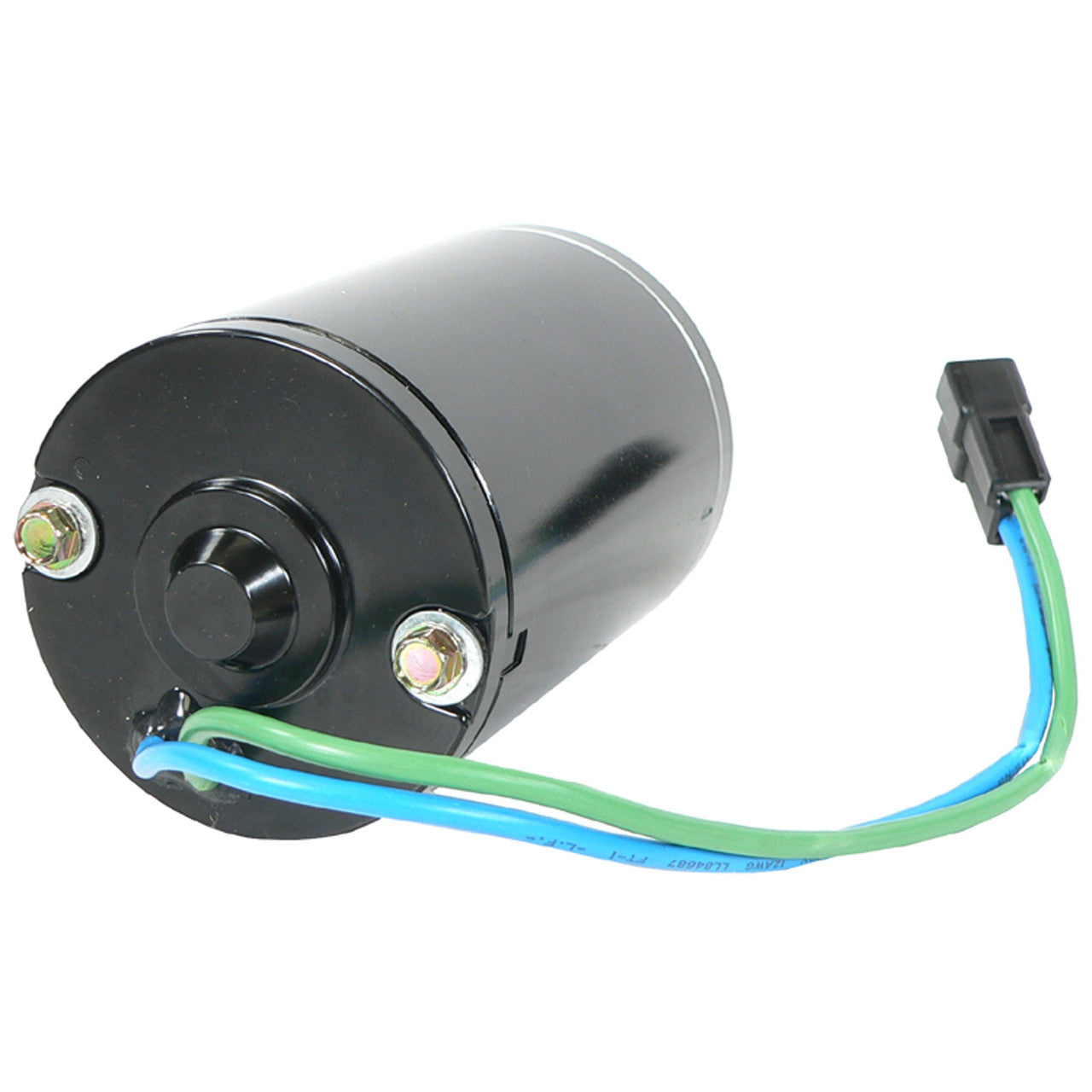

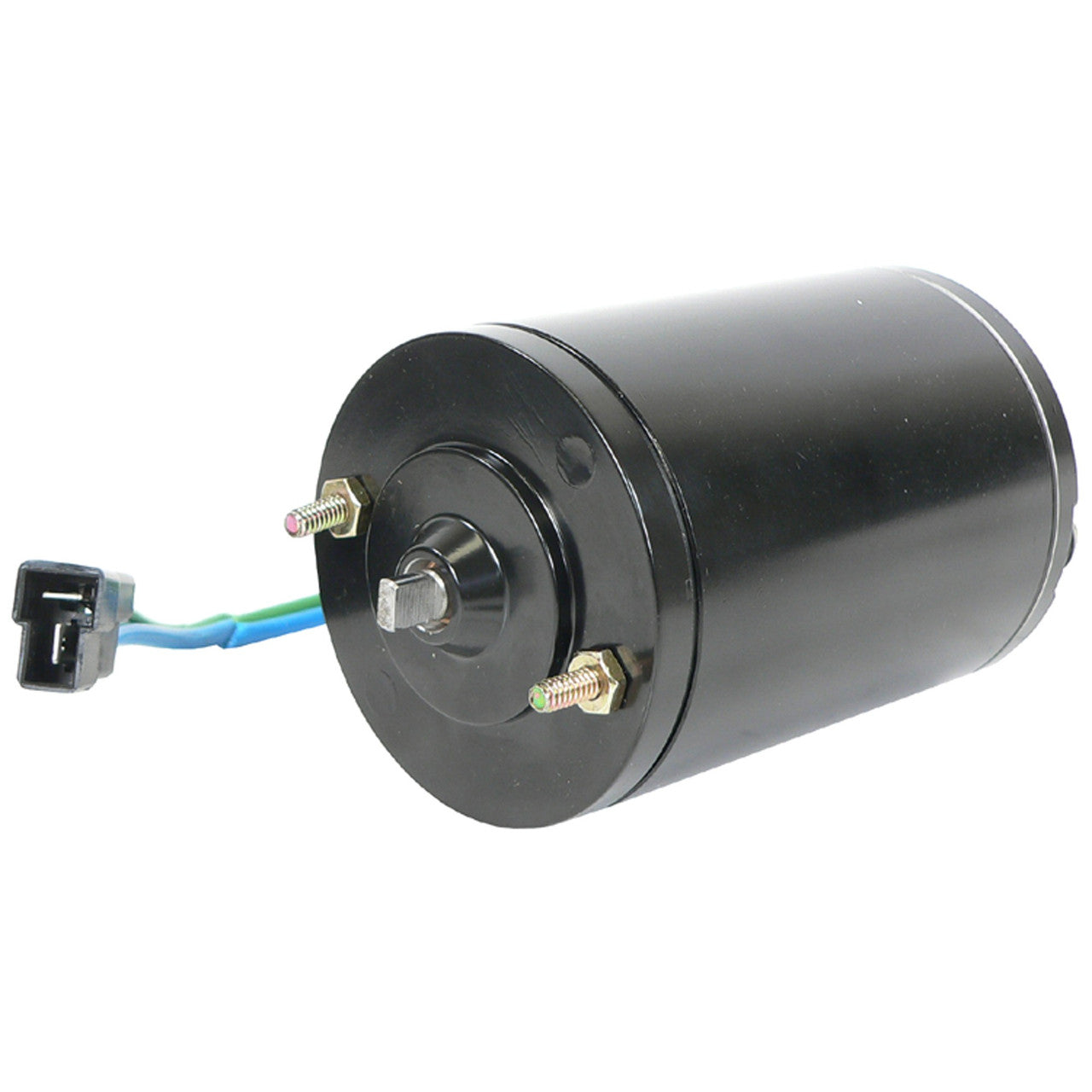

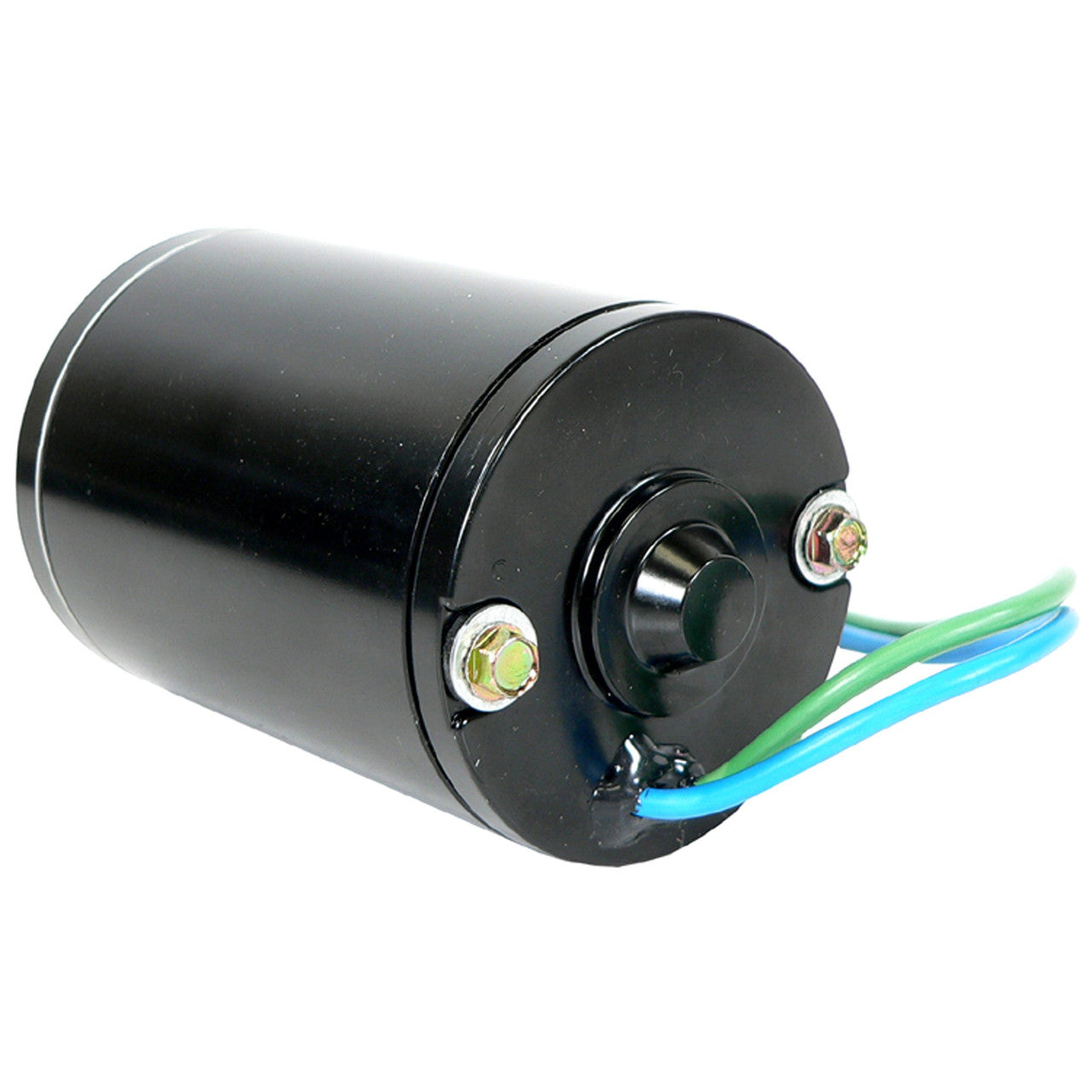

Tilt & Trim Motor for Volvo Penta SX Drive Engines 2001-On
Fits Volvo Penta SX drive engines from 2001 onward
This tilt and trim motor is a direct replacement for the trim system fitted to Volvo Penta SX drive engines from 2001 onward. It is built to OEM specifications for fit, form and function, and replaces Volvo Penta 3861575.
It is designed to fit the Teleflex pump used on late model SX drives, with 2.3 inch (58.5mm) on-center bolt holes and O-ring type fitting connections, matching the original mounting and hydraulic interface. It is a 12V reversing motor built to marine grade standards SAE J1171 and ISO 8872, and is a bolt-in fit using the original mounting points and connector type, so there is no need to splice or modify the trim harness during installation.
Key Features
- Fits Volvo Penta SX drive engines, 2001-on
- Designed for Teleflex pump on late model SX drives
- 2.3 inch (58.5mm) on-center bolt hole spacing
- Accepts O-ring type fittings
- Marine grade build to SAE J1171 and ISO 8872
- 12-month warranty as standard
Technical Specs
| Specification | Detail |
|---|---|
| Voltage | 12V DC |
| Motor Style | Reversing (two-wire) |
| Part Type | Unit |
| Bolt Hole Spacing | 2.3in / 58.5mm On-Center |
| Fitting Type | O-Ring |
| Marine Standards | SAE J1171 / ISO 8872 |
| Weight | Approx. 2.3kg (5 lb) |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Volvo Penta SX Drive - All Models | 2001-On |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 3861575 | Volvo Penta |
| TRM0061 | Arrowhead |
| PT407NM-3 | API Marine |
| 6233 | Arco Marine |
| 4-6804 | EMP |
| 10851 / 10851N | Lester / WAI |
| T1084M | MES |
| 67-2645 | Minnpar |
| 4-1282 | MP Parts |
| 107-151 | PIC |
| 430-22055 / 430-22063 | J&N Electrical |
Frequently Asked Questions
Will this fit without modification?
Yes, this motor is a direct OEM-spec replacement for the Volvo Penta SX drive trim system and requires no modification to fit.
What's included?
You will receive one tilt and trim motor, ready to fit into your existing trim system housing. No wiring loom, pump or reservoir is included unless stated, so please compare your existing hardware before fitting.
How do I know my old motor has failed?
Common signs of a failed tilt and trim motor include the drive failing to tilt or trim, a humming noise with no movement, or slow and inconsistent operation. If the trim system moves in one direction only, stalls part-way through its travel, or trips a breaker under load, the motor is a common cause and worth checking first.
Will this fit the pump on my SX drive?
This motor is designed to fit the Teleflex pump used on late model Volvo Penta SX drives, with 2.3 inch (58.5mm) on-center bolt holes and O-ring type fittings - confirm your pump's bolt spacing and fitting type before ordering.
