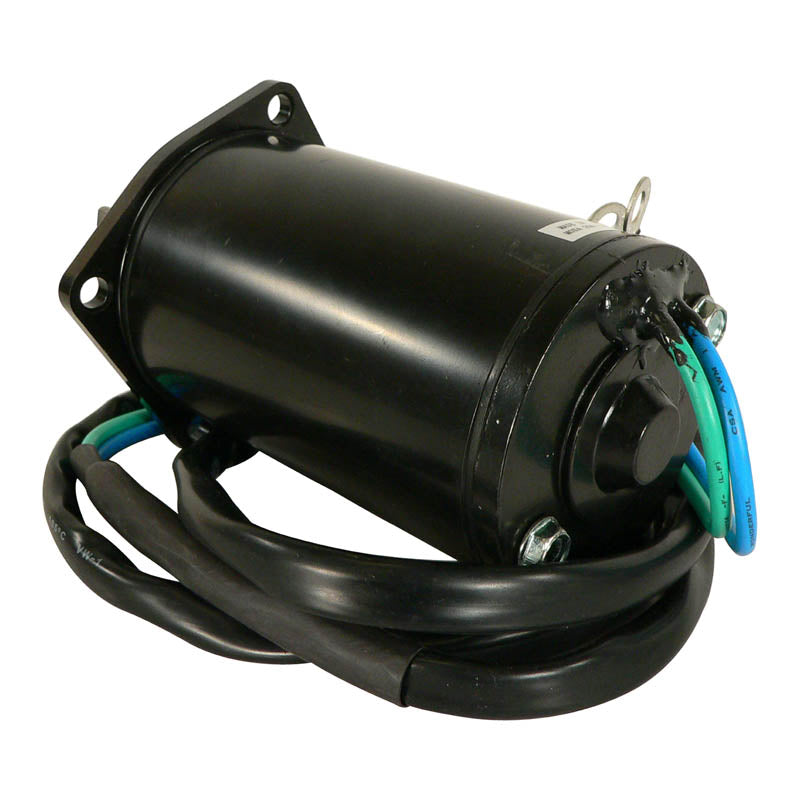

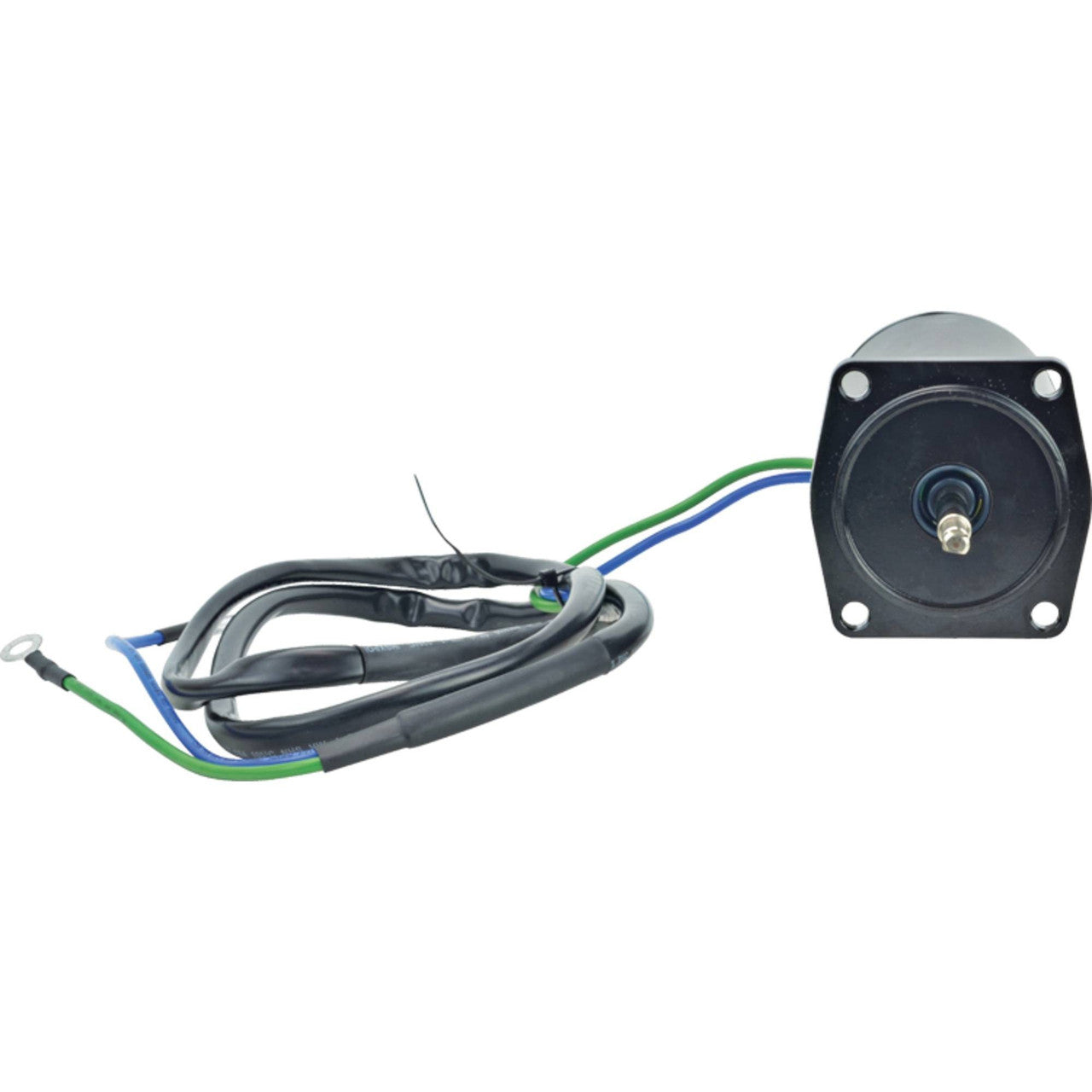

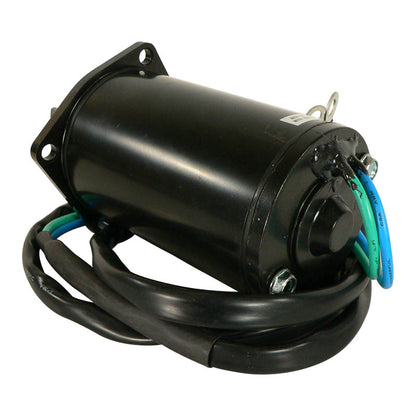

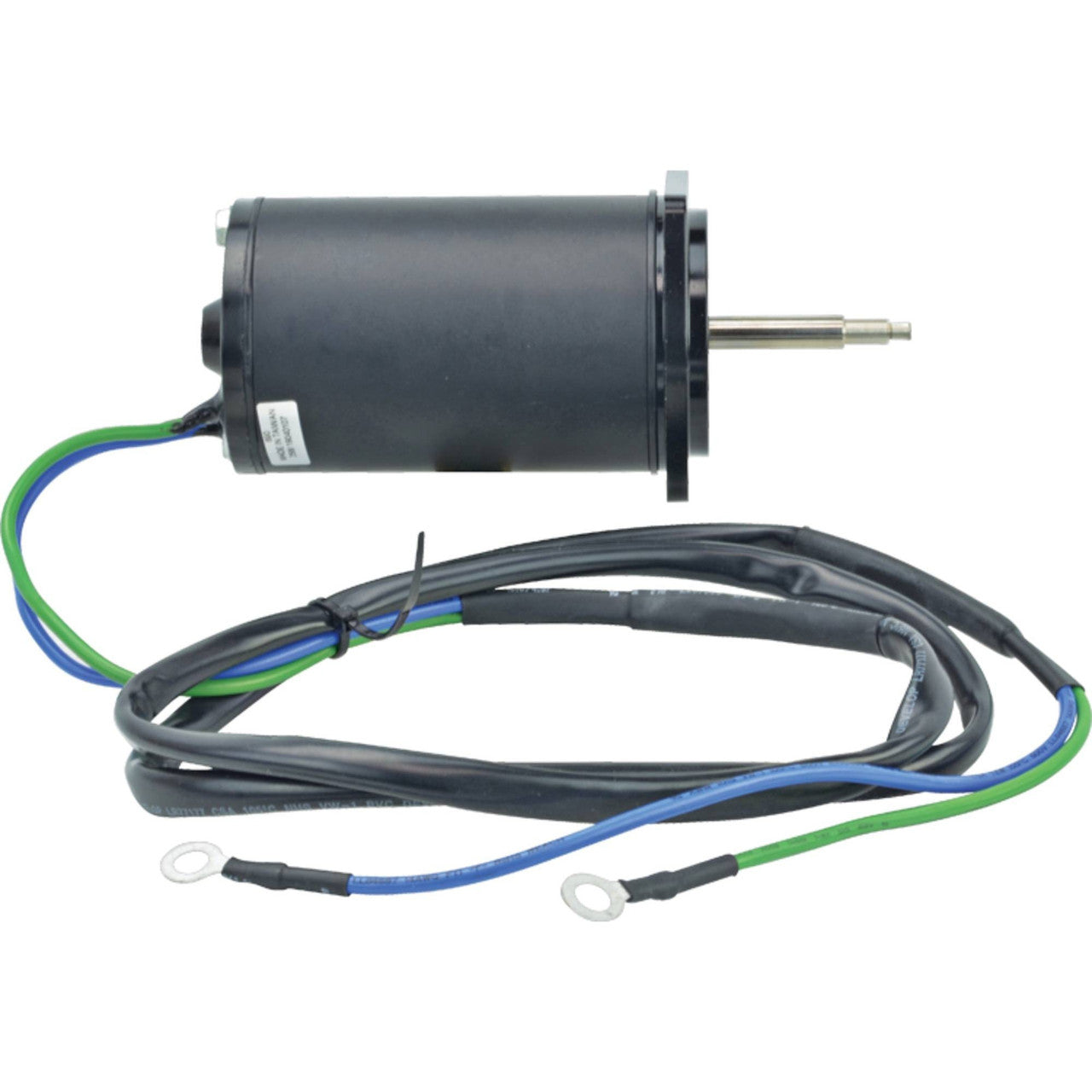

Tilt & Trim Motor for Yamaha 40-50HP Outboard Engines 1985-1992
Tilt & Trim Motor for Yamaha 40-50HP Outboard Engines 1985-1992
SKU:430-22059
Free shipping over £150. Terms apply
Couldn't load pickup availability
Tilt & Trim Motor for Yamaha 40-50HP Outboard Engines 1985-1992
Fits Yamaha 40HP and 50HP outboard engines, 1985-1992
This tilt and trim motor is a direct replacement for the trim system fitted to Yamaha 40HP and 50HP outboard engines from 1985 to 1992. It is built to OEM specifications for fit, form and function.
The motor is a 2-wire design with ring terminal ends and a 4-bolt mounting pattern, matching the original Yamaha equipment. It is a bolt-in fit using the original mounting points and connector type, so there is no need to splice or modify the trim harness during installation.
Key Features
- Fits Yamaha 40-50HP outboard engines, 1985-1992
- 2-wire motor with ring terminal ends
- 4-bolt mounting pattern
- 12V motor
- 12-month warranty as standard
Technical Specs
| Specification | Detail |
|---|---|
| Voltage | 12V |
| Part Type | Unit |
| Wiring | 2-Wire (Ring Terminal Ends) |
| Mounting | 4-Bolt |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Yamaha 40-50HP | 1985-1992 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
No OEM cross reference is published for this part.
Frequently Asked Questions
Will this fit without modification?
Yes, this motor is a direct OEM-spec replacement for Yamaha 40-50HP outboard trim systems built between 1985 and 1992 and requires no modification to fit.
What's included?
You will receive one tilt and trim motor, ready to fit into your existing trim system housing. No wiring loom, pump or reservoir is included unless stated, so please compare your existing hardware before fitting.
How do I know my old motor has failed?
Common signs of a failed tilt and trim motor include the drive failing to tilt or trim, a humming noise with no movement, or slow and inconsistent operation. If the trim system moves in one direction only, stalls part-way through its travel, or trips a breaker under load, the motor is a common cause and worth checking first.
Does this fit both the 40HP and 50HP Yamaha?
Yes, this motor is a direct replacement for both the 40HP and 50HP Yamaha outboard engines built between 1985 and 1992, sharing the same 2-wire ring terminal connection and 4-bolt mount.
