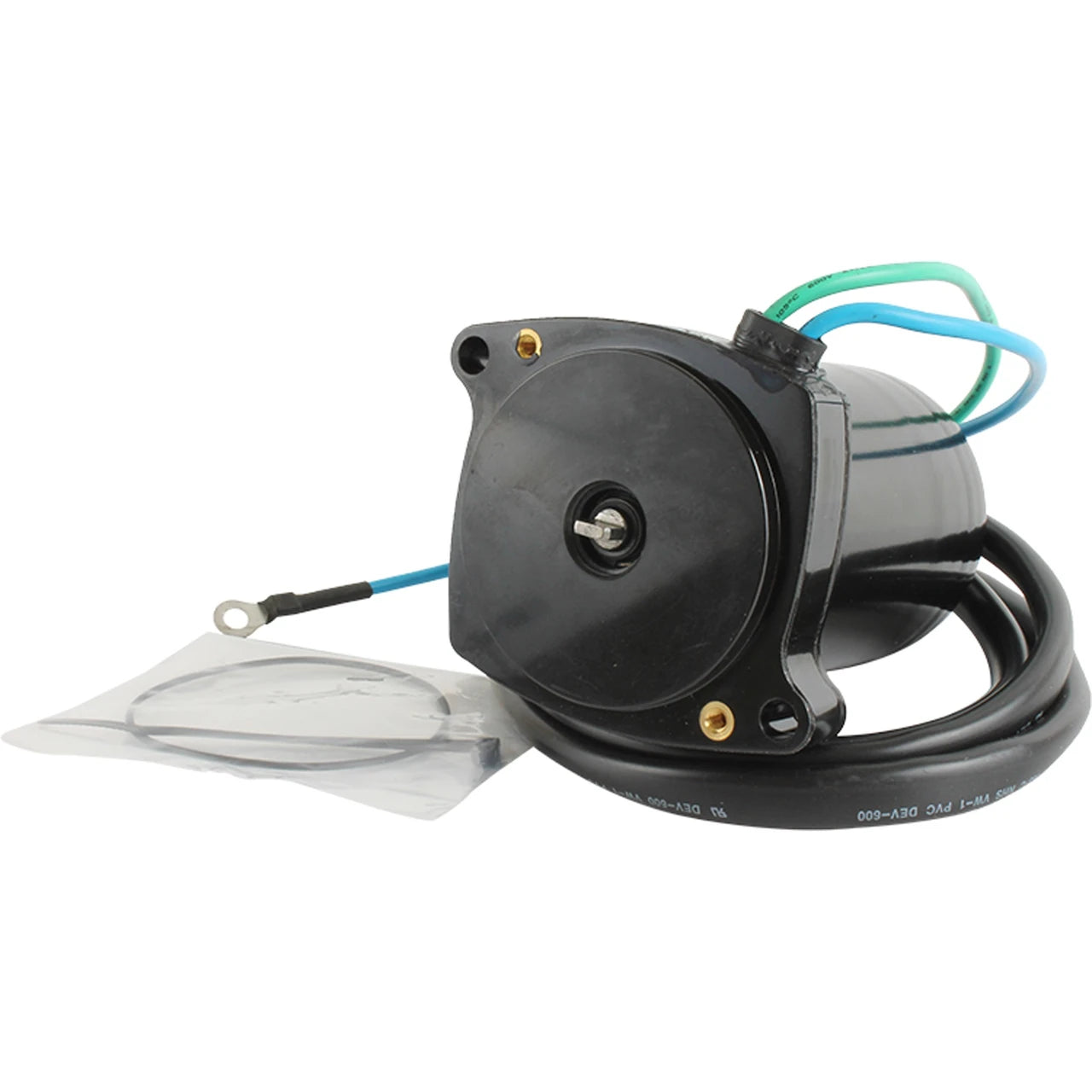

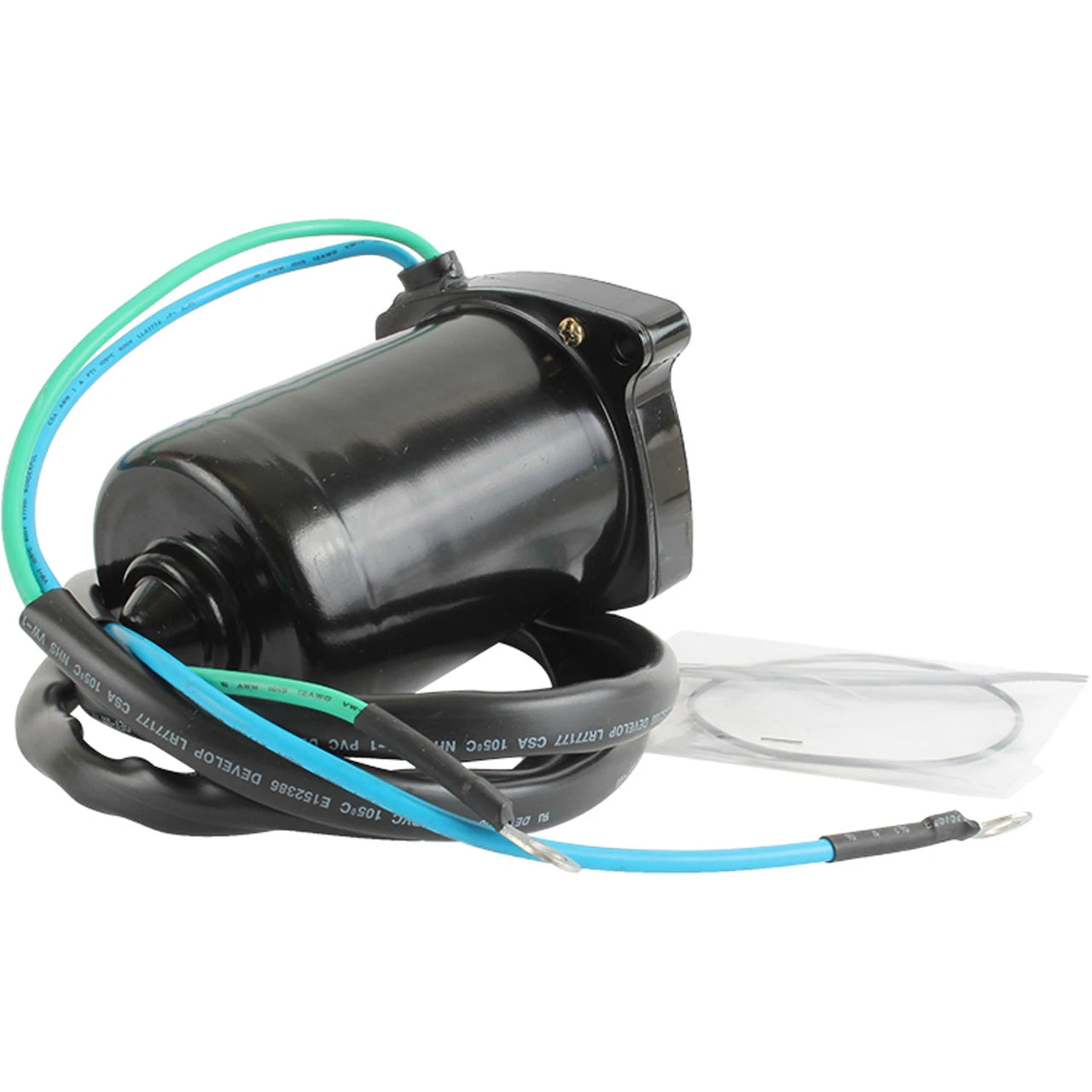

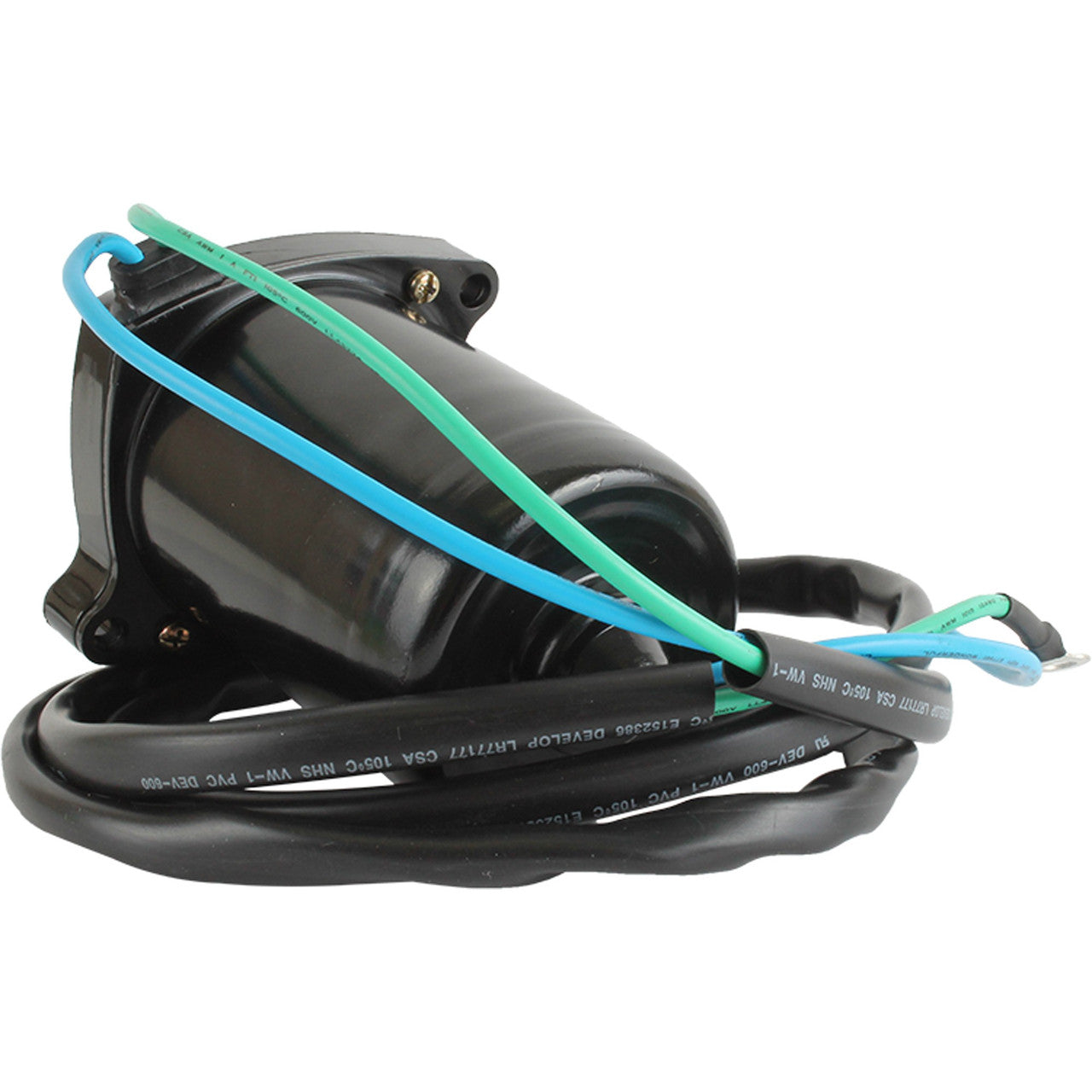

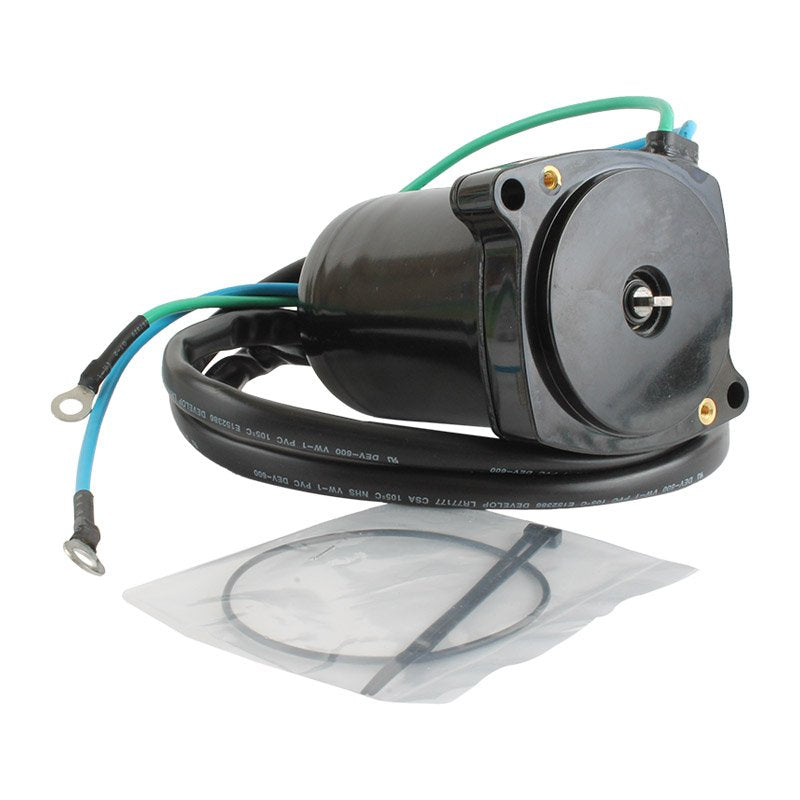

Tilt & Trim Motor for Yamaha F300, F350 & FL350 (2006-On)
Fits Yamaha F300, F350, FL350, LF300 & LF350 Outboard Engines, 2006-On
This tilt and trim motor is a direct replacement for the Yamaha F300, F350, FL350, LF300 and LF350 outboard range from 2006 onward. It is built to OEM specifications, replacing OEM part number 6AW-43880-01-00 as a like-for-like fit.
The motor runs on a 12 volt system with reverse rotation, and is supplied complete with the wiring harness and a 2mm thick round O-ring. It uses a 70mm mounting ring with two 7.5mm mounting holes on a 98.5mm centre-to-centre spacing, so it drops into the original mounting location.
Key Features
- 12 volt operation, reverse rotation
- Includes wiring harness and O-ring
- 70mm mounting ring, matches OEM hole spacing
- Direct OEM fit and finish, replaces 6AW-43880-01-00
- 12-month warranty as standard
Technical Specs
| Specification | Detail |
|---|---|
| Voltage | 12V |
| Rotation | Reverse (RE) |
| Outer Diameter | 2.841in / 72.15mm |
| Shaft OD | 0.315in / 8mm |
| Length | 5.472in / 139mm |
| Terminals | 2 x 6.5mm ring terminal |
| Coupler | 2.6mm W x 8mm L x 6.5mm T (2.5mm tang shaft) |
| Mounting Ring | 70mm, 2 x 7.5mm mounting holes, 98.5mm C-to-C |
| Flange to Rear | 130mm |
| Registry OD | 69.8mm |
| Includes | Wiring harness, 2mm thick round O-ring |
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Yamaha F300, F350, FL350, LF300, LF350 | 2006-On |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 6AW-43880-01-00 | Yamaha |
Frequently Asked Questions
Will this fit without modification?
Yes. This tilt and trim motor is built to OEM specifications, matching the original mounting ring, hole spacing and wiring, so it fits and functions as a direct replacement with no modification needed.
What is included?
You receive the tilt and trim motor complete with wiring harness and O-ring. Note the bracket plate can differ from the unit pictured, so please call if you also need a replacement bracket plate.
How can I tell my old motor has failed?
Common signs include the engine failing to tilt or trim, a humming noise with no movement, or slow and intermittent operation, usually caused by worn brushes or gears inside the original motor.
Does this replace part number 6AW-43880-01-00?
Yes, this motor is a direct replacement for OEM part 6AW-43880-01-00 on the applicable Yamaha F300/F350/FL350/LF300/LF350 models.
