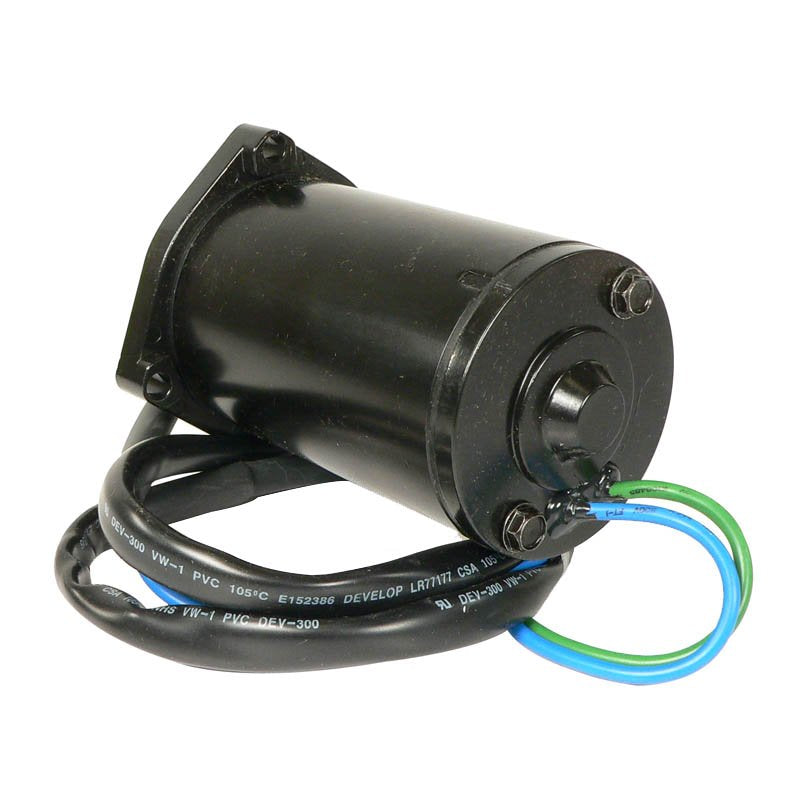

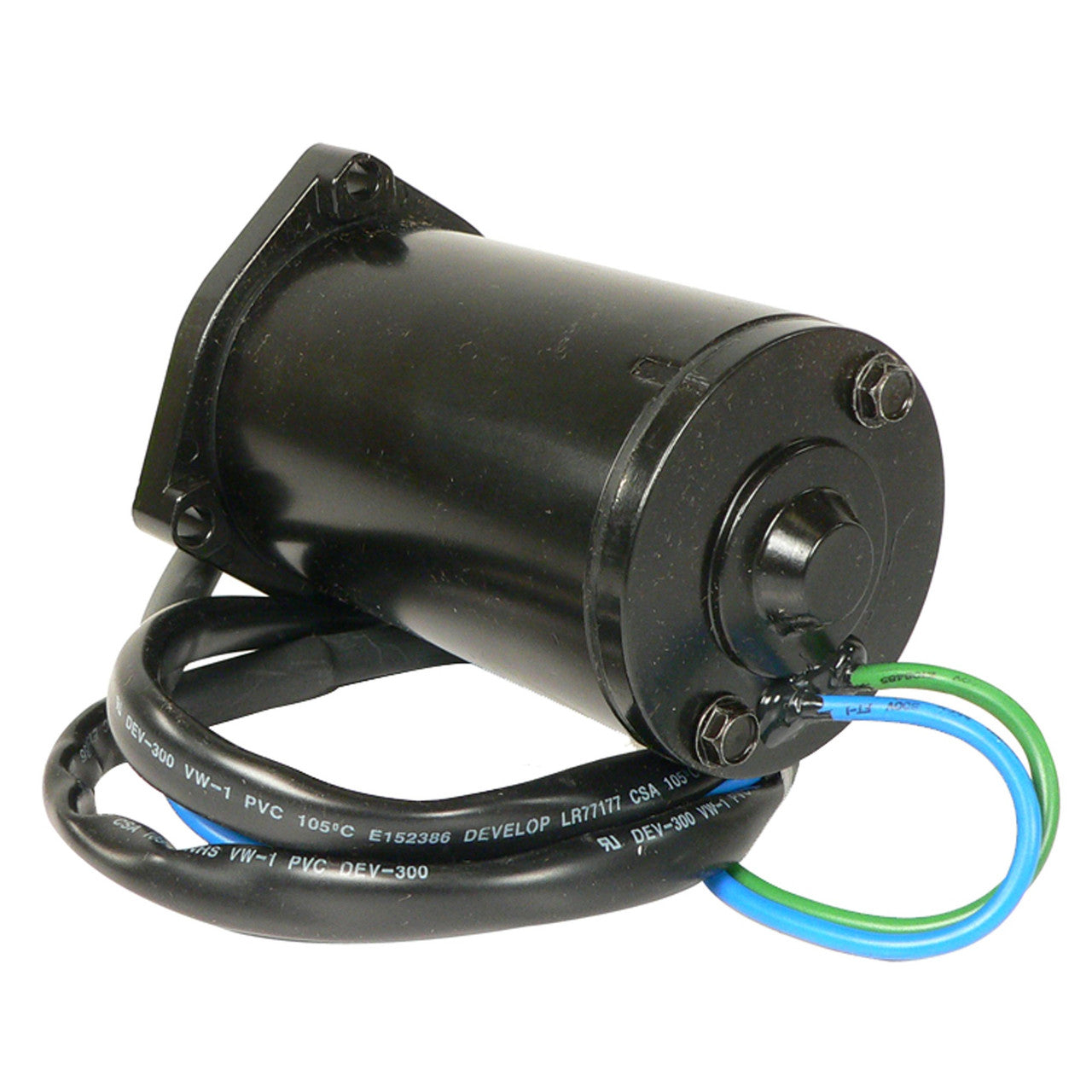

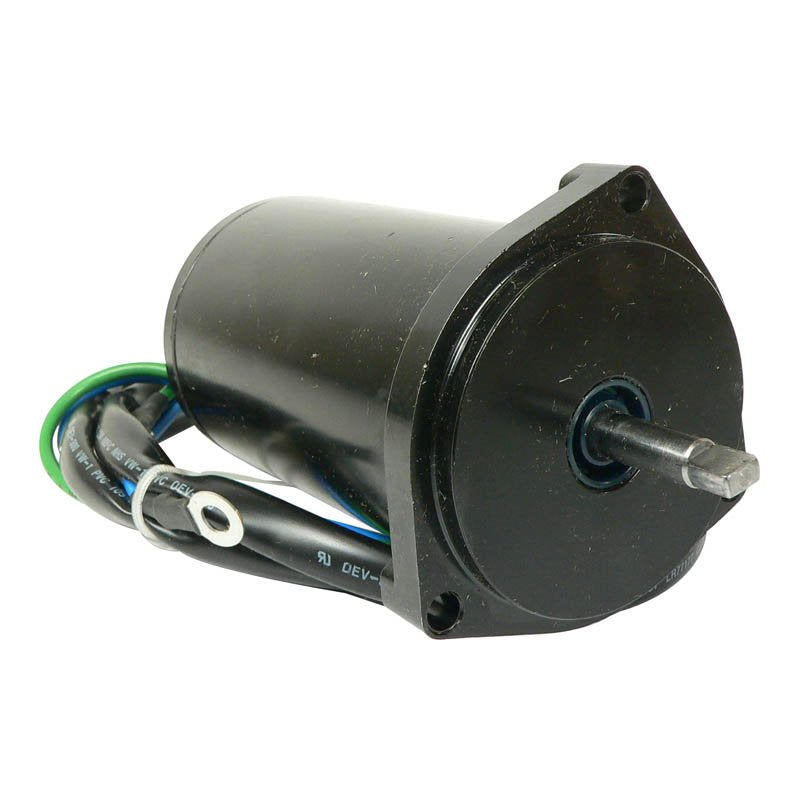

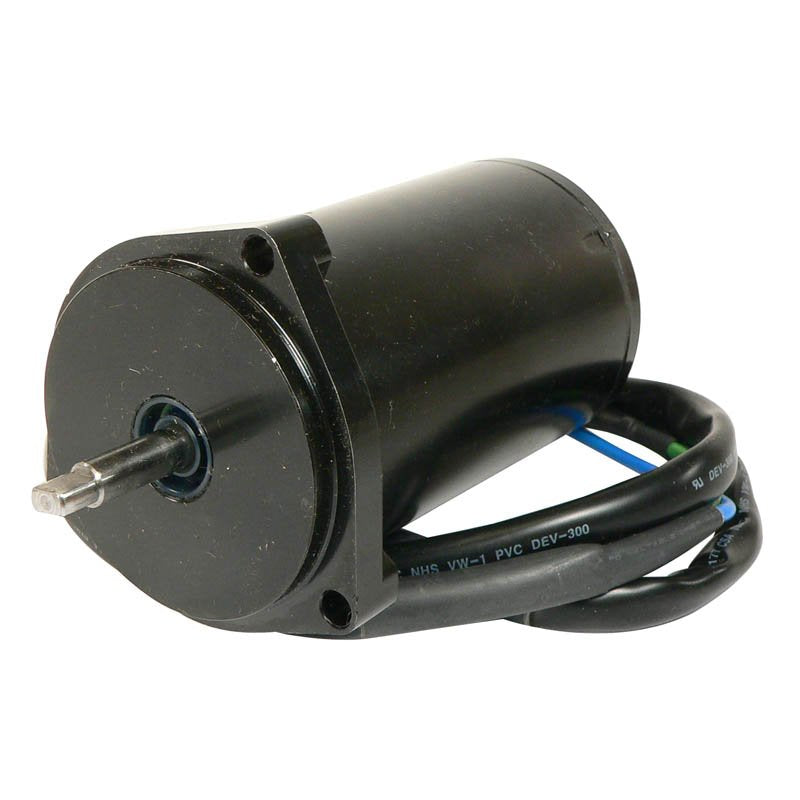

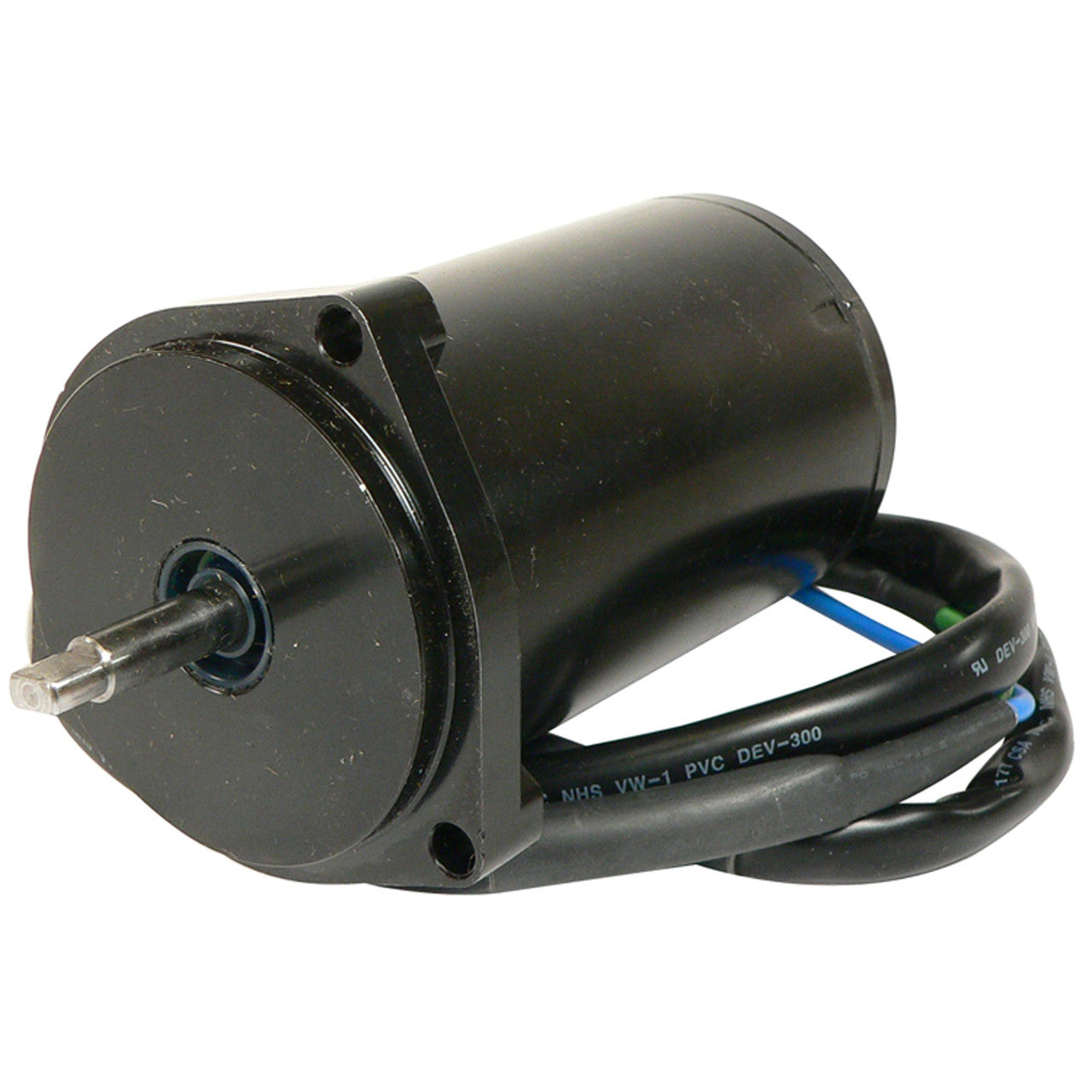

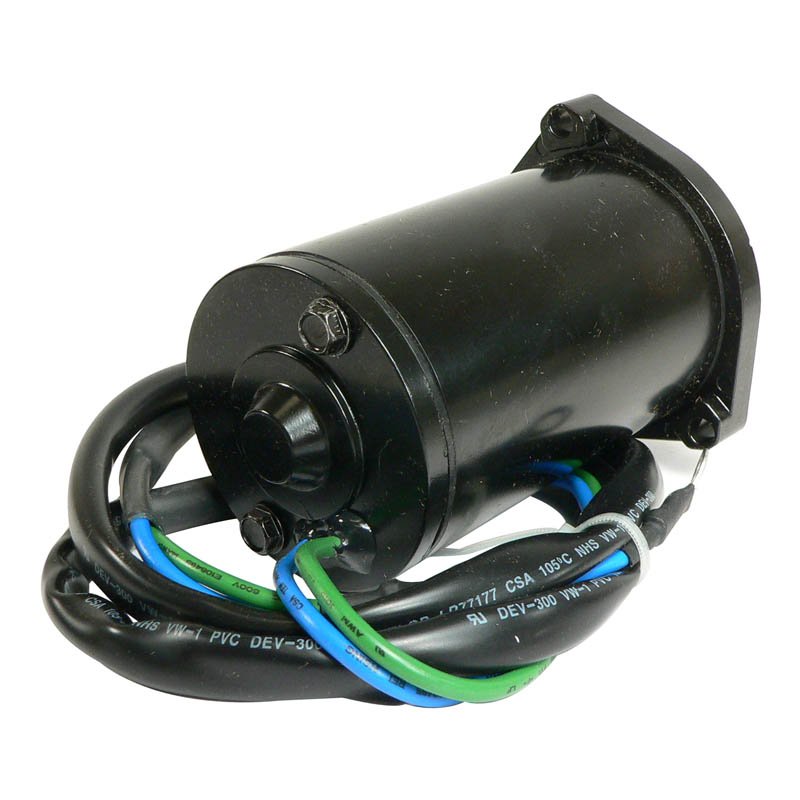

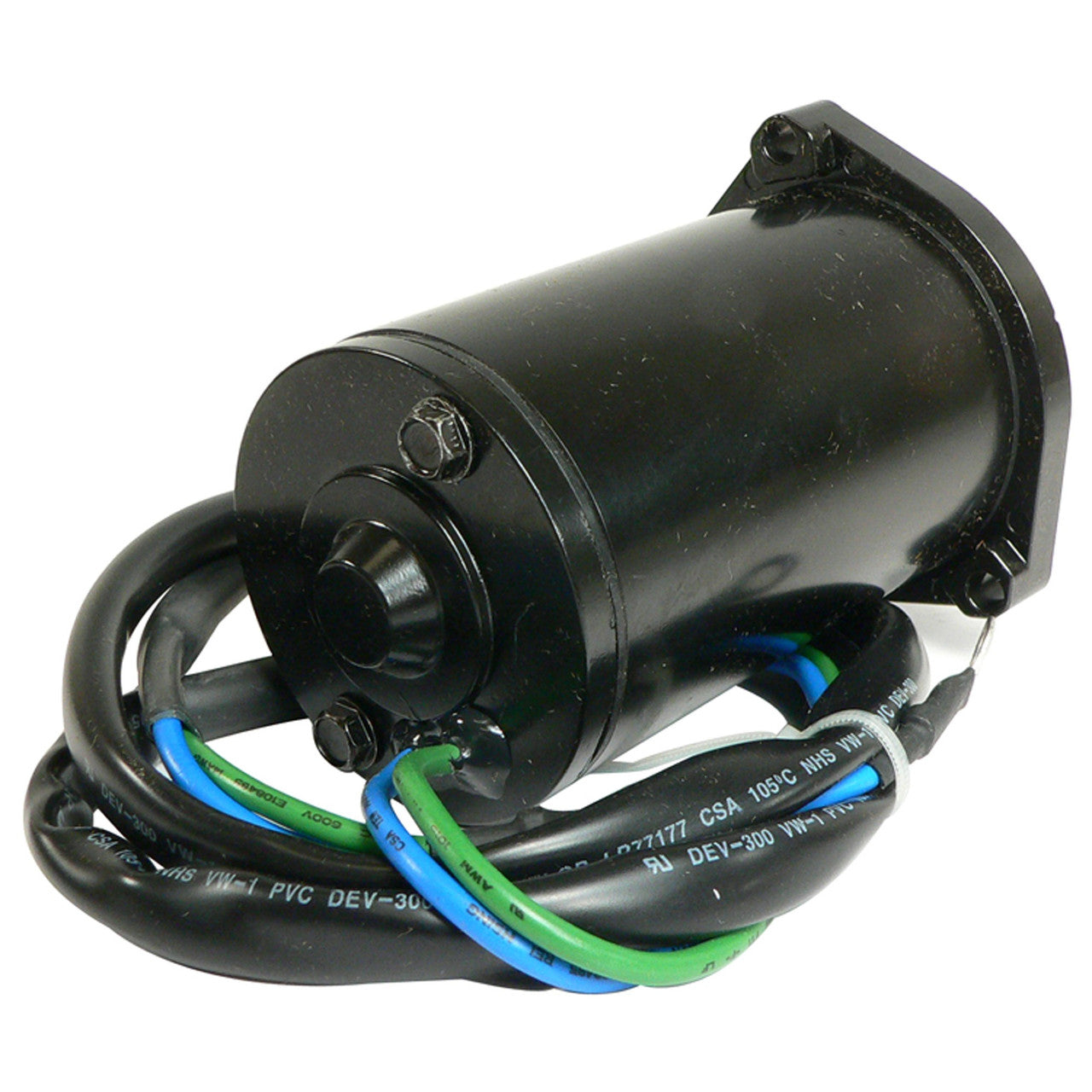

Tilt & Trim Motor for Yamaha F50 & F60 Outboard Engines
Fits Yamaha F50 and F60 four-stroke outboard engines
This tilt and trim motor is a direct replacement for the trim system fitted to Yamaha F50 and F60 outboard engines. It is built to OEM specifications for fit, form and function, matching the original mounting dimensions and wiring.
The motor is a 2-wire design on a 3-bolt mounting pattern, with a blue wire measuring approximately 45.5 inches and a green wire measuring approximately 43.25 inches, each terminating in 6.3mm eyelets, matching the original Yamaha wiring loom. It is a bolt-in fit using the original mounting points and connector type, so there is no need to splice or modify the trim harness during installation.
Key Features
- Fits Yamaha F50 & F60 outboard engines
- 2-wire motor
- 3-bolt mounting pattern
- 8mm shaft diameter
- 12-month warranty as standard
Technical Specs
| Specification | Detail |
|---|---|
| Voltage | 12V |
| Mounting Holes | (3) x 5.2mm OD, 65.0mm / 67.4mm / 75.5mm C-to-C, 64.7mm mounting ring OD |
| Shaft | 8mm OD |
| Shaft Length (from bearing) | 33.7mm |
| Shaft Length (from mounting ring) | 30.9mm |
| Blue Wire Length | 45-1/2 in |
| Green Wire Length | 43-1/4 in |
| Wire Terminals | 6.3mm OD Eyelets |
| Mounting | 3-Bolt |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Yamaha F50 | Not specified - confirm against your OEM part number |
| Yamaha F60 | Not specified - confirm against your OEM part number |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
No OEM cross reference is published for this part.
Frequently Asked Questions
Will this fit without modification?
Yes, this motor is a direct OEM-spec replacement for the Yamaha F50 and F60 outboard trim systems and requires no modification to fit.
What's included?
You will receive one tilt and trim motor, ready to fit into your existing trim system housing. No wiring loom, pump or reservoir is included unless stated, so please compare your existing hardware before fitting.
How do I know my old motor has failed?
Common signs of a failed tilt and trim motor include the drive failing to tilt or trim, a humming noise with no movement, or slow and inconsistent operation. If the trim system moves in one direction only, stalls part-way through its travel, or trips a breaker under load, the motor is a common cause and worth checking first.
What are the mounting dimensions for this motor?
This motor uses a 3-bolt mounting pattern with 5.2mm mounting holes at 65.0mm, 67.4mm and 75.5mm centres, an 8mm shaft, and a 64.7mm mounting ring OD - check these dimensions against your original unit before ordering.
