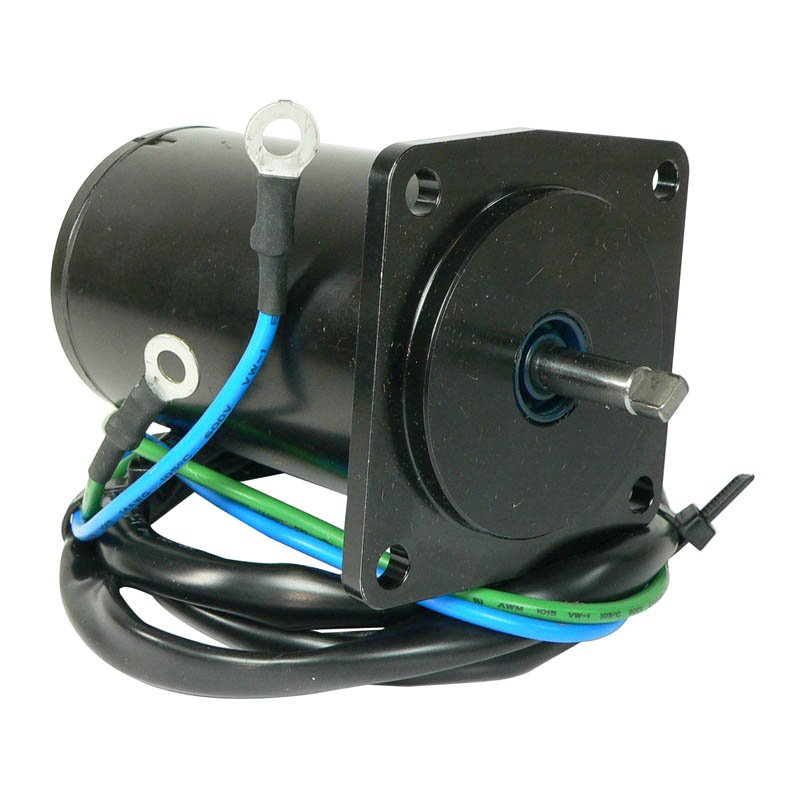

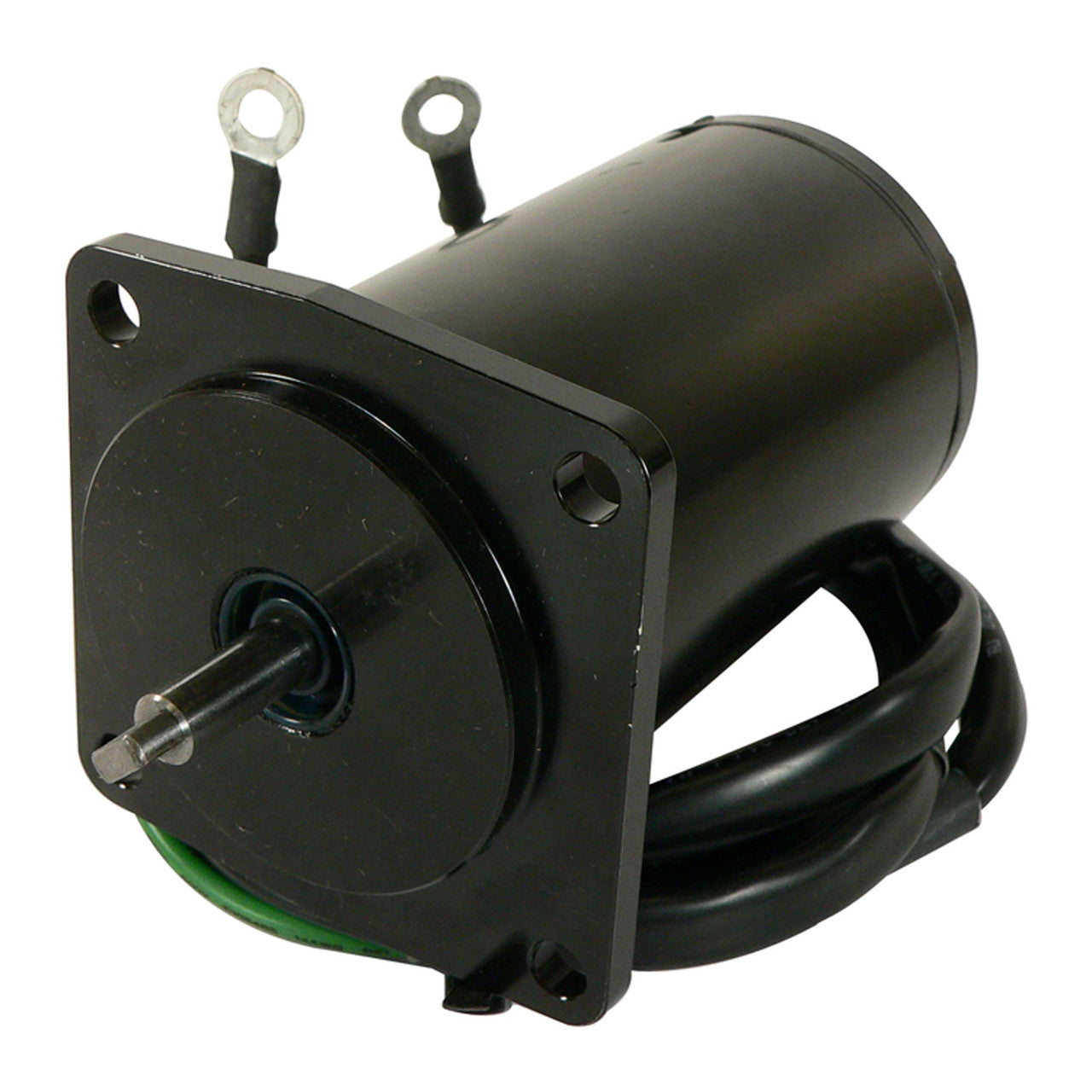

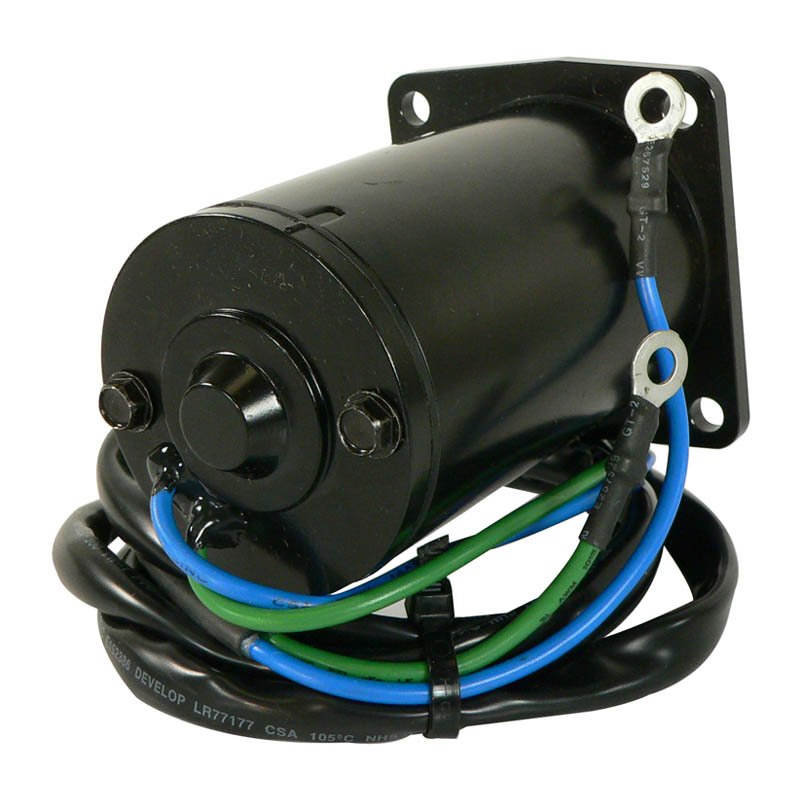

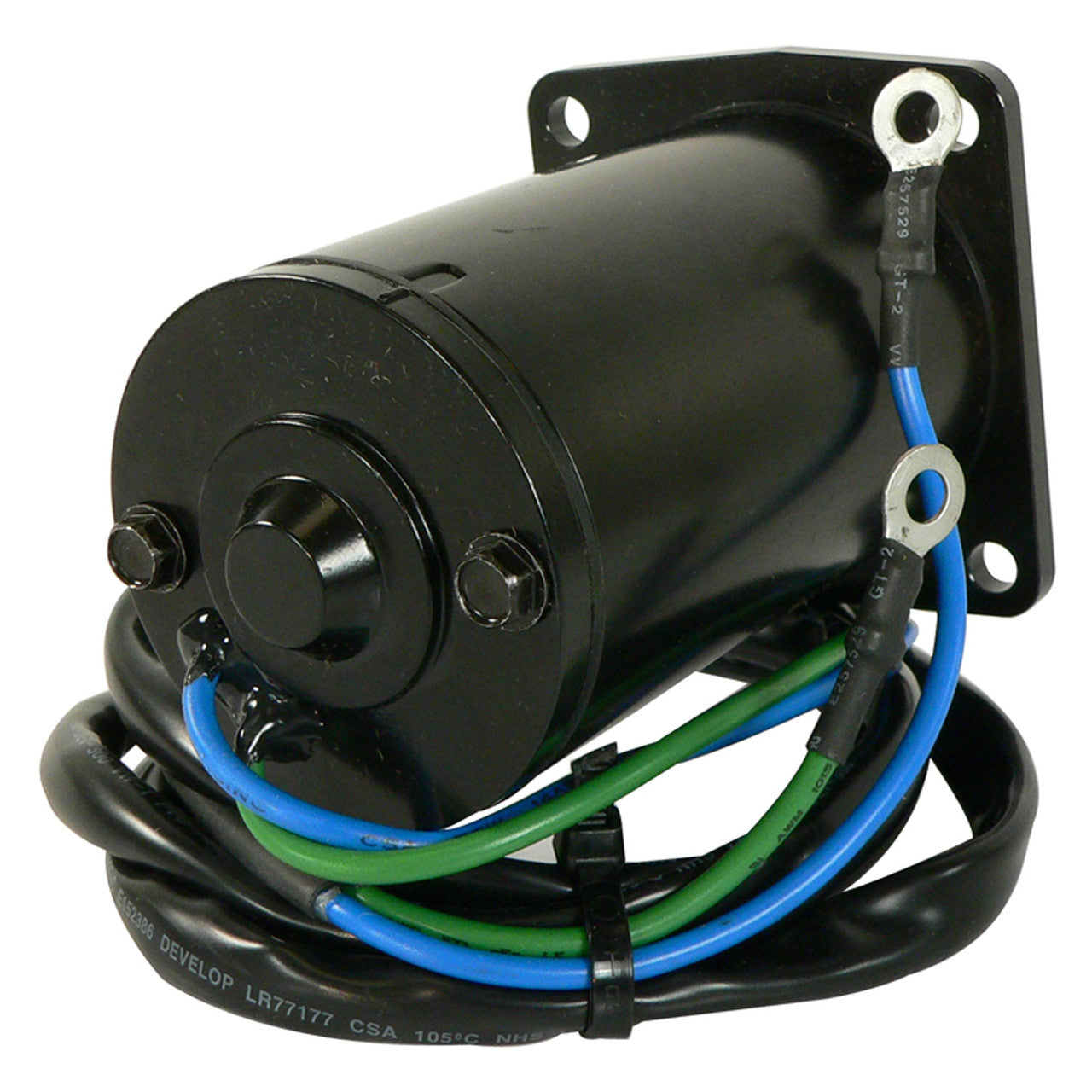

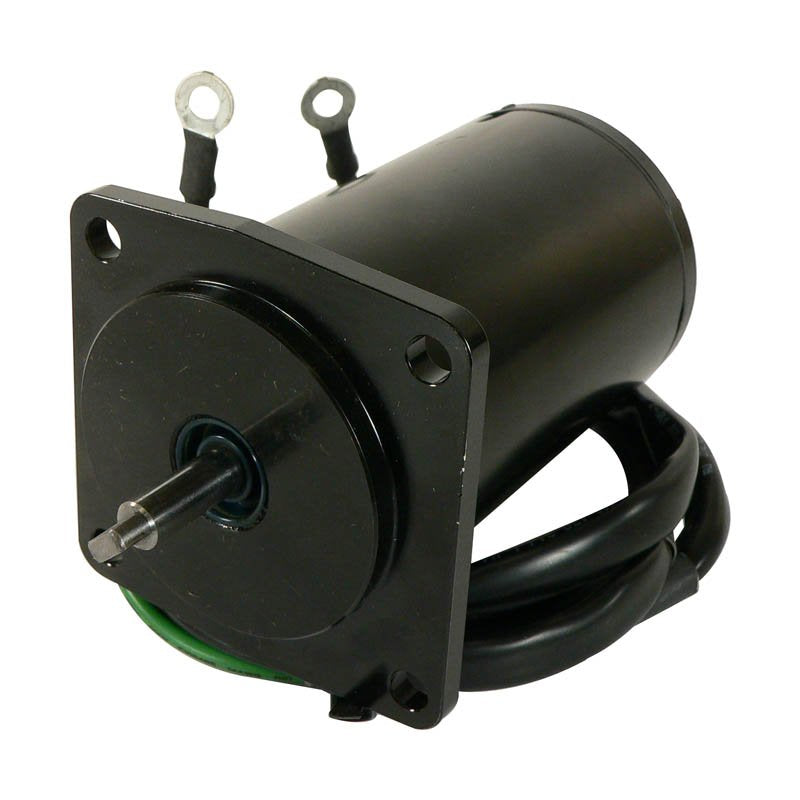

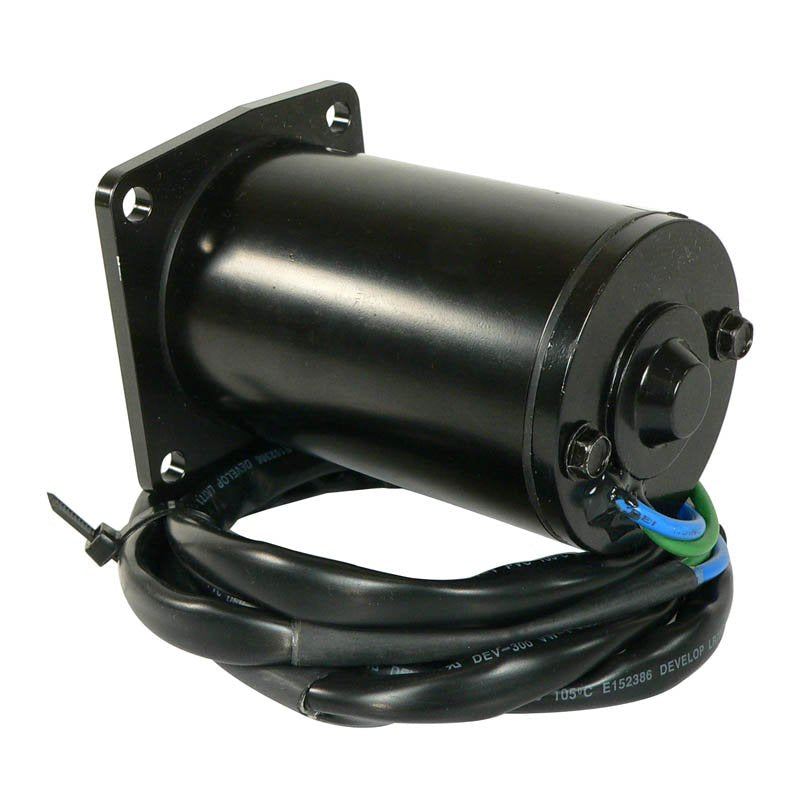

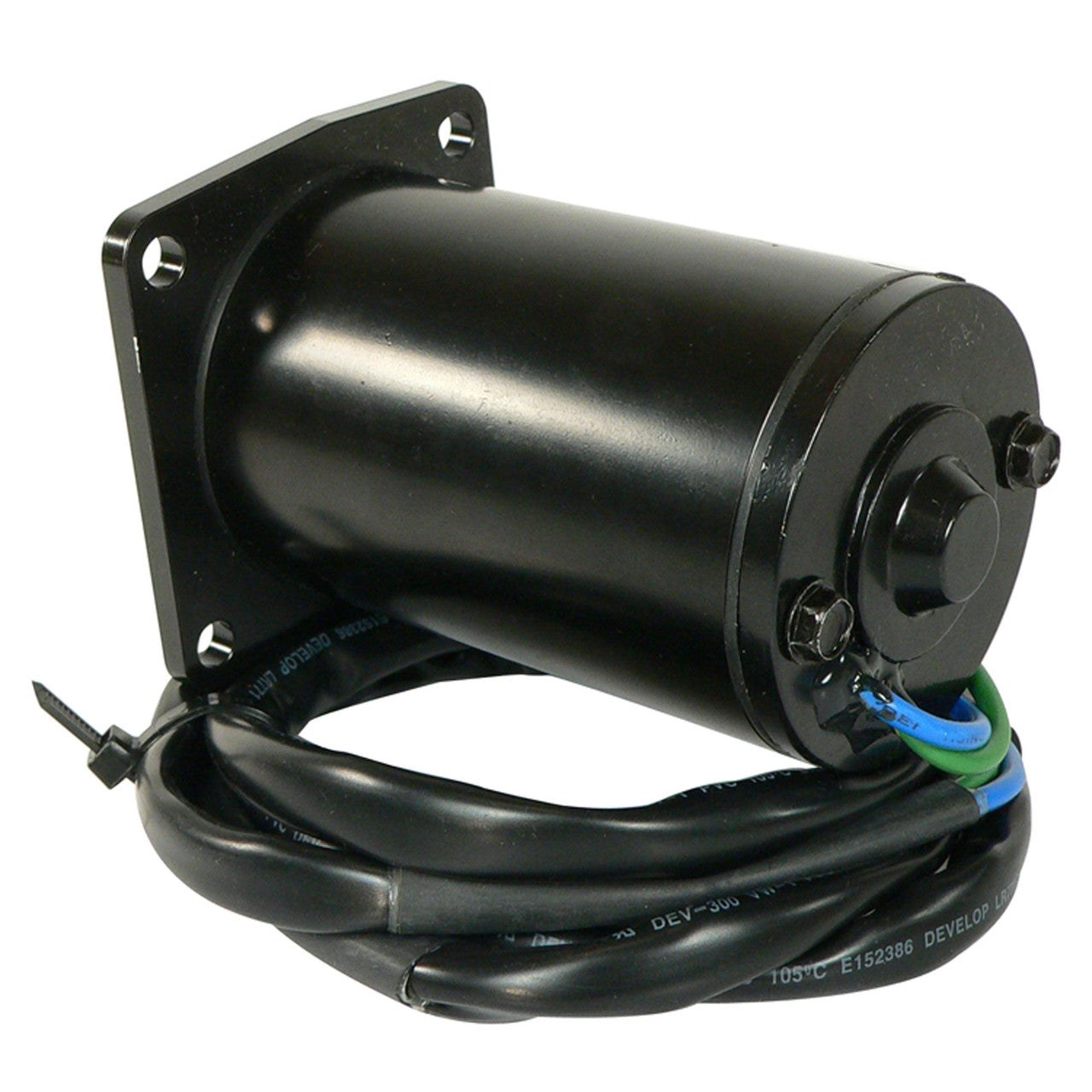

This tilt and trim motor is a direct replacement for the trim system fitted to Yamaha F75, F80, F90 and F100 four-stroke outboard engines. It is built to OEM specifications for fit, form and function.
This is the late model version, wired as a 2-wire motor with a 4-bolt mounting pattern, matching the original equipment used across this engine range. It is a bolt-in fit using the original mounting points and connector type, so there is no need to splice or modify the trim harness during installation.
Key Features
- Fits Yamaha F75, F80, F90 & F100 four-stroke outboards
- Late model 2-wire motor
- 4-bolt mounting pattern
- 12V motor
- 12-month warranty as standard
Technical Specs
| Specification |
Detail |
| Voltage |
12V |
| Part Type |
Unit |
| Engine Type |
4-Stroke |
| Wiring |
2-Wire (Late Model) |
| Mounting |
4-Bolt |
Vehicle Fitment Guide
| Make & Model |
Years |
| Yamaha F75 |
2003-2004 |
| Yamaha F80 |
1999-2003 |
| Yamaha F90 |
2003-2004 |
| Yamaha F100 |
1999-2003 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
No OEM cross reference is published for this part.
Frequently Asked Questions
Will this fit without modification?
Yes, this motor is a direct OEM-spec replacement for the Yamaha F75, F80, F90 and F100 trim systems listed and requires no modification to fit.
What's included?
You will receive one tilt and trim motor, ready to fit into your existing trim system housing. No wiring loom, pump or reservoir is included unless stated, so please compare your existing hardware before fitting.
How do I know my old motor has failed?
Common signs of a failed tilt and trim motor include the drive failing to tilt or trim, a humming noise with no movement, or slow and inconsistent operation. If the trim system moves in one direction only, stalls part-way through its travel, or trips a breaker under load, the motor is a common cause and worth checking first.
Is this the early or late model motor?
This is the late model version, fitted to Yamaha F75, F80, F90 and F100 four-stroke outboards, using a 2-wire connection and 4-bolt mount - check your engine's production date against the model years listed to confirm which version you need.
