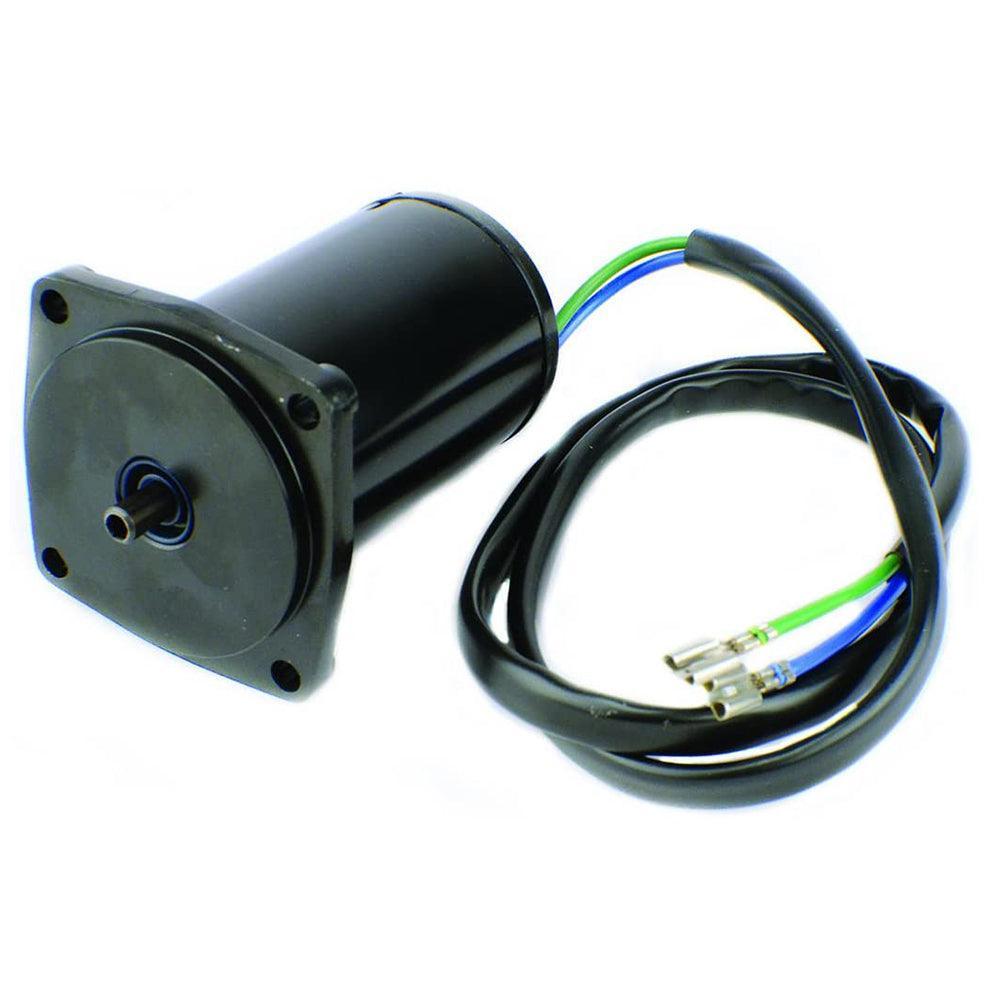

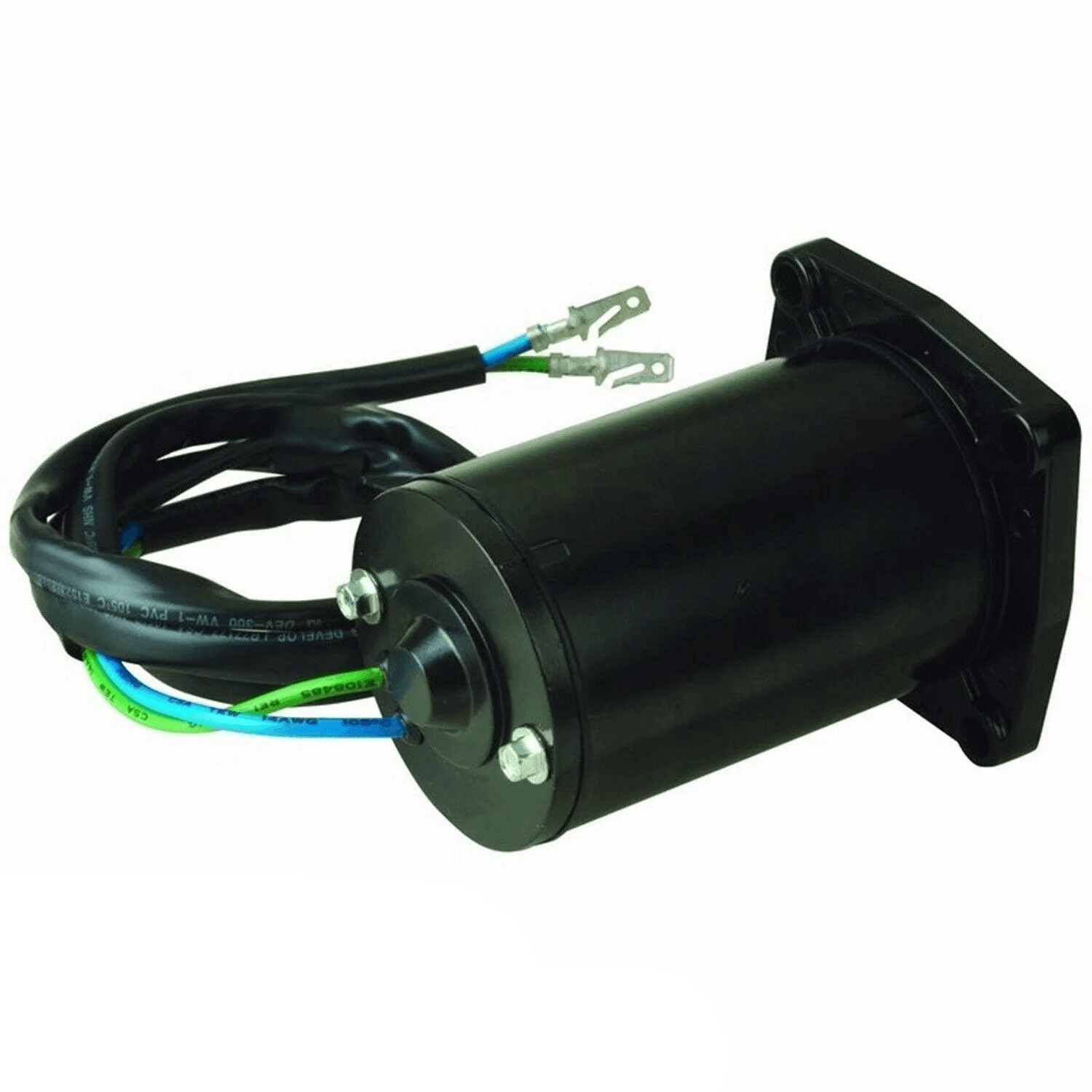

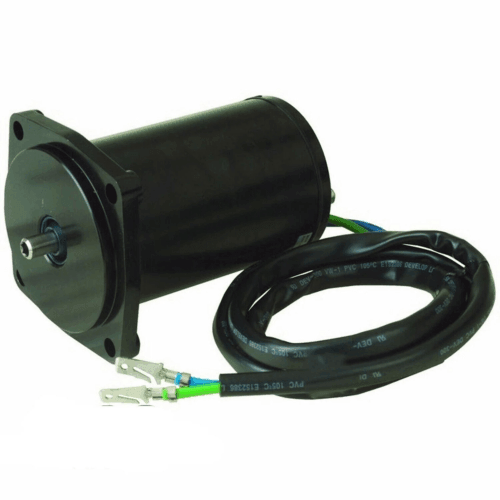

Trim tilt motor for Honda 35–50 hp 36120‑ZV5‑821 12V
Trim tilt motor for Honda 35–50 hp 36120‑ZV5‑821 12V
SKU:36120-ZV5-821
Free shipping over £150. Terms apply
Couldn't load pickup availability
Trim Motor for Honda 35-50 HP
SKU: 36120-ZV5-821 | Premium Quality Marine Replacement
Restore your outboard's maneuverability with this high-torque power tilt trim motor. Engineered specifically for the Honda BF series mid-range engines, this motor is a direct-fit replacement for systems utilizing the early-style 4-bolt mounting flange and 2-wire harness. It provides smooth, bi-directional lifting power to ensure your engine trims and tilts reliably in all marine conditions.
Key Features
- ✔ Direct fit replacement for Honda BF35-BF50
- ✔ 2-Wire connection with female spade terminals
- ✔ 5mm Hollow Hex (Female) Drive Shaft
- ✔ Includes sealing O-ring for watertight installation
Technical Specs
| Voltage: | 12V DC |
| Mounting: | 4-Bolt Flange |
| Wiring: | 2-Wire Harness |
| Shaft Type: | 5mm Female Hex |
| Rotation: | Reversible |
Compatibility / Fitment Guide
| Make/System | Model/Application | Year Range |
|---|---|---|
| Honda Outboard | BF35 (35HP) | 1991 - 2002 |
| Honda Outboard | BF40 (40HP) | 1992 - 2003 |
| Honda Outboard | BF45 (45HP) | 1991 - 2002 |
| Honda Outboard | BF50 (50HP) | 1992 - 2003 |
| Johnson / Evinrude | 40HP, 48HP, 50HP (4-Bolt) | 1989 - 1999 |
OEM Cross Reference
| Honda: | 36120-ZV5-821, 36120-ZV5-822, 36120-ZV5-003 |
| OMC / Johnson: | 433226, 435532, 437801 |
| Mercury / Quicksilver: | 8M6007533, 8M6014149, 8M6007526 |
| Sierra / Arco: | Sierra 18-6258, Arco 6239 |
| Lester / Arrowhead: | Lester 10811, TRM0073 |
Questions & Answers
Is this a genuine original part?
This is a premium quality aftermarket replacement part from 4Drive, manufactured to meet or exceed original equipment (OE) standards for performance and longevity.
How do I know if it is compatible?
Check your existing motor. This unit is specifically for the 4-bolt mounting style with a 2-wire connection and a hollow hex shaft. If your motor has a 3-bolt mount or a blade-style shaft, this will not fit.
Does this motor include the seal?
Yes, this replacement trim motor comes complete with a new sealing O-ring to ensure a watertight installation between the motor and the pump manifold.
Note: Please verify your original part number against the references above before purchasing. For expert assistance, visit 4drive.co.uk.
