Stator for Triumph Daytona 955i 2002-2006 - Replaces T1300510
Stator for Triumph Daytona 955i 2002-2006 - Replaces T1300510
SKU:RM01395
Free shipping over £150. Terms apply
Couldn't load pickup availability

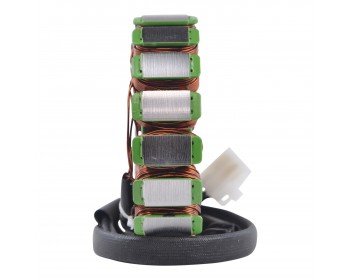

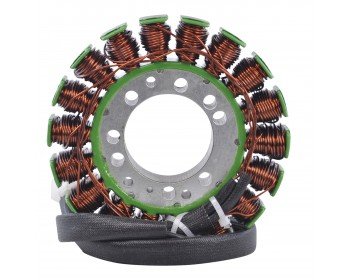

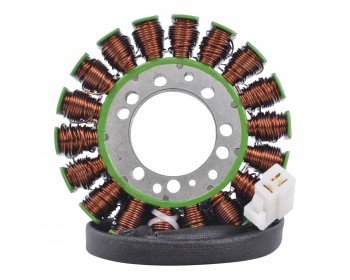

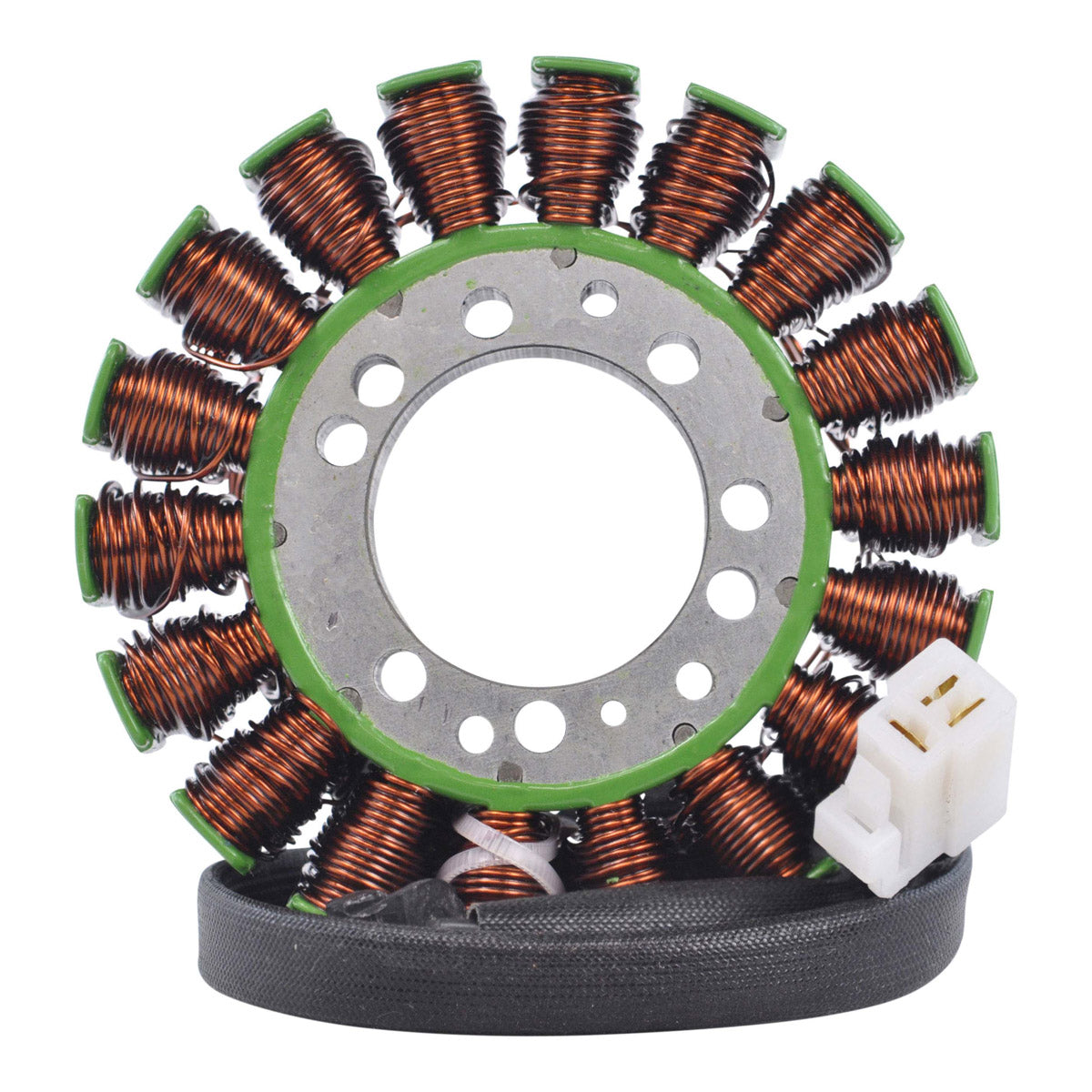

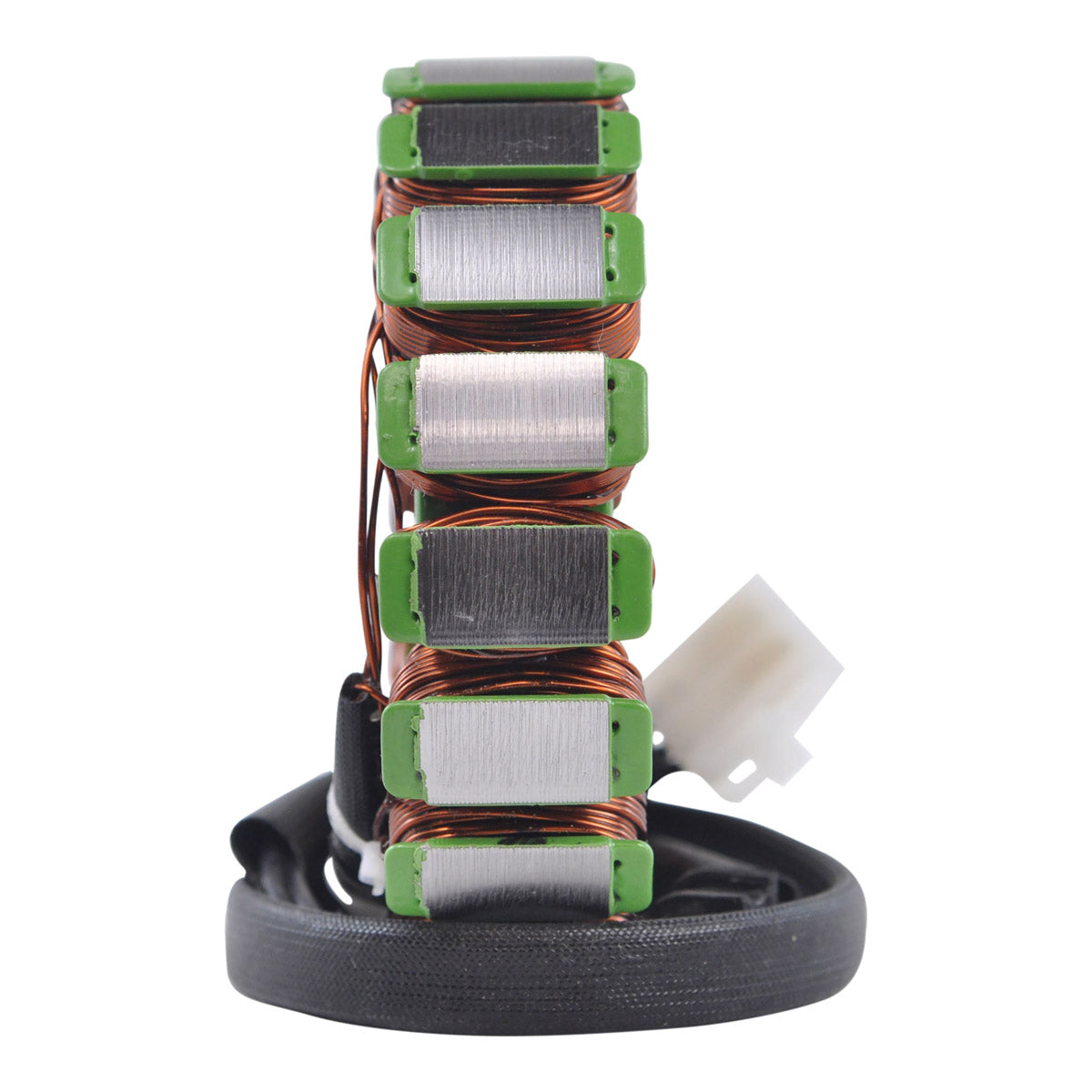

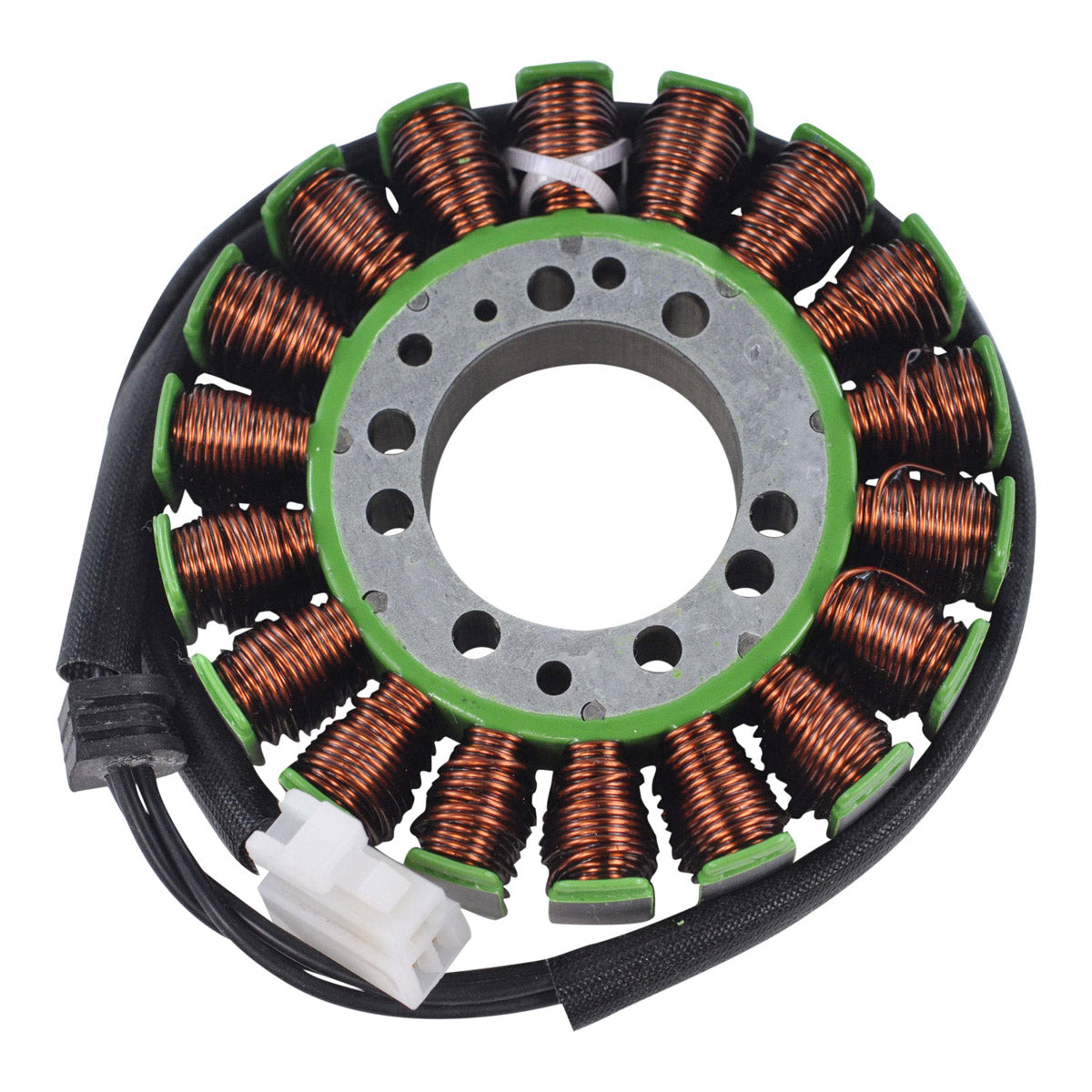

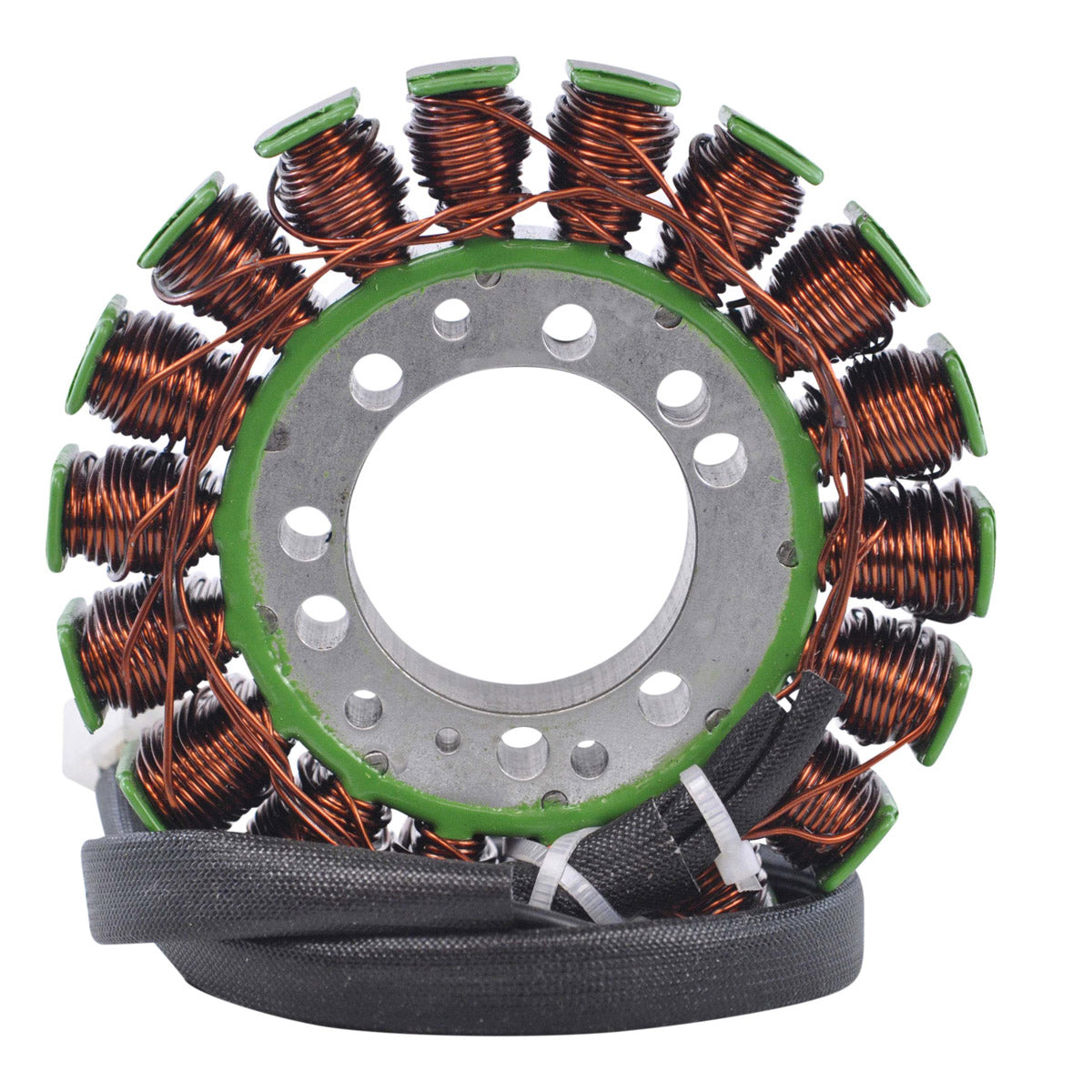

Stator for Triumph Daytona 955i 2002-2006
Triumph Daytona 955i - 2002 to 2006 - OEM replacement T1300510 - Part RM01395
This is a brand new aftermarket stator built as a direct replacement for the original charging stator fitted to the Triumph Daytona 955i from 2002 to 2006. It cross references Triumph part number T1300510 and is a plug-and-play, direct fit item that uses the standard mounting points and the factory connector, so no cutting, splicing or modification of the loom is required.
The unit is built on highest grade lamination materials and wound with highest grade copper windings that are resistant to 200 degrees Celsius. As well as the connector and rubber grommet, an additional opposite connector for the main harness side is supplied, because the plug on the bike side of this circuit is a common corrosion point and is best replaced along with the stator. All products are tested before shipment.
Key Features
- Brand new aftermarket stator - direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius

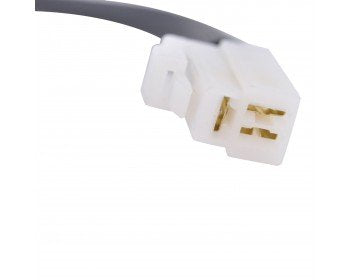

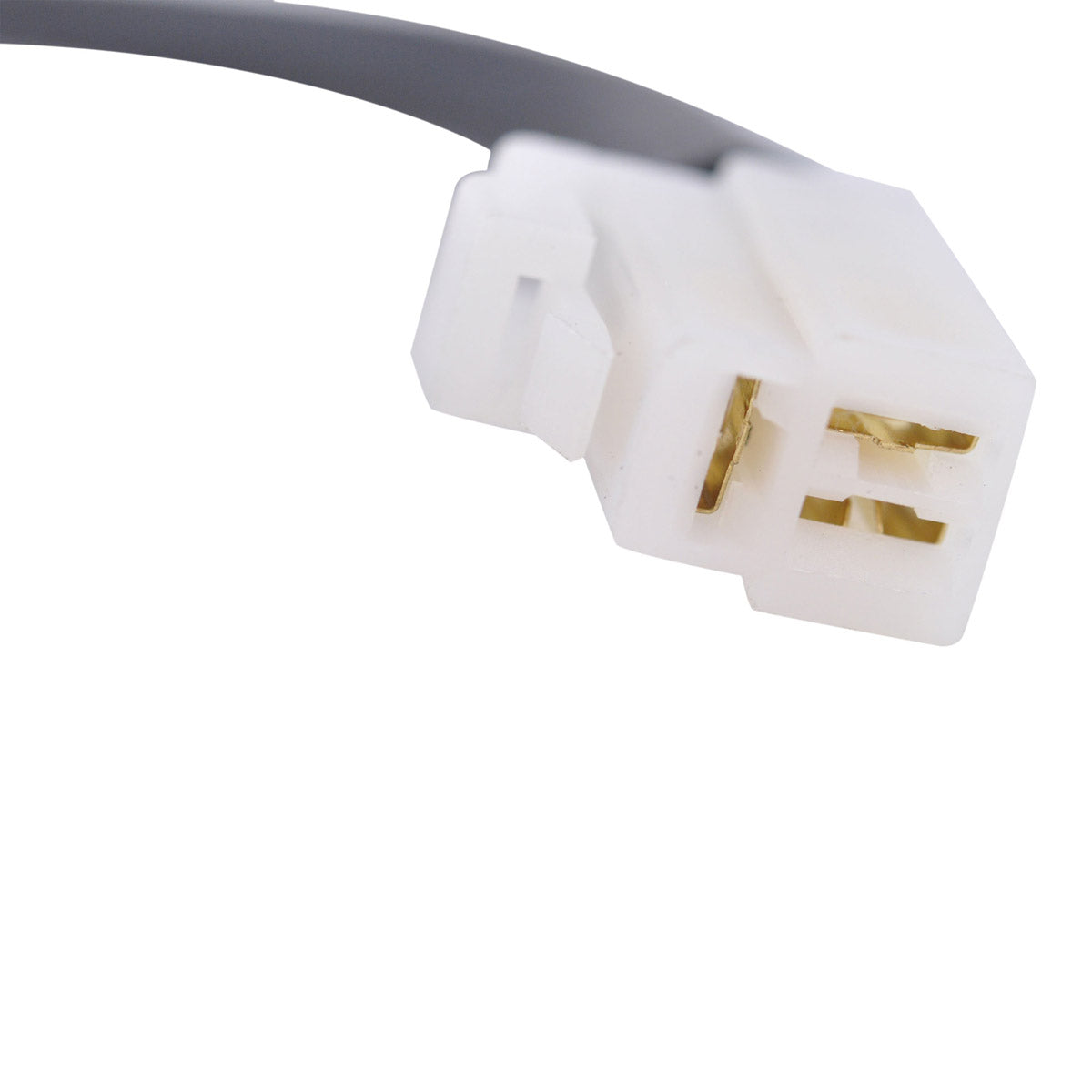

- Connector included
- Rubber grommet included
- Additional opposite connector for the main harness side included
- All products tested before shipment
- Cross references Triumph T1300510
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RM01395 |
| Interior diameter | 42 mm |
| Exterior diameter | 115 mm |
| Width | 22 mm |
| Harness length (stator to grommet) | 145 mm |
| Harness length (grommet to plug) | 450 mm |
| Number of wires | 3 |
| Number of plugs | 1 |
| Number of terminals | 3 |
| Alternator resistance (black to each black) | 0.5 ohms +/- 20% |
| Temperature rating | 200 degrees Celsius |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Triumph Daytona 955i | 2002-2006 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| T1300510 | Triumph |
Frequently Asked Questions
Does it fit without modification?
Yes. It is a direct, plug-and-play replacement for the original stator on the 2002 to 2006 Daytona 955i, using the standard mounting points and the factory connector, so nothing needs to be cut or spliced. Confirm your original unit carries part number T1300510 before ordering.
What is included in the box?
The stator with its connector, a rubber grommet, and an additional opposite connector for the main harness side. All products are tested before shipment.
Why does it come with a second connector?
The connector on the main harness side commonly corrodes on these bikes. A corroded plug adds resistance to the charging circuit and can generate enough heat to melt the housing, which will damage a new stator in turn. Fitting the supplied opposite connector renews both halves of the joint at once.
How do I know my old stator has failed?
Watch for a battery that goes flat repeatedly, dim headlights at idle, a charge warning, or the engine stopping and not restarting. With a multimeter, measure between each pair of the three black wires: readings should be about 0.5 ohms +/- 20%. Any open circuit, any continuity to the engine case, or resistance well outside that band means the stator has failed.
