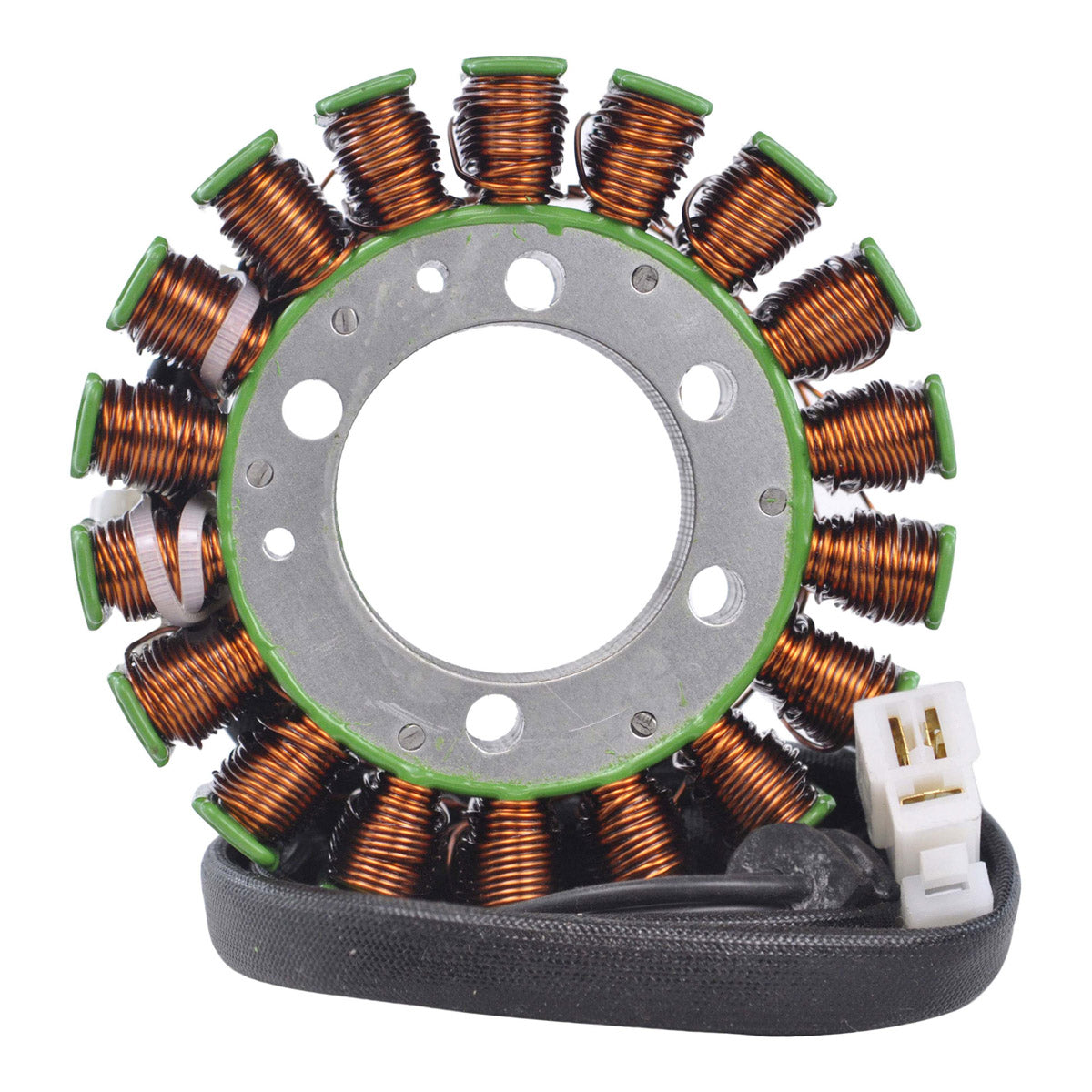

Generator Stator for Triumph Speed Triple 1050 2005-2010
Triumph Speed Triple 1050 - 2005 to 2010 - OEM replacement T1300610 - Part RM01391S

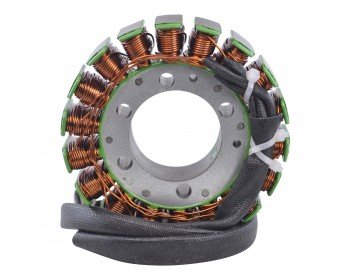

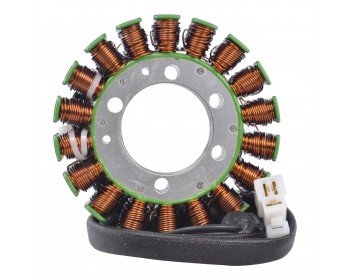

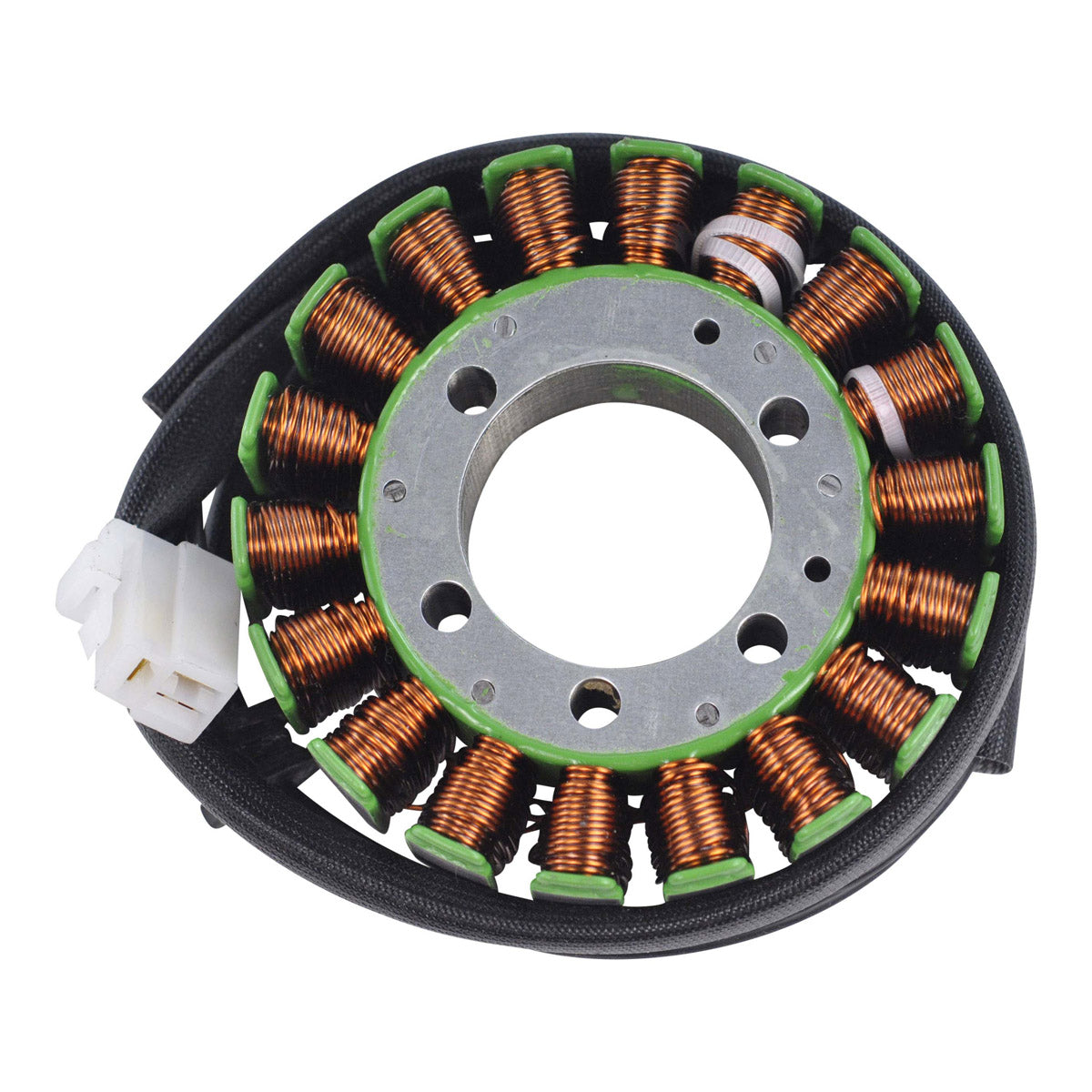

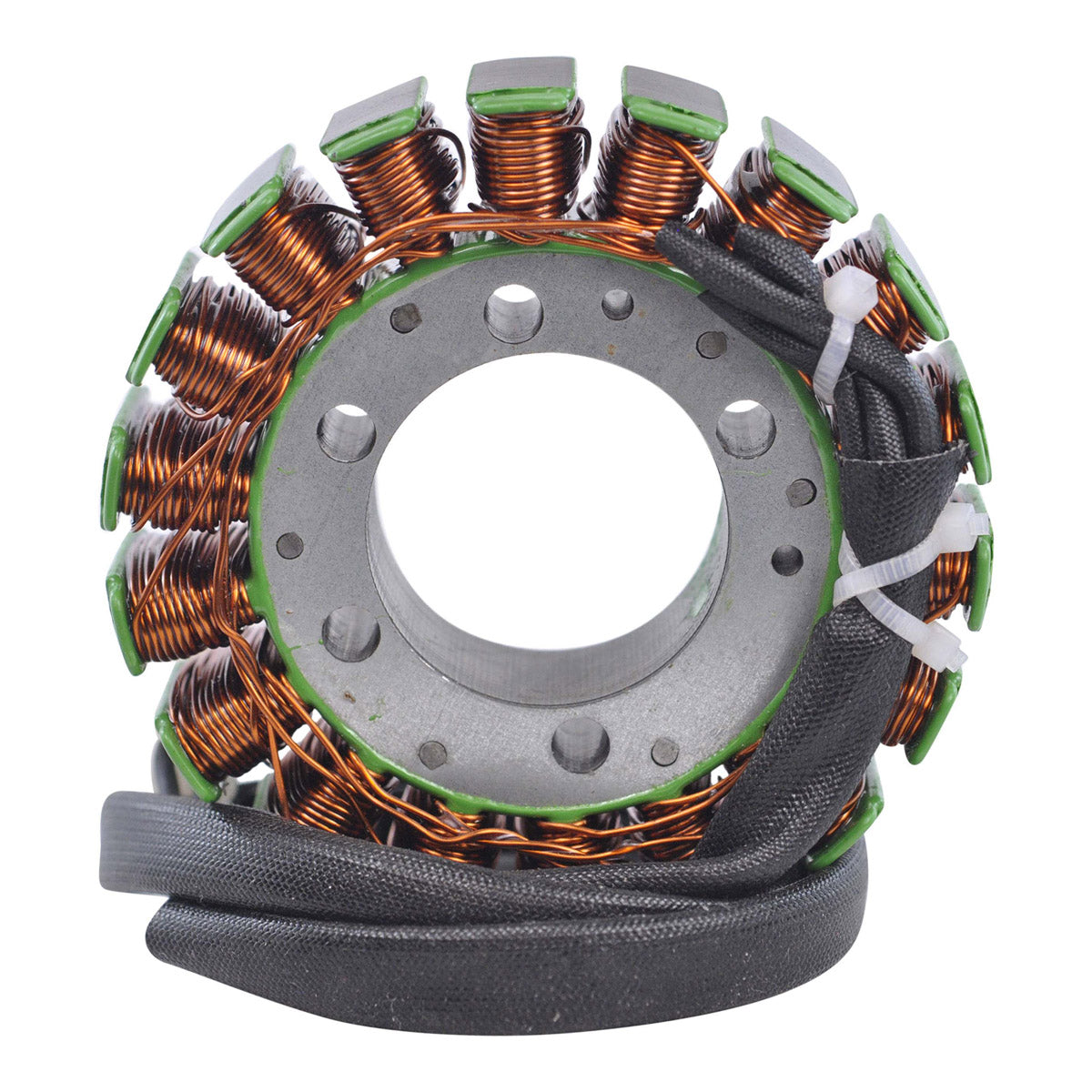

This is a brand new generator stator built as a direct replacement for the original charging stator fitted to the Triumph Speed Triple 1050 from 2005 to 2010. It cross references Triumph part number T1300610 and installs plug-and-play on the standard mounting points, using the factory connector, so no cutting, splicing or modification of the wiring loom is required.
The stator is built on highest grade lamination materials and wound with highest grade copper windings that are resistant to 200 degrees Celsius, giving a stable charging output and long service life. A connector and a rubber grommet are supplied with the unit, and every stator is tested before it is shipped. Full dimensions and the alternator winding resistance are listed below so you can measure your existing part before ordering.
Key Features
- Brand new generator stator - direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius

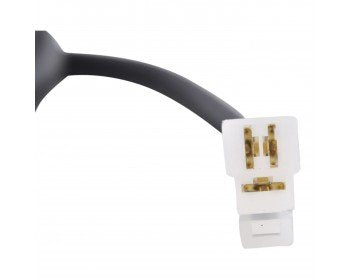

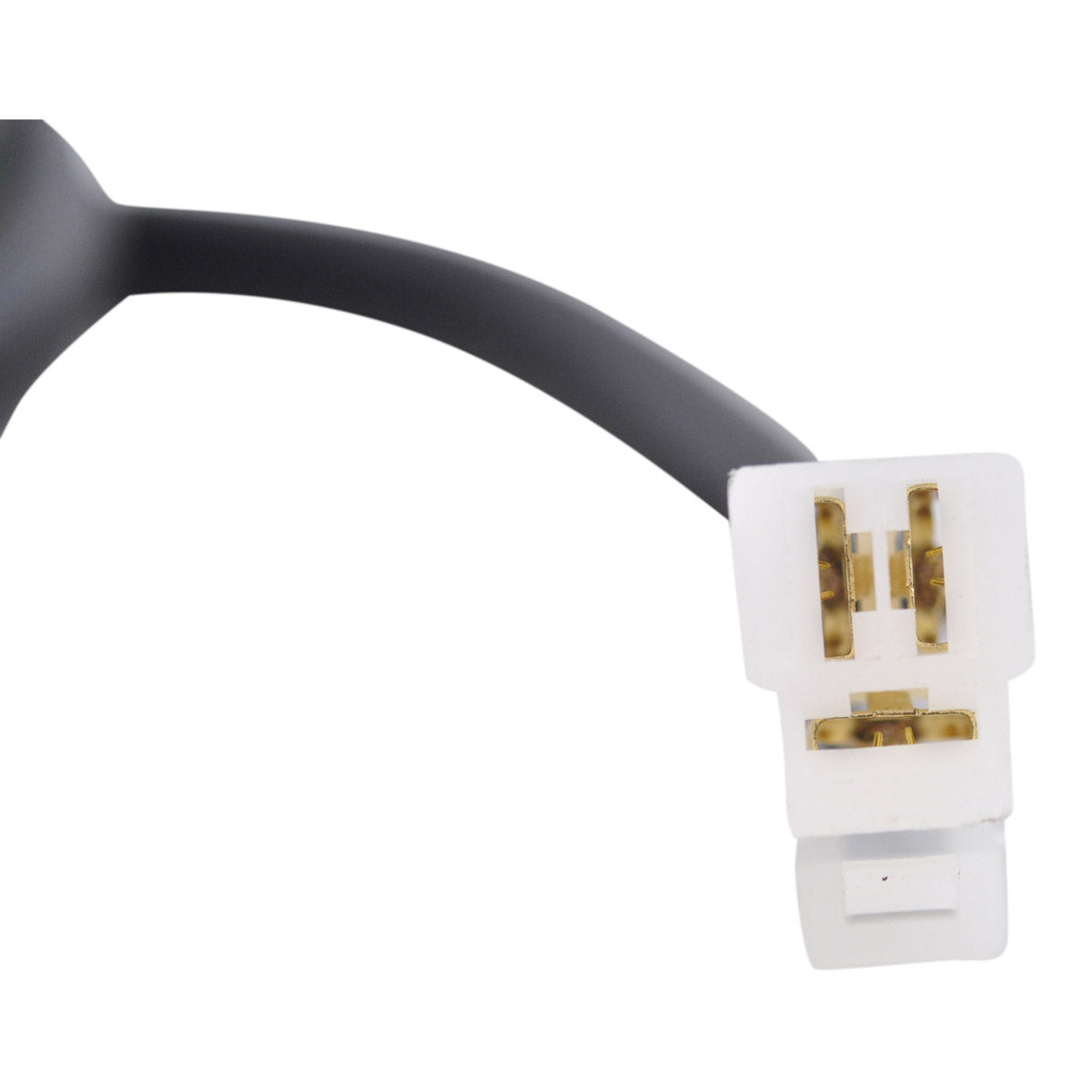

- Connector included
- Rubber grommet included
- All products shipped are tested
- Cross references Triumph T1300610
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RM01391S |
| Interior diameter | 42 mm |
| Exterior diameter | 104 mm |

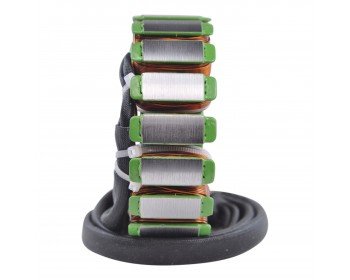

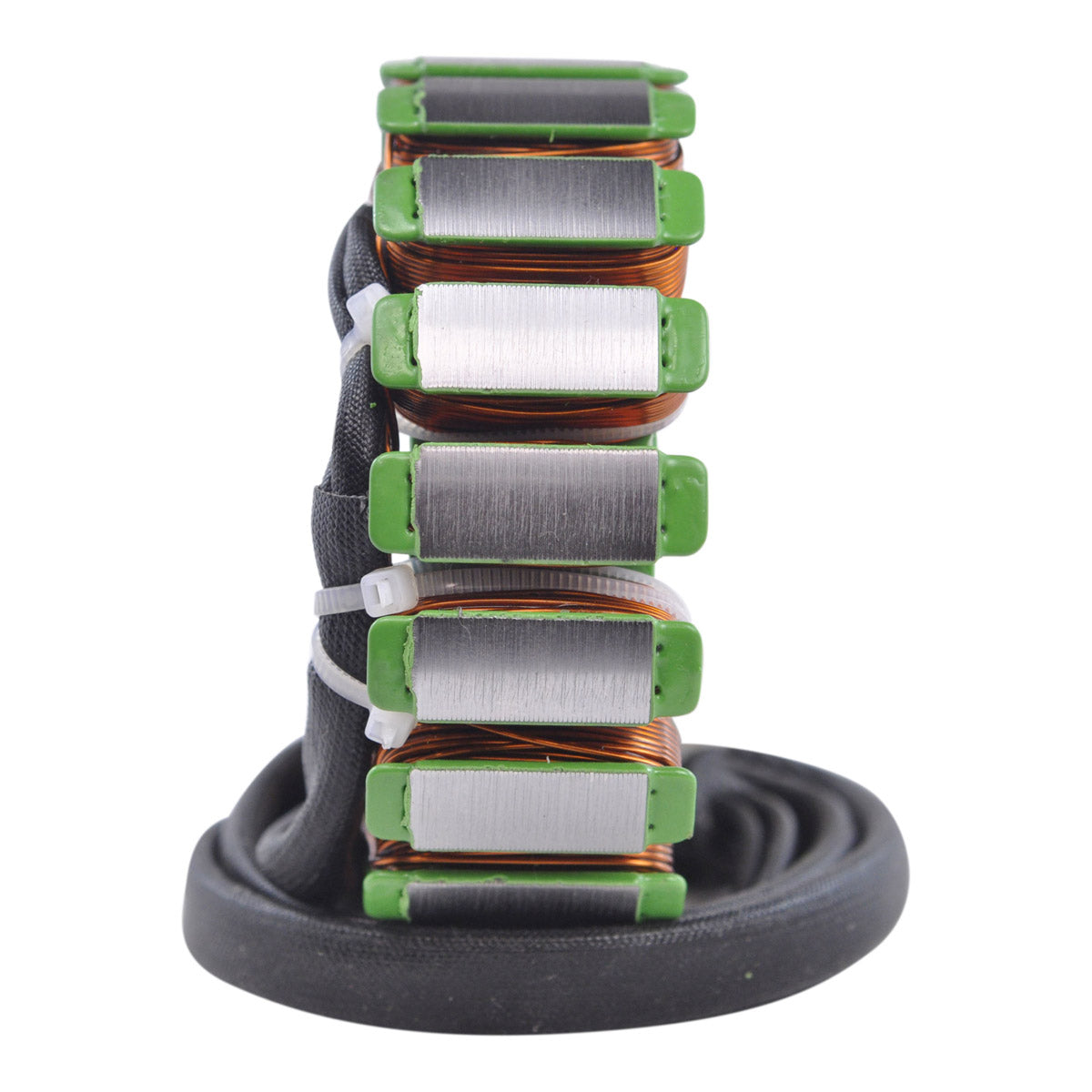

| Thickness | 26 mm |
| Harness length (stator to grommet) | 113 mm |
| Harness length (grommet to plug) | 820 mm |
| Number of wires | 3 |
| Number of plugs | 1 |
| Number of pins | 3 |
| Alternator resistance (between each black) | 0.4 ohms +/- 20% |
| Temperature rating | 200 degrees Celsius |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Triumph Speed Triple 1050 | 2005-2010 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| T1300610 | Triumph |
Frequently Asked Questions
Will it fit without modification?
Yes. This is a direct, plug-and-play replacement for the original stator on the 2005 to 2010 Speed Triple 1050. It uses the standard mounting points and the factory connector, so nothing has to be cut or spliced. Confirm the number on your original unit reads T1300610 before ordering.
What is included in the box?
The stator, its connector and a rubber grommet. Every unit is tested before it is shipped.
How do I tell whether my old stator has failed?
The common symptoms are a battery that will not hold charge, dim or flickering lights, a charging fault warning, and eventually the bike cutting out and refusing to restart. Test the three black wires with a multimeter: each pair should read around 0.4 ohms +/- 20%. An open circuit, a short to earth against the engine case, or readings well away from that figure confirm a failed stator.
Is the harness long enough to reach the original plug location?
Yes. The lead runs 113 mm from the stator body to the grommet and a further 820 mm from the grommet to the plug, matching the routing of the original harness so the plug arrives at the same point on the bike.
