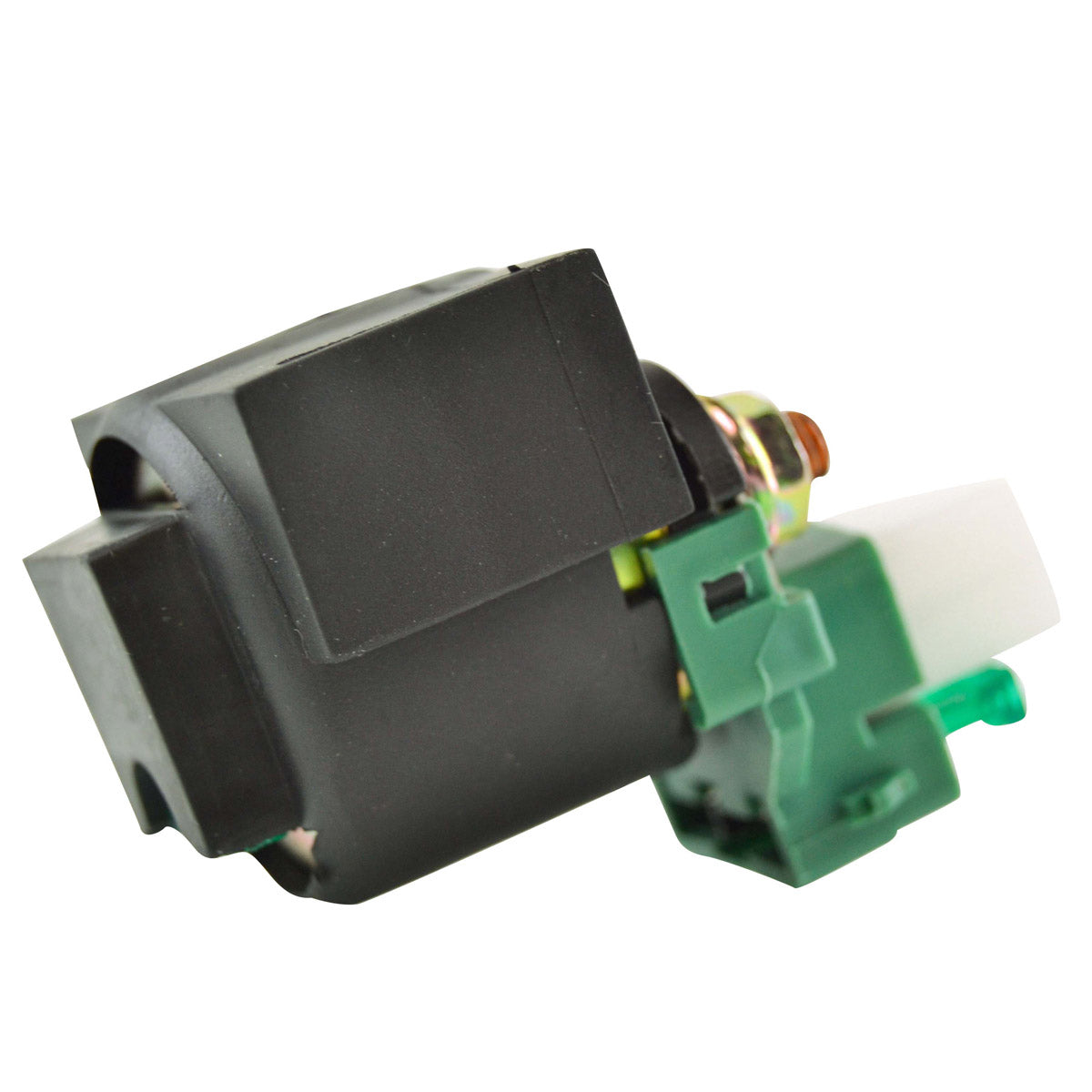

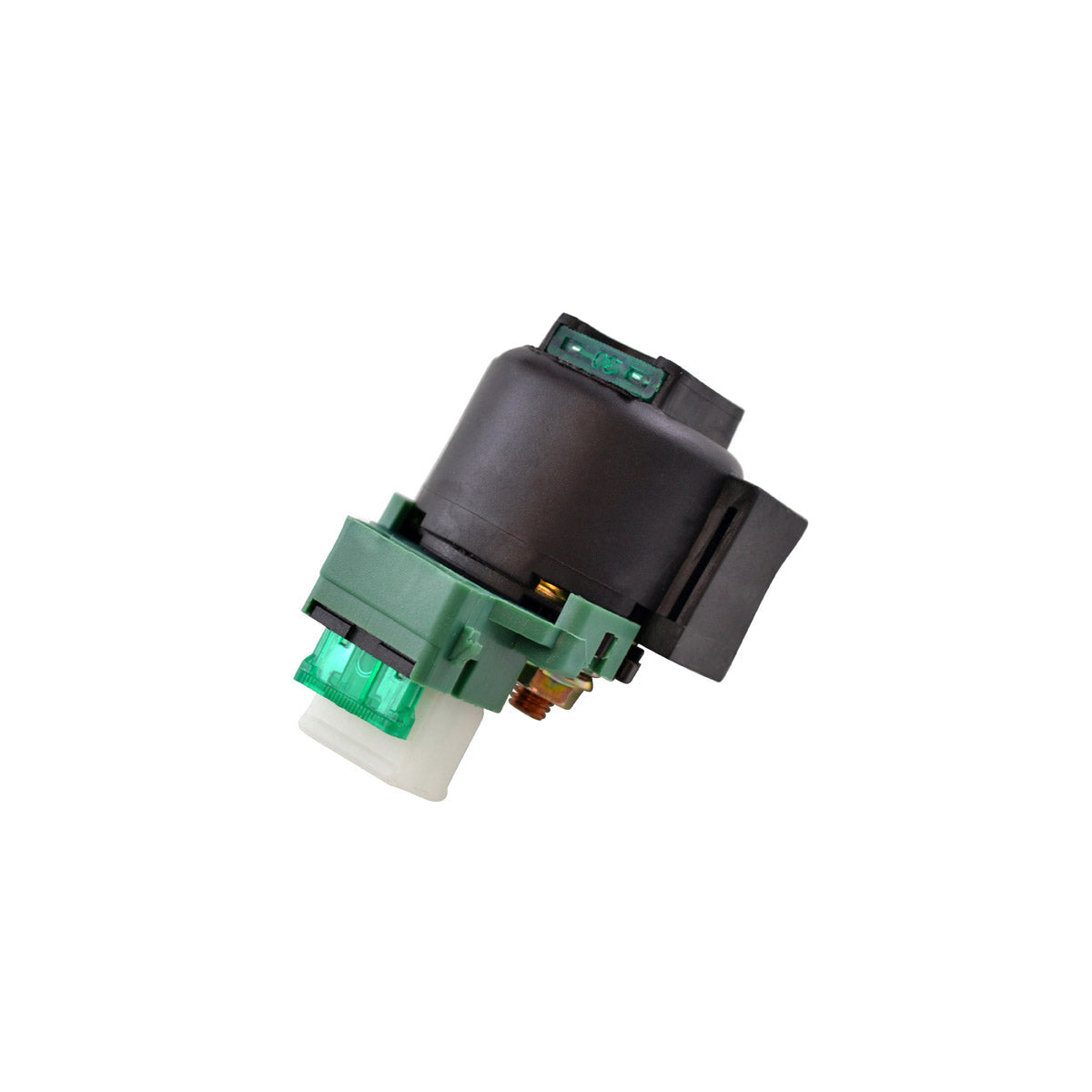

This is a brand new universal 12 volt starter relay solenoid kit from RMSTATOR, part number RM09018. Rather than being cut for one machine, it is supplied with a set of alternative connectors so that the same relay can be wired into a wide range of ATV, UTV, motorcycle and watercraft starting circuits. That makes it a practical answer when the original solenoid is no longer available, when the original part number cannot be identified, or when a machine has been rewired and the factory plug no longer exists.

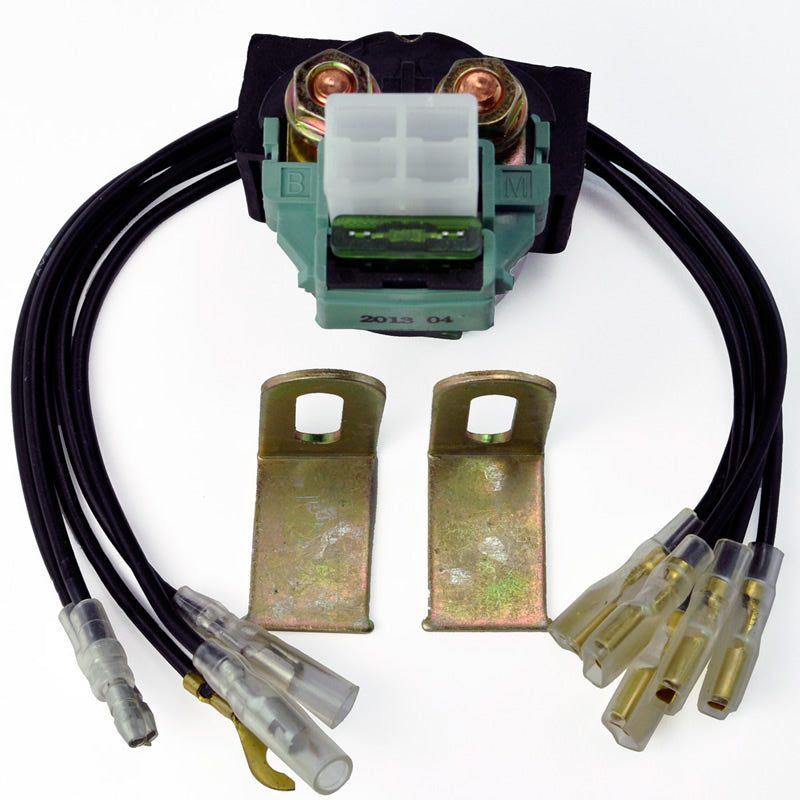

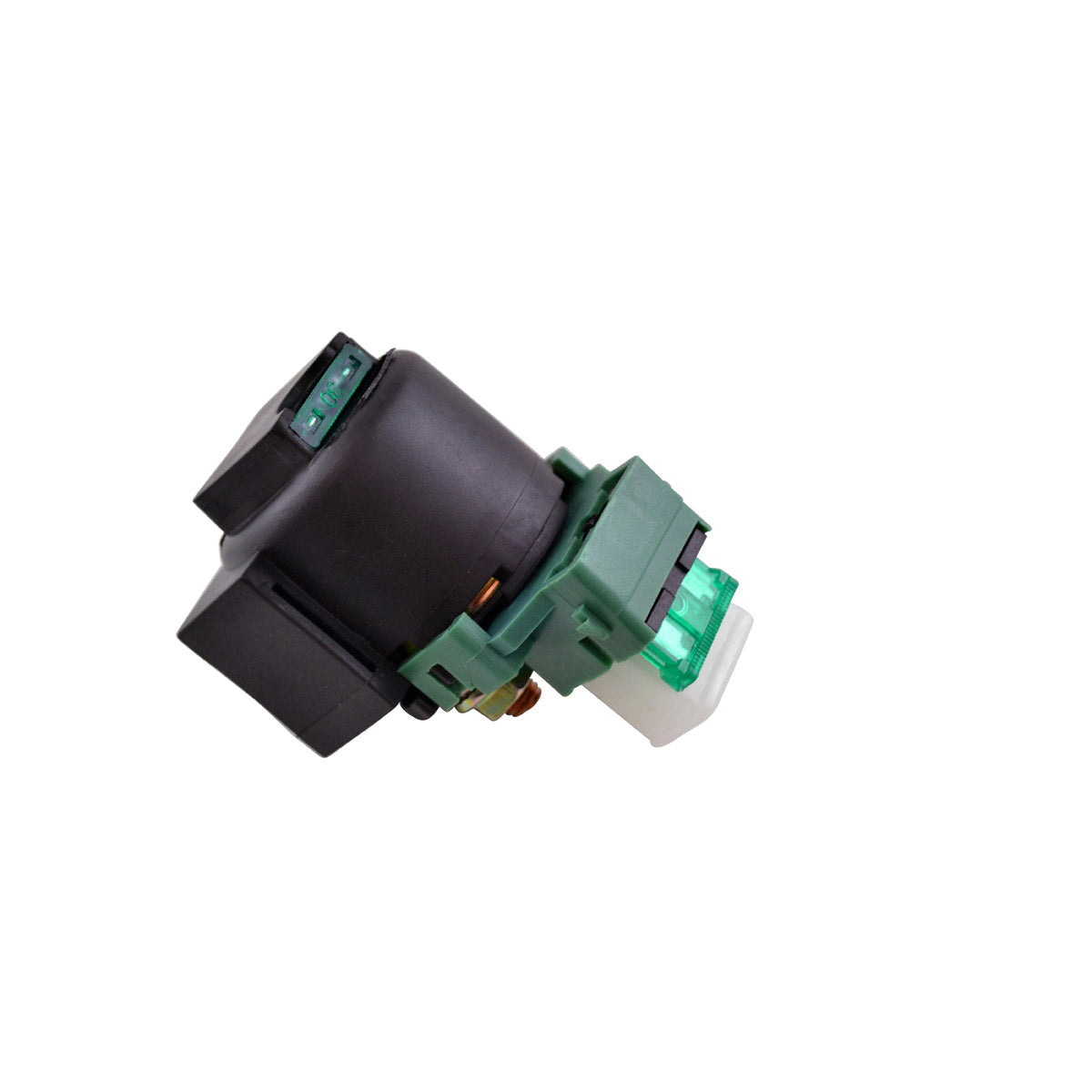

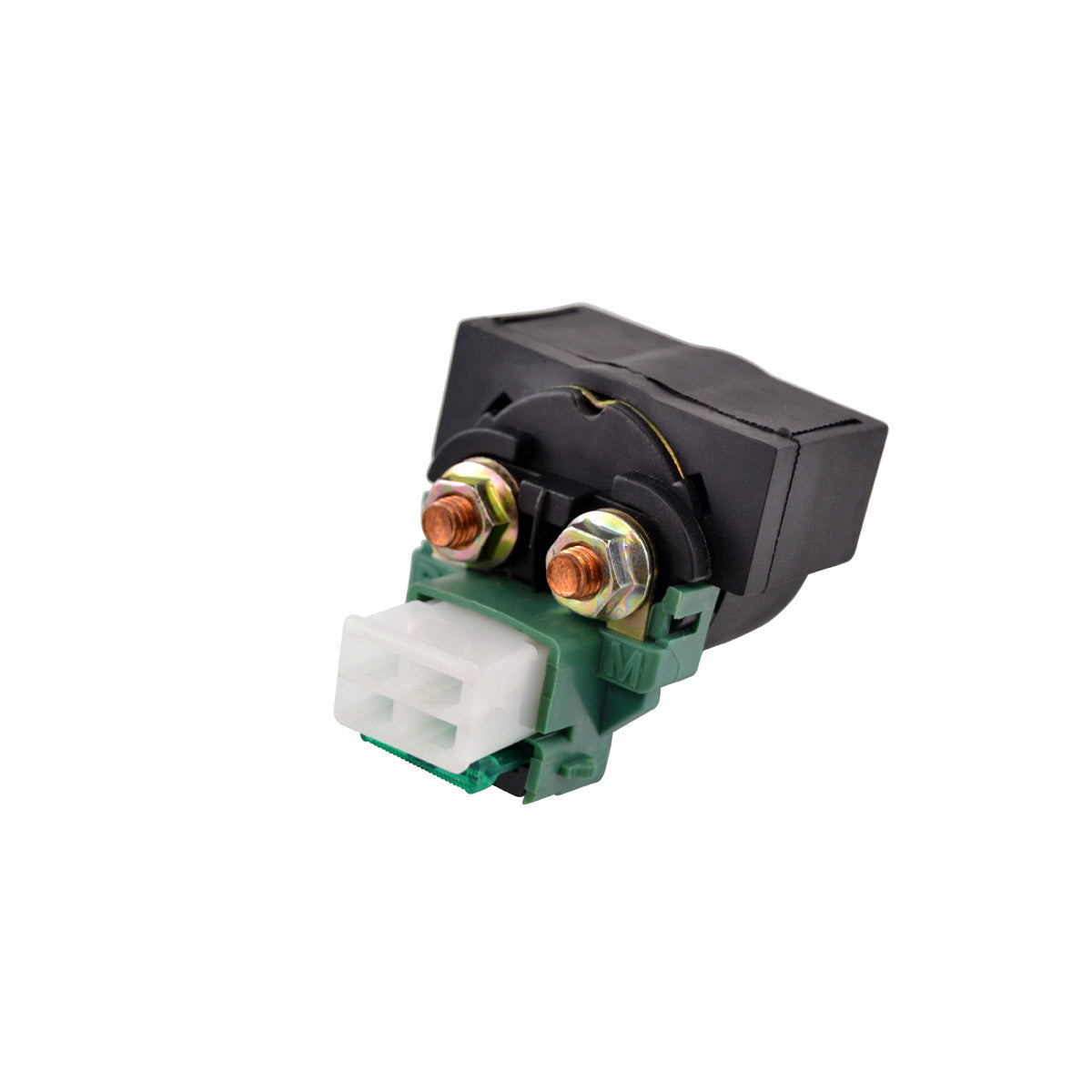

The starter relay solenoid is the heavy duty switch that sits between the battery and the starter motor. The start button carries only a small current to the relay coil; the relay then closes a much larger set of contacts to feed the starter motor directly from the battery. When the contacts burn or the coil fails you get the classic symptoms - a single loud click and no crank, an intermittent start, or a machine that cranks only when the solenoid is tapped. This kit supplies the relay together with the mounting brackets, wiring and fusing needed to complete the job, and complete instructions are sent with the product. All products shipped are tested.
Key Features
- Universal 12 volt starter relay solenoid kit
- Supplied with multiple connectors to suit a wide range of machines

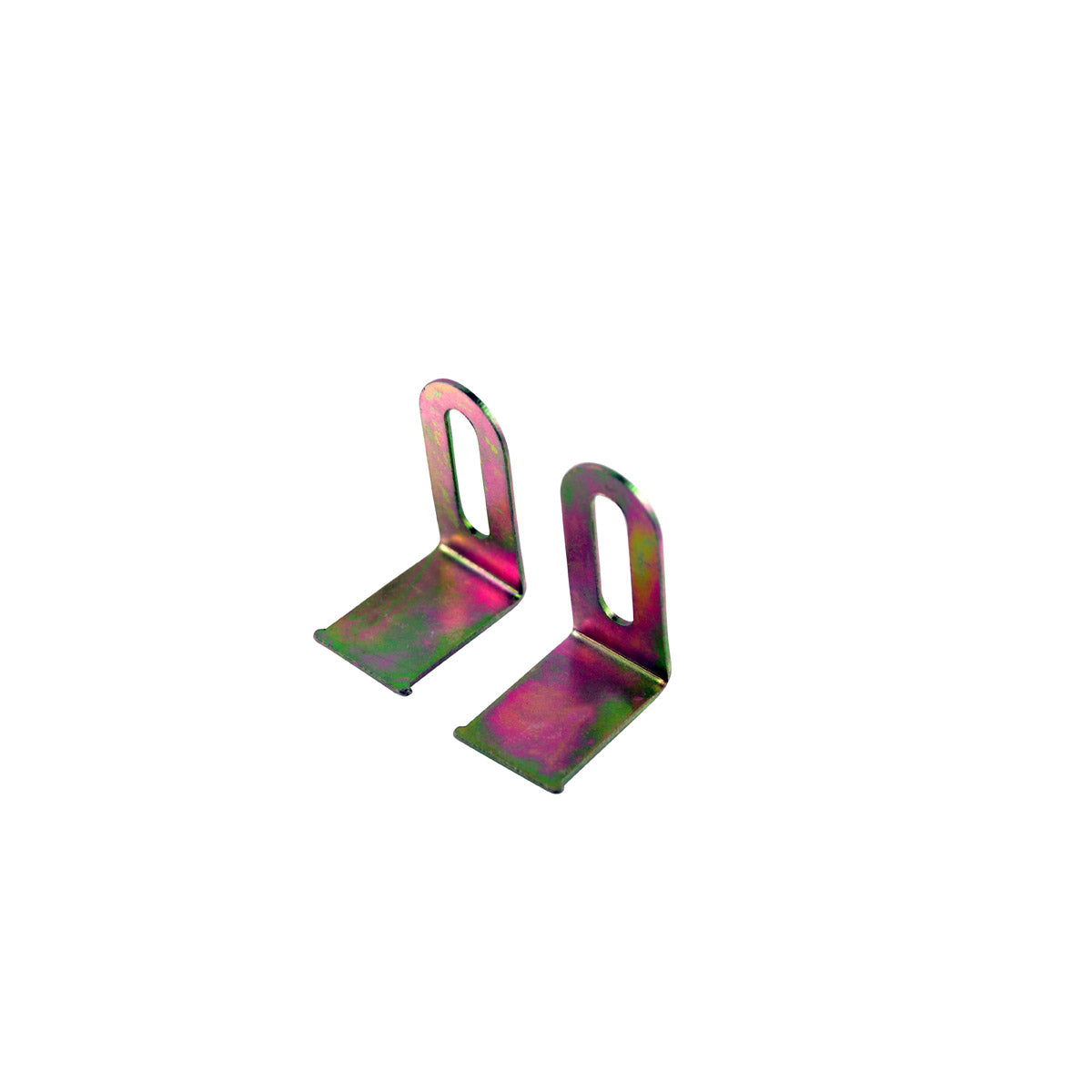

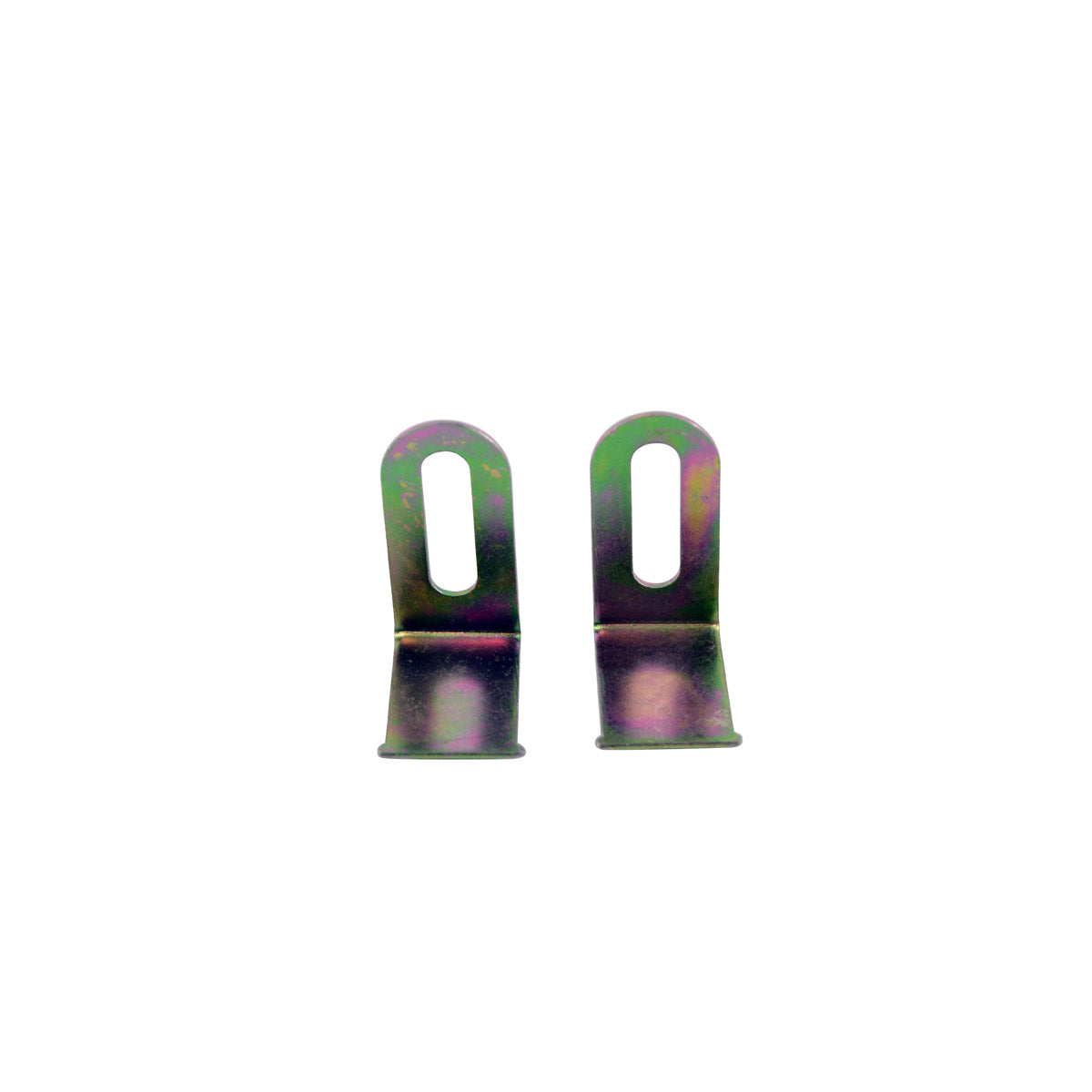

- Two L-brackets included for mounting

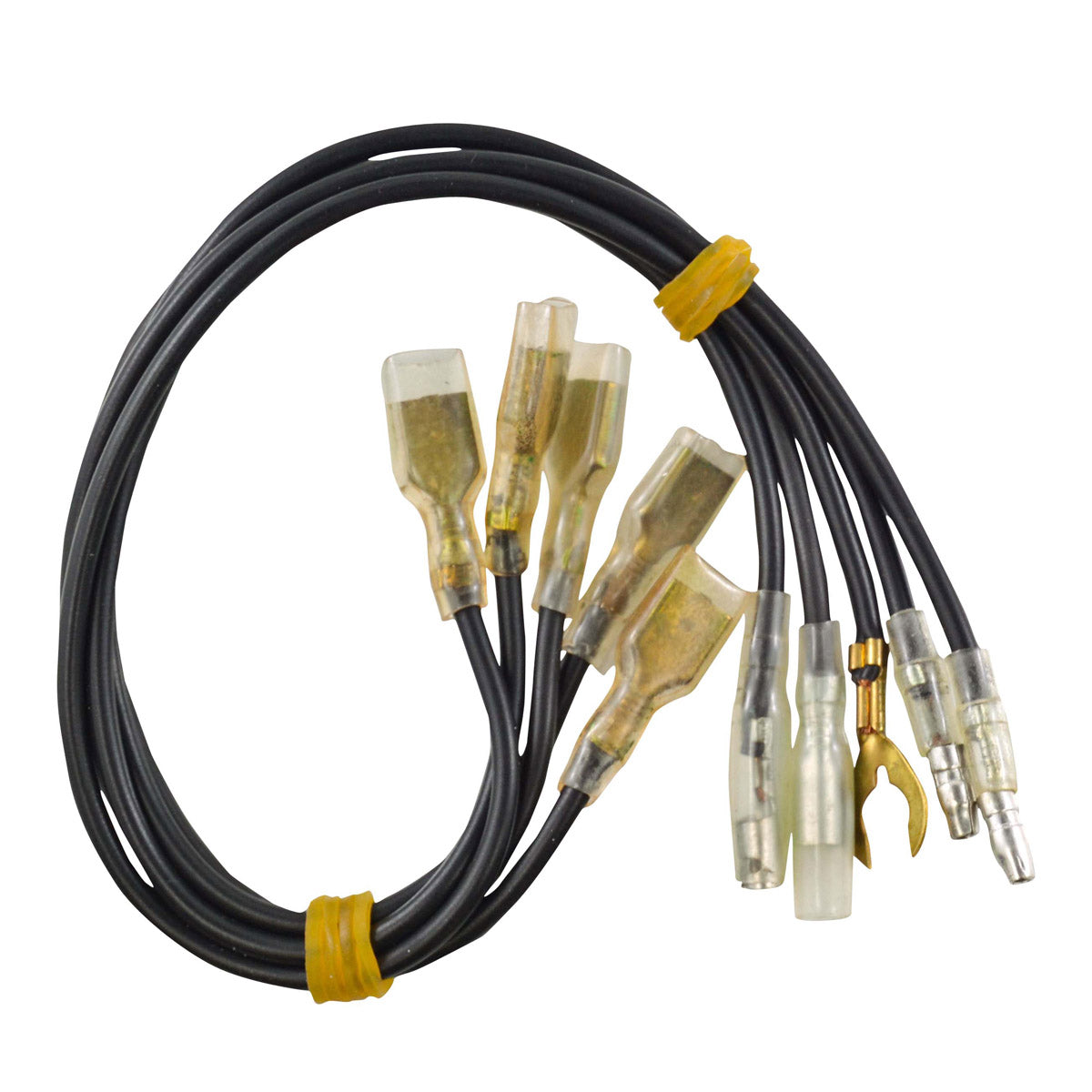

- Five 10 inch wires with connectors included

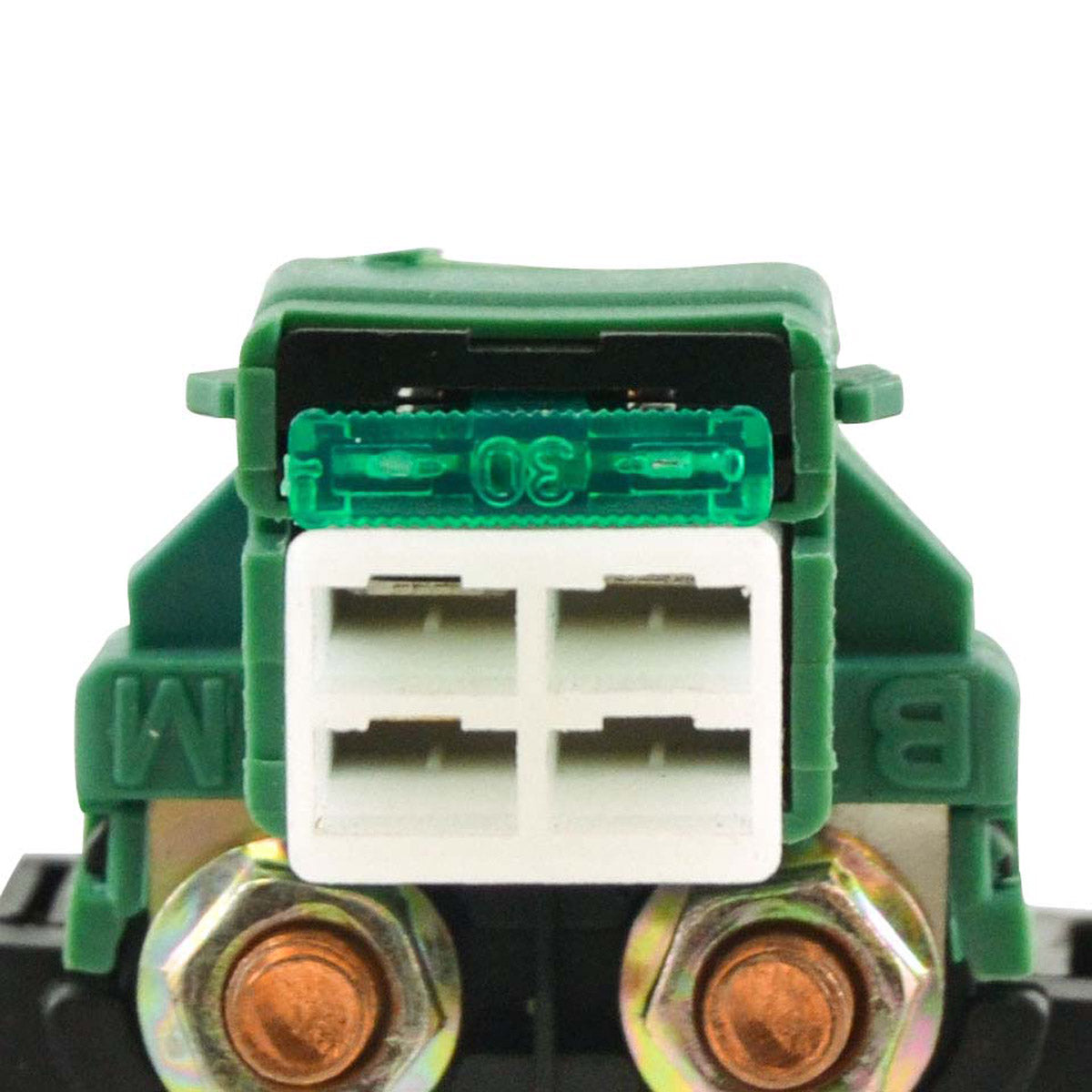

- Two 30 amp fuses included
- Suitable for UTV, ATV, motorcycle and watercraft applications
- Complete instructions sent with the product
- All products shipped are tested
Technical Specs
| Specification |
Detail |
| Part number |
RM09018 |
| Component |
Starter relay solenoid switch |
| Voltage |
12 Volts |
| Fitment type |
Universal |
| Relays supplied |
1 |
| L-brackets supplied |
2 |
| Wires supplied |
5 x 10 in. with connectors |
| Fuses supplied |
2 x 30 AMP |
| Instructions |
Complete instructions sent with the product |
Vehicle Fitment Guide
Universal fitment - this part is not model specific. Check the specifications above against the unit you are replacing.
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 3530-015 |
Brand not stated by the manufacturer |
| 3530-013 |
Brand not stated by the manufacturer |
Frequently Asked Questions
Will this fit my machine without modification?
This is a universal 12 volt kit rather than a model specific plug-and-play part, so some wiring work is normally required. Multiple connectors are supplied so that you can match the relay to your existing loom, and complete instructions are sent with the product. Check the specifications above against the solenoid you are replacing before ordering.
What is included in the box?

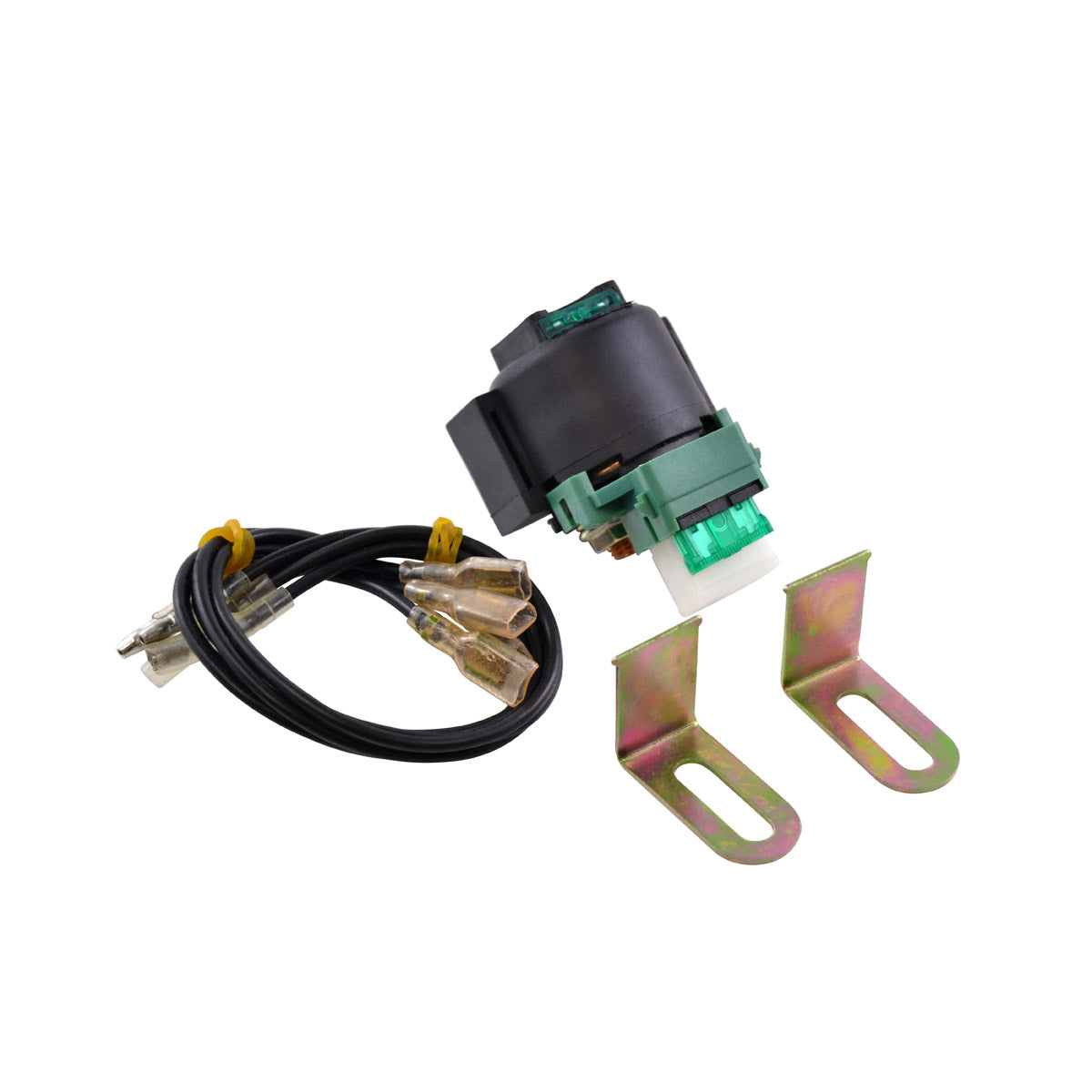

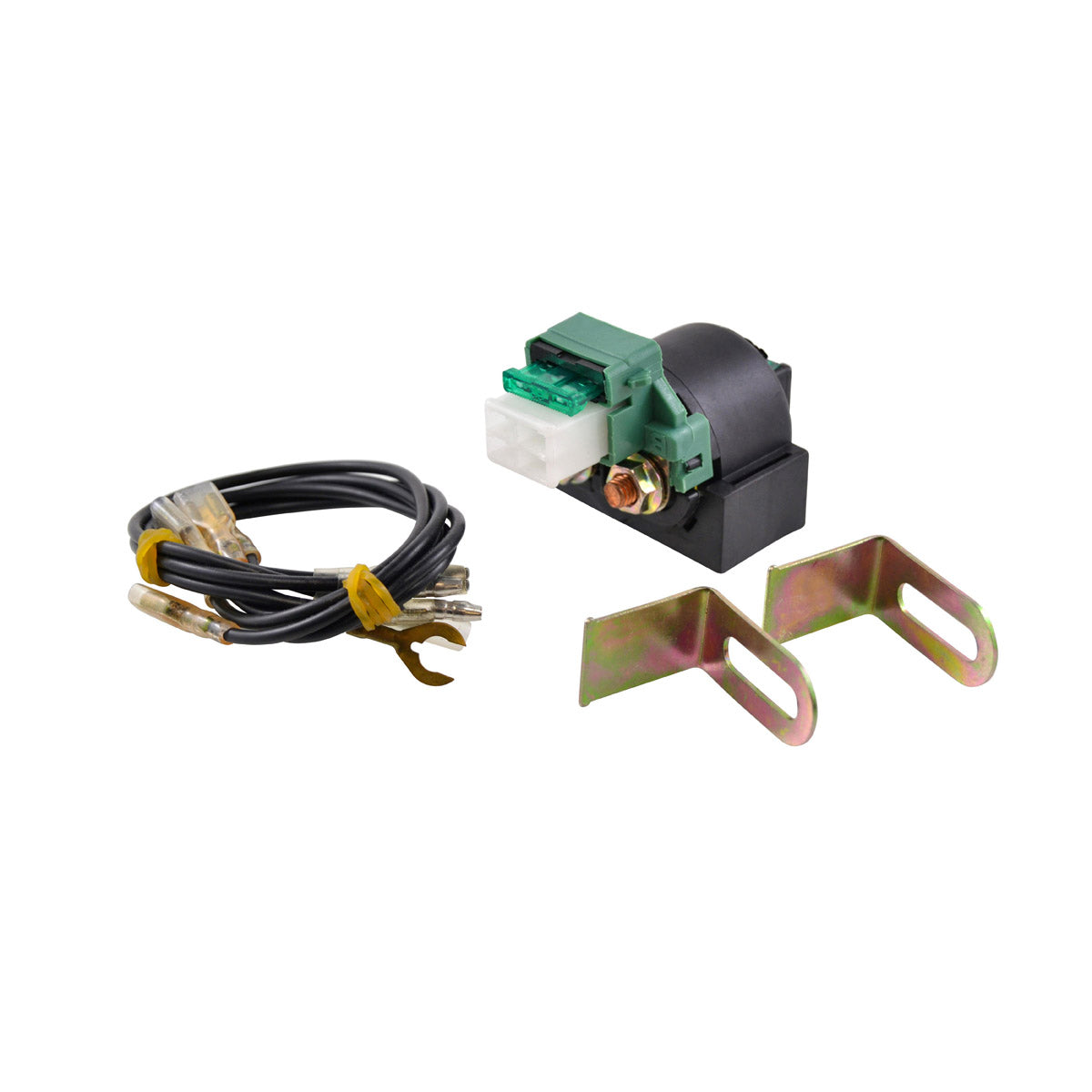

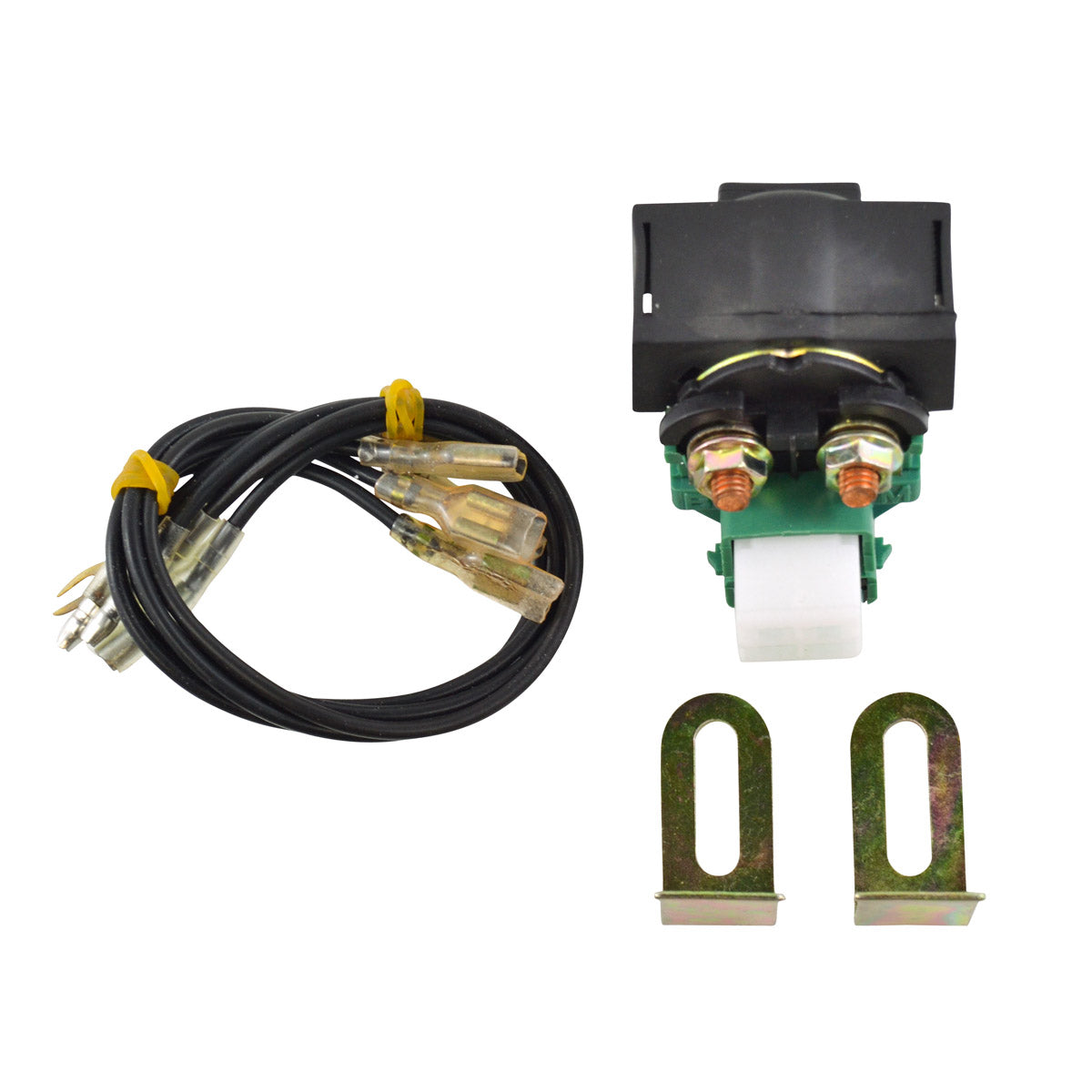

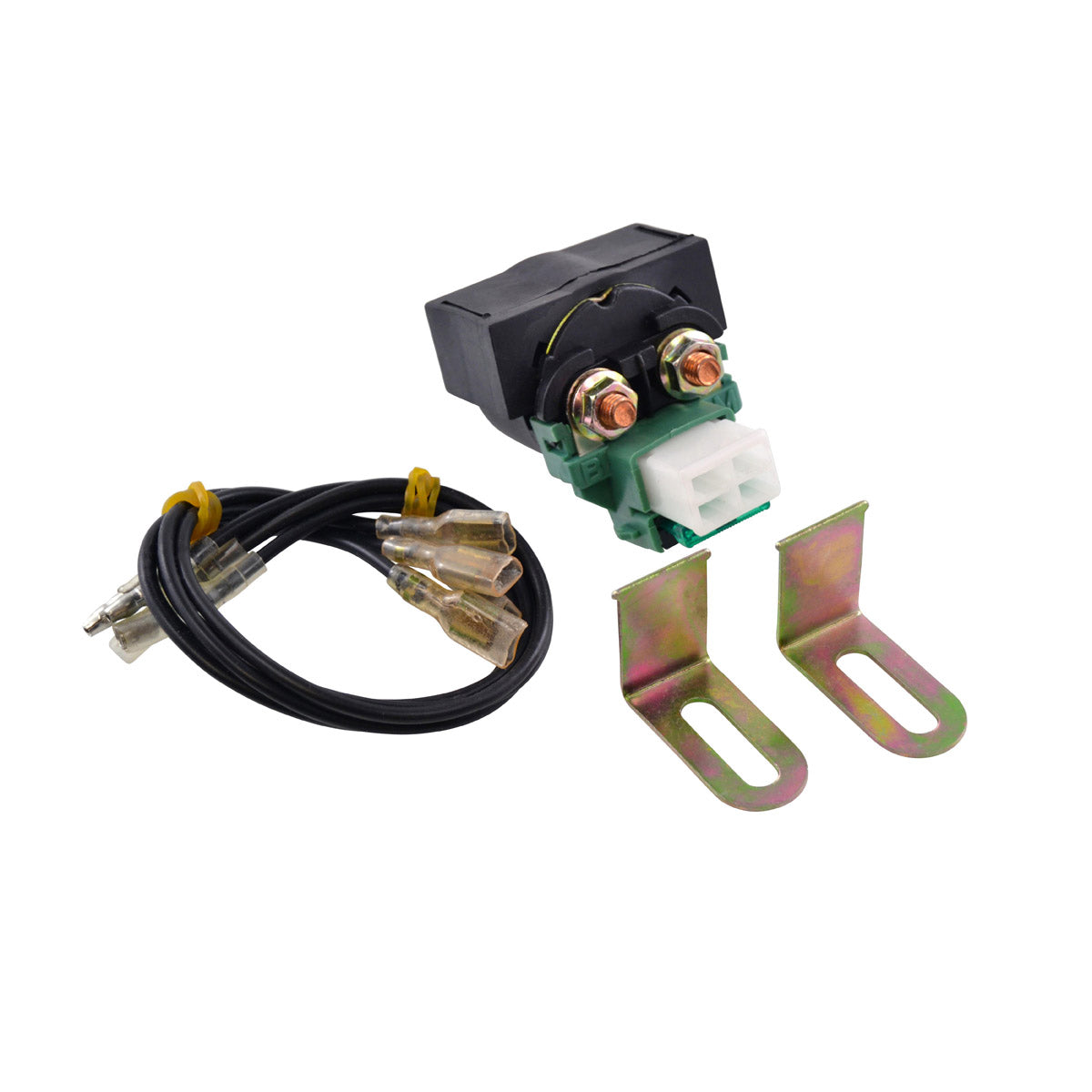

One relay, two L-brackets, five 10 inch wires with connectors and two 30 amp fuses. Complete instructions are sent with the product.
How do I know my old starter relay solenoid has failed?
The usual signs are a single loud click from the relay with no crank, a starter that engages only intermittently, or a machine that will start only when the solenoid is tapped or when the starter is fed directly from the battery. Burnt or pitted contacts and an open relay coil are the common causes. Always confirm the battery is fully charged and the earth connections are clean before condemning the relay.
Why are two 30 amp fuses supplied?
The kit is supplied with two 30 amp fuses so the relay circuit can be fused correctly on installation and a spare is on hand. Use the fusing and wiring set out in the instructions supplied with the product.
