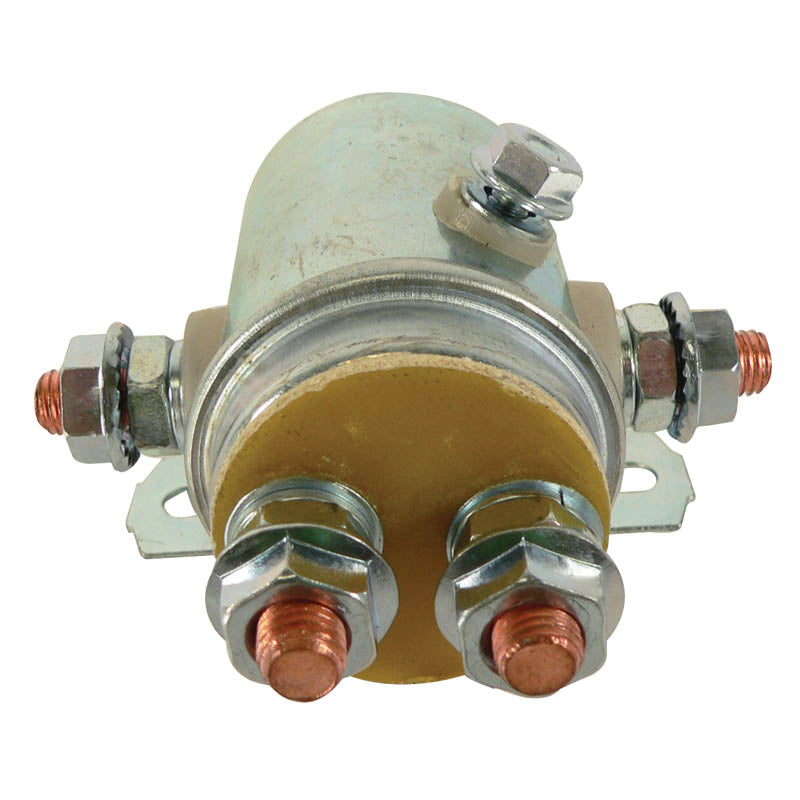

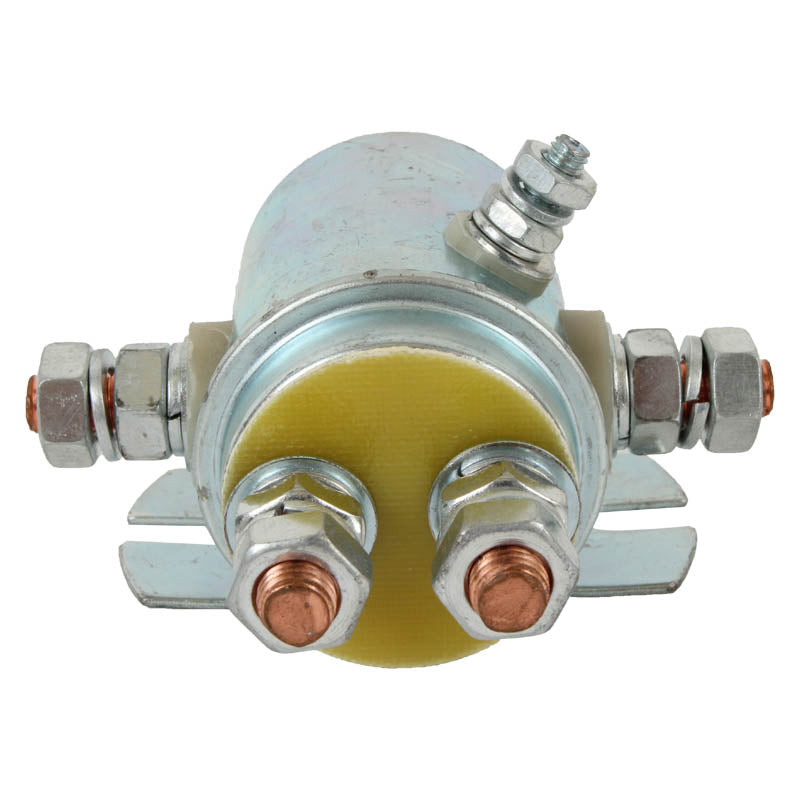

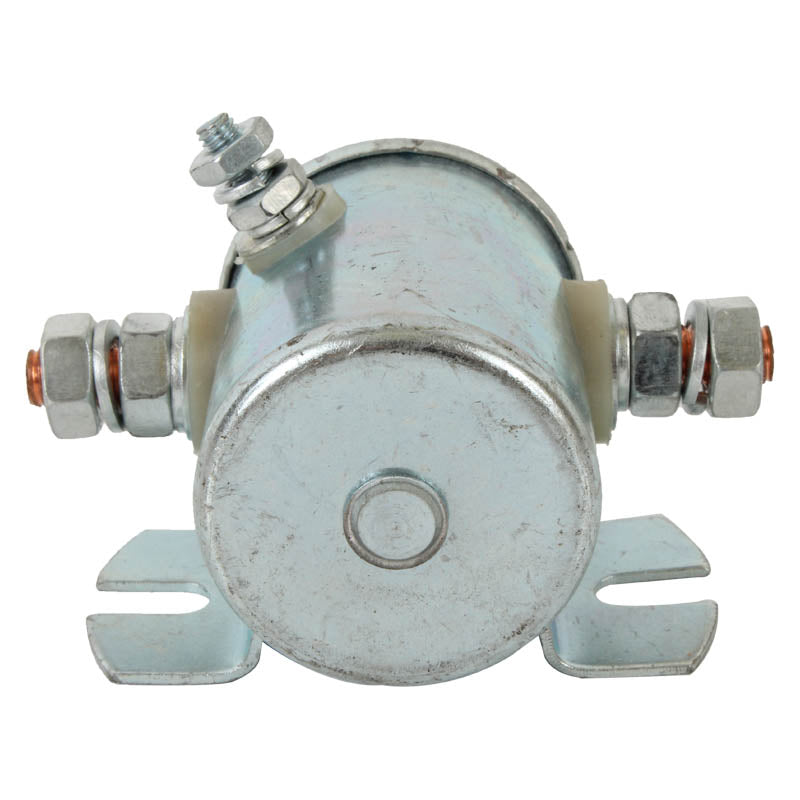

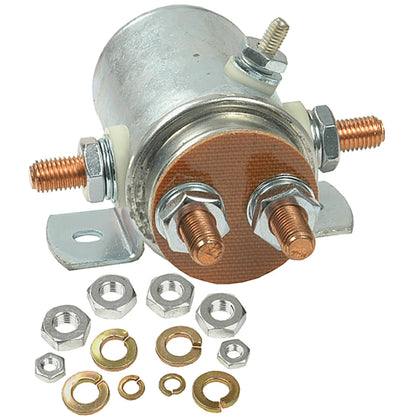

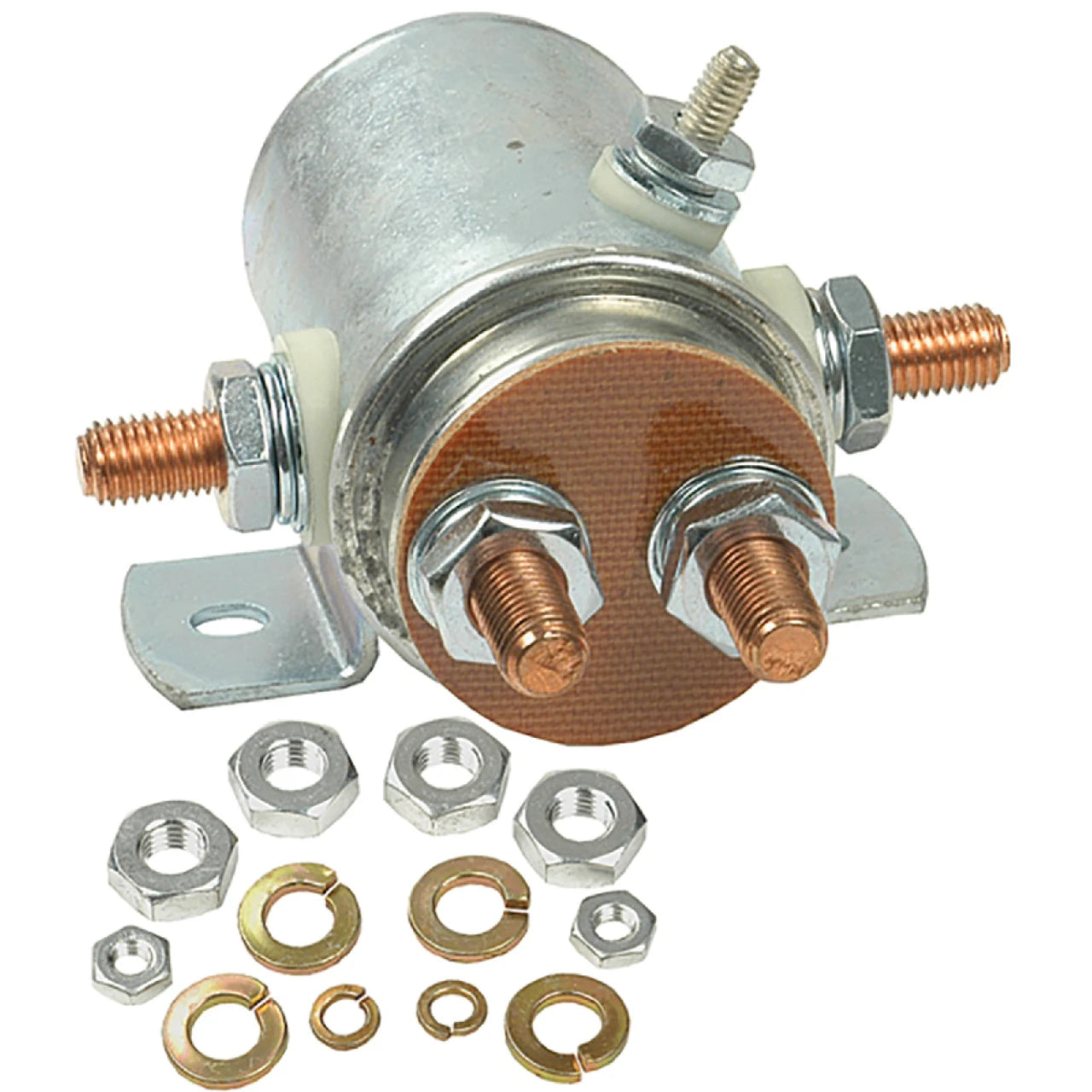

This 12-volt solenoid switch mounts on the winch motor to start and stop the flow of current with precision, built to OEM specifications for a direct, no-modification fit.
It is a genuine cross-reference match for Cole Hersee 24401-01 and Prestolite 15-301 style solenoids widely fitted to Ramsey Winch motors and equivalent 12-volt winch systems.
Key Features
- 12-Volt operation
- Direct OEM-style fit and function
- Cross-references Cole Hersee, Prestolite, Lester and Arrowhead part numbers
- Rated for Ramsey Winch motor applications
- 12-month warranty as standard
Technical Specs
| Specification |
Detail |
| Voltage |
12V |
| Type |
Winch Motor Solenoid Switch |
Vehicle Fitment Guide
Universal fitment - this part is not model specific. Check the specifications above against the unit you are replacing.
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 24401-01 |
Cole Hersee |
| 24401-01BX |
Cole Hersee |
| 67-740 |
Lester |
| 15-301 |
Prestolite |
| 15-338 |
Prestolite |
| 15-341 |
Prestolite |
| SBD4201 / SBD4201D / SBD4201E / SBD4202D |
Prestolite |
| 440003 |
Ramsey Winch |
| 440110 |
Ramsey Winch |
| CH24401-01 |
Arrowhead |
| PL15-301 |
Arrowhead |
| PL15-341 |
Arrowhead |
| SPL6028 |
Arrowhead |
Frequently Asked Questions
Will this fit without modification?
Yes, it is built to OEM specifications and is a direct cross-reference replacement for the part numbers listed above - no modification is required.
What's included?
One 12-volt winch motor solenoid switch, ready to fit.
How do I know my old solenoid has failed?
Common signs are a winch motor that will not engage, a single audible click with no movement, or the winch running in only one direction.
Is this suitable for Ramsey Winch motors?
Yes, it directly cross-references genuine Ramsey Winch part numbers 440003 and 440110.
