Yamaha 12V Trim Tilt Motor 430-22090 for 40-100hp Outboards 1995-2003
Yamaha 12V Trim Tilt Motor 430-22090 for 40-100hp Outboards 1995-2003
SKU:430-22090
Free shipping over £150. Terms apply
Couldn't load pickup availability
Yamaha 12V Trim Tilt Motor 430-22090 for 40-100hp Outboards 1995-2003
12V

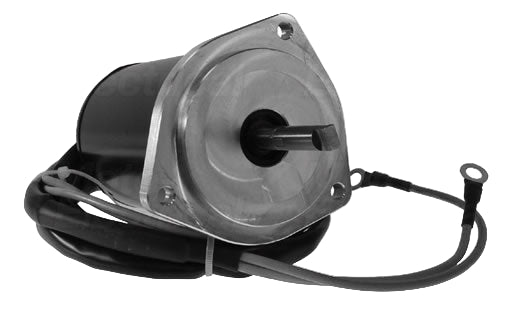

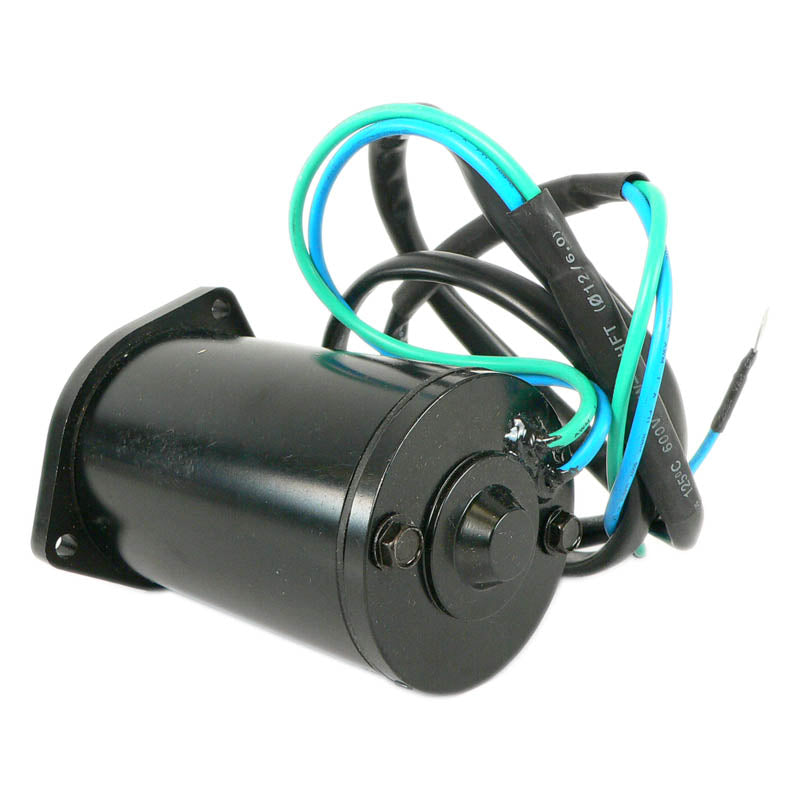

Yamaha 12V Trim Tilt Motor 430-22090 for 40-100hp Outboards 1995-2003 - a new aftermarket power trim / tilt motor in 12V specification, supplied ready to fit.
Power trim and tilt motors work in the worst place on a boat - low, wet and salty - so they are a common failure point on outboards and sterndrives.
Key Features
- 100% new aftermarket unit - not a remanufactured core
- Direct-fit replacement, no modification required on listed applications
- Specification: 12V
- Built to meet or exceed the original equipment specification
- Dispatched from the UK with technical fitment support
Technical Specs
| Specification | Detail |
|---|---|
| SKU / Part Code | 430-22090 |
| Component | Power Trim / Tilt Motor |
| Voltage | 12 Volts |
| Condition | New aftermarket |
| Warranty | 12 months |
Vehicle Fitment Guide
| Model | Years |
|---|---|
| Part code: 430-2 | 2090 |
| Compatibility: Yamaha Various Models | 1995-2003 |
Frequently Asked Questions
How do I know the motor is at fault and not the pump or relay?
Listen at the helm: if the relay clicks but nothing moves, check for voltage at the motor. Voltage present with no movement means the motor has failed; no voltage points to the relay, fuse or switch.
Is the reservoir or pump included?
No - this is the electric motor only unless stated otherwise. Transfer your existing pump and reservoir.
Will it handle salt water?
It is built to the original marine specification with sealed housings, but rinse the transom area with fresh water after use to get the full service life.
Are the O-rings included?
Check the images and specification table - seals are included where the original was supplied with them.
